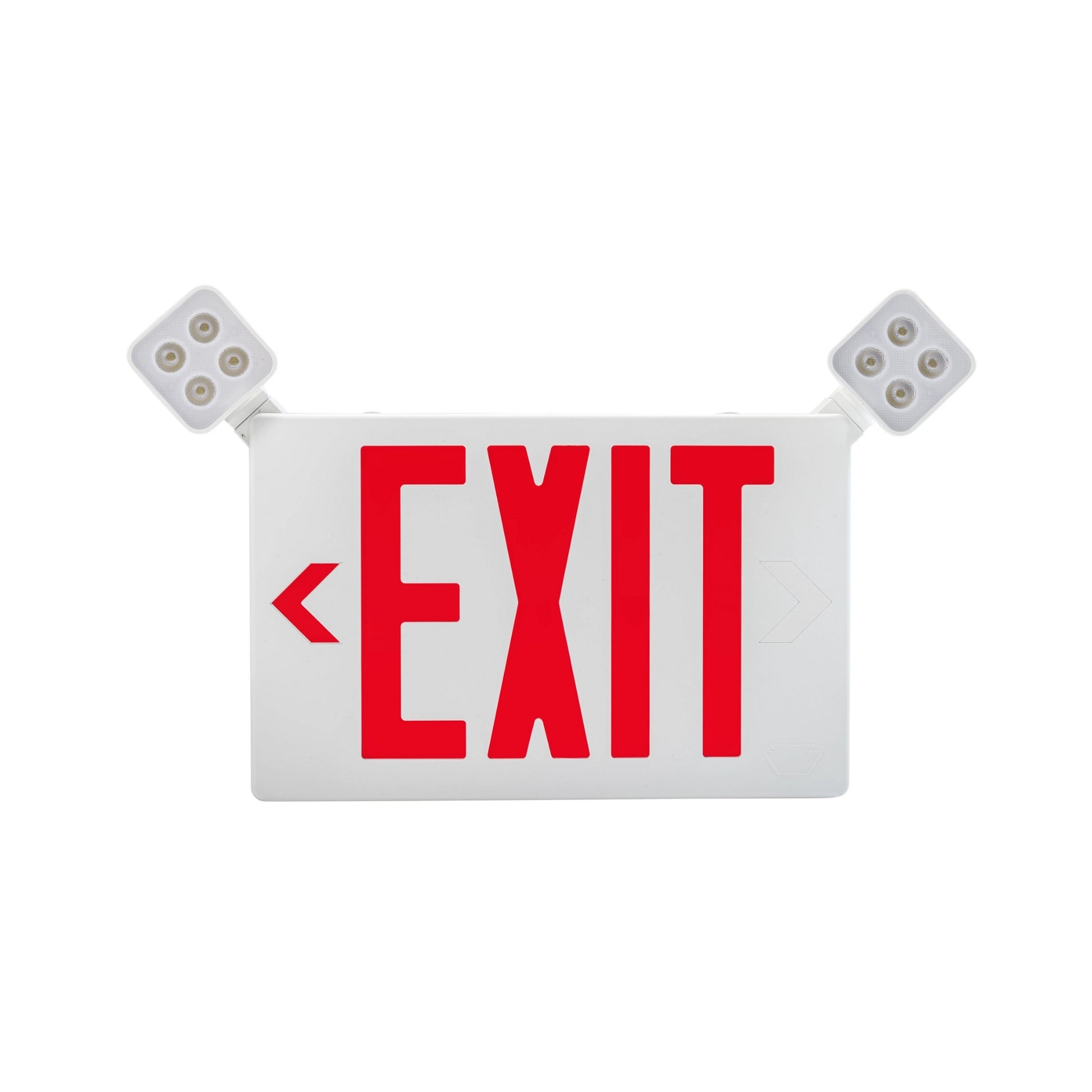

Keystone LED Combo Exit Sign, Switchable Red/Green Letters, White, Single/Double Face, 160 Lumens, 90-Min Battery Backup, 120-277V (KT-EC-TP2-WH3RGW-SU)
Keystone LED Combo Exit Sign, Switchable Red/Green Letters, White, Single/Double Face, 160 Lumens, 90-Min Battery Backup, 120-277V (KT-EC-TP2-WH3RGW-SU)
Available in stock (100)
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Switchable Red/Green Lettering: Field-adjustable LED color selection via switchable button
- 2-in-1 Combo Design: Exit sign plus 160 lumens dual emergency light heads with 6500K white light
- 90+ Min Battery Backup: UL924 listed, Nickel-Cadmium 1000mAh battery meets NEC/IBC requirements
- Single/Double Facing: Configurable with removable chevrons and faceplates, back/side/top mounting
- Thermoplastic Housing: Durable 12.84" x 10.06" x 1.77" white housing, 2W consumption, Title 20 compliant, Keystone quality with 5-year warranty
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
Keystone KT-EC-TP2-WH3RGW-SU LED Combo Exit Sign - Switchable Red/Green Lettering
The Keystone KT-EC-TP2-WH3RGW-SU is a Keystone Technologies LED combo exit sign with integrated emergency lighting designed for code-compliant emergency egress marking and illumination. This versatile 2-in-1 solution features switchable red and green LED exit lettering with single or double facing configurations plus dual adjustable emergency light heads delivering 160 lumens of 6500K white light, 90+ minute battery backup, and universal 120-277V voltage. The thermoplastic housing with white finish and UL 94 5VA flame rating provides durability while the energy-efficient LED technology ensures reliable emergency illumination for commercial buildings, multi-family residential, and institutional facilities requiring UL924-listed exit signage with emergency lighting.
Keystone KT-EC-TP2-WH3RGW-SU Features

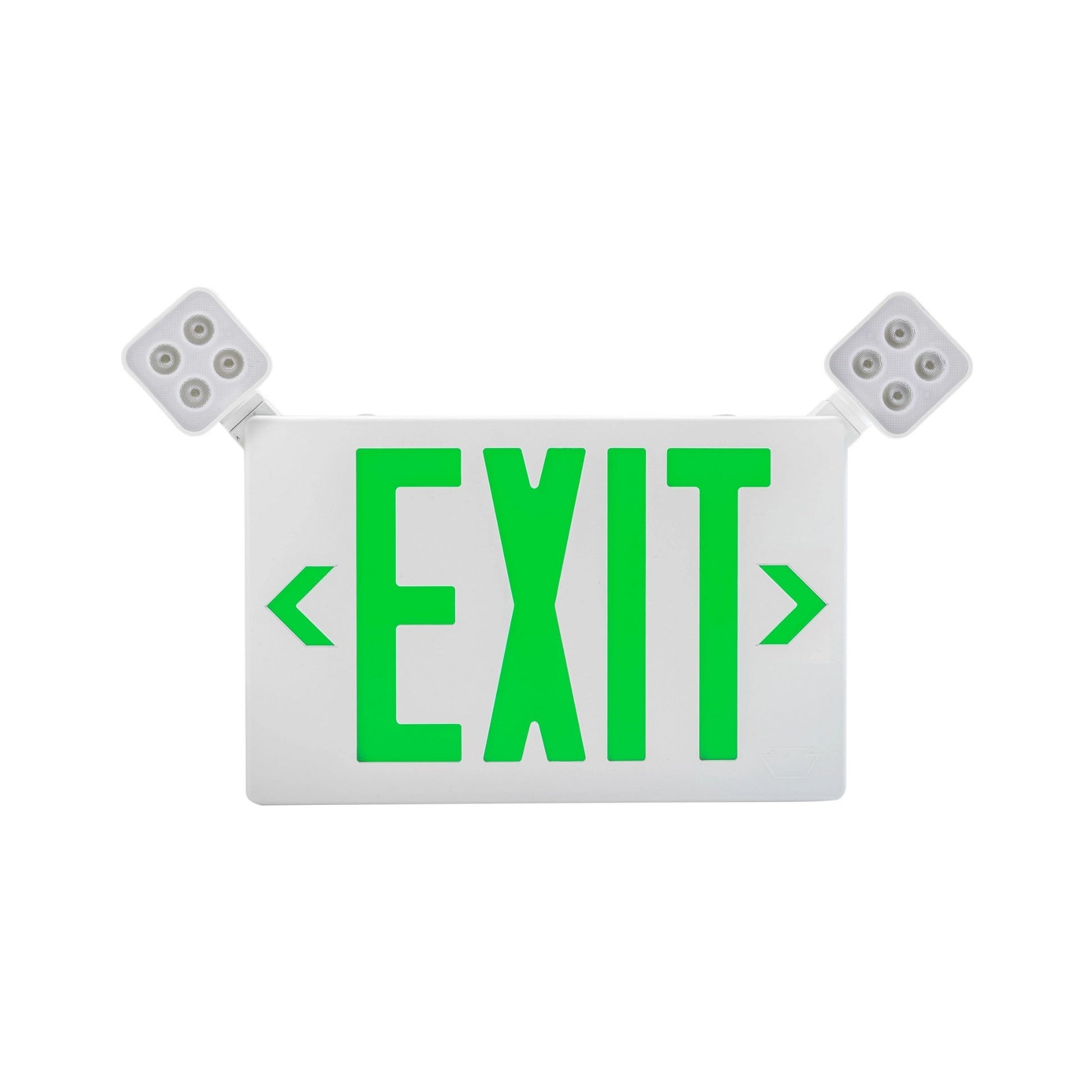

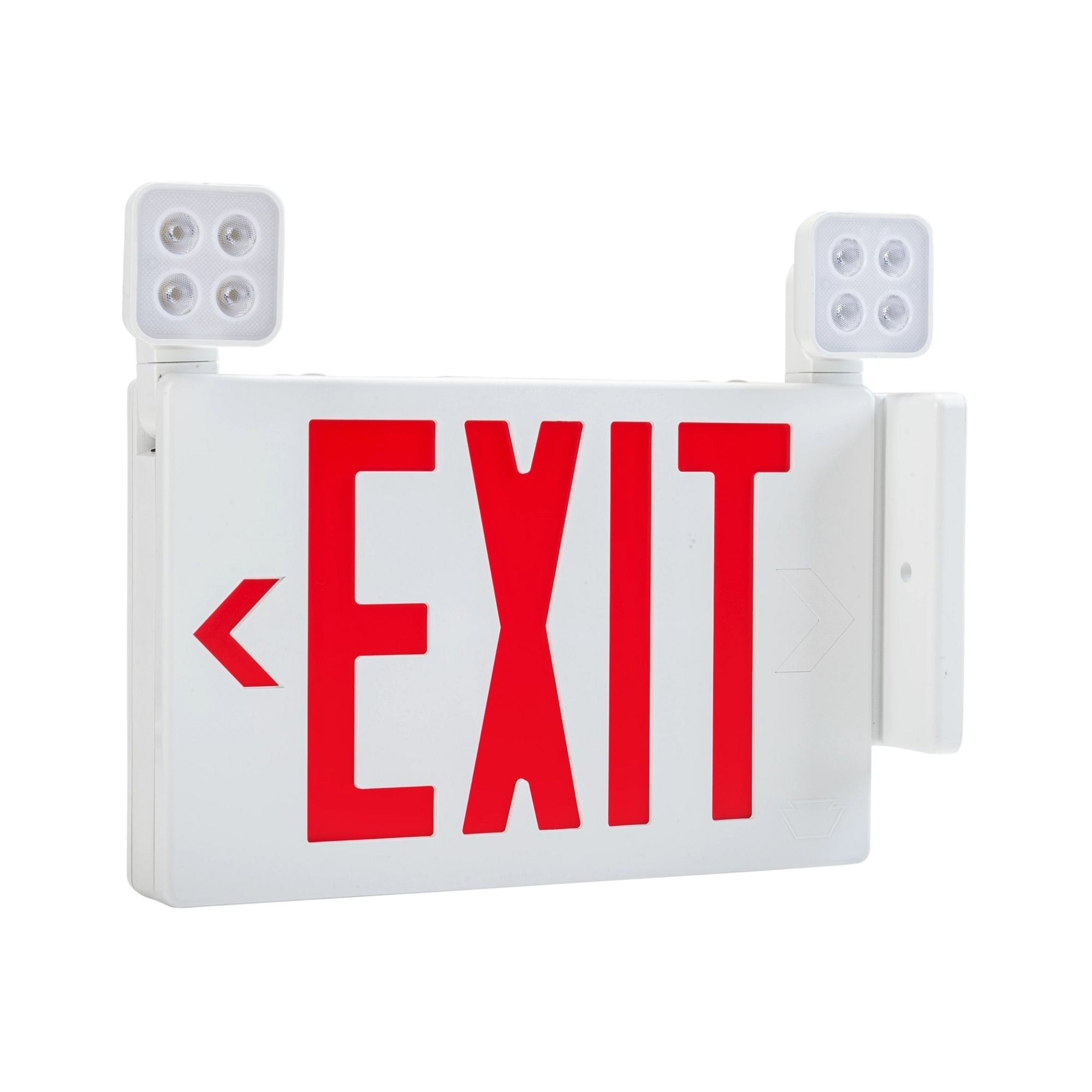

- Switchable Red & Green LED Lettering: Field-adjustable color selection via switchable button for maximum flexibility
- Dual Emergency Light Heads: Two adjustable heads provide 160 lumens of 6500K white light supplemental emergency illumination

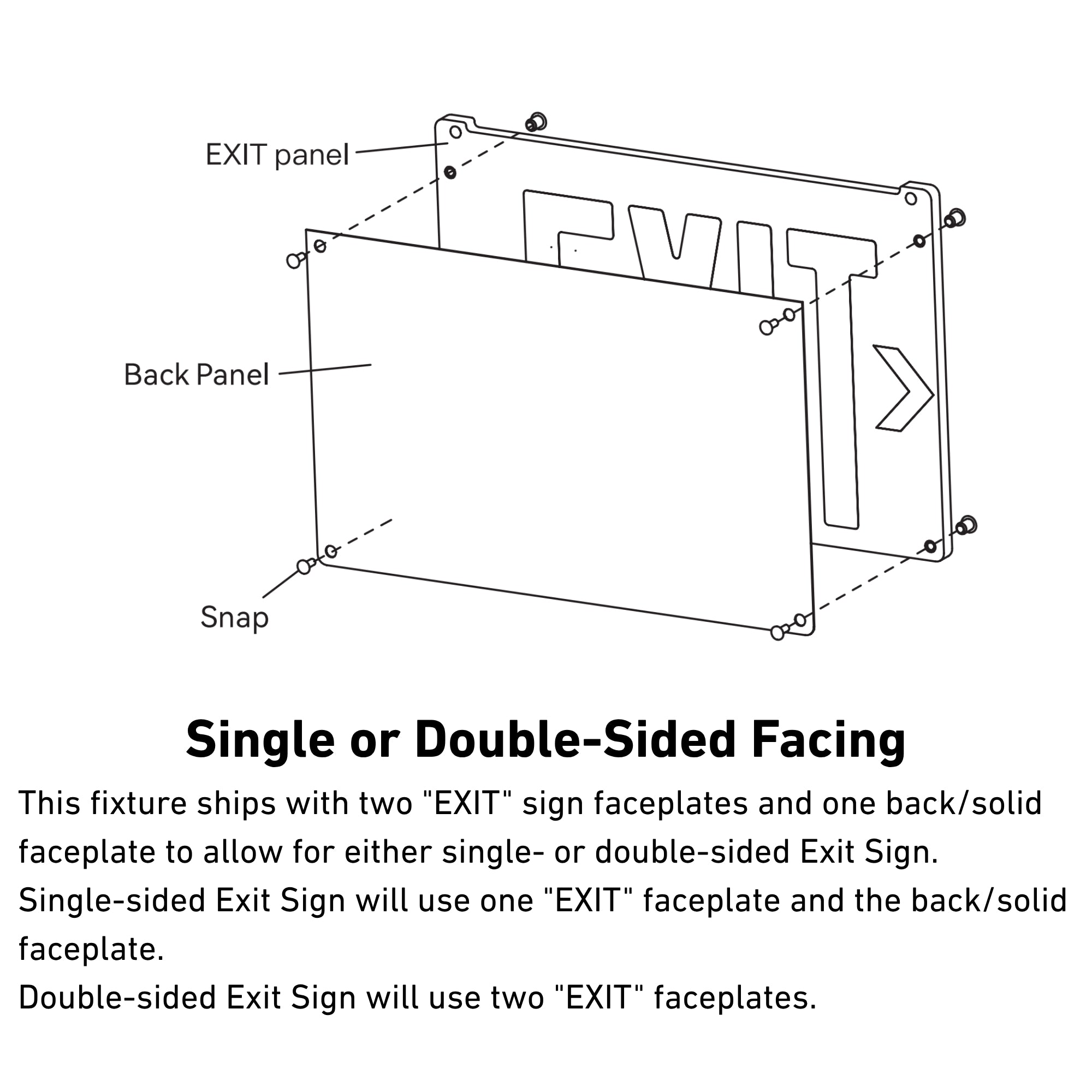

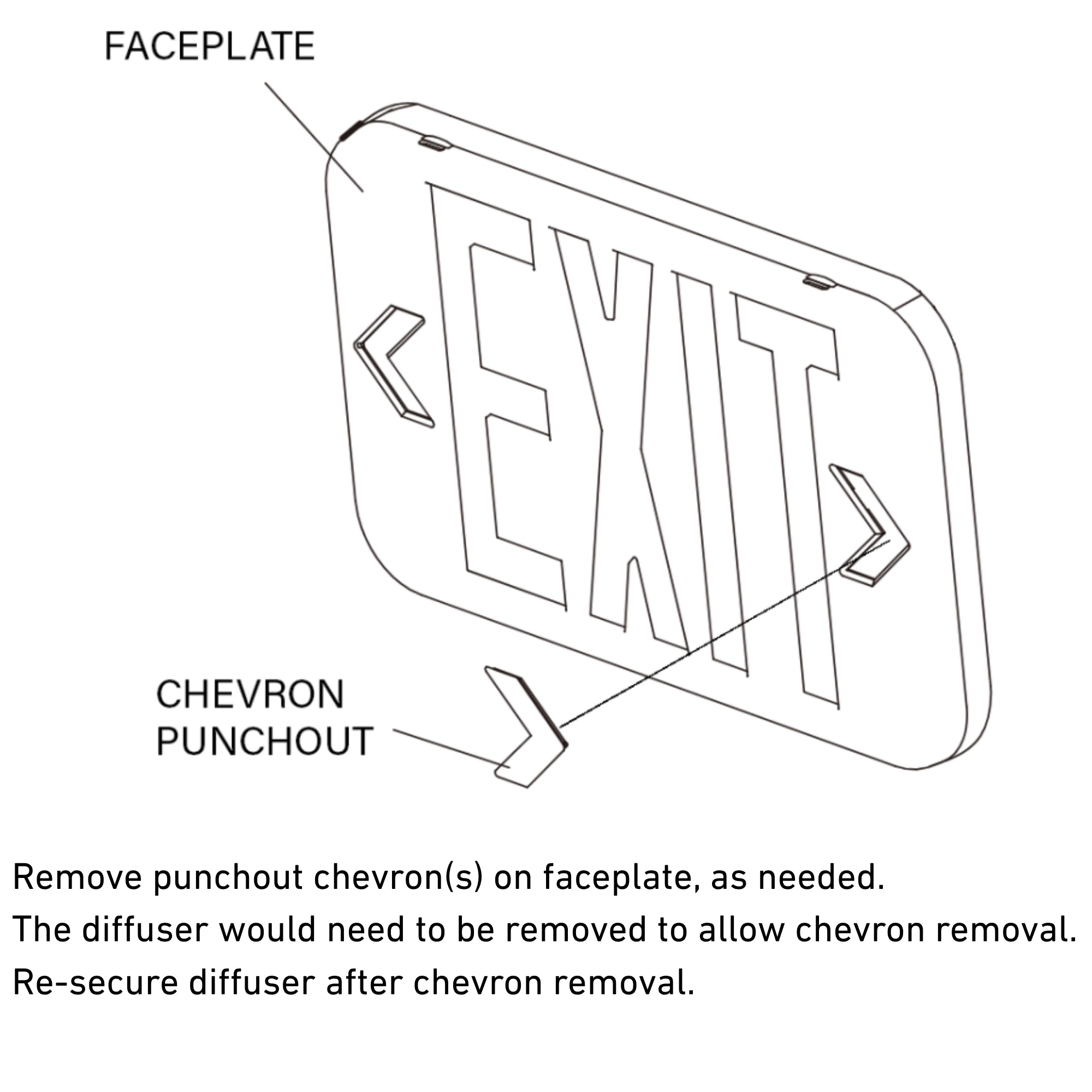

- Single or Double Facing: Configurable for wall mount (single face) or ceiling mount (double face) with removable chevrons and faceplates
- 90+ Minute Battery Backup: Meets NEC and IBC emergency duration requirements with Nickel-Cadmium 1000mAh battery
- Thermoplastic Housing: Durable white housing (12.84" W x 10.06" H x 1.77" D) with UL 94 5VA flame rating
- Universal Voltage: 120-277V AC operation for flexible installation in commercial applications

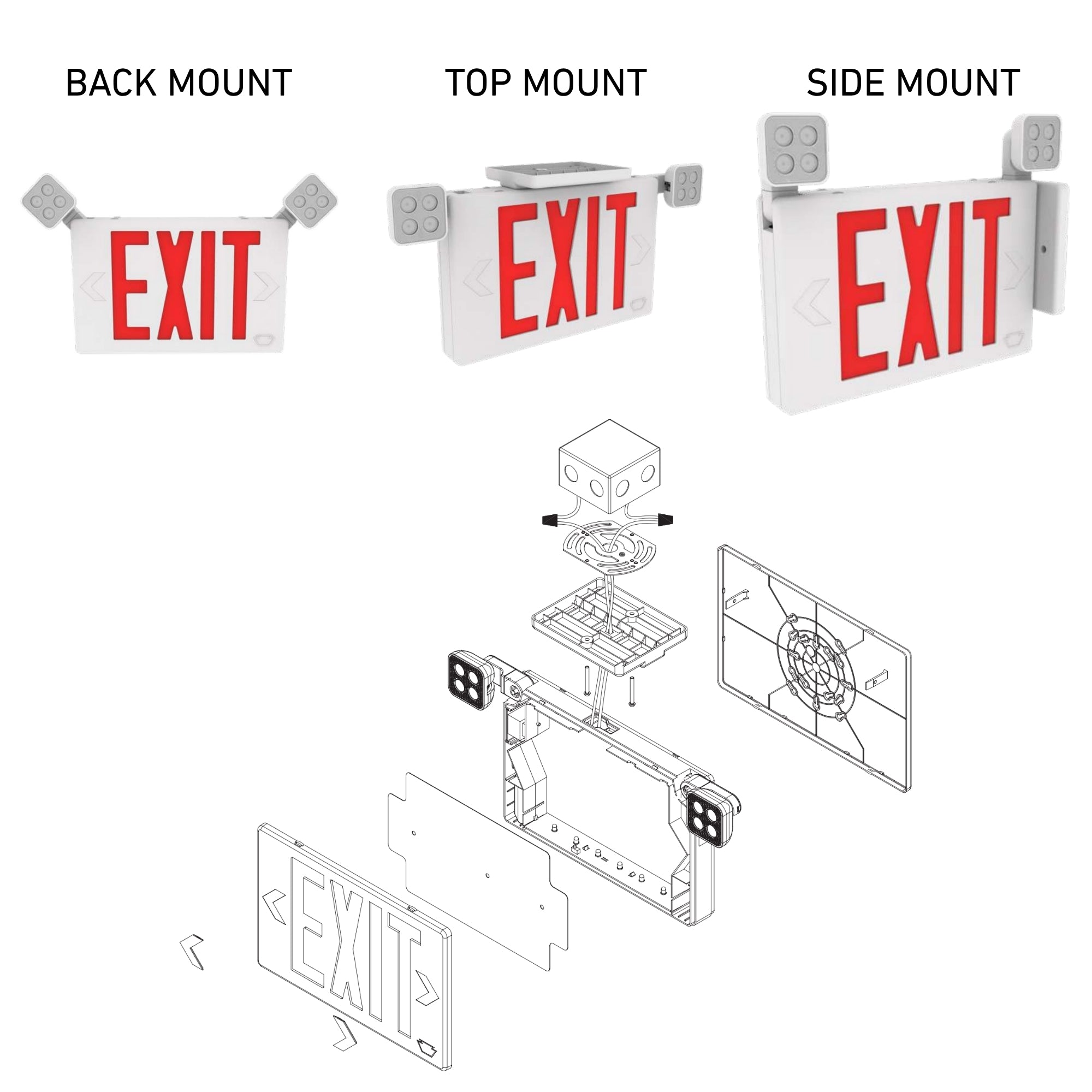

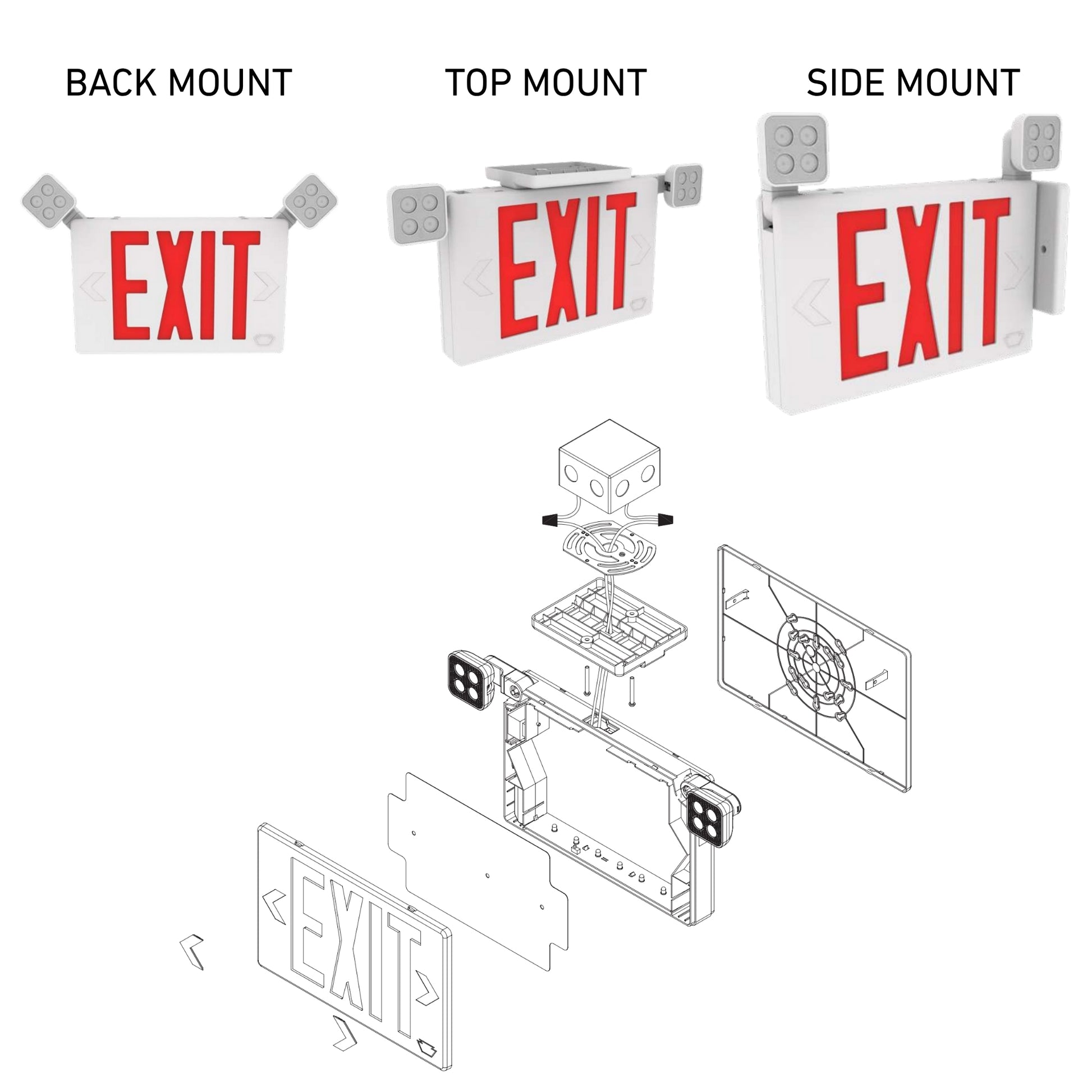

- Adjustable Mounting: Surface mount with back, side, or top mounting options
- Integrated Test Switch: Built-in test switch and charge indicator for easy code compliance verification
- UL924 Listed: Certified for emergency exit sign and emergency lighting applications
Keystone KT-EC-TP2-WH3RGW-SU Specifications
- Brand: Keystone Technologies
- Model Number: KT-EC-TP2-WH3RGW-SU
- UPC: 843654165240
- Product Type: LED Combo Exit Sign with Emergency Light
- Exit Sign: Switchable red or green LED lettering, single or double facing
- Emergency Light Heads: 2 adjustable heads
- Light Output: 160 lumens (6500K white light, emergency heads)
- Housing: Thermoplastic (UL 94 5VA flame rating), white

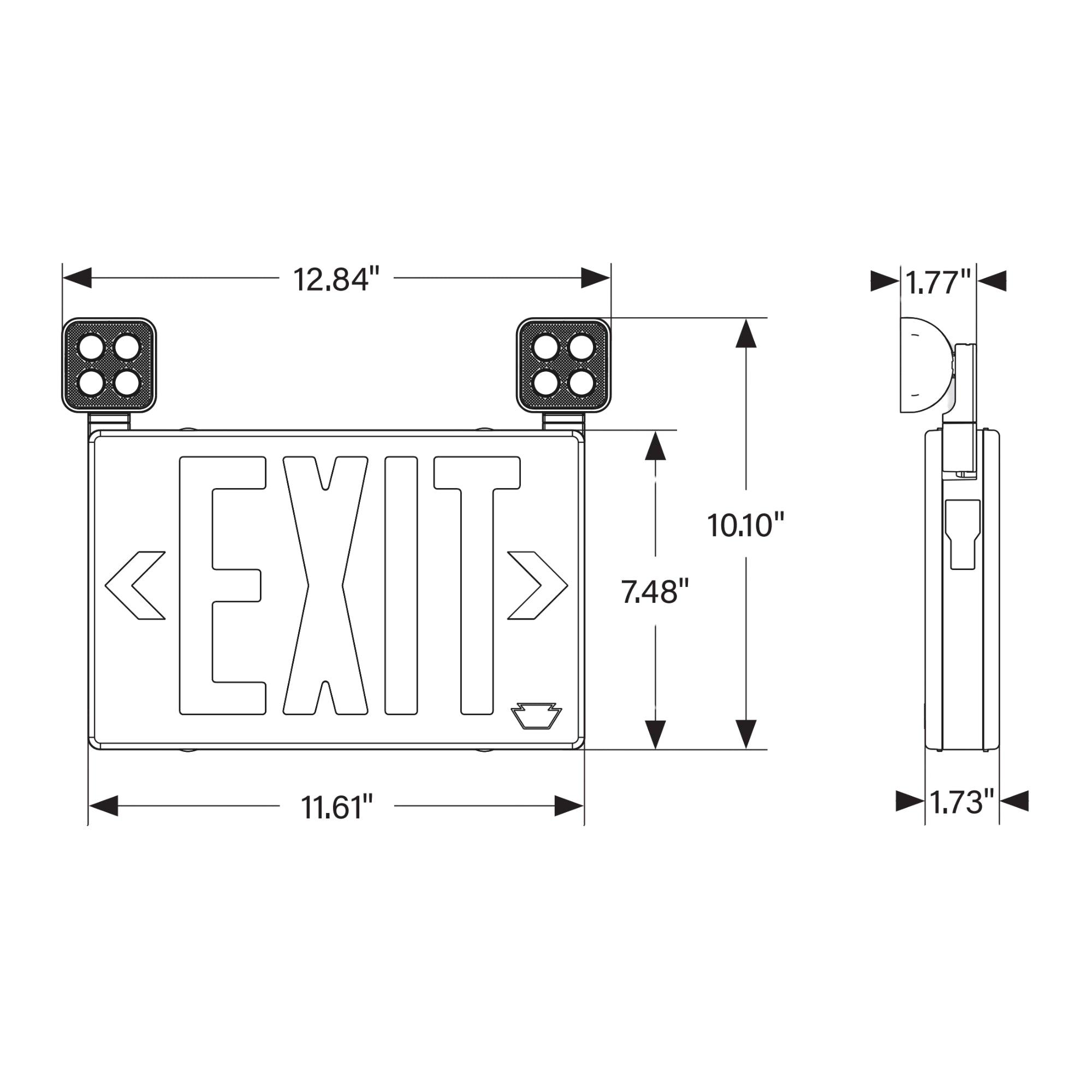

- Dimensions: 12.84" W x 10.06" H x 1.77" D
- Weight: 2.4 lbs
- Battery: Nickel-Cadmium 1000mAh
- Battery Backup Time: 90+ minutes
- Recharge Time: 24 hours
- Input Voltage: 120-277V AC, 50/60Hz
- Input Power: 2W
- Color Temperature: 6500K (emergency heads)
- Mounting: Surface mount - back, side, or top
- Operating Temperature: 0°C/32°F to 40°C/104°F
- Certifications: cULus, UL924 Listed, Title 20 compliant, damp location rated, RoHS compliant
- Warranty: 5 Years
Keystone KT-EC-TP2-WH3RGW-SU Applications
- Commercial office buildings and corridors
- Retail stores and shopping centers
- Educational and healthcare facilities
- Hospitality and multi-family residential
- Industrial facilities, stairwells, and exit pathways
Installation & Operation
Surface mounts with back, side, or top mounting configurations. Connect to 120-277V AC power and select red or green LED color using the switchable button. Configure for single or double facing based on mounting location using removable chevrons and faceplates. Adjust dual emergency light heads for optimal coverage. Unit automatically charges battery. During power loss, battery backup activates for 90+ minutes of emergency illumination for both exit sign and emergency lights.
Switchable Red/Green Lettering & 2-in-1 Design

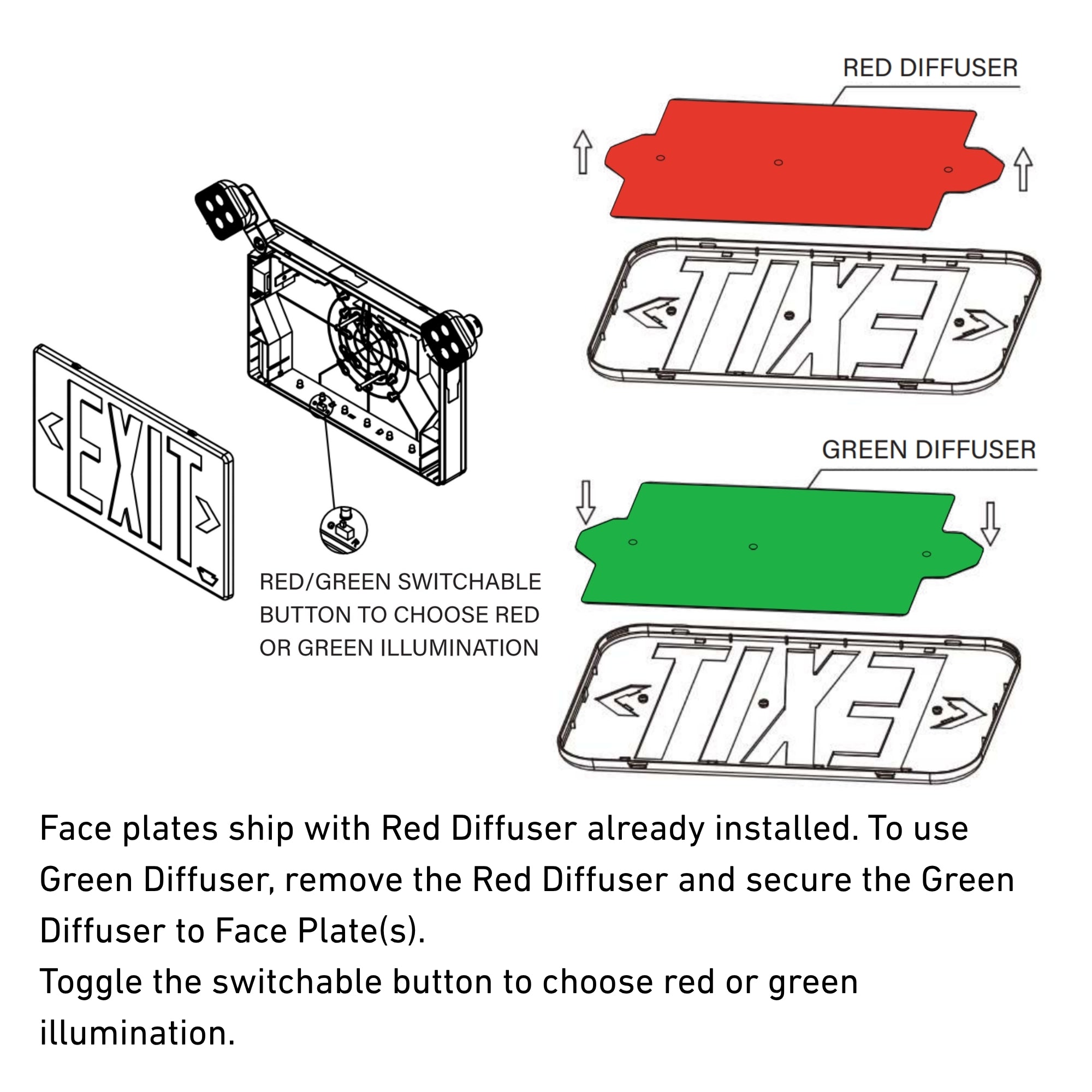

The KT-EC-TP2-WH3RGW-SU features field-adjustable switchable red and green LED lettering, allowing you to select the appropriate color for your application without needing separate inventory. The 2-in-1 combo design combines exit signage with dual adjustable emergency light heads delivering 160 lumens of 6500K white light, reducing installation time and costs compared to installing separate exit signs and emergency lights. The thermoplastic housing with UL 94 5VA flame rating provides durability for commercial installations.
Why Choose Keystone Combo Exit Signs
Keystone Technologies delivers code-compliant exit and emergency lighting solutions engineered for reliability and ease of installation. The KT-EC-TP2-WH3RGW-SU combines energy-efficient LED design with 90+ minute battery backup, switchable red/green lettering, and dual adjustable emergency light heads. With cULus and UL924 listing, universal 120-277V voltage, and flexible mounting options (back, side, or top), this combo exit sign delivers professional-grade performance with maximum flexibility. With Keystone's 5-year warranty and reputation for quality, the KT-EC-TP2-WH3RGW-SU delivers long-term reliability and value.
Why Buy From Us: As an authorized Keystone dealer, we guarantee 100% genuine products with full manufacturer warranty, expert technical support, and fast shipping.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
Should I buy red or green exit signs?
Should I buy red or green exit signs?
There is no single national rule; it depends on your local fire code. While red is the traditional color in most of the United States, many states and cities (like parts of the West Coast) mandate green because it is associated with "go" and safety. You must check with your local fire marshal before purchasing.
What is the difference between AC-only and battery backup exit signs?
What is the difference between AC-only and battery backup exit signs?
A battery backup exit sign (the most common type) has an internal battery that powers the sign for 90 minutes when the building loses electricity. An AC-only exit sign does not have a battery; it is designed for buildings that have a central emergency generator that kicks in during an outage.
What is an "Edge-Lit" exit sign?
What is an "Edge-Lit" exit sign?
An edge-lit exit sign is a premium, architectural fixture where the lettering is etched onto a clear acrylic panel and illuminated from the top or side. They look much sleeker than standard plastic box signs and are popular in hotels, offices, and lobbies.
How high should an exit sign be mounted?
How high should an exit sign be mounted?
According to NFPA 101, exit signs should be mounted so that no point in the exit access corridor is more than 100 feet from the nearest sign. While there is no strict minimum height for the sign itself (other than being visible), it is typically mounted above doors (approx. 80 inches high). Low-level exit signs (mounted near the floor) are sometimes required in addition to high signs for smoke visibility.
How long do LED exit signs last?
How long do LED exit signs last?
LED exit signs are extremely durable. The LED strips inside can last for 10 years or more without needing replacement. However, the backup battery typically lasts 3 to 5 years and will need to be replaced to ensure the sign passes its annual 90-minute test.
