Keystone KT-EC-TP2 Exit Combo Red/Green Letters 90-Min Backup 120-277V Surface Mount Black
Available in stock (200)
About this item
About this item
- Battery Backup: Provides 90 minutes of emergency power for reliable safety.
- Illumination: Switchable red and green LED lettering for versatile visibility.
- Input Voltage: Operates on a wide range of 120-277V for flexible installation.
- Mounting: Offers surface mounting options including top, side, and back for easy installation.
- Safety Certifications: UL certified for damp locations, ensuring compliance and safety.
We process payments securely and do not store credit card information.
Description
Description
Keystone KT-EC-TP2 Exit Combo — 90-Min Emergency Capability with 120-277V Input

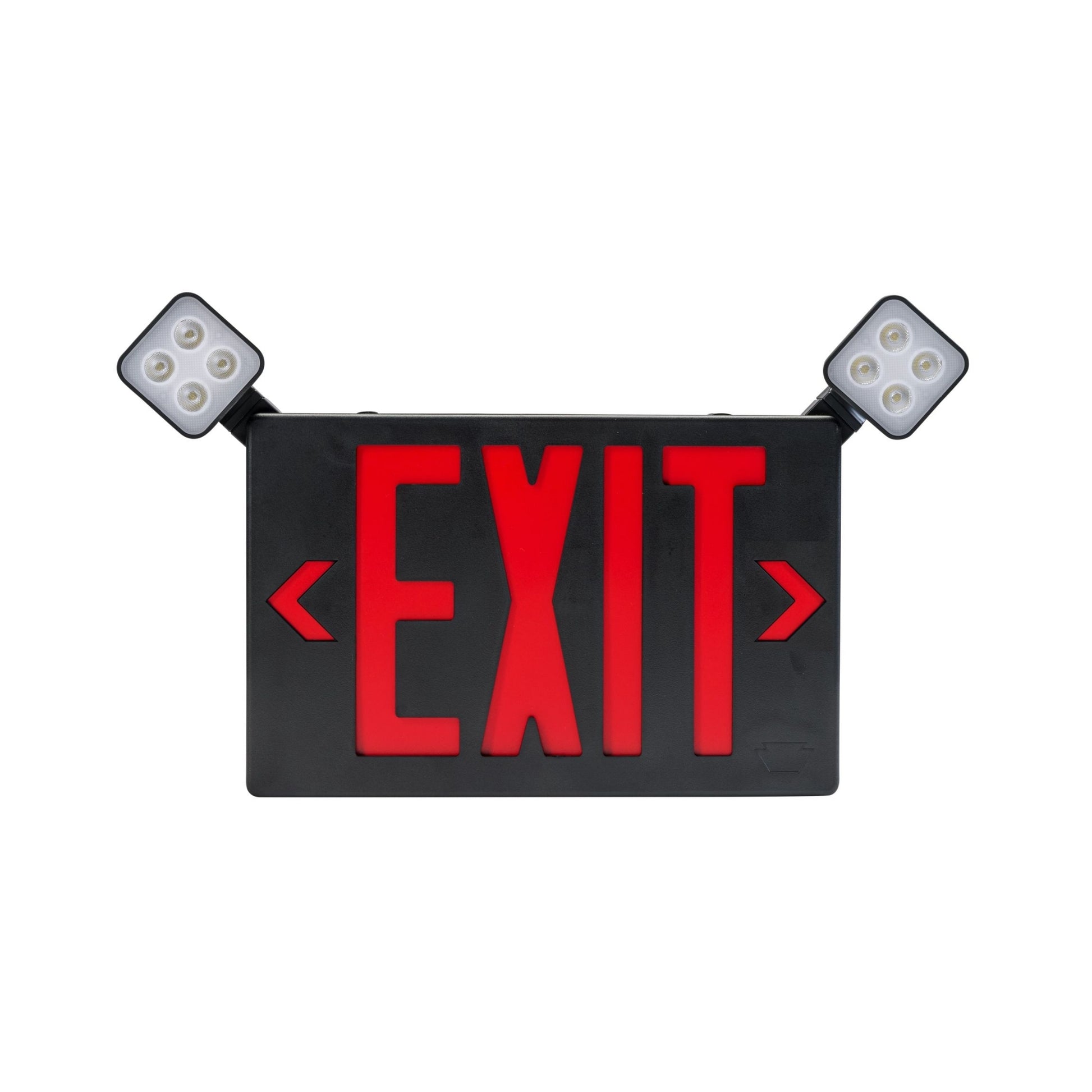

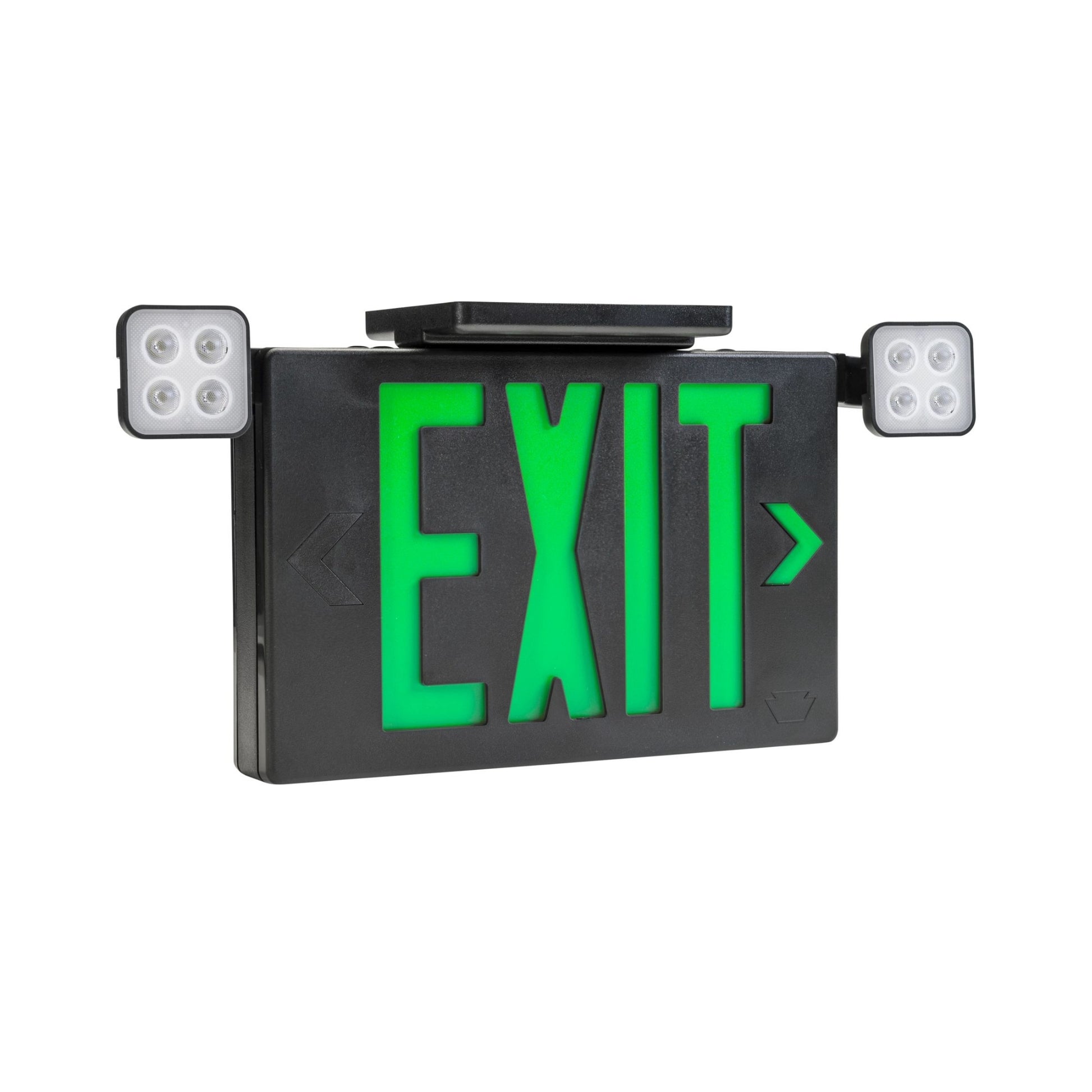

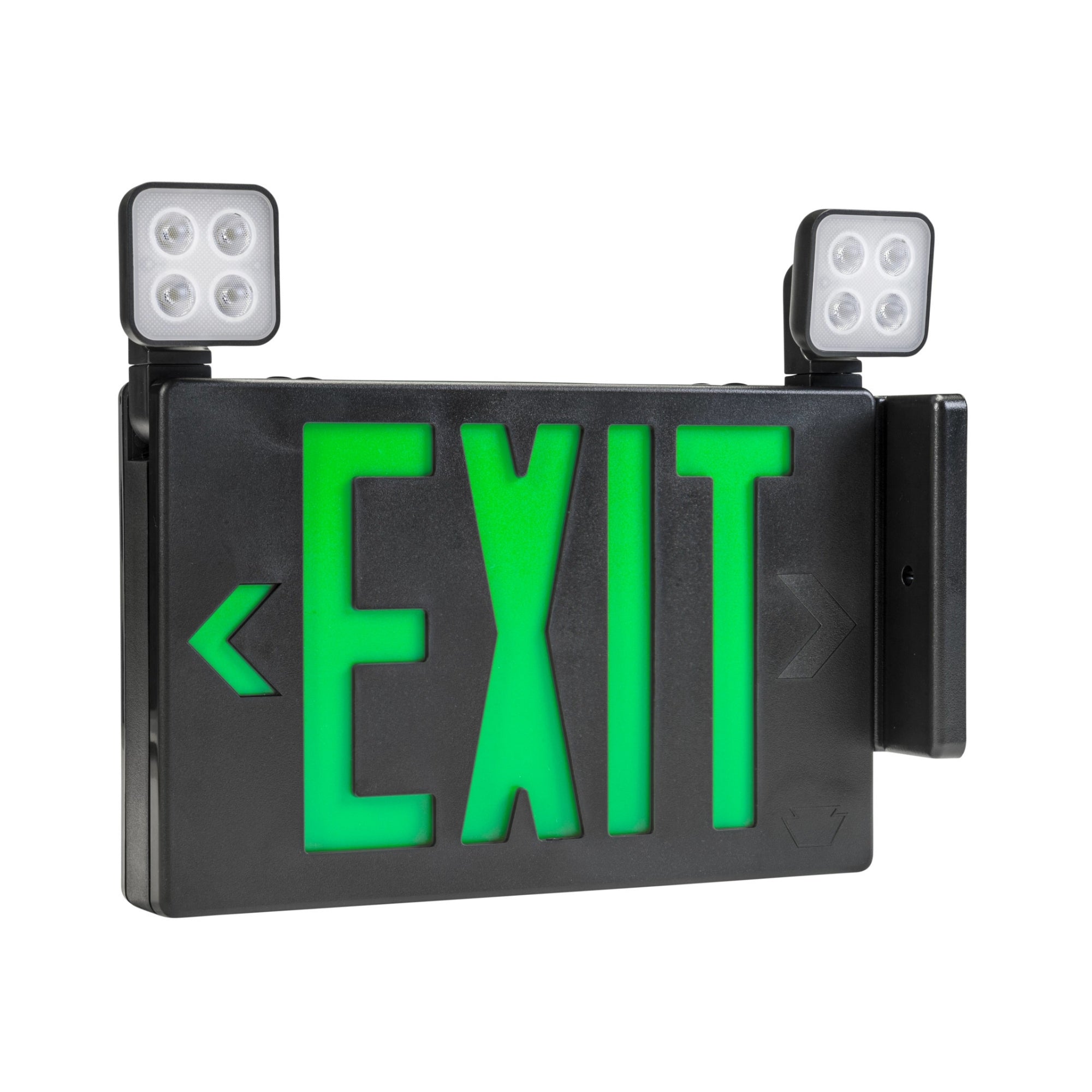

The Keystone KT-EC-TP2-BL3RGW-SU is a versatile exit combo unit featuring switchable red and green LED lettering and a 90-minute battery backup. Designed for emergency lighting applications, it complies with UL 924 standards and is suitable for damp locations. This unit is ideal for ensuring safety and visibility in various settings.
Key Features

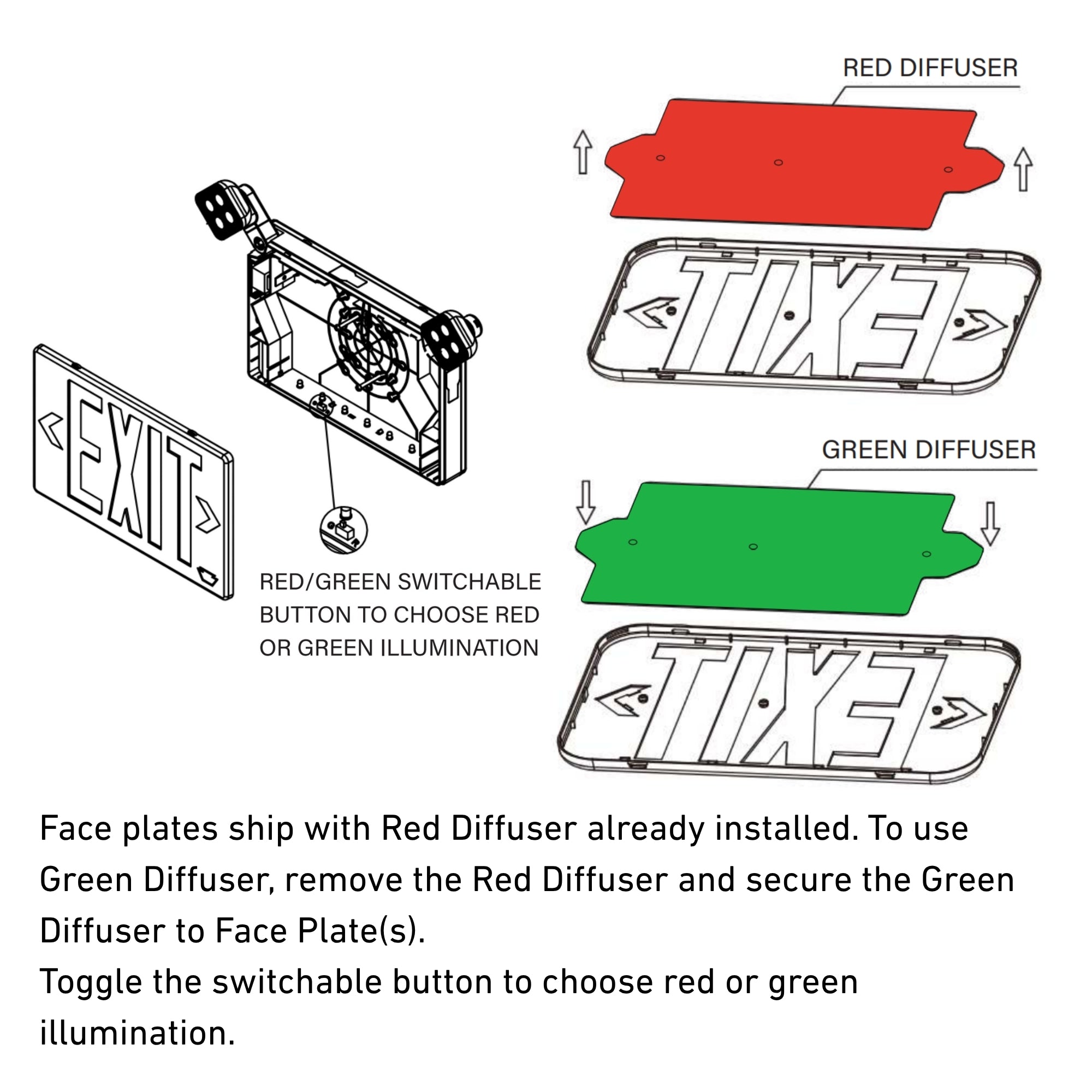

- Switchable Lettering: Easily toggle between red and green LED colors for adaptable signage.

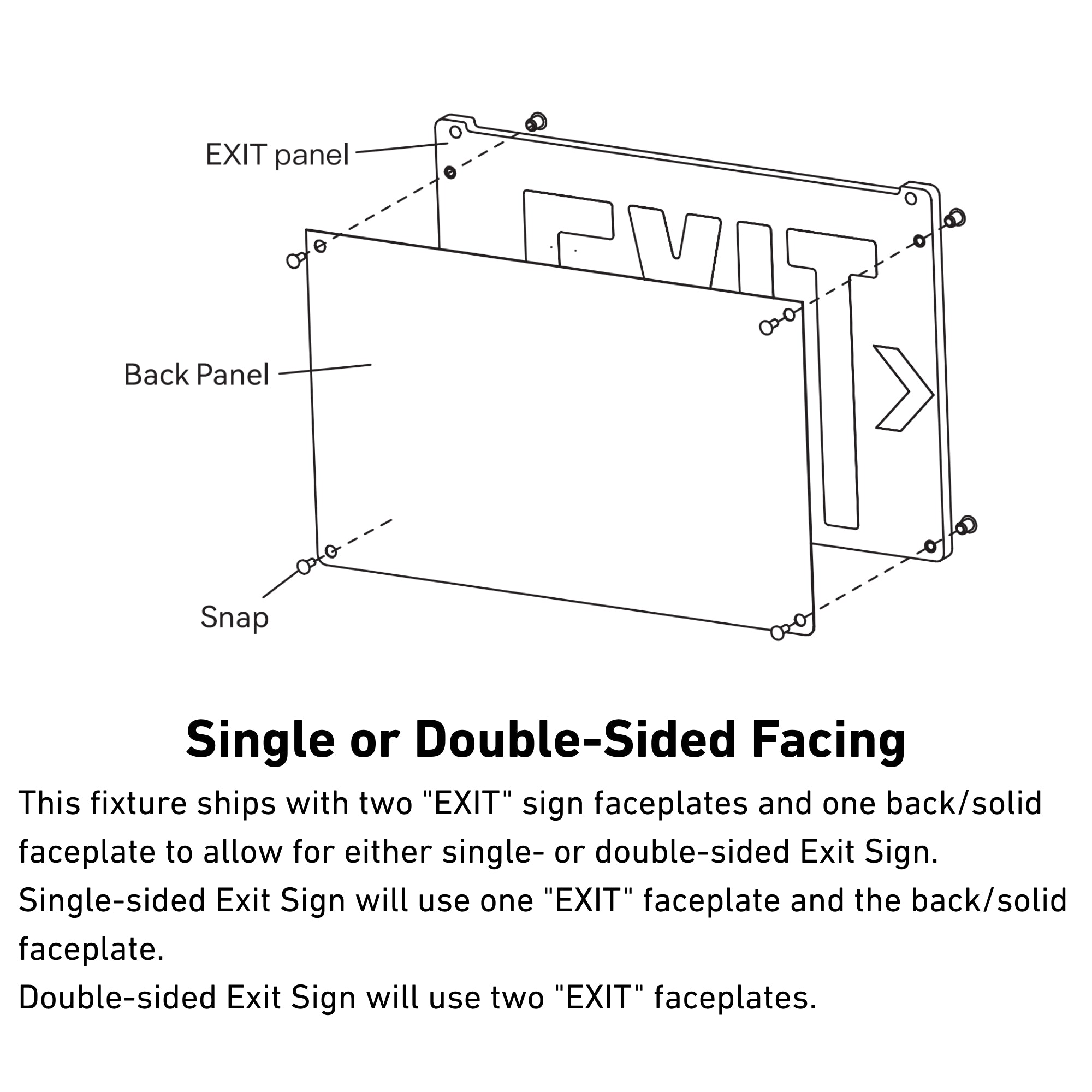

- Dual Facing Options: Includes single and double-sided configurations for flexible installation.

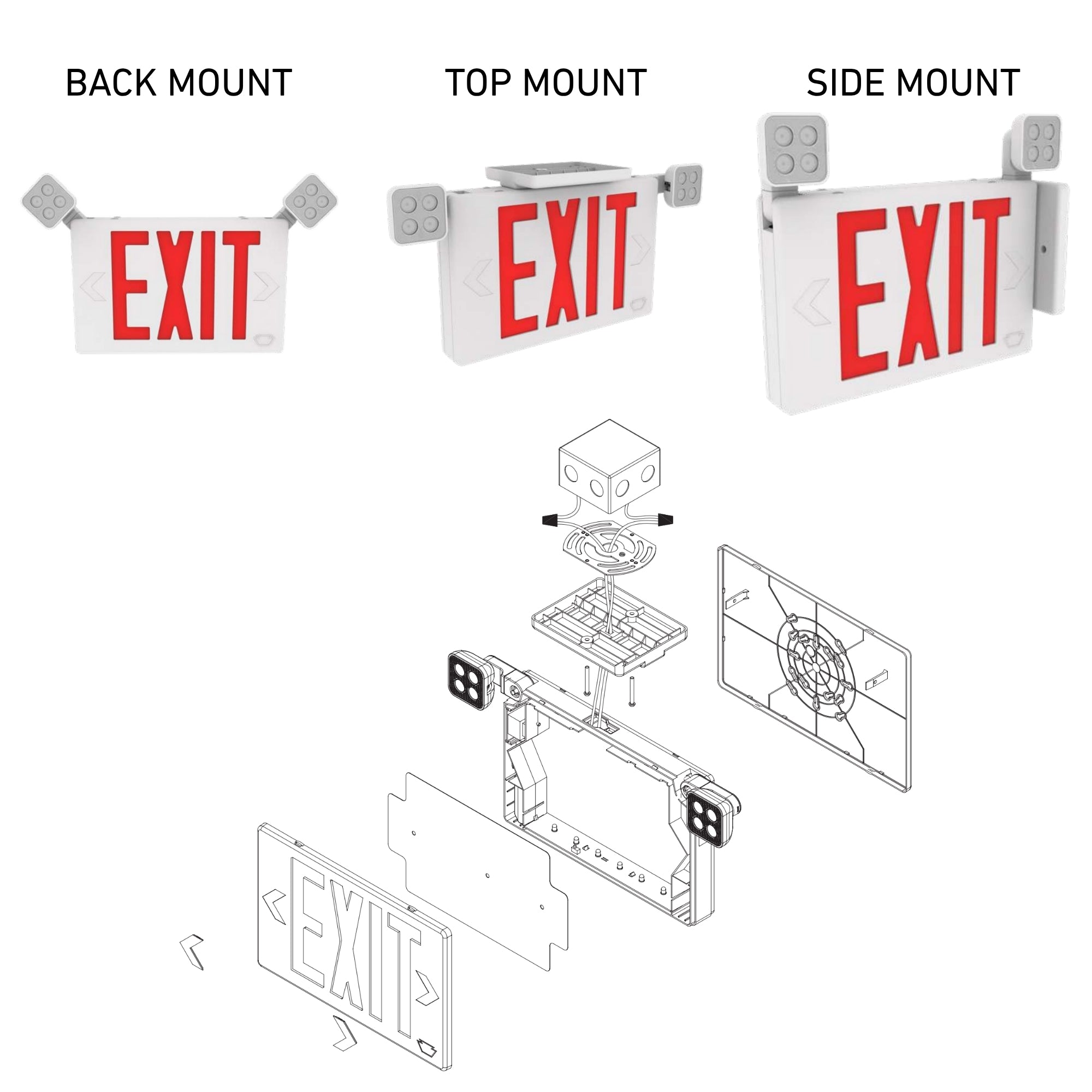

- Surface Mounting: Supports top, side, and back mounting for versatile placement.
- Integrated Battery: Features a NiCad 1000mAh battery for reliable backup power.
- Test Switch: Built-in test switch and charge indicator for easy maintenance.
- Thermoplastic Housing: Durable construction with UL 94V-0 flame rating for safety.
- Operating Temperature: Functions effectively in temperatures from 0°C to 40°C.
- Recharge Time: Fully recharges in 24 hours, ensuring readiness for emergencies.
Performance & Illumination
The exit combo provides clear visibility with its switchable red and green LED lettering, ensuring compliance with visibility standards. It delivers 6500K white light with a lumen output of 160, suitable for emergency egress lighting.
Electrical & Battery
Operating on 120-277V, this unit features a nickel-cadmium battery with a 24-hour recharge time. It includes a test switch for routine maintenance and is non-dimmable.
Physical & Installation Details

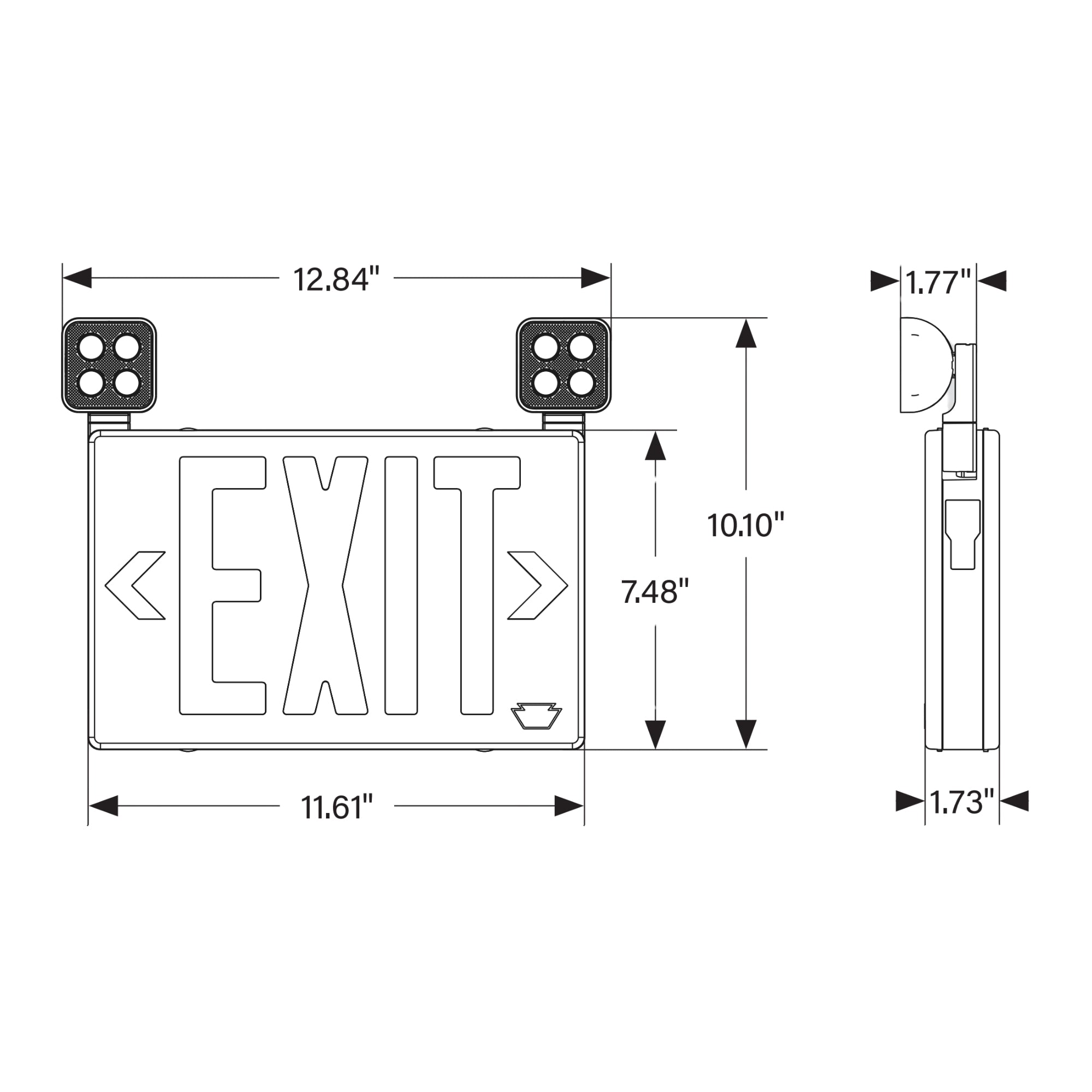

Constructed from durable thermoplastic, the unit measures 12.84 inches in length, 1.77 inches in width, and 10.10 inches in height. It includes all necessary hardware for universal J-box mounting.
Compliance & Safety
Certified to UL standards for damp locations, the unit operates in temperatures ranging from 0°C to 40°C. It features a UL 94V-0 flame rating, ensuring safety and compliance.
What's Included
- Red and Green Diffusers
- Single and Double Faceplates
- Mounting Hardware
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
