Keystone KT-EC-TP1 Exit Combo Red/Green Letters 90-Min Backup 120-277V Surface Mount White
Available in stock (200)
About this item
About this item
- Battery Backup: Provides 90 minutes of emergency power for reliable safety.
- Illumination: Features switchable red and green LED lettering for versatile visibility.
- Input Voltage: Operates on a wide range of 120-277V for flexible installation.
- Mounting: Surface mountable on top or back for easy installation.
- Safety Certifications: UL 924 compliant and rated for damp locations, ensuring dependable performance.
We process payments securely and do not store credit card information.
Description
Description
Keystone KT-EC-TP1 Exit Combo — 90-Minute Battery Backup with 120-277V Input
The Keystone KT-EC-TP1-WH3RGW-SD is a versatile exit combo unit featuring switchable red and green LED lettering and a 90-minute battery backup. Designed for safety, it operates on 120-277V input and is UL 924 compliant, making it ideal for emergency egress lighting in commercial spaces.
Key Features

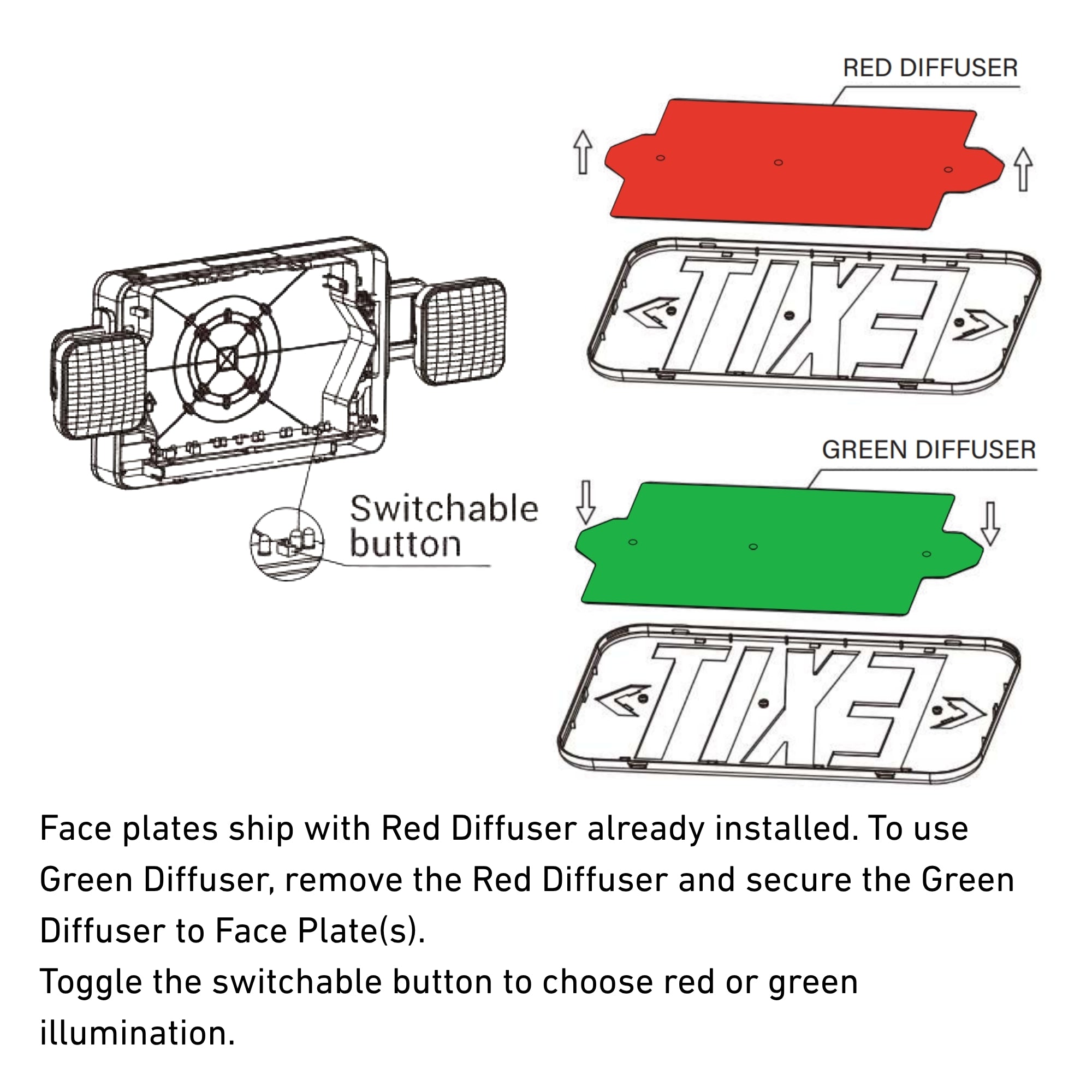

- Switchable Lettering: Easily toggle between red and green LED colors for adaptable visibility.
- Dual Facing: Includes both single and double face configurations for flexible installation.

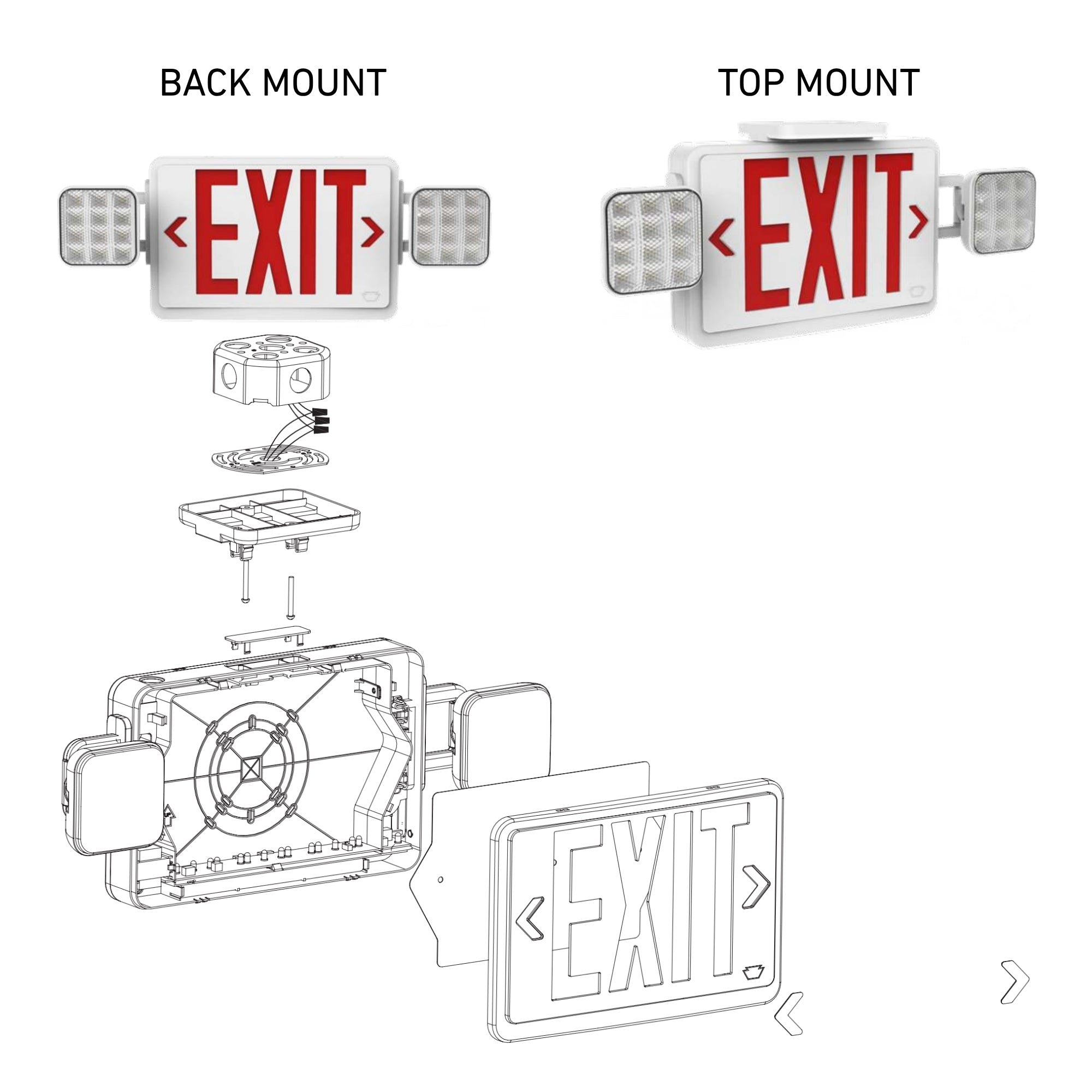

- Surface Mounting: Compatible with top and back mounting options for convenience.
- Integrated Test Switch: Built-in test switch and charge indicator for easy maintenance checks.
- Durable Housing: Constructed from thermoplastic with a UL 94 5VA flame rating for enhanced safety.
- Battery Type: Equipped with a 1200mAh Nickel-Metal Hydride battery for reliable power.
- Recharge Time: Fully recharges in 24 hours, ensuring readiness for emergencies.
- Operating Temperature: Functions effectively in temperatures from 0°C to 40°C.
Performance & Illumination
This exit combo delivers 200 lumens of 6500K white light, ensuring clear visibility. The switchable red and green letters are designed for optimal readability in emergency situations.
Electrical & Battery
Operating on 120-277V, this unit features a Nickel-Metal Hydride battery with a 24-hour recharge time. It includes a test switch for routine maintenance and is not remote capable.
Physical & Installation Details

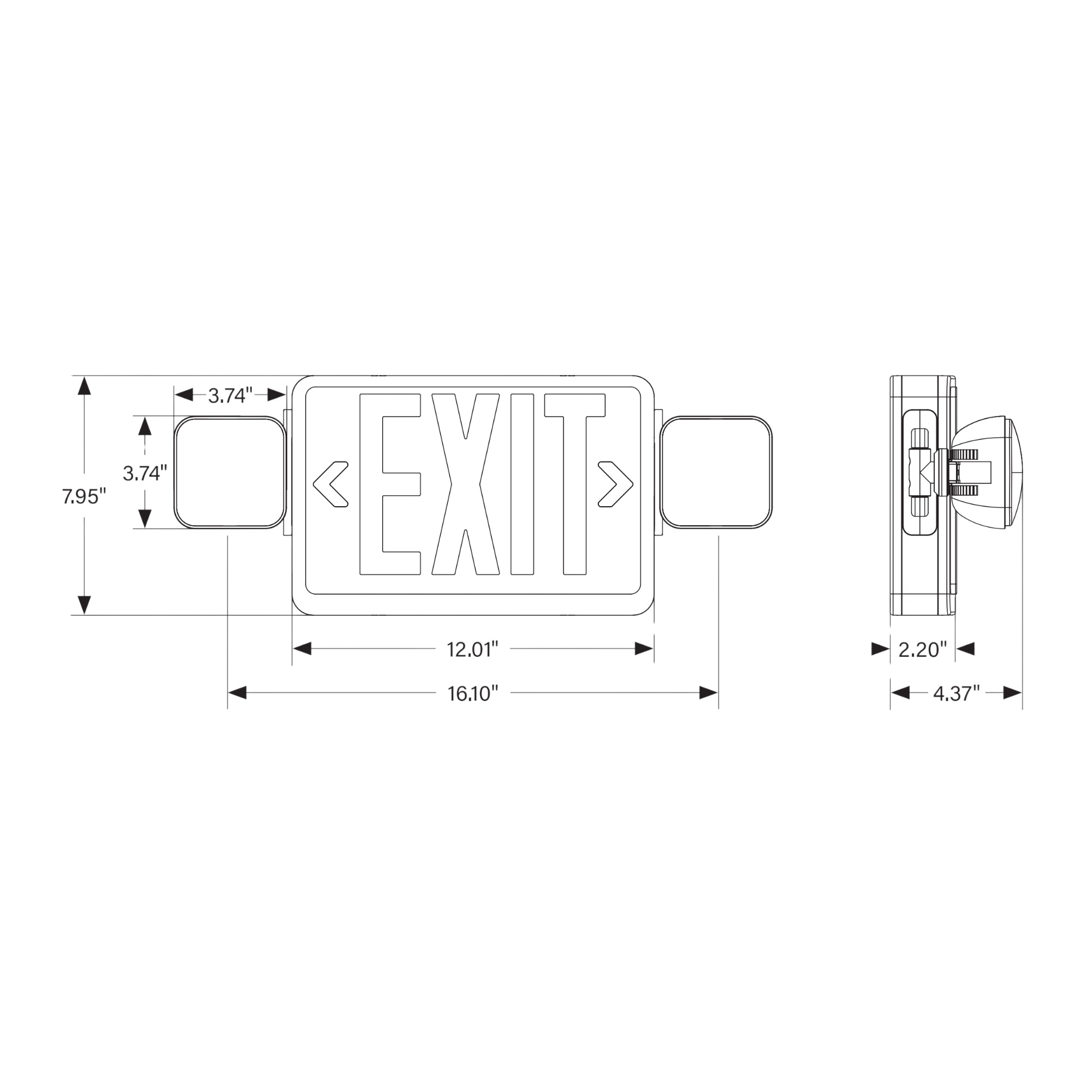

Constructed from durable thermoplastic, this unit supports surface mounting on top or back. It includes all necessary hardware for installation and measures 16.10 inches in length, 4.37 inches in width, and 7.95 inches in height.
Compliance & Safety
UL 924 certified and rated for damp locations, this exit combo meets stringent safety standards. It operates within a temperature range of 0°C to 40°C and features a UL 94 5VA flame rating.
What's Included
- Single and double faceplates
- Back/solid faceplate
- Mounting hardware
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the battery backup duration for the KT-EC-TP1-WH3RGW-SD?
What is the battery backup duration for the KT-EC-TP1-WH3RGW-SD?
Can the exit sign lettering color be changed?
Can the exit sign lettering color be changed?
What are the mounting options for this exit combo?
What are the mounting options for this exit combo?
Is the KT-EC-TP1-WH3RGW-SD suitable for damp locations?
Is the KT-EC-TP1-WH3RGW-SD suitable for damp locations?
What is the input voltage range for this unit?
What is the input voltage range for this unit?
