Keystone KT-EC-TP1 Exit Combo Red/Green Letters 90-Min Backup 120-277V Surface Mount Black
Available in stock (200)
About this item
About this item
- Battery Backup: Provides over 90 minutes of emergency power for reliable safety.
- Illumination: Switchable red and green LED letters for versatile visibility.
- Input Voltage: Compatible with 120-277V for flexible installation options.
- Mounting: Surface mount with top and back options for easy installation.
- Safety Certifications: UL 924 compliant and damp location rated for assured safety.
We process payments securely and do not store credit card information.
Description
Description
Keystone KT-EC-TP1 Exit Combo — Emergency Capability with 120-277V Input
The Keystone KT-EC-TP1-BL3RGW-SD is a versatile exit combo unit featuring switchable red and green LED letters and a 90-minute battery backup. Designed for safety compliance, it operates on 120-277V input, making it suitable for various applications. This unit is UL 924 compliant and rated for damp locations, ensuring reliable performance in emergency situations.
Key Features

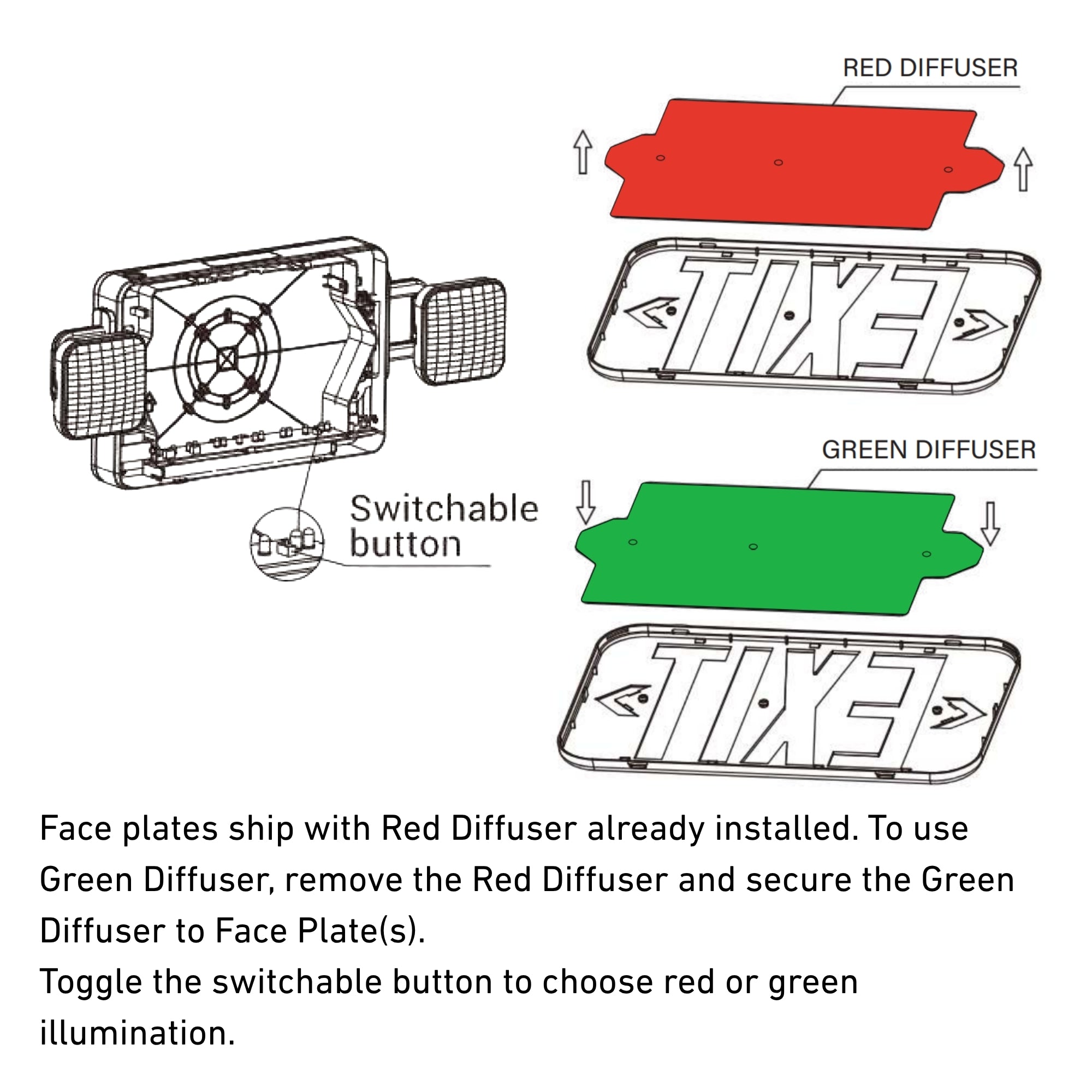

- Switchable Letter Color: Easily toggle between red and green LED illumination for adaptable signage.
- Battery Backup: Integrated NiMH battery provides over 90 minutes of emergency power.

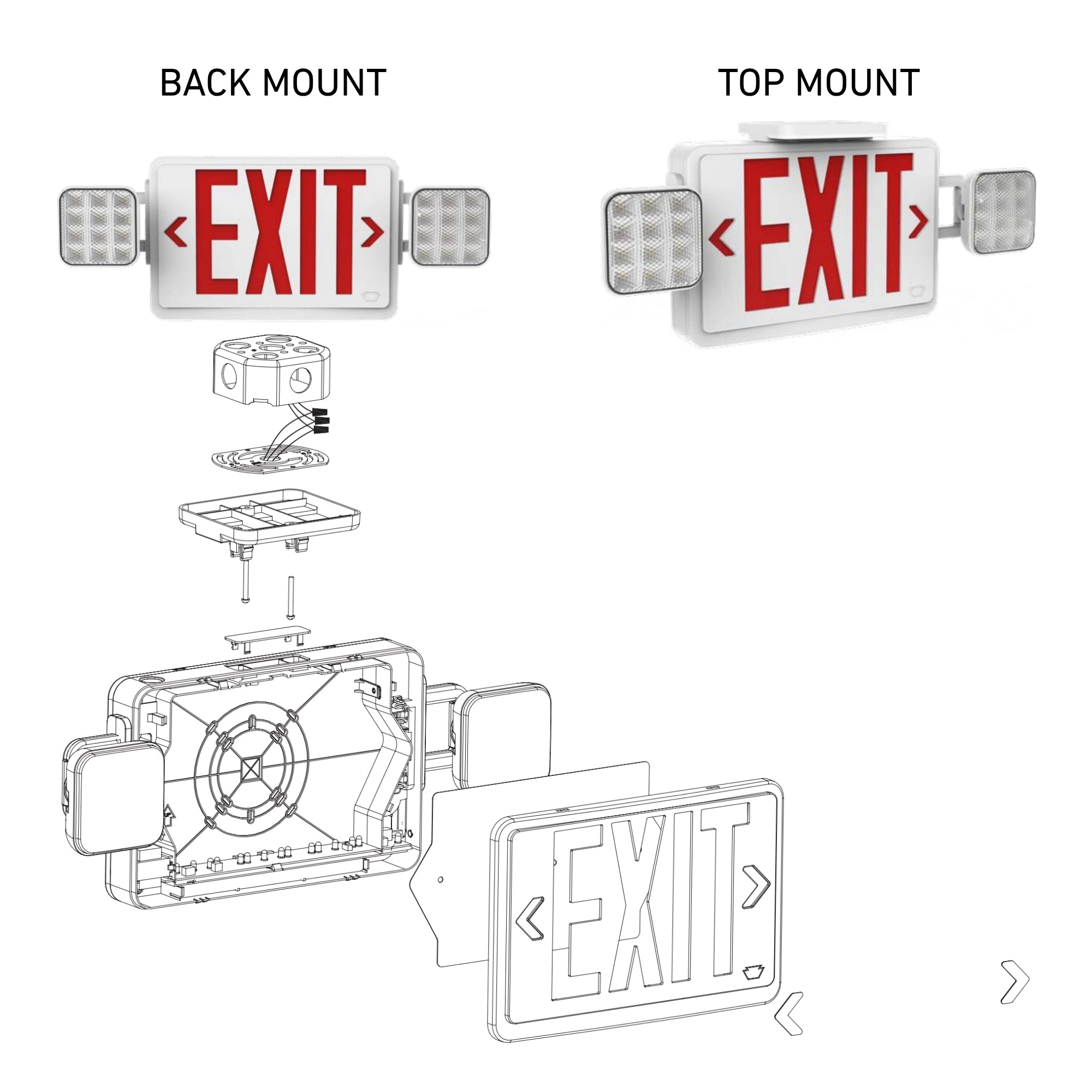

- Mounting Options: Surface mountable with top and back configurations for versatile installation.
- Material: Constructed from durable thermoplastic with a UL 94 5VA flame rating.
- Test Switch: Built-in test switch and charge indicator for easy maintenance checks.
- Operating Temperature: Functions optimally between 0°C/32°F and 40°C/104°F.
- Recharge Time: Fully recharges in 24 hours, ensuring readiness for emergencies.
- Face Configurations: Includes single and double-sided faceplates for flexible use.
Performance & Illumination
This exit combo unit features switchable red and green LED letters, providing clear visibility. It emits 6500K white light with a lumen output of 200, ensuring effective illumination in emergency situations.
Electrical & Battery
Operating on 120-277V, the unit includes a 1200mAh NiMH battery that recharges in 24 hours. It features a built-in test switch and charge indicator for easy monitoring.
Physical & Installation Details

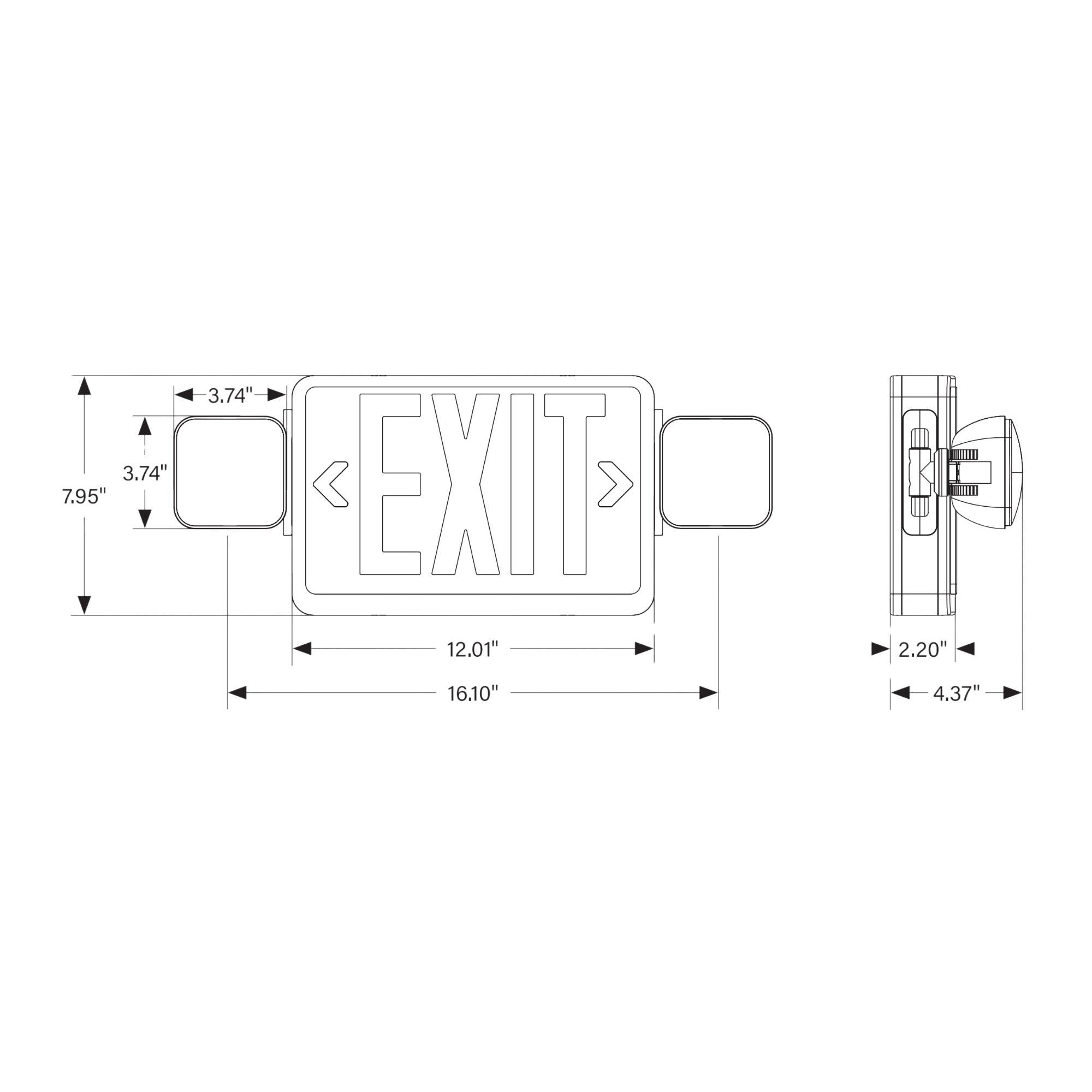

Constructed from thermoplastic, the unit measures 16.10 inches in length, 4.37 inches in width, and 7.95 inches in height. It supports surface mounting with top and back options and includes all necessary hardware.
Compliance & Safety
UL 924 certified and rated for damp locations, this unit meets stringent safety standards. It operates within a temperature range of 0°C/32°F to 40°C/104°F.
What's Included
- Red and Green LED faceplates
- Single and double-sided faceplates
- Mounting hardware
