Keystone LED Combo Exit Sign, Red Letters, White, Chicago Compliant, Single Face, High Output 800 Lumens, 90-Min Battery Backup, 120-277V (KT-EC-STCH1-WH1RW-SU-HO)
Keystone LED Combo Exit Sign, Red Letters, White, Chicago Compliant, Single Face, High Output 800 Lumens, 90-Min Battery Backup, 120-277V (KT-EC-STCH1-WH1RW-SU-HO)
Available in stock (100)
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Chicago Code Compliant: Meets Chicago building code requirements for exit signs and emergency lighting
- High Output 2-in-1 Combo: Red LED exit sign plus 800 lumens dual emergency light heads with 6500K white light
- 90+ Min Battery Backup: UL924 listed, Nickel-Metal Hydride 2000mAh battery meets NEC/IBC requirements
- Switchable Top/Side Light Options: Flexible head positioning, back/top/side mounting options
- 22-Gauge Steel Housing: Durable steel housing and facings, 4.8W consumption, Title 20 compliant, Keystone quality with 5-year warranty
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description

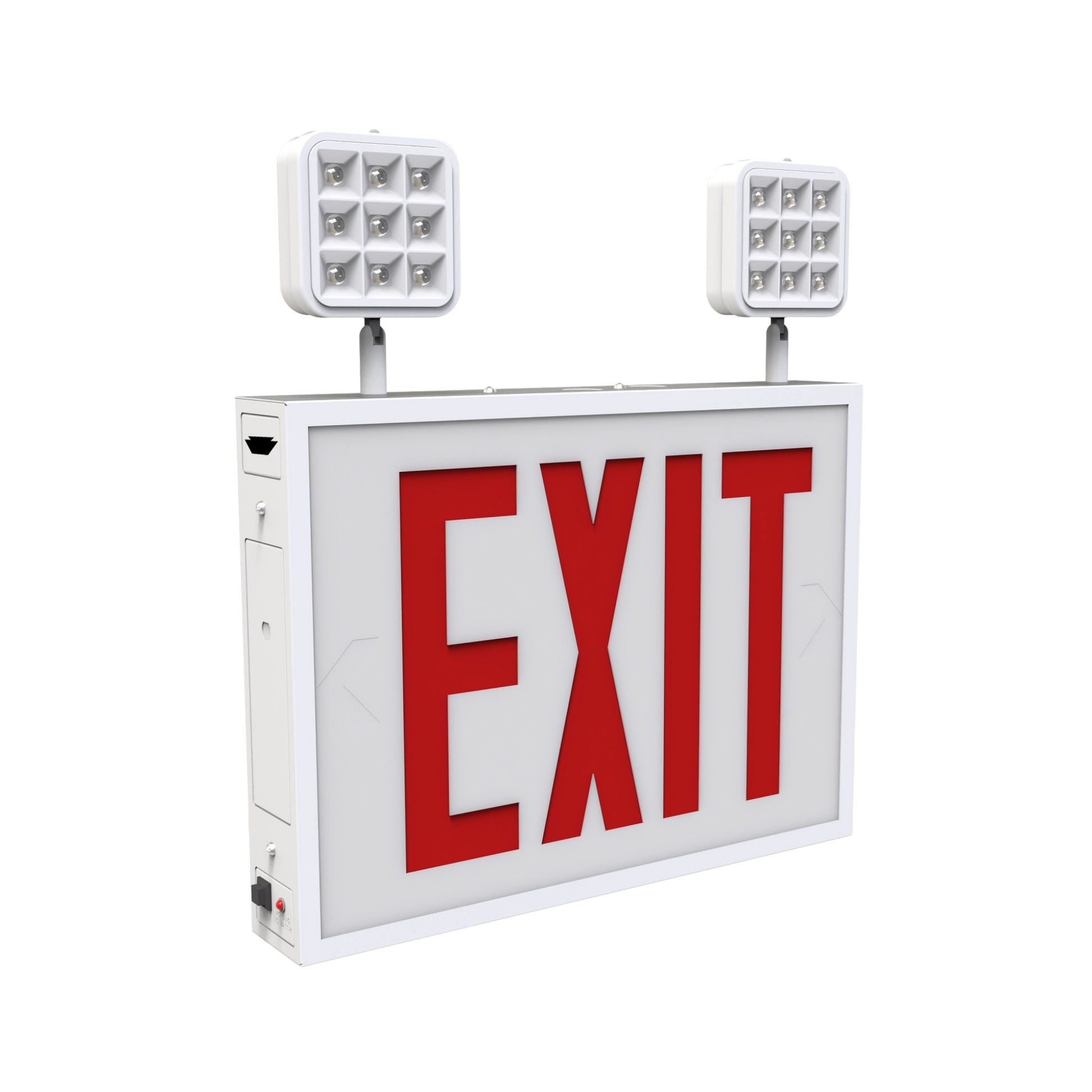

Keystone KT-EC-STCH1-WH1RW-SU-HO LED Combo Exit Sign - Chicago Code Compliant High Output
The Keystone KT-EC-STCH1-WH1RW-SU-HO is a Keystone Technologies high-output LED combo exit sign with integrated emergency lighting designed for code-compliant emergency egress marking and illumination meeting Chicago building codes. This 2-in-1 solution features red LED exit lettering with single facing configuration plus dual adjustable emergency light heads delivering 800 lumens of 6500K white light, switchable top and side light options, 90+ minute battery backup, and universal 120-277V voltage. The 22-gauge steel housing with white finish provides durability while the energy-efficient LED technology ensures reliable emergency illumination for commercial buildings, multi-family residential, and institutional facilities requiring UL924-listed exit signage with emergency lighting, Chicago code compliance, and high lumen output.
Keystone KT-EC-STCH1-WH1RW-SU-HO Features
- Chicago Code Compliant: Meets Chicago building code requirements for exit signs and emergency lighting
- High Output 800 Lumens: Superior brightness for larger spaces and enhanced visibility during emergencies
- Red LED Exit Lettering: Bright, energy-efficient LED illumination for exit sign visibility
- Dual Adjustable Emergency Light Heads: Two adjustable heads provide 800 lumens of 6500K white light supplemental emergency illumination
- Switchable Top and Side Light Options: Flexible head positioning for optimal coverage
- Single Facing: Wall mount configuration for directional exit marking
- 90+ Minute Battery Backup: Meets NEC and IBC emergency duration requirements with Nickel-Metal Hydride 2000mAh battery
- 22-Gauge Steel Housing: Durable white steel housing and facings for long-lasting performance
- Universal Voltage: 120-277V AC operation for flexible installation in commercial applications

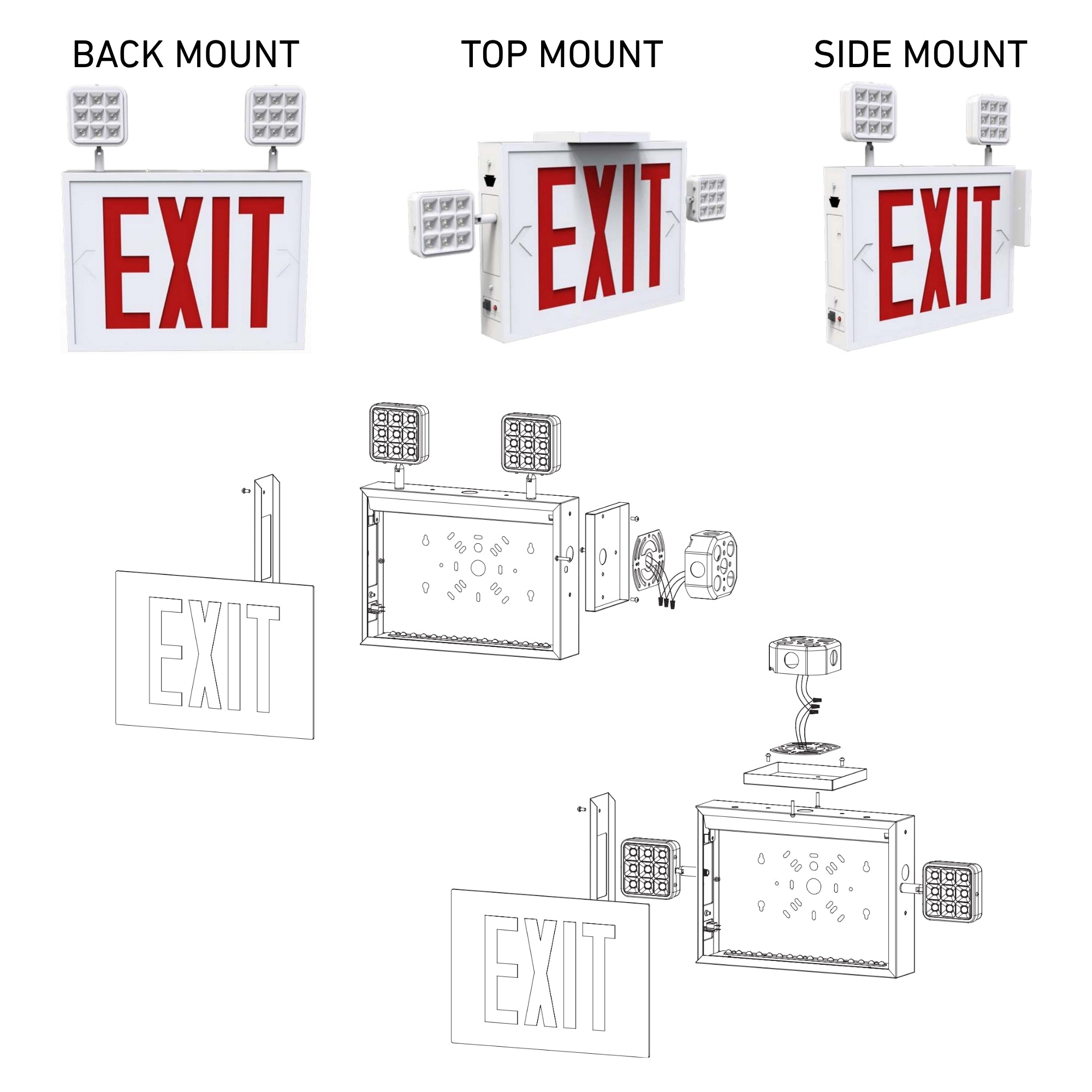

- Adjustable Mounting: Surface mount with back, top, or side mounting options
- UL924 Listed: Certified for emergency exit sign and emergency lighting applications
Keystone KT-EC-STCH1-WH1RW-SU-HO Specifications
- Brand: Keystone Technologies
- Model Number: KT-EC-STCH1-WH1RW-SU-HO
- UPC: 843654165325
- Product Type: LED Combo Exit Sign with Emergency Light - Chicago Code Compliant High Output
- Exit Sign: Red LED lettering, single facing
- Emergency Light Heads: 2 adjustable heads, switchable top and side light options
- Light Output: 800 lumens (High Output, 6500K white light, emergency heads)
- Housing: 22-gauge steel housing and facings, white

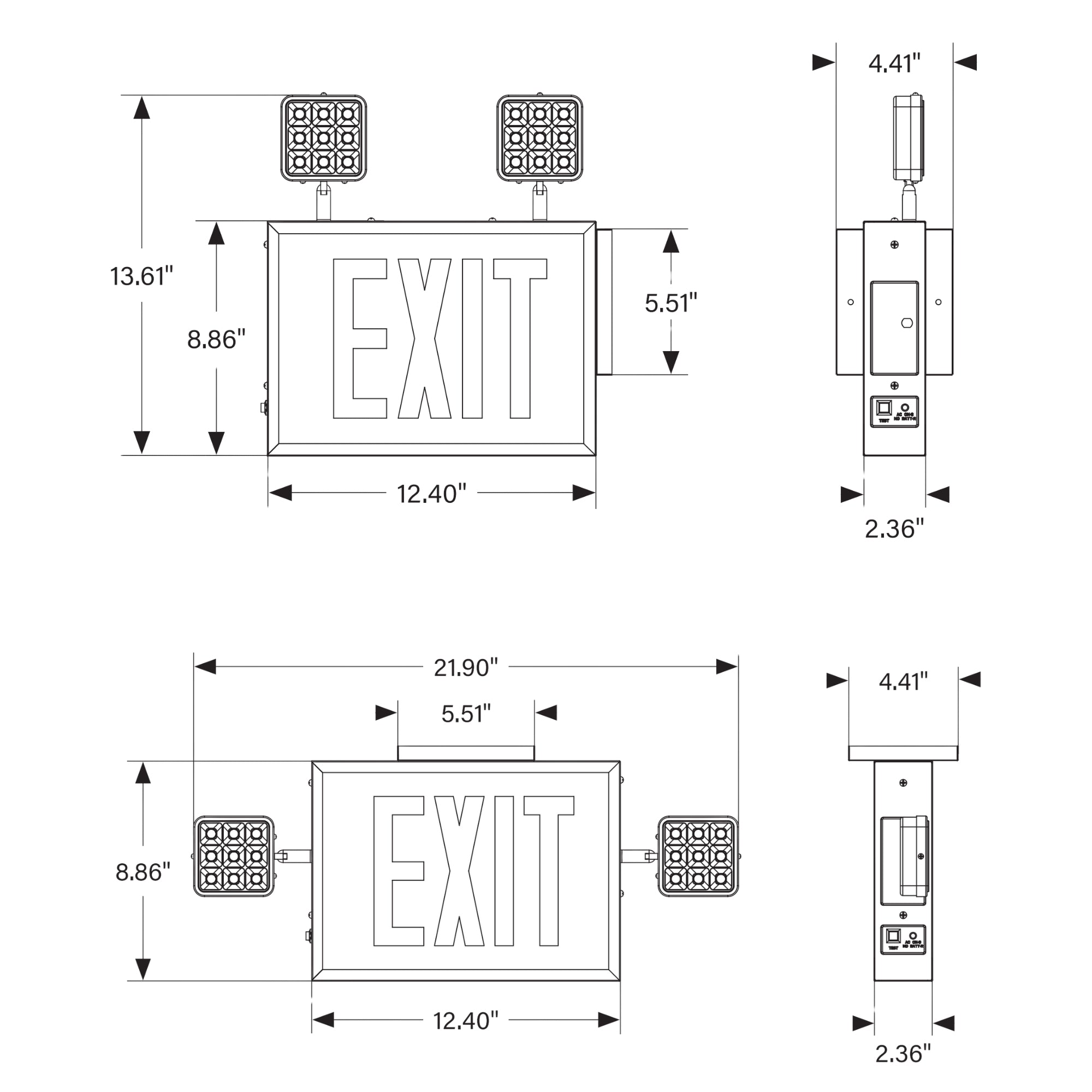

- Dimensions (Heads on Top): 12.40" W x 13.81" H x 4.41" D
- Dimensions (Heads on Side): 21.90" W x 8.66" H x 4.41" D
- Weight: 6.4 lbs
- Battery: Nickel-Metal Hydride 2000mAh
- Battery Backup Time: 90+ minutes
- Recharge Time: 24 hours
- Input Voltage: 120-277V AC, 50/60Hz
- Input Power: 4.8W
- Color Temperature: 6500K (emergency heads)
- Mounting: Surface mount - back, top, or side
- Operating Temperature: 0°C/32°F to 40°C/104°F
- Certifications: cULus, UL924 Listed, Chicago code compliant, Title 20 compliant, damp location rated, RoHS compliant
- Warranty: 5 Years
Keystone KT-EC-STCH1-WH1RW-SU-HO Applications
- Chicago commercial buildings and high-rises requiring high output
- Educational and healthcare facilities in Chicago with larger spaces
- Hospitality and retail stores requiring code compliance and enhanced visibility
- Multi-family residential buildings
- Industrial facilities, large corridors, stairwells, and exit pathways
Installation & Operation
Surface mounts with back, top, or side mounting configurations. Connect to 120-277V AC power and adjust dual emergency light heads for optimal coverage using switchable top and side light options. Unit automatically charges battery. During power loss, battery backup activates for 90+ minutes of high-output emergency illumination for both exit sign and emergency lights.
Chicago Code Compliance & High Output 2-in-1 Design
The KT-EC-STCH1-WH1RW-SU-HO is specifically designed to meet Chicago building code requirements for exit signs and emergency lighting with enhanced high-output performance. The 2-in-1 combo design combines exit signage with dual adjustable emergency light heads delivering 800 lumens of 6500K white light, providing superior visibility along egress paths during power outages in larger spaces. The 22-gauge steel housing and facings provide durability for commercial installations while maintaining code-compliant performance with the higher capacity 2000mAh battery.
Why Choose Keystone Combo Exit Signs
Keystone Technologies delivers code-compliant exit and emergency lighting solutions engineered for reliability and ease of installation. The KT-EC-STCH1-WH1RW-SU-HO combines energy-efficient LED design with 90+ minute battery backup, Chicago code compliance, high-output 800 lumens, and dual adjustable emergency light heads with switchable positioning. With cULus and UL924 listing, universal 120-277V voltage, and flexible mounting options (back, top, or side), this combo exit sign delivers professional-grade performance for demanding code requirements and larger spaces. With Keystone's 5-year warranty and reputation for quality, the KT-EC-STCH1-WH1RW-SU-HO delivers long-term reliability and value.
Why Buy From Us: As an authorized Keystone dealer, we guarantee 100% genuine products with full manufacturer warranty, expert technical support, and fast shipping.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
Should I buy red or green exit signs?
Should I buy red or green exit signs?
There is no single national rule; it depends on your local fire code. While red is the traditional color in most of the United States, many states and cities (like parts of the West Coast) mandate green because it is associated with "go" and safety. You must check with your local fire marshal before purchasing.
What is the difference between AC-only and battery backup exit signs?
What is the difference between AC-only and battery backup exit signs?
A battery backup exit sign (the most common type) has an internal battery that powers the sign for 90 minutes when the building loses electricity. An AC-only exit sign does not have a battery; it is designed for buildings that have a central emergency generator that kicks in during an outage.
What is an "Edge-Lit" exit sign?
What is an "Edge-Lit" exit sign?
An edge-lit exit sign is a premium, architectural fixture where the lettering is etched onto a clear acrylic panel and illuminated from the top or side. They look much sleeker than standard plastic box signs and are popular in hotels, offices, and lobbies.
How high should an exit sign be mounted?
How high should an exit sign be mounted?
According to NFPA 101, exit signs should be mounted so that no point in the exit access corridor is more than 100 feet from the nearest sign. While there is no strict minimum height for the sign itself (other than being visible), it is typically mounted above doors (approx. 80 inches high). Low-level exit signs (mounted near the floor) are sometimes required in addition to high signs for smoke visibility.
How long do LED exit signs last?
How long do LED exit signs last?
LED exit signs are extremely durable. The LED strips inside can last for 10 years or more without needing replacement. However, the backup battery typically lasts 3 to 5 years and will need to be replaced to ensure the sign passes its annual 90-minute test.
