Overview

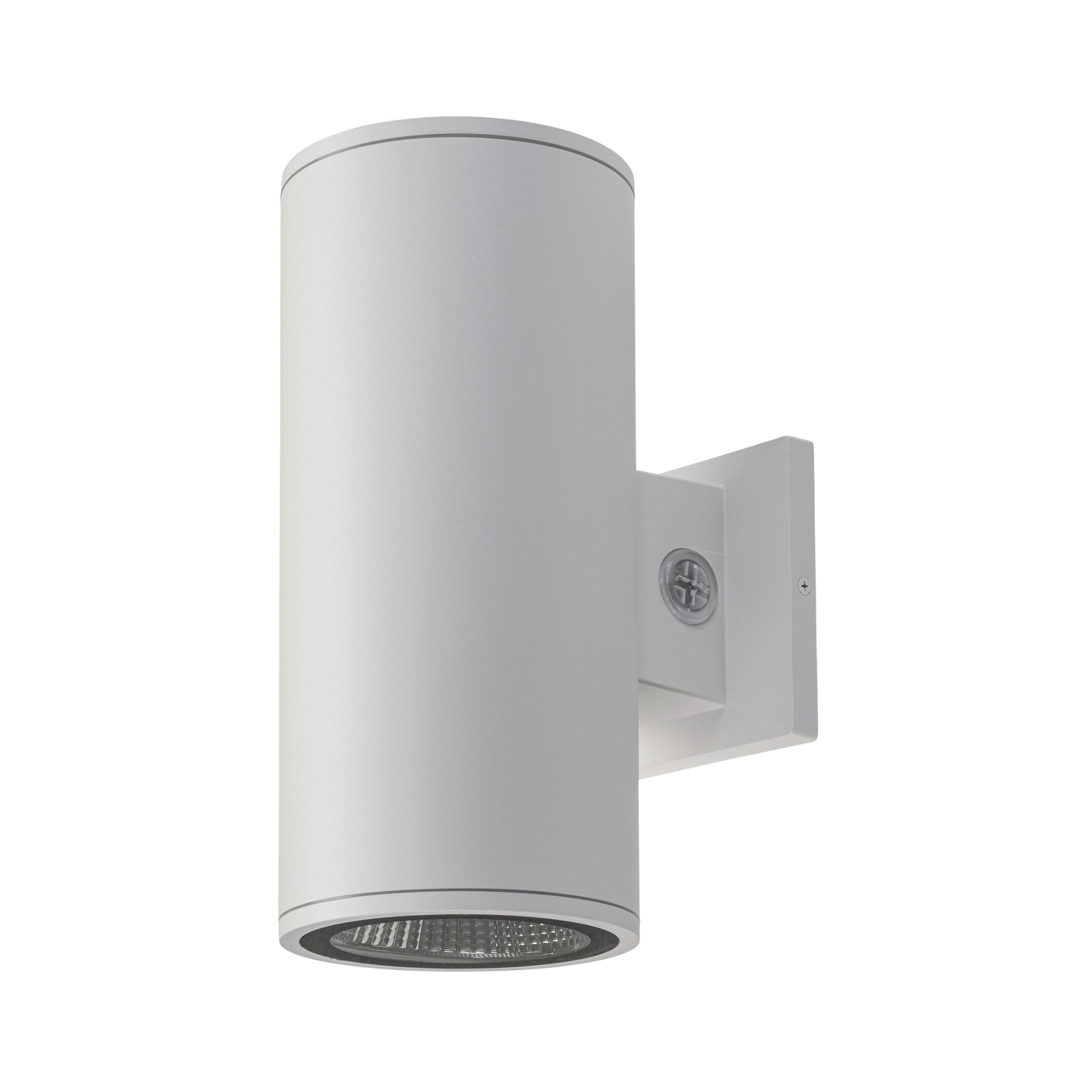

The Keystone KT-CYLED36PS-6A-WDI-OSG-8CSB-VDIM-W is a high-output 6-inch LED cylinder wall sconce in contemporary white. Producing 3200 lumens from 36W, this fixture brings professional-grade illumination to modern commercial architecture, large residential projects, and institutional facilities where both performance and aesthetic refinement are essential.

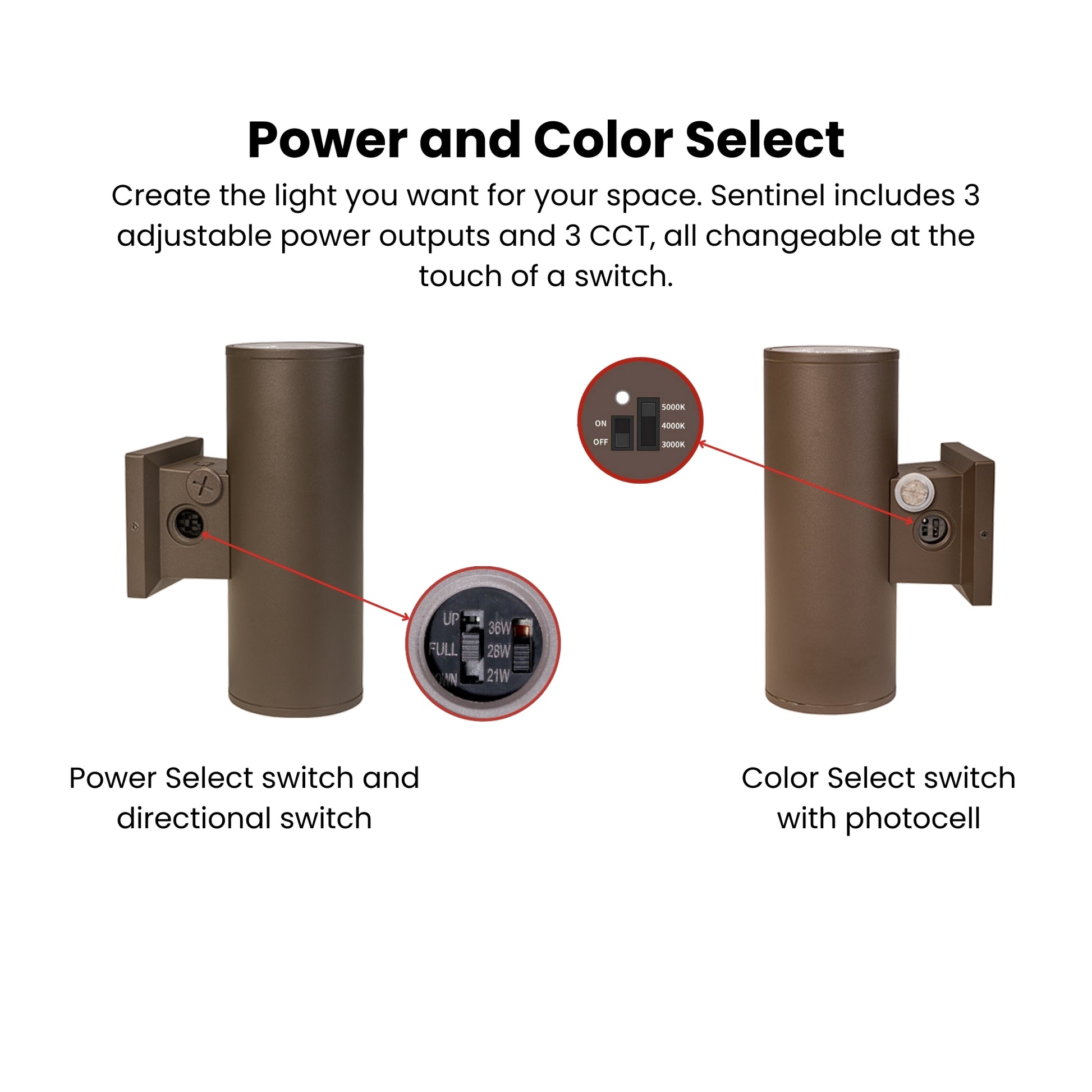

Versatile Power Select Technology

Configure lighting distribution on-site with Power Select's three-mode capability. Choose direct downlighting for pathways and entries, indirect uplighting for dramatic architectural emphasis, or full bidirectional illumination for comprehensive area coverage—all from a single fixture platform.

Commercial Specifications

  • Tri-CCT selectable: 3000K, 4000K, or 5000K color temperature adjustable during installation
  • Wide-range 120-277V input voltage for universal compatibility
  • Smooth 0-10V dimming for integration with building management systems
  • White powder-coated die-cast aluminum construction for durability and heat dissipation

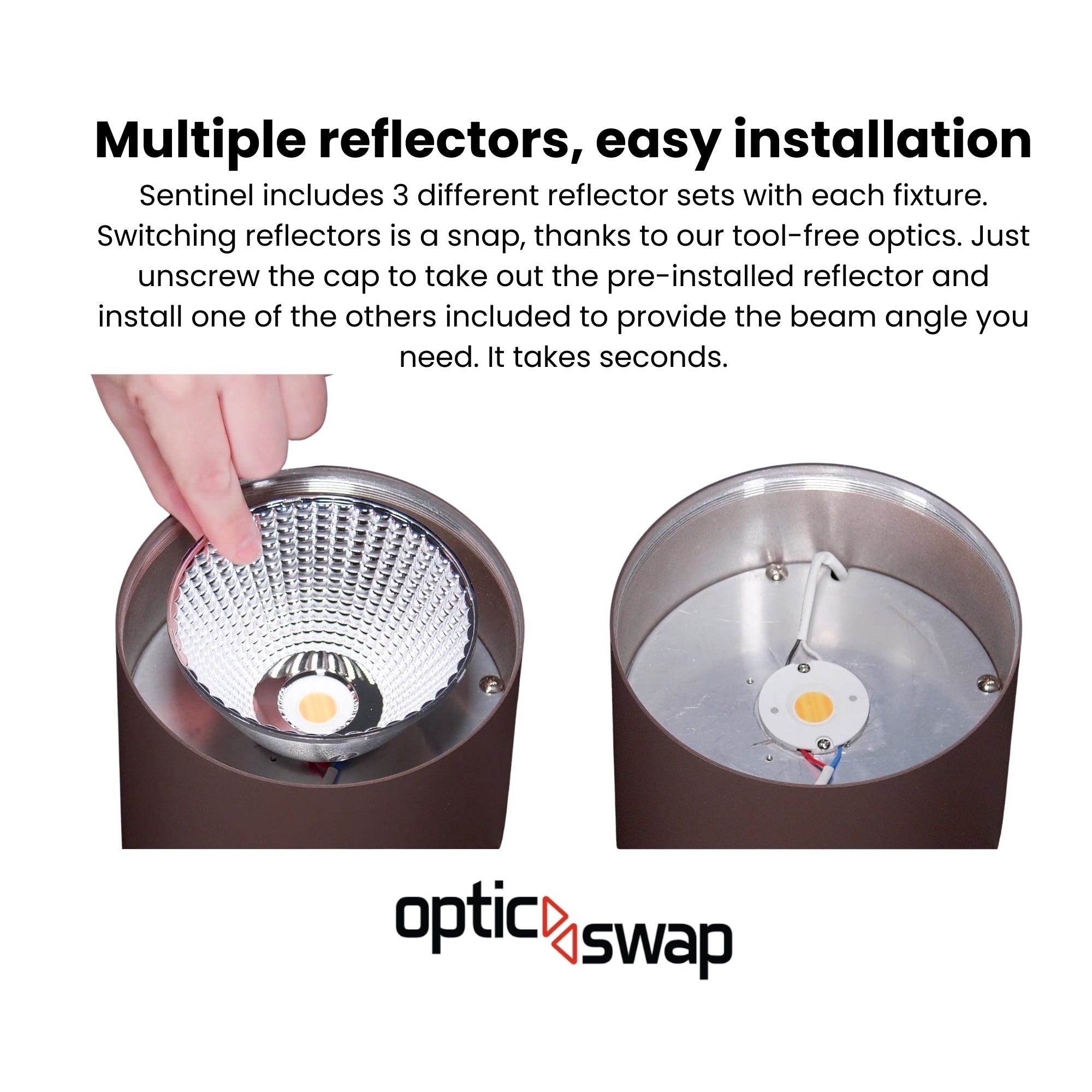

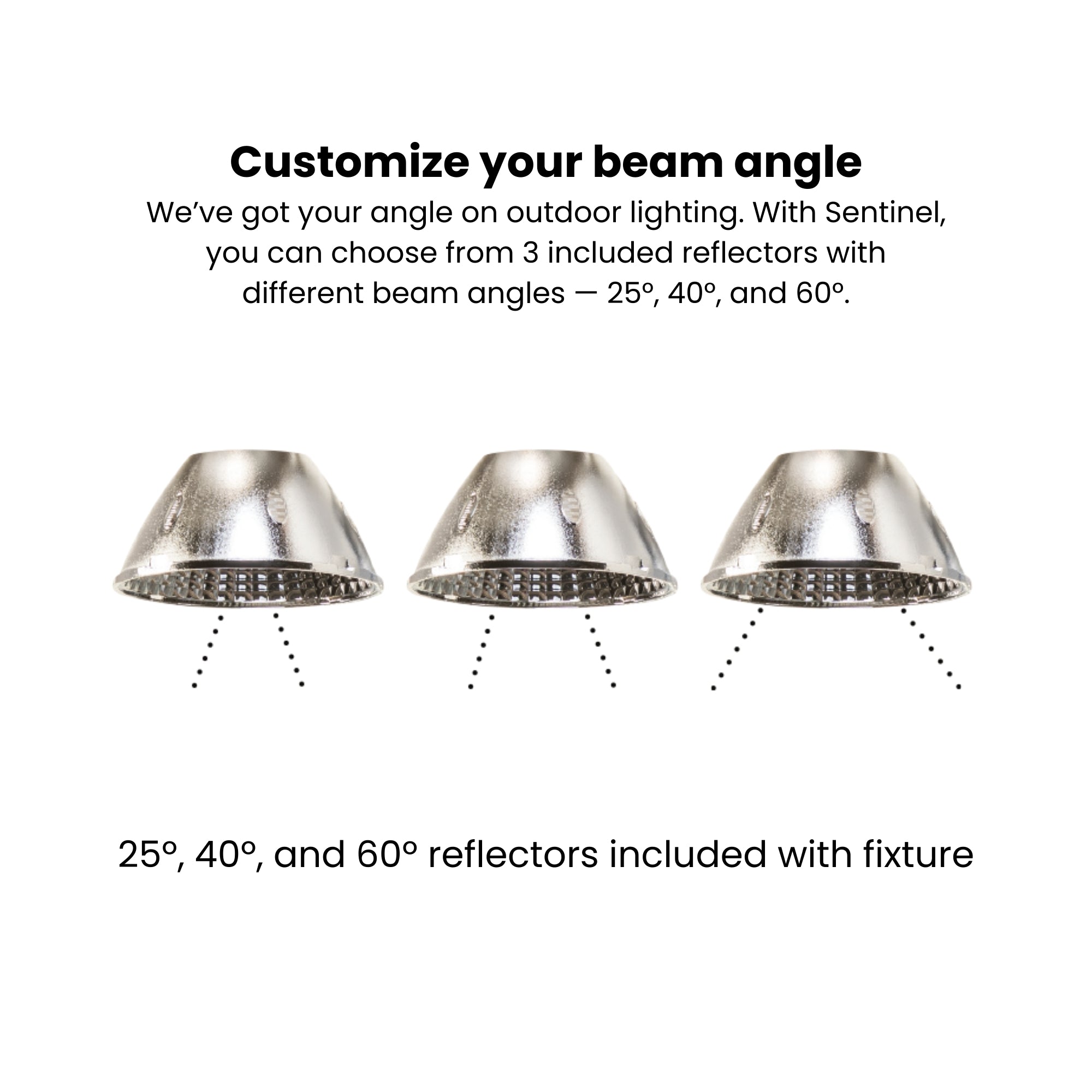

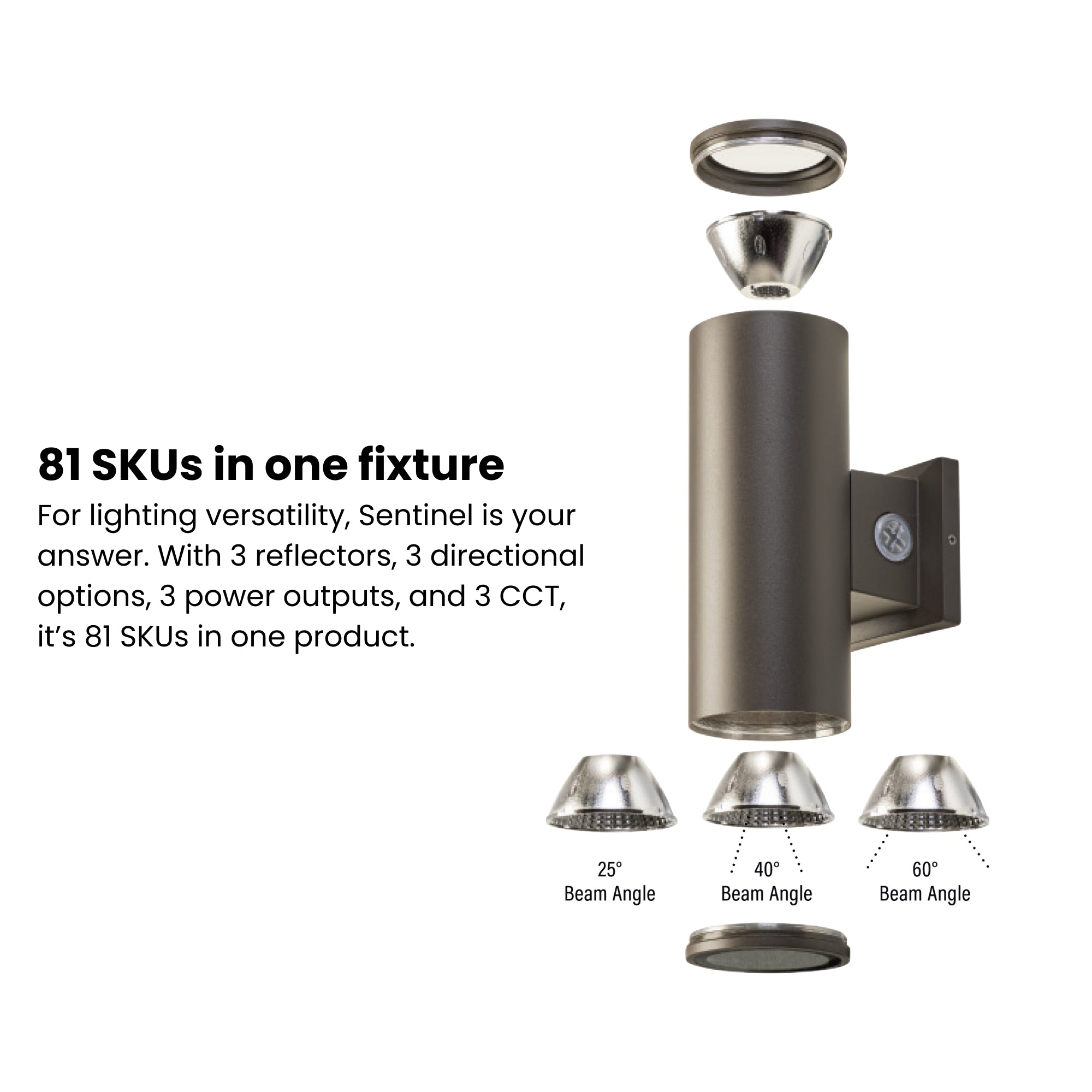

  • Complete beam angle kit: 40° standard lens with 25° narrow and 60° wide reflectors included
  • Integrated photocell enables automatic dusk-to-dawn scheduling
  • IP65 wet location rated for all-weather reliability
  • L70 >100,000 hours at 25°C ambient for extended maintenance intervals
  • Operating temperature range: -40°F to 113°F

Efficiency & Standards

Achieves up to 89 lm/W efficacy while maintaining CRI >80 for true color representation. Meets FCC electromagnetic interference standards and UL safety certifications for professional commercial installations.

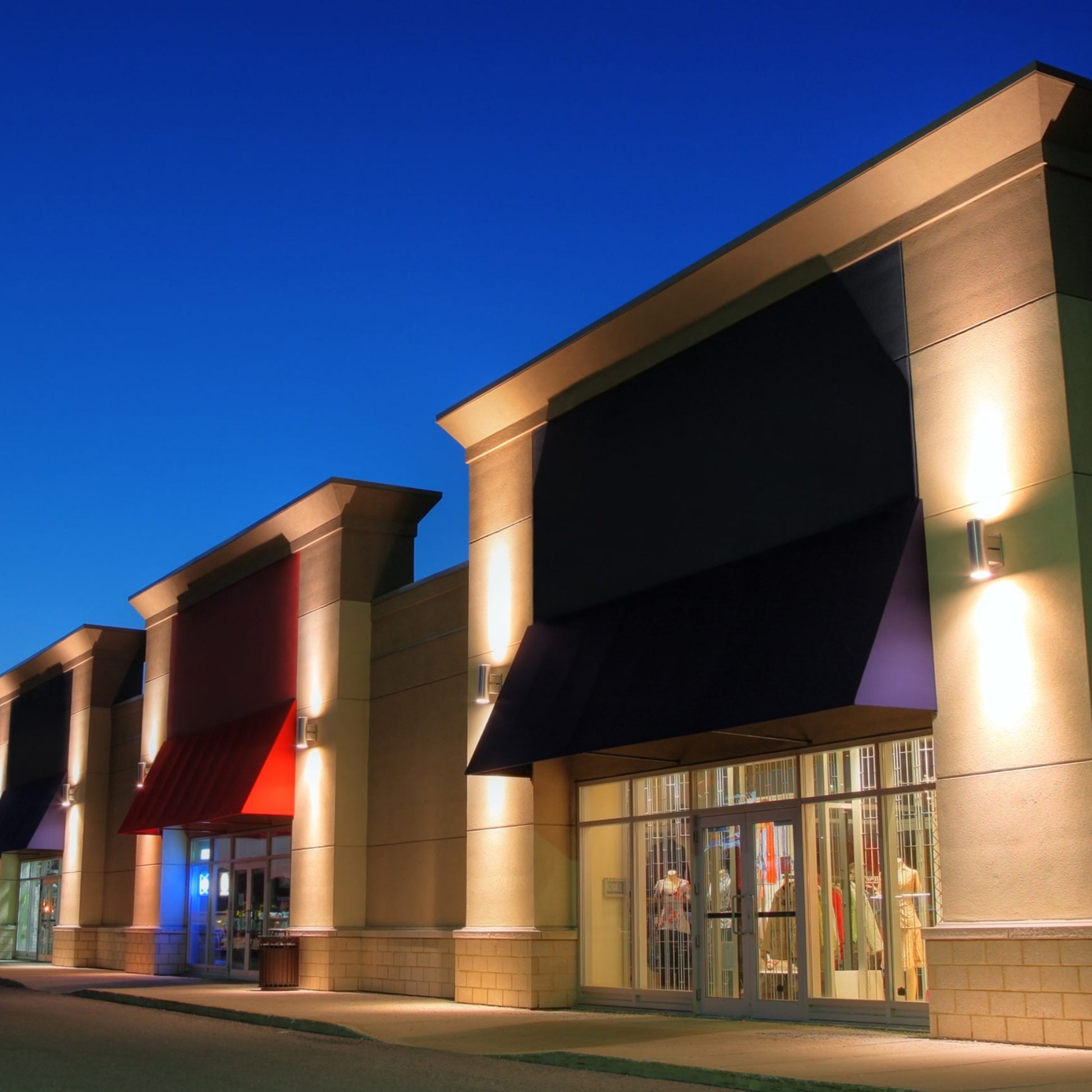

Architectural Applications

Ideal for modern office complexes, educational institutions, healthcare facilities, contemporary residential developments, retail centers, and municipal buildings. The white finish complements light-colored exteriors and contemporary architectural styles while delivering the high lumen output needed for large-scale projects.

Technical Resources

Specifications

Size:

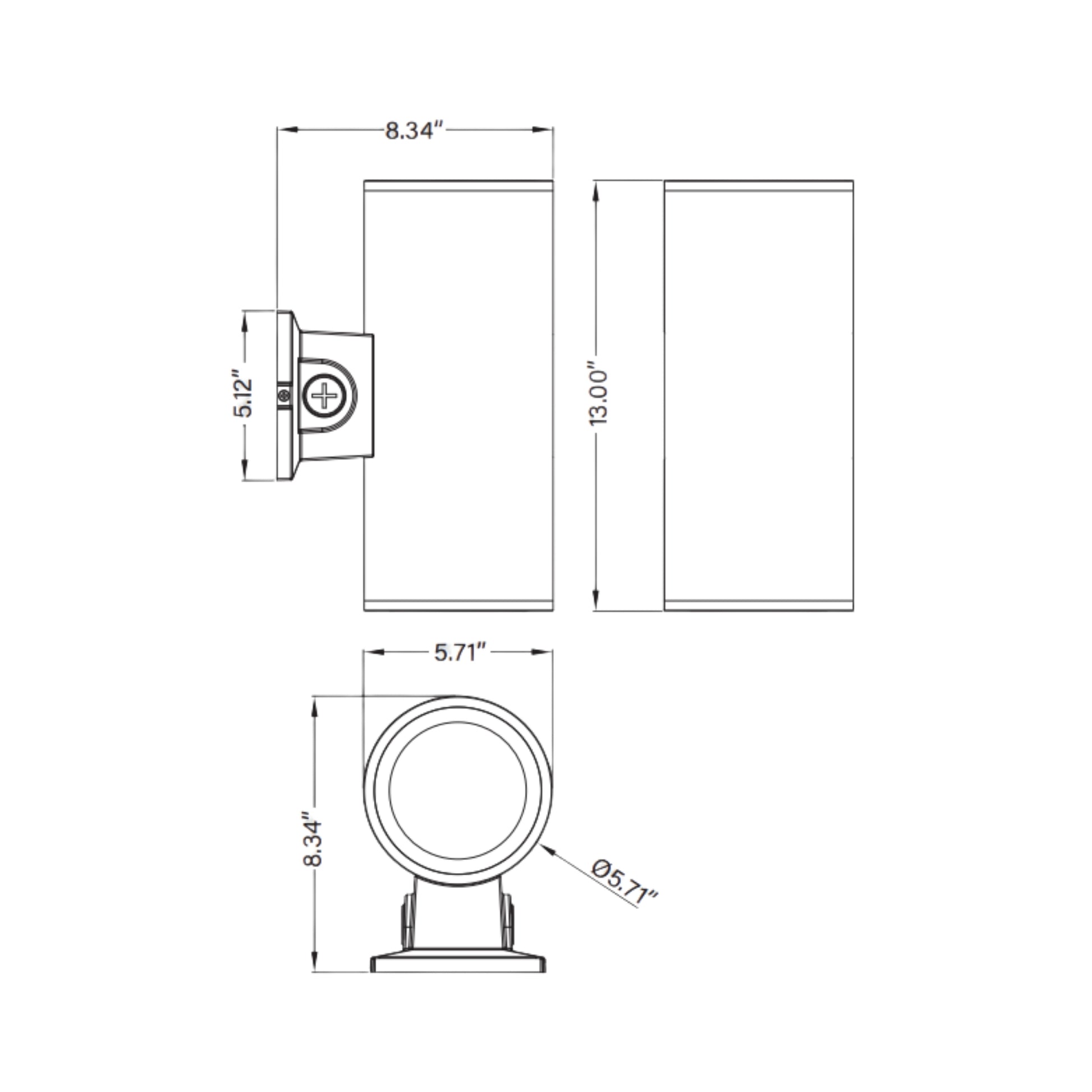

8.34'' L X 5.71'' W X 13.0'' H
Materials:
Aluminum
Total Wattage:
36
Lamp Color:
3000K, 4000K, 5000K, Selectable CCT
Color Rendering:
80
Delivered Lumens:
3200
Lamp Life:
100,000 Hours
