Description

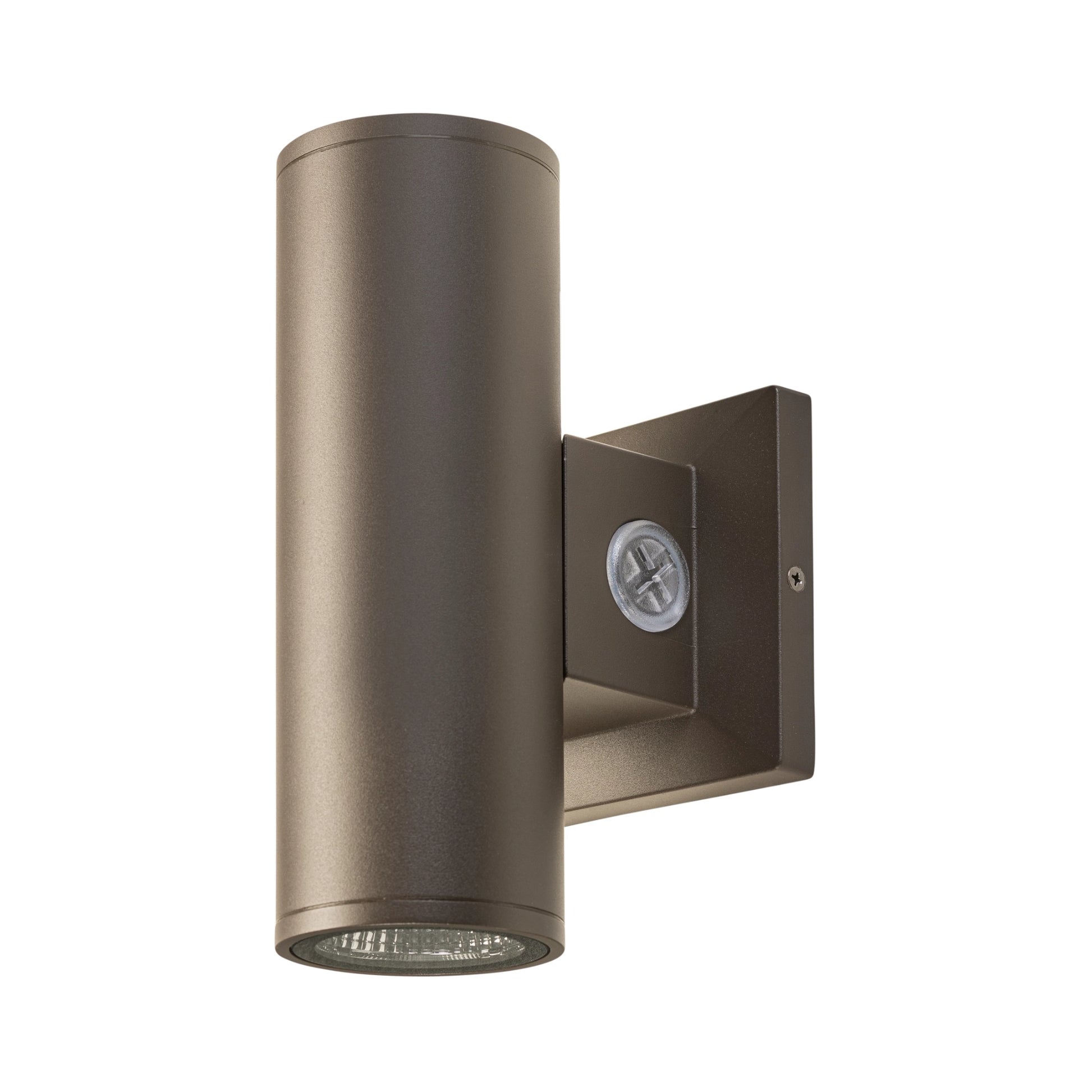

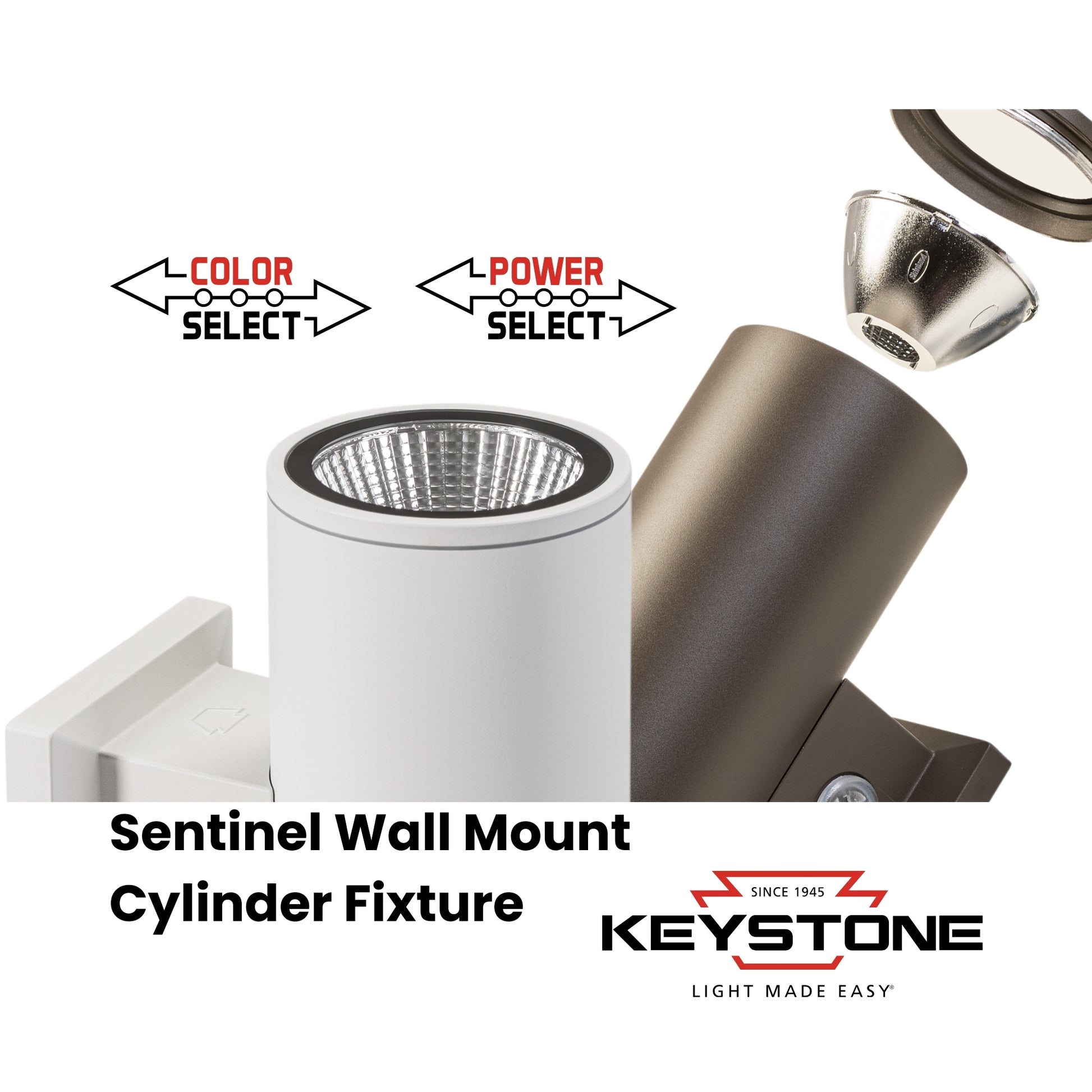

Keystone Technologies brings professional-grade outdoor lighting with the KT-CYLED10PS-3A-WDI-OSG-8CSB-VDIM, a compact 3-inch LED cylinder wall sconce engineered for versatility and performance. This fixture delivers 1050 lumens of crisp illumination while consuming just 10W, making it ideal for entryways, facades, awnings, and wall washer applications.

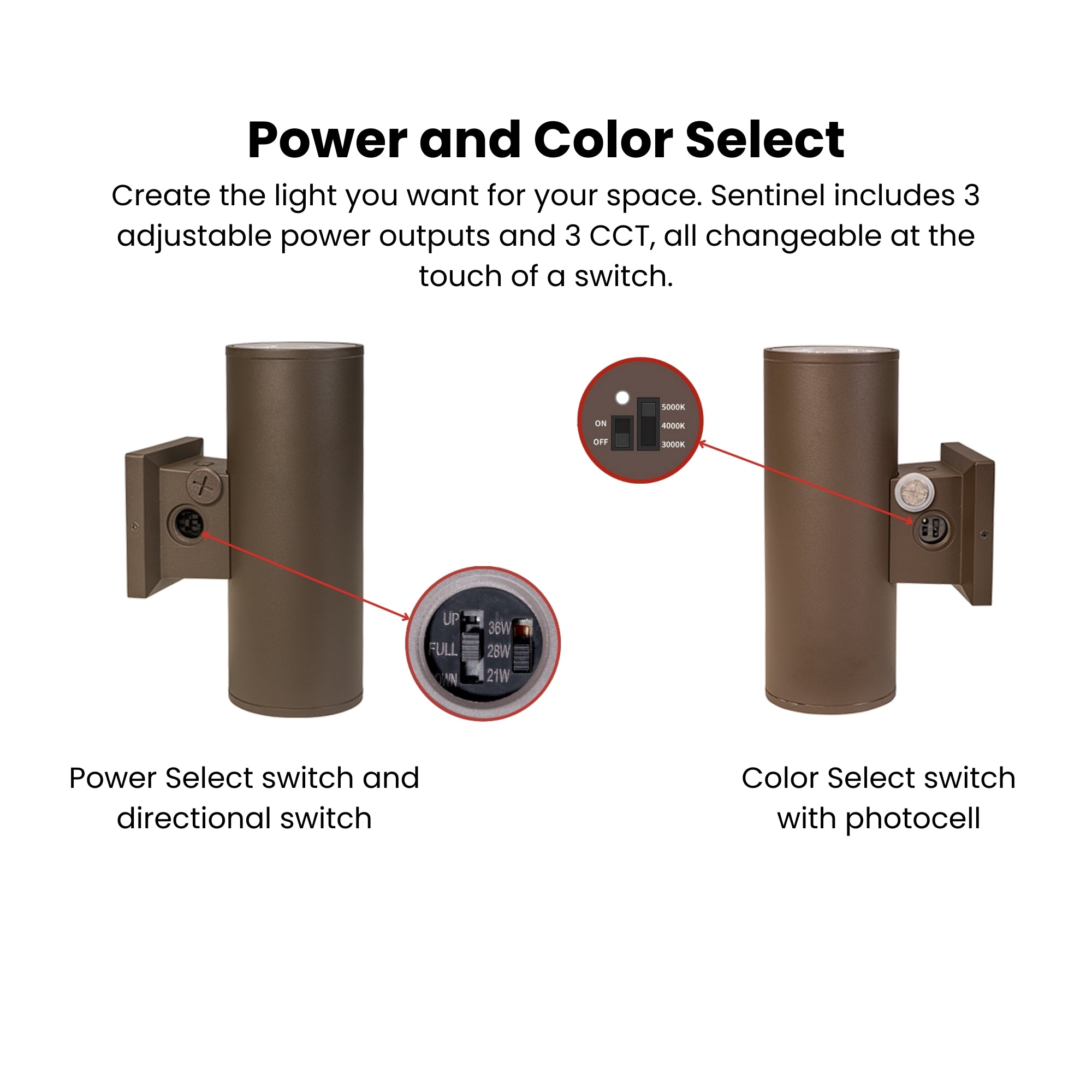

Power Select Technology

Switch between direct, indirect, or full illumination modes to suit your lighting needs. The innovative Power Select feature lets you customize light distribution on-site without additional fixtures.

Key Features

  • Selectable CCT: Choose 3000K warm white, 4000K neutral, or 5000K daylight at installation
  • Universal voltage 120-277V for flexible installation across commercial and residential projects
  • Dimmable 0-10V for precise light control and energy savings
  • Die-cast aluminum housing in sleek black finish resists corrosion and weathering

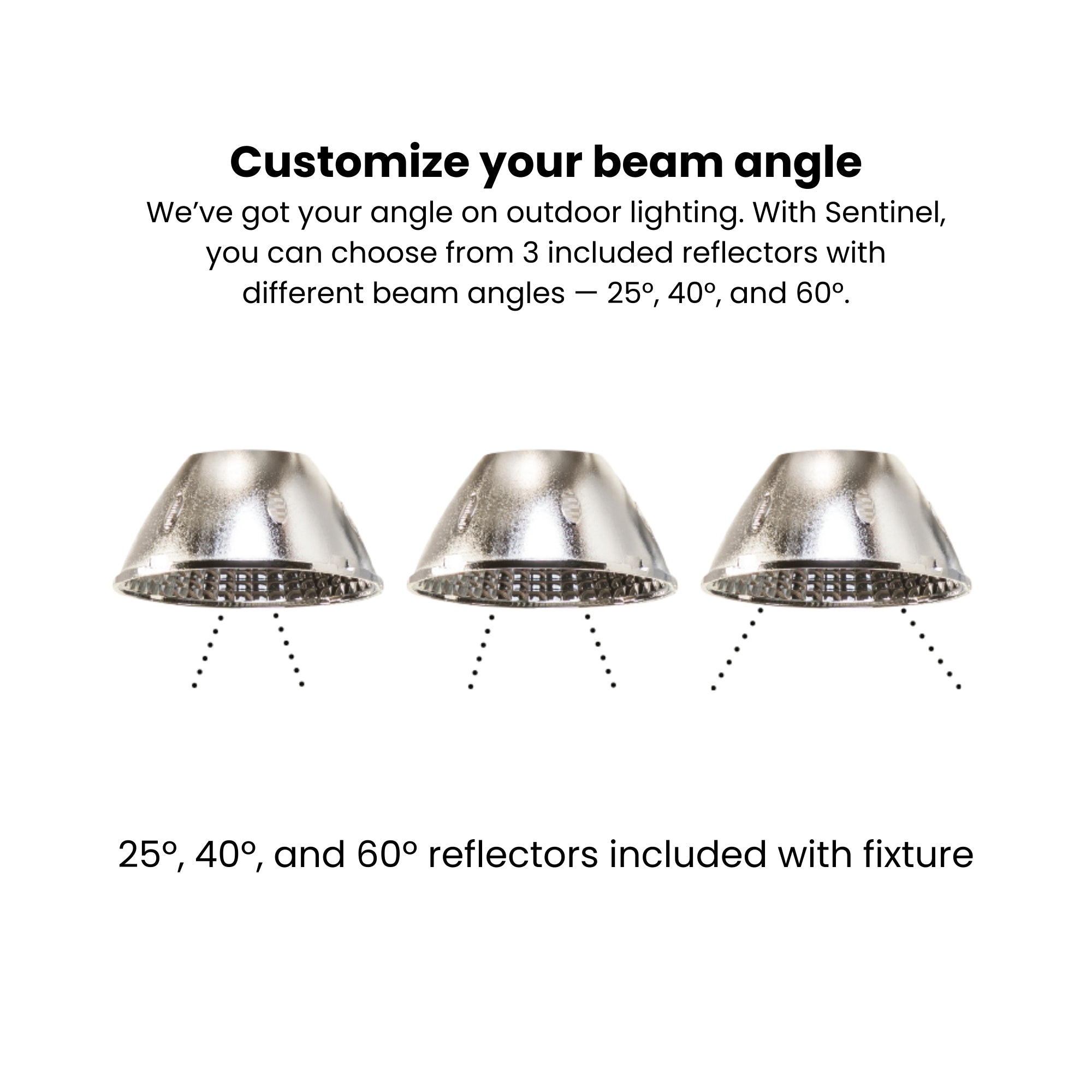

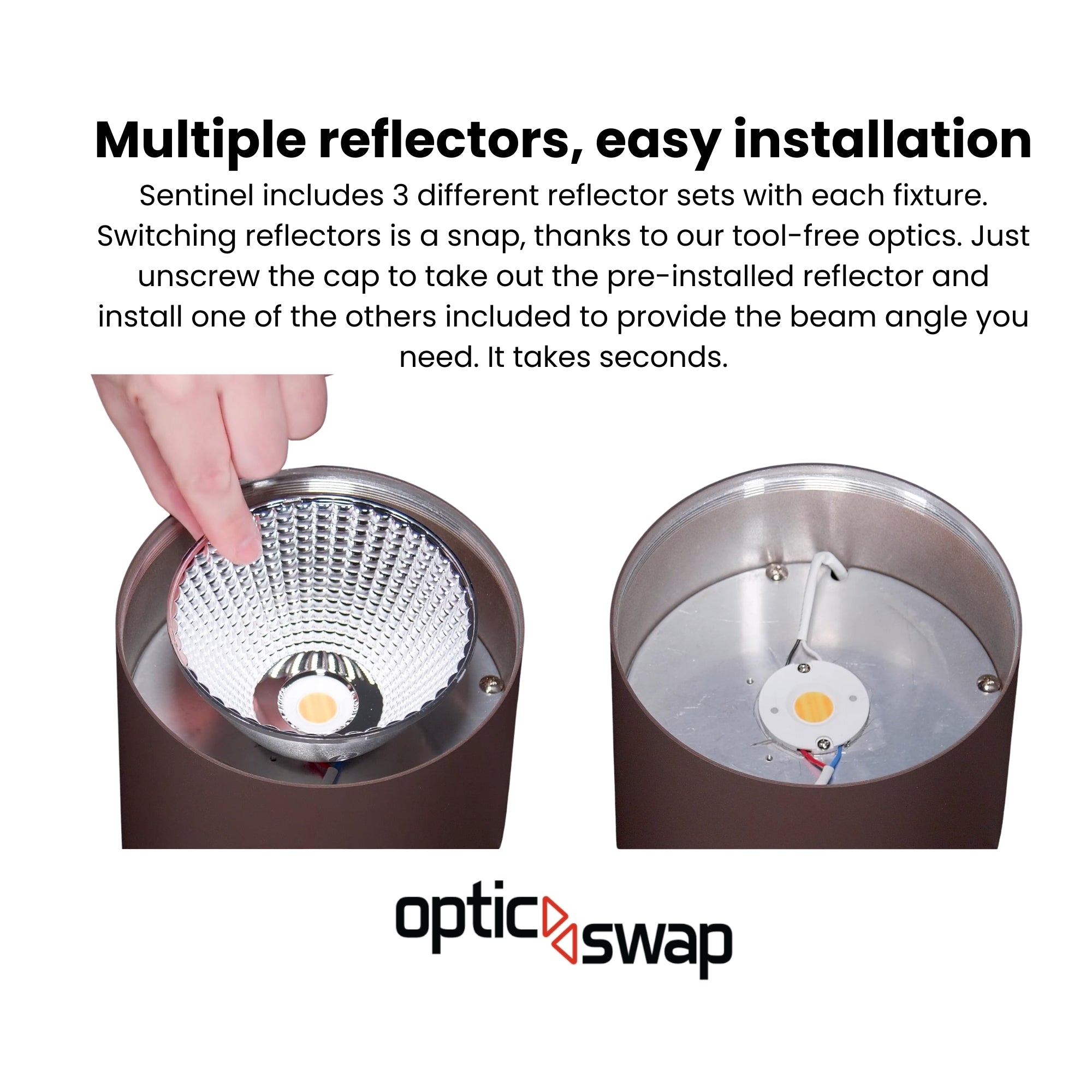

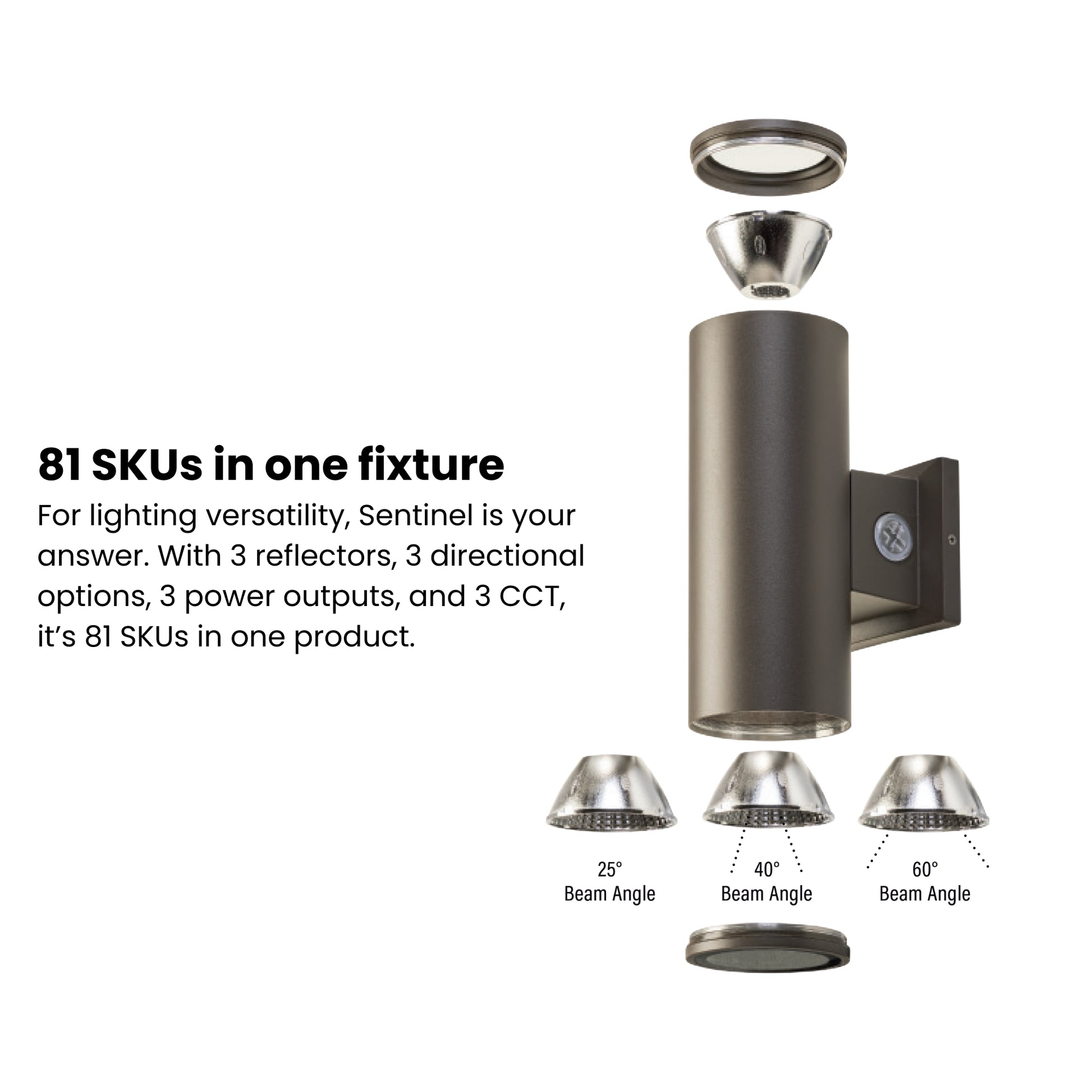

  • Interchangeable optics: 40° lens installed, includes 25° and 60° reflectors for custom beam angles
  • Built-in dusk-to-dawn photocell for automated operation
  • UL Listed, IP65 rated for wet location durability
  • Rated for 50,000 hours of reliable performance
  • Operating temperature range: -40°C to 45°C

Technical Specifications

Efficacy reaches up to 105 lm/W depending on CCT selection, with CRI >80 for accurate color rendering. The fixture meets FCC Part 15, Part B, and Class A standards for conducted and radiated emissions, ensuring clean operation in sensitive environments.

Applications

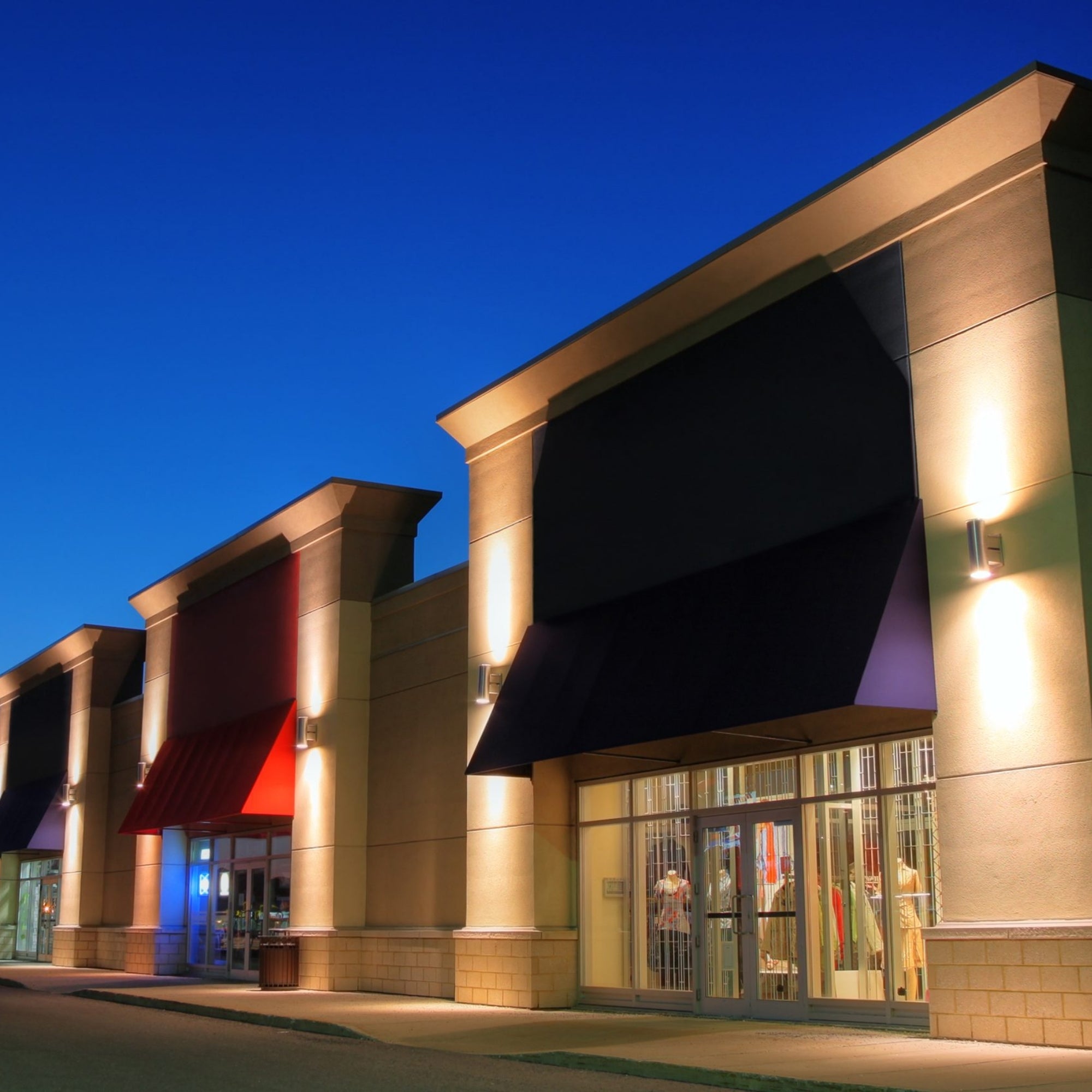

Perfect for architectural accent lighting, building facades, entryway illumination, outdoor corridors, and decorative wall washing. The compact 3-inch profile fits tight spaces while delivering professional-grade performance.

Specifications

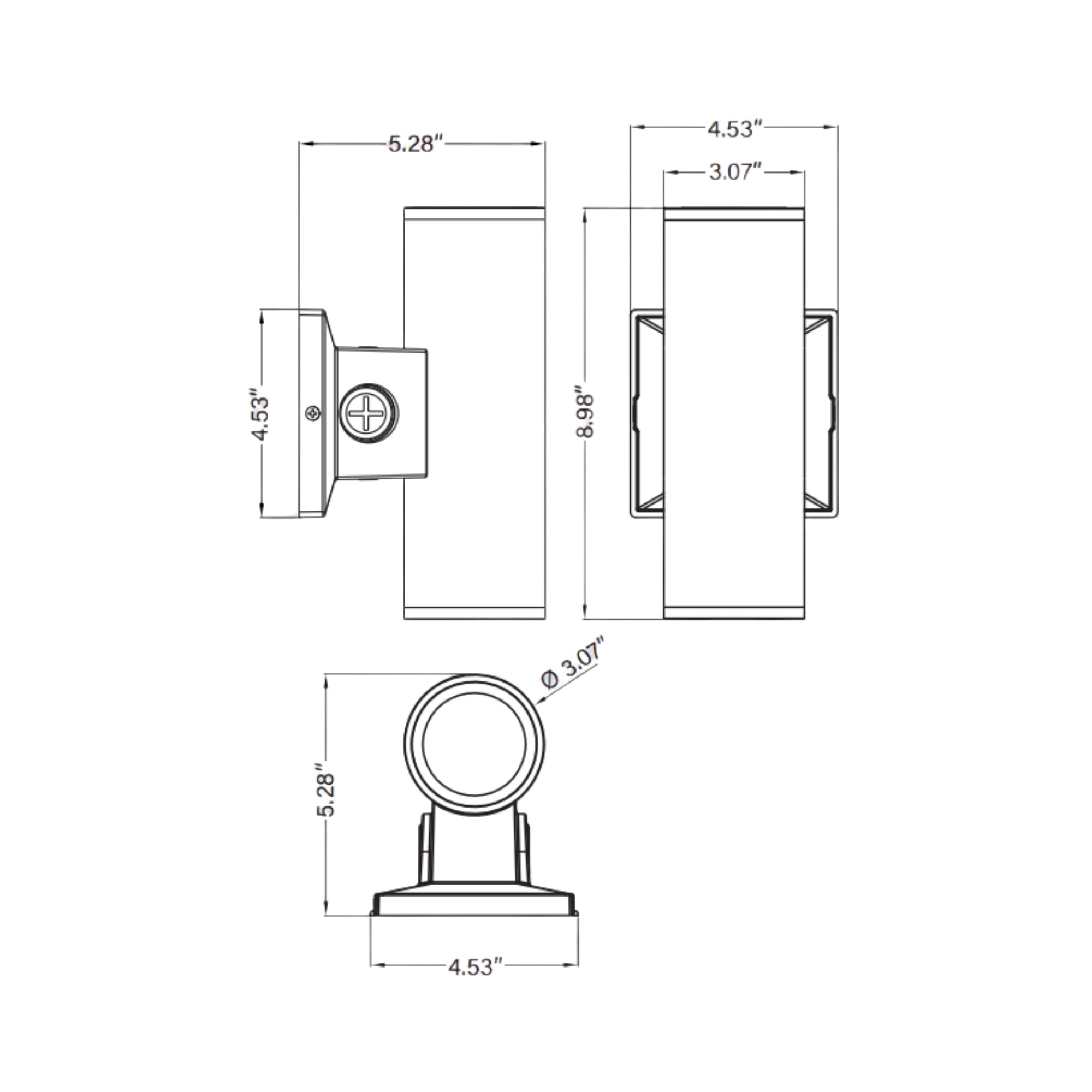

Dimensions

Length/Depth
5.28 in
Width/Diameter
3.07 in
Height
8.98 in
Weight
2.1 lb

Style & Materials

Finish
Black
Material
Aluminum

Characteristics & Features

Lamp Color
3000K, 4000K, 5000K, Selectable CCT
Color Rendering
80 CRI
Delivered Lumens
1050
Beam Angle
25,40,60
Dimmable
Yes

Electrical Information

Voltage
120-277V
Total Wattage
10W

Item Details

SKU
KT-CYLED10PS-3A-WDI-OSG-8CSB-VDIM
Brand
Keystone Technologies
Catalog Number
ZZF-20
Family
Sentinel Wall Mount Cylinder Fixture
UPC
843654162614

Warranty & Certifications

Product Warranty
10 Years
Lamp Life
100,000 Hours
Product Rating
IP65 Rated
