Keystone XFit OpticSwap LED Canopy — 60W White Selectable Configuration

The Keystone KT-CLED60PS-M2-OSH-8CSB-VDIM-W is a highly adaptable 10-inch round LED canopy light engineered for commercial and architectural outdoor environments. Operating at a selectable 40W, 50W, or 60W to produce up to 9,222 lumens, this luminaire runs on a universal 120-277V input. Designed for maximum application flexibility in a clean white finish, it features Keystone's OpticSwap multi-function lens technology, field-adjustable color temperatures, and a built-in photocell to meet precise lighting compliance in parking garages, covered walkways, and drive-thrus.

Key Features

• Selectable Wattage: Field-adjustable between 40W, 50W, and 60W.
• Selectable CCT: Toggle between 3000K, 4000K, and 5000K color temperatures.
• Lumen Output: Scales up to 9,222 lumens depending on selected settings.
• Input Voltage: Universal 120-277V 50/60Hz operation.

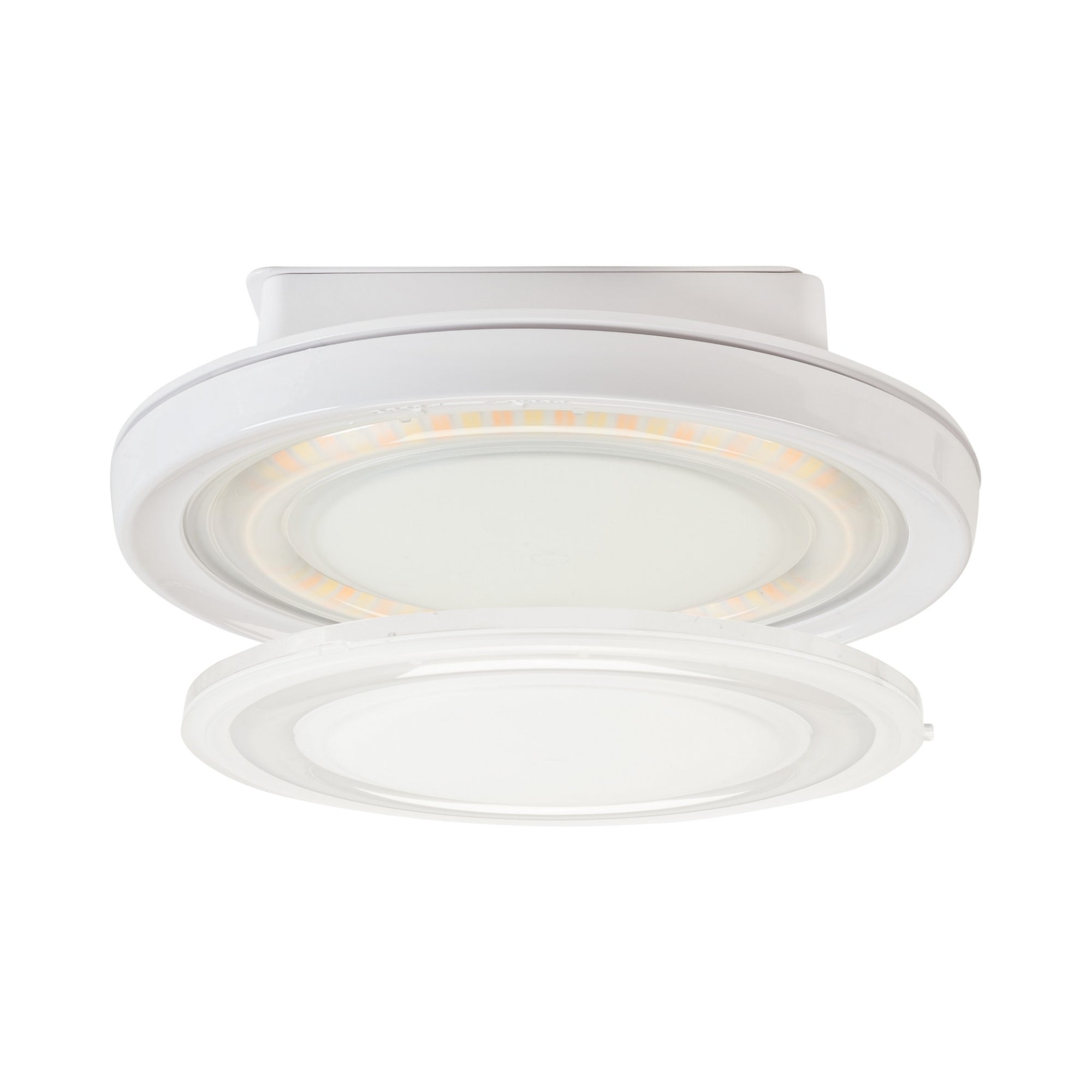

• OpticSwap Lenses: Includes interchangeable 160° standard and 110° low-bay lenses.
• Dimming Protocol: Standard 0-10V continuous dimming.
• Integrated Photocell: Built-in dusk-to-dawn ambient light sensor.
• Sensor Receptacle: Twist-in port for compatible microwave occupancy sensors.
• Environmental Ratings: IP65 wet location rated for outdoor exposure.
• Lifespan: 100,000-hour L70 rated LED life.

Typical Applications

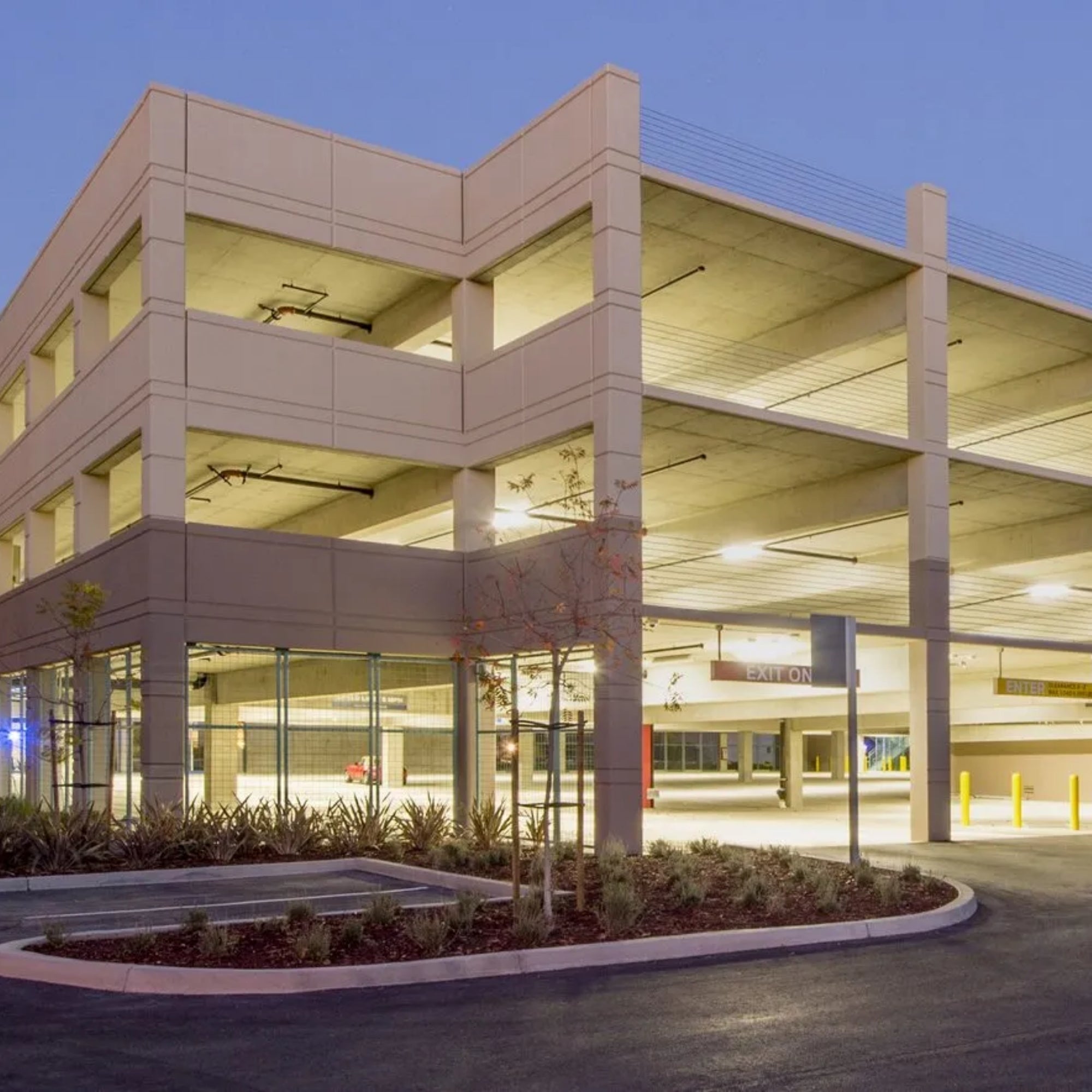

• Commercial parking garages and multi-level parking structures.
• Gas station canopies and covered fueling plazas.
• Exterior pedestrian entryways and covered walkways.
• Drive-thru lanes and banking kiosks.
• Low-ceiling industrial perimeters and loading docks.

Performance & Light Output

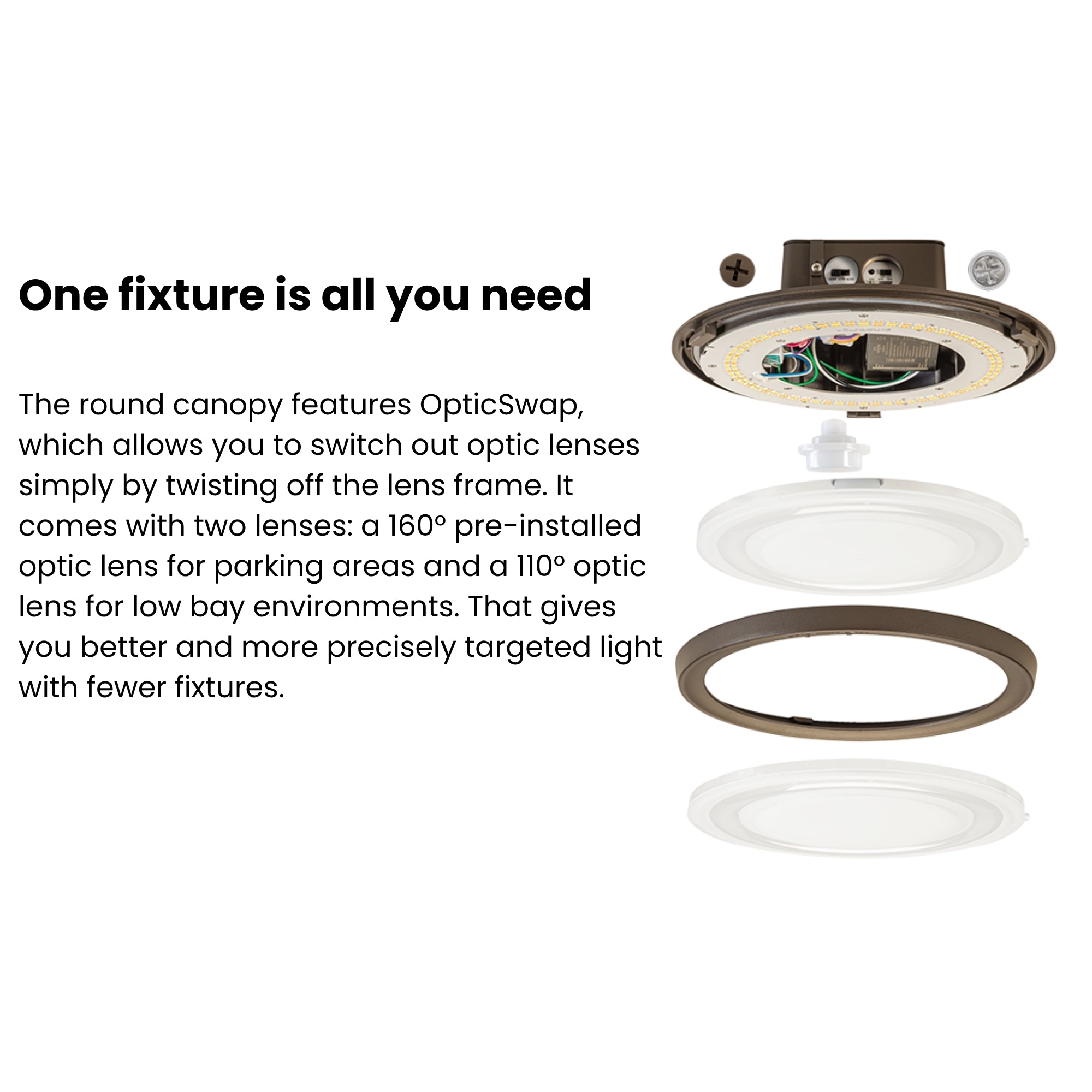

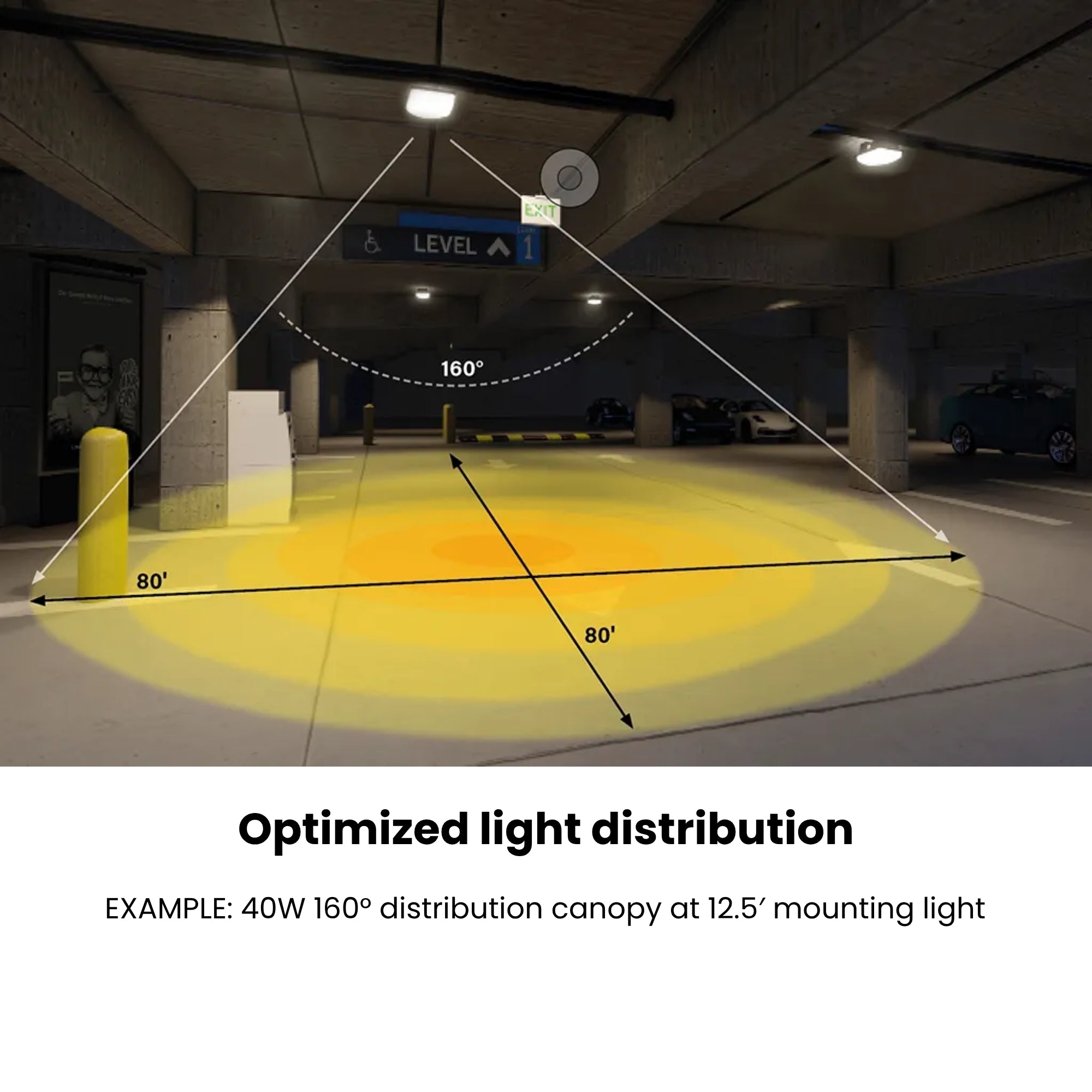

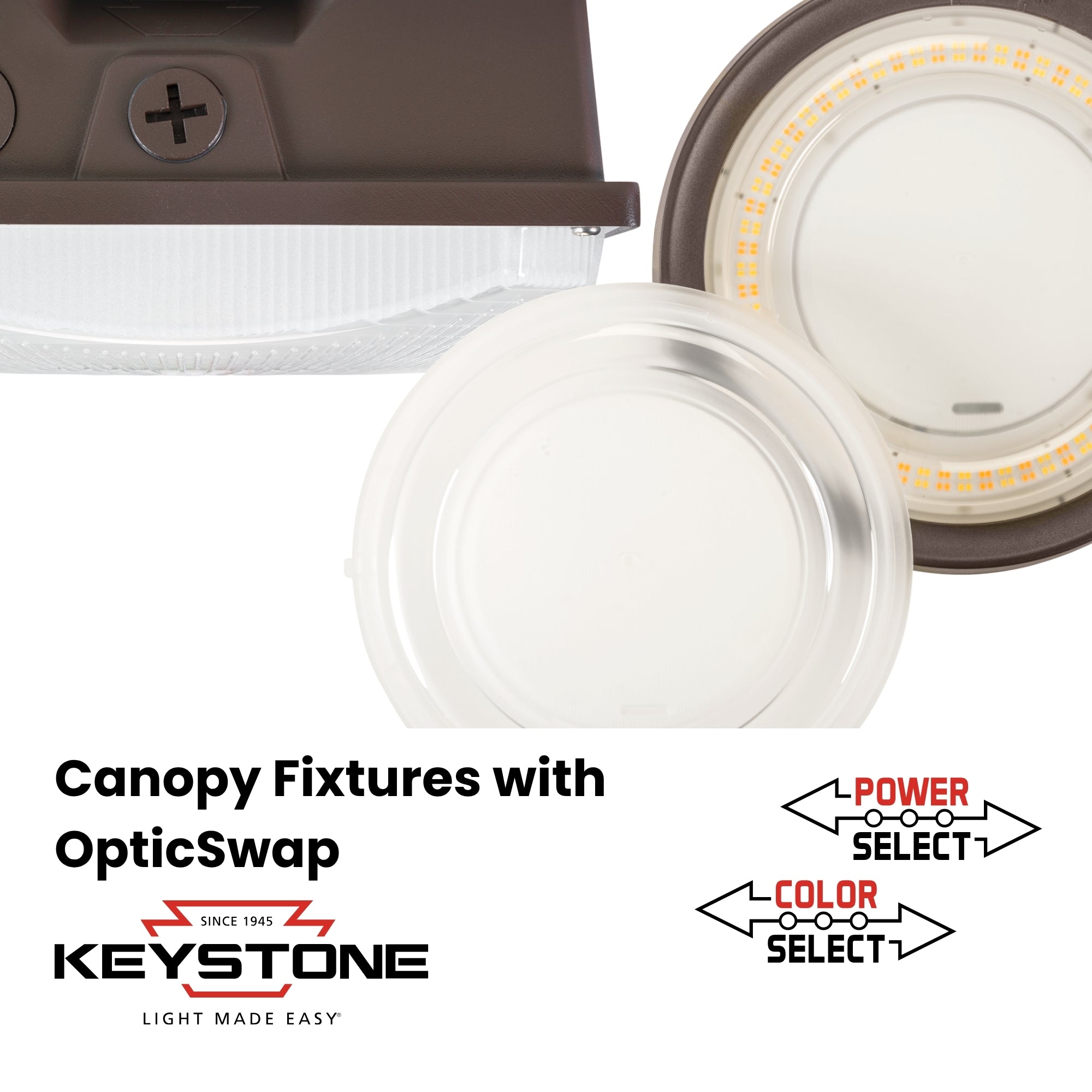

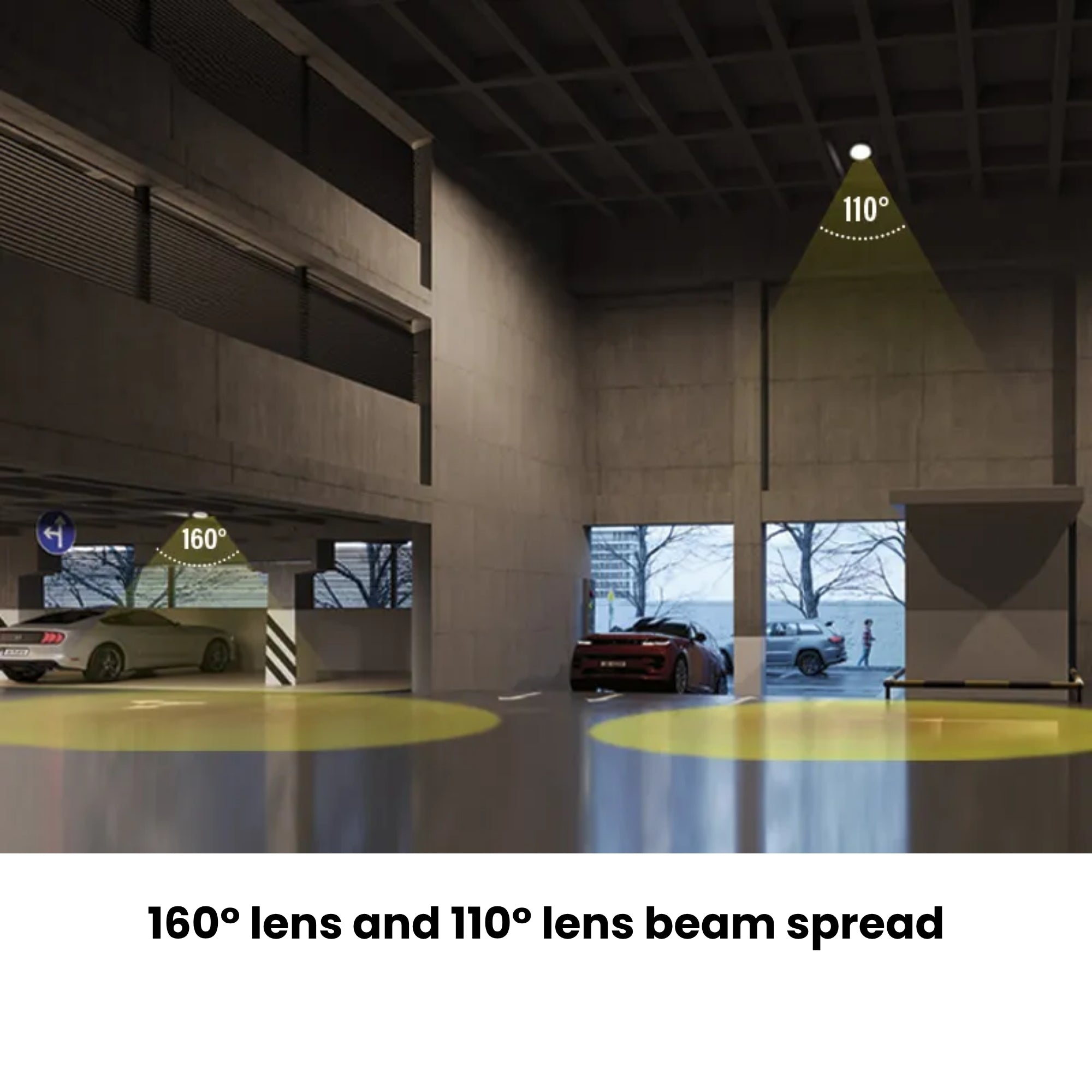

Engineered for maximum adaptability, this round canopy light delivers up to 9,222 lumens with a high efficacy. The standout feature is the OpticSwap lens system, which allows users to easily shift between the pre-installed 160-degree standard lens for wide-area uniform illumination and the included 110-degree lens for more focused, low-bay applications. With selectable 3000K, 4000K, and 5000K color temperatures and an 80+ CRI, it ensures optimal visibility and safety. The high-performance LEDs guarantee long-term reliability with an L70 lifespan of 100,000 hours.

Electrical & Controls

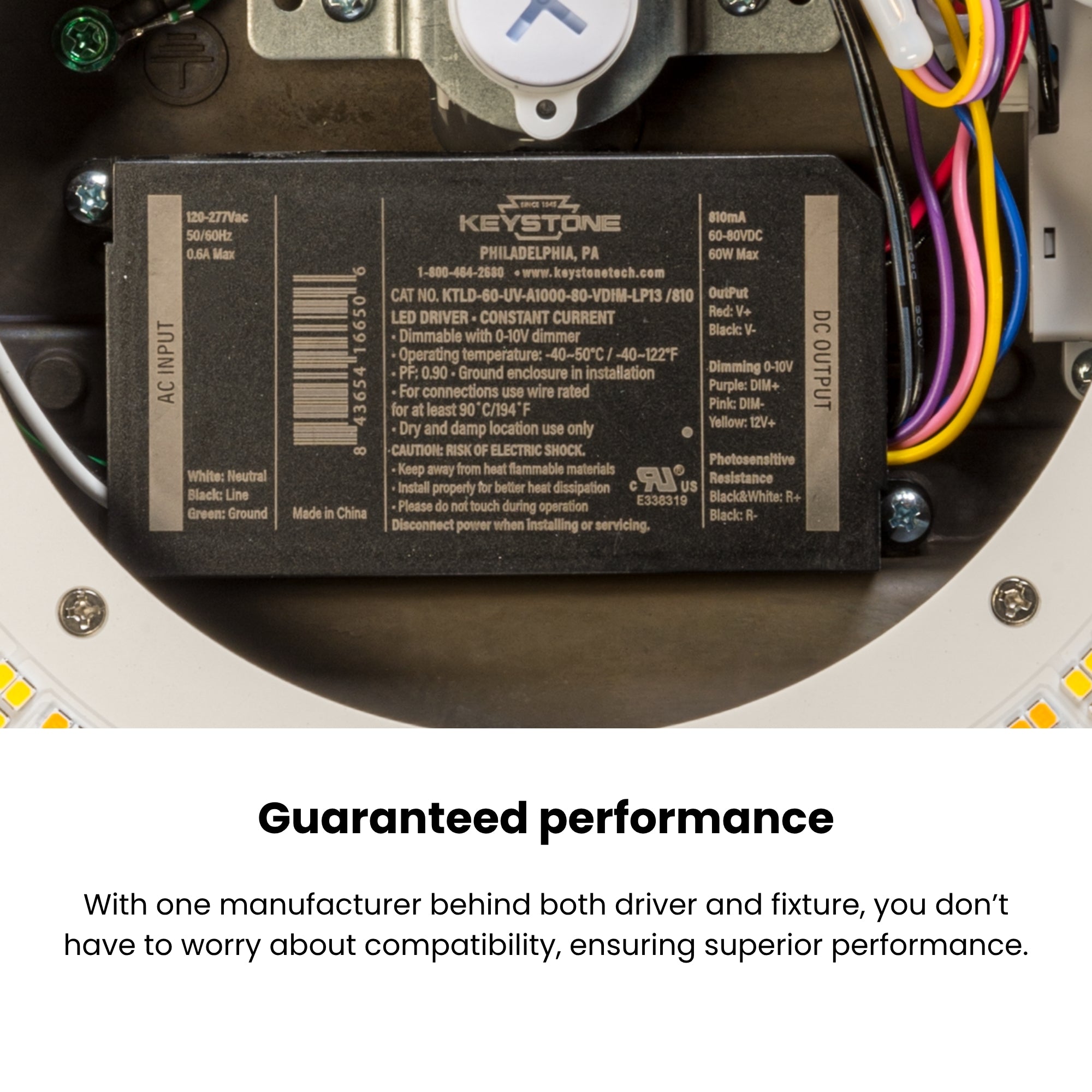

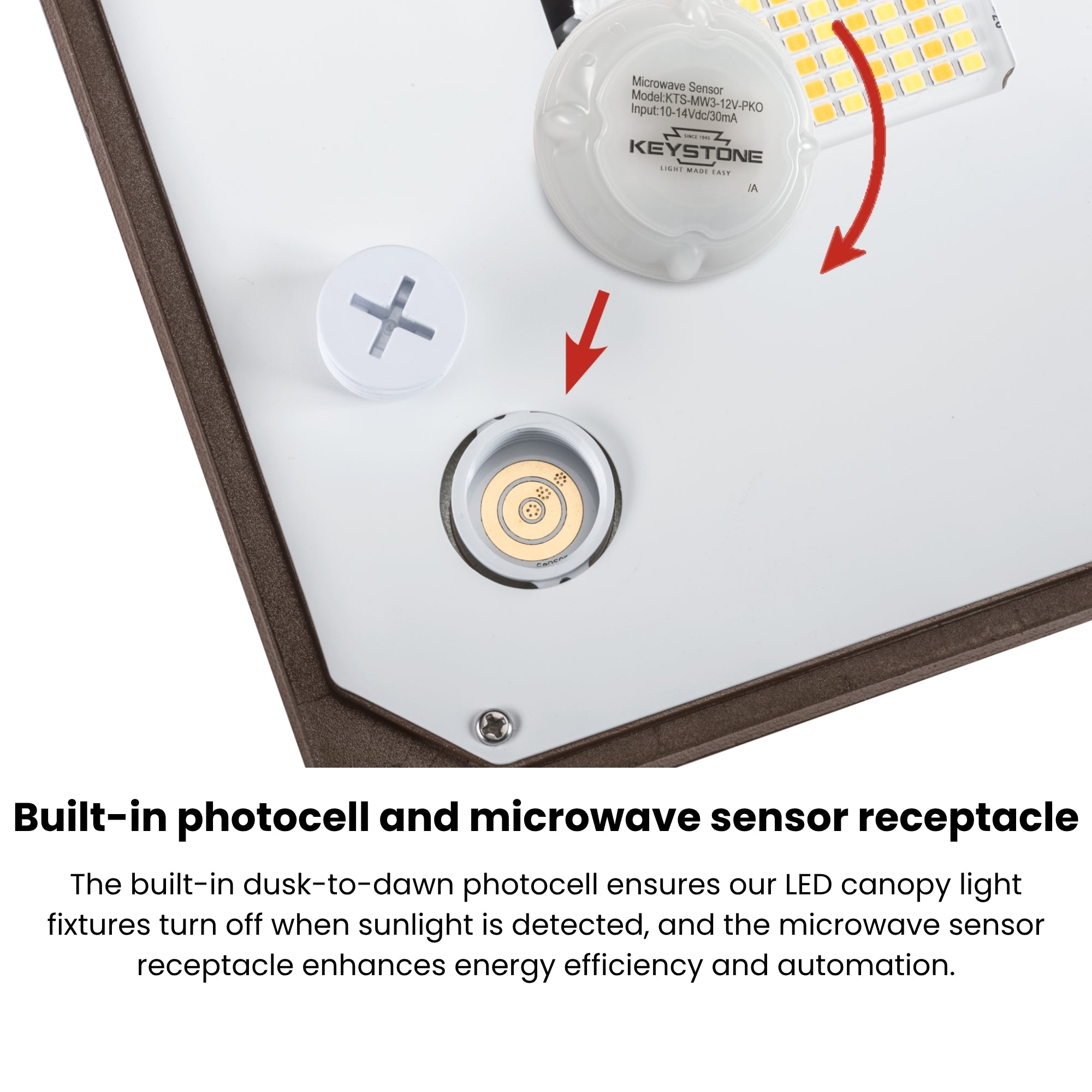

This luminaire features a universal 120-277V driver equipped with 0-10V dimming capabilities for seamless integration with commercial energy management systems. It comes standard with a built-in photocell for automated dusk-to-dawn lighting out of the box. Additionally, the intelligent design includes a dedicated twist-in sensor receptacle. Installers can quickly connect compatible Keystone microwave motion sensors (sold separately) to automate lighting schedules based on occupancy and maximize energy efficiency without complex internal wiring.

Construction & Durability

Built to endure demanding commercial environments, the fixture features a robust, low-profile die-cast aluminum housing with a durable white powder-coated finish. The housing is engineered with advanced heat transfer technology to properly manage LED thermal limits. The OpticSwap lenses are constructed from impact-resistant polycarbonate and are designed for tool-free adjustments via a simple clasp mechanism. The complete luminaire is IP65 wet location rated, protecting the internal electronics from heavy rain and ambient moisture across an operating temperature range of -40°F to 122°F (-40°C to 50°C).

Installation & Mounting

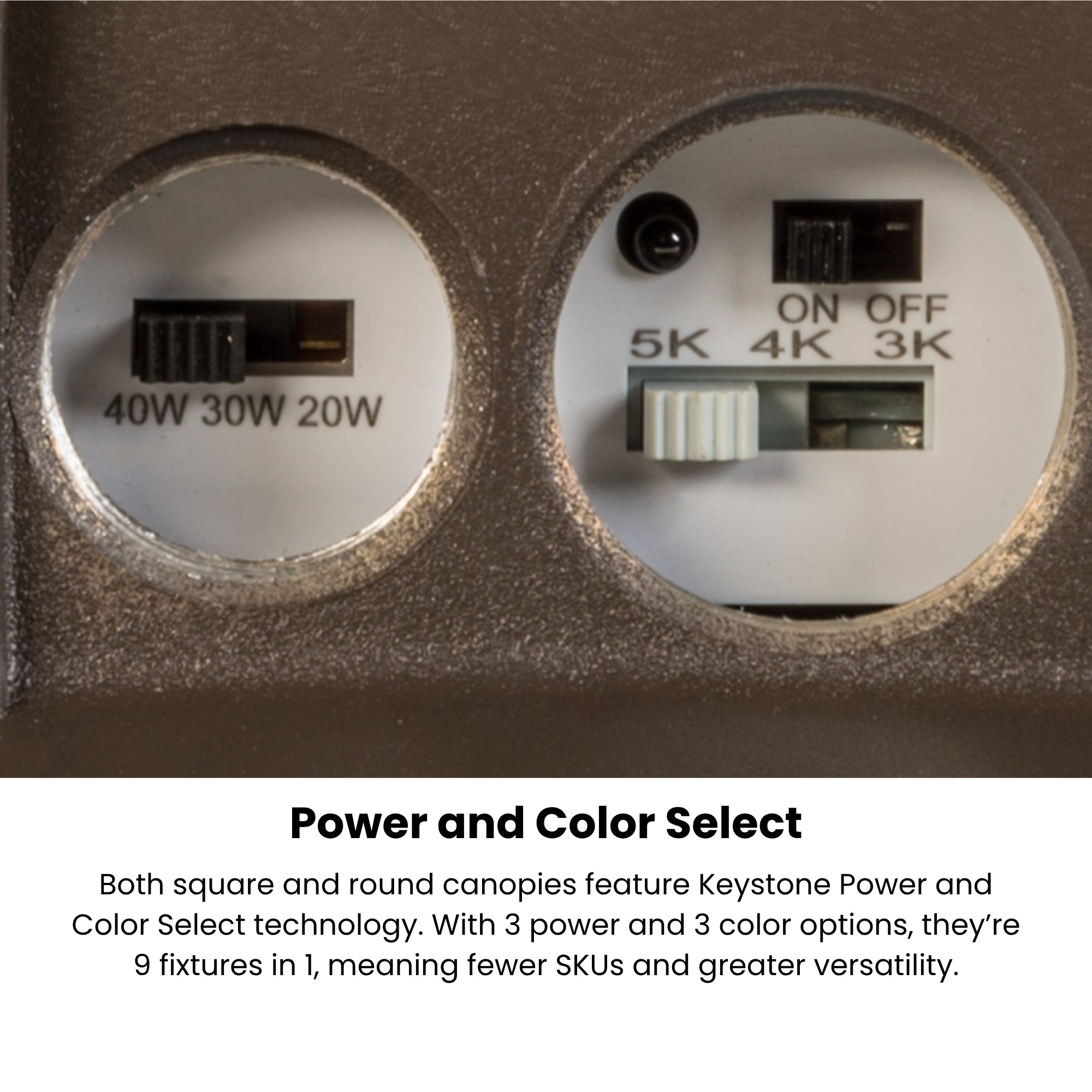

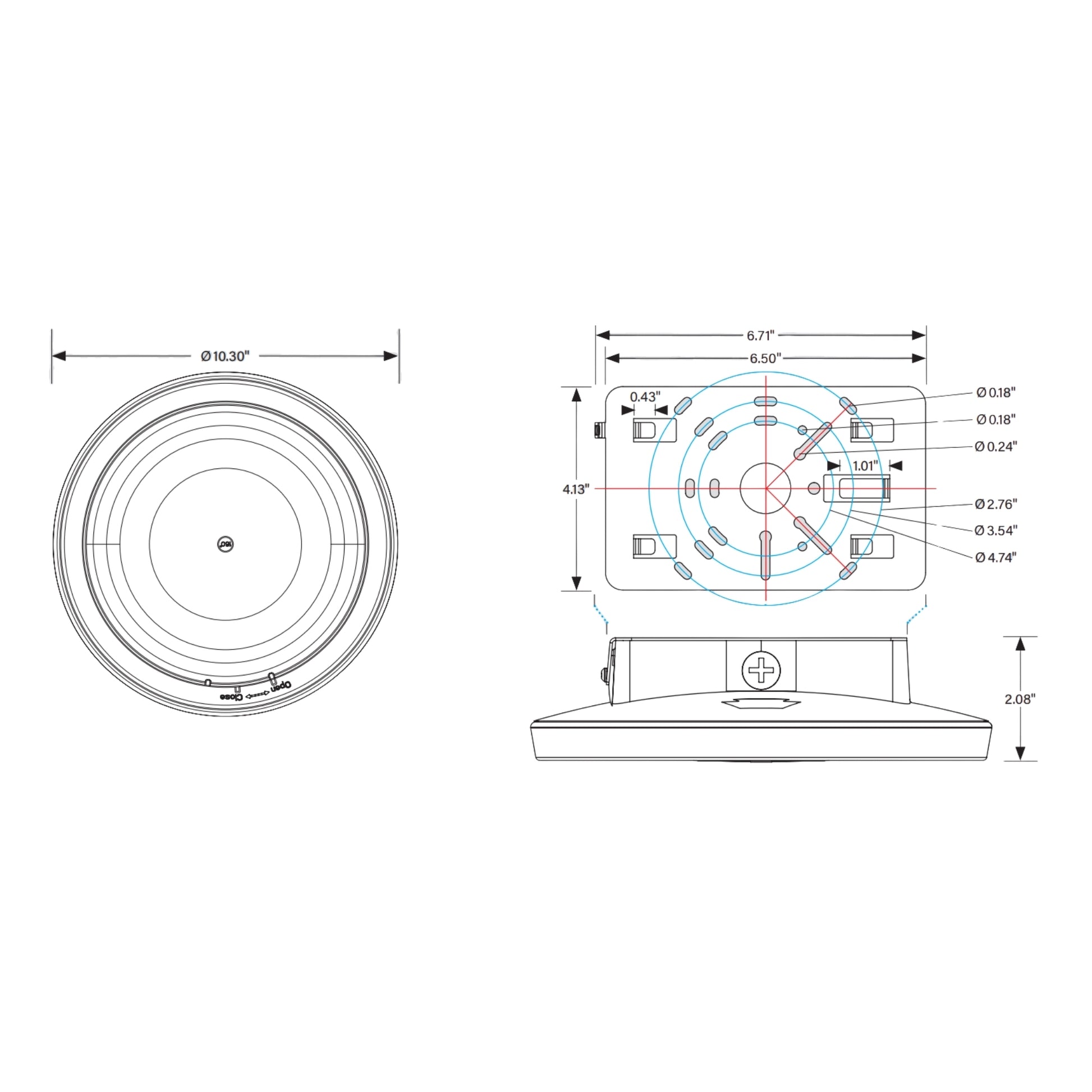

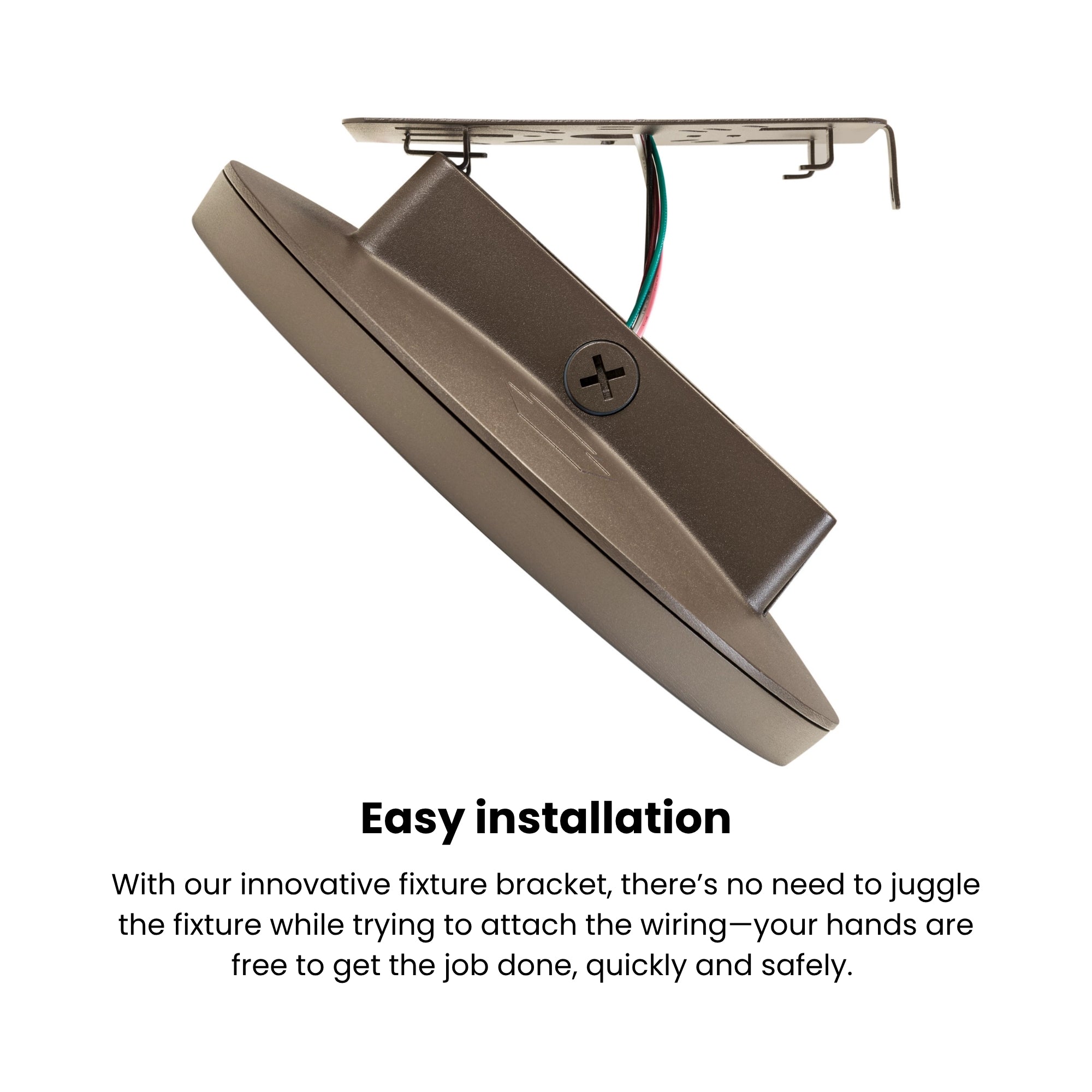

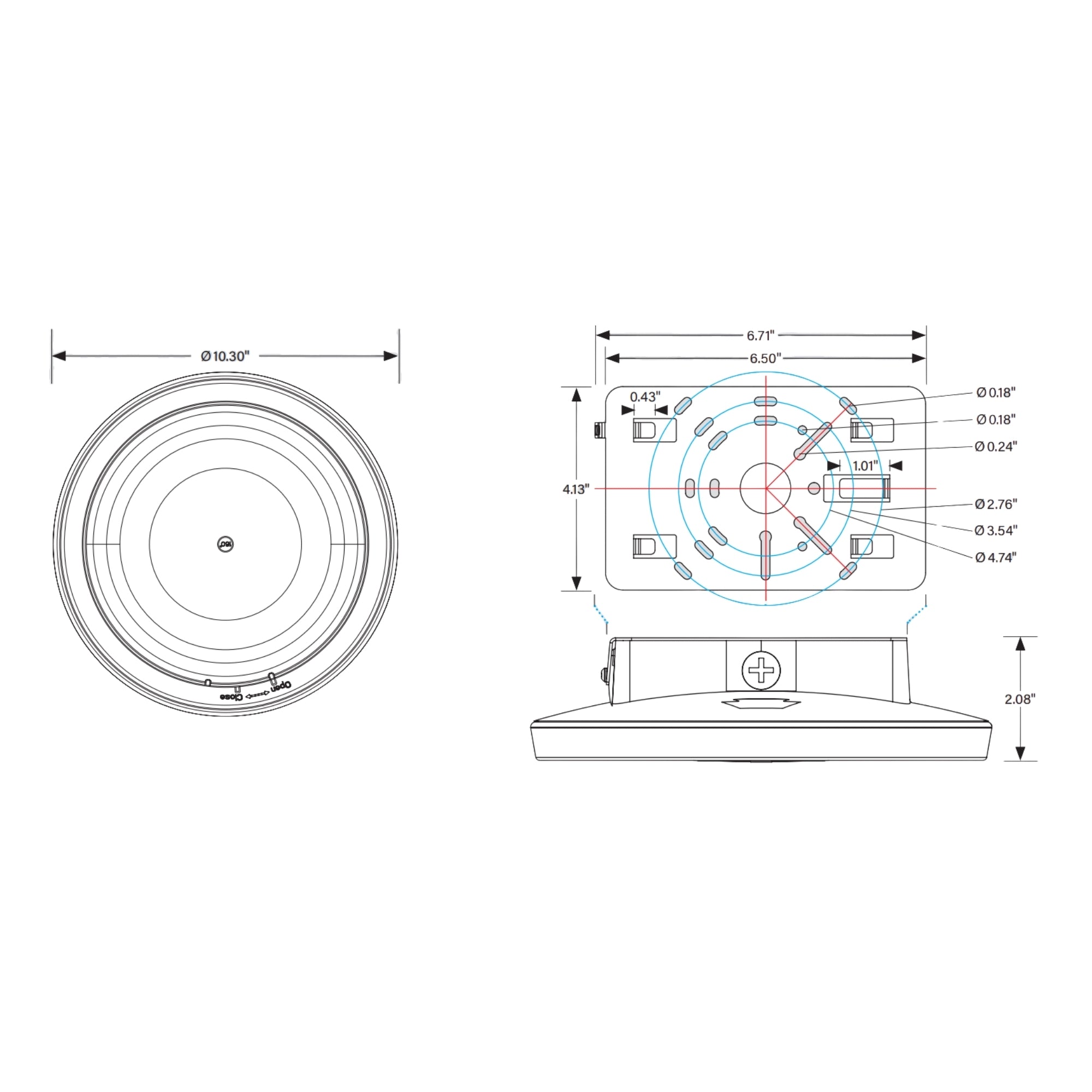

Designed for rapid deployment, this 10-inch round canopy supports direct surface mounting to standard junction boxes in a wide range of ceiling architectures, as well as 3/4-inch NPT pendant mounting. The fixture incorporates a clever easy-hang bracket system that significantly reduces installation time and labor. The field-adjustable wattage and CCT switches are positioned for easy access, allowing electrical contractors to quickly configure the luminaire on-site before securing the lens.

What's Included

• Keystone XFit OpticSwap LED Canopy Light
• 160-Degree Wide-Angle Lens (Installed)
• 110-Degree Low-Bay Lens
