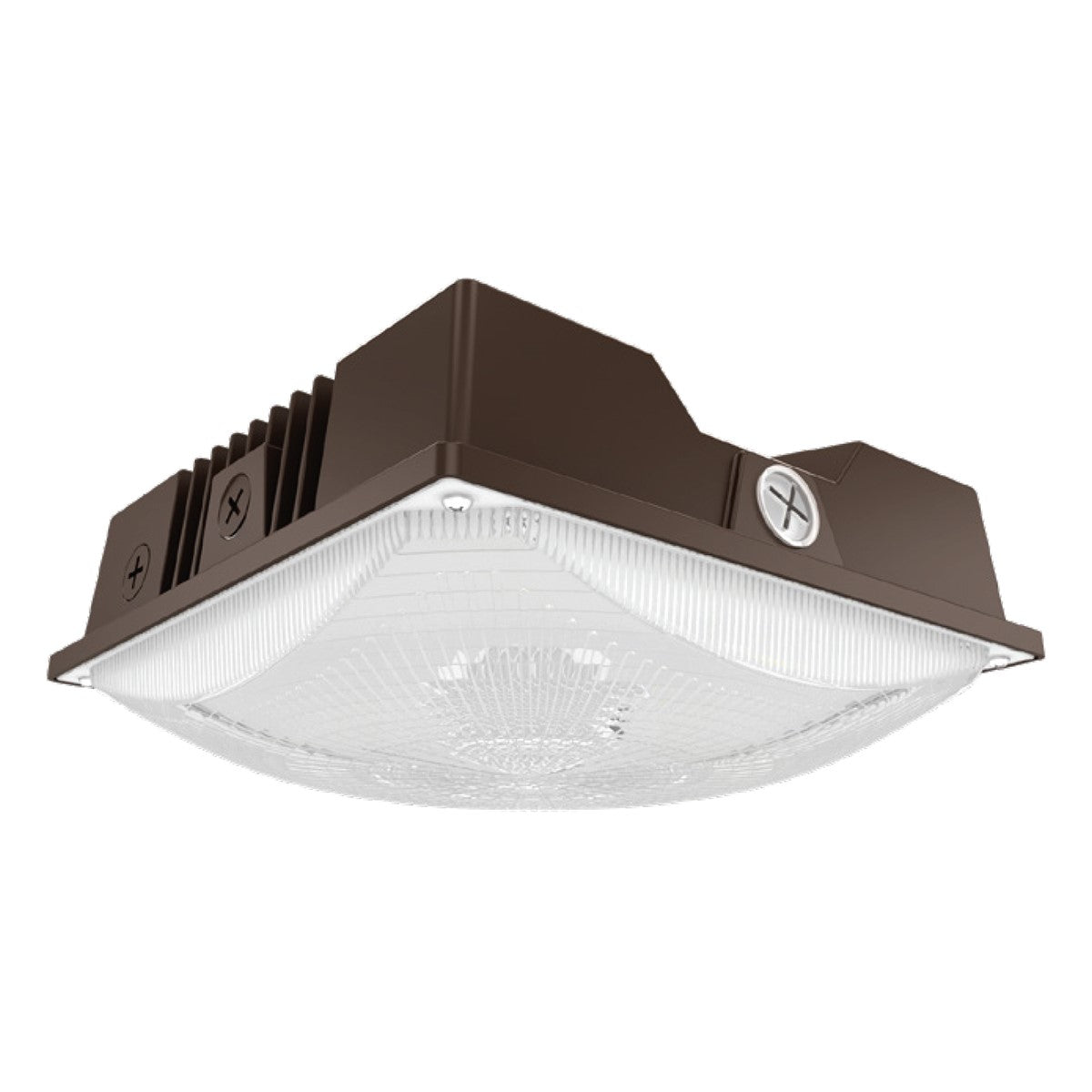

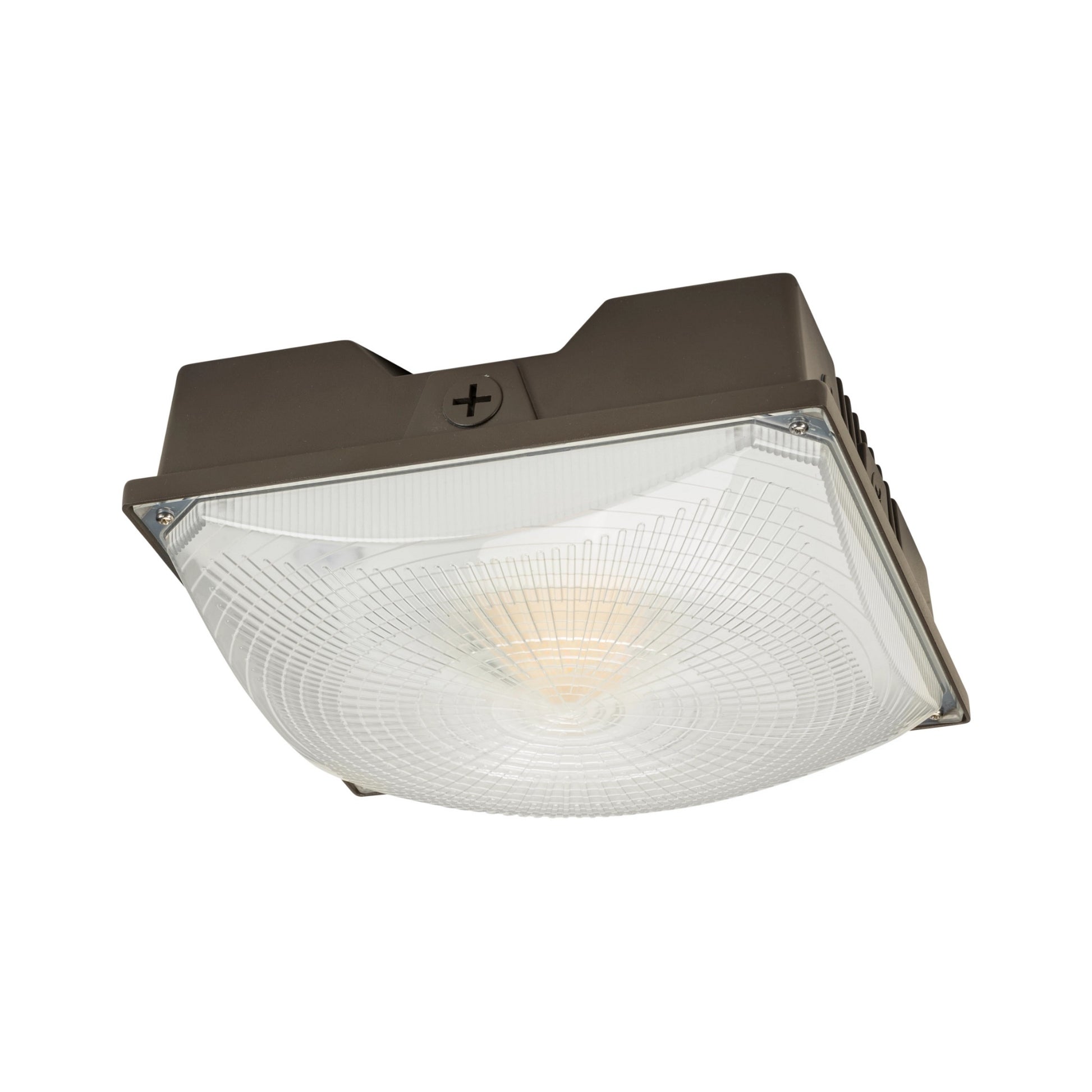

Keystone XFit Canopy Light - 60W Configuration

The Keystone KT-CLED60PS-M1-8CSB-VDIM is a versatile LED canopy light offering 8400 lumens at 60 watts. It operates on a 120-277V input and features selectable CCT options of 3000K, 4000K, and 5000K. This fixture is ideal for outdoor ceiling-mounted applications such as parking garages and covered walkways. It is IP65 rated for wet locations, ensuring reliable performance in various environments.

Key Features

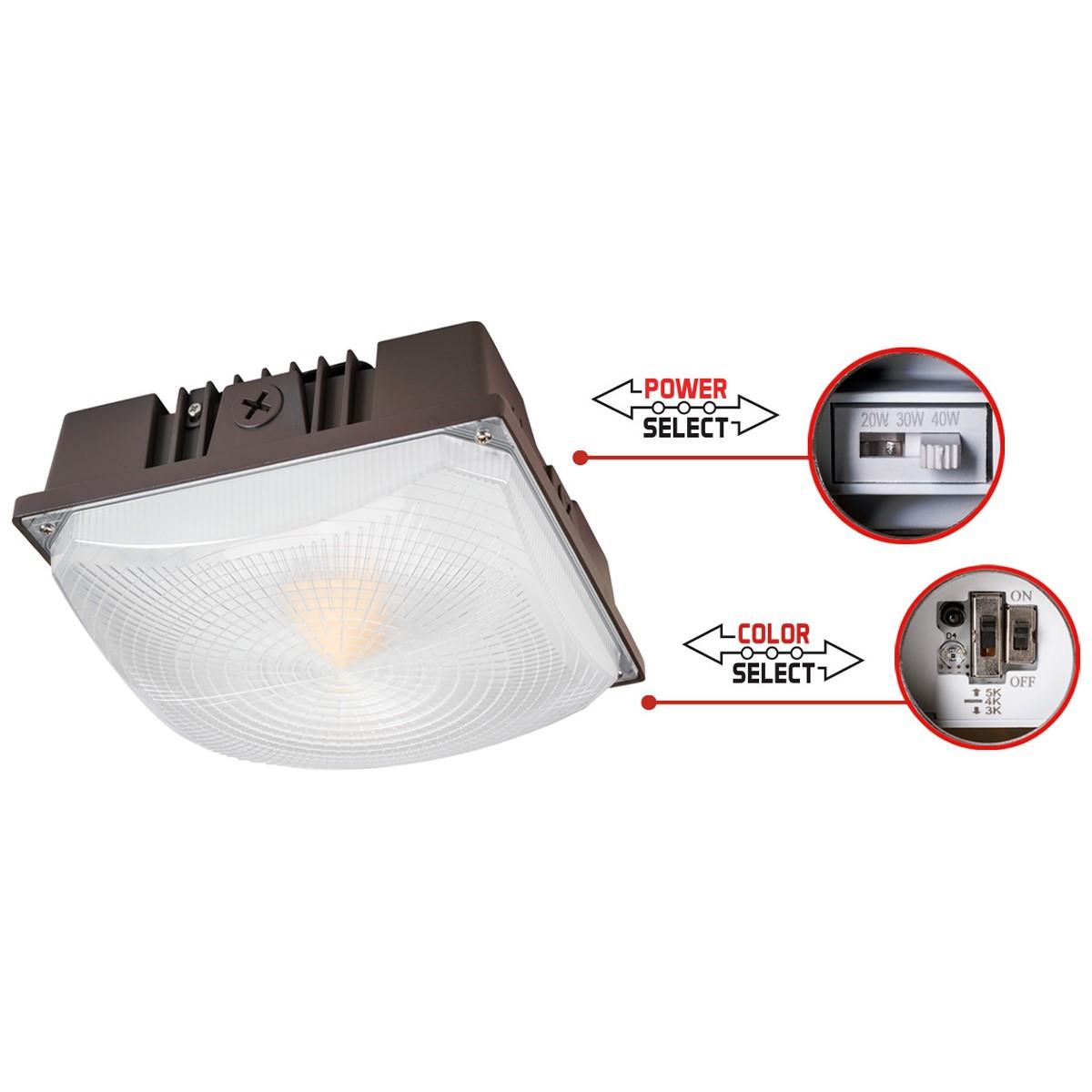

• Selectable CCT: Adjust the color temperature between 3000K, 4000K, and 5000K to suit different lighting needs.
• Dimming Capability: Equipped with a 0-10V dimming driver for adjustable light levels.
• Photocell: Includes a built-in dusk-to-dawn photocell for automatic lighting control.
• Construction: Features a robust die-cast aluminum housing with a bronze finish for enhanced durability.
• Mounting Options: Supports standard junction box or 3/4' NPT pendant mounting for flexible installation.
• Distribution Options: Comes with a 160-degree distribution, with an optional 110-degree diffuser available.
• Power Factor: Maintains a power factor greater than 0.95 for efficient energy use.
• Long Lifespan: Designed to last over 100,000 hours at L70, reducing maintenance costs.
• Temperature Range: Operates in ambient temperatures from -40°F to 122°F.

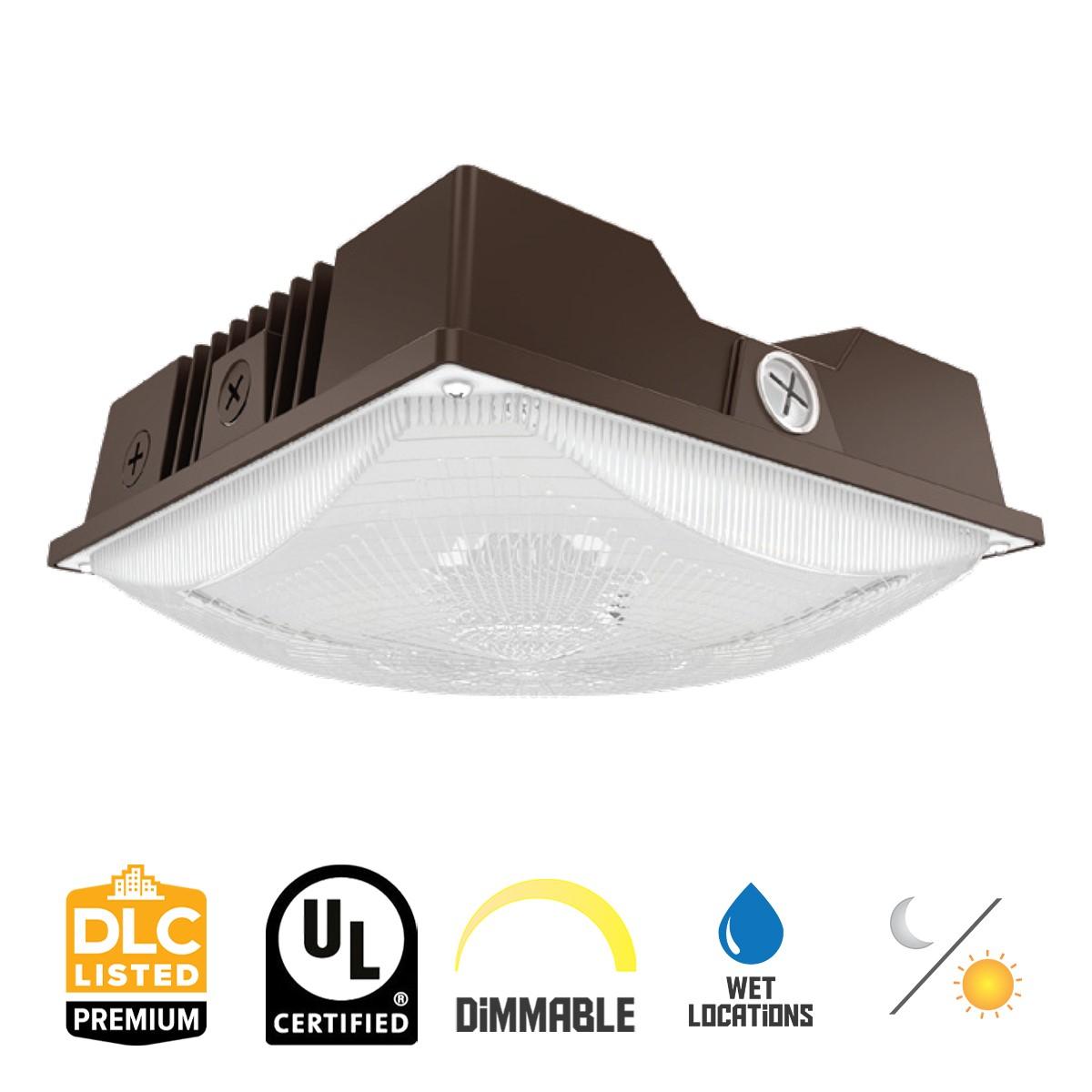

• Certifications: UL certified for wet locations and meets FCC Part 15 standards.

Typical Applications

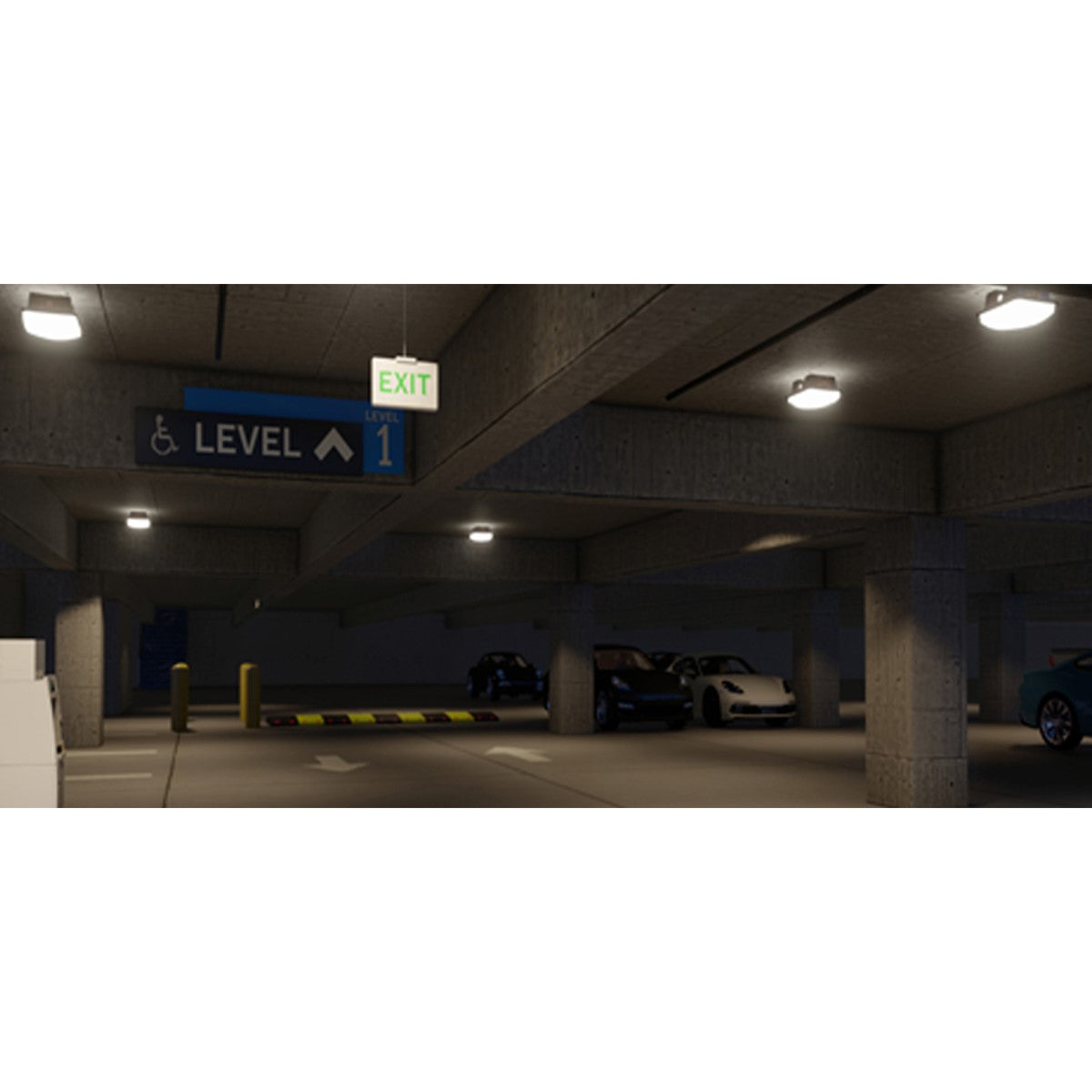

• Parking Garages
• Covered Walkways
• Entrance Areas
• Outdoor Ceilings
• Commercial Exteriors

Performance & Light Output

This fixture delivers up to 8400 lumens with an efficacy of 140 lm/W at 4000K. It features a CRI greater than 80, ensuring accurate color rendering. The 160-degree beam angle provides broad coverage suitable for low mounting heights.

Electrical & Controls

Designed for 120-277V input, the fixture includes a 0-10V dimming driver for adjustable light output. It supports optional controls such as the KTS-MW3-12V-PKO occupancy sensor and KTSL-FC4-12V-PKO Bluetooth controller.

Construction & Durability

The fixture's die-cast aluminum housing and impact-resistant polycarbonate diffuser ensure durability and protection against environmental factors. It is IP65 rated for wet locations.

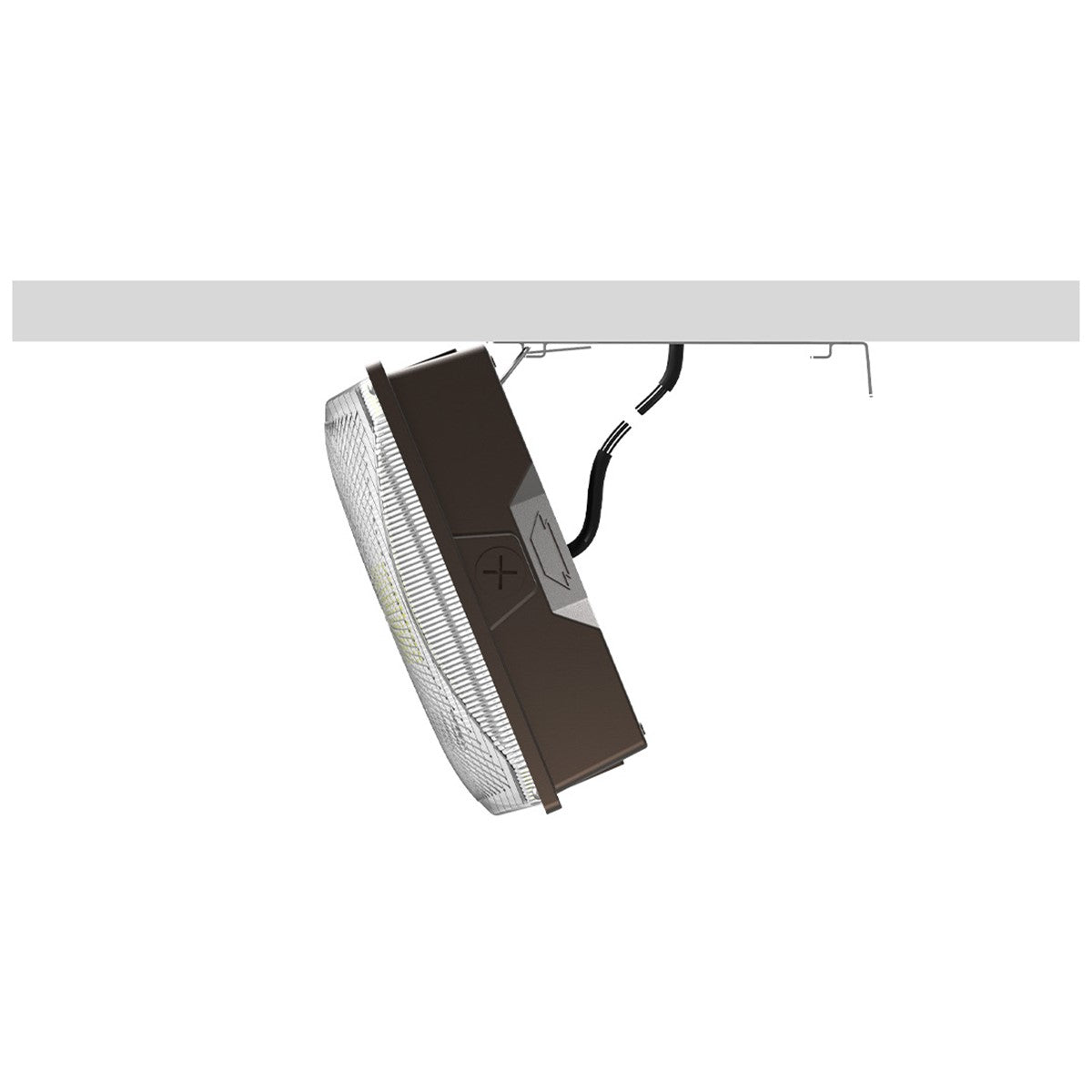

Installation & Mounting

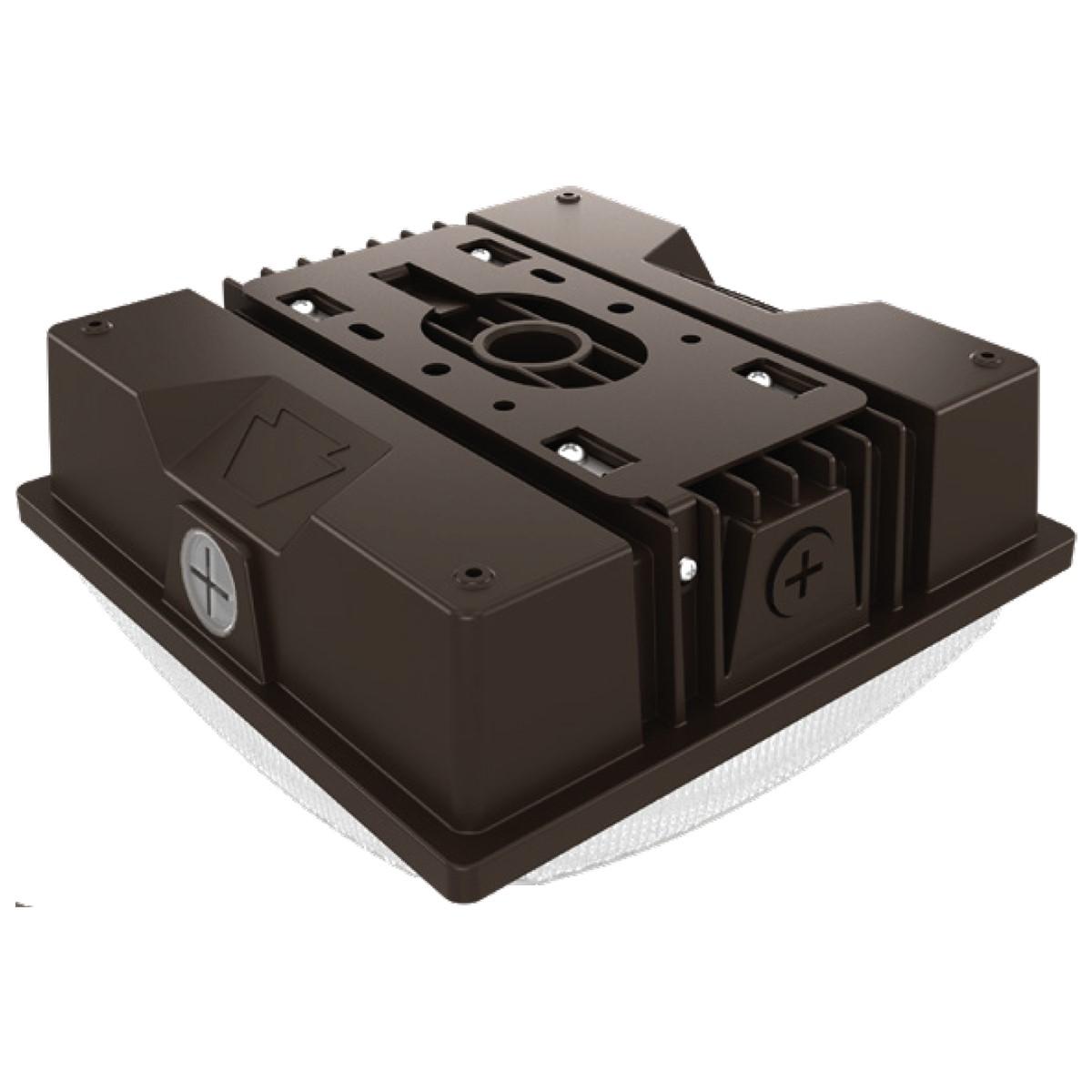

Supports standard junction box mounting or 3/4' NPT pendant mounting. Optional mounting accessories include a surface/pendant mount kit and a trunnion mount kit.

What's Included

• Keystone KT-CLED60PS-M1-8CSB-VDIM Fixture
• Built-in Photocell
• Installation Instructions
