Keystone XFit Canopy Light 8in 5500 Lumens 40W Selectable CCT 120-277V White
Available in stock (51)
About this item
About this item
- Lumens: Delivers up to 5500 lumens for effective illumination in outdoor settings.
- Wattage: Operates at 40 watts, providing energy-efficient lighting solutions.
- Voltage: Compatible with 120-277V input, suitable for various electrical systems.
- Color Temperature: Features selectable CCT of 3000K, 4000K, and 5000K for versatile lighting needs.
- Environmental Rating: IP65 rated for wet locations, ensuring durability in harsh conditions.
We process payments securely and do not store credit card information.
Description
Description

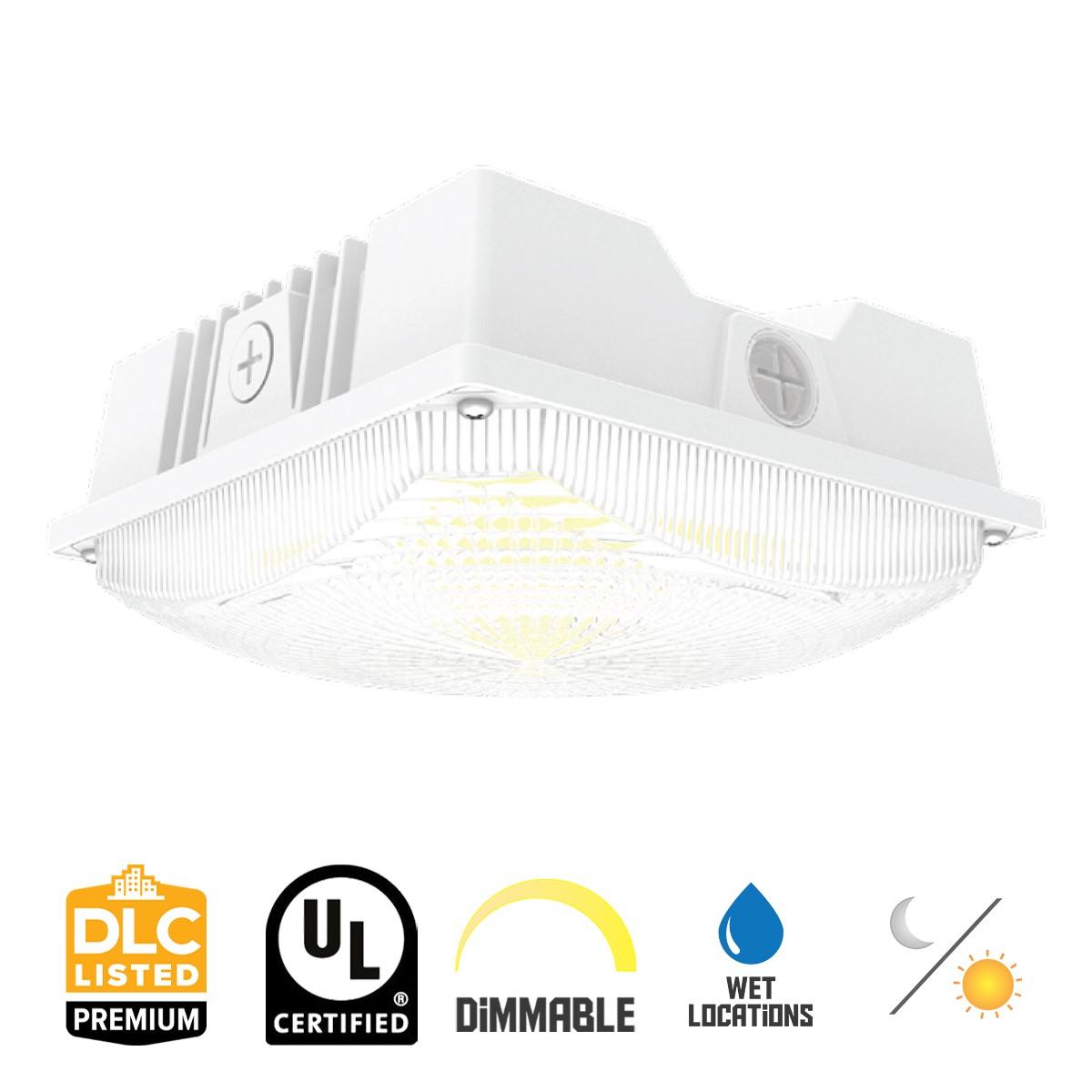

Keystone XFit Canopy Light - 40W Configuration
The Keystone KT-CLED40PS-S1-8CSB-VDIM-W is a versatile LED canopy light offering 5500 lumens at 40 watts with a selectable CCT of 3000K, 4000K, and 5000K. It operates on 120-277V and is IP65 rated for wet locations, making it ideal for outdoor applications such as parking garages and covered walkways.
Key Features

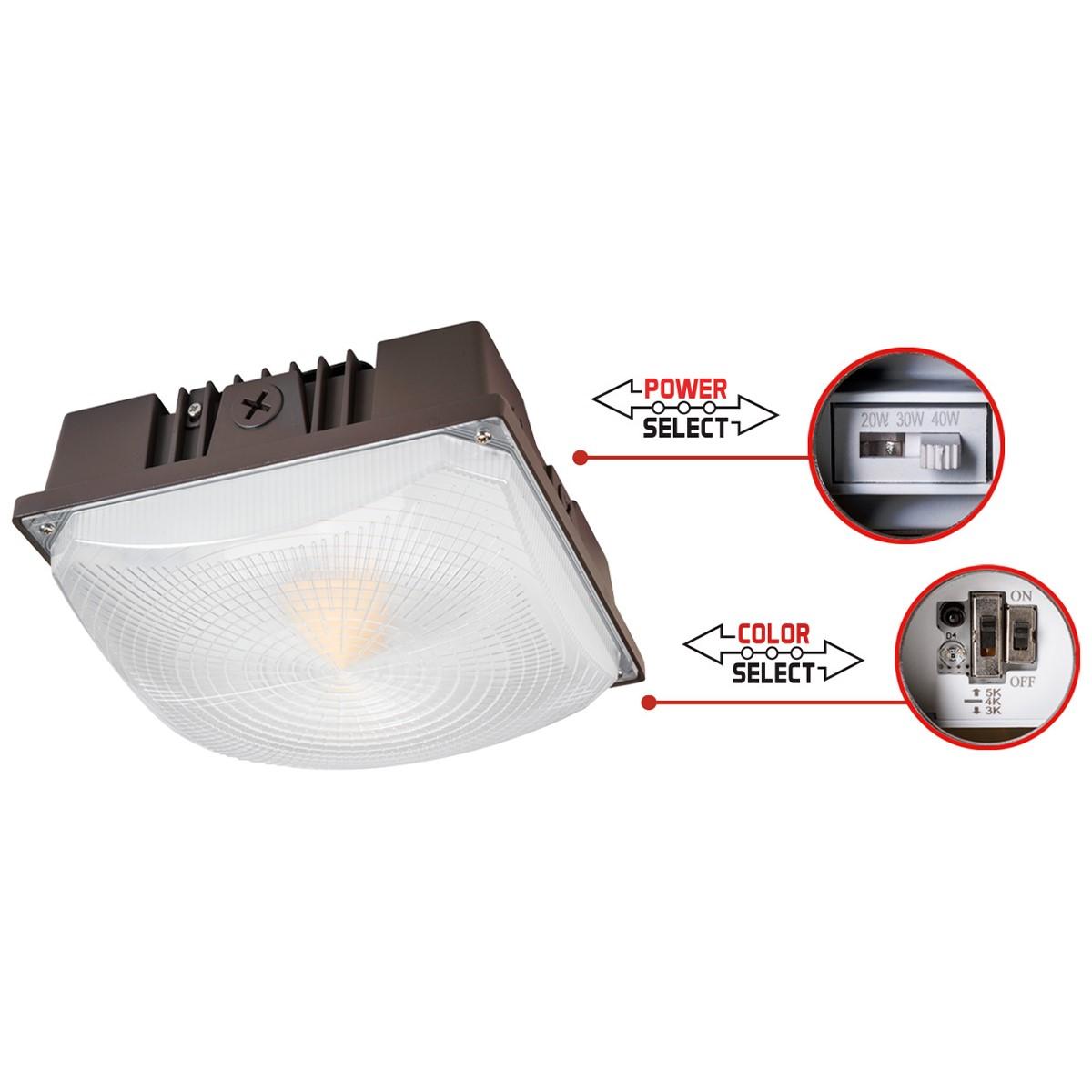

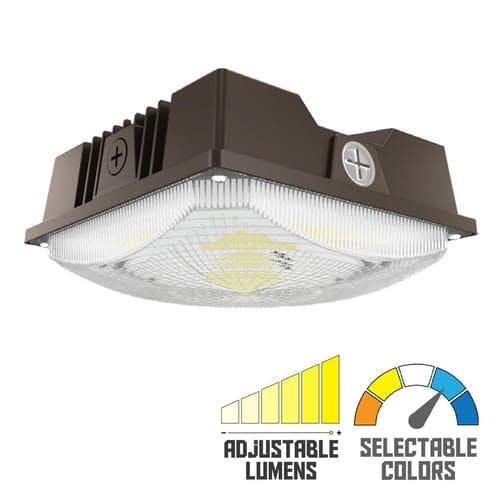

- Power Select Technology: Allows field adjustment of wattage for tailored energy use.
- Color Select Technology: Offers adjustable CCT for customizable lighting environments.
- Photocell Integration: Built-in dusk-to-dawn photocell for automated lighting control.
- Construction: Heavy-duty die-cast aluminum housing with a modern aesthetic.
- Optics: 160° distribution pattern for wide area coverage.
- Dimming: Equipped with 0-10V dimming capability for adjustable brightness.
- Durability: Impact-resistant polycarbonate diffuser for long-lasting performance.
- Mounting Options: Suitable for junction box or pendant mounting.
- Temperature Range: Operates in temperatures from -40°F to 122°F.
- Certifications: UL certified for wet locations, ensuring compliance and safety.
Typical Applications

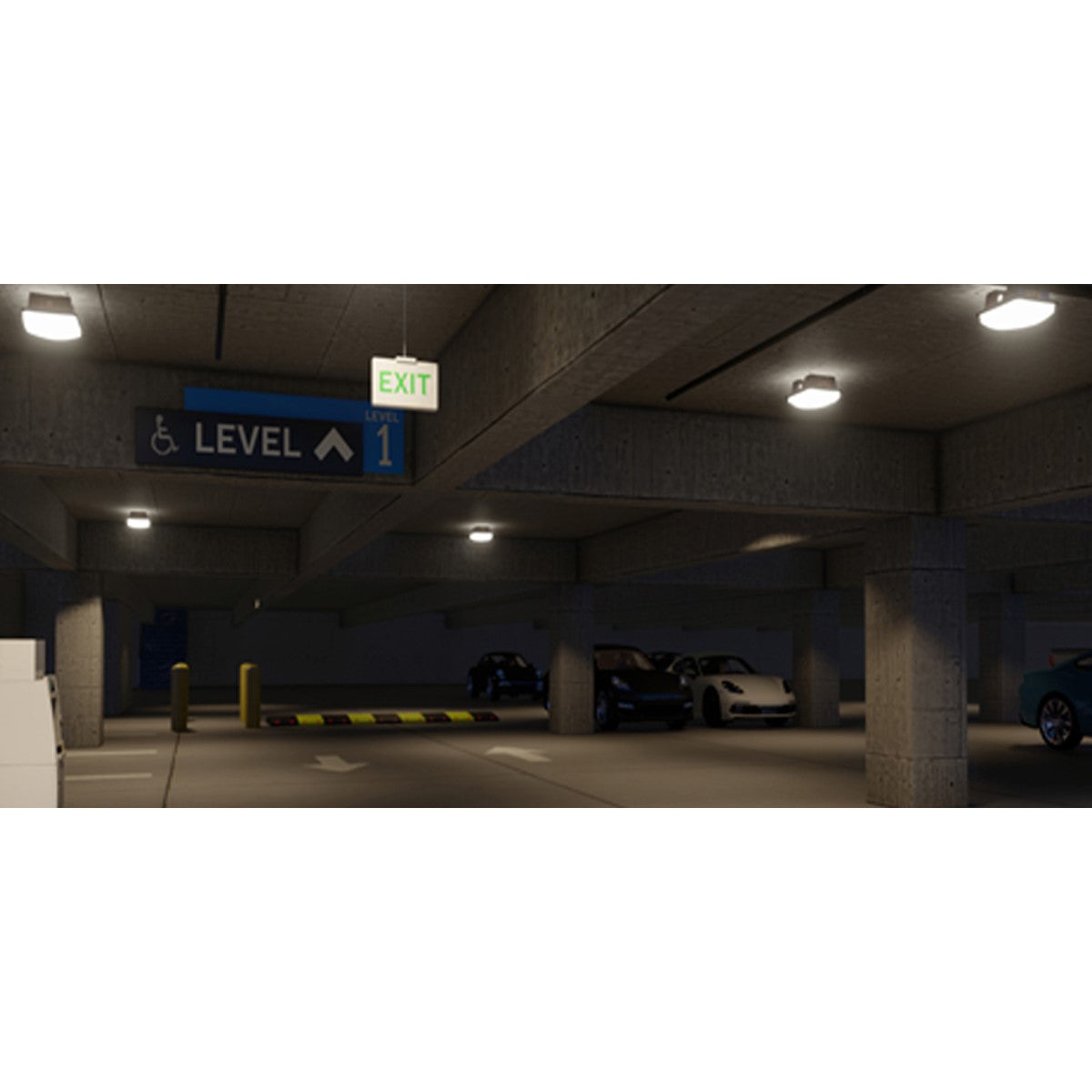

- Parking Garages
- Covered Walkways
- Entrance Areas
- Outdoor Ceilings
- Commercial Canopies
Performance & Light Output
This fixture provides a high efficacy of up to 140 lm/W, with a CRI greater than 80, ensuring excellent color rendering and long-lasting performance with an L70 of over 100,000 hours.
Electrical & Controls
Designed for 120-277V systems, it includes a Keystone LED 0-10V dimming driver and supports optional controls like the SmartLoop Bluetooth controller.
Construction & Durability
Constructed with a robust die-cast aluminum housing and impact-resistant diffuser, it is IP65 rated for wet locations and meets FCC Part 15 standards.

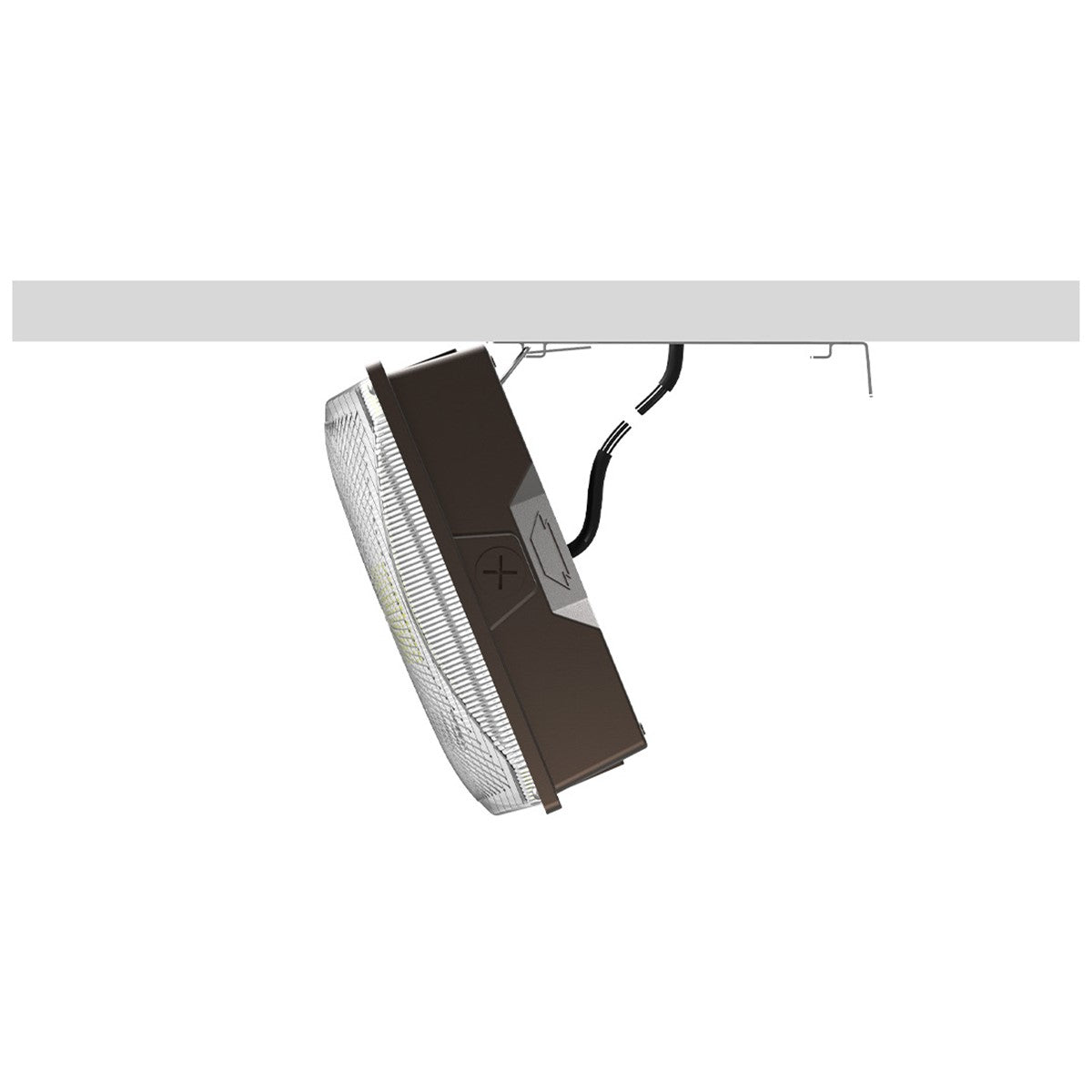

Installation & Mounting
Supports standard junction box and 3/4' NPT pendant mounting, with optional accessories for enhanced installation flexibility.
What's Included
- Keystone XFit Canopy Light Fixture
- Built-in Photocell
Specifications
Specifications

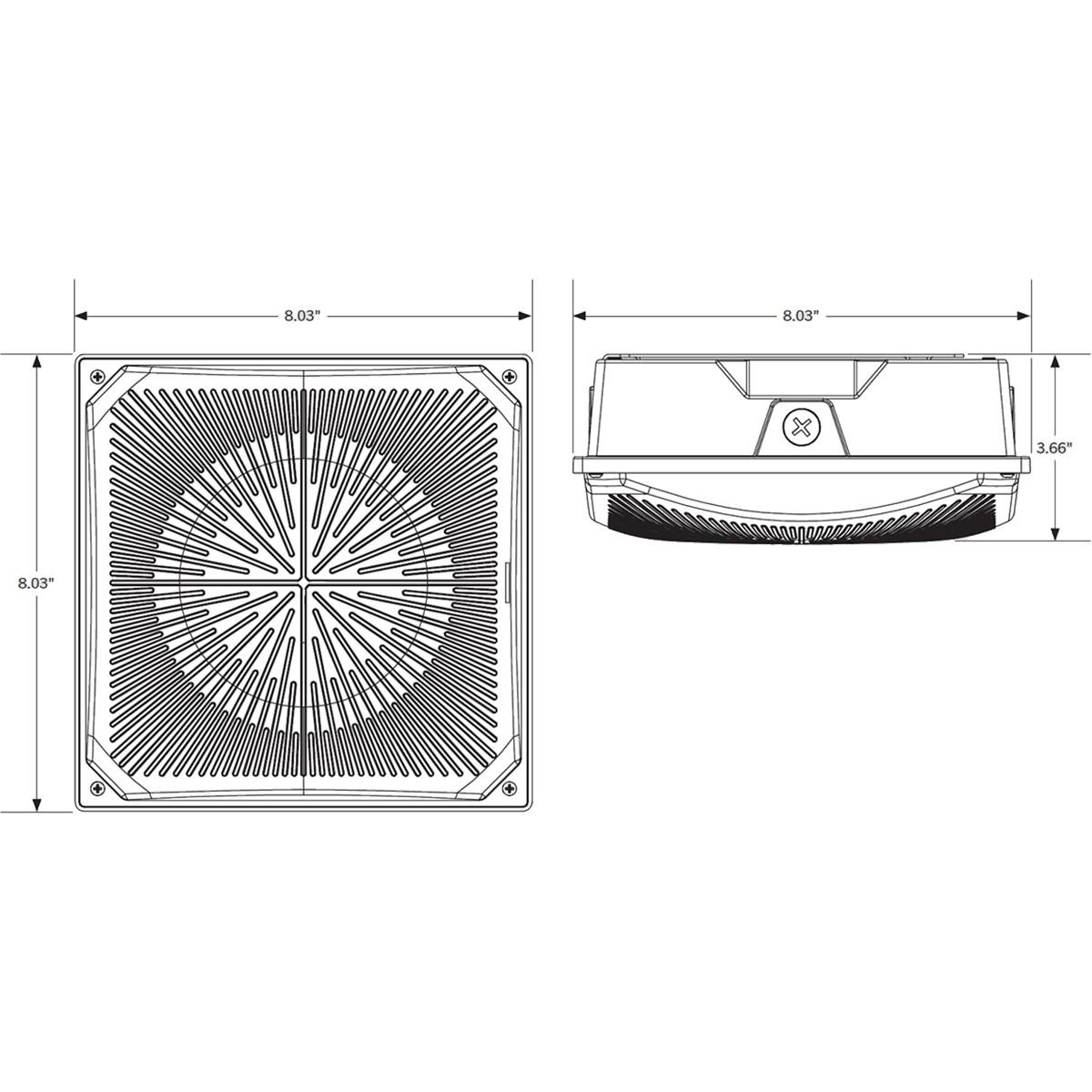

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the lumen output of the KT-CLED40PS-S1-8CSB-VDIM-W?
What is the lumen output of the KT-CLED40PS-S1-8CSB-VDIM-W?
Is the KT-CLED40PS-S1-8CSB-VDIM-W dimmable?
Is the KT-CLED40PS-S1-8CSB-VDIM-W dimmable?
What mounting options are available for this canopy light?
What mounting options are available for this canopy light?
What is the operating temperature range for this fixture?
What is the operating temperature range for this fixture?
Does the fixture include a photocell?
Does the fixture include a photocell?
