Keystone XFit Canopy Light 8in. 5500 Lumens 40W Selectable CCT 120-277V Bronze
In stock
About this item
About this item
- Lumens: Provides up to 5500 lumens for efficient illumination.
- Wattage: Operates at 40 watts with selectable CCT for versatile lighting.
- Voltage: Compatible with 120-277V input for broad application use.
- Environmental Rating: IP65 rated for wet locations, ensuring durability.
- Dimming: Features 0-10V dimming for customizable light levels.
We process payments securely and do not store credit card information.
Description
Description

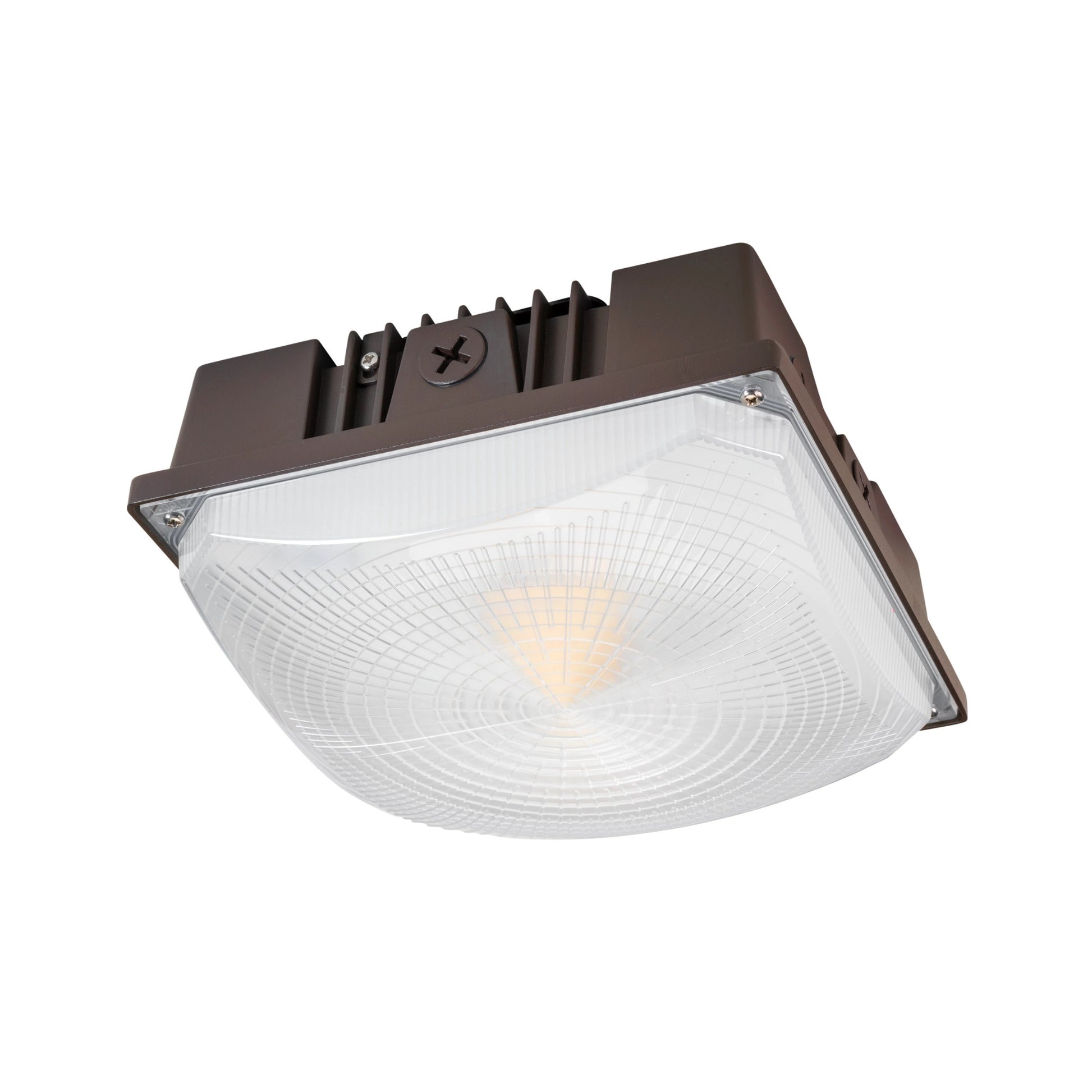

Keystone XFit Canopy Light - 40W Configuration
The Keystone KT-CLED40PS-S1-8CSB-VDIM is a versatile LED canopy light offering 5500 lumens at 40 watts. It supports 120-277V input and features selectable CCT (3000K, 4000K, 5000K) for adaptable lighting solutions. Ideal for outdoor applications like parking garages and covered walkways, this fixture is IP65 rated for wet locations.
Key Features

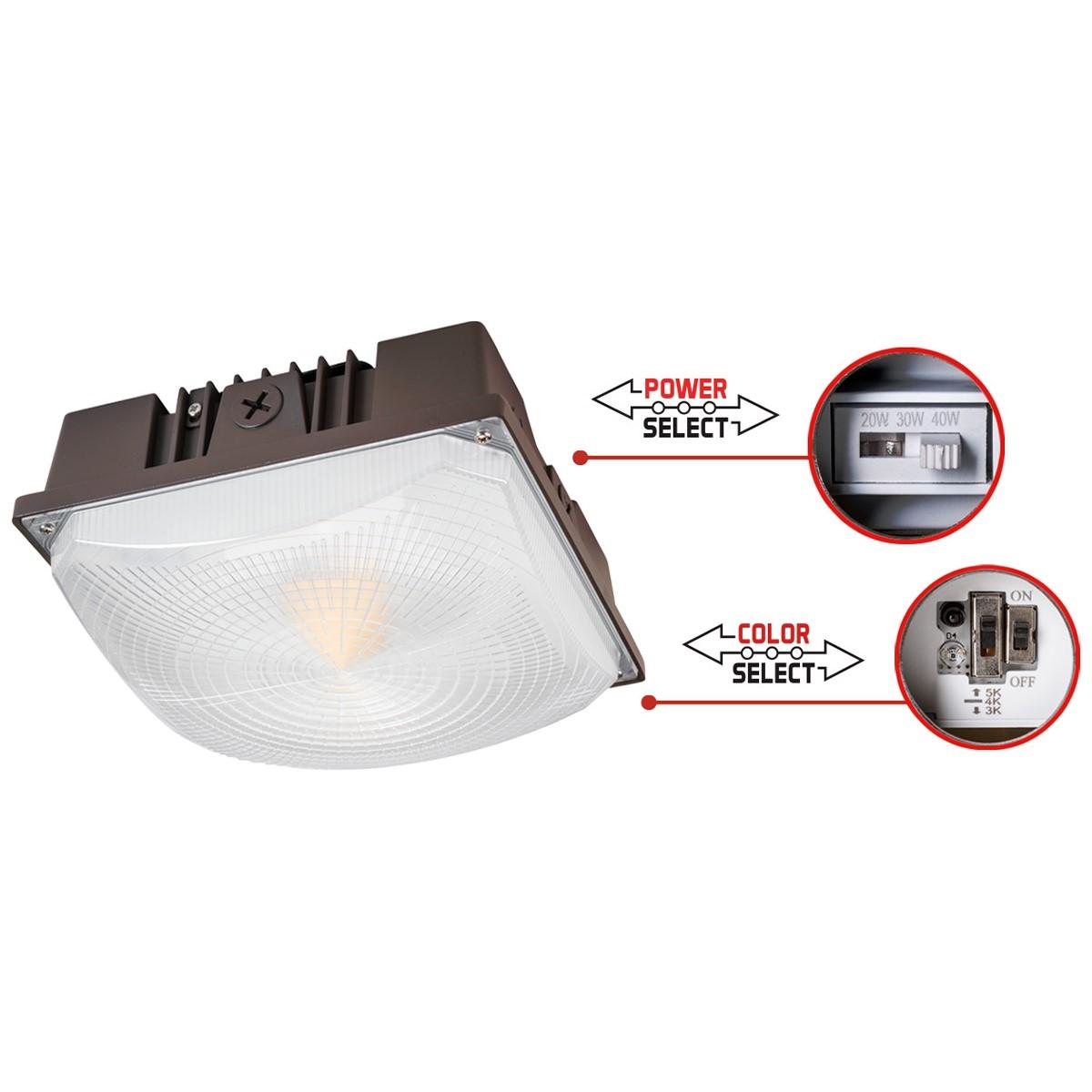

- Selectable CCT: Adjust color temperature between 3000K, 4000K, and 5000K.
- Power Select Technology: Field-adjustable wattage settings for tailored performance.
- Photocell: Integrated dusk-to-dawn photocell for automatic lighting control.
- Construction: Heavy-duty die-cast aluminum housing with a bronze finish.
- Optics: 160° beam angle for wide light distribution.
- Dimming: 0-10V dimming capability for flexible lighting control.
- Mounting Options: Supports standard junction box or pendant mounting.
- Durability: Impact-resistant polycarbonate diffuser for long-lasting use.
- Operating Temperature: Functions in temperatures from -40°F to 122°F.
- Certifications: UL certified for wet locations, meeting FCC Part 15 standards.
Typical Applications

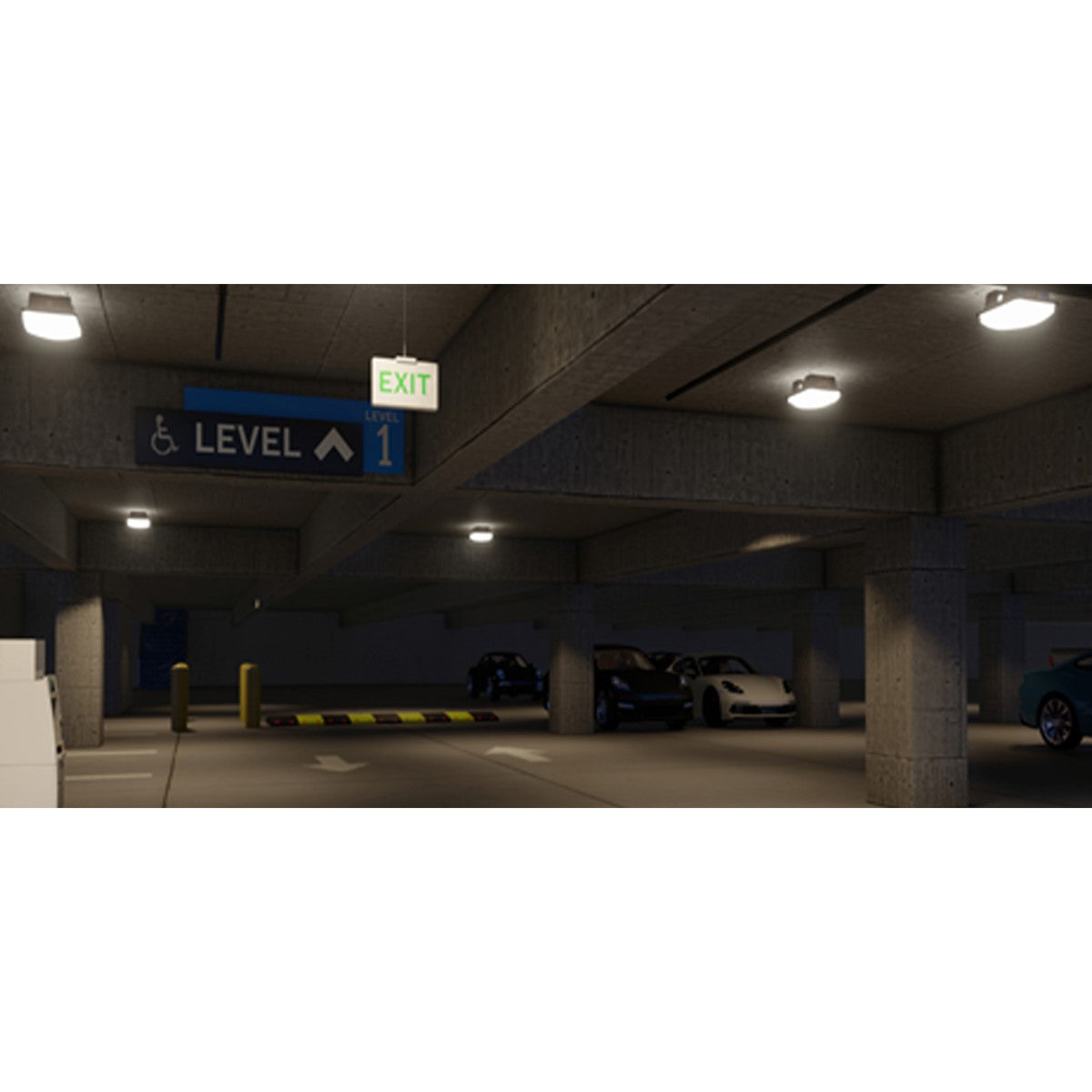

- Parking Garages
- Covered Walkways
- Entrance Areas
- Loading Docks
- Outdoor Canopies
Performance & Light Output
This fixture delivers up to 5500 lumens with an efficacy of 140 lm/W. It features a CRI greater than 80 and an L70 rating of over 100,000 hours, ensuring long-lasting performance.
Electrical & Controls
Operates on 120-277V with a Keystone LED 0-10V dimming driver. Compatible with optional SmartLoop Bluetooth wireless controller and bi-level occupancy sensor.
Construction & Durability
Constructed with a die-cast aluminum housing and impact-resistant polycarbonate diffuser. Rated IP65 for wet locations, ensuring reliable operation in various environments.

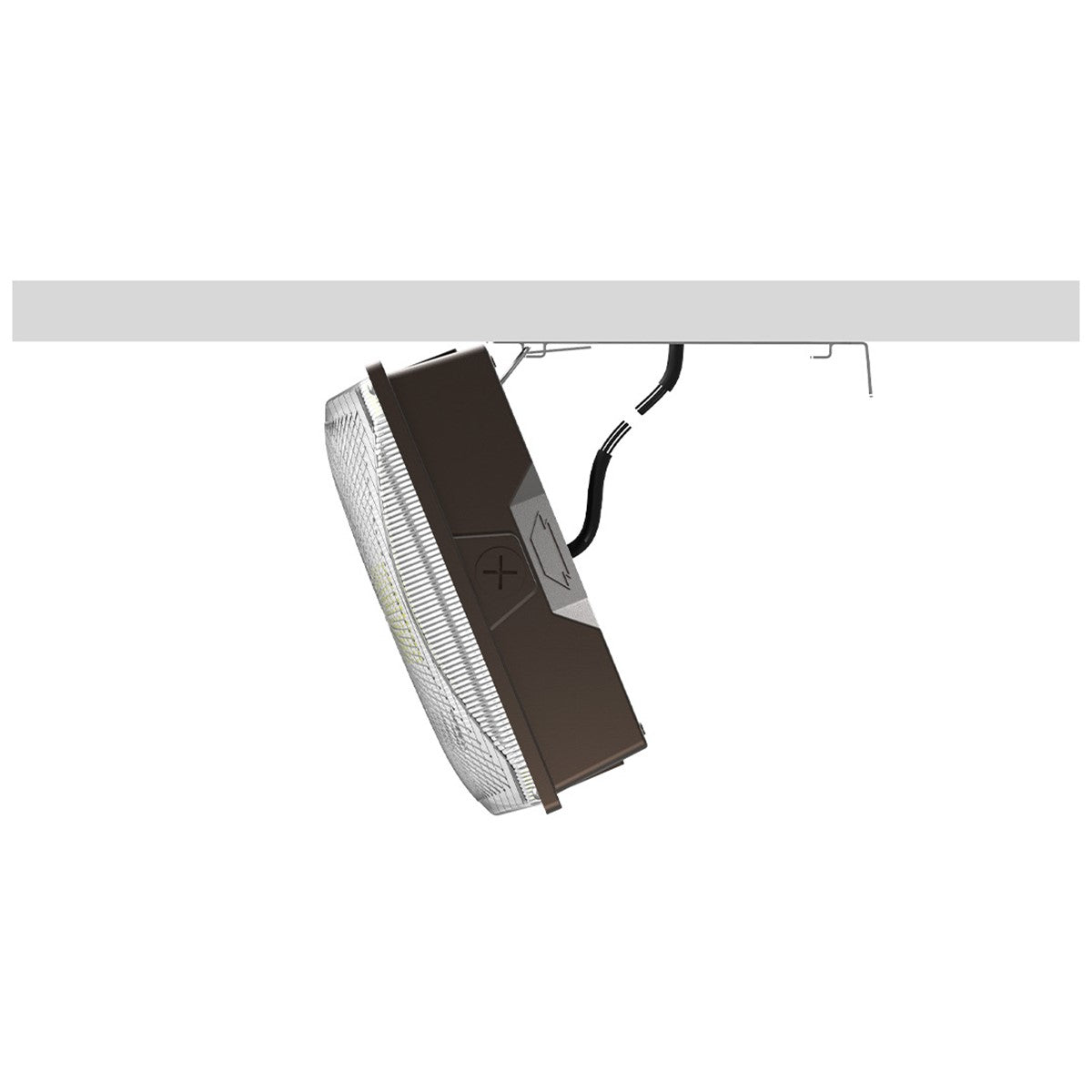

Installation & Mounting
Supports standard junction box mounting or 3/4' NPT pendant mounting. Compatible with optional mounting accessories for enhanced installation flexibility.
What's Included
- Keystone XFit Canopy Light Fixture
- Built-in Photocell
Specifications
Specifications

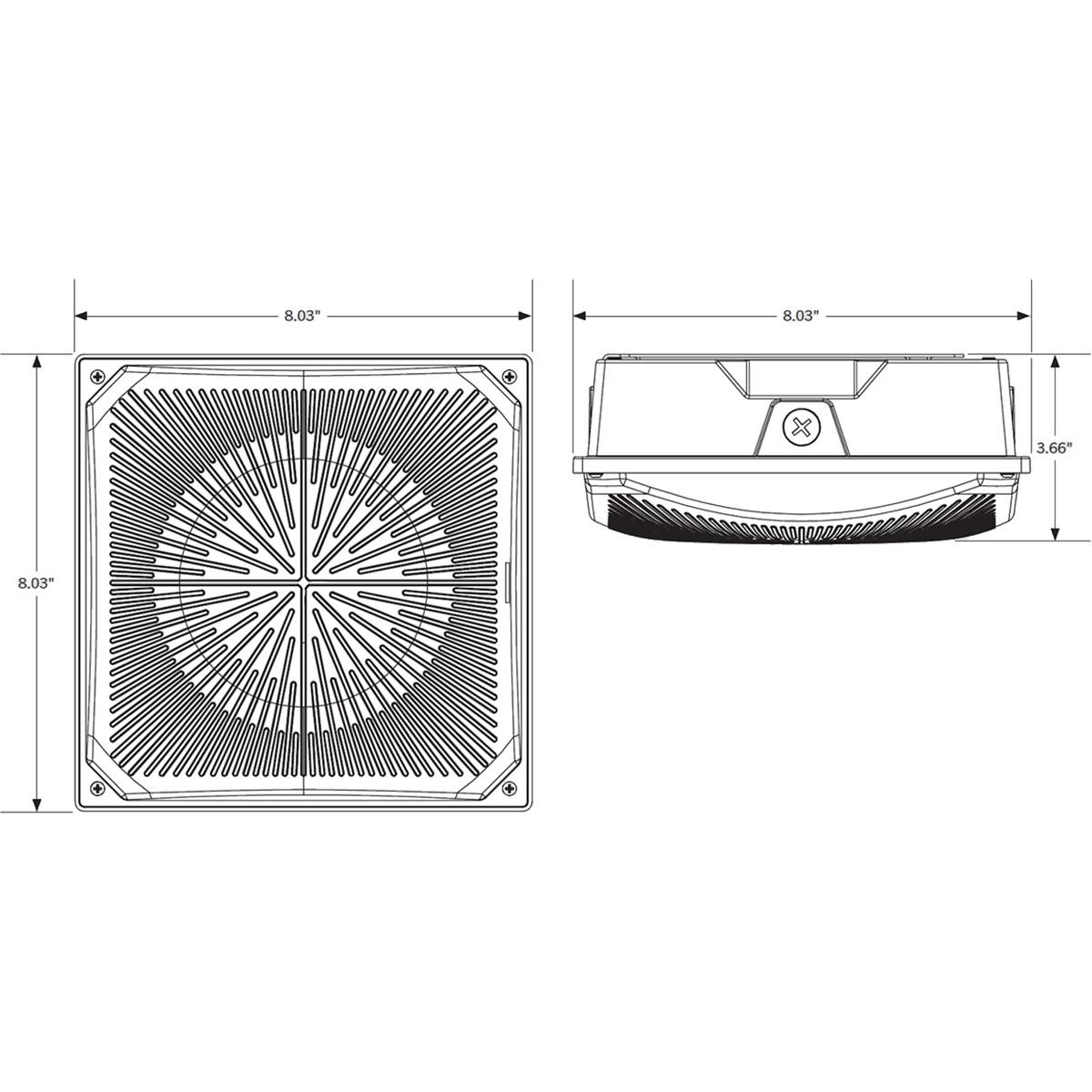

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage of the Keystone KT-CLED40PS-S1-8CSB-VDIM?
What is the wattage of the Keystone KT-CLED40PS-S1-8CSB-VDIM?
Is the Keystone KT-CLED40PS-S1-8CSB-VDIM dimmable?
Is the Keystone KT-CLED40PS-S1-8CSB-VDIM dimmable?
What mounting options are available for this canopy light?
What mounting options are available for this canopy light?
What is the environmental rating of this fixture?
What is the environmental rating of this fixture?
Does the fixture include a photocell?
Does the fixture include a photocell?
