Keystone Gas Station Canopy Light 150W 22500 Lumens Selectable CCT 120-277V White
In stock
About this item
About this item
- Lumens: Provides up to 22,500 lumens for optimal illumination in gas station environments.
- Wattage: Features selectable wattage settings of 150W, 125W, and 100W for customizable power usage.
- Color Temperature: Offers selectable CCT options of 3000K, 4000K, and 5000K for versatile lighting preferences.
- Voltage: Operates on a wide input voltage range of 120-277V, suitable for various installations.
- Durability: Constructed with heavy-duty die-cast aluminum housing and IP65 rating for robust outdoor use.
We process payments securely and do not store credit card information.
Description
Description

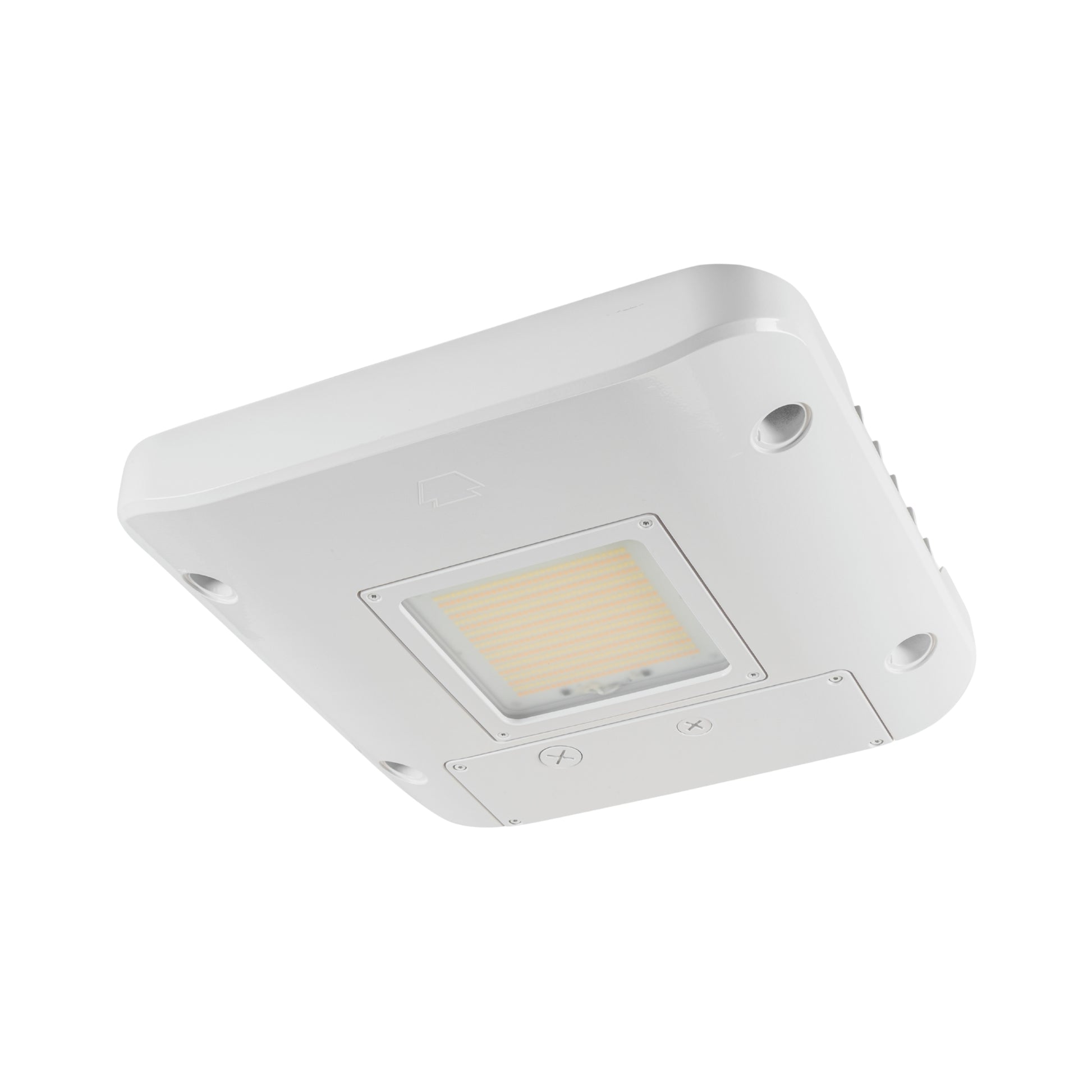

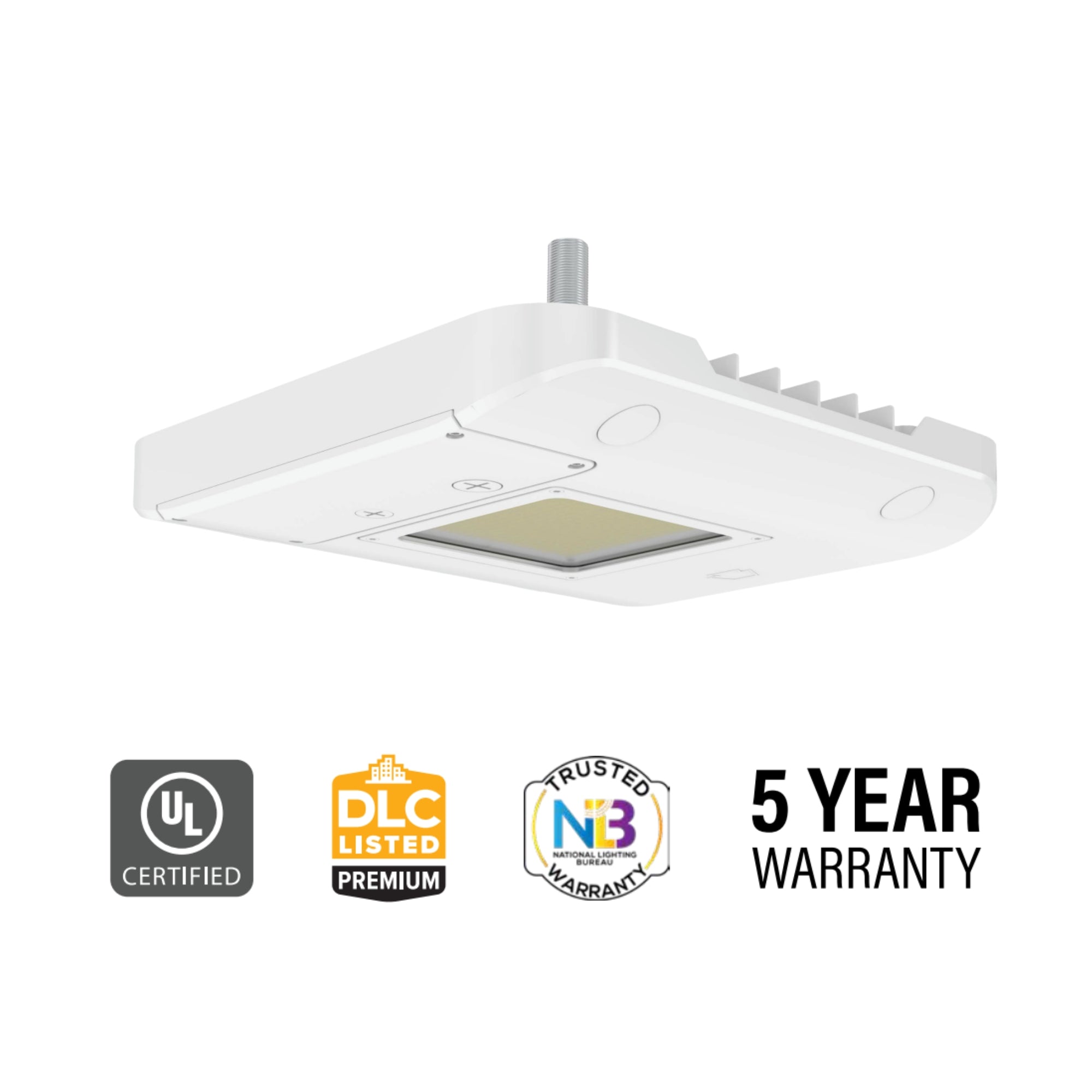

Keystone Gas Station Canopy Light - 150W Selectable Configuration
The Keystone KT-CLED150PS-L3-8CSB-VDIM-W is a versatile canopy light designed for gas station applications. This fixture offers 150W power with a maximum output of 22,500 lumens and operates on 120-277V. It features selectable CCT options of 3000K, 4000K, and 5000K, making it suitable for various lighting needs. The fixture is IP65 rated, ensuring durability in outdoor environments.
Key Features

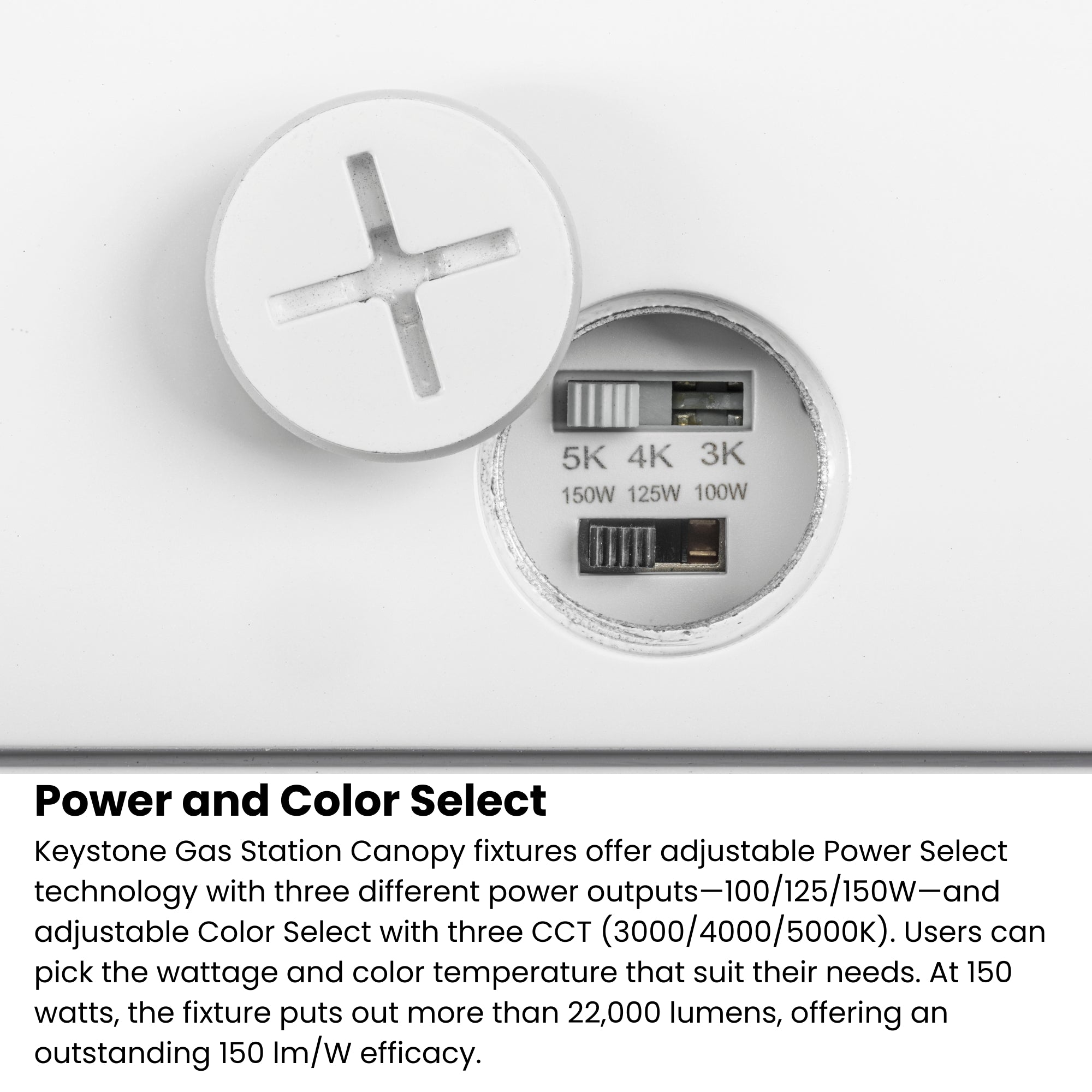

- Selectable Wattage: Adjust between 150W, 125W, and 100W for energy efficiency.
- Color Select Technology: Choose from 3000K, 4000K, or 5000K for desired ambiance.

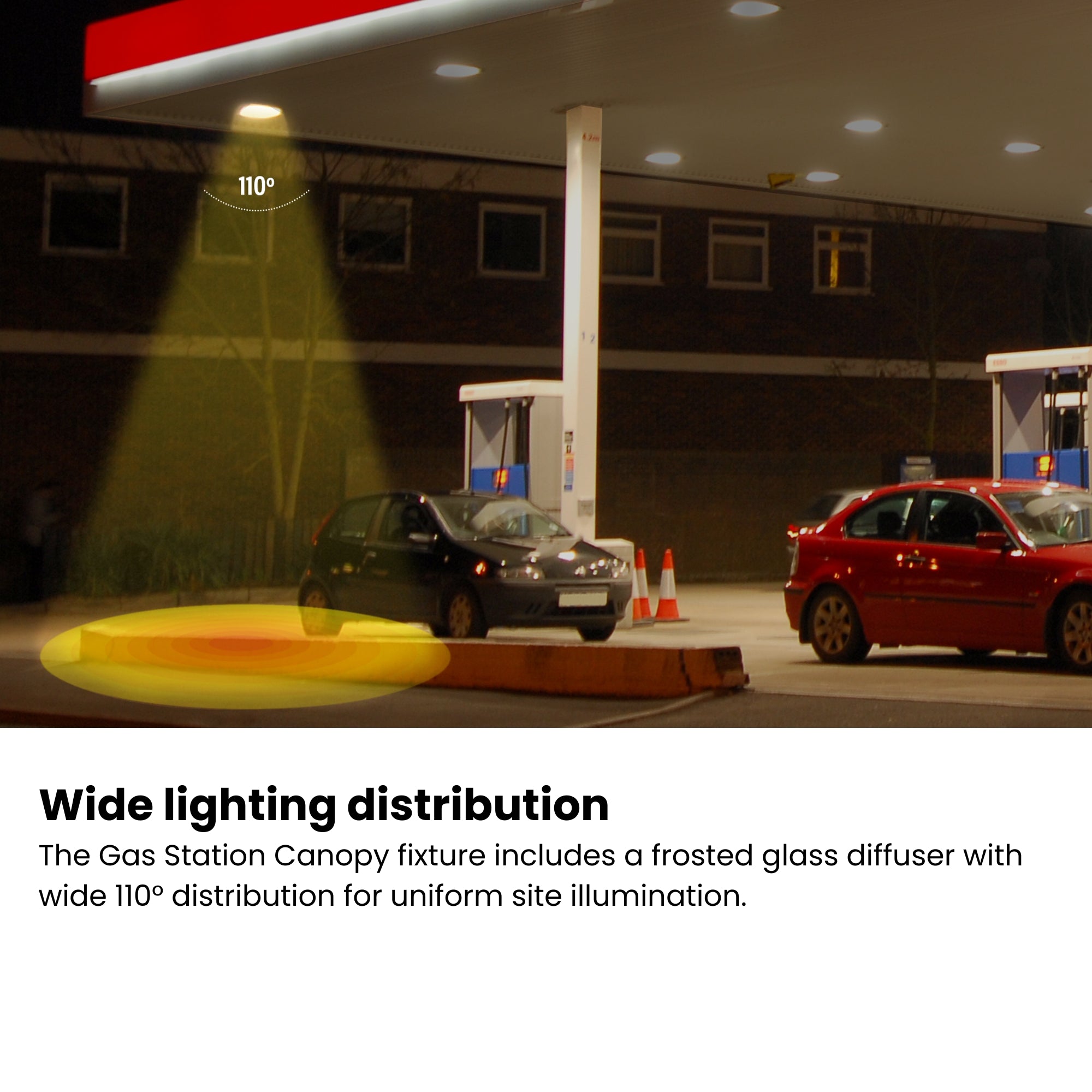

- Optics: Features a frosted glass diffuser with 110° optics for wide light distribution.
- Dimming: Equipped with a 0-10V dimming driver, dimmable to 10%.

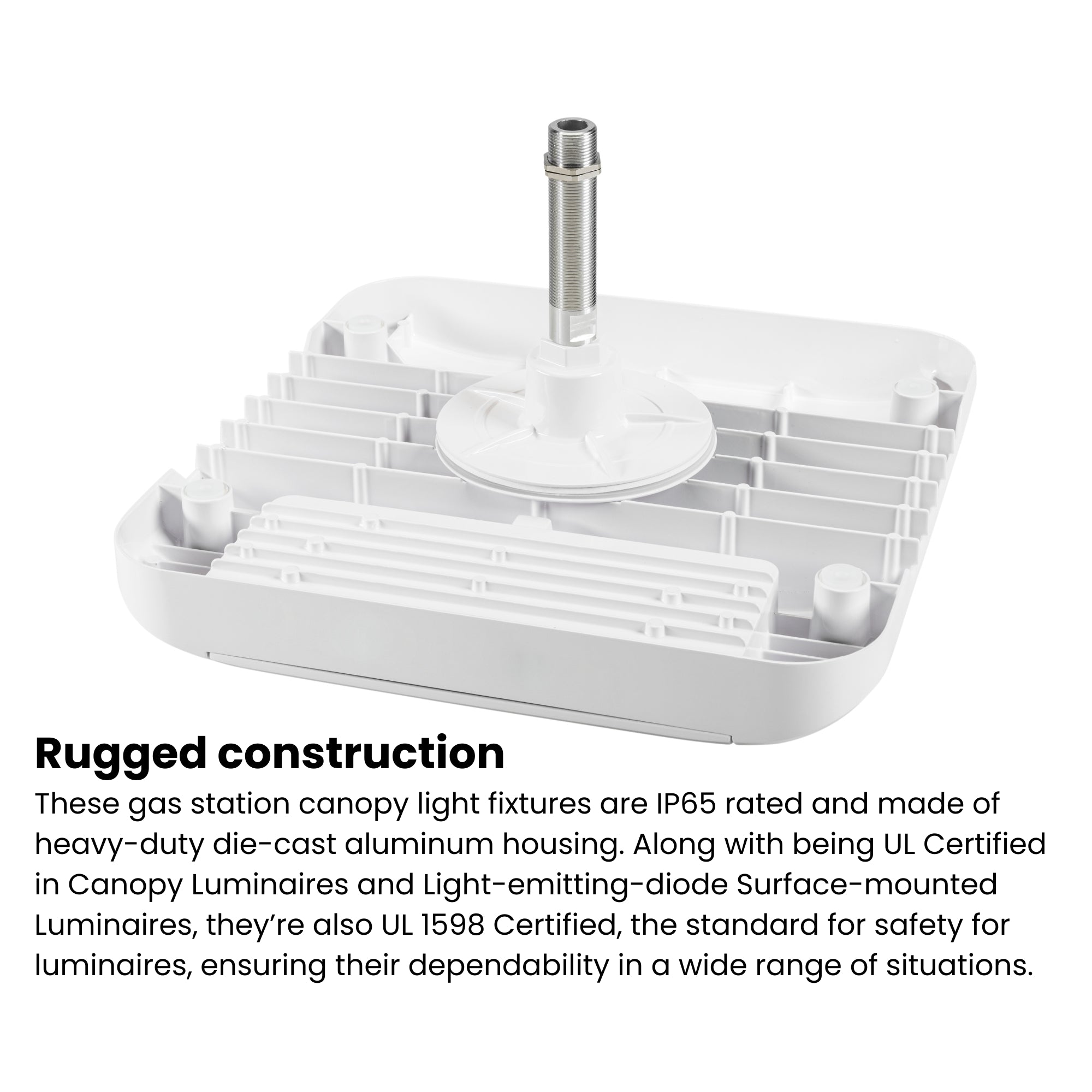

- Construction: Heavy-duty die-cast aluminum housing for enhanced durability.
- Operating Temperature: Functions in temperatures from -40°C to 50°C.

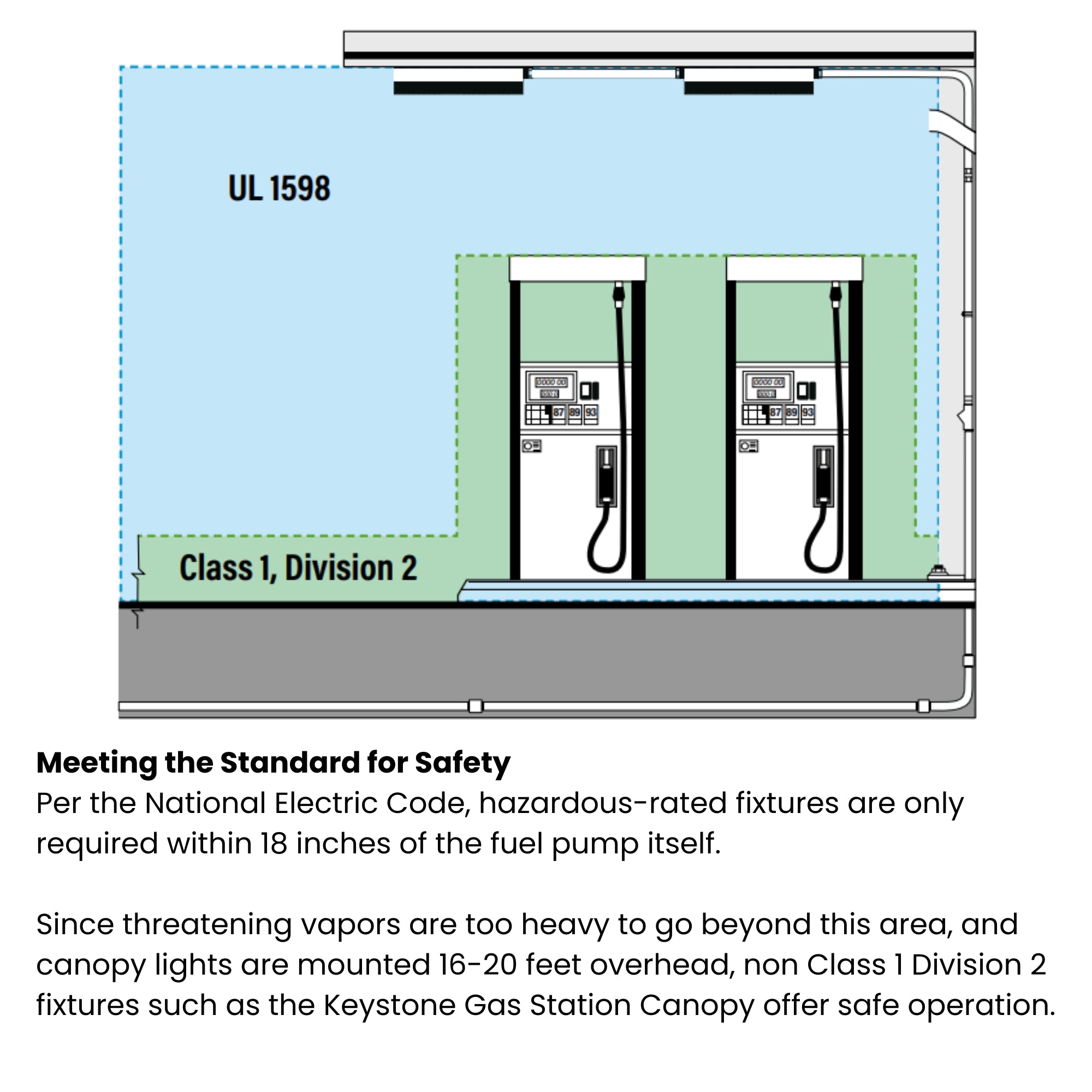

- Certifications: UL 1598 Certified and meets FCC Part 15 standards.
- Power Factor: Greater than 0.90 for efficient power usage.
- Lifetime: L70 rated at over 100,000 hours at 85°C ambient temperature.
- Installation: Surface mount installation with optional junction box accessory.
Typical Applications

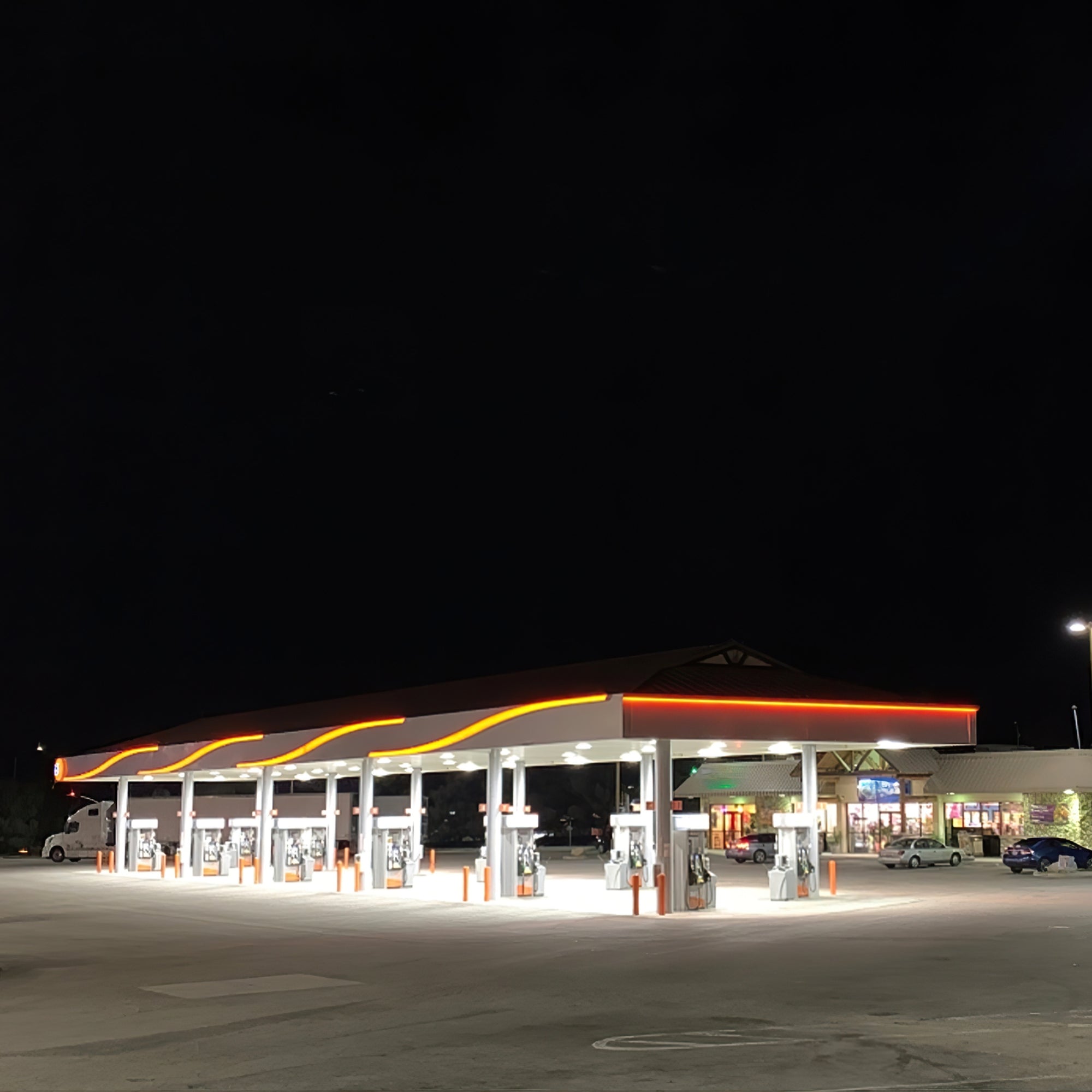

- Gas station pump islands
- Entranceways
- Walkways
- Doorways
- Parking areas
Performance & Light Output
This fixture delivers up to 22,500 lumens with an efficacy of up to 165 lm/W, ensuring bright and efficient lighting. It maintains a CRI of over 80, providing accurate color rendering.
Electrical & Controls

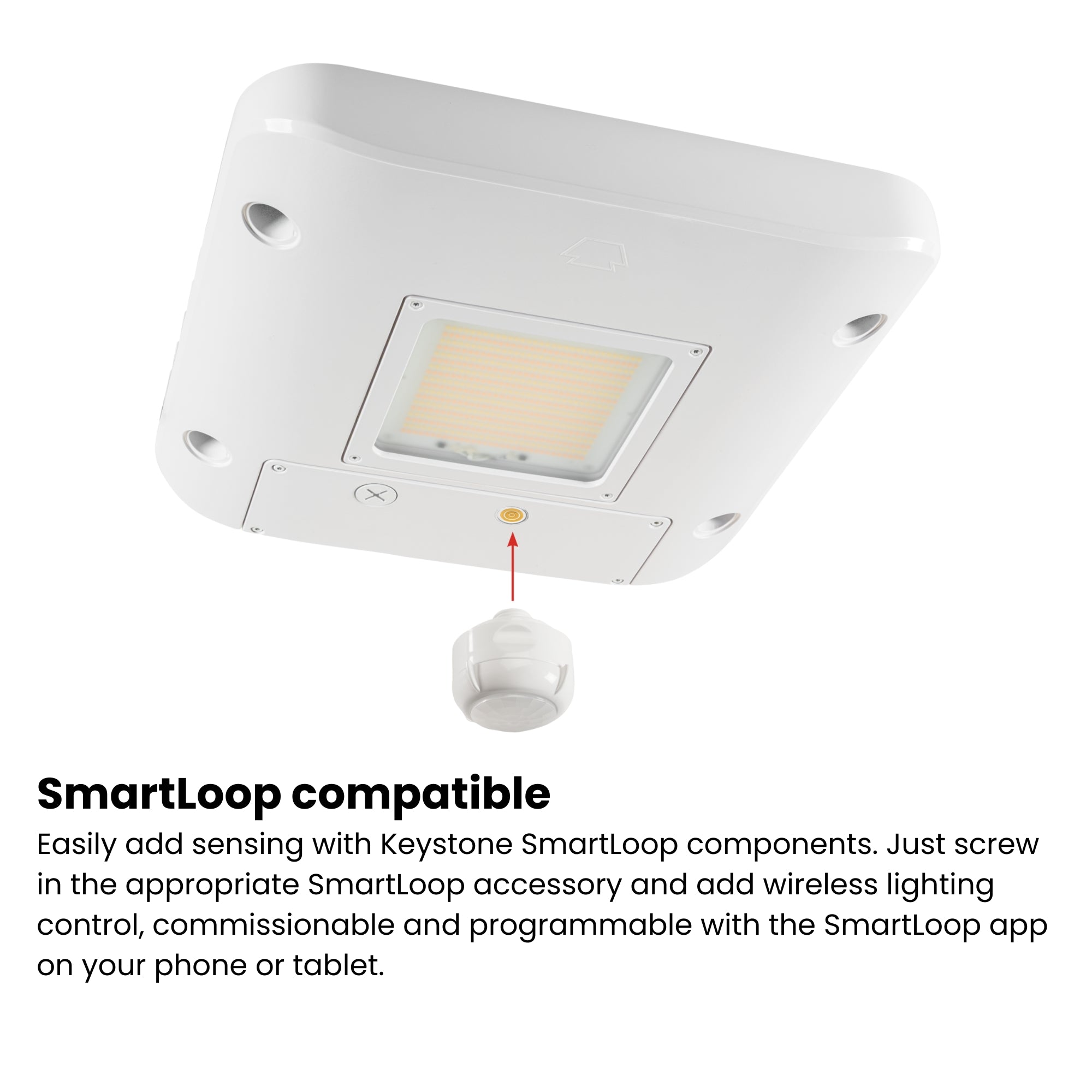

The fixture supports 120-277V input and includes a 0-10V dimming driver. It is compatible with optional sensors for enhanced control.
Construction & Durability
Constructed with a die-cast aluminum housing and a frosted glass diffuser, this fixture is IP65 rated for protection against dust and water ingress.
Installation & Mounting

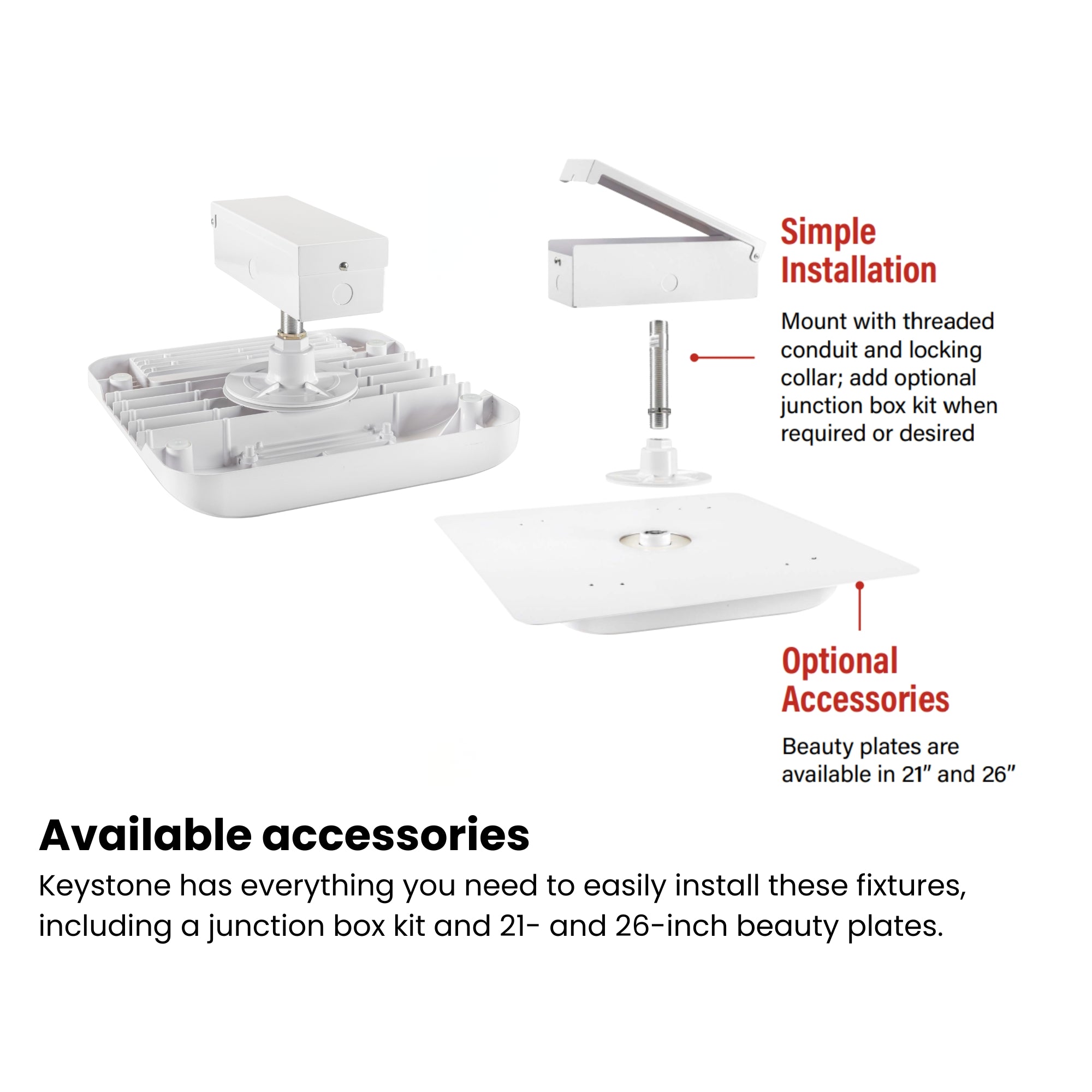

Designed for surface mounting, the fixture includes an integrated driver. An optional junction box kit is available for additional installation flexibility.
What's Included
- Keystone Gas Station Canopy Light
- Integrated Driver
Specifications
Specifications

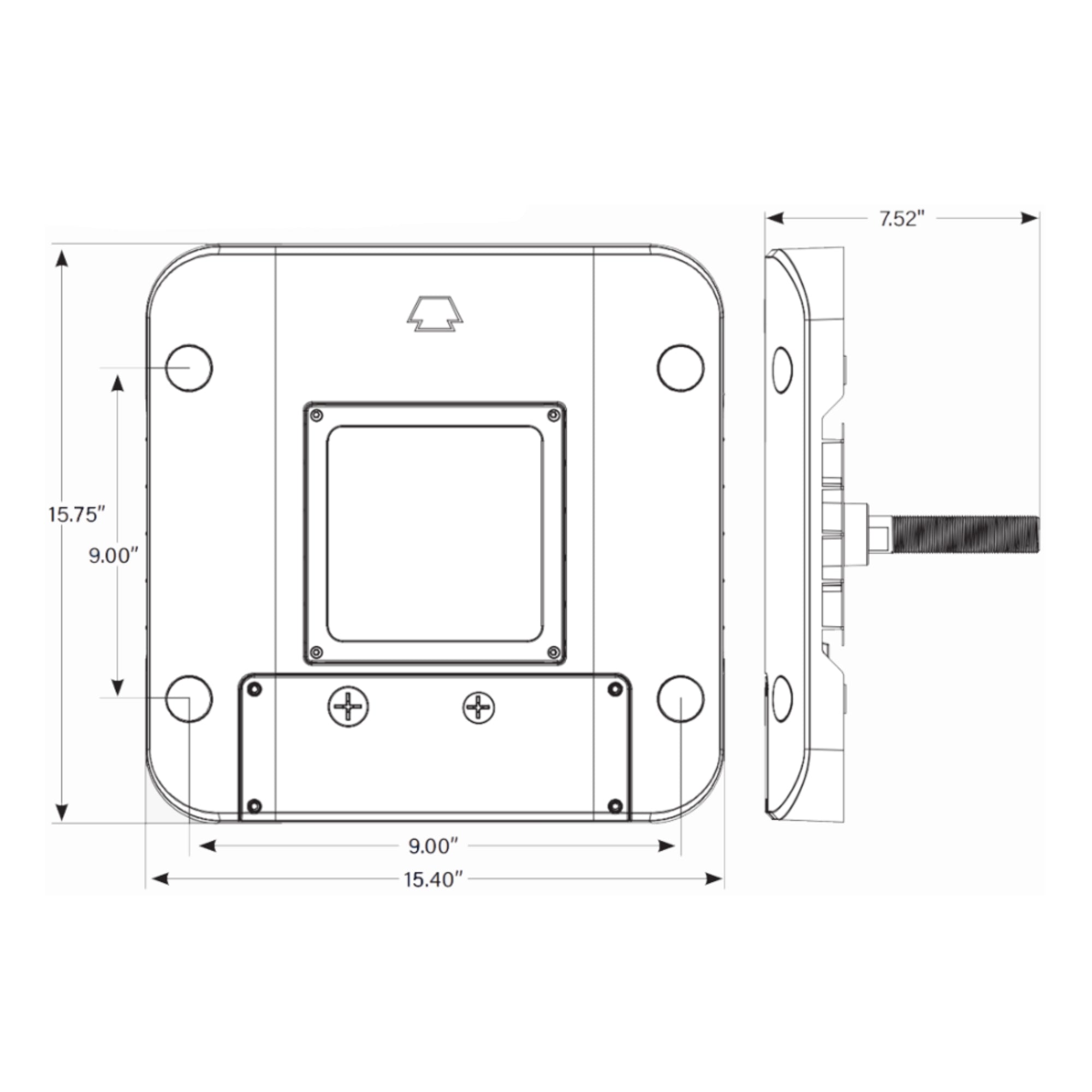

Dimensions
