Keystone XFit OpticSwap LED Area Light — 70/100/140W Selectable, 277–480V

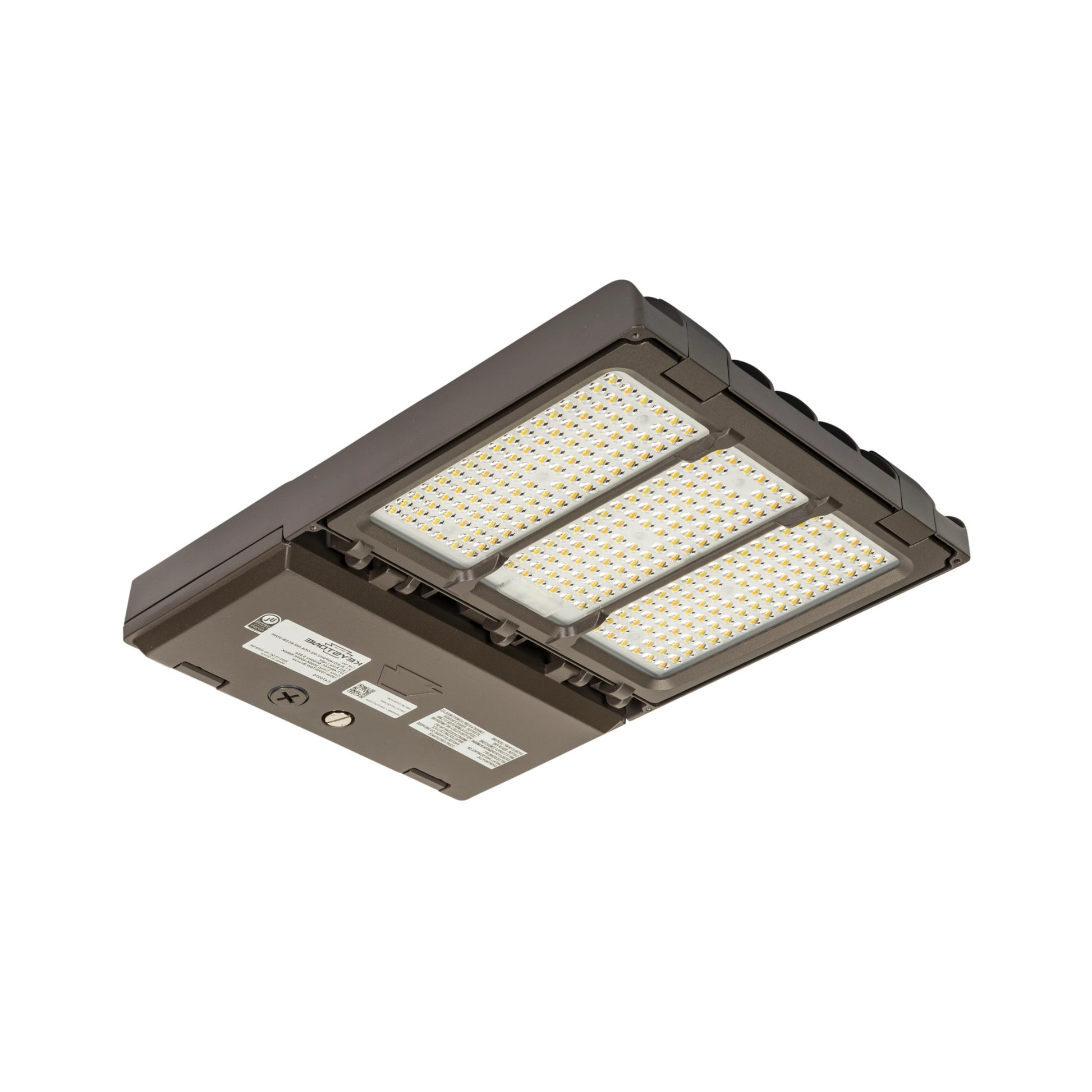

The Keystone KT-ALED140PSHV-M2-OSA-NM-8CSB-VDIM-G2 is a highly adaptable LED area light delivering up to 19,910 lumens with field-selectable 70W/100W/140W output and adjustable 3000K/4000K/5000K color temperatures. Operating on a 277–480V high-voltage driver, this fixture features innovative OpticSwap technology, allowing users to effortlessly change between Type III and Type V distributions. Built with an IP65 wet location rating and DLC Premium listing, it is engineered for exceptional durability in parking lots, automotive dealerships, and perimeter lighting applications.

Key Features

• Selectable Wattage: 70W / 100W / 140W
• Selectable CCT: 3000K / 4000K / 5000K
• Delivered Lumens: Up to 19,910 lumens (up to 155 LPW)
• Voltage: 277–480V high-voltage input
• Dimming: 0–10V dimmable
• Optics: OpticSwap (Type III installed; Type V included)
• Controls: 3-pin NEMA receptacle with shorting cap
• Environmental Ratings: IP65 wet location rated
• Certifications: DLC Premium listed, UL Certified, RoHS compliant
• Estimated Life: >100,000 hours (L70)

Typical Applications

• Commercial parking lots
• Automotive dealerships
• Recreational venues and pathways
• Roadways and streetscapes
• General outdoor structure-mount illumination

Performance & Light Output

This medium-housing area light provides scalable illumination from approximately 10,220 to 19,910 lumens depending on the selected wattage and color temperature, achieving an ultra-efficient efficacy of up to 155 lumens per watt. The revolutionary OpticSwap system allows installers to change the light distribution pattern using an under-door frame and latch design for quick, tool-free lens changes. The fixture comes with a Type III lens installed and a Type V lens included in the box, while Type II and Type IV lenses are available separately. The high-performance LEDs maintain a highly prolonged L70 rated life of over 100,000 hours. The fixture features a True U0 design for dark-sky-friendly performance that eliminates undesirable sky glow.

Electrical & Controls

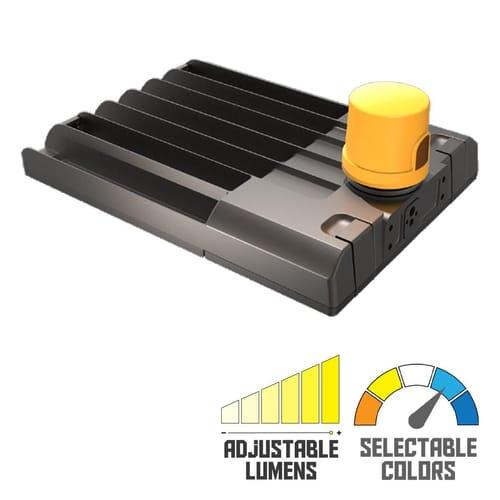

This fixture operates on a dedicated 277–480V AC driver with standard 0–10V dimming functionality to seamlessly integrate with facility energy management systems. The electrical components maintain a power factor greater than 0.95 and total harmonic distortion (THD) below 20%, protected by built-in 6kV surge protection. It is comprehensively controls-ready, featuring an integrated NEMA/ANSI C136.10 3-pin twist-lock receptacle equipped with a shorting cap. For automated dusk-to-dawn operation, this fixture is explicitly compatible with the optional Keystone 277-480V twist-lock photocell (KT-TLP-HV-3PN), sold separately.

Construction & Durability

Engineered to withstand harsh outdoor environments, the luminaire features a heavy-duty, die-cast aluminum Series 2 medium housing with ample heat sinking, finished in a durable bronze color. Its low-profile design improves application site aesthetics while minimizing wind load. The fixture carries an IP65 rating to completely protect internal components from dust and water ingress in wet locations, operating reliably in extreme ambient temperatures ranging from -40°C (-40°F) up to 50°C (122°F).

Installation & Mounting

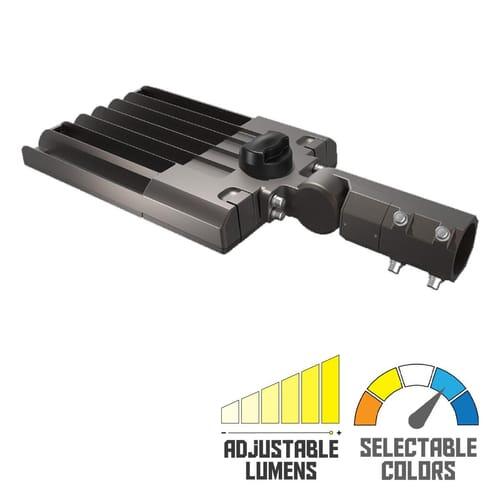

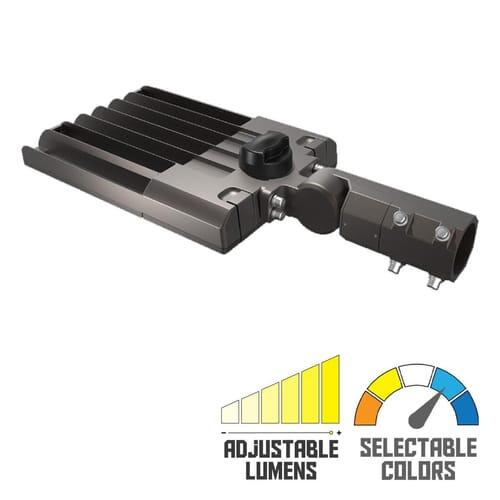

This specific "NM" (No Mount) model is designed for maximum site flexibility, meaning mounting hardware is not included in the box. To complete the installation, the fixture requires a compatible Keystone accessory mount (sold separately). Contractors can choose from five contractor-friendly mounting options: a universal slipfitter, trunnion, adjustable pole mount, fixed pole mount, or wall adaptor.

What's Included

• LED Area Light Fixture (Bronze)
• Type III Lens (Pre-installed)
• Type V Lens
• 3-Pin Shorting Cap
