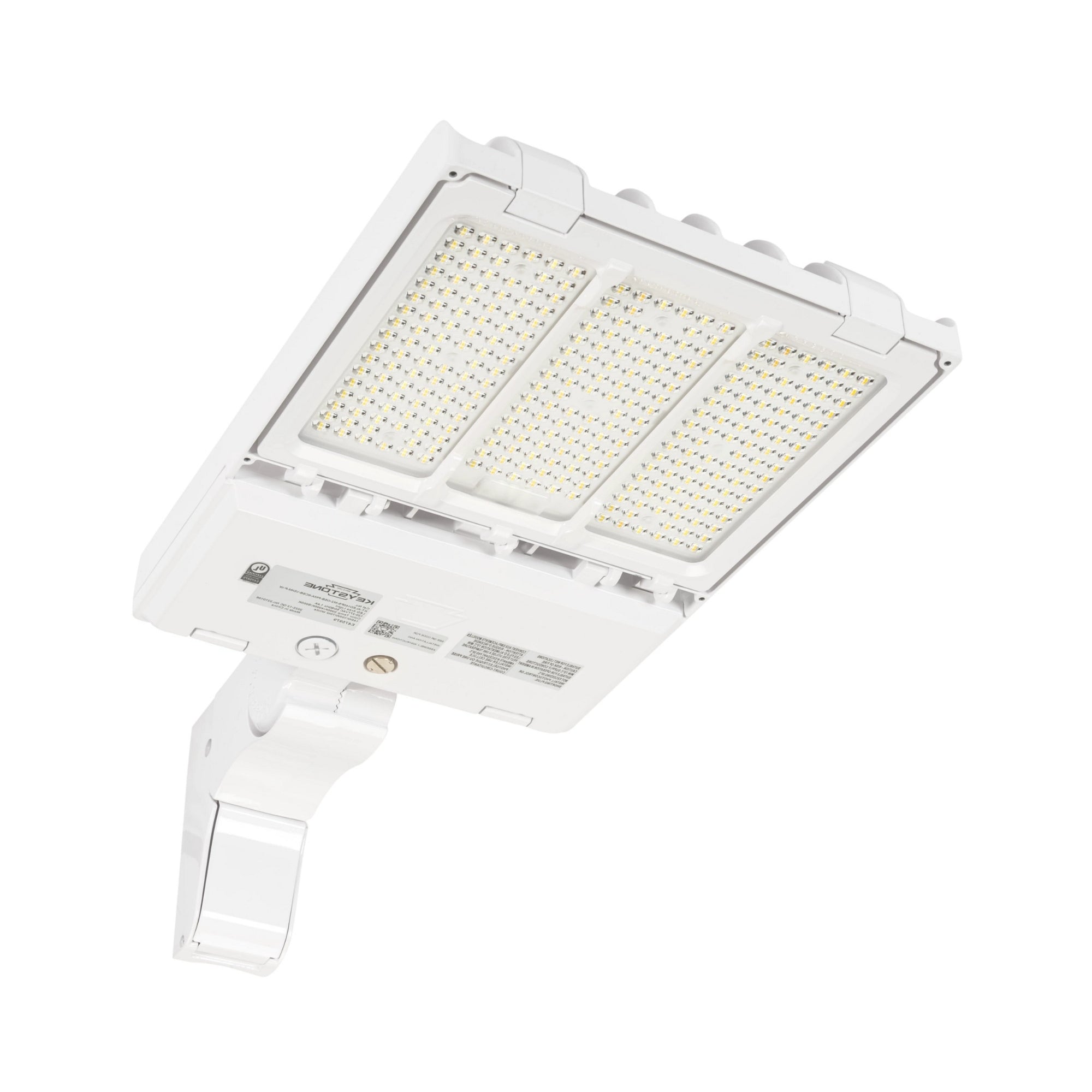

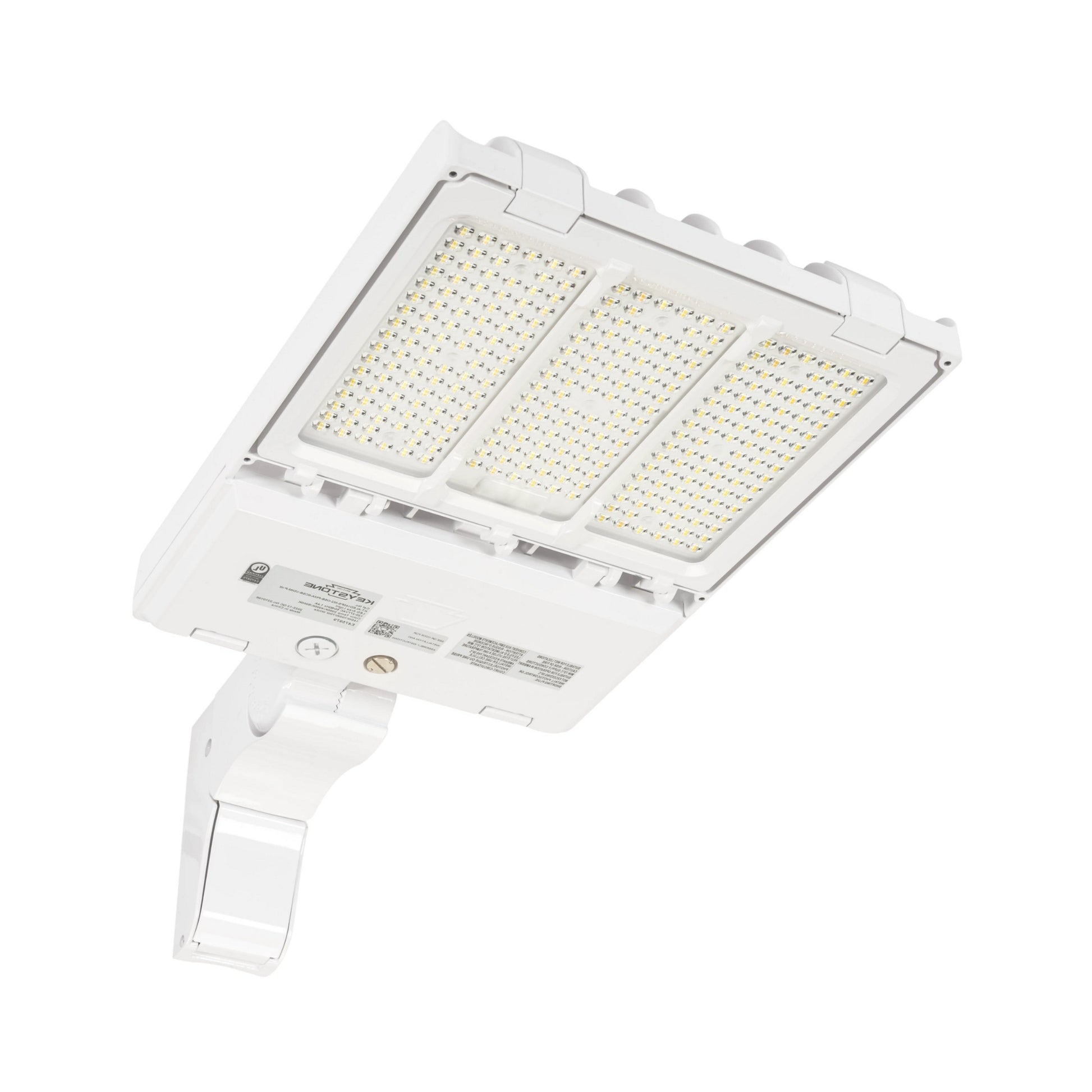

LED Pole Light, 140W, 19900 Lm, 30K|40K|50K, Optics Swap, 120-277V, White
LED Pole Light, 140W, 19900 Lm, 30K|40K|50K, Optics Swap, 120-277V, White
In stock
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Low-profile design delivers high-performance illumination and improves application site aesthetics
- True U0 design for Dark Sky friendly performance that eliminates undesirable sky glow
- Integrated NEMA/ANSI C136.10 7-pin twist-lock receptacle with 3-pin photocell and shorting cap
- Meets FCC Part 15, Part B, Class A standards for conducted and radiated emissions
- Keystone 0-10V dimming driver
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
The Keystone KT-ALED140PS-M2-OSB-PMA-8CSB-VDIM-P-W/G2 provides versatile pole-mount area lighting for commercial and municipal applications. This 140W fixture combines Power Select and Color Select technology with tool-free optic swap capability for maximum installation flexibility.

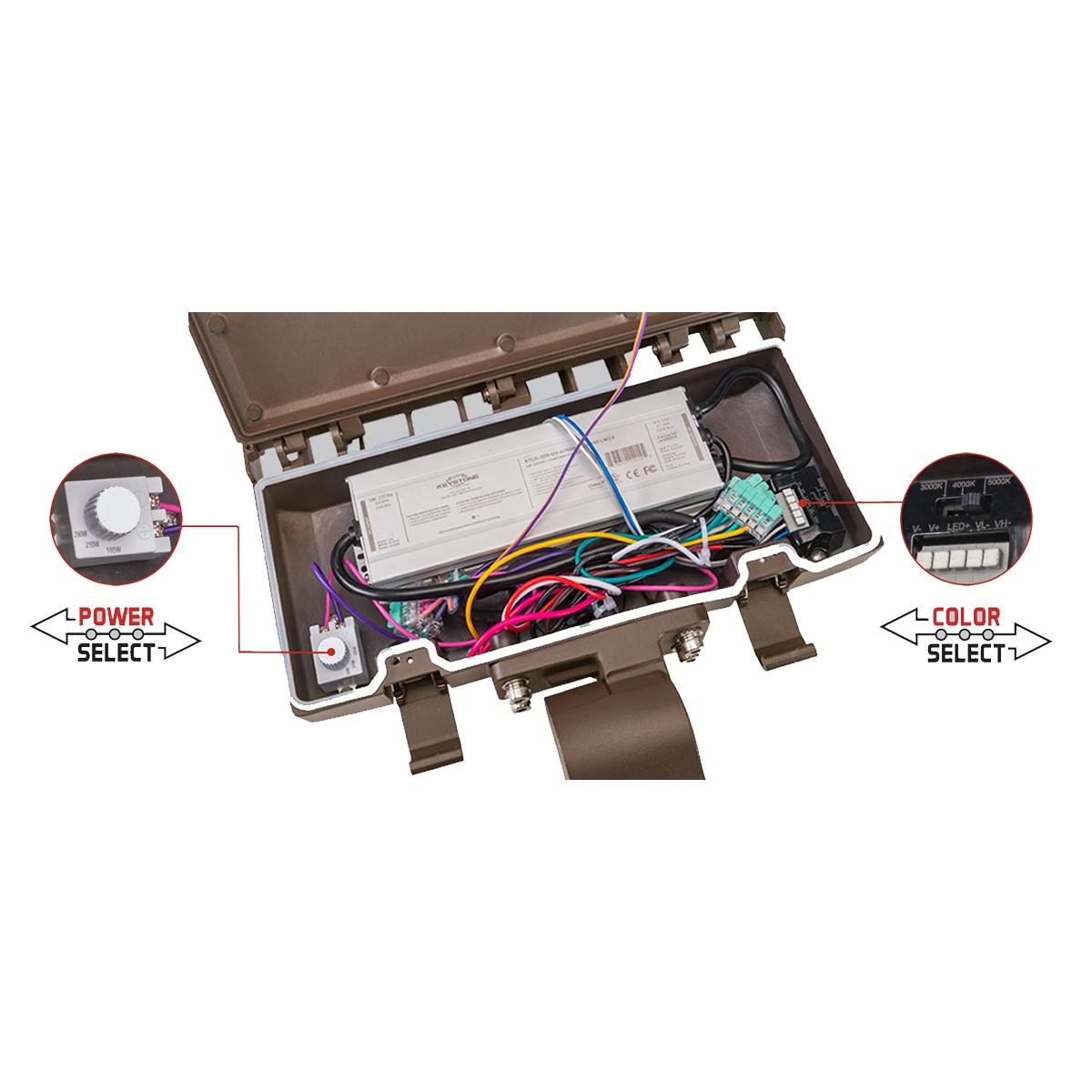

Adjustable Technology
- Field-selectable wattage: 140W, 100W, or 70W
- Field-selectable CCT: 3000K, 4000K, or 5000K

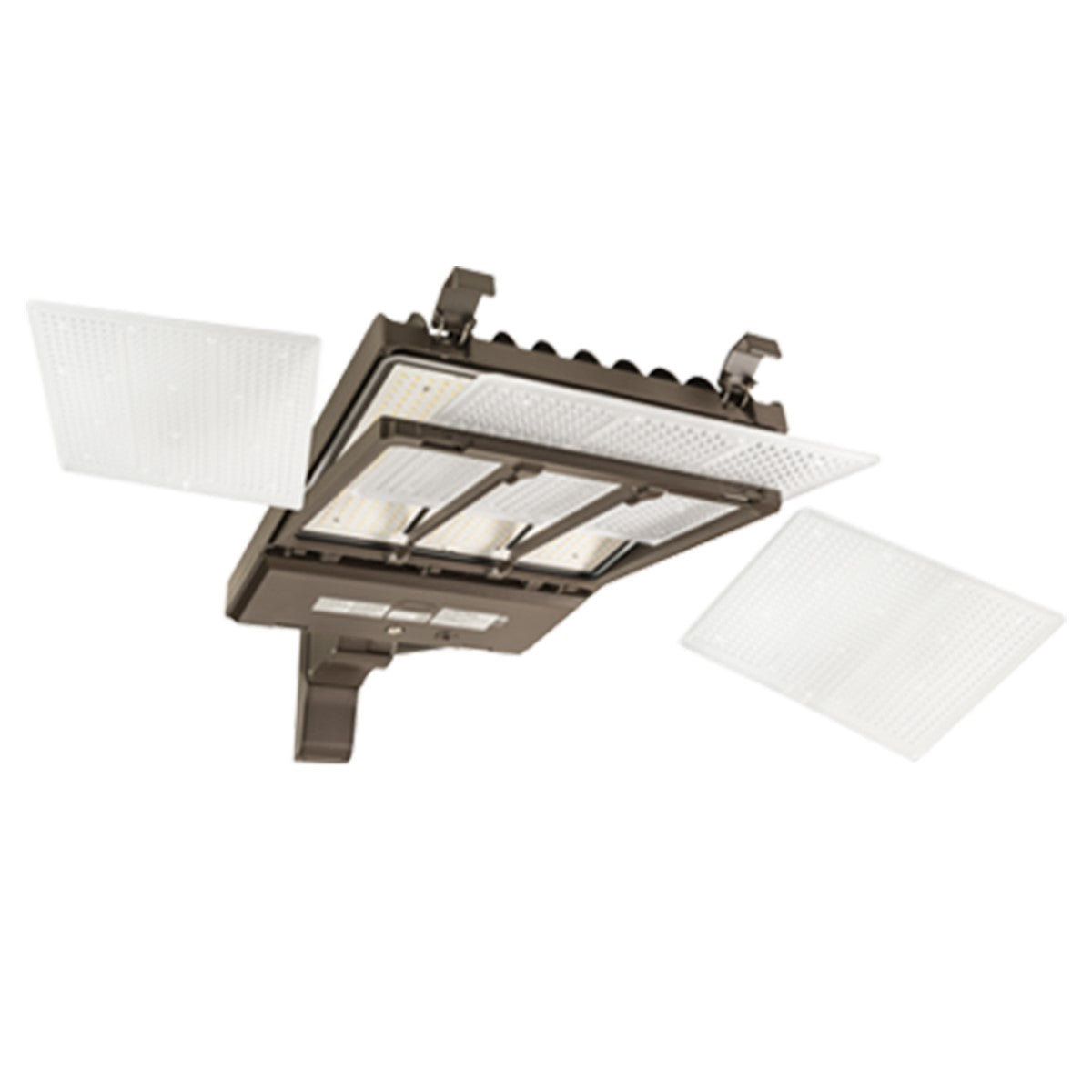

- Three optics included: Type III (installed), Type IV, Type V

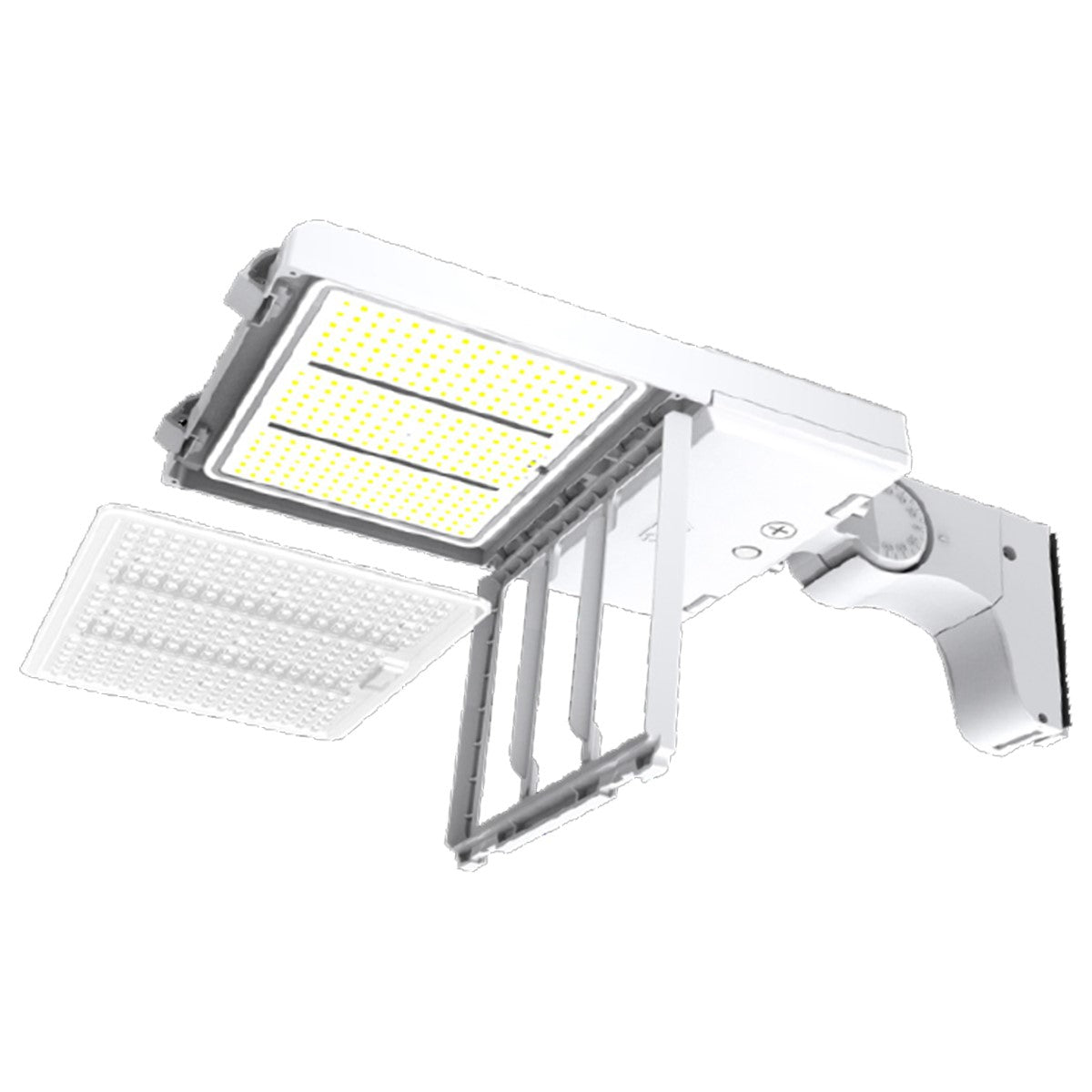

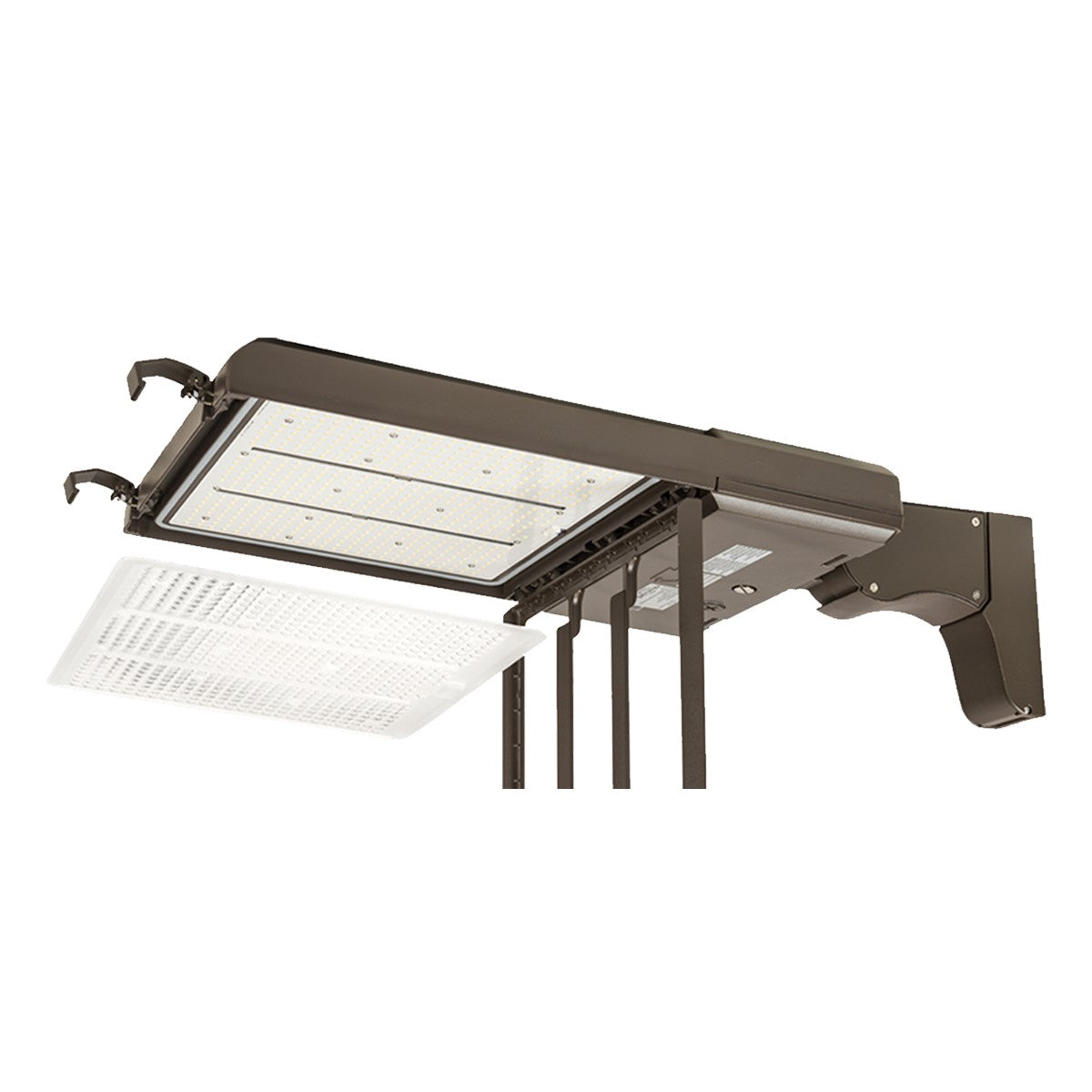

- Tool-free lens change via door frame latch
- Adjustable pole mount kit pre-installed
- White housing finish
Technical Specifications
- Maximum output: 19,910 lumens
- Efficacy: up to 153 lm/W
- 0-10V dimming compatible
- 6kV surge protection
- Operating range: ?40°C to 50°C
- Die-cast aluminum construction
Standards and Compliance
- UL Certified and IP65 rated
- DLC Premium listed
- RoHS compliant
- FCC Part 15 Class A certified
- NEMA C136.10 7-pin photocell receptacle
- 3-pin photocell and shorting cap included
10-year limited warranty. True U0 low-profile design for controlled light distribution without sky glow.
Specifications
Specifications

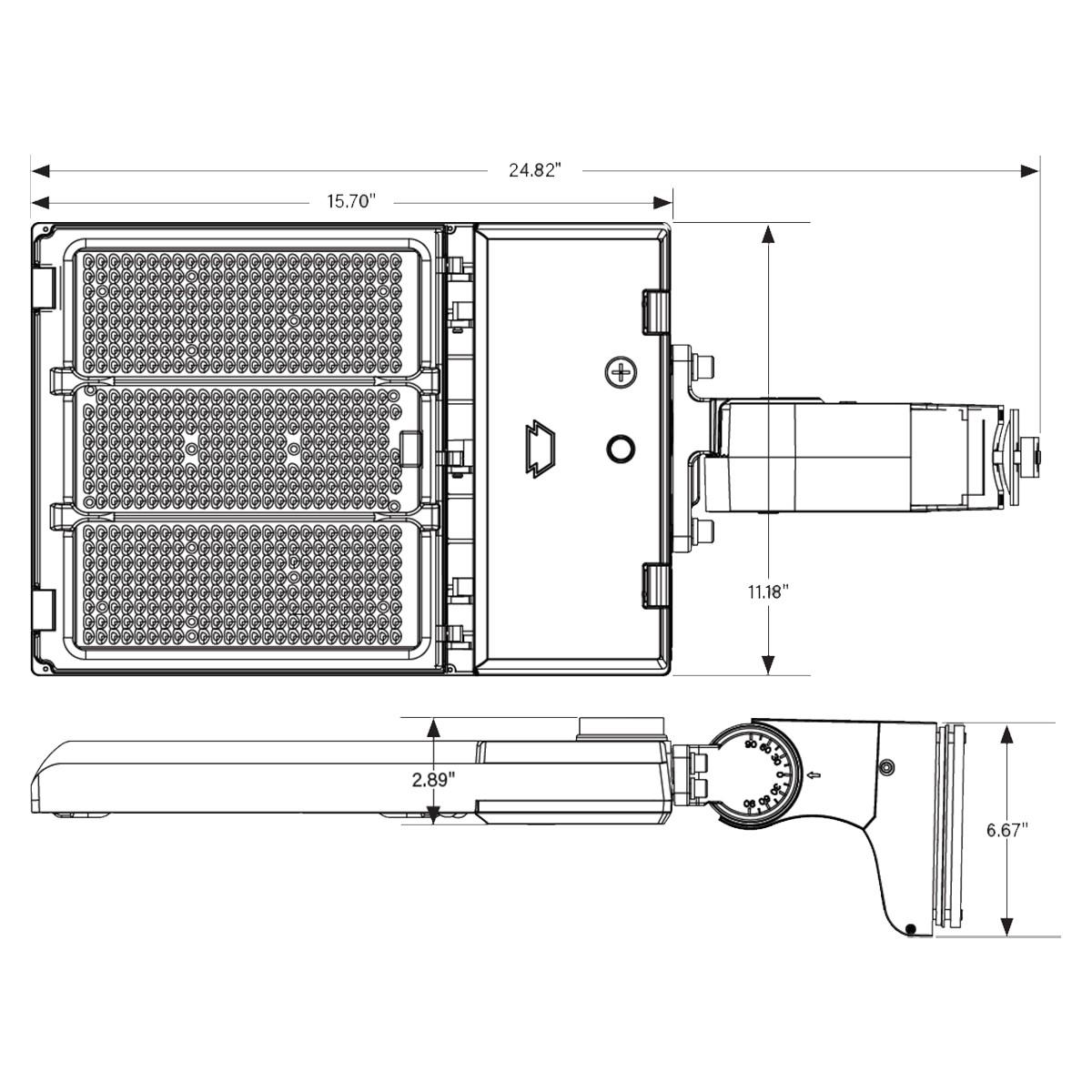

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What is a "Shoebox" light fixture?
What is a "Shoebox" light fixture?
A "shoebox" light refers to the physical shape of the fixture housing, which is typically rectangular and box-like. This design allows for effective thermal management (heat sinking) of the LED components and houses the drivers and optics efficiently. It is the most common form factor for modern LED area lights.
How do I choose the right mounting bracket?
How do I choose the right mounting bracket?
Slipfitter: Use this if you have a round pole or tenon (2 3/8" diameter) and need to angle the light.
Direct Arm: Use this for square poles where you want the light to point straight down/out.
Trunnion: Use this for mounting on walls, roofs, or wood poles where you need an adjustable bracket.
What wattage LED do I need to replace a 400W Metal Halide?
What wattage LED do I need to replace a 400W Metal Halide?
Generally, a 100W to 150W LED area light can replace a standard 400W Metal Halide fixture. Always check the lumen output; you are typically looking for 12,000 to 18,000 lumens to match the effective light output of a 400W HID lamp.

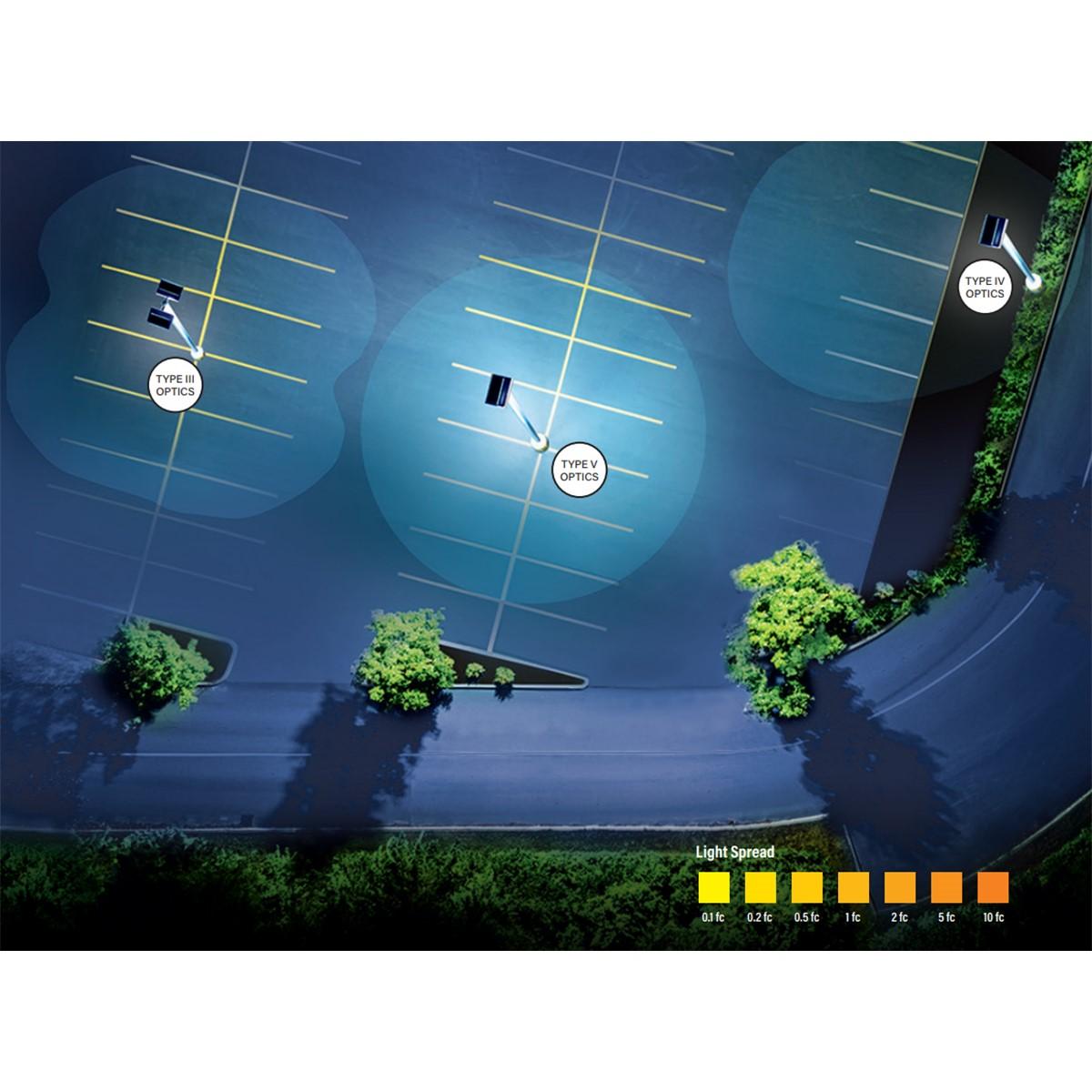

What is the difference between Type III and Type V light distribution?
What is the difference between Type III and Type V light distribution?
Type III: Throws light forward and to the sides (wide throw). This is ideal for perimeter poles or roadways where you don't want light spilling behind the pole.
Type V: Distributes light in a full 360-degree circle (square pattern). This is perfect for the center of large open areas where you need light in all directions.
Are these lights dimmable?
Are these lights dimmable?
Yes, most commercial LED pole lights come with 0-10V dimming drivers standard. This allows them to be used with compatible dimmers or smart control systems to lower light levels during off-peak hours for additional energy savings.
