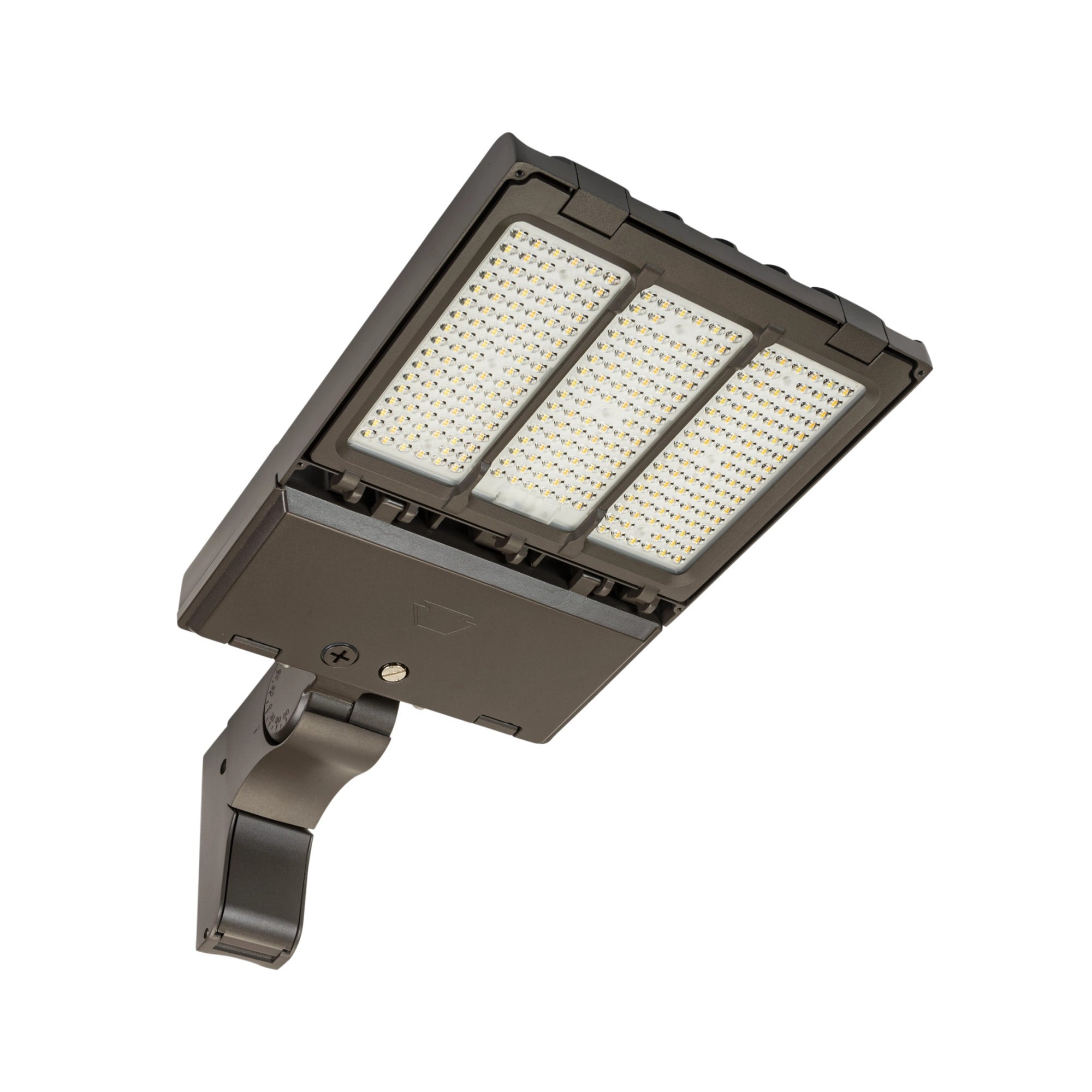

Keystone XFit OpticSwap LED Area Light — 70/100/140W Selectable, 120–277V

The Keystone KT-ALED140PS-M2-OSB-PMA-8CSB-VDIM-P-G2 is a highly adaptable LED area light delivering up to 19,910 lumens with field-selectable 70W/100W/140W output and adjustable 3000K/4000K/5000K color temperatures. Operating on a 120–277V driver, this fixture features innovative OpticSwap technology, allowing users to effortlessly change between Type III, Type IV, and Type V distributions. Built with an IP65 wet location rating and DLC Premium listing, it is engineered for exceptional durability in parking lots, automotive dealerships, and perimeter lighting applications.

Key Features

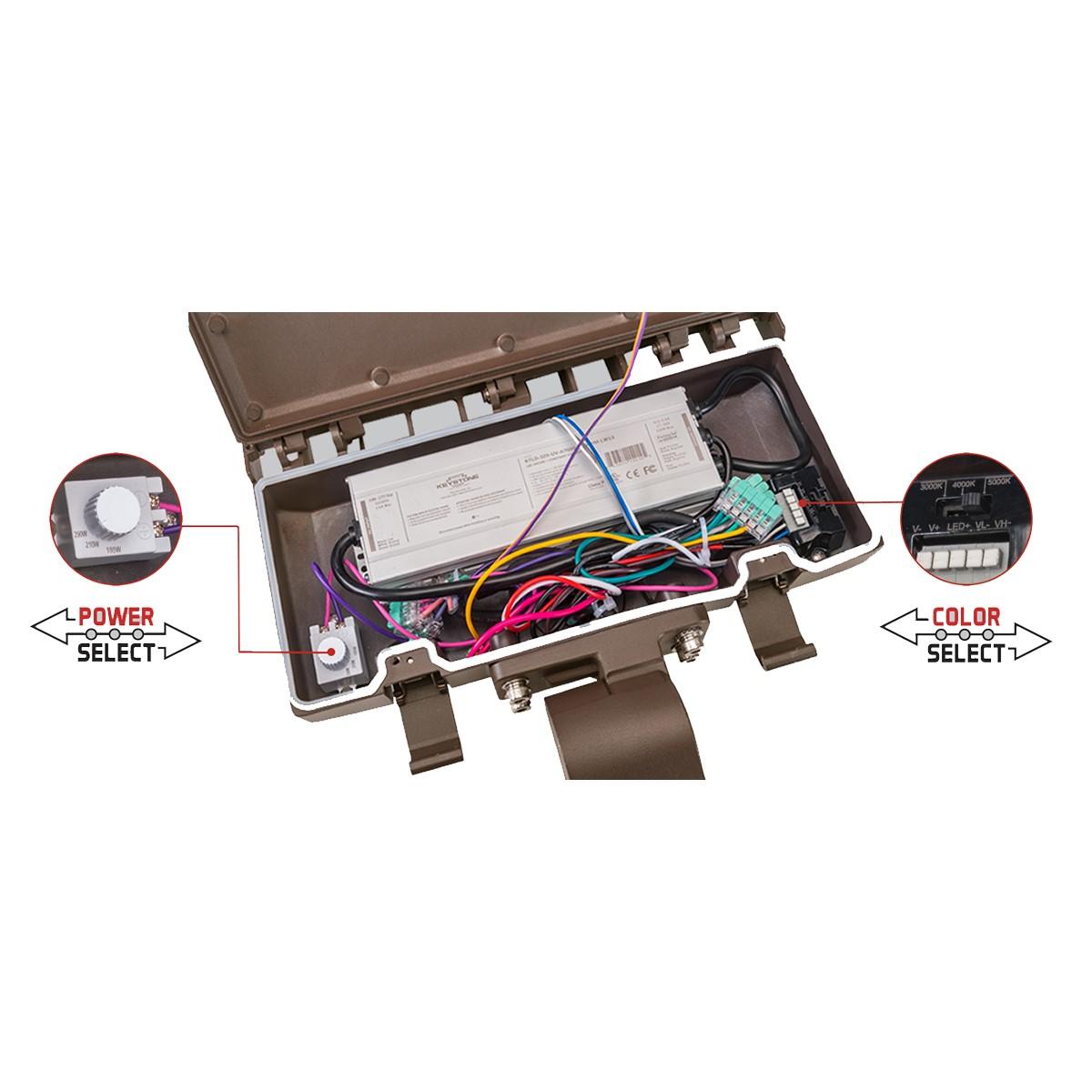

• Selectable Wattage: 70W / 100W / 140W
• Selectable CCT: 3000K / 4000K / 5000K
• Delivered Lumens: Up to 19,910 lumens (up to 155 LPW)
• Voltage: 120–277V input
• Dimming: 0–10V dimmable

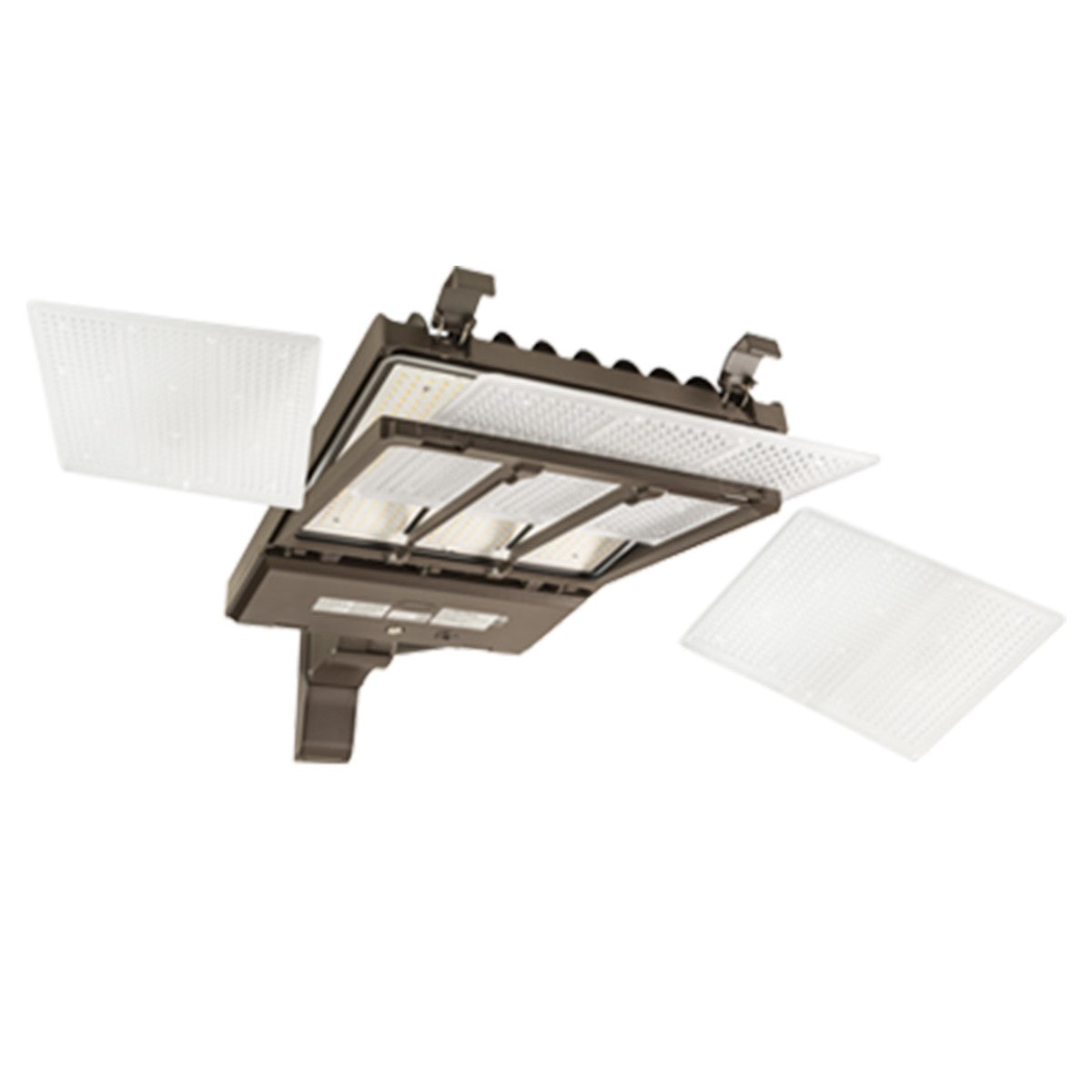

• Optics: OpticSwap (Type III installed; Type IV & V included)
• Controls: 7-pin NEMA receptacle with 3-pin photocell included
• Environmental Ratings: IP65 wet location rated
• Certifications: DLC Premium listed, UL Certified, RoHS compliant
• Estimated Life: >100,000 hours (L70)

Typical Applications

• Commercial parking lots
• Automotive dealerships
• Corporate and university campuses
• Pedestrian walkways and plazas
• Perimeter security lighting

Performance & Light Output

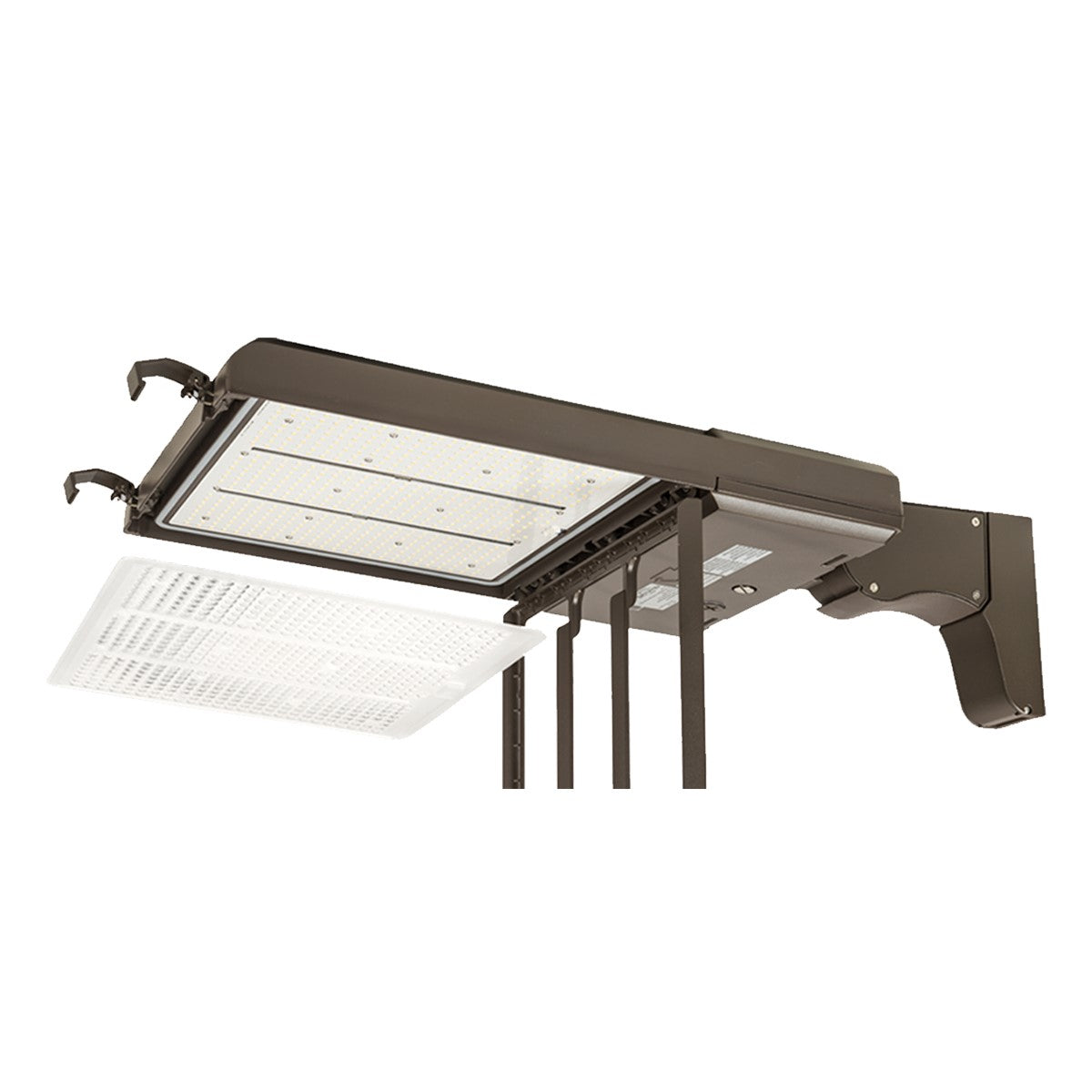

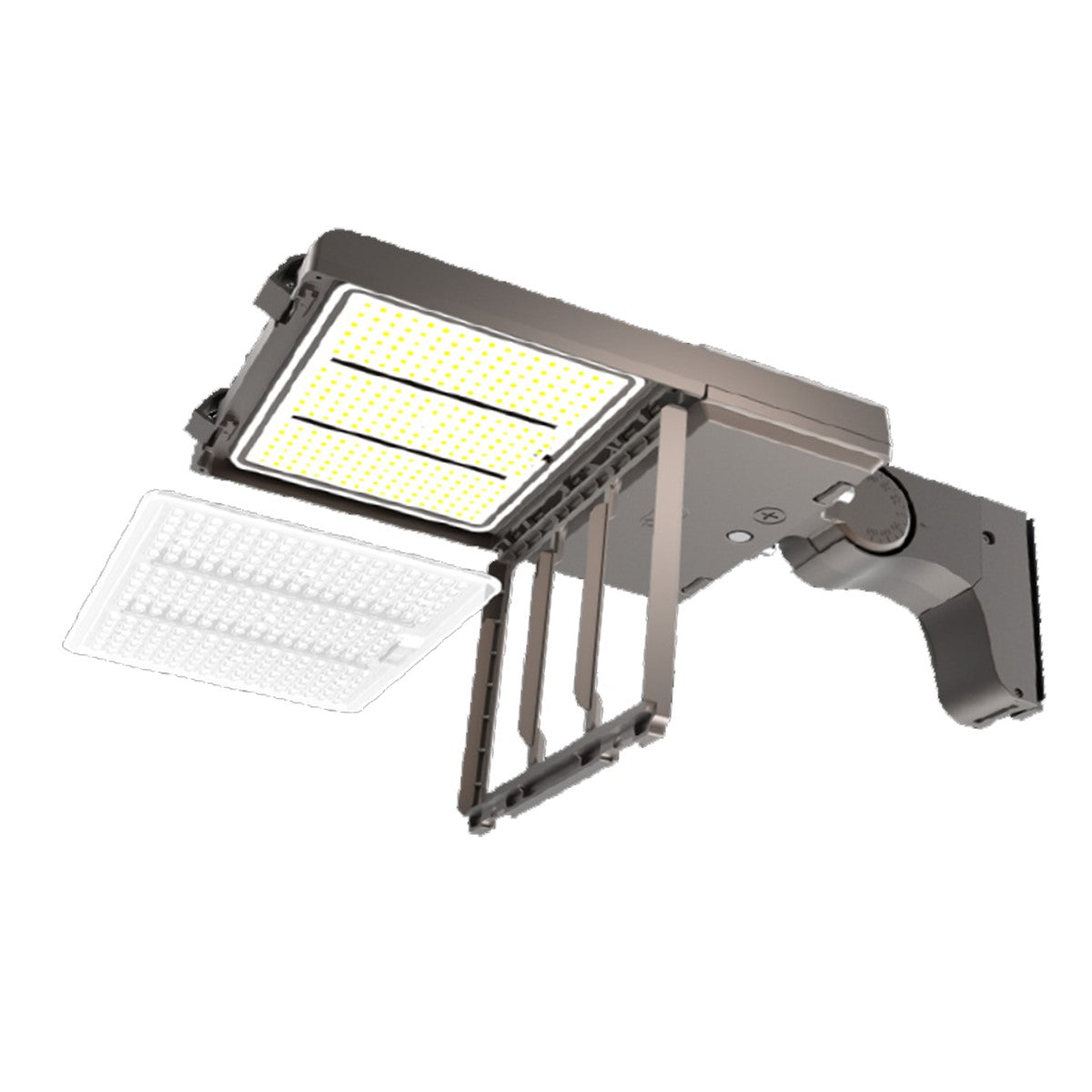

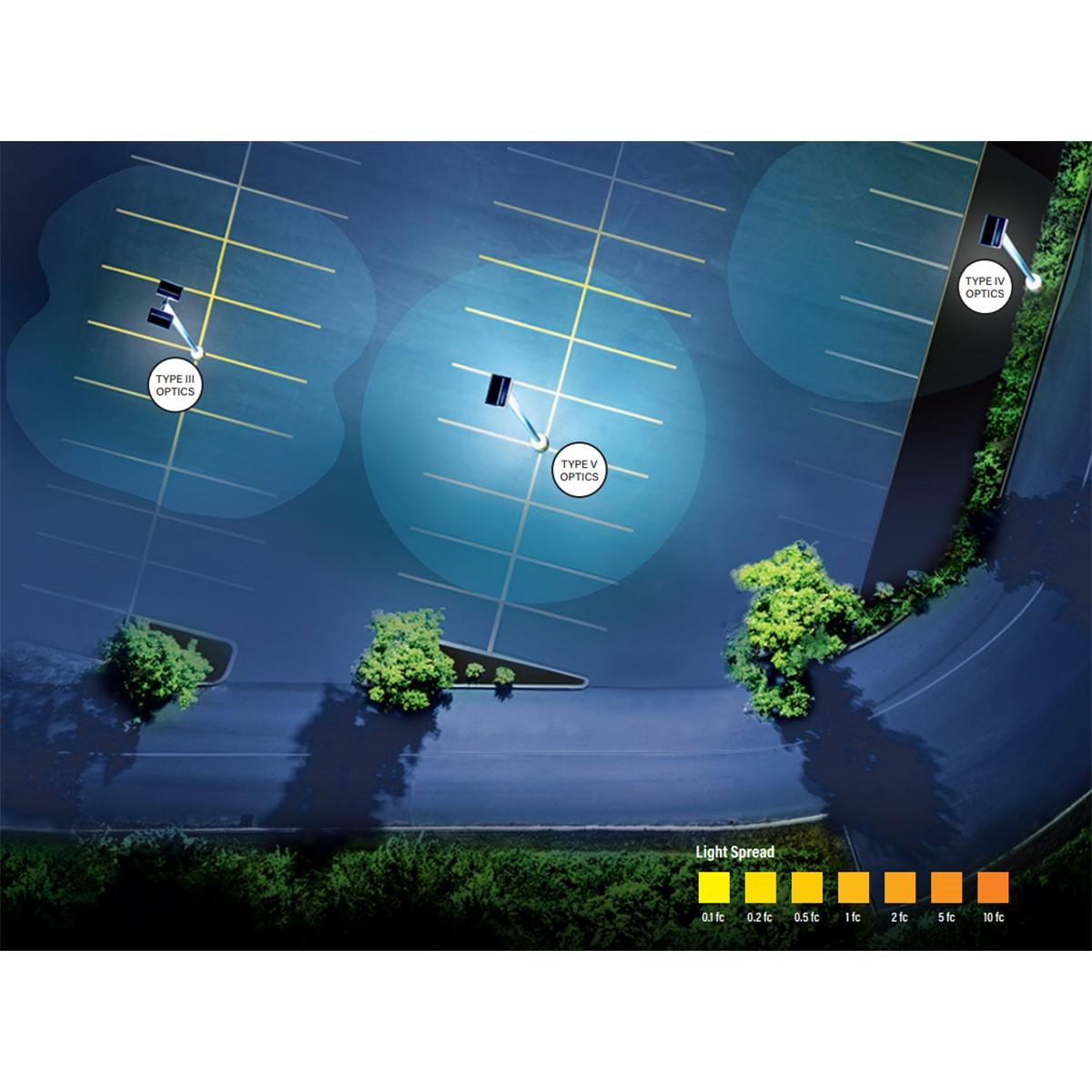

This area light provides scalable illumination from approximately 10,220 to 19,910 lumens depending on the selected wattage and color temperature, achieving an ultra-efficient efficacy of up to 155 lumens per watt. The revolutionary OpticSwap system allows installers to change the light distribution pattern (Type III, Type IV, or Type V) using an under-door frame and latch design for quick, tool-free lens changes. The high-performance LEDs deliver a color rendering index (CRI) greater than 80 and maintain a highly prolonged L70 rated life of over 100,000 hours. The fixture features a True U0 design for dark-sky-friendly performance that eliminates undesirable sky glow.

Electrical & Controls

This fixture operates on a universal 120–277V AC driver with standard 0–10V dimming functionality to seamlessly integrate with facility energy management systems. The electrical components maintain a power factor greater than 0.95 and total harmonic distortion (THD) below 20%. It is comprehensively controls-ready, featuring an integrated NEMA/ANSI C136.10 7-pin twist-lock receptacle that comes standard with a 3-pin photocell and shorting cap for instant dusk-to-dawn capabilities. The receptacle also accepts compatible optional networked smart controls or standalone sensors (sold separately) for advanced site management.

Construction & Durability

Engineered to withstand harsh outdoor environments, the luminaire features a heavy-duty, die-cast aluminum Series 2 medium housing with ample heat sinking, finished in a durable bronze powder coat. Its low-profile design improves application site aesthetics while minimizing wind load. The fixture carries an IP65 rating to completely protect internal components from dust and water ingress in wet locations, operating reliably in extreme ambient temperatures ranging from -40°C (-40°F) up to 50°C (122°F).

Installation & Mounting

The luminaire streamlines site installations by including a pre-installed adjustable pole mount kit directly in the box, designed for quick and easy mounting to standard square or round poles. This versatile mount allows contractors to achieve the precise aiming angle required for the site. For unique application requirements, the fixture can also be adapted using compatible optional slipfitter or wall mount brackets (sold separately).

What's Included

• LED Area Light Fixture (Bronze)
• Adjustable Pole Mount Kit
• Type III Lens (Pre-installed)
• Type IV and Type V Lenses
• 3-Pin Photocell and Shorting Cap
