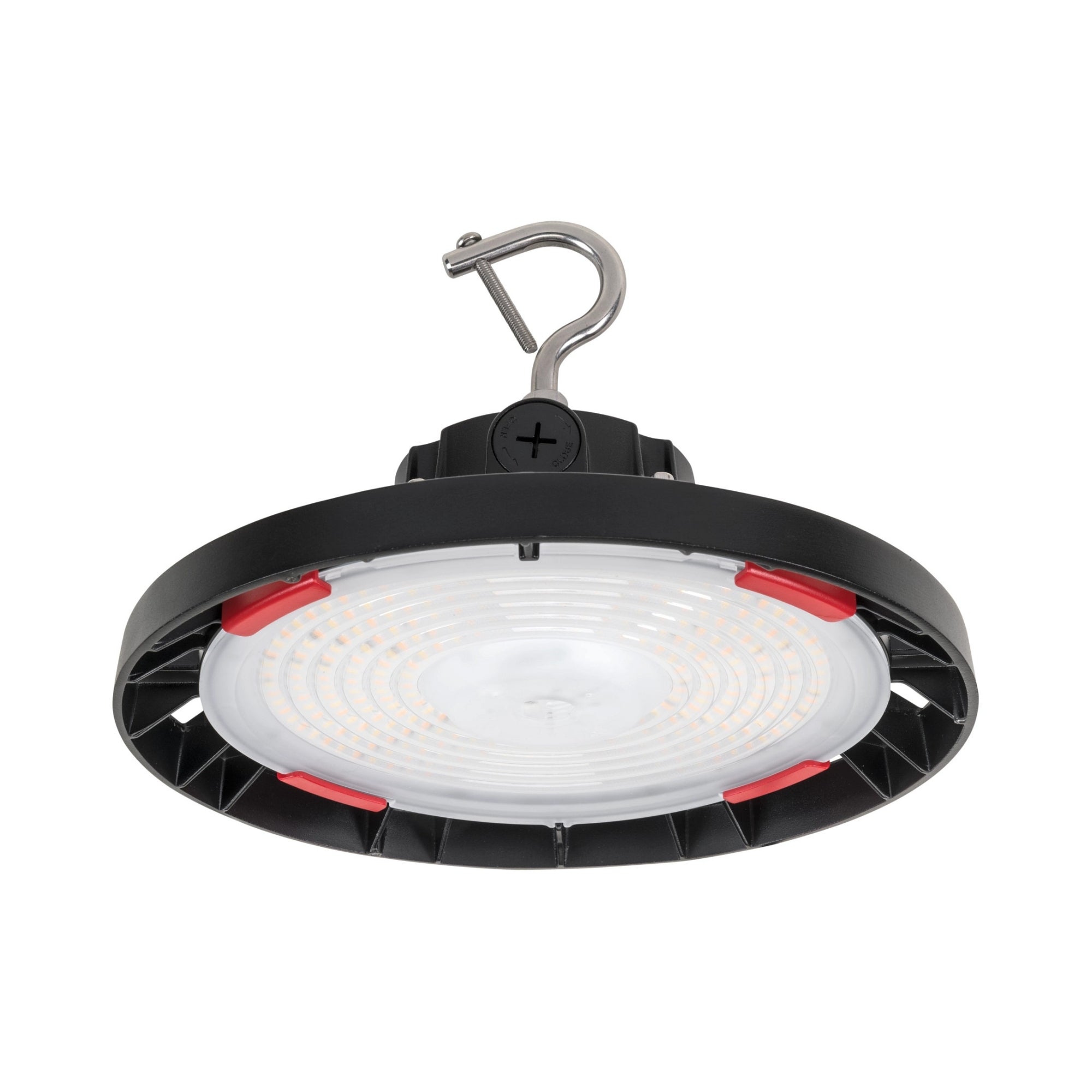

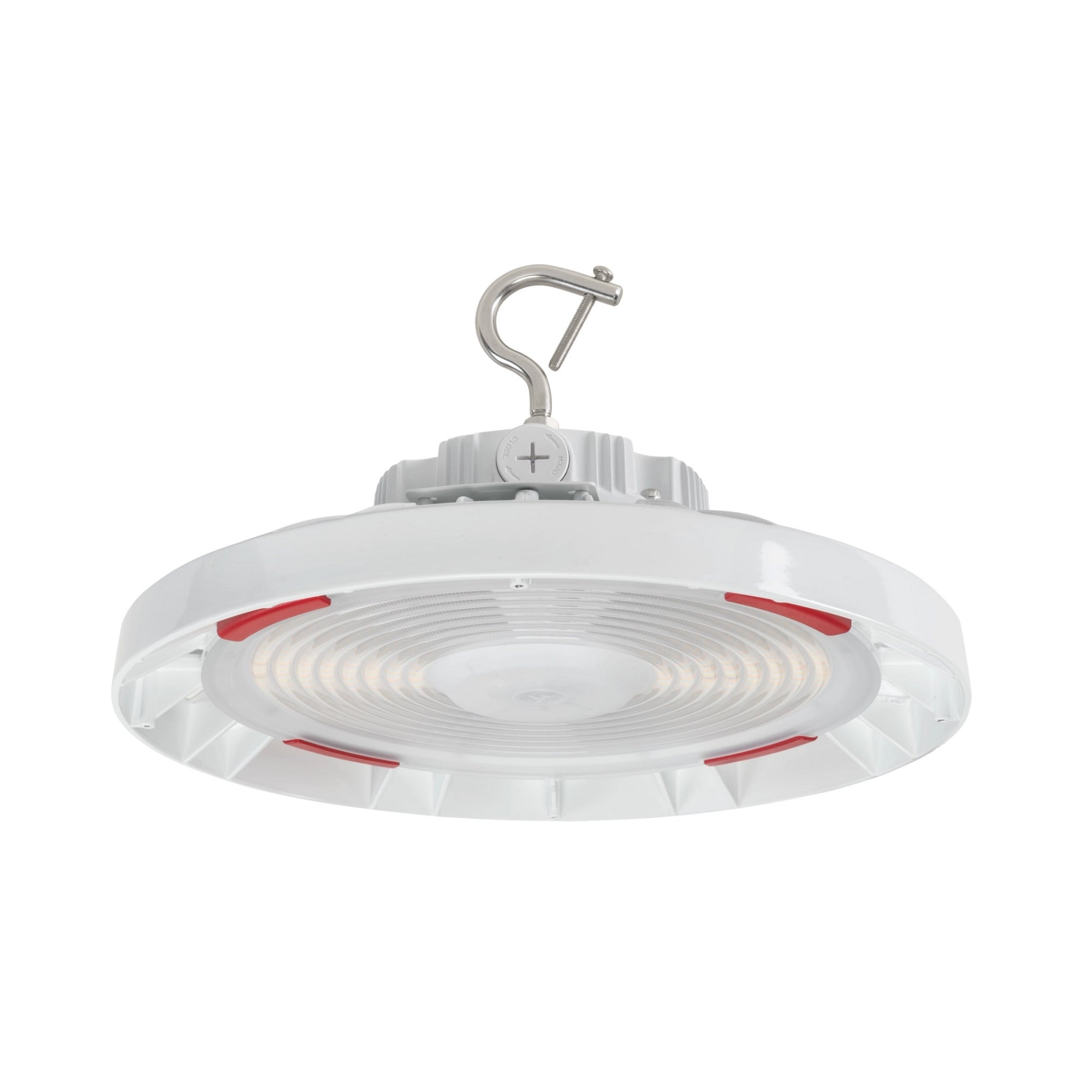

Keystone KT-RHLED Series XFiT OpticSwap UFO LED High Bay — 100W to 240W Selectable — Black / White

The Keystone KT-RHLED XFiT OpticSwap series spans four UFO LED high bay models — KT-RHLED100PS, KT-RHLED150PS, KT-RHLED200PS, and KT-RHLED240PS — each with field-selectable wattage, field-selectable CCT of 3000K, 4000K, and 5000K, and Keystone’s OpticSwap tool-free interchangeable lens system. The full family operates on 120–277V, delivers up to 36,720 lumens at a peak efficacy of 166 lm/W, carries UL Wet Location and IP65 ratings, and is available in Black or White powder-coated aluminum (240W available in Black only). Two body sizes: 12″ (100W/150W) and 14″ (200W/240W). DLC Listed (100W/150W) and DLC Premium (200W/240W). Backed by Keystone’s 10-year limited warranty.

Key Features

• Selectable Wattage per Model: 100W / 70W / 50W (KT-RHLED100PS) | 150W / 100W / 70W (KT-RHLED150PS) | 200W / 150W / 100W (KT-RHLED200PS) | 240W / 200W / 150W (KT-RHLED240PS)
• Selectable CCT: 3000K / 4000K / 5000K — field-adjustable via Keystone Color Select technology on all models; color uniformity per ANSI C78.377-2017
• OpticSwap Tool-Free Lens System: 90° standard lens pre-installed; included alternate lens swaps in seconds via tool-free latch — 120° wide-angle (100W/150W/200W — OSD) | 60° narrow-angle (240W — OSE); no tools or rewiring required
• Sensor-Ready: 1/2″ knock-out (KO) receptacle — accepts Keystone SmartLoop and SmartPort sensors without internal wiring on all models
• Voltage: Universal 120–277V, 50/60Hz across all models
• Dimming: 0–10V continuous dimming standard on all models
• Location Rating: UL Listed for wet locations; IP65 rated on all models
• Surge Protection: 6kV built-in on all models
• Operating Temperature: −40°F (−40°C) to 122°F (50°C) on all models
• Finish: Black or White powder-coated aluminum (240W: Black only)
• DLC Tier: DLC Listed — 100W, 150W | DLC Premium — 200W, 240W
• Certifications: cULus Listed, DLC Listed / DLC Premium, TAA Compliant, N3B Trusted Manufacturer, RoHS
• Rated Life: L70 >100,000 hours @ 25°C fixture ambient on all models
• Warranty: 10-year limited — Keystone Technologies

Performance & Light Output by Model

All models deliver CRI >80 across all wattage and CCT configurations. Peak lumen output at maximum wattage / 4000K. Peak efficacy at lowest wattage / 4000K. Rated life L70 >100,000 hours @ 25°C fixture ambient. Color uniformity per ANSI C78.377-2017. Input voltage: 120–277V.

Lens & Optics — OpticSwap

The OpticSwap tool-free latch allows beam angle changes without tools or rewiring. The 100W, 150W, and 200W models (OSD designation) ship with the 90° standard lens installed and a 120° wide-angle lens included — suited for lower mounting heights and broad area coverage. The 240W model (OSE designation) ships with the 90° standard lens installed and a 60° narrow-angle lens included — purpose-built for tall narrow-aisle racking and high-clearance ceilings above 35 ft. Additional optic lens SKUs available separately: KT-RHLED-LENS-12CD-60 (60°, fits 100W/150W body) | KT-RHLED-LENS-14CD-120 (120°, fits 200W/240W body) | KT-RHLED-LENS-14CD-60 (60°, fits 200W/240W body). Note: 12″ (100W/150W) and 14″ (200W/240W) body accessories are not interchangeable.

Smart & Control Features

All models include a built-in 1/2″ knock-out sensor receptacle for tool-free screw-in installation of optional occupancy and daylight sensors — no internal wiring required. Supports 0–10V continuous dimming on all models. Compatible sensors and controllers:

• KTSL-FC3-12V-PKO-PIR (/FC3): Bluetooth mesh screw-in PIR occupancy sensor with built-in fixture controller for Keystone SmartLoop LLLC system
• KTSL-FC4-12V-PKO (/FC4): Bluetooth mesh screw-in PIR occupancy sensor with built-in fixture controller for Keystone SmartLoop LLLC system
• KTS-PIR3-12V-PKO /G2 (/PIR): Screw-in PIR multifunction sensor — preset for 10 min hold time, ∞ min standby at 50% dim, daylight detection
• KTS-MW3-12V-PKO (/MW3): Screw-in microwave multifunction sensor — preset for 10 min hold time, ∞ min standby at 50% dim, daylight disabled
• KTS-MW3-REMOTECONTROL (field-use only): Remote control for field adjustment of KTS-MW3 and KTS-PIR3 /G2 sensor settings

Note: emergency backup cannot be used in conjunction with screw-in sensors on any model.

Electrical

Keystone 0–10V dimming constant current LED driver on all models. Input voltage: 120–277V, 50/60Hz. Built-in 6kV surge protection. Power Factor: >0.90. THD: <20%. Dimming: 0–10V continuous; low optical flicker. Factory-installed 6-foot input cord and 6-foot dimming wires included standard on all models. Emergency battery backup available on all models: KT-EMRG-LED-40SD-5000-CEN /SF (/EM suffix) — 40W constant wattage, approximately 5,000 lm, 120–277V input, CEC T20 compliant, single flex cable with included J-Box. Note: EM cannot be used in conjunction with screw-in sensors. Mercury-free, RoHS-compliant components across all models.

Construction

Powder-coated aluminum housing with polycarbonate lens — Black or White finish (240W: Black only). OpticSwap interchangeable lens system — tool-free latch swap. IP65 rated for dust and water ingress on all models. Operating temperature: −40°F (−40°C) to 122°F (50°C). Built-in 6kV surge protection. Low optical flicker. Mercury-free, RoHS-compliant.

Body sizes and dimensions (J-Hook included):

• 12″ body (KT-RHLED100PS, KT-RHLED150PS): 11.20″ dia × 7.93″ H — Weight: 9 lbs
• 14″ body (KT-RHLED200PS, KT-RHLED240PS): 13.74″ dia × 8.30″ H — Weight: 10 lbs

Accessories are body-size specific and not interchangeable between 12″ and 14″ models.

Installation & Mounting

Standard Hardware: J-Hook mounting accessory included standard on all models.

Recommended Mounting Heights by Maximum Wattage Setting: 100W — 15 to 25 ft | 150W — 25 to 40 ft | 200W — 30 to 45 ft | 240W — 35 to 50 ft.

Accessories (Sold Separately — 12″ body, 100W and 150W models):

• Wire Guard: KT-RHLED-WG-1-KIT /G2
• Surface Mount Kit: KT-RHLED-SM-1-KIT /G2 (Black) | KT-RHLED-SM-1-KIT-W /G2 (White)
• Aluminum Dome Reflector: KT-RHLED-AR90-1-KIT /G2
• Optic Lens (60°): KT-RHLED-LENS-12CD-60

Accessories (Sold Separately — 14″ body, 200W and 240W models):

• Wire Guard: KT-RHLED-WG-2-KIT /G2 — includes mounting hardware
• Surface Mount Kit (Black): KT-RHLED-SM-2-KIT /G2 | Surface Mount Kit (White): KT-RHLED-SM-2-KIT-W /G2
• Aluminum Dome Reflector: KT-RHLED-AR90-4-KIT /G2 — includes mounting hardware
• Optic Lens (120°): KT-RHLED-LENS-14CD-120 | Optic Lens (60°): KT-RHLED-LENS-14CD-60

Accessories (All Models):

• J-Box Pole Pendant Mount: KT-RHLED-JBOX-PM /G2
• Step-Down Transformer (/480 suffix): KTAT-250-480-277 /SF — for 480V input applications
• Emergency Battery Backup (/EM suffix): KT-EMRG-LED-40SD-5000-CEN /SF — 40W, ~5,000 lm, 120–277V, CEC T20 compliant
• Cord Sets: KT-P-L515P (125V NEMA L5-15P) | KT-P-L615P (250V NEMA L6-15P) | KT-P-L715P (277V NEMA L7-15P)
• Sensors: KTSL-FC3-12V-PKO-PIR · KTSL-FC4-12V-PKO · KTS-PIR3-12V-PKO /G2 · KTS-MW3-12V-PKO

Certifications & Rebates

• cULus Listed — wet locations, all models
• DLC Listed — KT-RHLED100PS-12CD-OSD-8CSB-VDIM-P (Black) | KT-RHLED100PS-12CD-OSD-8CSB-VDIM-P-W (White)
• DLC Listed — KT-RHLED150PS-12CD-OSD-8CSB-VDIM-P (Black) | KT-RHLED150PS-12CD-OSD-8CSB-VDIM-P-W (White)
• DLC Premium — KT-RHLED200PS-14CD-OSD-8CSB-VDIM-P (Black) | KT-RHLED200PS-14CD-OSD-8CSB-VDIM-P-W (White)
• DLC Premium — KT-RHLED240PS-14CD-OSE-8CSB-VDIM-P (Black only)
• Visit designlights.org and search by catalog number to verify rebate eligibility with your utility provider.
• TAA Compliant — eligible for U.S. government and GSA procurement
• N3B Trusted Manufacturer
• RoHS Compliant
• IP65 Rated

Typical Applications

• Warehouses and distribution centers — select wattage by ceiling height; 100W–150W for 15–40 ft lower-bay zones, 200W–240W for 30–50 ft high-clearance racking aisles
• Manufacturing and heavy assembly facilities — selectable CCT supports task-accurate color rendering; white finish suits cleaner production environments
• Aviation hangars and maintenance shops — 200W/240W deliver up to 36,720 lm for demanding open-span environments; IP65 handles humidity and wash-down exposure
• Cold storage and refrigerated warehouses — rated to −40°F (−40°C) for dependable cold-start performance across all models
• Retail showrooms and big-box stores — white finish and 120° wide-angle lens (100W–200W) provide bright, even coverage for customer-facing environments
• Municipal and government facilities — TAA Compliant for qualifying U.S. government and GSA procurement

What’s Included

• Keystone KT-RHLED XFiT OpticSwap UFO LED High Bay fixture (model and finish per selection)
• 90° standard lens (pre-installed)
• Alternate optic lens: 120° wide-angle (100W/150W/200W) or 60° narrow-angle (240W)
• J-Hook mounting accessory
• 6-foot input cord
• 6-foot dimming wires
