Keystone KT-BPLED40PS-14-8CSA-VDIM - 1'x4' LED Panel Light, 20/30/40W Selectable, 3500K/4000K/5000K, 4600 Lumens, 120-277V
Keystone KT-BPLED40PS-14-8CSA-VDIM - 1'x4' LED Panel Light, 20/30/40W Selectable, 3500K/4000K/5000K, 4600 Lumens, 120-277V
In stock
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Triple Selectable Wattage & CCT: Field-adjustable 20W/30W/40W and 3500K/4000K/5000K settings—one SKU for multiple applications
- High-Output Performance: Up to 4600 lumens at 130 lm/W efficacy with over 50% energy savings vs. fluorescent troffers
- DLC Listed: Qualifies for utility rebates with L70 life exceeding 100,000 hours and 10-year warranty
- Universal Voltage & 0-10V Dimming: 120-277V input with smooth, flicker-free dimming and integrated junction box
- Keystone Quality: Generation 2 panel with premium aluminum frame, SmartSafe emergency backup compatibility, and cULus/IC rating
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description

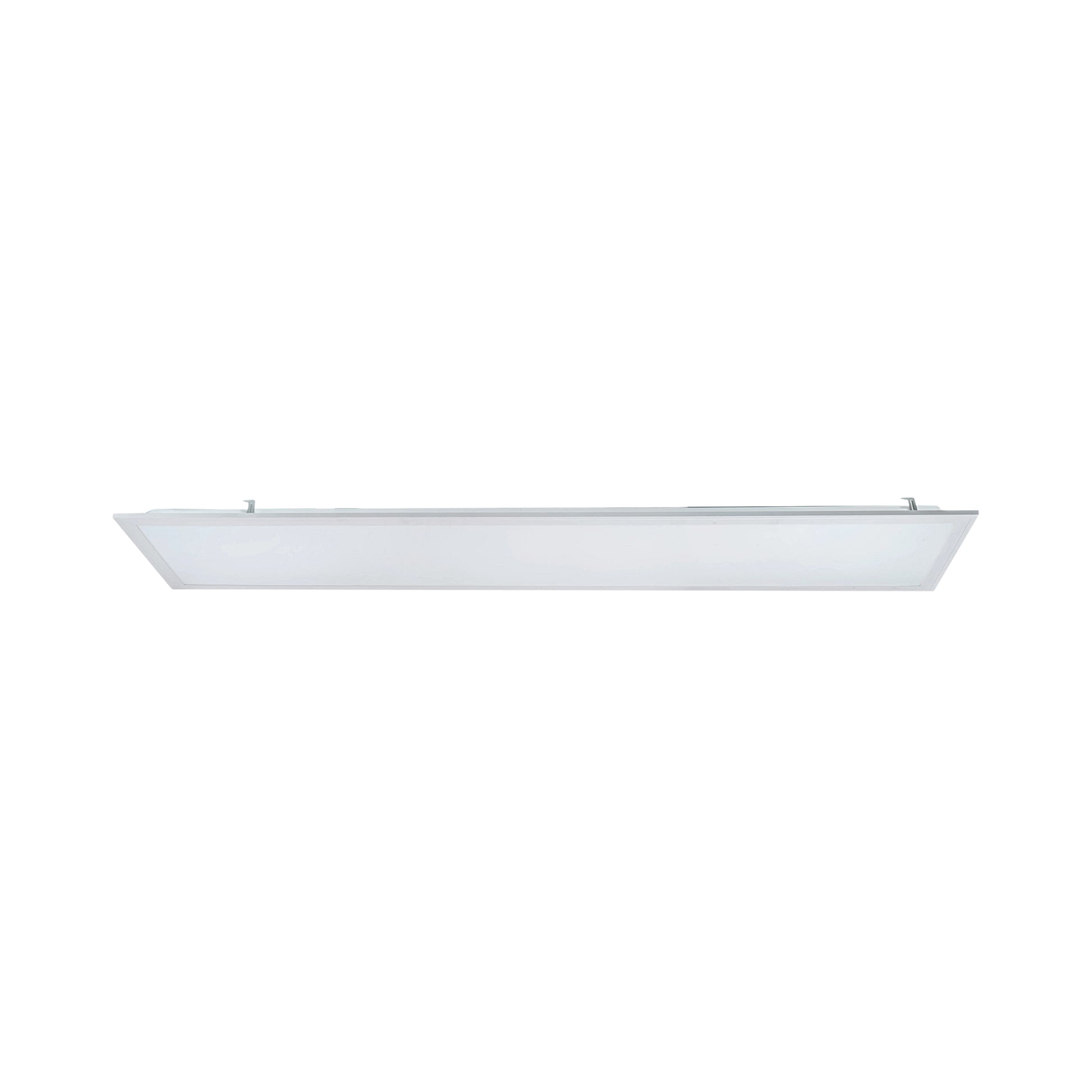

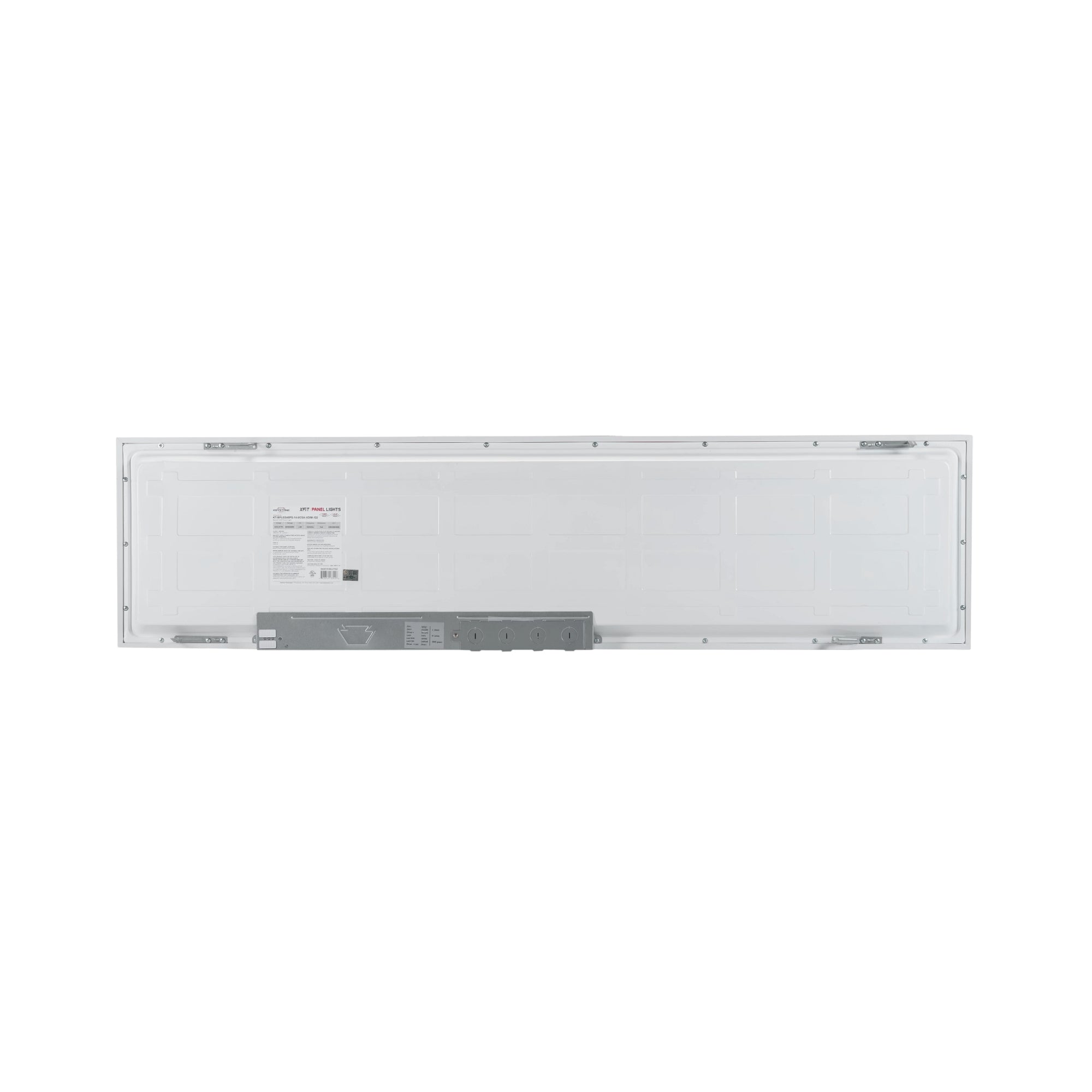

Keystone KT-BPLED40PS-14-8CSA-VDIM LED Panel Light

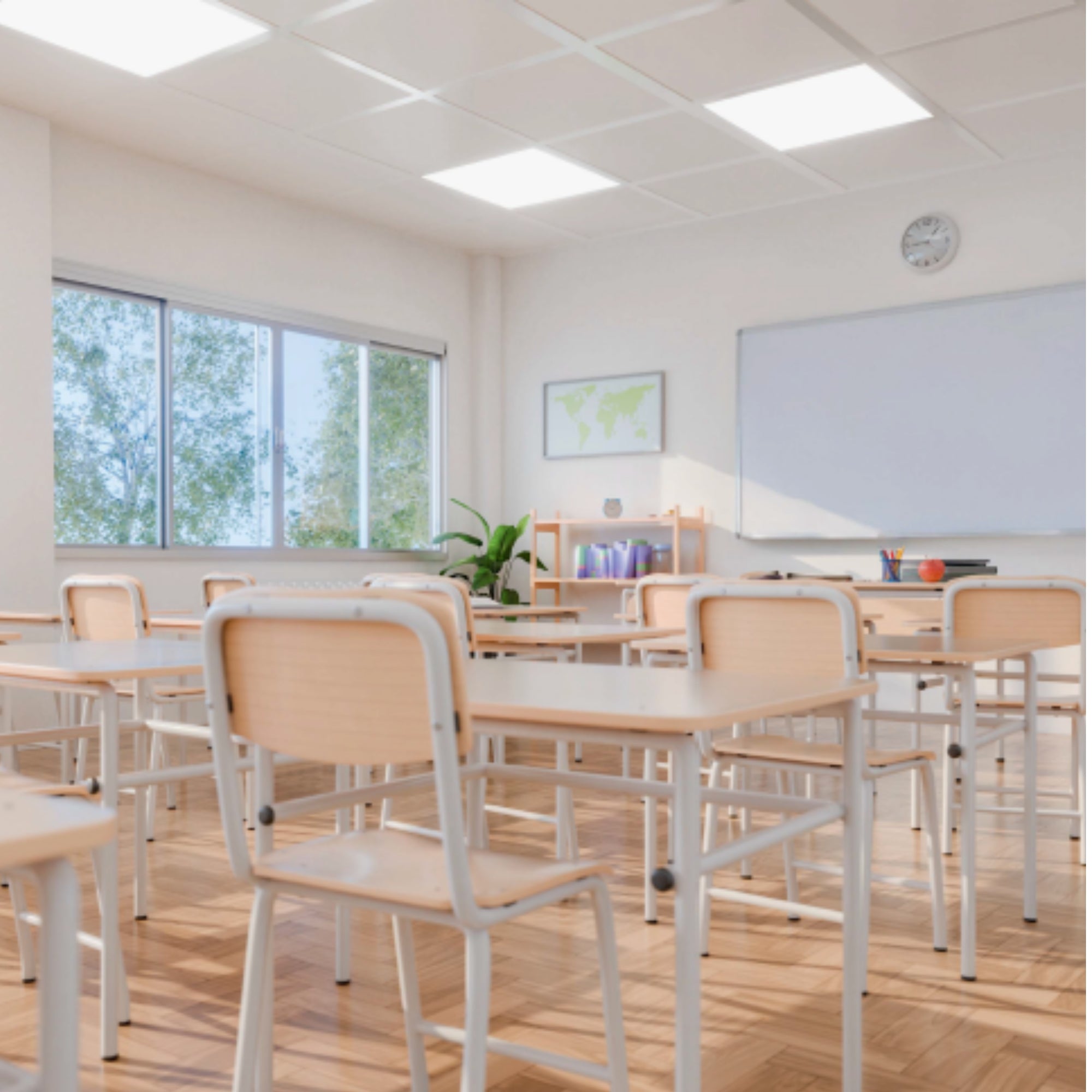

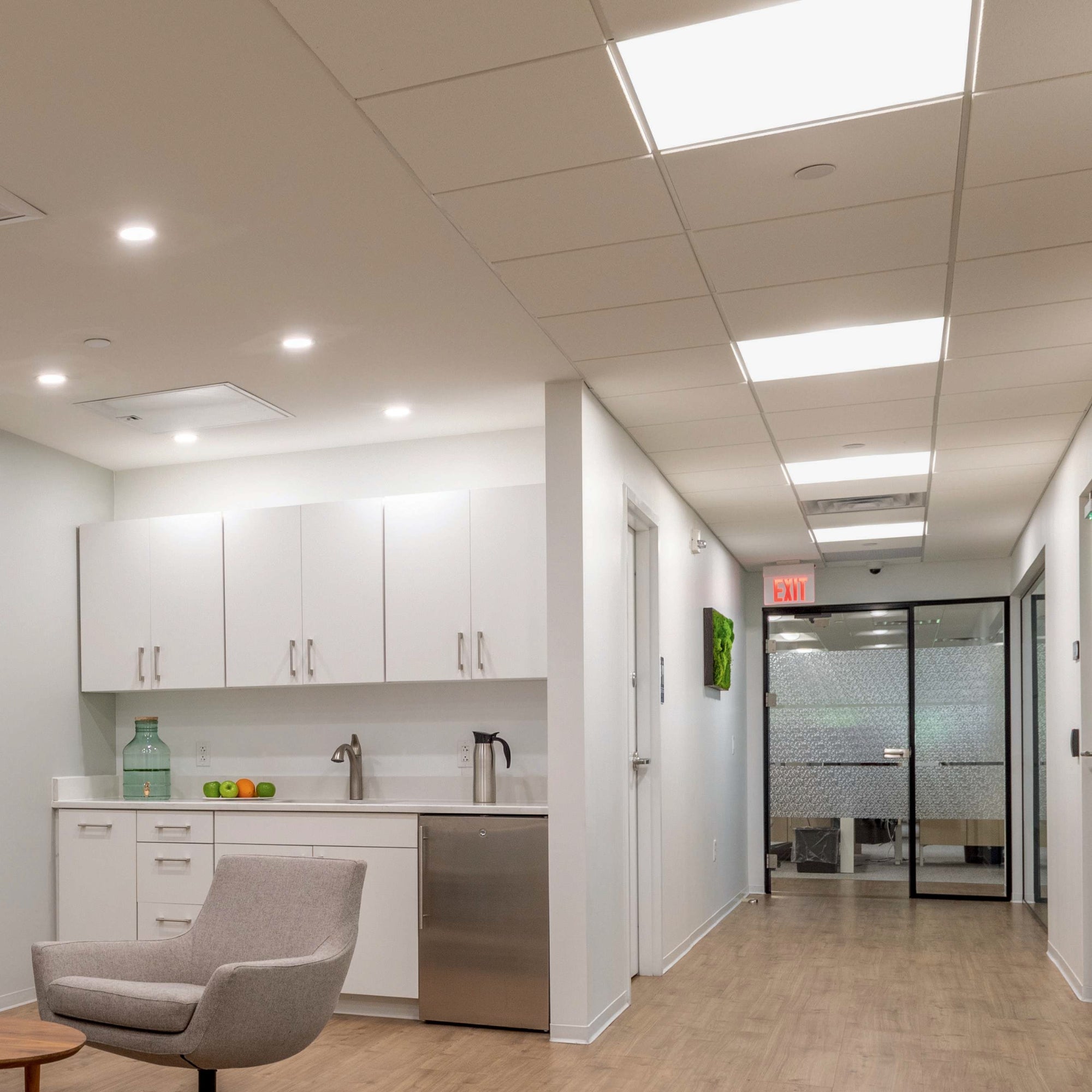

The Keystone KT-BPLED40PS-14-8CSA-VDIM is a triple-selectable 1'x4' LED panel light offering unmatched installation flexibility with field-adjustable wattage (20W, 30W, or 40W) and color temperature (3500K, 4000K, or 5000K). Delivering up to 4600 lumens at 130 lm/W efficacy, this Generation 2 panel features 0-10V dimming, universal 120-277V input, and compatibility with Keystone SmartSafe emergency backup systems. Ideal for offices, schools, healthcare facilities, retail spaces, and commercial applications requiring energy-efficient, customizable lighting.
Keystone KT-BPLED40PS-14-8CSA-VDIM Features
- Triple Selectable Wattage & CCT: Field-adjustable 20W/30W/40W and 3500K/4000K/5000K settings allow one SKU to serve multiple applications and design requirements
- High-Output Performance: Delivers up to 4600 lumens with 130 lm/W efficacy at 20W setting, providing superior illumination with over 50% energy savings vs. traditional fluorescent troffers
- DLC Listed: Qualifies for utility rebates and incentives, ensuring energy efficiency and long-term cost savings

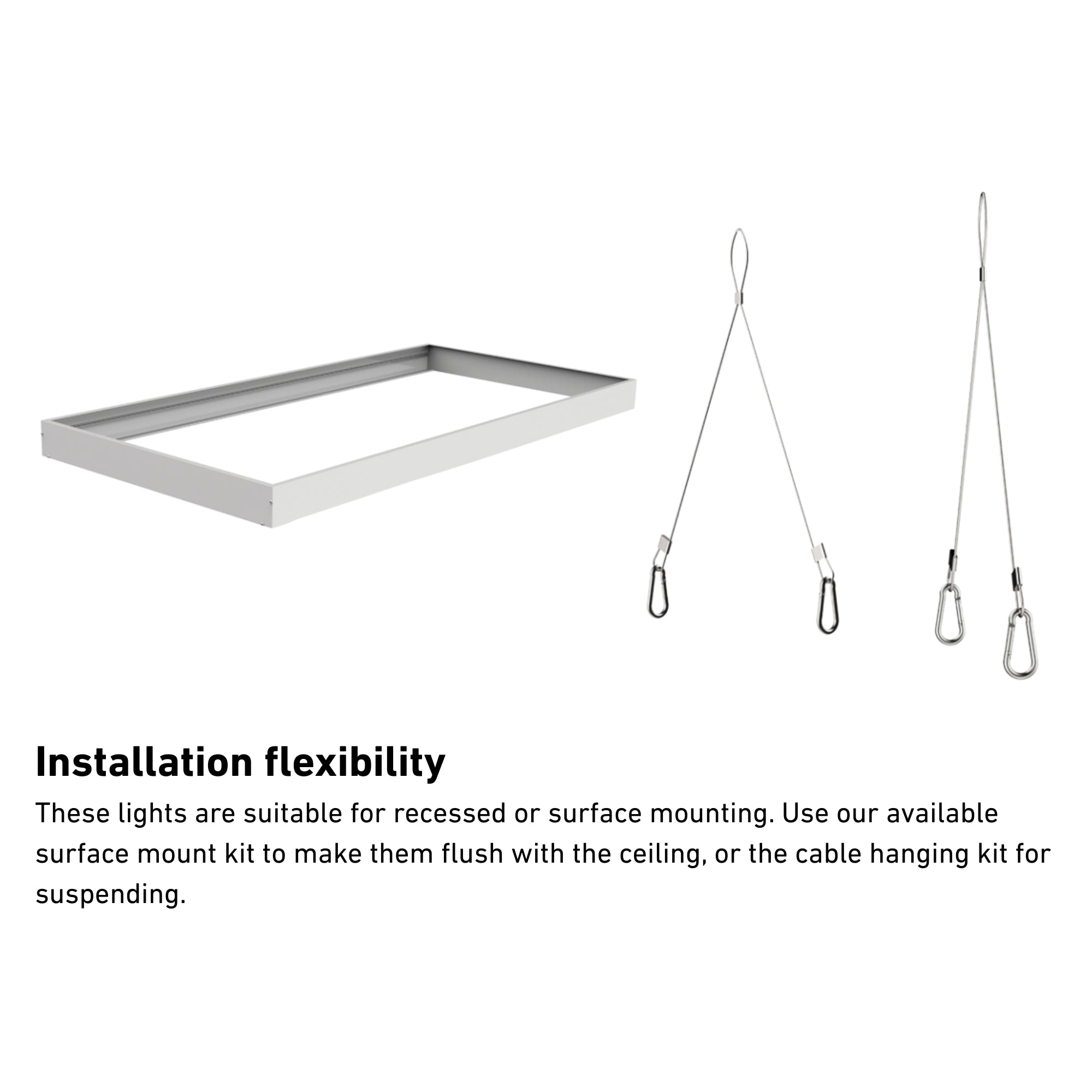

- Retrofit & New Construction Ready: Designed for recessed or surface mount installation with optional accessories, fits standard T-grid ceilings and new construction applications

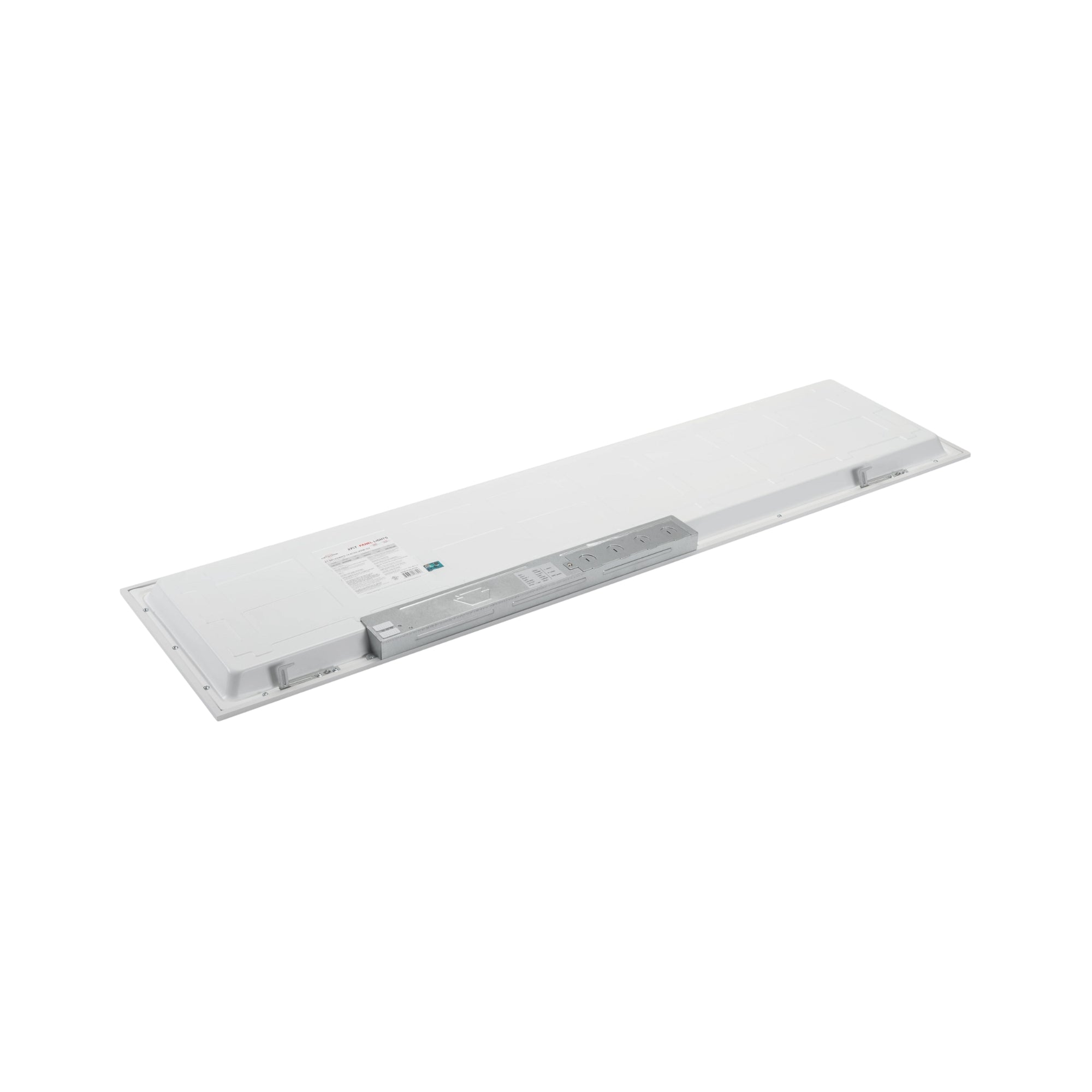

- 0-10V Dimming: Smooth, flicker-free dimming with Keystone's built-in 0-10V dimmable driver and integrated junction box for simplified installation
- Universal Voltage: 120-277V input accommodates commercial and industrial electrical systems without additional transformers
- Premium Construction: Aluminum frame with stepped edge design detail, gloss white paint finish, and precise optical lenses for optimal light diffusion and consistent surface illumination with no yellowing over product lifetime

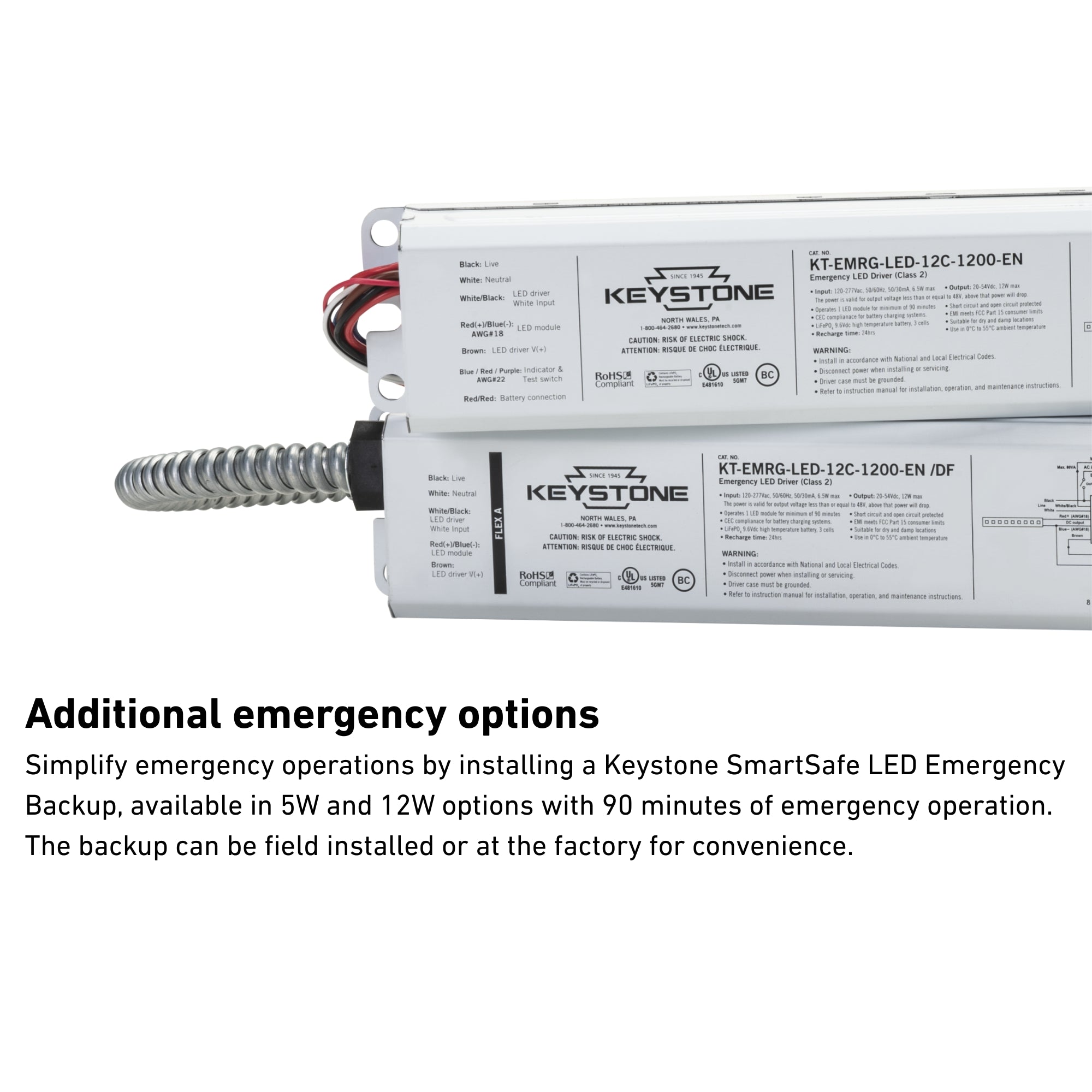

- SmartSafe Compatible: Works with Keystone SmartSafe LED emergency backup systems for code-compliant emergency lighting
- Long Life & Warranty: L70 LED chip lifetime exceeds 100,000 hours at 25°C/77°F ambient, backed by a 10-year limited warranty
- cULus & IC Rated: Certified for damp locations and suitable for direct contact with insulation in non-fire rated installations

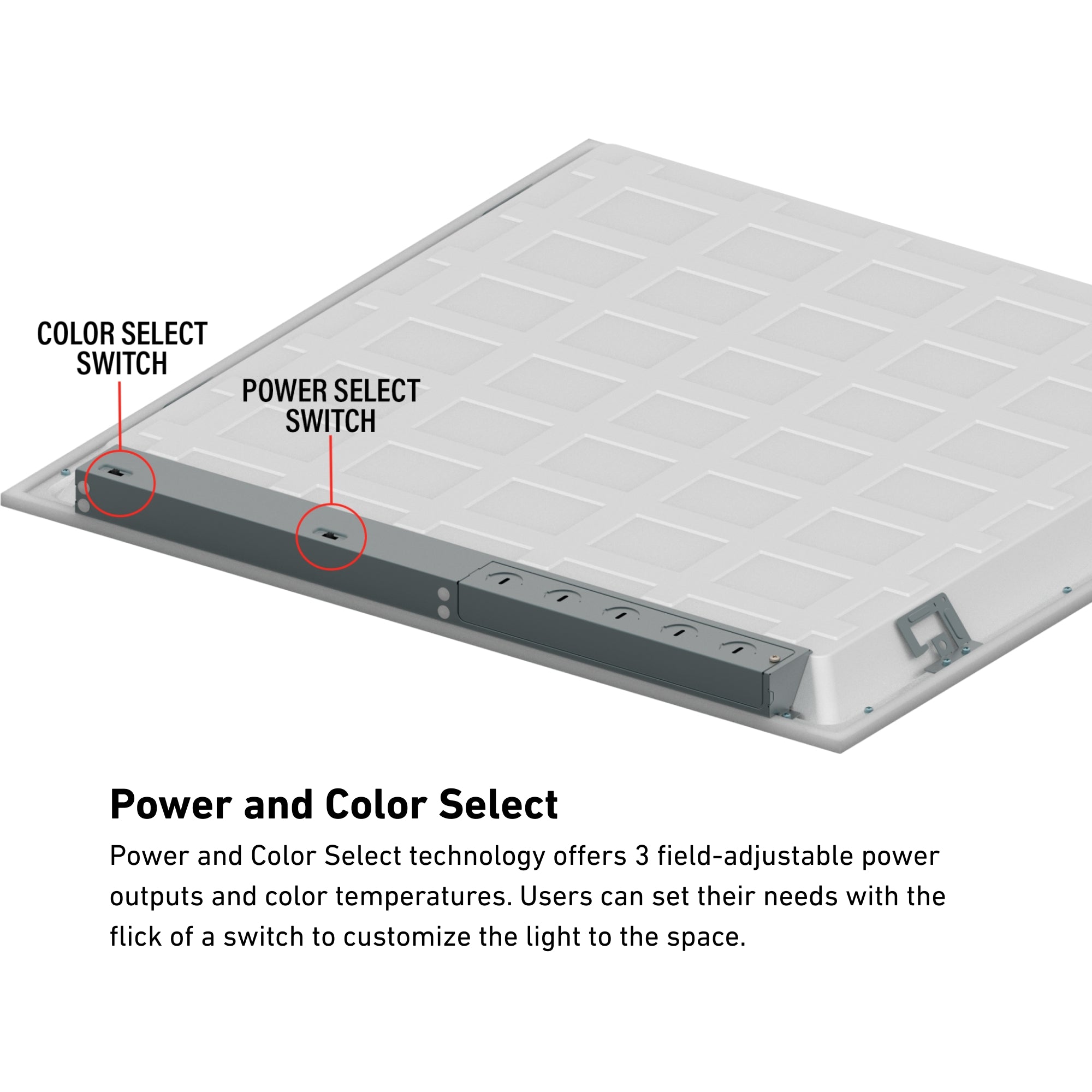

Triple Selectable Technology
Keystone's innovative selectable technology allows contractors and facility managers to stock one product for multiple applications, reducing inventory complexity and ensuring the right light output and color temperature for every space.
Wattage Options:
- 20W: 2,400-2,600 lumens (111-130 lm/W)
- 30W: 3,400-3,600 lumens (111-120 lm/W)
- 40W: 4,400-4,600 lumens (110-115 lm/W)
CCT Options:
- 3500K: Warm white for hospitality, retail, and residential-style commercial spaces
- 4000K: Neutral white for offices, schools, and general commercial applications
- 5000K: Bright white for healthcare, industrial, and task-intensive environments
Energy Efficiency & Rebates
DLC Listed for utility rebate eligibility, the KT-BPLED40PS delivers over 50% energy savings compared to traditional fluorescent troffers. With an L70 rated life exceeding 100,000 hours and operating temperature range of -20°C/-4°F to 40°C/104°F, this panel is engineered for long-term performance and minimal maintenance costs.
Why Choose Keystone Technologies
Keystone Technologies is a trusted leader in commercial LED lighting solutions, offering innovative, energy-efficient products backed by industry-leading warranties. The KT-BPLED40PS-14-8CSA-VDIM represents the latest in Generation 2 LED panel technology, combining selectable performance, premium construction, and DLC certification to deliver exceptional value for commercial, institutional, and industrial lighting projects.
Why Buy From Us: We are an authorized Keystone dealer offering genuine products, expert support, and fast shipping to ensure your project's success.
Specifications
Specifications

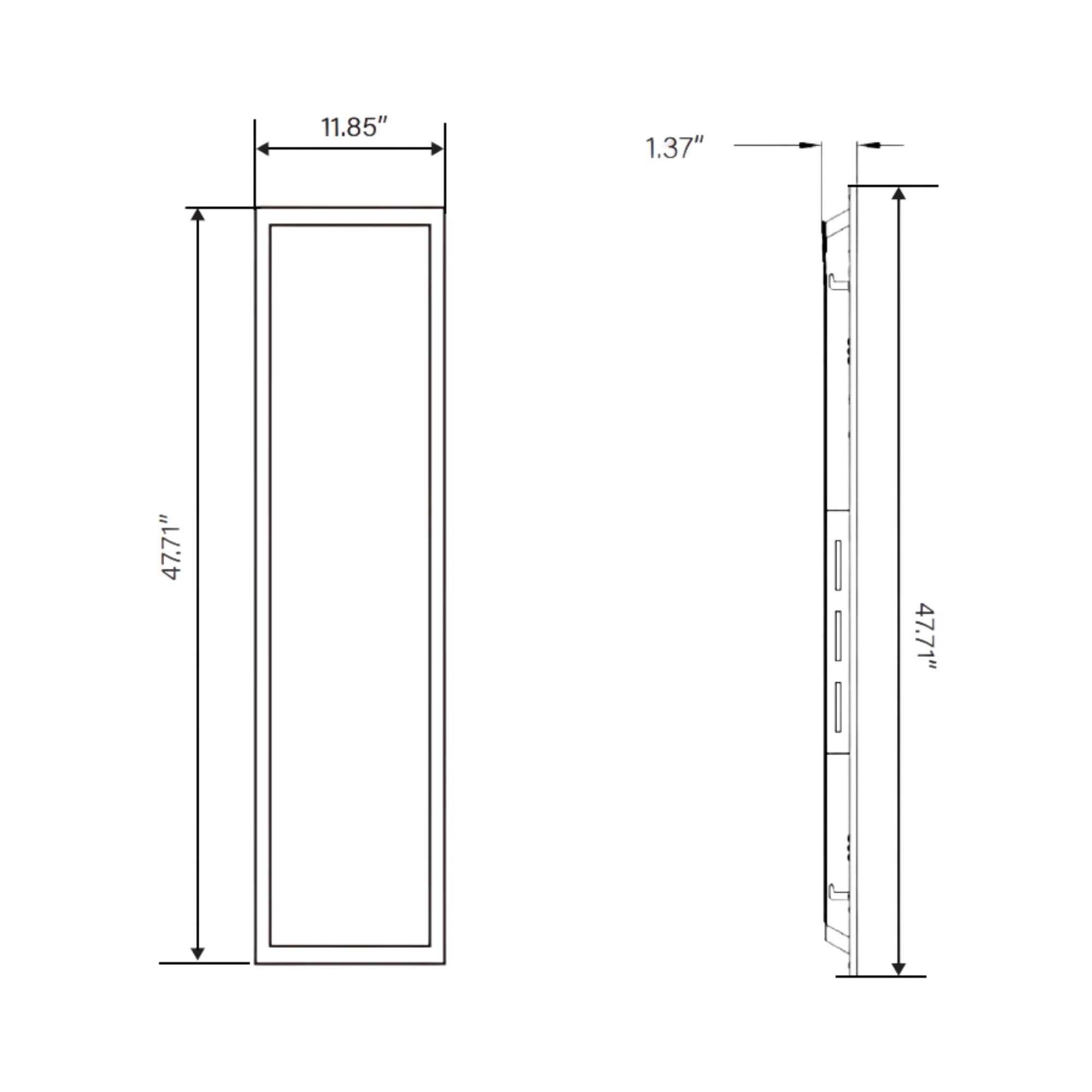

Dimensions
