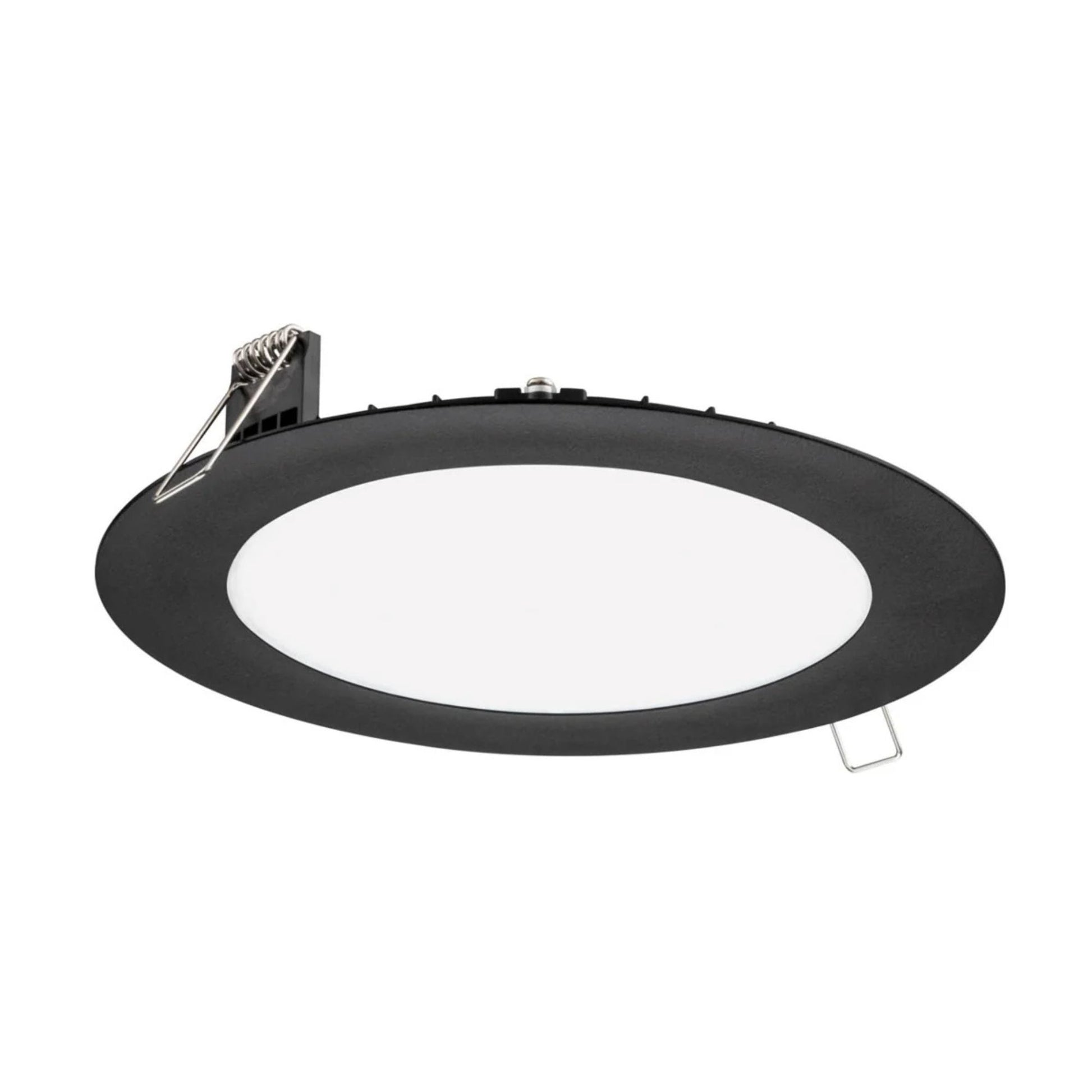

Juno Wafer WF6 SWW5 90CRI MB M6 6 in. Round Smooth Matte Black Downlight — 13W / 970 lm / 5-CCT / 120V

The Juno Wafer 6 in. ultra-thin LED downlight combines a clean, round smooth trim with convenient switchable white-light technology. Its canless construction eliminates the need for a recessed housing, while the low-profile design makes installation easier in shallow ceiling cavities, insulated ceilings, and drop ceilings.

Key Features

• Canless wafer design: Installs without a recessed can and has a slim 1.2 in. profile for low-clearance applications.

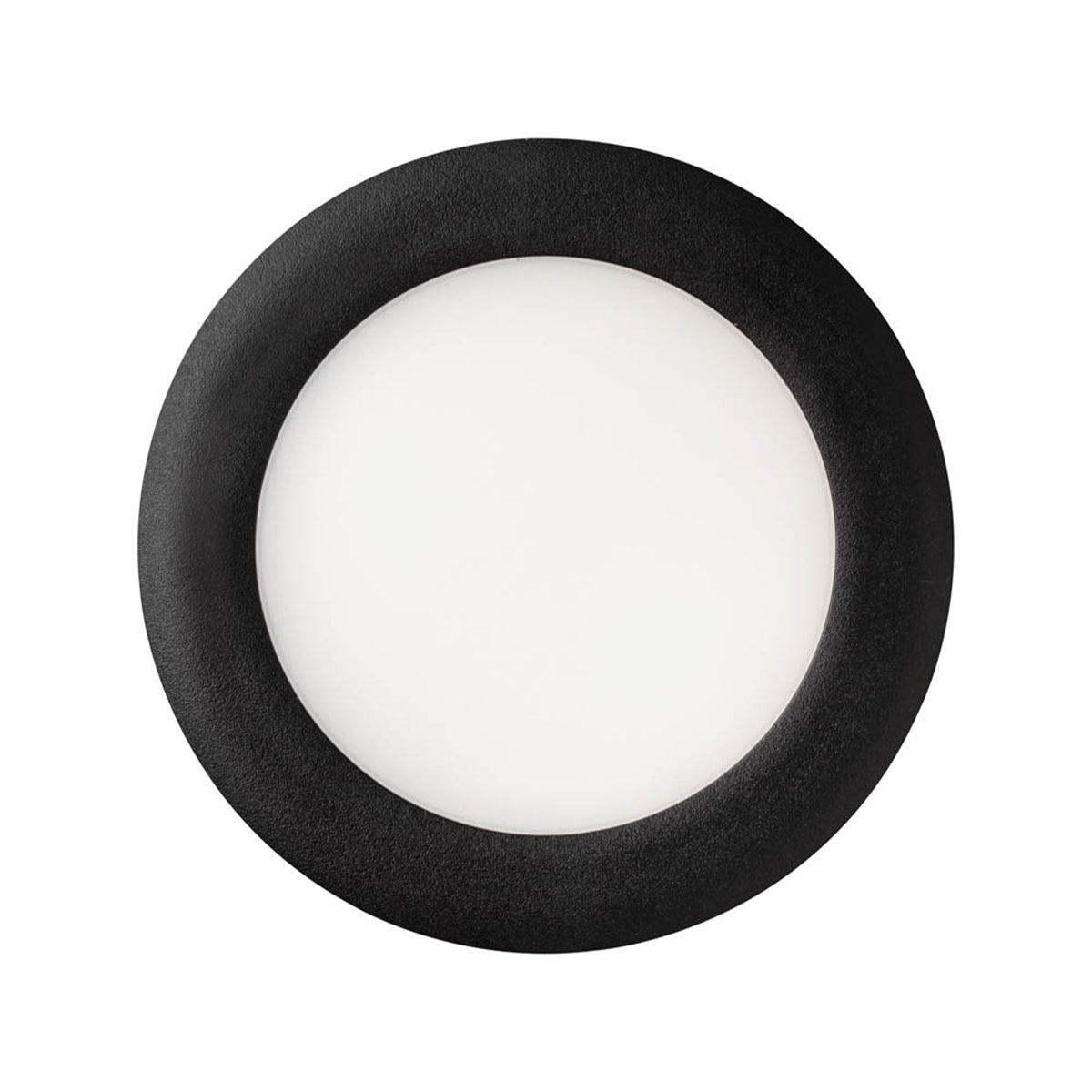

• Round smooth trim: Matte black finish with a nonconductive dead-front design and polycarbonate lens.

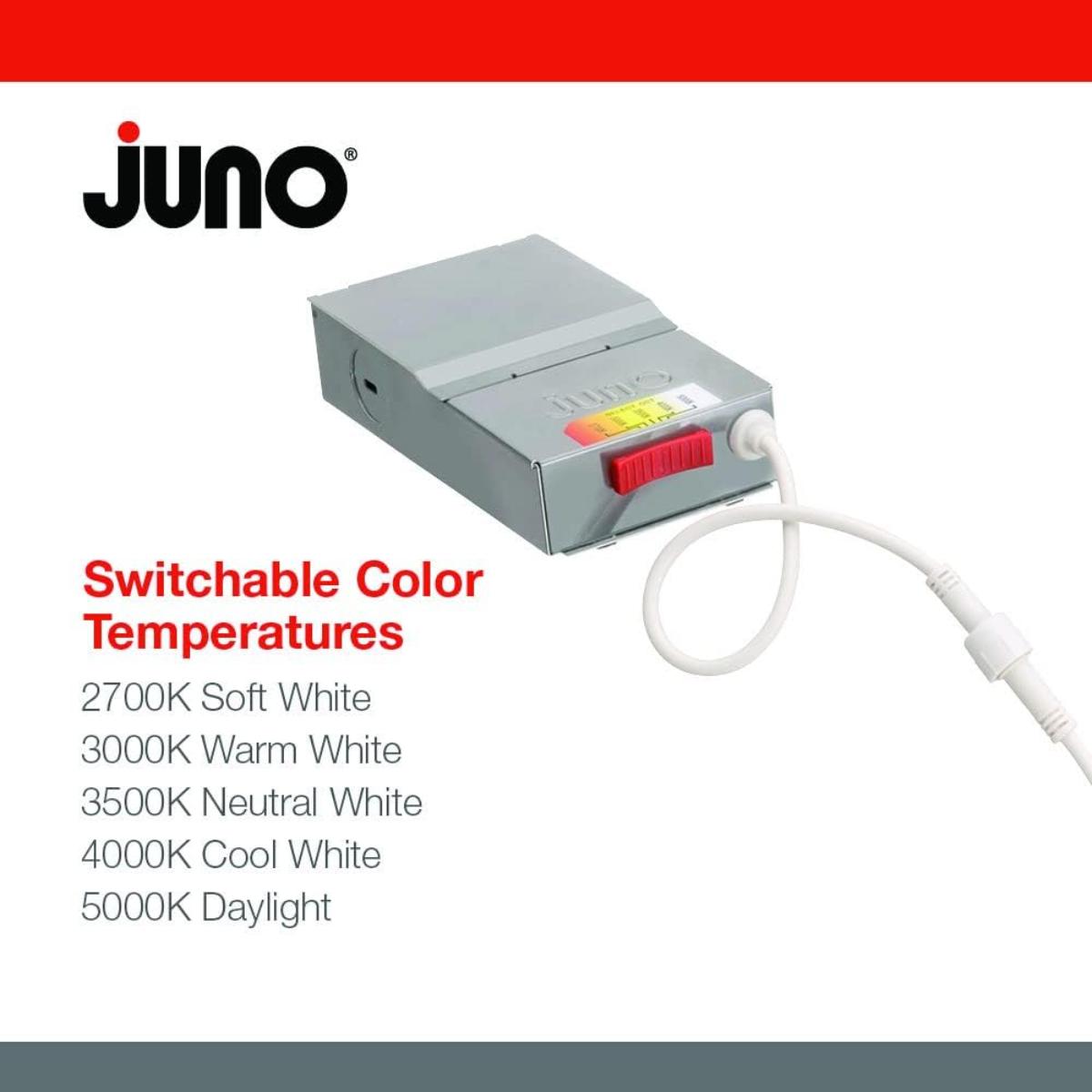

• Field-selectable white light: Choose 2700K, 3000K, 3500K, 4000K, or 5000K using the integrated switch; factory default is 3000K.
• Nominal light output: 970 delivered lumens at 3000K from 13W input (+/-5%).
• Color rendering: 90+ CRI for clear, natural-looking colors in residential and light-commercial spaces.
• Dimming: Triac dimmable down to 10% with compatible standard dimmers; consult the Juno dimmer list, JUNO-WAFERS-DIM.
• Electrical: Dedicated 120V, 60Hz operation with an integrated Class 2 constant-current LED driver.
• Ceiling ratings: Suitable for wet locations, IC rated, and Air-Loc certified.
• Certifications: ENERGY STAR certified, CSA certified to US and Canadian safety standards, NOM certified, and compliant with California Title 24 Part 6 high-efficacy requirements.
• Long service life: Rated for 50,000 hours at 70% lumen maintenance and backed by a 3-year limited warranty.

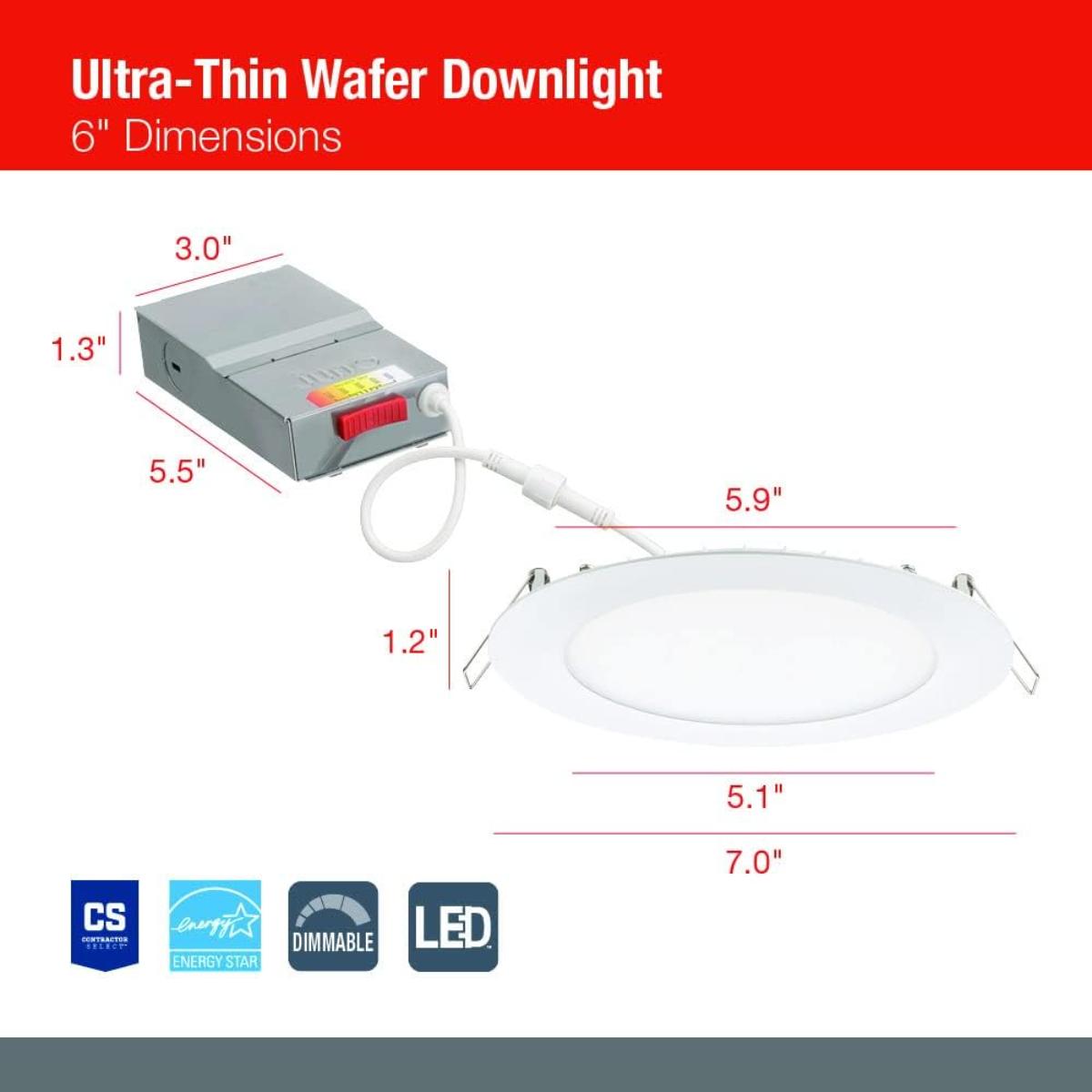

• Dimensions: 5.1 in. aperture, 7 in. trim overlap, 1.2 in. height, and 6.25 in. ceiling opening; supplied 6 in. cutout template.

Construction & Aesthetics

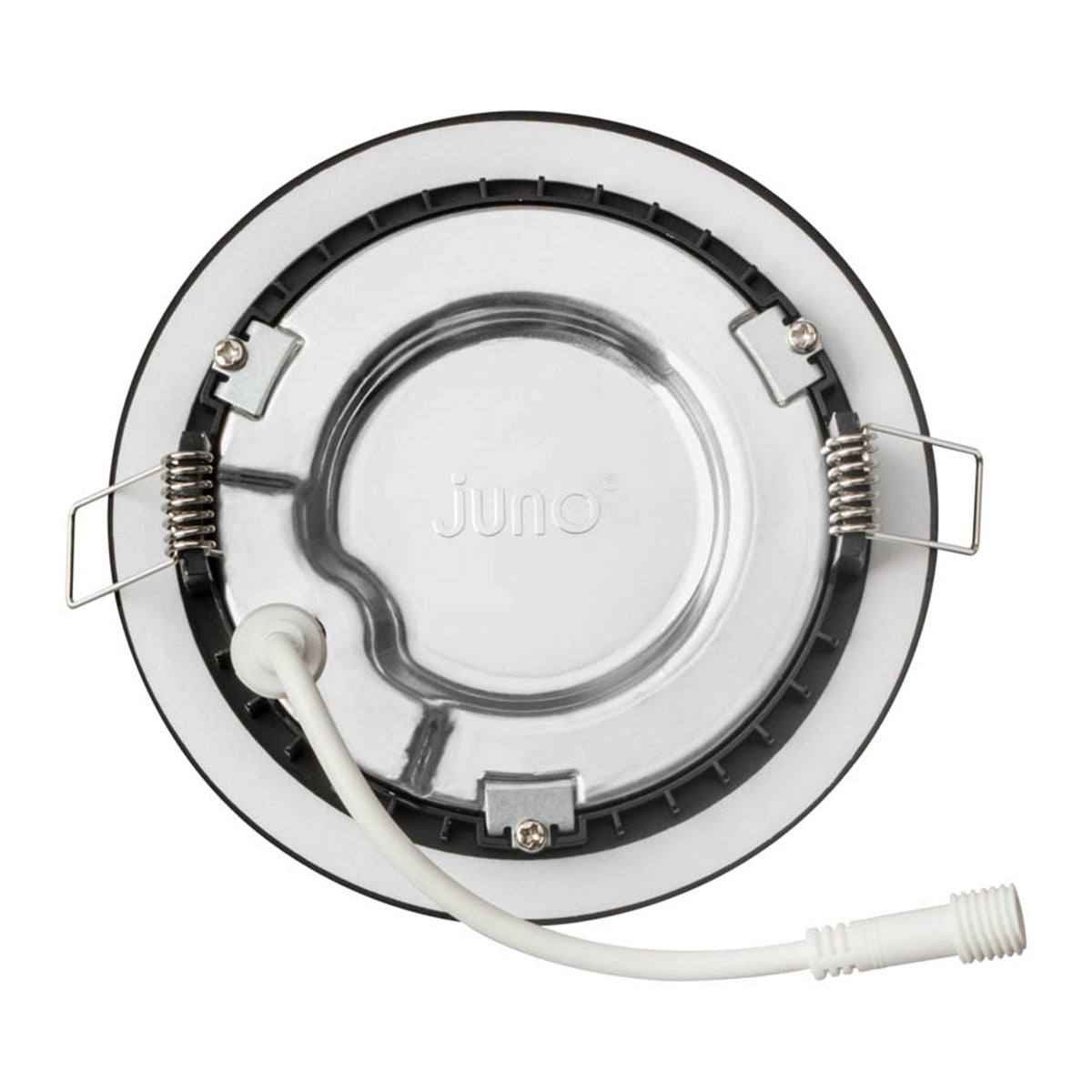

The fixture uses a polycarbonate injection-molded outer frame and steel backplate. Its nonconductive dead-front design, smooth matte black lens trim, and edge-lit light guide distribute even illumination while providing a restrained, contemporary ceiling finish.

Light Output & Performance

The integrated LED light engine delivers 970 nominal delivered lumens at 3000K and 90+ CRI. Choose from five white-light settings from 2700K through 5000K, and enjoy a 50,000-hour rated life at 70% lumen maintenance. The fixture is rated for wet locations and is ENERGY STAR certified.

Electrical & Installation

This 13W downlight connects to dedicated 120V, 60Hz power and dims to 10% with triac dimmers. The integrated isolated steel remote-driver box includes a 12 cubic-inch wiring compartment designed to accommodate up to six 14-gauge insulated conductors. A 3-pin FT4 plenum-rated cable connector supports installation; allow 2 in. of plenum space above the driver box. Use the supplied 6 in. cutout template to prepare the 6.25 in. ceiling opening. The fixture fits 3/8 in. to 1 1/2 in. ceilings, including insulated and drop ceilings, and can be removed from below for service or replacement.

Compatible Accessories — WF6 Size

• New-construction pans: WF8643 PAN U universal new-construction pan; WF6 PAN R12 6 in. pan, retail pack of 12.
• Goof ring: WF6GR MW JZ.
• Remodel joist bar: WFJB U.
• 3-pin extension cables: WFEXC6 SW3PIN FT4, 6 ft; WFEXC10 SW3PIN FT4, 10 ft; WFEXC20 SW3PIN FT4, 20 ft.

Typical Applications

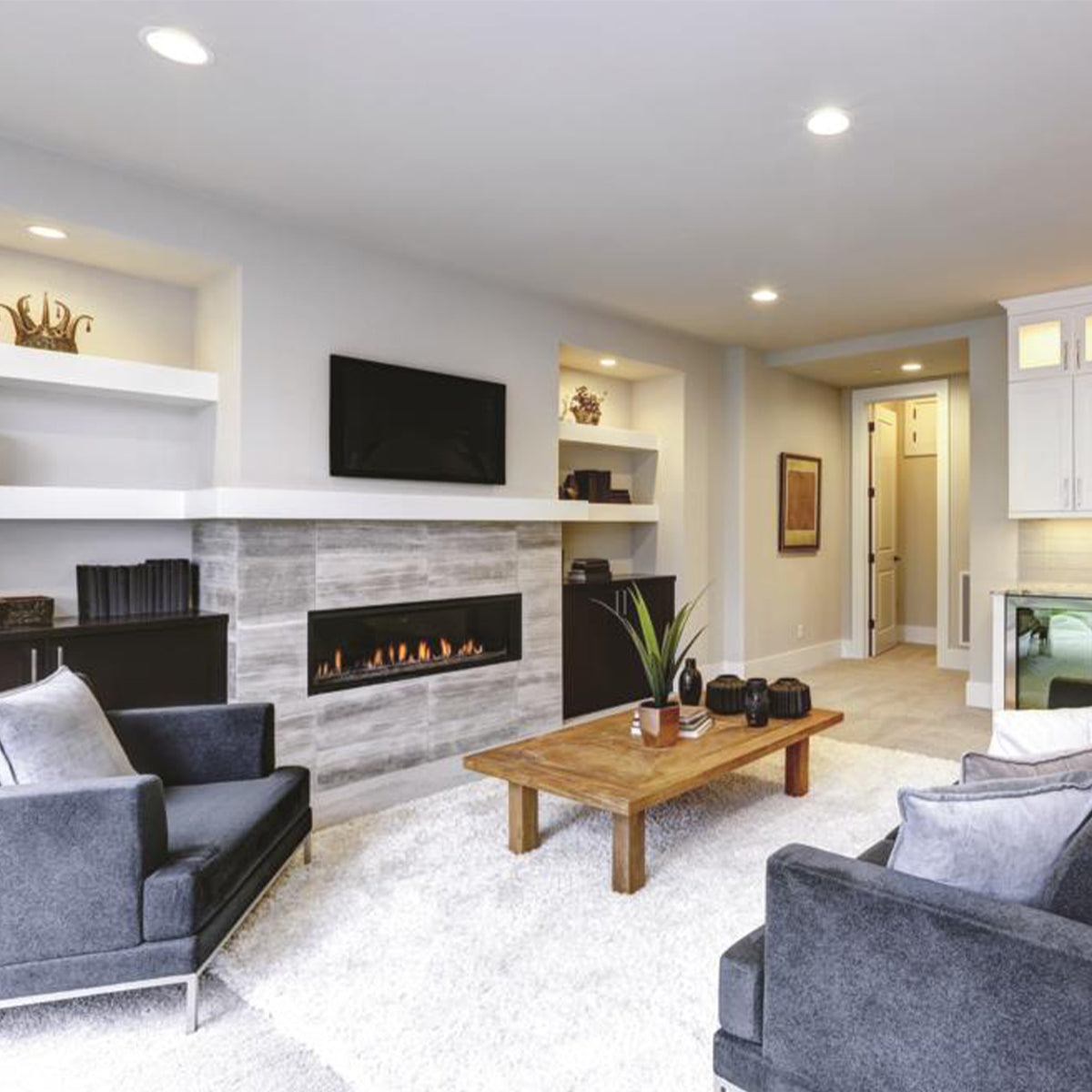

• Residential interiors and multifamily housing.
• Hotels, assisted-living facilities, dormitories, and light-commercial spaces.
• Bathrooms, showers, and outdoor soffits requiring a wet-location fixture.
• New construction, remodels, insulated ceilings, and drop ceilings.

What’s Included

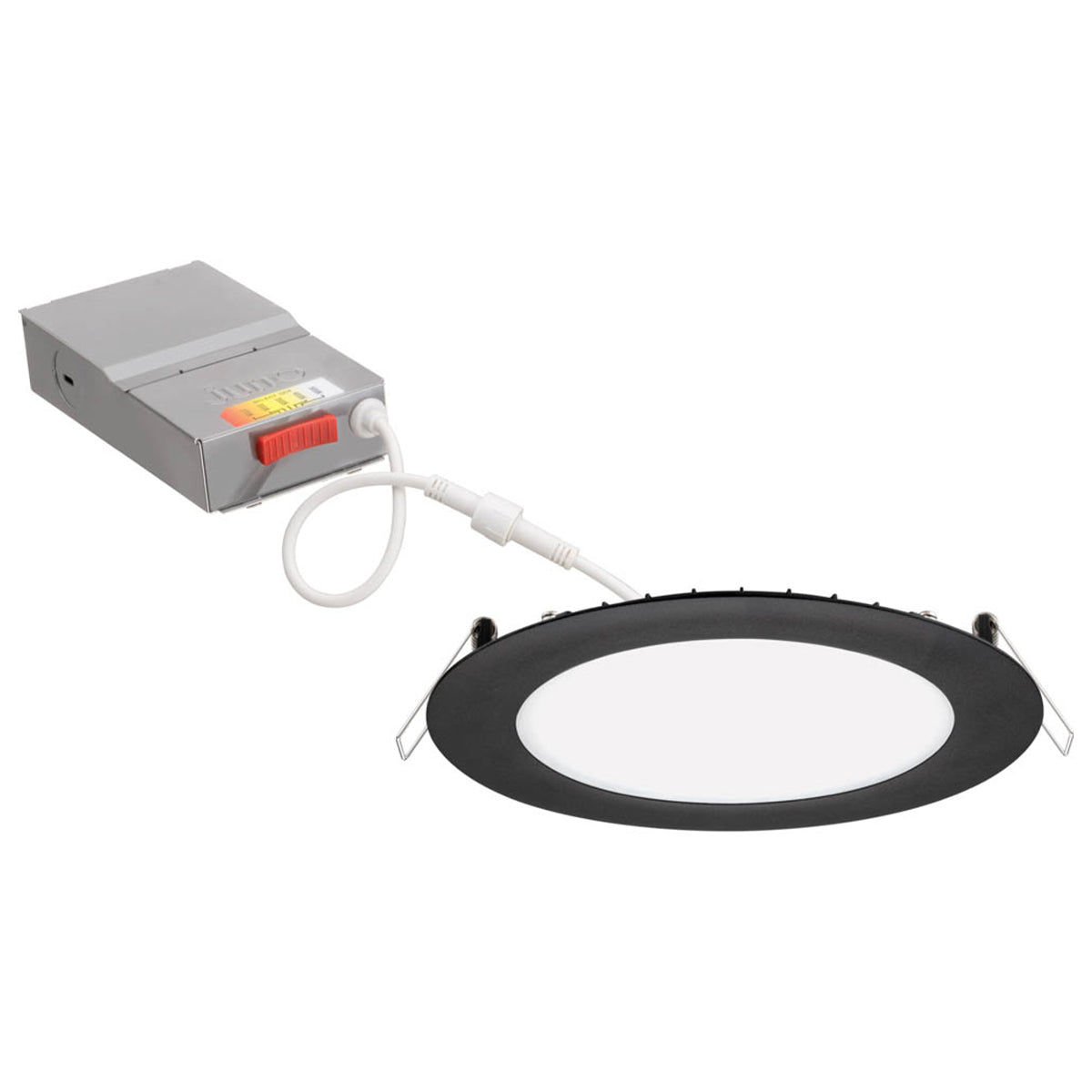

One Juno 6 in. LED wafer downlight with round smooth matte black trim, remote driver box, and connected 3-pin cable.
