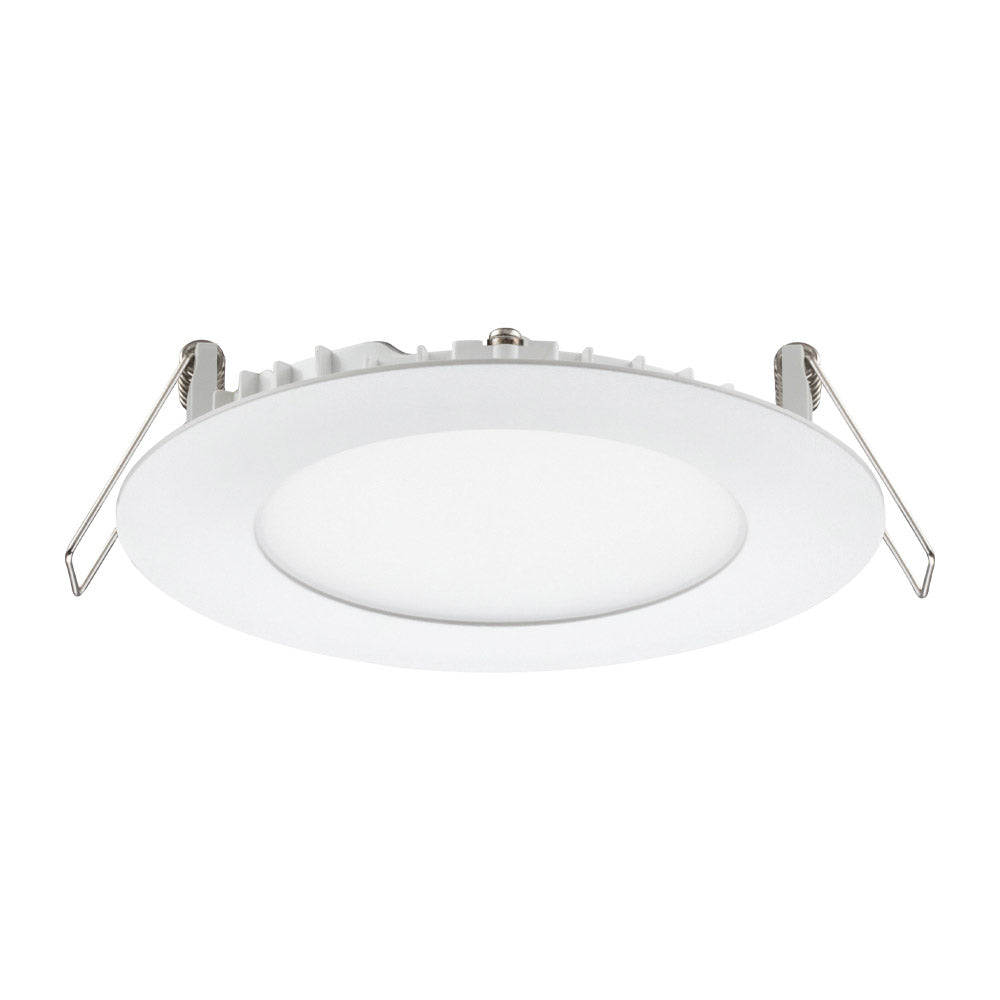

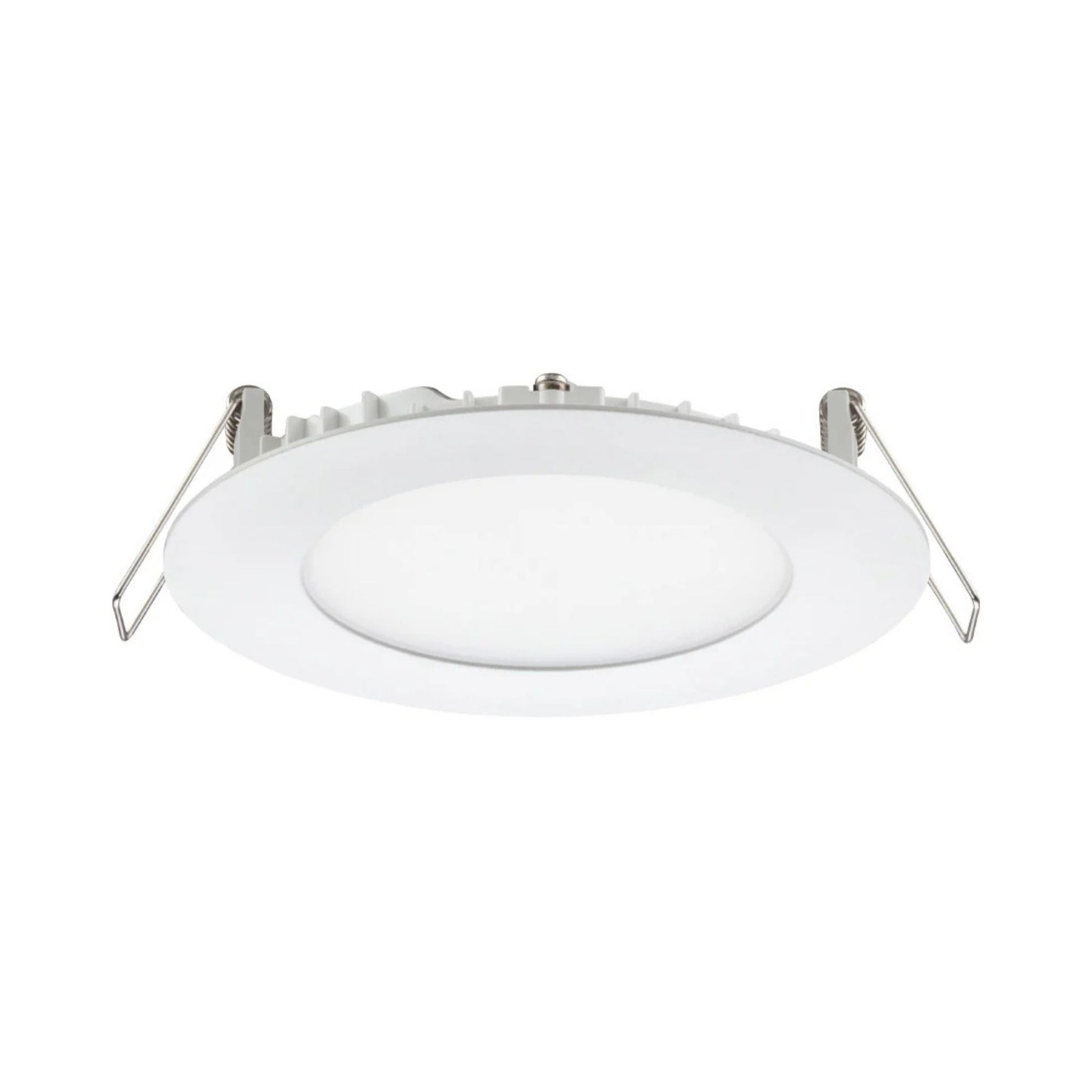

Juno Wafer WF4 SWW5 90CRI MW M6 4 in. Smooth Downlight — 9W / Selectable CCT

The Juno WF4 SWW5 90CRI MW M6 is a 4-inch ultra-thin LED downlight offering selectable color temperatures ranging from 2700K to 5000K. This canless design eliminates the need for recessed housings, making installation straightforward and efficient. Delivering up to 690 lumens with a power consumption of 9 watts, it is ideal for both residential and light commercial applications.

Key Features

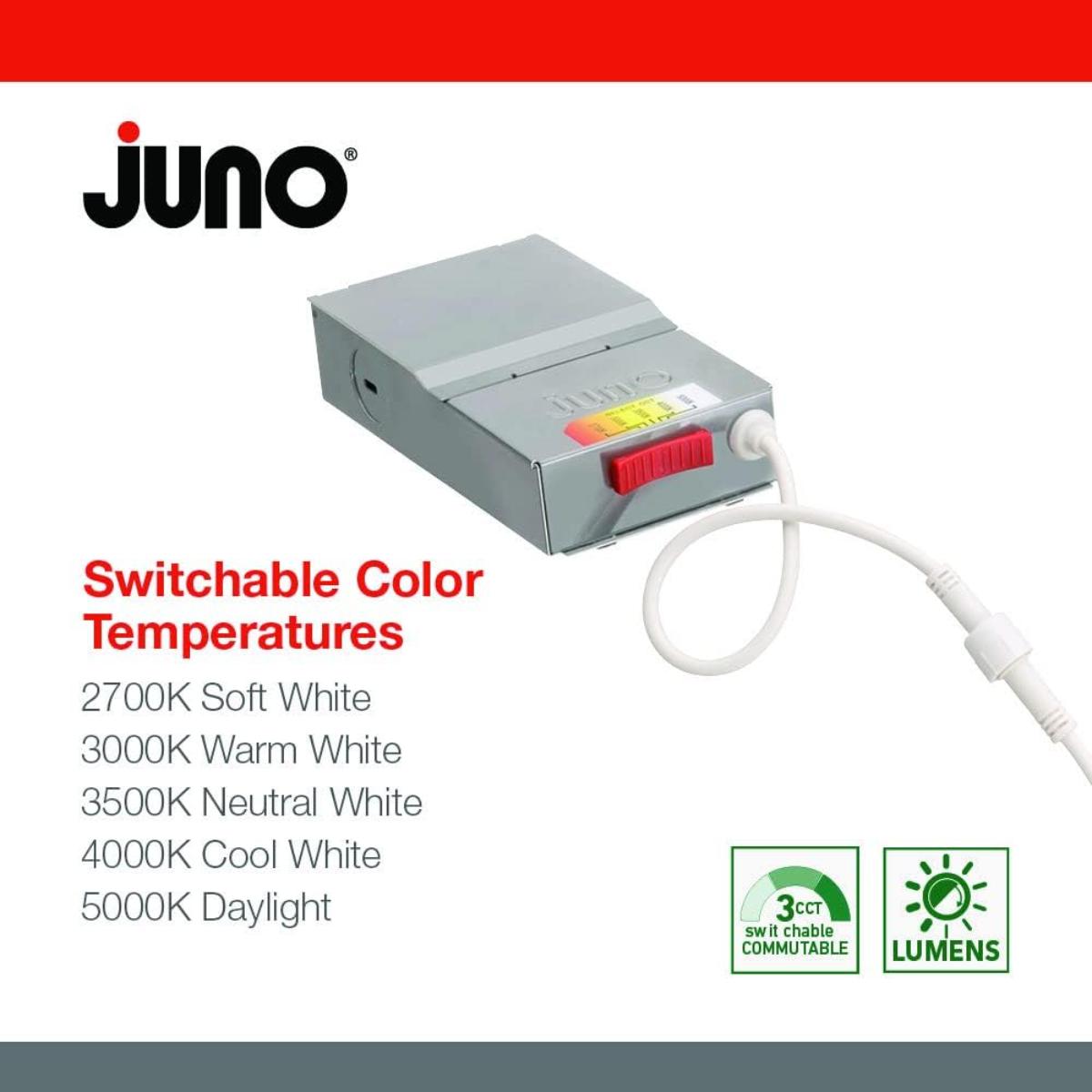

• Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
• High CRI: 90+
• Wet Rated: Suitable for wet locations
• Energy Efficient: 670 lumens at 9W
• Voltage: Dedicated 120V
• Dimming: Dimmable to 10% with triac dimmers
• IC Rated: Suitable for insulated ceilings
• Certifications: ENERGY STAR, Title 24

Construction & Aesthetics

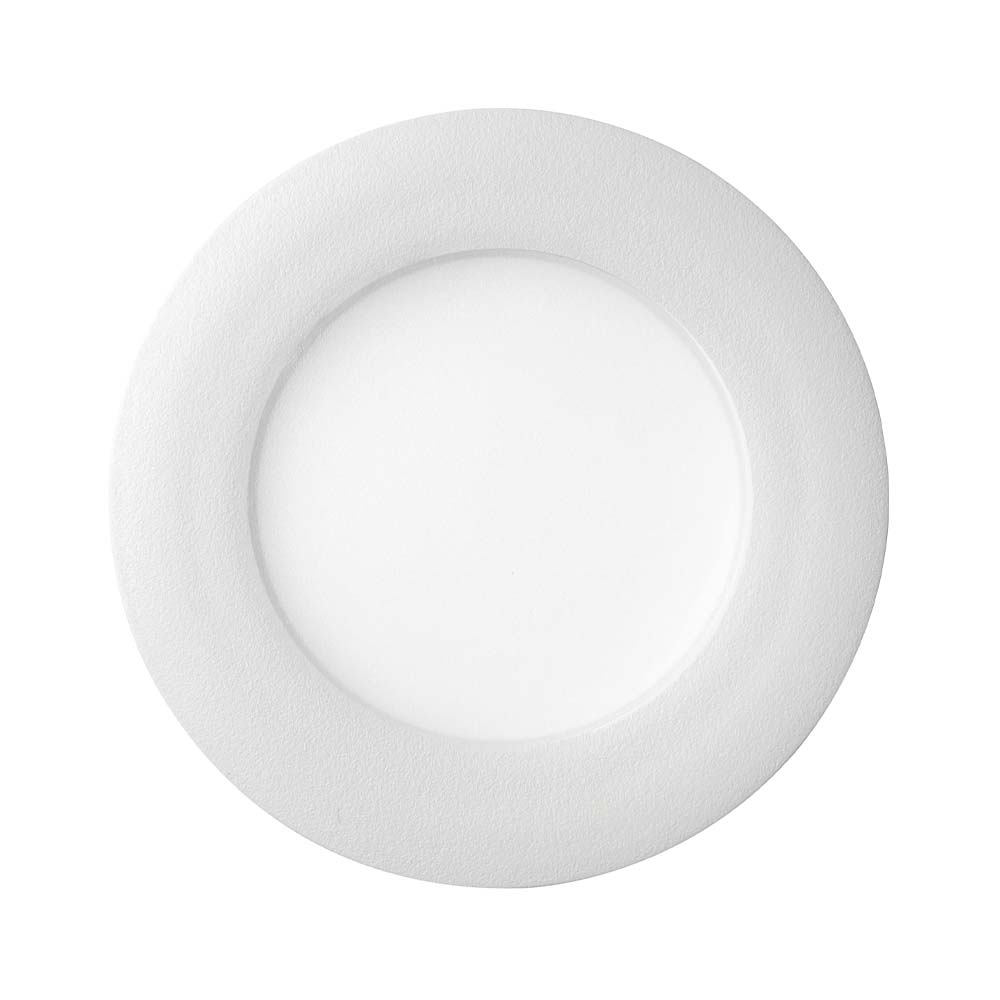

The downlight features a polycarbonate injection molded outer frame with a steel back plate, ensuring durability and a sleek appearance. The smooth lens trim provides even illumination, and the fixture is available in matte white finish. Accessories such as goof rings and new construction pans are available for enhanced installation flexibility.

Electrical & Installation

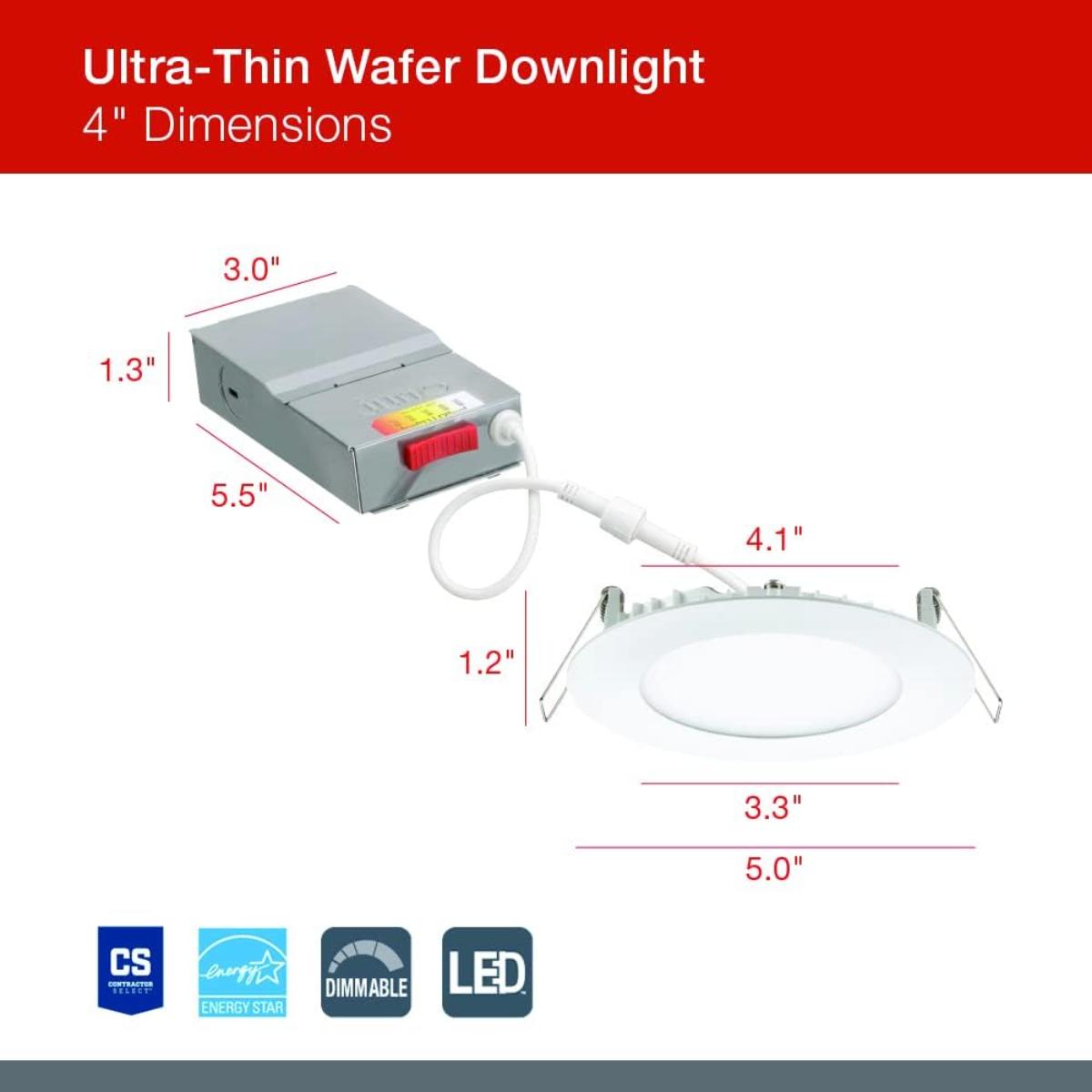

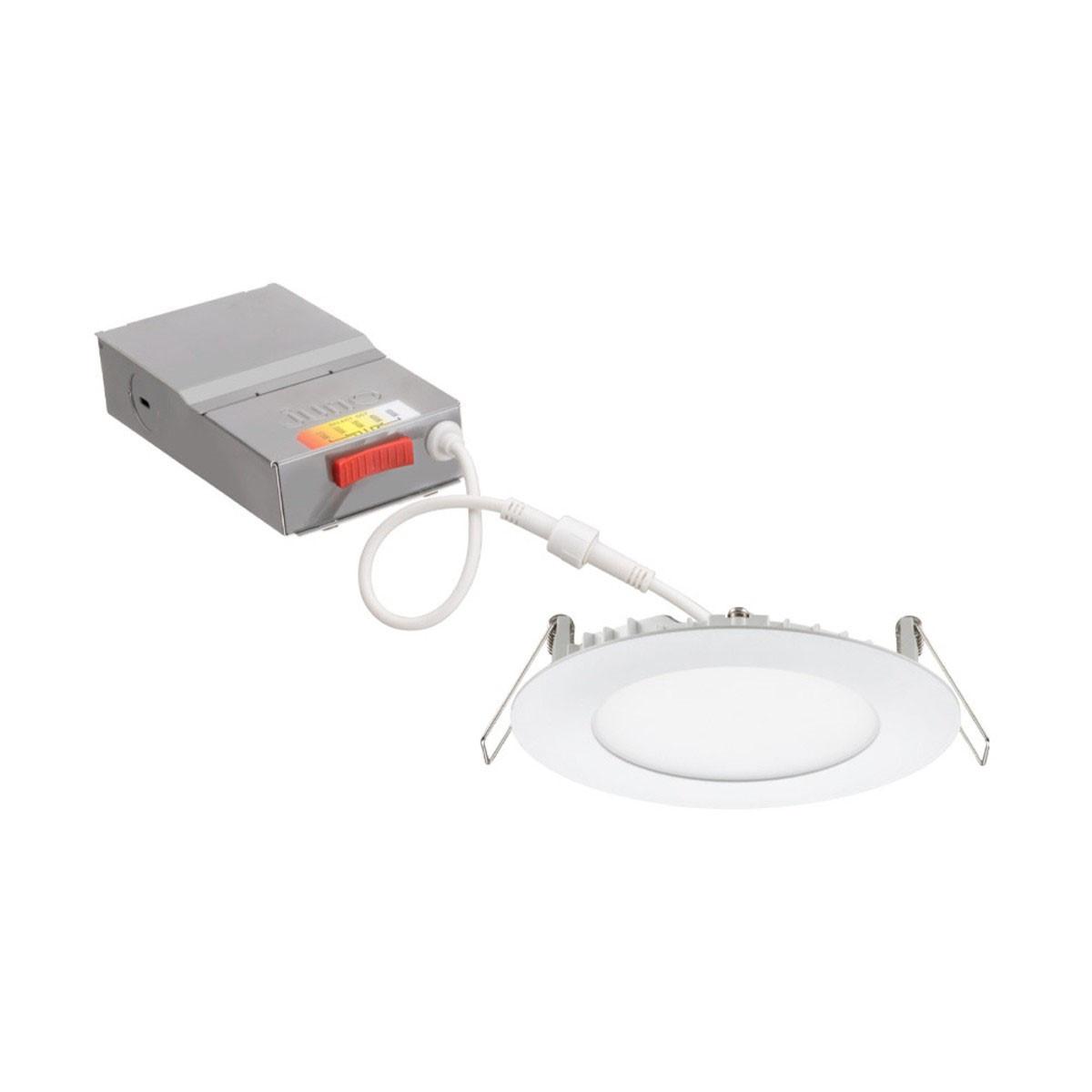

This fixture operates at 120V and is dimmable to 10% with compatible triac dimmers. It includes a 4-inch cutout template for precise installation and can be installed in ceilings with thicknesses ranging from 3/8'' to 1 1/2''. The remote driver box requires 3 inches of plenum space.

Light Output & Performance

With a lumen output of up to 690 lumens and a beam angle of 83.2°, this downlight provides ample illumination for various settings. It has a rated life of 50,000 hours, ensuring long-term performance and reliability.

Typical Applications

• Residential spaces
• Light commercial settings
• Bathrooms and showers
• Outdoor soffits
• Hospitality environments
