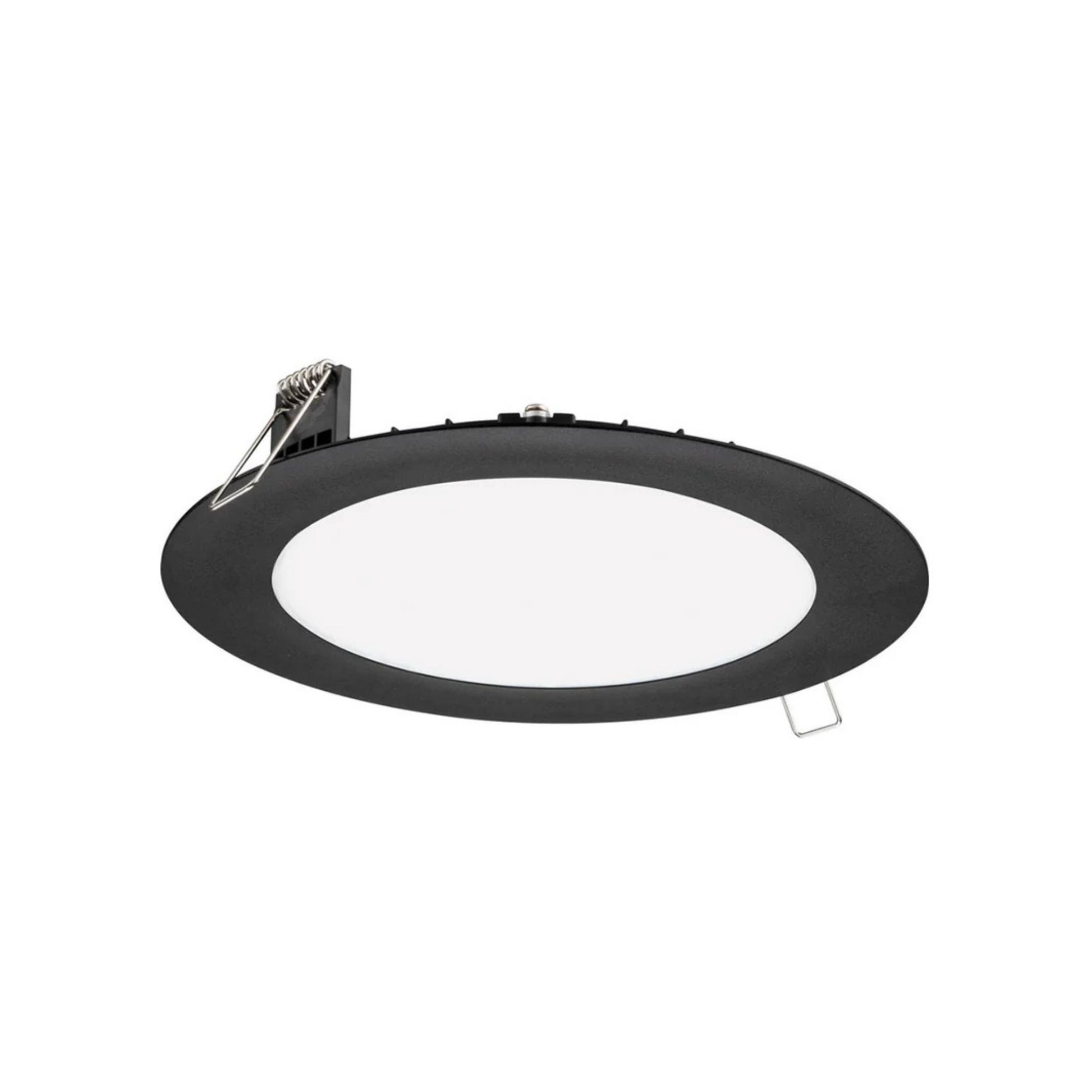

Juno Wafer WF4 SWW5 90CRI MB M6 4 in. Round Smooth Matte Black Downlight — 9W / 670 lm / 5-CCT / 120V

Give smaller rooms and low-clearance ceilings a clean, even wash of light with this 4 in. ultra-thin wafer downlight. Its canless design installs without a recessed housing, while switchable white light lets you choose the tone that fits the room.

Key Features

• 4 in. canless wafer: No recessed housing required; spring clips secure the slim 1.2 in. fixture in shallow ceiling cavities.

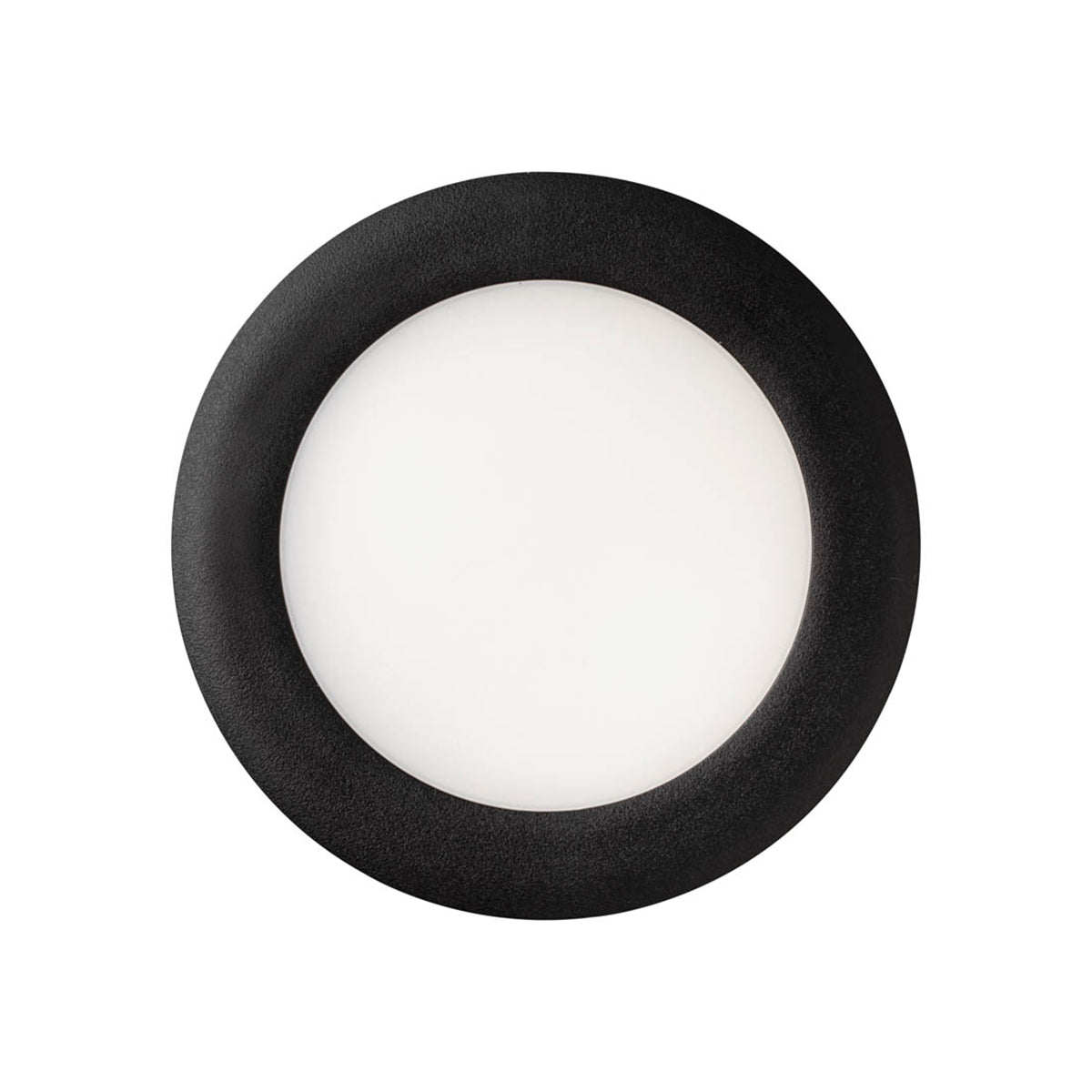

• Round smooth trim: Matte black finish with a polycarbonate lens and nonconductive dead-front design.

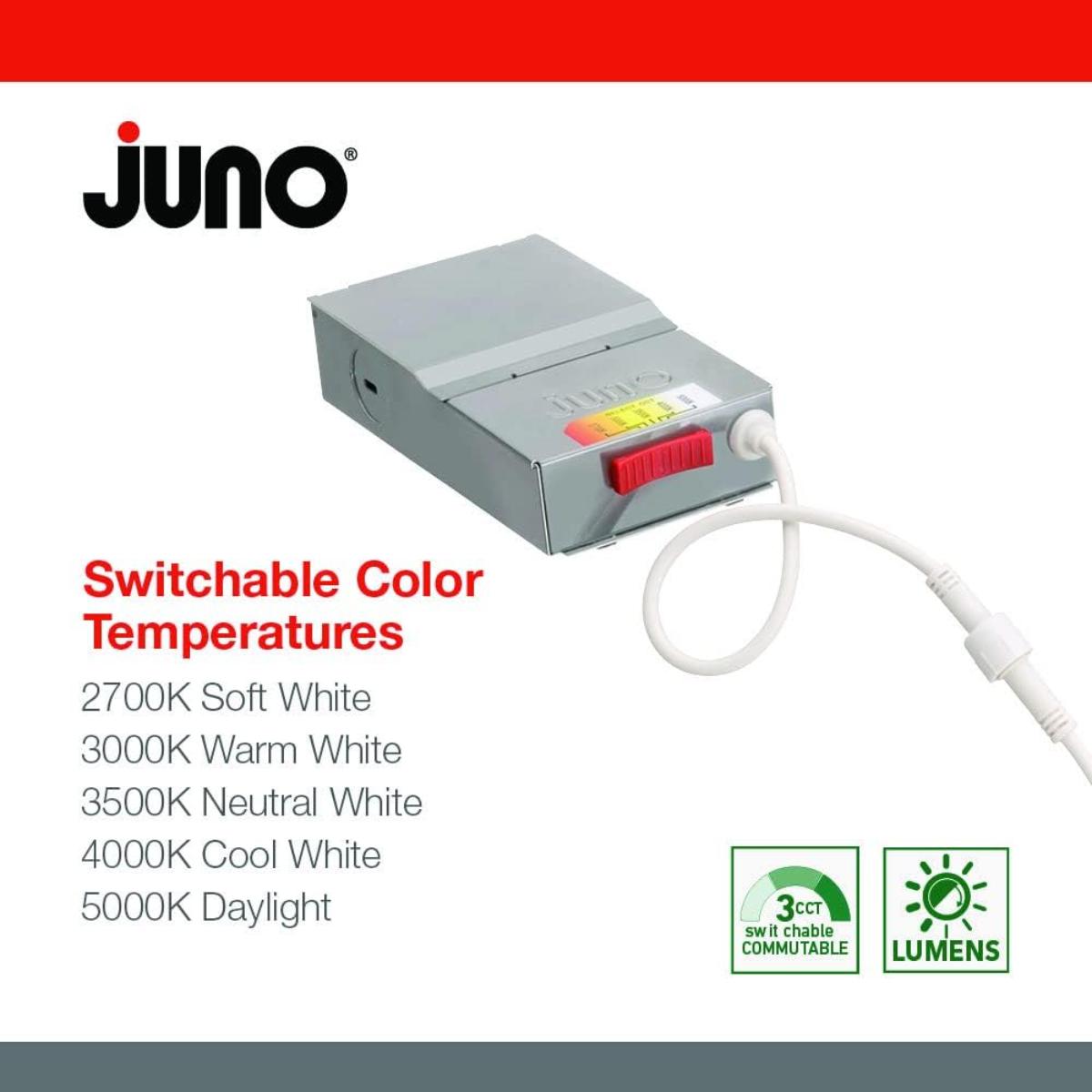

• Five selectable CCTs: Choose 2700K, 3000K, 3500K, 4000K, or 5000K; factory default is 3000K.
• Nominal light output: 670 delivered lumens at 3000K using 9W input (+/-5%); replaces a 65W incandescent lamp.
• Color rendering: 90+ CRI; color accuracy is within 4-step MacAdam Ellipse at 2700K and 5000K and within 6-step at 3000K, 3500K, and 4000K.
• Dimming: Dims to 10% with compatible triac dimmers, including most standard incandescent dimmers.
• Electrical: Dedicated 120V, 60Hz input with an IC-rated Class 2 constant-current driver.
• Location and insulation ratings: Suitable for wet locations, IC rated, and Air-Loc certified to ASTM E283-2004.
• Certifications: ENERGY STAR certified, CSA certified to US and Canadian safety standards, NOM certified, and compliant with California Title 24 Part 6 high-efficacy requirements.
• Rated life and warranty: 50,000 hours at 70% lumen maintenance; 3-year limited warranty.

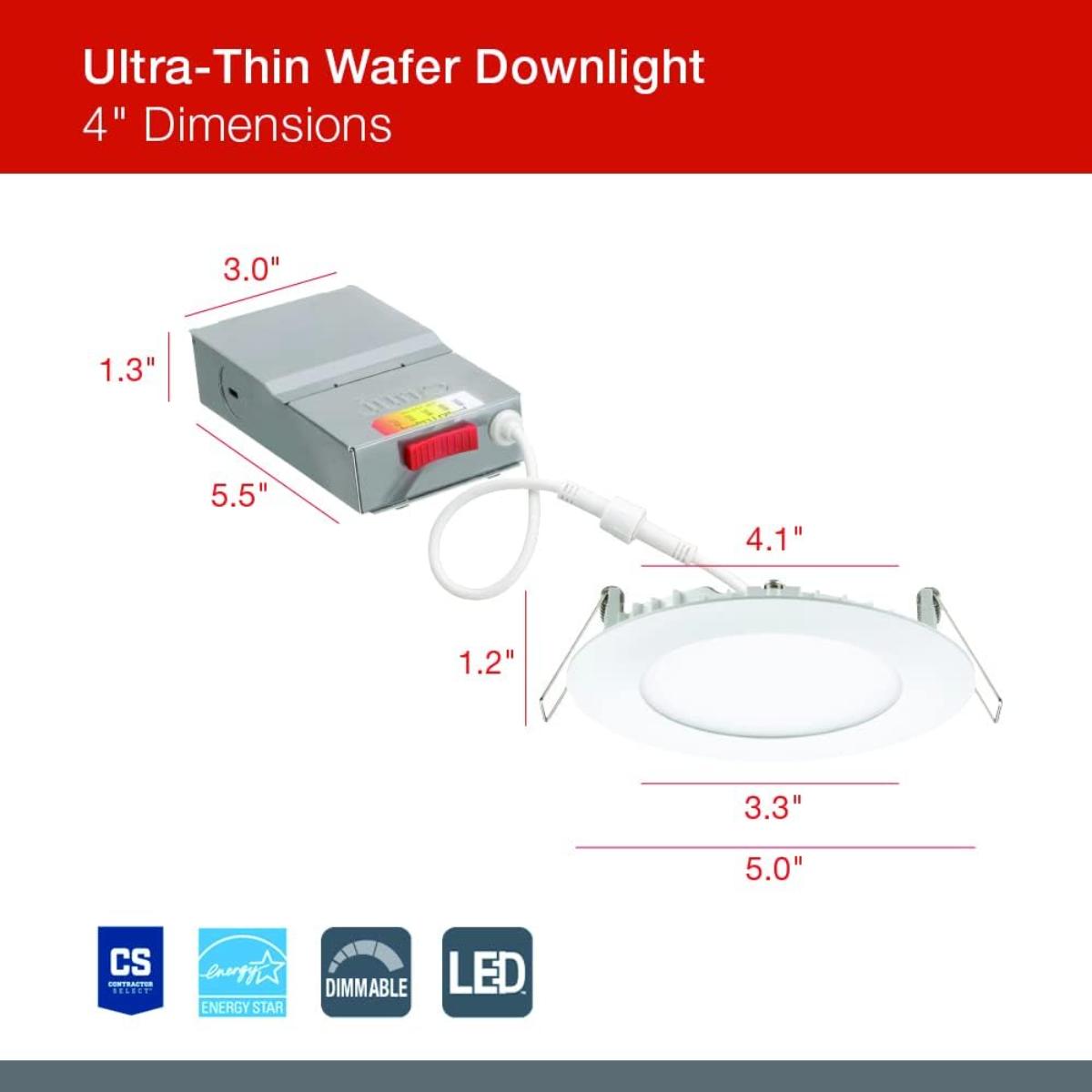

• Installation dimensions: 3.3 in. aperture, 5 in. trim overlap, 1.2 in. height; 4.25 in. maximum ceiling opening, with a 4 in. cutout template.

Construction & Aesthetics

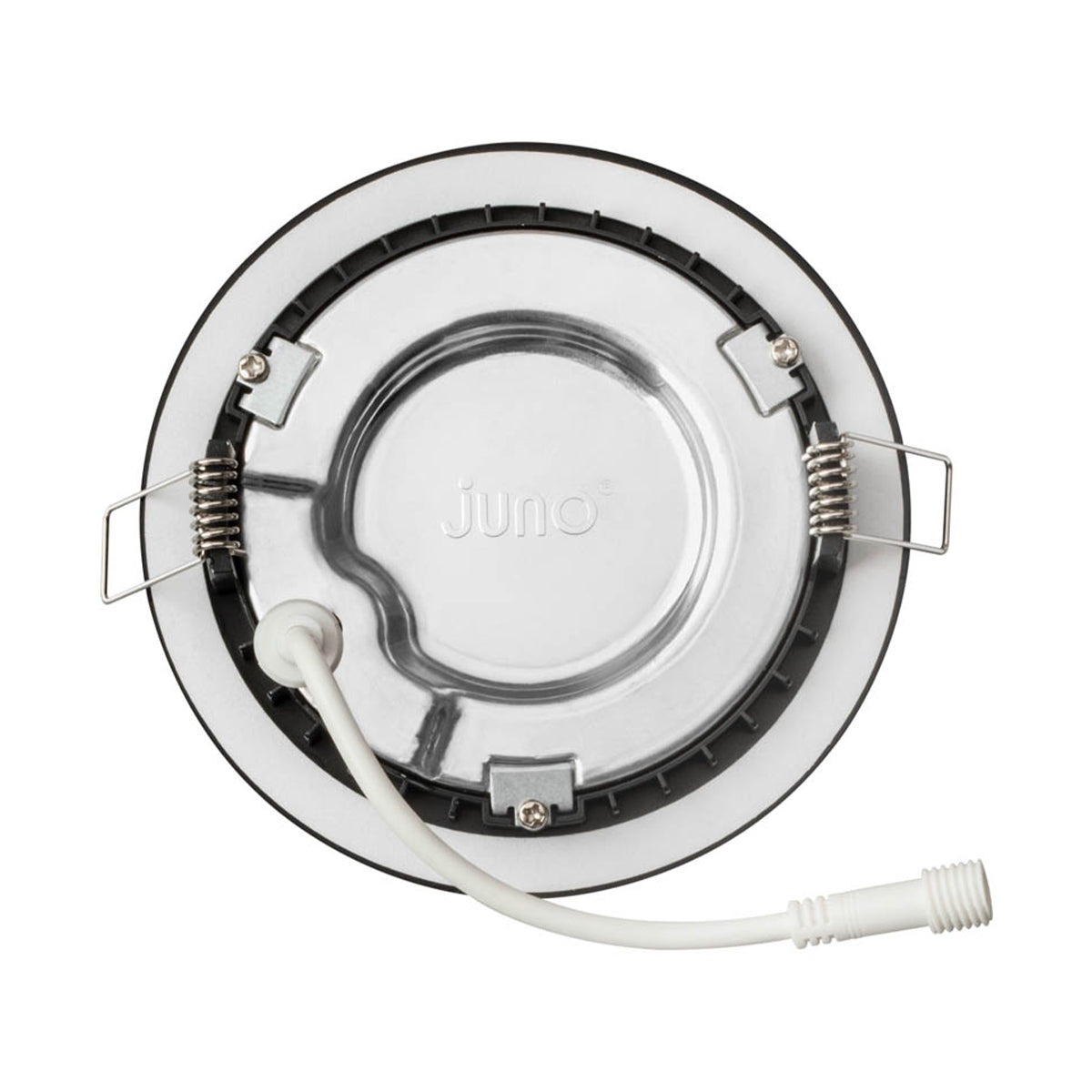

The polycarbonate injection-molded outer frame pairs with a steel backplate for a slim, lightweight fixture. A round smooth matte black trim and edge-lit light guide spread illumination evenly, and the nonconductive dead-front design suits applications requiring a nonconductive lens.

Light Output & Performance

The LED light engine delivers 670 nominal lumens at 3000K while using 9W and provides 90+ CRI. Select five CCT settings from warm 2700K to daylight 5000K; the default setting is 3000K. The LEDs are rated for 50,000 hours at 70% lumen maintenance and replace a 65W incandescent lamp.

Electrical & Installation

This downlight connects to dedicated 120V, 60Hz power and dims to 10% with compatible triac dimmers. The integrated Class 2 constant-current driver sits in an isolated steel remote-driver box with a 12 cubic-inch wiring compartment for up to six 14-gauge insulated conductors. A 3-pin FT4 plenum-rated cable connects the module to the driver; allow 3 in. of plenum space above the box. Use the supplied 4 in. template and keep the ceiling opening at or below 4.25 in. The fixture fits 3/8 in. to 1 1/2 in. ceilings, including insulated and drop ceilings, and can be removed from below for servicing or replacement.

Compatible Accessories — WF4 Size

• New-construction pans: WF8643 PAN U universal pan; WF4 PAN R12 4 in. pan, retail pack of 12.
• Goof ring: WF4GR MW JZ 4 in. ring.
• Remodel joist bar: WFJB U.
• 3-pin extension cables: WFEXC6 SW3PIN FT4, 6 ft; WFEXC10 SW3PIN FT4, 10 ft; WFEXC20 SW3PIN FT4, 20 ft.

Typical Applications

• Residential rooms and multifamily housing.
• Hotels, assisted living, hospitality, dormitories, and multilevel buildings.
• Bathrooms, showers, and outdoor soffits requiring wet-location lighting.
• New construction and remodels, including insulated and drop ceilings.

What’s Included

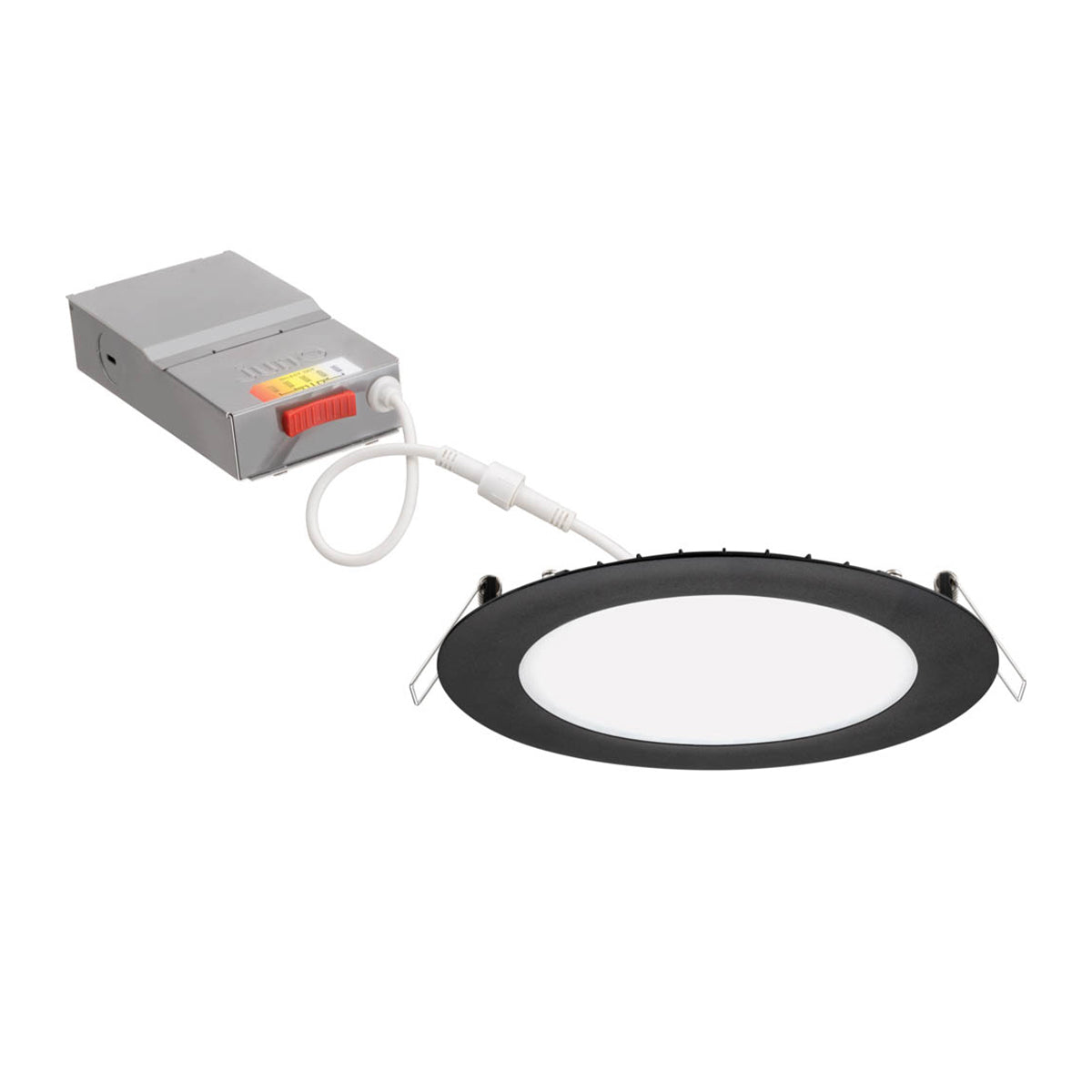

One Juno 4 in. LED wafer downlight with round smooth matte black trim, remote driver box, and 3-pin cable.
