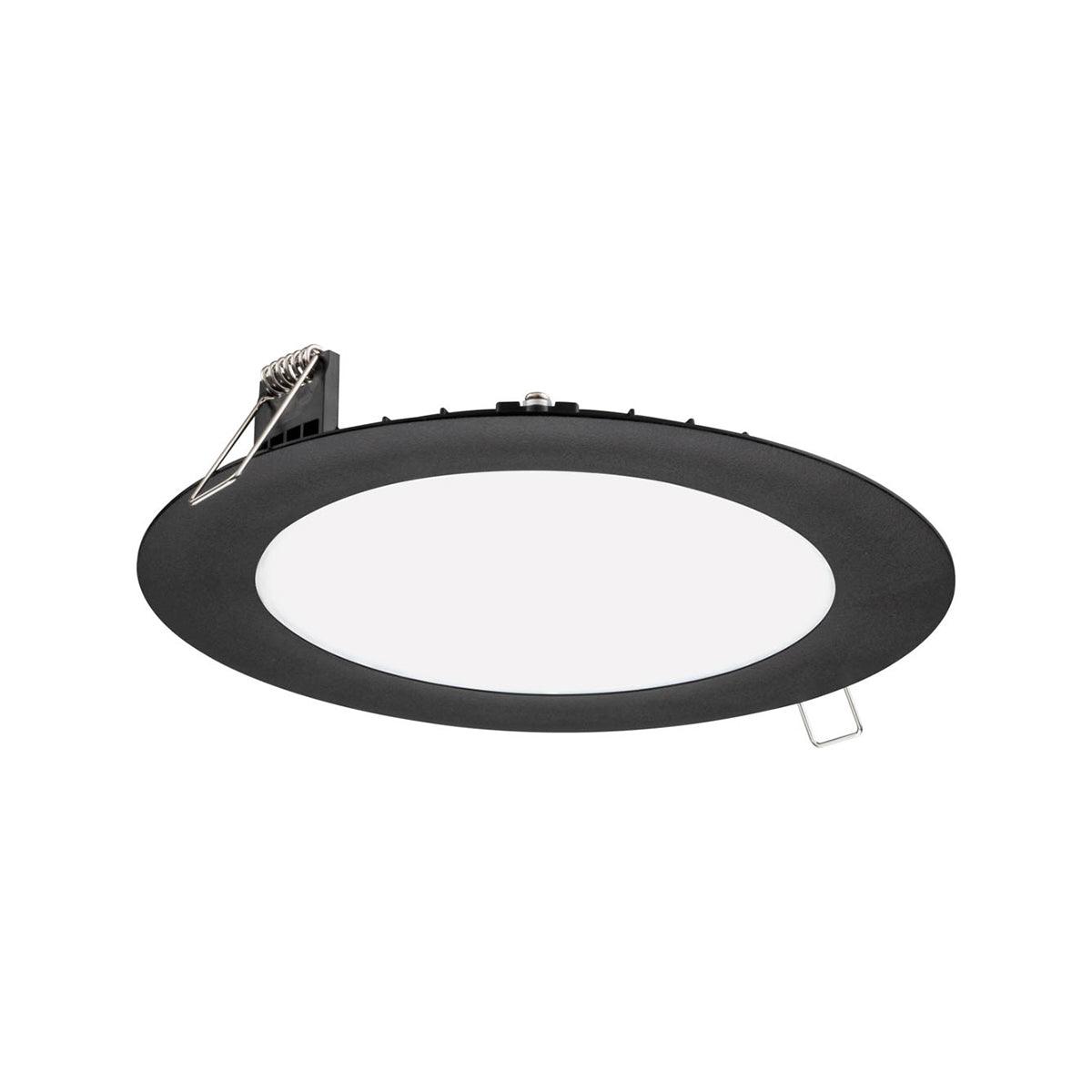

Juno Wafer WF4 and WF6 4 in. and 6 in. Round Smooth Matte Black Downlights — 9W / 13W / Selectable 5-CCT / 120V

Choose a low-profile canless wafer for smaller rooms or broader general illumination, without adding a recessed housing. This combined listing covers the matte black WF4 and WF6 round smooth-trim models, each with switchable white light and a slim 1.2 in. profile. Black model numbers: WF4 SWW5 90CRI MB M6 and WF6 SWW5 90CRI MB M6.

Key Features

• Two canless sizes: WF4 4 in. and WF6 6 in. round wafer downlights; no recessed housing required.
• Matte black smooth trim: Nonconductive dead-front design with polycarbonate lens and spring-clip mounting.
• Size-specific output: WF4 delivers 670 nominal lumens at 9W; WF6 delivers 970 nominal lumens at 13W, each measured at 3000K.
• Five selectable CCTs: 2700K, 3000K, 3500K, 4000K, or 5000K; factory default is 3000K.
• High color rendering: 90+ CRI with color accuracy within 4-step MacAdam Ellipse at end CCTs and 6-step at middle CCTs.
• Dimming and power: Dedicated 120V, 60Hz operation; triac dimmable to 10% with compatible standard dimmers.
• Location and ceiling suitability: Suitable for wet locations, IC rated, and Air-Loc certified to ASTM E283-2004.
• Certifications: ENERGY STAR certified, CSA certified to US and Canadian safety standards, NOM certified, and compliant with California Title 24 Part 6.
• Long service life: Both sizes are rated for 50,000 hours at 70% lumen maintenance and carry a 3-year limited warranty.
• WF4 dimensions: 3.3 in. aperture, 5 in. trim overlap, 4.25 in. maximum ceiling opening; 4 in. cutout template supplied.
• WF6 dimensions: 5.1 in. aperture, 7 in. trim overlap, 6.25 in. maximum ceiling opening; 6 in. cutout template supplied. Both sizes are 1.2 in. high and fit 3/8 in. to 1 1/2 in. ceilings.

Construction & Aesthetics

Both models use a polycarbonate injection-molded outer frame and steel backplate, with round smooth matte black trim and polycarbonate lens. The edge-lit light guide distributes illumination evenly, while the nonconductive dead-front trim suits applications requiring a nonconductive lens.

Light Output & Performance

WF4 is rated at 670 nominal delivered lumens from 9W at 3000K; WF6 is rated at 970 nominal delivered lumens from 13W at 3000K. Each model offers five CCT settings from 2700K to 5000K, 90+ CRI, and 50,000-hour life at 70% lumen maintenance. WF4 replaces a 65W incandescent lamp; WF6 replaces a 75W incandescent lamp.

Electrical & Installation

Both downlights use dedicated 120V, 60Hz power and triac dimming to 10%, with a Class 2 constant-current IC-rated driver in an isolated steel remote box. Each includes a 3-pin FT4 plenum-rated cable connector and a 12 cubic-inch wiring compartment for up to six 14-gauge insulated conductors. Allow 3 in. of plenum space above the WF4 driver and 2 in. above the WF6 driver. Use the matching supplied template; ceiling openings must not exceed 4.25 in. for WF4 or 6.25 in. for WF6. Both sizes fit 3/8 in. to 1 1/2 in. insulated or drop ceilings and can be removed from below for service.

Compatible Accessories — Sold Separately

• WF4 4 in.: WF4 PAN R12 new-construction pan, retail pack of 12; WF4GR MW JZ goof ring.
• WF6 6 in.: WF6 PAN R12 new-construction pan, retail pack of 12; WF6GR MW JZ goof ring.
• Both sizes: WF8643 PAN U universal new-construction pan; WFJB U remodel joist bar; WFEXC6 SW3PIN FT4 6 ft, WFEXC10 SW3PIN FT4 10 ft, or WFEXC20 SW3PIN FT4 20 ft extension cables.

Typical Applications

• Residential rooms, multifamily housing, hotels, assisted living, hospitality, and dormitories.
• Bathrooms, showers, and outdoor soffits requiring wet-location lighting.
• New construction, remodels, insulated ceilings, and drop ceilings.

What’s Included

One selected-size Juno Wafer downlight in matte black with round smooth trim, remote driver box, and connected 3-pin cable.
