LED Emergency Drivers, 8 Watts Output, 10-60V DC Output, 90 Minutes, Slim Profile
Usually Ships in 1 - 2 Business Days
Free Shipping Over $99
Shipping & Returns
Shipping Policy Message
Free Shipping Over $99
Return Policy Message
30 Days Return Policy

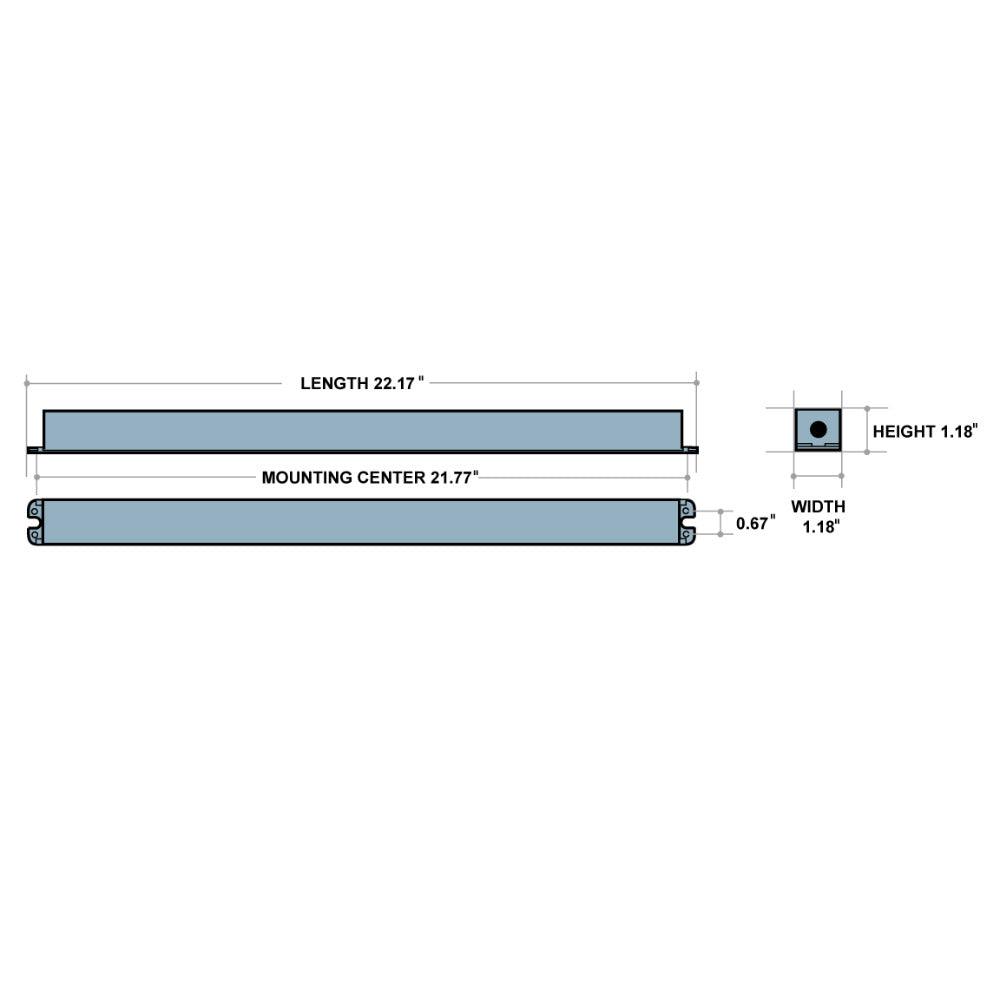

Dimensions & Measurements
Length :
Width :
Height :
Maximum height :
Shade height : in
Shade width : in
Shade length : in
Shade diameter : in
PRODUCT OVERVIEW

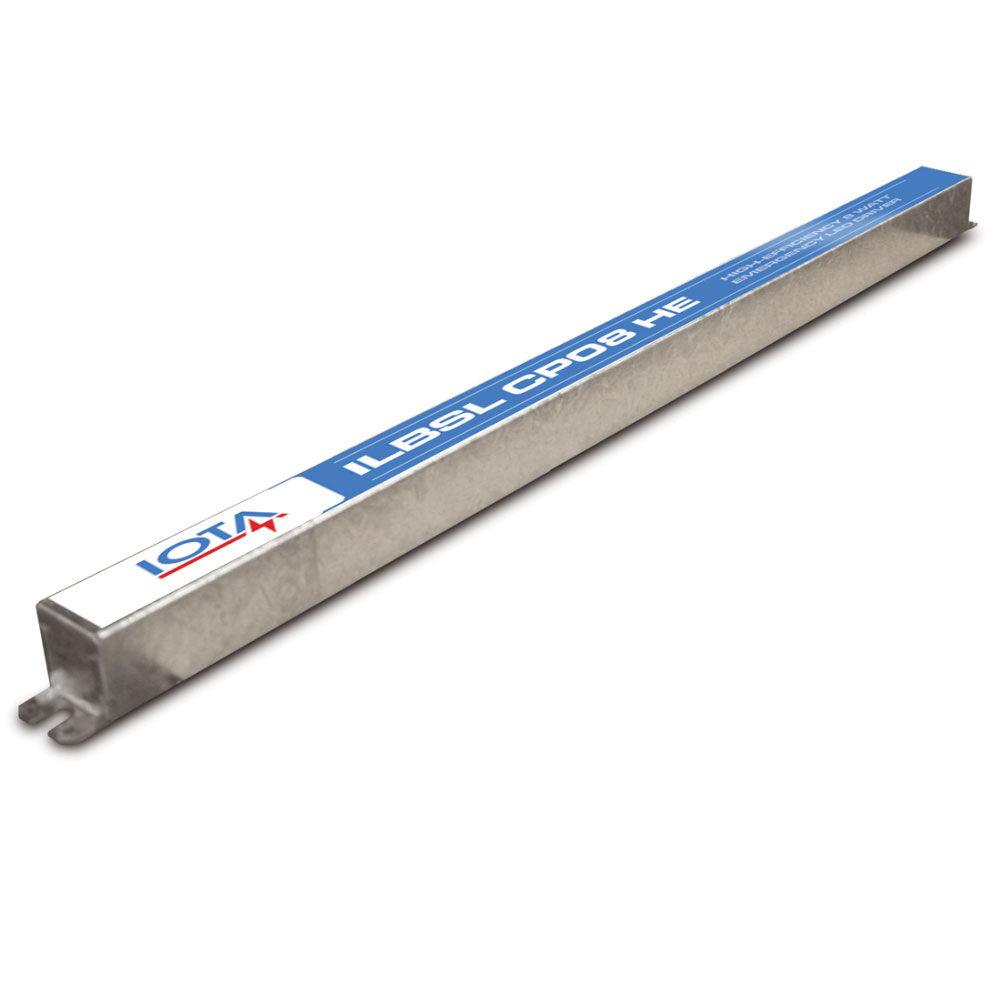

The ILBSL CP08 HE from IOTA is a UL Listed LED emergency driver that allows the same LED fixture to be used for both normal and emergency operation. In the event of a power failure, the ILBSL CP08 HE switches to emergency mode and operates the existing fixture for 90 minutes. The unit contains a battery, charger, and converter circuit in a single slim profile enclosure for installation within the channel space or wire way. The ILBSL CP08 HE will operate an LED array load at 8 watts with constant power at a rated output voltage of 10V-60V. The Constant Power design of the ILBSL CP08 HE maintains the output wattage to the LED array, providing consistent illumination for the entire emergency runtime. The ILBSL CP08 HE features high-efficiency performance and is certified in the CA Title 20 Appliance Efficiency Database.
- Certified for CA Title 20
- Slim profile enclosure allows integral installation within restrictive and narrow channel spaces
- Auto-adjusting 10-60 VDC output range accommodates a full range of Class 2 forward voltage LED designs
- Long life high temperature recyclable Ni-Cad battery.
- Includes single-piece TBTS test switch and charge indicator accessory kit.
Special Features
- For use with switched and unswitched fixtures.
PRODUCT OVERVIEW
PRODUCT OVERVIEW
The ILBSL CP08 HE from IOTA is a UL Listed LED emergency driver that allows the same LED fixture to be used for both normal and emergency operation. In the event of a power failure, the ILBSL CP08 HE switches to emergency mode and operates the existing fixture for 90 minutes. The unit contains a battery, charger, and converter circuit in a single slim profile enclosure for installation within the channel space or wire way. The ILBSL CP08 HE will operate an LED array load at 8 watts with constant power at a rated output voltage of 10V-60V. The Constant Power design of the ILBSL CP08 HE maintains the output wattage to the LED array, providing consistent illumination for the entire emergency runtime. The ILBSL CP08 HE features high-efficiency performance and is certified in the CA Title 20 Appliance Efficiency Database.
Manufacturer Resources
Product information
| Brand | IOTA |
|---|---|
| Category | |
| Product Type | Emergency Ballast |
| MPN | ILBSL CP08 HE M25 |
| UPC | 040232519253 |
| Power Supply Type |
Included Components
| Emergency Battery Included | true |
|---|
Characteristics
Electrical and Operational
| Input Voltage | |
|---|---|
| Operating temperature | 0C to 55C |
| Output Voltage | |
| Wattage Rating | 8.0 |
Warranty and Certifications
| Location rating | |
|---|---|
| Product Warranty | 5 Years |
