Intermatic Heavy-Duty 24-Hour Indoor Mechanical Plug-In Timer — White & 3 ON/3 OFF Settings

The Intermatic TN311 is a heavy-duty 24-hour indoor mechanical plug-in timer designed for automating ON/OFF schedules. This white plug-in timer, model TN311, is ideal for controlling indoor lighting and air movement devices. It operates on 125 VAC, 60 Hz and supports a maximum load of 15A, making it suitable for incandescent and fluorescent lighting. The timer features 3 ON/3 OFF settings per day with removable trippers, allowing for flexible scheduling.

Key Features

• Voltage: Operates at 125 VAC, 60 Hz for standard household applications.
• Load Ratings: Supports up to 15A for incandescent and fluorescent loads.
• Operation Mode: 24-hour mechanical timer with 3 ON/3 OFF settings per day.
• Minimum ON/OFF Time: 30-minute intervals for precise control.
• Plug Configuration: 5-15 plug with grounded receptacle for safety.
• Indoor Use: Suitable for indoor environments, perfect for lighting and ventilation control.
• Plug-In Design: Plugs directly into wall outlets for easy installation.
• CSA Certification: cCSAus certified for safety and reliability.
• RoHS Compliant: Meets environmental and safety standards.
• Dimensions: Compact size of 3.125 x 3 x 2 in. for convenient placement.

Construction & Interface

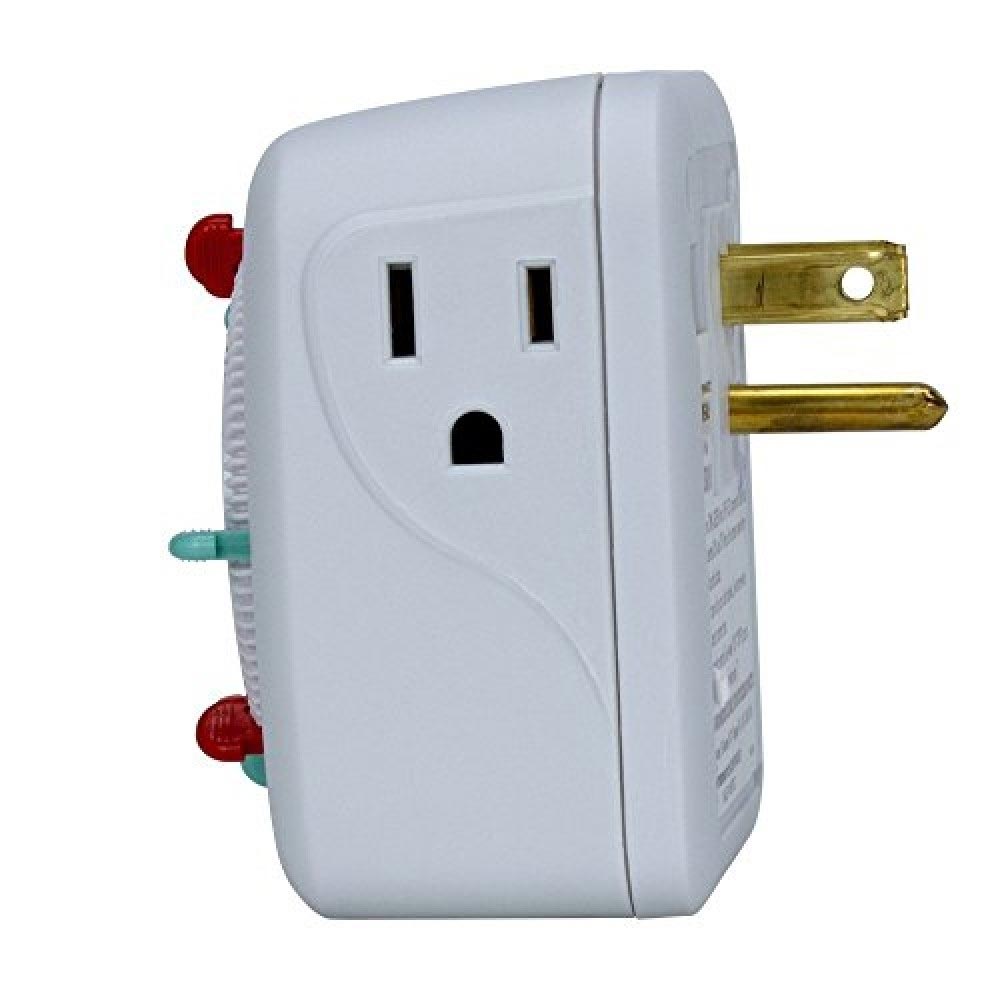

The TN311 features a compact and durable design with a white finish, suitable for indoor use. It includes a grounded receptacle and a 3-prong plug for secure connections. The wallplate is not required as it is a plug-in device.

Sensor, Smart & Timer Capabilities

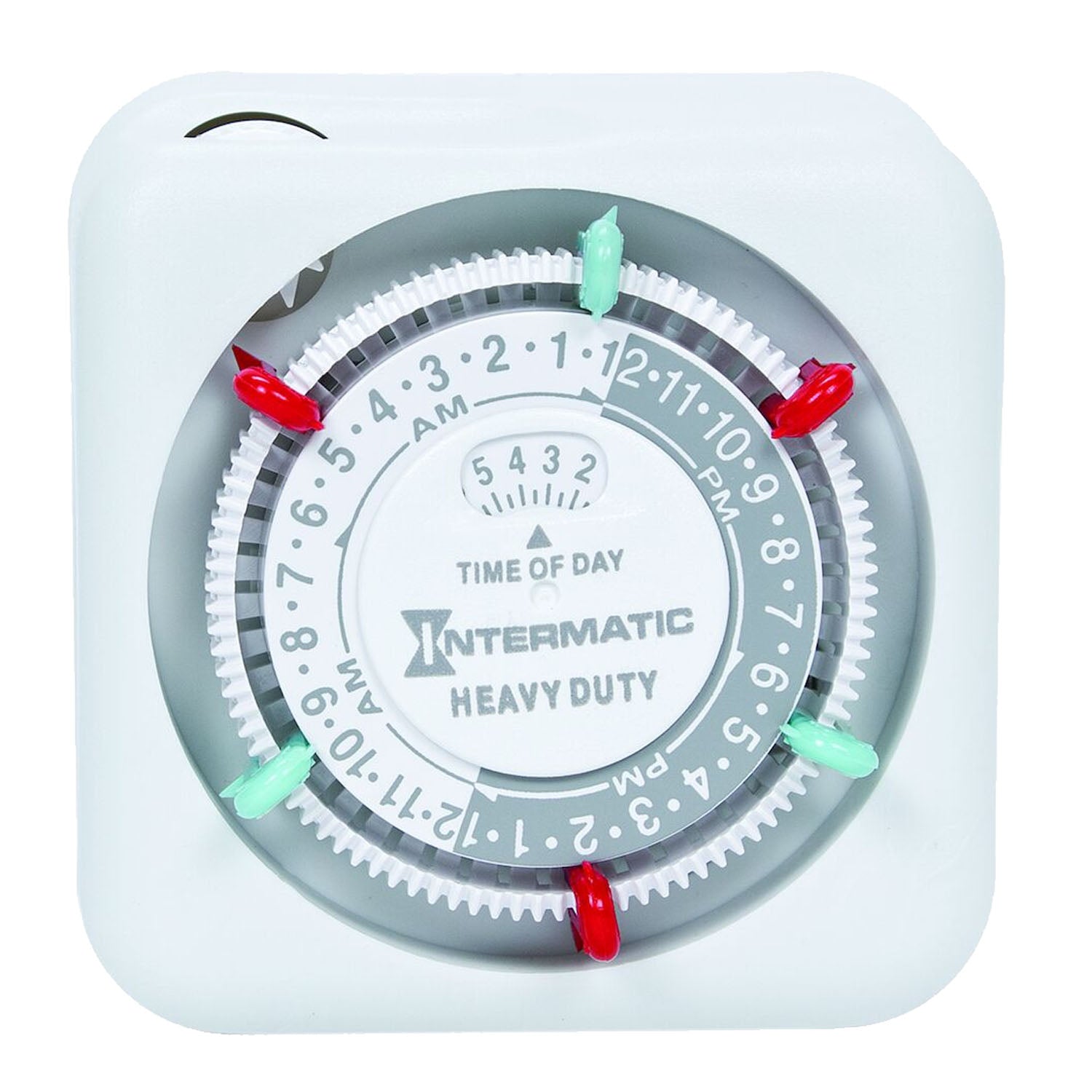

This timer offers mechanical operation with a 24-hour cycle, allowing for 3 ON/3 OFF settings per day. The removable trippers provide flexibility in scheduling, with a minimum ON/OFF time of 30 minutes.

Wiring & Installation

The Intermatic TN311 is a plug-in timer that does not require a neutral wire. It plugs directly into standard wall outlets, making installation straightforward and hassle-free.
