Intermatic T102 T100 Series Mechanical Timer Switch, 40A, SPST, Indoor
Out of stock
About this item
About this item
- Timer Type: Mechanical 24-hour dial for precise load control.
- Load Capacity: Handles up to 40 Amps, suitable for heavy-duty applications.
- Pole Configuration: Single Pole Single Throw (SPST) for simple on/off control.
- Voltage Compatibility: Operates on 208-277 VAC, 60 Hz power supply.
- Manual Override: Includes manual override for flexible operation.
We process payments securely and do not store credit card information.
Description
Description
Intermatic T100 Series Mechanical Timer Switch — Indoor & 24-Hour Control
The Intermatic T102 is an indoor mechanical timer switch designed for industrial, commercial, and residential applications. This timer switch, identified by MPN T102, features a robust SPST switch style and operates on 208-277 VAC, 60 Hz. It supports electrical loads up to 40 Amps and offers 1 to 12 ON/OFF operations daily with a minimum ON/OFF time of 1 hour.
Key Features
- Voltage Rating: Compatible with 208-277 VAC, 60 Hz power supply.
- Load Rating: Supports up to 40 Amps resistive, tungsten, or inductive loads.
- Pole Configuration: Single Pole Single Throw (SPST) for straightforward control.
- Timer Operations: Allows 1 to 12 ON/OFF operations per day with a minimum interval of 1 hour.
- Manual Override: Equipped with a manual override switch for convenience.
- Enclosure Type: Available in Type 1 steel enclosure for indoor use.
- Operating Temperature: Functions reliably from -40°F to 130°F (-40°C to 54°C).
- Dimensions: Measures 7.75 in. H x 5.00 in. W x 3.00 in. D.
- Certifications: Agency Listed under Clock Operated Switches.
- Warranty: Comes with a limited 1-year warranty.
Construction & Interface

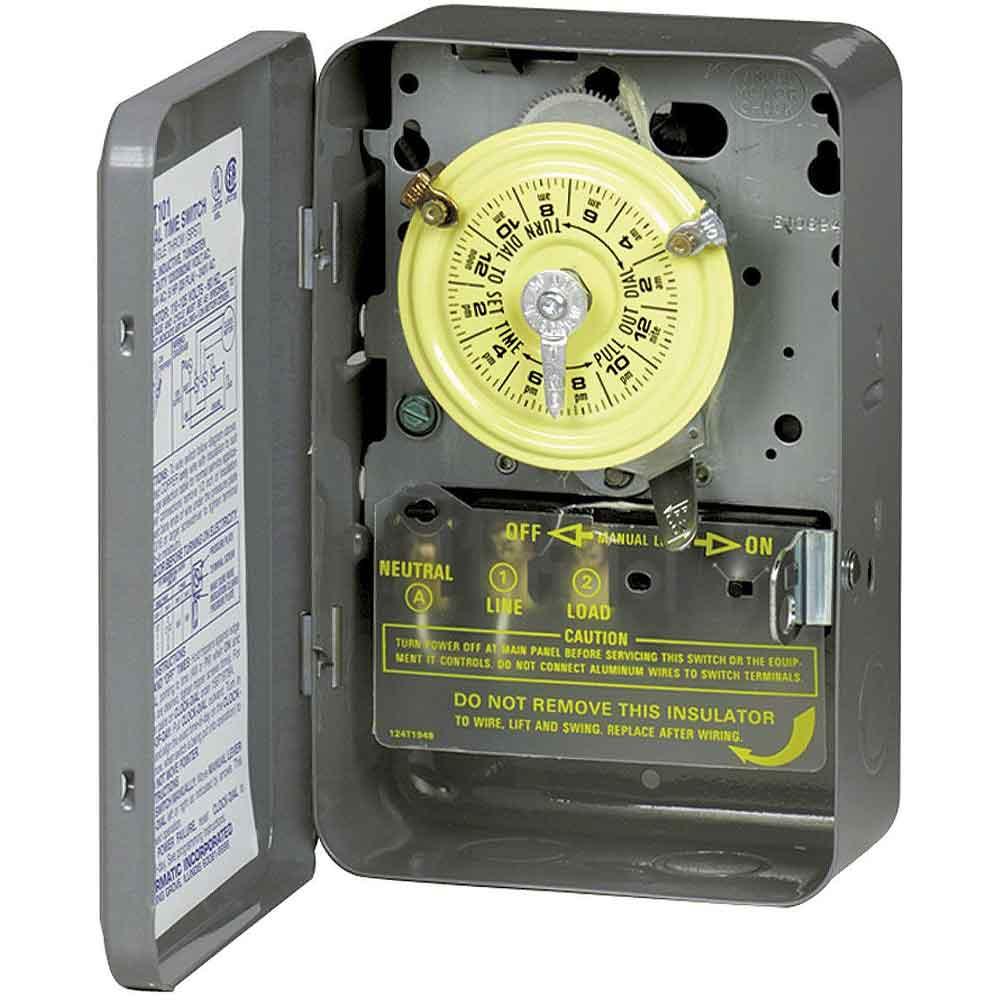

The T102 features a durable Type 1 steel enclosure suitable for indoor environments. It includes a manual override switch for ease of use. The wallplate is sold separately.
Sensor, Smart & Timer Capabilities
This mechanical timer switch provides reliable 24-hour control with up to 12 programmable ON/OFF operations. It includes a manual override for flexible scheduling.
Wiring & Installation
The T102 does not require a neutral wire and is designed for SPST configurations. It uses teeter-type terminal screws for secure connections, accommodating wire sizes up to #8 AWG.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the load capacity of the Intermatic T102 timer switch?
What is the load capacity of the Intermatic T102 timer switch?
Does the Intermatic T102 require a neutral wire for installation?
Does the Intermatic T102 require a neutral wire for installation?
How many ON/OFF operations can the T102 timer switch perform daily?
How many ON/OFF operations can the T102 timer switch perform daily?
Is the Intermatic T102 suitable for outdoor use?
Is the Intermatic T102 suitable for outdoor use?
What is the operating temperature range for the T102 timer switch?
What is the operating temperature range for the T102 timer switch?
