Intermatic ST700W Ascend 7-Day Programmable Timer, 15A, Single-Pole/3-Way, White

Vendor: Intermatic

SKU: ST700W

Quick ShipSave 20%
$71.31
$71.31 $89.14
Shipping calculated at checkout.

Available in stock (21)

Must be ordered in quantities of .

About this item
  • Timer Type: 7-Day Programmable Timer with Astronomic and Daylight Saving Time adjustments.
  • Load Compatibility: Supports CFL, Fluorescent, Incandescent, and LED loads.
  • Wiring Configuration: Compatible with single-pole and 3-way installations.
  • Neutral Wire: Neutral wire is required for operation.
  • Finish: White finish suitable for indoor applications.
View More Details
Payment & Security
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • USDC
  • Visa

We process payments securely and do not store credit card information.

Description

Intermatic Ascend Timer Switch — White & 7-Day Programmable

The Intermatic ST700W is a white, 7-day programmable timer switch designed for precise indoor lighting control. This timer switch supports both single-pole and 3-way configurations and operates at 120 VAC with a 15A rating. It features astronomic dusk-to-dawn settings and automatic Daylight Saving Time adjustments, making it ideal for a variety of applications.

Key Features

  • Voltage: Operates at 120 VAC, 50/60 Hz.
  • Load Ratings: 15A general purpose, 5A electronic ballast LED, 8A tungsten, 1 HP motor load.
  • Pole Configuration: Compatible with single-pole and 3-way installations.
  • Timer Type: Digital with 7-day programming and astronomic settings.
  • Neutral Wire: Required for operation.
  • Battery Backup: Non-replaceable lithium battery maintains settings during power loss.
  • Dimensions: 2.75 in. H x 1.75 in. W x 1.33 in. D.
  • Certifications: cULus, Title 20, RoHS compliant.

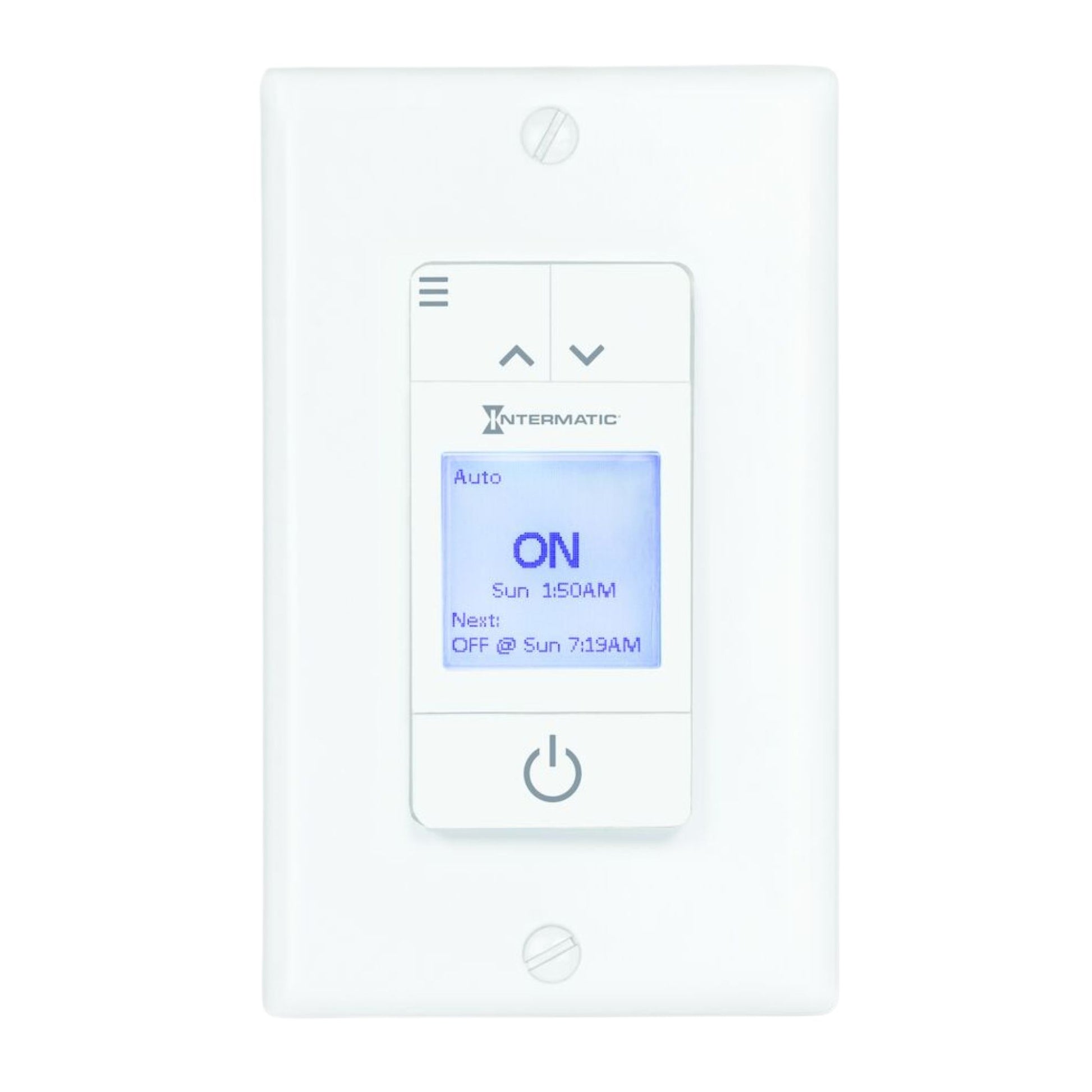

  • Special Features: Large backlit LCD screen, pre-programmed templates, and customizable scheduling.

Construction & Interface

The ST700W features a sleek, modern design with a large backlit LCD screen for easy programming. It is designed for indoor use with a white finish. Note that the wallplate is sold separately.

Sensor, Smart & Timer Capabilities

This timer switch offers astronomic dusk-to-dawn settings and automatic Daylight Saving Time adjustments. It supports up to 42 unique programmable events, providing flexibility and convenience for various applications.

Wiring & Installation

The Intermatic ST700W requires a neutral wire for installation. It supports both single-pole and 3-way configurations and is designed for easy installation with intuitive setup features.

Specifications

Dimensions

Length/Depth
2.5 in
Width/Diameter
3 in
Height
2.75 in
Weight
0.4 lb

Documents

Style & Materials

Finish
White
Material
Plastic
Mounting Type
In-Wall mount

Characteristics & Features

Function Type
3-Way, Single Pole
Neutral Required
Yes

Electrical Information

Voltage
120V
Amps Rating
15.0 A

Item Details

MPN
ST700W
Brand
Intermatic
Family
Intermatic Ascend
UPC
078275149083

Warranty & Certifications

Product Warranty
3 Year

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

What type of loads can the Intermatic ST700W handle?
The Intermatic ST700W can handle CFL, Fluorescent, Incandescent, and LED loads. It is rated for 15A general purpose and 5A electronic ballast LED.

Does the Intermatic ST700W require a neutral wire?
Yes, the Intermatic ST700W requires a neutral wire for proper operation.

What is the maximum number of programmable events for the ST700W?
The Intermatic ST700W supports up to 42 unique programmable events, offering extensive scheduling flexibility.

Is the battery in the ST700W replaceable?
No, the battery in the Intermatic ST700W is non-replaceable. It is designed to maintain settings during power loss.

What certifications does the Intermatic ST700W have?
The Intermatic ST700W is cULus listed, Title 20 compliant, and RoHS certified, ensuring safety and environmental standards.
