GLT CHB-18L UFO LED High Bay — 140W — 18,200lm — 5000K
Hurry up, only 7 items left in stock.
About this item
About this item
- 18,200lm at 140W — 130 lm/W Efficacy: Delivers the output of a 400W metal halide or 4-lamp T5HO fixture at dramatically lower energy consumption — built for 20–35 ft ceiling heights in demanding industrial environments.
- 5000K Daylight, 80 CRI — Glass Optic Distribution: High-performance LM80 SMD chips paired with high-quality glass optics produce glare-free, even illumination across wide bays at full 18,200lm output.
- IP65-Rated for Damp Locations: Rated for humid warehouses, loading docks, manufacturing floors, and cold storage facilities — not just dry indoor use.
- DLC Certified — Utility Rebate Eligible: Qualifies for utility rebate programs nationwide. Verify current listing and rebate amounts at designlights.org using the CHB-18L product listing.
- -20°C Cold Start Rating: Operates reliably in freezer aisles, cold storage warehouses, and refrigerated distribution facilities where standard fixtures fail prematurely.
Description
Description

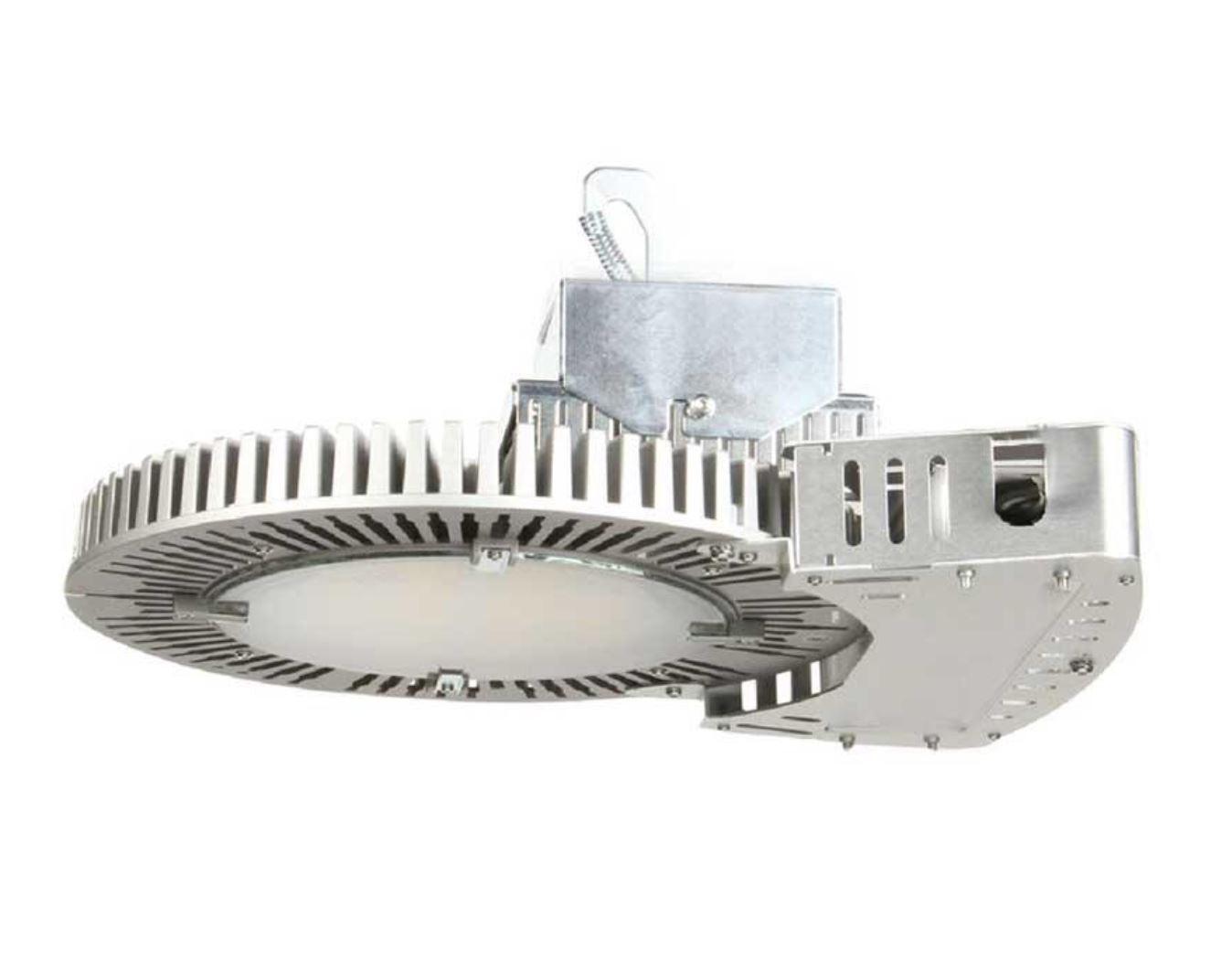

GLT CHB-18L UFO LED High Bay — 140W — 18,200lm — 5000K
The GLT CHB-18L-U-50K-D10 is a round UFO LED high bay delivering 18,200 lumens at 140 watts with 130 lm/W efficacy, a 5000K color temperature, and 80 CRI from high-performance LM80 SMD LED chips. 120–277V universal input, 0-10V dimming (10–100%), IP65-rated for damp locations, DLC certified, and cETL/ETL listed for U.S. and Canada. Rated 100,000 hours L70. 5-year limited warranty. Replaces 4-lamp T5HO fluorescent or 400W metal halide fixtures.
Key Features
- Output: 18,200 lumens at 140W — 130 lm/W peak efficacy
- Color Temperature: 5000K daylight — single CCT, fixed configuration
- CRI: 80 CRI — consistent color accuracy for industrial and commercial tasks
- Dimming: 0-10V continuous dimming, 10–100% range standard on every unit
- Voltage: Universal 120–277V standard; 200–480V special order (suffix -H)
- Location Rating: IP65-rated — suitable for damp locations, humid warehouses, manufacturing floors
- Certifications: cETL, ETL listed for U.S. and Canada; DLC certified for utility rebate eligibility
- Rated Life: 100,000 hours at L70 — minimal maintenance in high-ceiling applications
- Equivalency: Replaces 4-lamp T5HO fluorescent or 400W metal halide fixtures
- Operating Temperature: -20°C to 50°C — reliable in cold storage and outdoor-adjacent environments
- Material: Mercury-free, RoHS compliant — environmentally safe for all installation types
- Warranty: 5-year limited warranty covering materials and workmanship
Performance & Light Output
The CHB-18L delivers 18,200 lumens at 140W with a consistent 130 lm/W efficacy at the single 5000K color temperature. High-quality glass optics distribute light evenly with a glare-free pattern suited to open-span ceiling heights of 20–35 feet. LM80-tested SMD LED chips confirm 80 CRI and a rated life of 100,000 hours at L70.
Lens & Optics
High-quality glass optics provide glare-free, uniform light distribution across the full fixture aperture. The round form factor and reflector geometry are optimized for wide-area illumination in ceiling heights of 20–35 feet at 140W output. Optional aluminum reflector (CHB-ALR) and prismatic reflector (CHB-PCR) accessories are available to tune beam distribution for specific applications.
Smart & Control Features
The CHB-18L includes 0-10V dimming (10–100%) as standard on every unit. The UL-qualified integrated LED driver supports continuous dimming for compatibility with standard 0-10V wall controls and energy management systems. No additional control accessories are confirmed on the spec sheet for this model.
Electrical
The integrated, UL-qualified LED driver provides universal 120–277V input (50/60 Hz) as standard. A 200–480V driver is available as a special order (suffix -H). The driver supports 0-10V continuous dimming from 10–100%. The fixture is mercury-free and RoHS compliant. 200–480V configuration uses the CHB-18L-H-50K-D10 catalog number.
Construction
Heavy die-cast aluminum housing with a polyester powder-coated finish offers corrosion resistance against extreme climate changes. The round fixture measures 16.45" L × 11.73" W × 6.75" H and is IP65-rated for damp location installation. Mercury-free construction with RoHS compliant materials.
Installation & Mounting
The CHB-18L mounts via pendant or hook — hardware for both methods is included. Recommended ceiling heights: 20–35 feet at 140W. Available accessories (ordered separately):
- CHB-ALR — Aluminum reflector
- CHB-PCR — Prismatic reflector
- CHB-WG — Wire guard
- CHB-PMS — Pendant mount slider
- CHB-SP — Surge protector
- CHB-SC2 — Safety cable, 2 ft
- CHB-TLC — Twist-lock cable
Certifications & Rebates
cETL and ETL listed for U.S. and Canada — covering commercial and industrial applications in damp locations. DLC certified — eligible for utility rebate programs nationally (verify current DLC product code at designlights.org). RoHS compliant; mercury-free construction.
Typical Applications
- High-Ceiling Warehouses & Distribution Centers: 18,200lm output at 140W suits ceiling heights of 20–35 feet with IP65 damp rating for humid environments
- Gymnasiums & Arenas: Glare-free glass optics and high lumen output deliver even illumination over large open floor areas
- Factories & Manufacturing Plants: 0-10V dimming integrates with energy management systems for zone and occupancy control
- Automotive Service Bays: 80 CRI at 5000K supports accurate color rendering for detail and technical work
- Retail Big-Box Stores: Round UFO form factor and uniform distribution suits high-ceiling commercial retail environments
- Cold Storage & Freezer Facilities: -20°C cold start rating ensures reliable operation in refrigerated warehouses
What's Included
- 1× GLT CHB-18L-U-50K-D10 UFO LED High Bay (140W)
- Hook and pendant mount hardware
