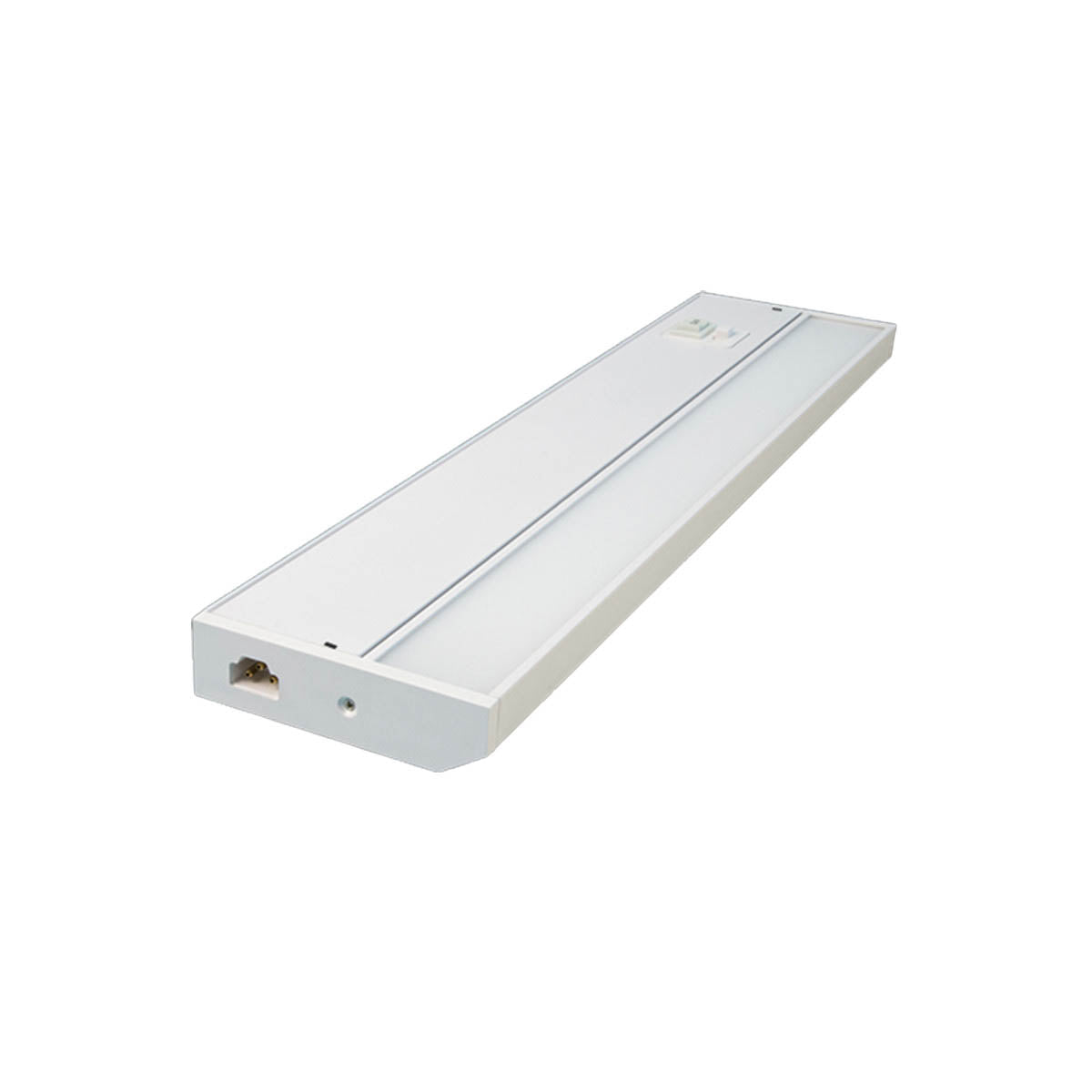

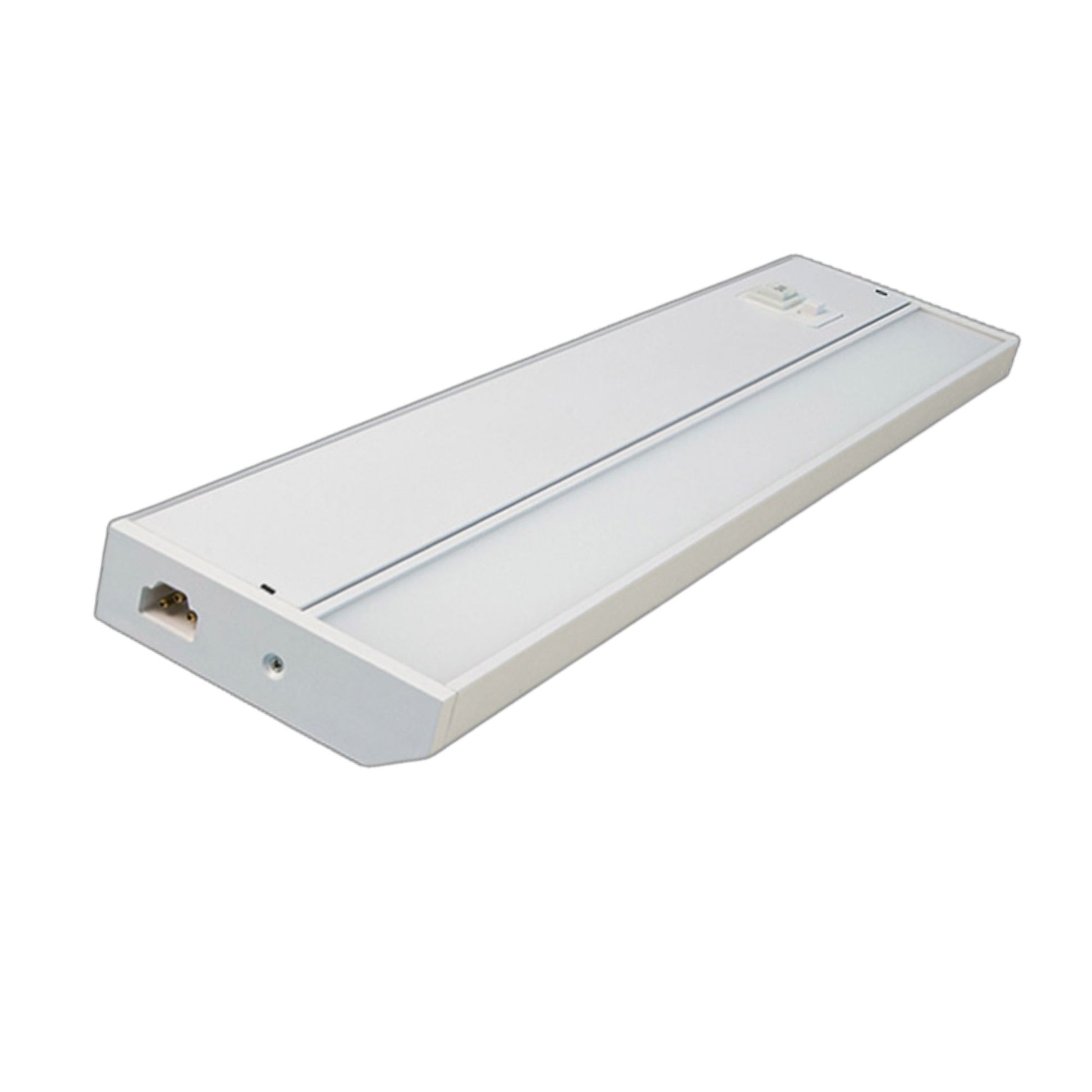

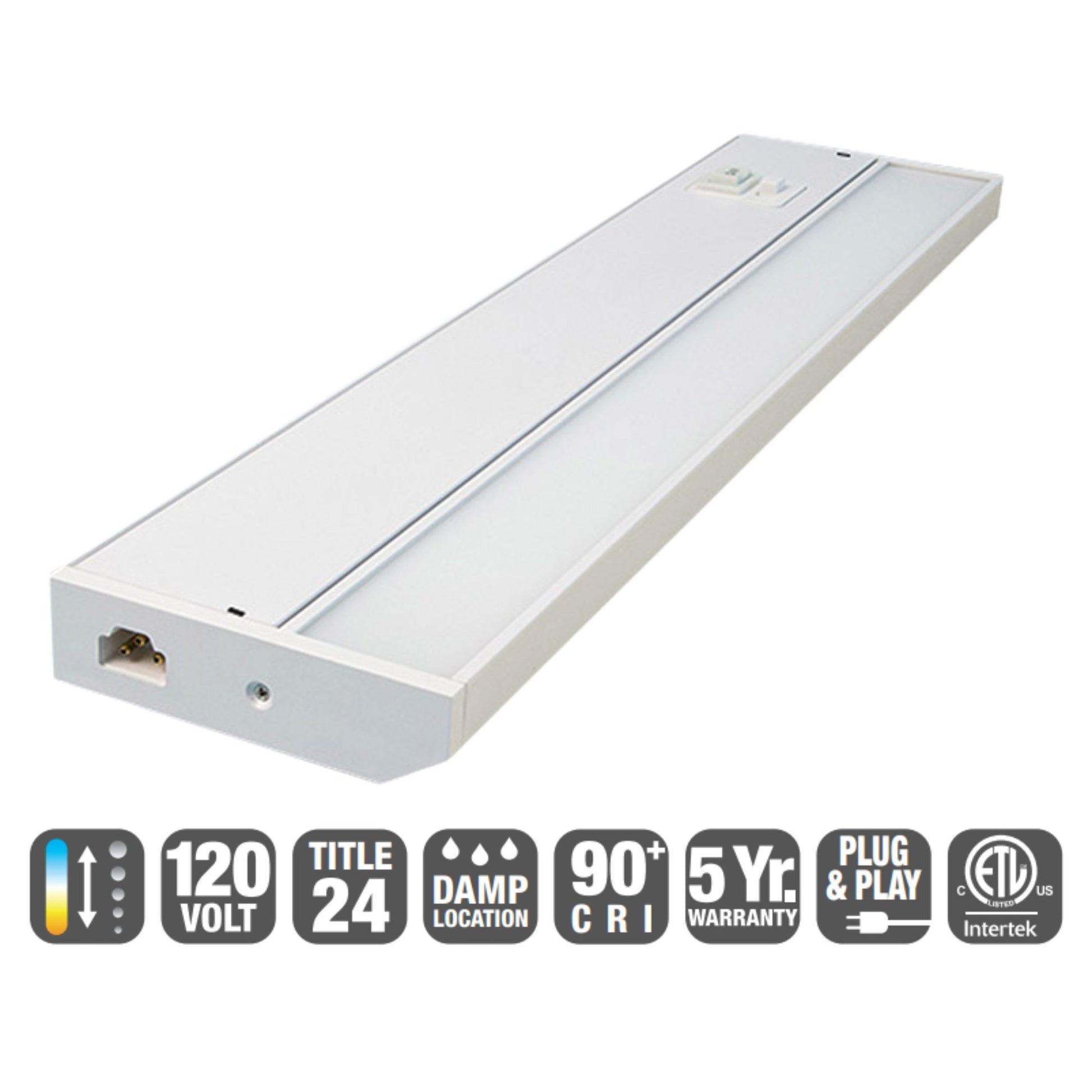

GM Lighting TunableTask Under Cabinet Light Bar — White & Selectable CCT

The GM Lighting UCTUN-32-WH in white is a 32 in. under cabinet light bar designed for versatile task lighting. This fixture features a powder-coated aluminum housing and a polycarbonate lens, providing durability and excellent light diffusion. It operates at 120V and incorporates an integrated LED light source, delivering up to 1220 lumens.

Key Features

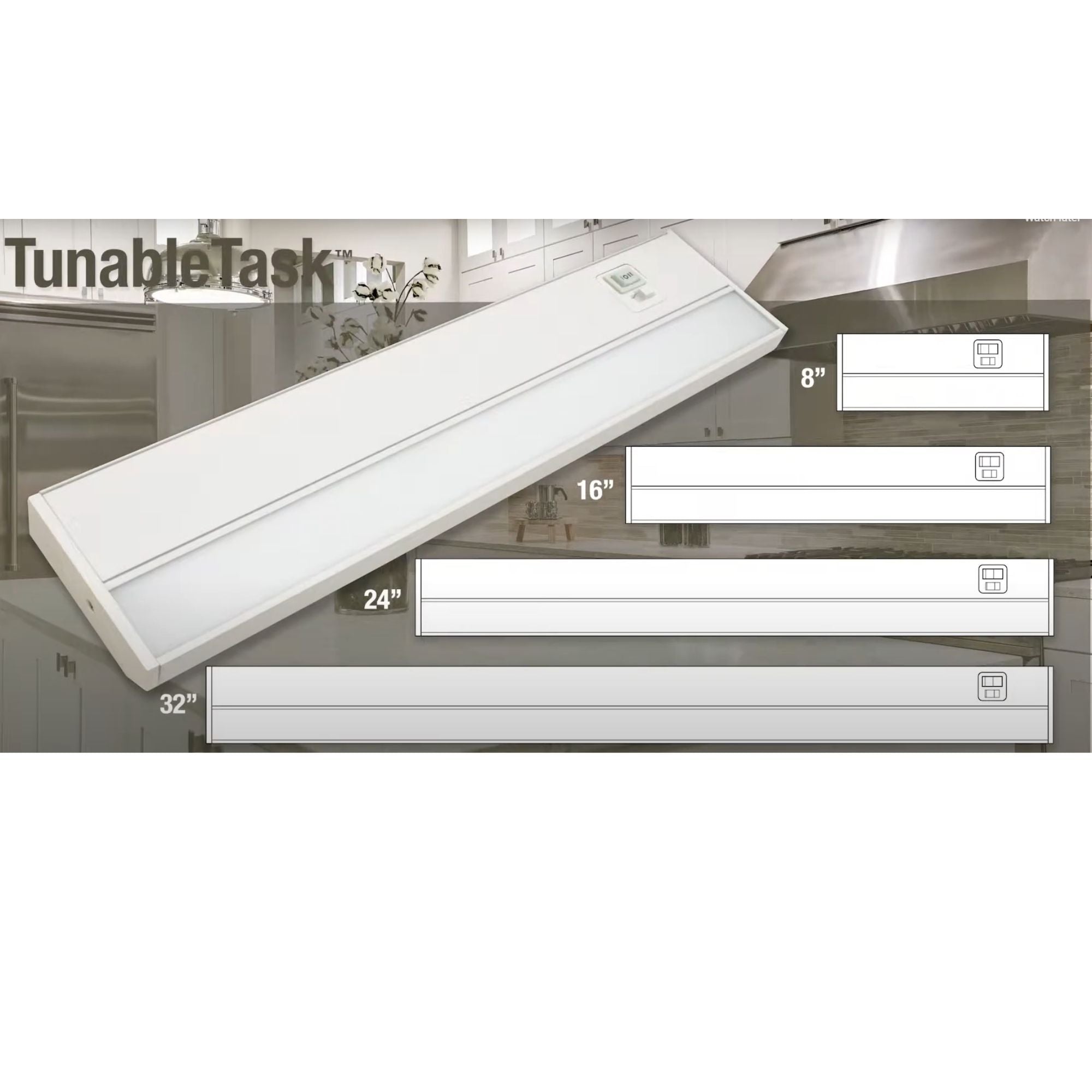

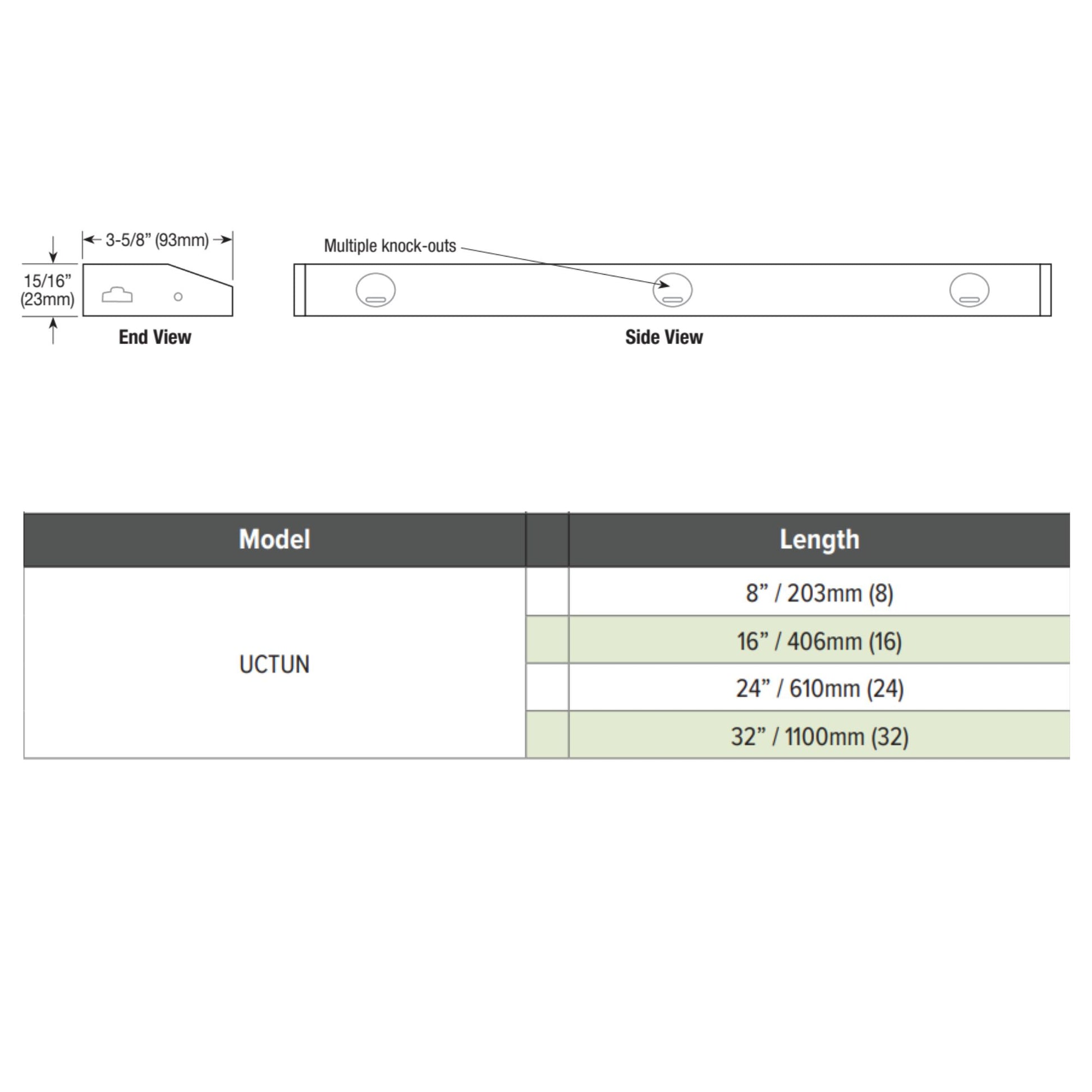

• Dimensions: Measures 32 in. in length, 3.63 in. in width, and 0.94 in. in height.
• Voltage: Operates on 120V, eliminating the need for a remote power supply.
• Wattage: Consumes 16 watts, ensuring energy efficiency.
• Lumens: Provides up to 1220 lumens for bright task lighting.

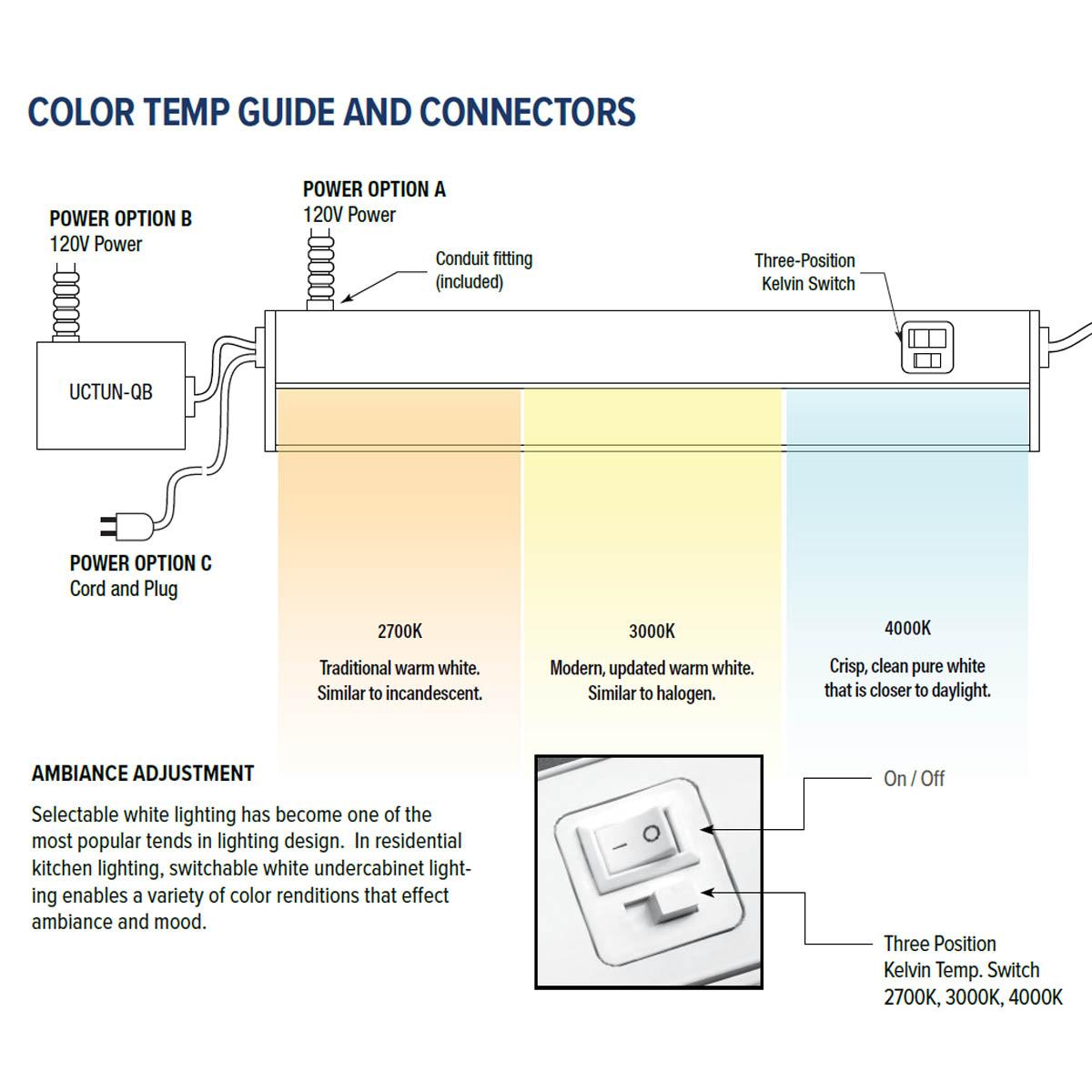

• Color Temperature: Selectable CCT from 2700K to 5000K for customizable ambiance.
• CRI: Features a CRI of 90+ for accurate color rendering.
• Lifespan: Designed for long-lasting performance with a 5-year warranty.
• Installation: Includes Wago connectors and captive mounting screws for easy installation.
• Linkability: Units can be linked together using included connectors for extended coverage.
• Dimming: Compatible with Triac dimmers for adjustable lighting levels.

Core Design & Profile

This light bar features a slim profile with a mounting depth of under 1 in., making it ideal for discreet under cabinet installations. The housing is crafted from powder-coated aluminum, and the lens is made of polycarbonate, ensuring durability and effective light diffusion. It is rated for dry locations.

LED Illumination & Performance

With a maximum output of 1220 lumens, this fixture provides bright and efficient lighting. It operates at 16 watts and offers a high CRI of 90+, ensuring excellent color accuracy. The selectable CCT feature allows users to choose from five different color temperatures, ranging from 2700K to 5000K.

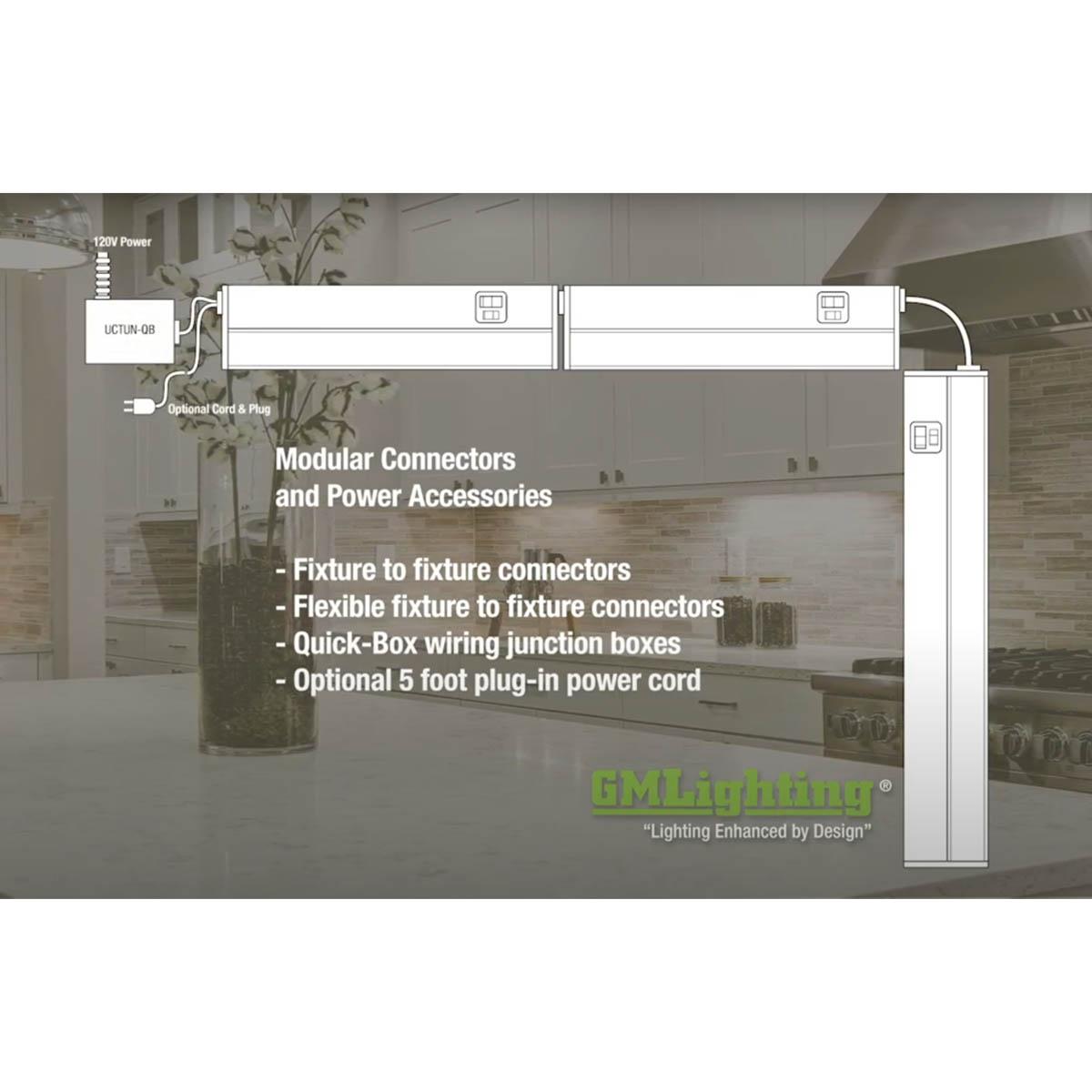

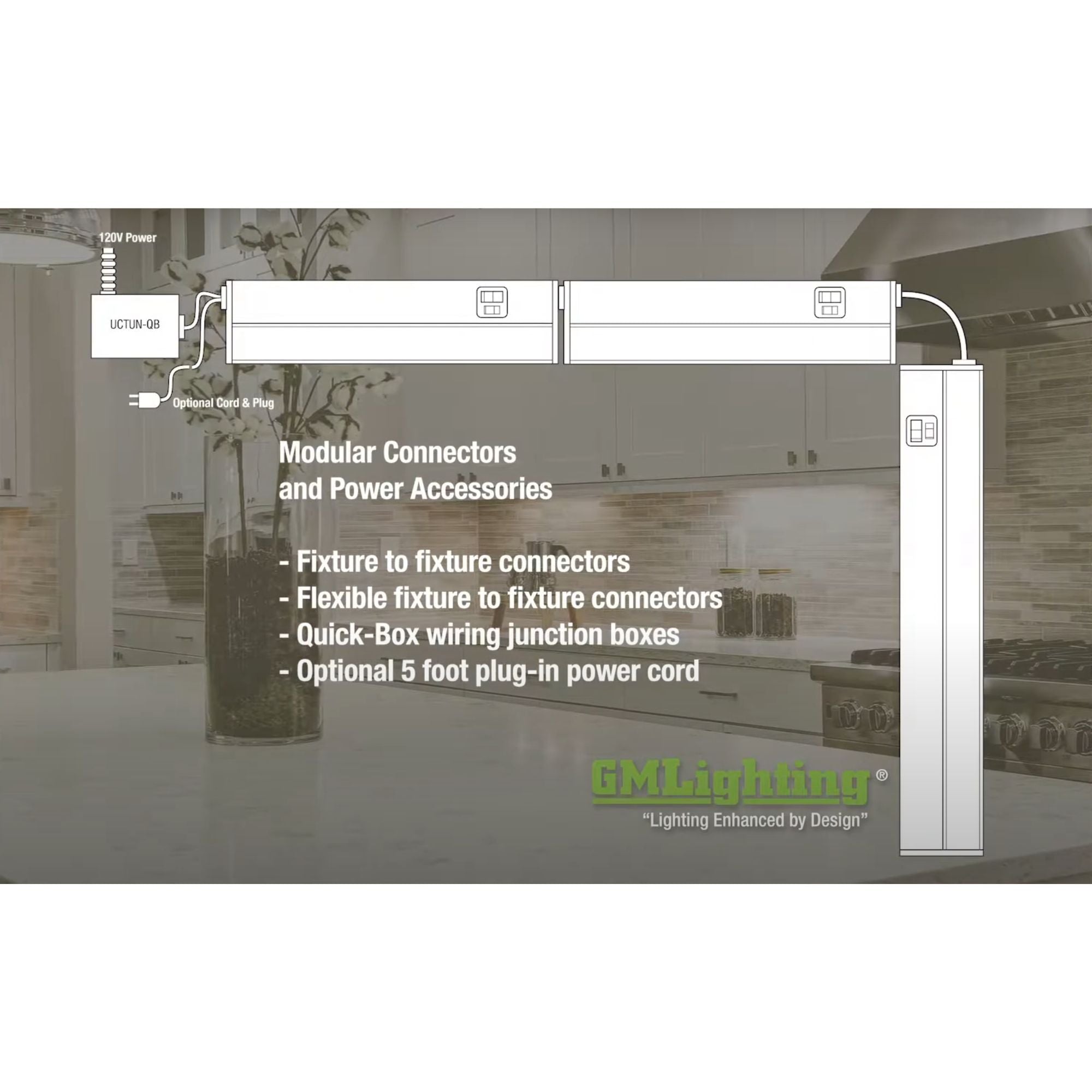

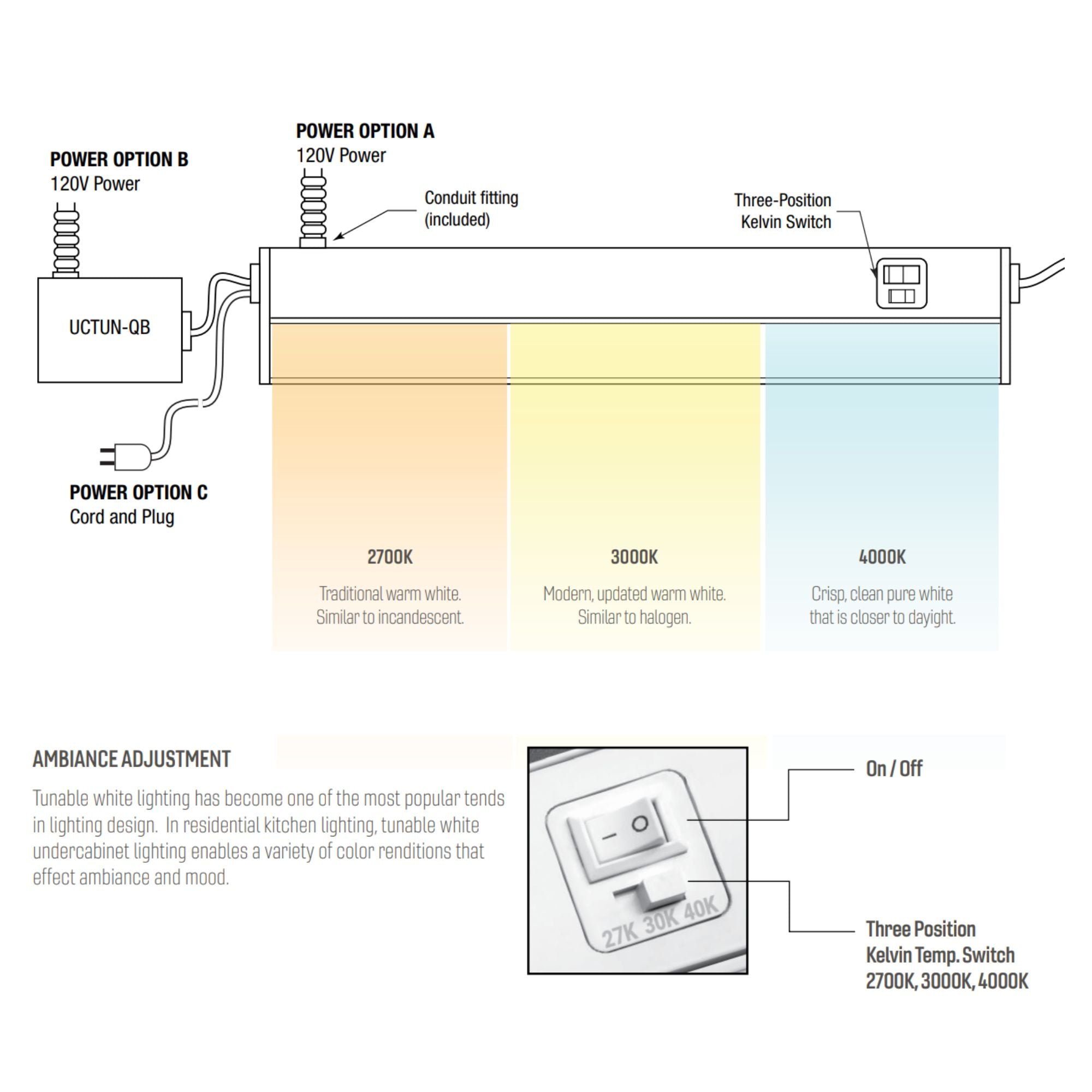

Power, Wiring & Linkability

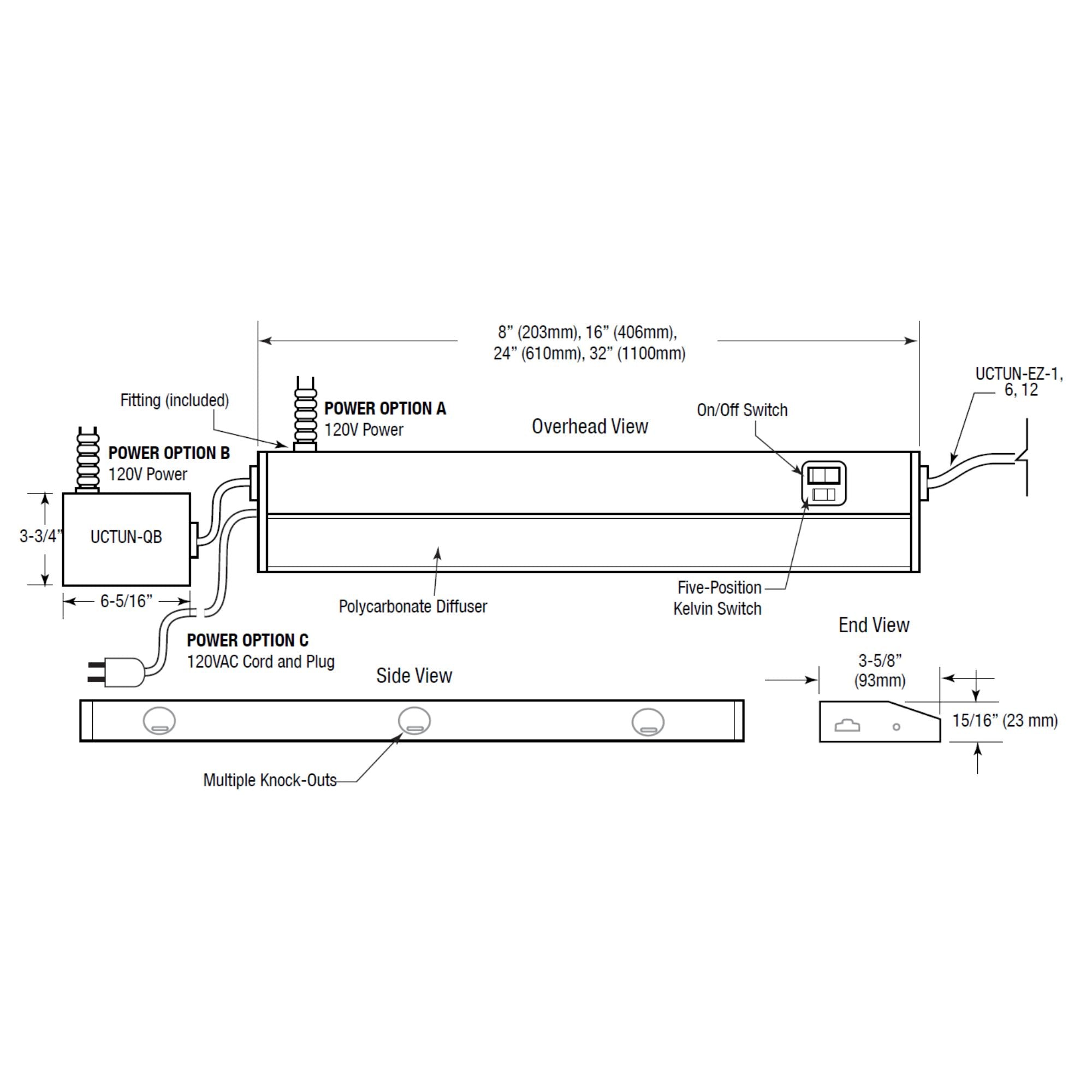

The UCTUN-32-WH is designed for direct wire installation at 120V. It includes multiple knockouts and an on/off switch for ease of use. The fixture is linkable, allowing multiple units to be connected securely using the included connectors, facilitating extended runs for larger installations.

Where This Fixture Works Best

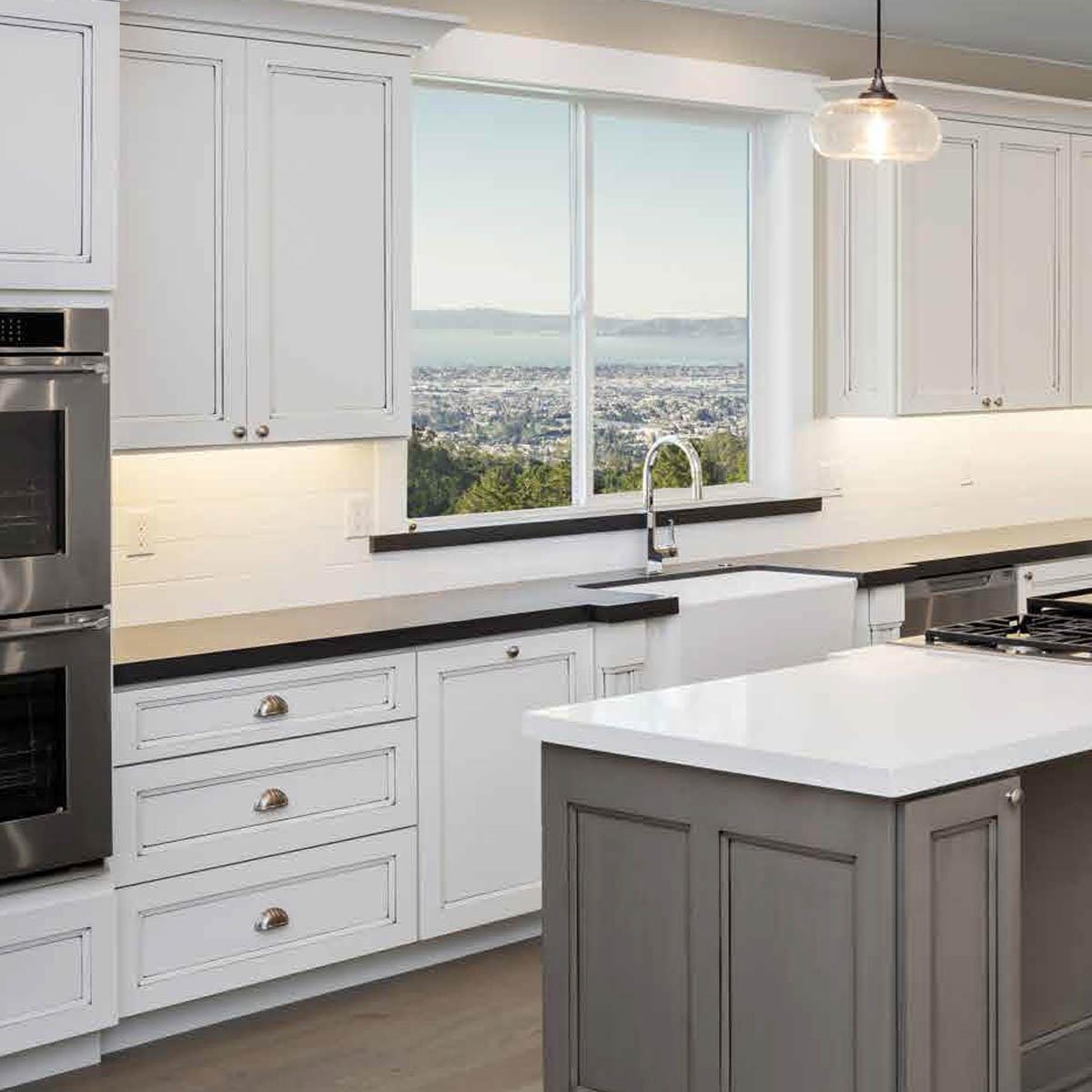

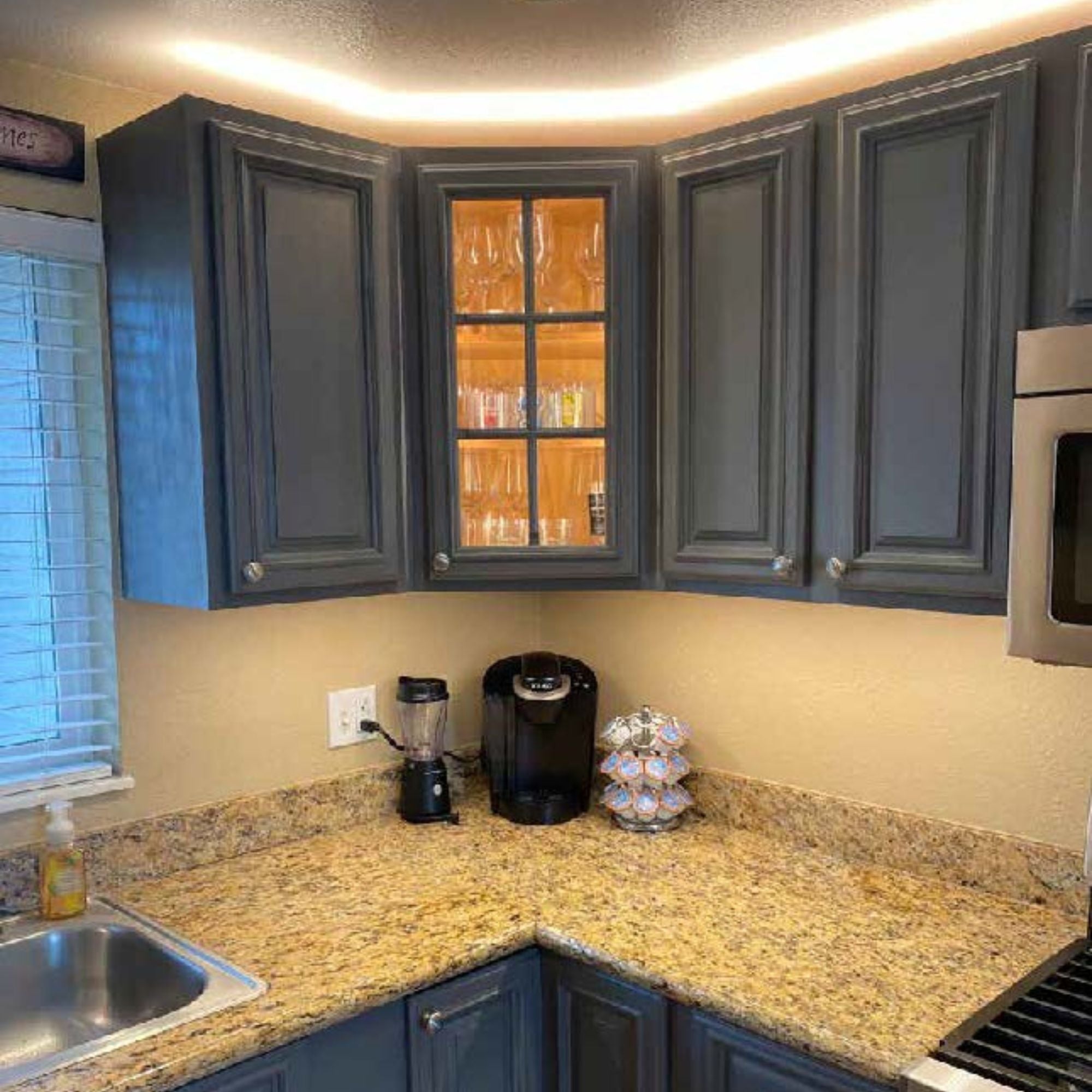

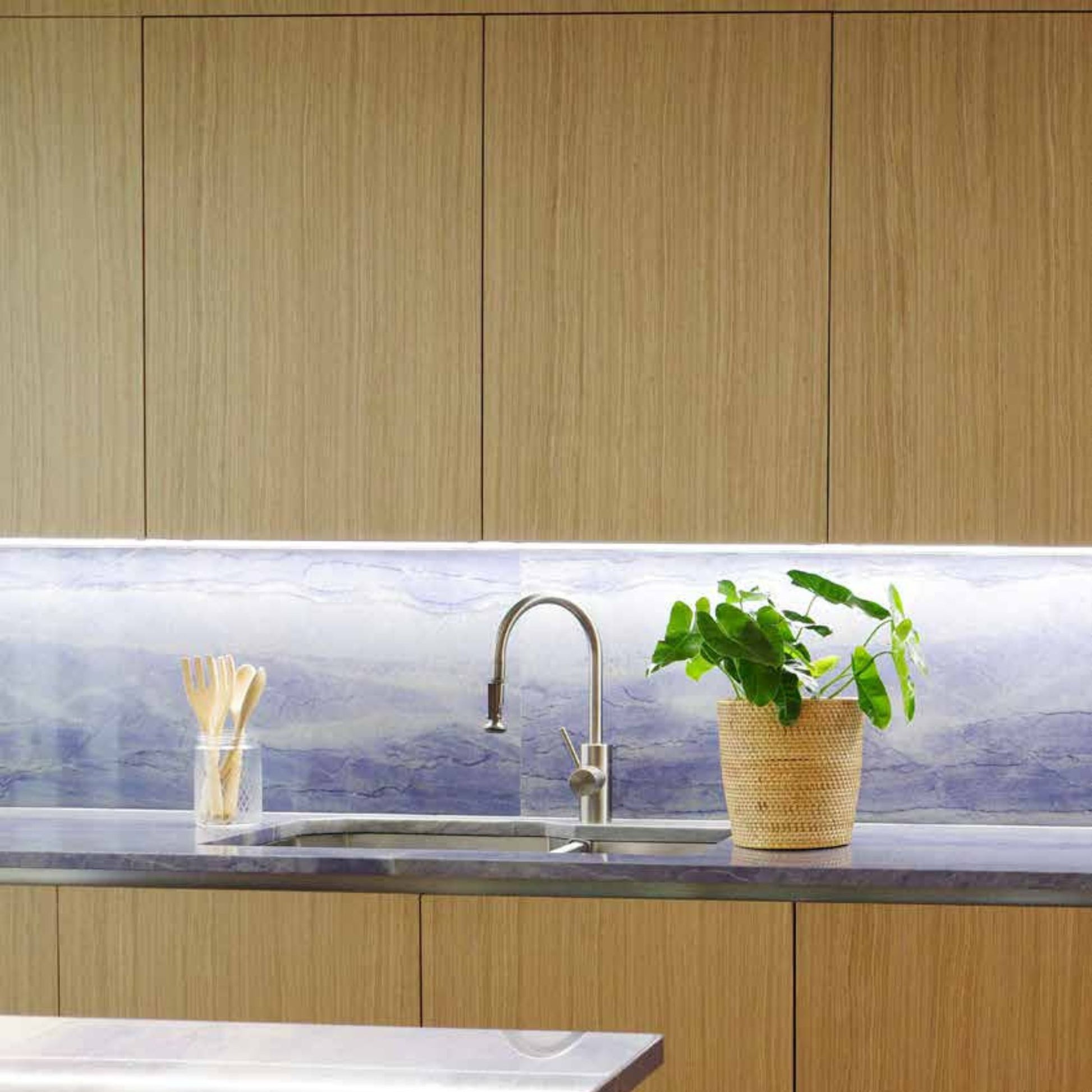

• Under kitchen cabinets
• Office workstations
• Retail display shelves
• Workshop benches
• Study areas

What's Included

• One UCTUN-EZ-1 connector
• One conduit fitting
• Captive mounting screws
