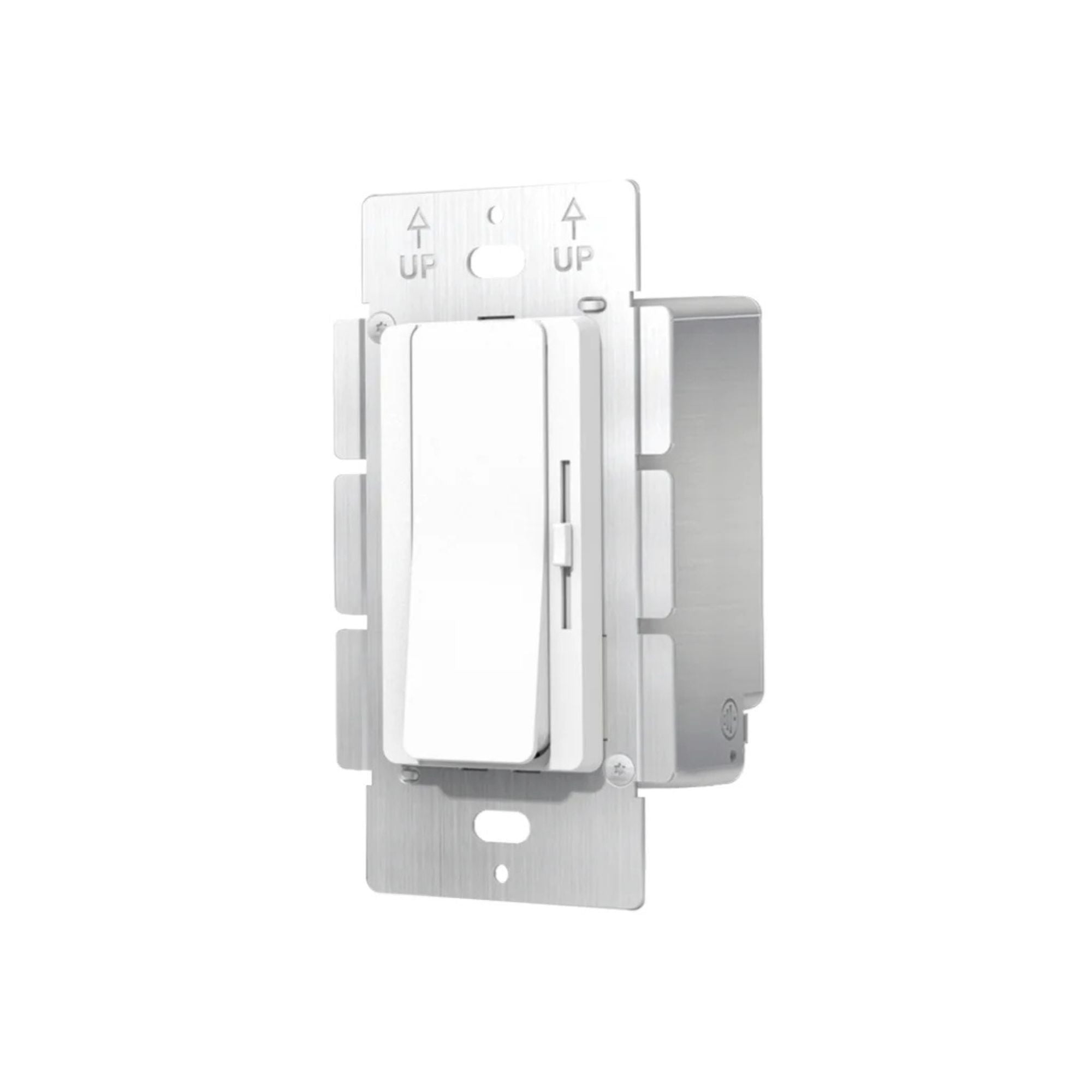

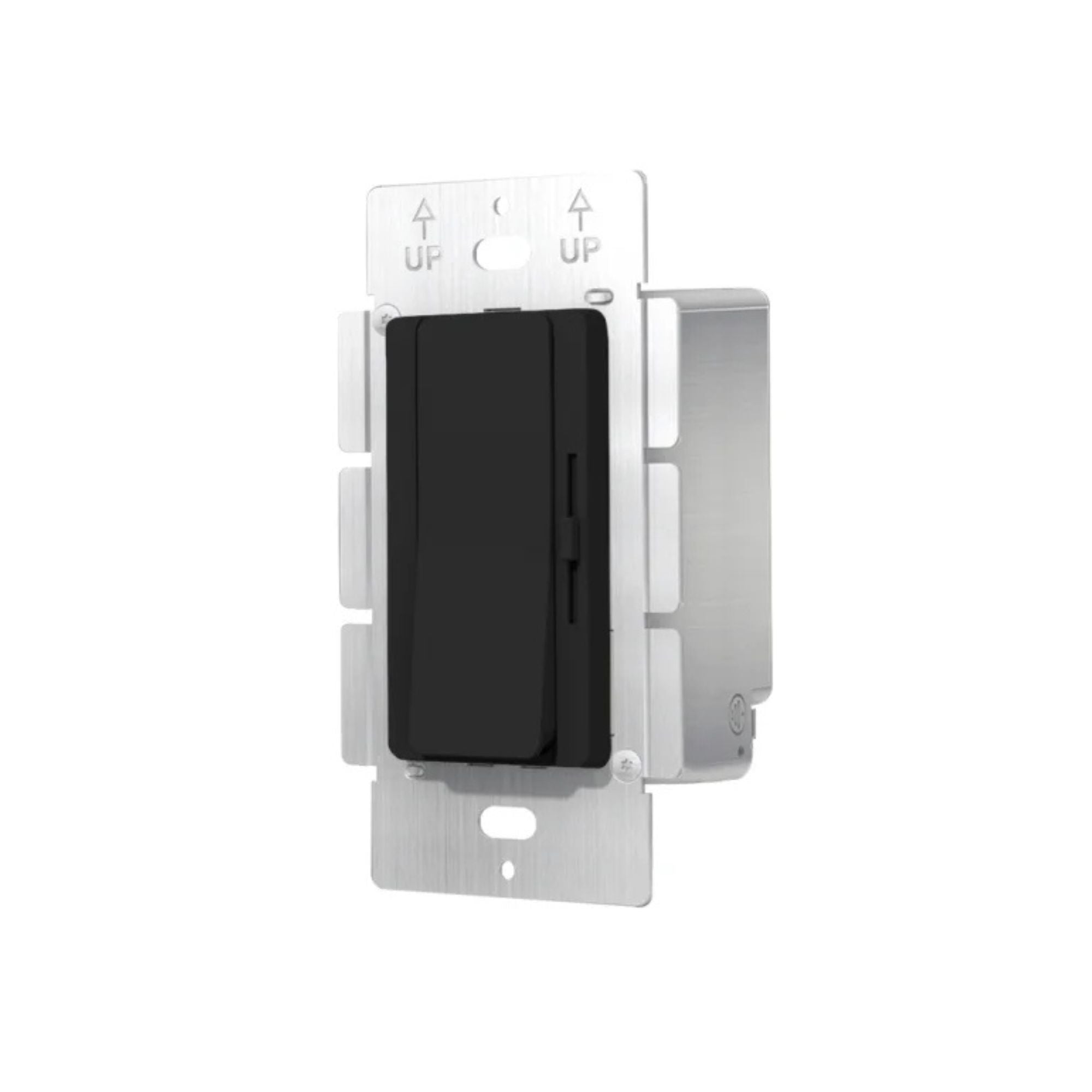

GM Lighting SwitchLD (Gen2) — LED Driver + Dimmer 2-in-1 Wall Switch
The GM Lighting SwitchLD (Gen2) combines a constant voltage LED driver and a smooth dimmer into a single wall switch unit. Available in 12VDC (60W) and 24VDC (60W or 96W) configurations, it converts 120VAC input directly at the wall — eliminating compatibility issues between separate drivers and dimmers. Fits standard single-gang electrical boxes and accepts standard Decorator wall plates in White, Almond, or Black.
Key Features
- Output Voltage/Power: 12VDC (60W) or 24VDC (60W / 96W) constant voltage output.
- Dimming Range: 100% to 0.3% smooth, deep dimming via 16kHz PWM — no external controls needed.
- Input Voltage: 120VAC, 60Hz — standard residential and commercial supply.
- Wiring Options: Single-pole or 3-way wiring supported.
- Enclosure: Compact 2-in-1 design fits standard single-gang electrical boxes.
- Protection: Hiccup-mode overload, short circuit, and over-temperature protection — all with automatic recovery.
- Efficiency: 90–91% at 120V; Power Factor 0.99.
- Safety: UL Class 2, Class P; FCC 47 CFR Part 15 Class B; Title 24 (JA8) compliant with compatible GM Lighting sources.
- Environment: IP20 rated — indoor dry and damp locations.
- Warranty: 5 Years.
Physical Design & Installation
The SwitchLD (Gen2) measures 2.035"D × 2.126"W × 4.134"H and mounts directly into a standard single-gang box. Switch plates fit standard Decorator wall plates (sold separately). Available in White, Almond, and Black to match your décor.
Dimming & Controls
A single 16kHz PWM output channel delivers flicker-free performance (per IEEE PAR1789) from full brightness down to 0.3%. No minimum load is required. Supports both single-pole and 3-way configurations for flexible room layouts.
Performance & Reliability
Rated for 30,000 hours at 90°C case temperature. Free air convection cooling with a polycarbonate and aluminum case. Refer to the derating curve for installations above 60°C ambient — derate load accordingly to maximize driver life.
Typical Applications
- Under-cabinet LED tape lighting
- Cove and accent lighting
- Residential LED strip installations
- Hospitality and commercial display lighting
- Wet/damp location architectural lighting
