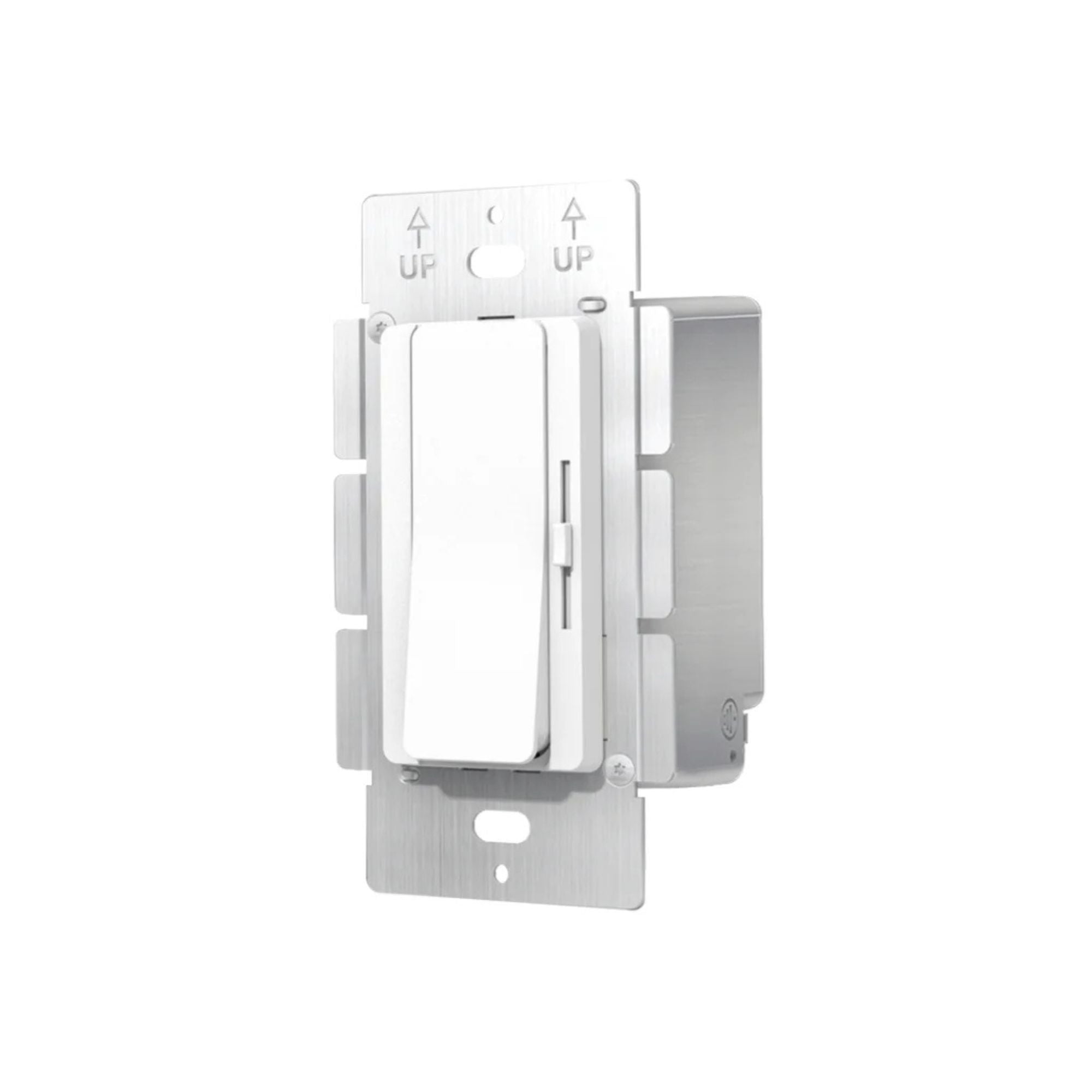

GM Lighting SWITCHLD (GEN2) 96W 24VDC LED Driver Integrated Dimmer White
In stock
About this item
About this item
- Output Power: 24VDC constant voltage output with a 96W maximum capacity.
- Integrated Dimming: Features a built-in dimmer providing smooth 100% to 0.3% deep dimming.
- Input Voltage: Designed for standard 120VAC 60Hz residential and commercial inputs.
- Enclosure Design: Compact 2-in-1 unit fits into standard single-gang electrical boxes.
- Safety Features: UL Class 2 rated with short circuit, over-voltage, and thermal protection.
We process payments securely and do not store credit card information.
Description
Description
GM Lighting SWITCHLD (GEN2) 96W LED Driver — 24VDC
The GM Lighting SWDD96W24VWH is a 96W LED Driver with 120V input, 24VDC Constant Voltage output, integrated dimming, Class 2 rating, and Integrated Junction Box design. This GM Lighting SWITCHLD (GEN2) unit combines a power supply and dimmer into one device, fitting standard single-gang boxes. It eliminates compatibility issues between drivers and switches while providing smooth 100% to 0.3% dimming for LED tape lights and other low-voltage sources.
Key Features
- Power: 96W Max Output
- Output Voltage: 24VDC
- Input Voltage: 120VAC, 60Hz
- Dimming Range: 100% to 0.3%
- Minimum Load: No minimum load required
- Dimensions: 4.13 in. L x 2.13 in. W x 2.04 in. H
- Enclosure: Fits single-gang electrical box
- Efficiency: 91% at 120V
- Certifications: UL Listed, Class 2, FCC Part 15 Class B
- Protection: Short circuit, overload, and over-temperature
Physical Design & Installation
The SWITCHLD GEN2 features a durable polycarbonate and aluminum housing designed to fit into standard single-gang electrical boxes. This Integrated Junction Box style unit simplifies installation by combining the driver and switch, fitting standard decorator-style wall plates for a clean, professional finish in any environment.
Dimming & Controls
This unit utilizes a 16kHz PWM output to provide flicker-free dimming from 100% down to 0.3%. It supports both single-pole and 3-way wiring configurations. Because the dimmer is integrated into the driver, there is no minimum load requirement, ensuring stable performance even with very short runs of LED tape.
Performance & Build
Engineered for reliability, the driver includes hiccup-mode overload protection, short circuit protection, and over-temperature surge protection with automatic recovery. It is Class 2 rated for safety and IP20 rated for indoor use, maintaining a high power factor of 0.99 and a life rating of 30,000 hours at maximum case temperature.
Typical Applications
- Under-cabinet LED lighting
- Cove and accent tape lighting
- Residential kitchen and bath renovations
- Commercial display and task lighting
