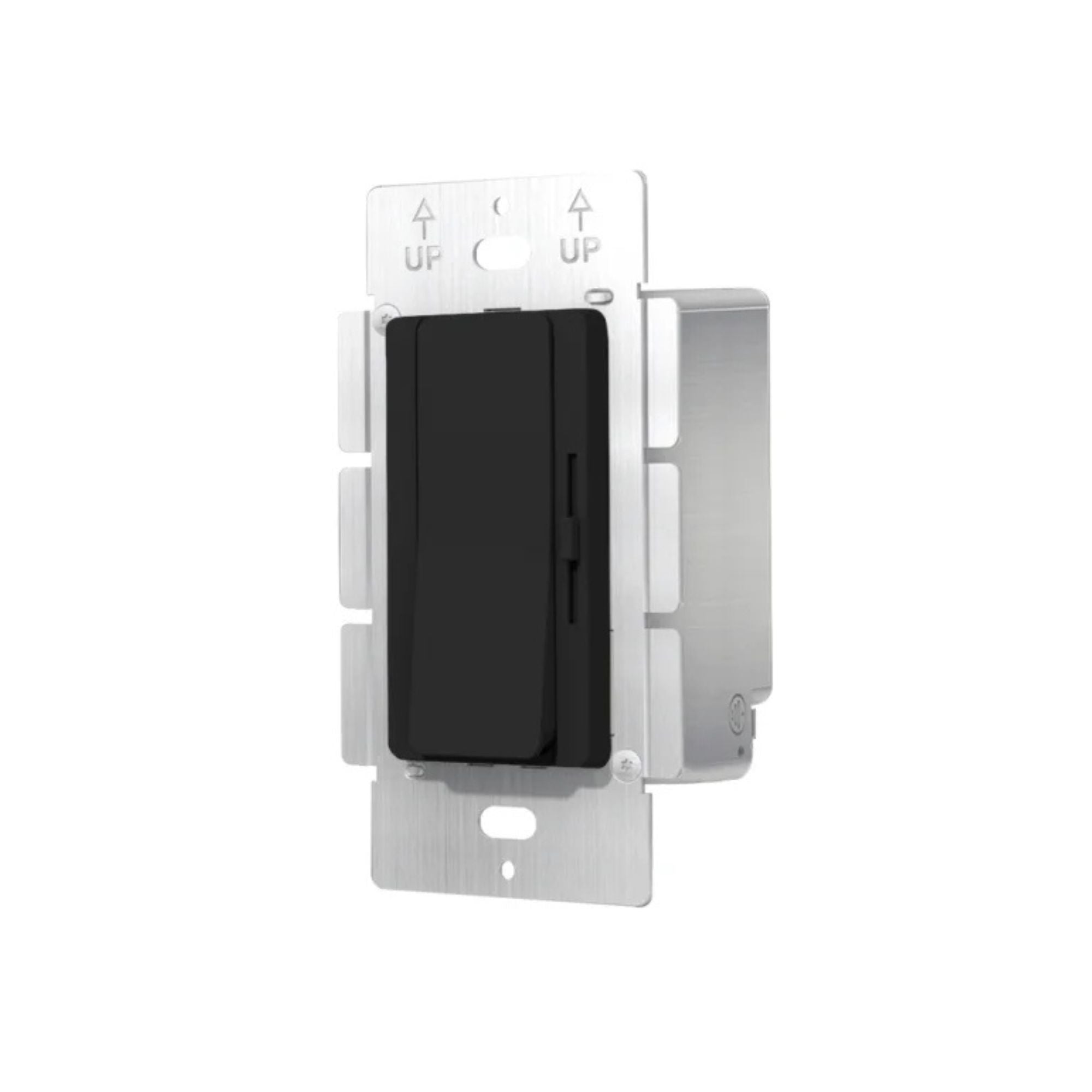

GM Lighting SWITCHLD GEN2 96W 24VDC LED Driver PWM Dimming Black
In stock
About this item
About this item
- Output Voltage and Power: Provides a stable 24VDC constant voltage output with a maximum capacity of 96W.
- Integrated Dimming: Features built-in PWM dimming from 100% down to 0.3% for smooth, flicker-free light control.
- Input Voltage: Designed for standard 120VAC 60Hz input, making it ideal for residential and commercial applications.
- Enclosure Design: Fits into standard single gang electrical boxes and features a sleek black decorator-style finish.
- Safety Protections: Equipped with short circuit, overload, and over-temperature protection with automatic recovery.
We process payments securely and do not store credit card information.
Description
Description
GM Lighting SWITCHLD GEN2 96W LED Driver — 24VDC
The GM Lighting SWDD96W24VBK is a 96W LED Driver and dimmer switch providing 24VDC Constant Voltage output from a 120V input. This Class 2 unit features an Integrated Junction Box compatible design for single gang installations. This 2-in-1 solution simplifies LED installations by combining the power supply and control interface into one device, eliminating flicker and compatibility concerns. This unit provides a maximum of 96W at 24VDC and is housed in a durable polycarbonate and aluminum case with a black finish.
Key Features
- Max Output Power: 96W
- Output Voltage: 24VDC
- Input Voltage: 120VAC, 60Hz
- Dimming Range: 100% to 0.3% PWM
- Minimum Load: No minimum load required
- Dimensions: 4.13 in. L x 2.13 in. W x 2.04 in. H
- Enclosure Type: Fits Single Gang Electrical Box
- Safety Rating: Class 2, IP20 Rated
- Efficiency: 91% at 120V
- Certifications: UL Listed, RoHS, Title 24 JA8
Physical Design & Installation
The SWITCHLD GEN2 features a compact design constructed from polycarbonate and aluminum, specifically engineered to fit into standard single gang electrical boxes which serve as the integrated junction box for wiring. The black finish and decorator-style interface allow it to blend seamlessly with modern interiors. It includes 6-inch 18AWG wire leads for straightforward wiring.
Dimming & Controls
This unit utilizes high-frequency 16kHz PWM dimming to provide smooth, flicker-free control from 100% down to 0.3%. It supports both single pole and 3-way wiring configurations. Because the driver is integrated with the dimmer, there is no need for external dimming modules or compatibility testing. There is no minimum load requirement for this driver, ensuring stable performance even with low-wattage LED loads.
Performance & Build
Built for reliability, the driver includes comprehensive protection features such as hiccup-mode overload protection, short circuit protection with auto-recovery, and over-temperature surge protection. It is UL Class 2 compliant and IP20 rated for indoor use, maintaining a high power factor of 0.99 and a life rating of 30,000 hours at maximum case temperature.
Typical Applications
- Under cabinet LED tape lighting
- Cove and accent lighting
- Residential LED strip installations
- Commercial display lighting
Specifications
