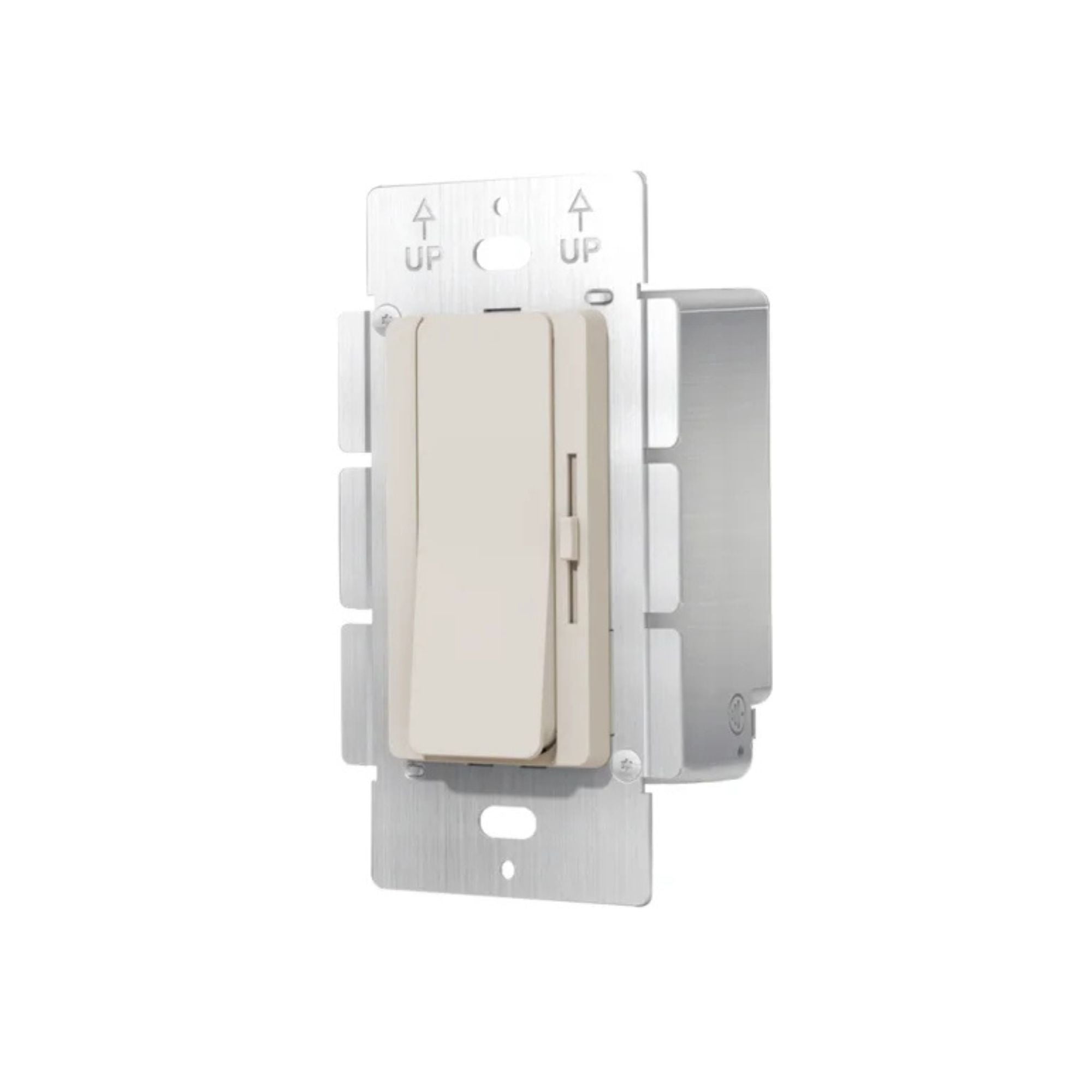

GM Lighting SwitchLD Gen2 60W 24VDC LED Driver Integrated Dimmer, Almond
In stock
About this item
About this item
- Output Power: 60W at 24VDC Constant Voltage output.
- Dimming Protocol: Integrated 100% to 0.3% smooth PWM dimming.
- Input Voltage: 120VAC 60Hz for direct line voltage connection.
- Enclosure Type: Compact design fits standard single-gang electrical boxes.
- Safety Features: Built-in short circuit, overload, and over-temperature protection.
We process payments securely and do not store credit card information.
Description
Description
GM Lighting SwitchLD Gen2 60W LED Driver — 24VDC
The GM Lighting SWDD60W24VAL is a revolutionary 2-in-1 LED Driver and dimmer switch designed for seamless control of 24VDC Constant Voltage light sources. This 60W unit eliminates compatibility issues by combining a high-efficiency power supply with a smooth dimmer that fits into a standard Integrated Junction Box or single-gang electrical wall box.
Key Features
- Power: 60W Max Output
- Input Voltage: 120VAC, 60Hz
- Output Voltage: 24VDC
- Dimming Range: 100% to 0.3%
- Minimum Load: No minimum load requirement

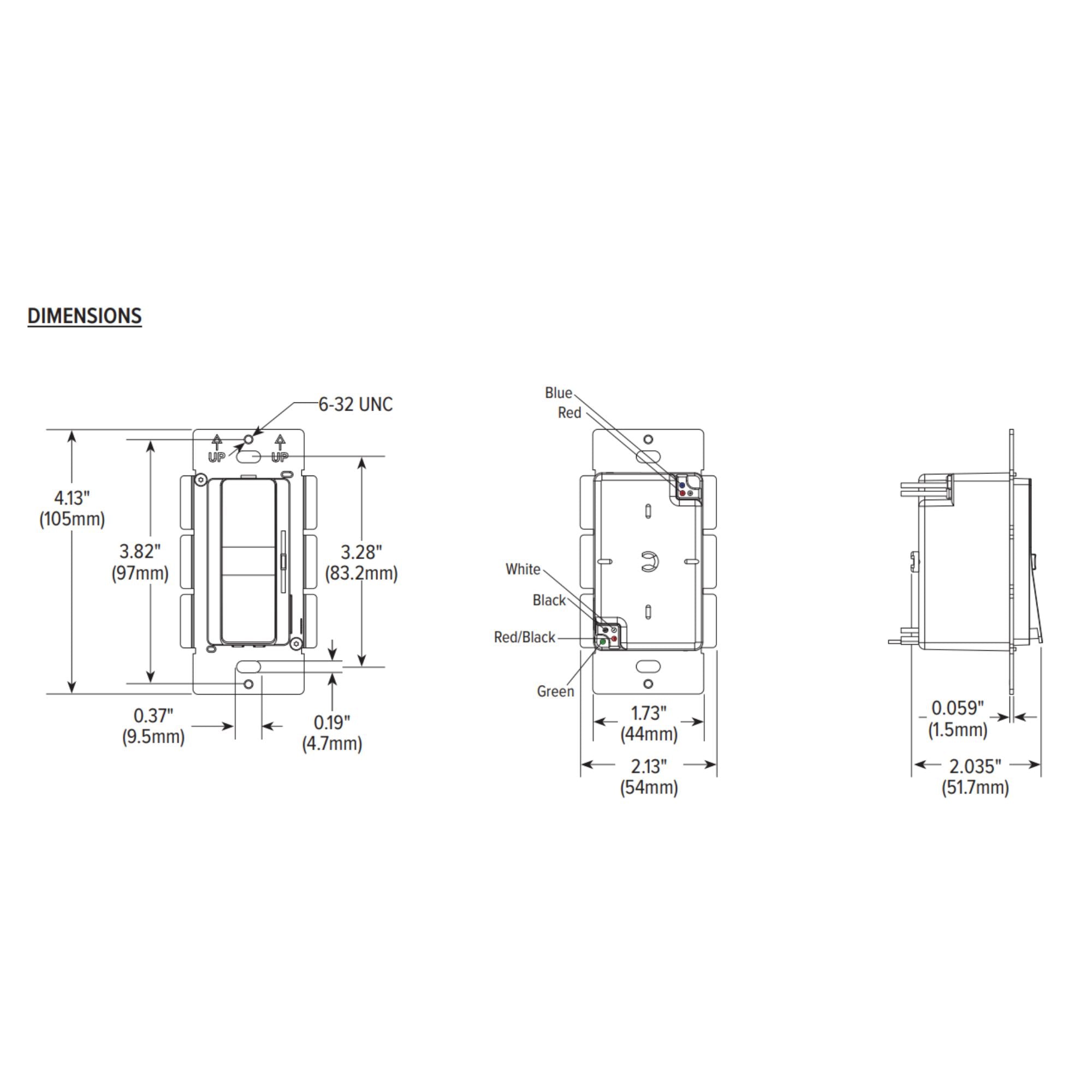

- Dimensions: 4.13 in. L x 2.13 in. W x 2.04 in. H
- Enclosure Type: Single-gang wall box compatible
- Certifications: UL Class 2 and Class P
Physical Design & Installation

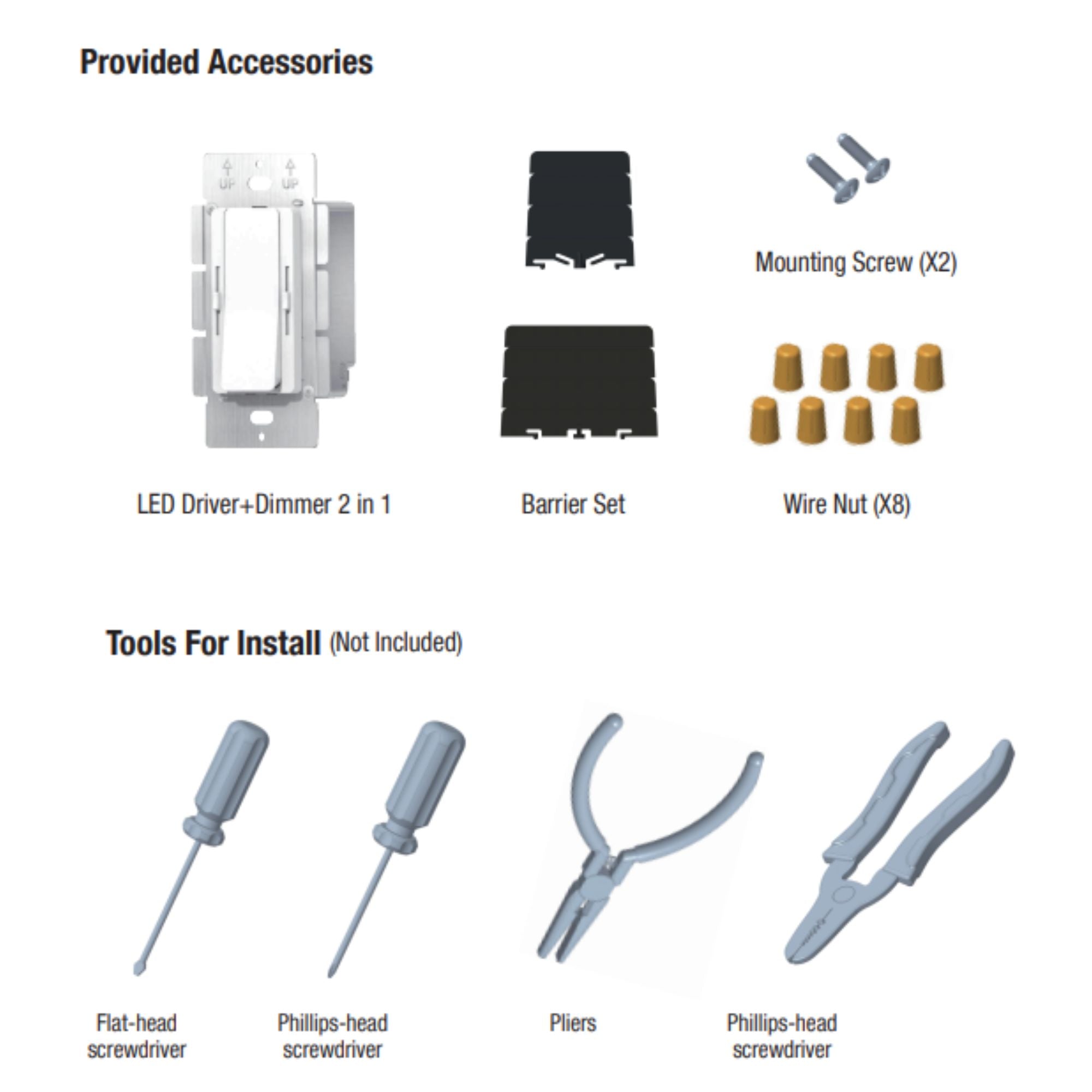

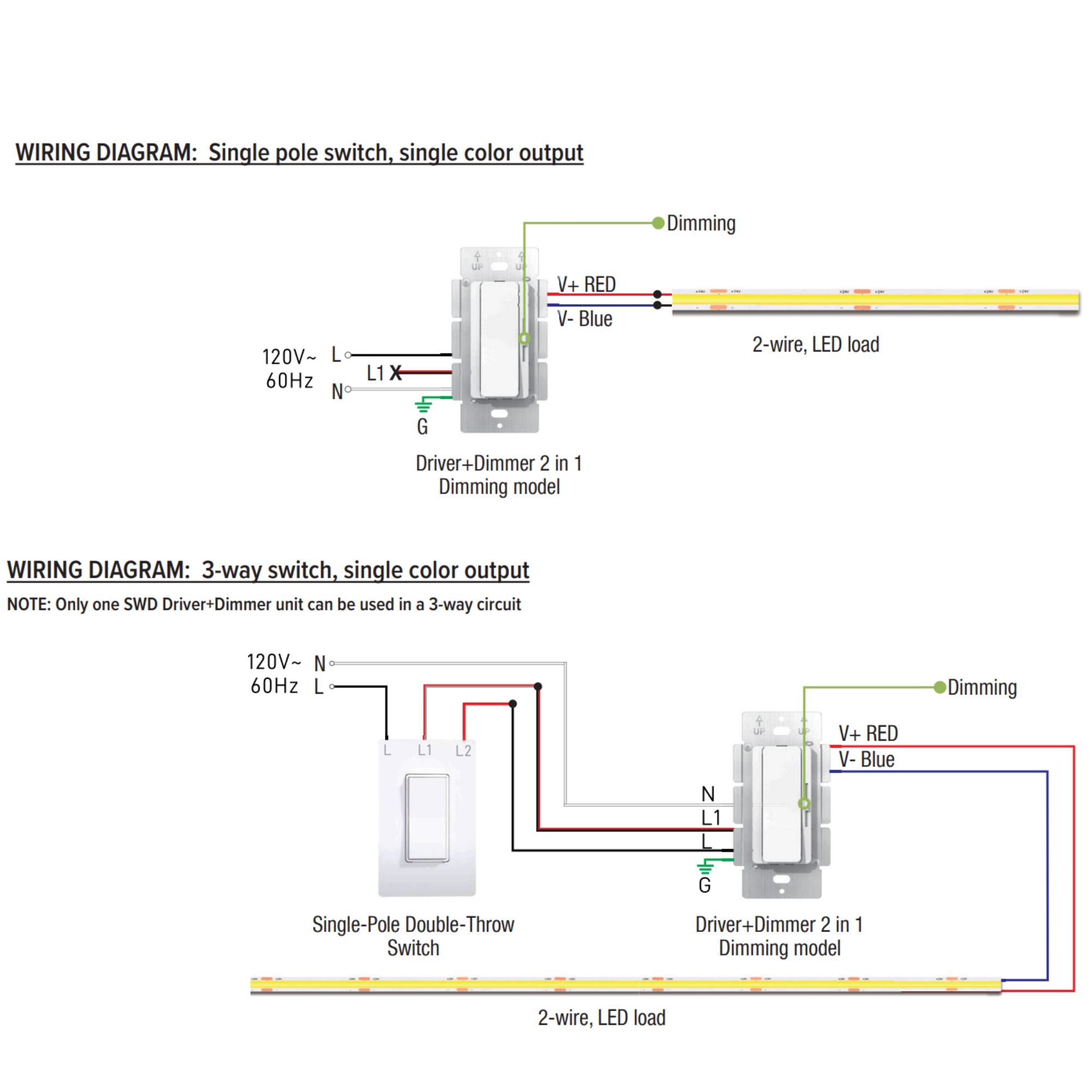

Constructed from polycarbonate and aluminum, this unit is designed to fit standard decorator wall plates. It features 6 in. 18AWG wire leads for straightforward installation in single-pole or 3-way wiring configurations within a standard electrical box.
Dimming & Controls
Utilizing 16kHz PWM technology, the integrated dimmer provides flicker-free performance across the entire 100% to 0.3% range. It requires no minimum load for stable operation, making it ideal for small accent lighting runs and varied tape light lengths.
Performance & Build
This Class 2 rated driver includes hiccup-mode overload protection, short circuit surge protection, and over-temperature safeguards. It is IP20 rated for indoor dry and damp locations with a 30,000-hour life rating at maximum case temperature.
Typical Applications
- Under-cabinet lighting
- LED tape light installations
- Cove and accent lighting
- Residential and commercial task lighting
Specifications
Specifications
Dimensions
Documents
Style & Materials
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Does the SWDD60W24VAL require a minimum load for dimming?
Does the SWDD60W24VAL require a minimum load for dimming?
What is the dimming range of this GM Lighting SwitchLD unit?
What is the dimming range of this GM Lighting SwitchLD unit?
Can this driver be used in a 3-way switch setup?
Can this driver be used in a 3-way switch setup?
What type of enclosure or box is required for this driver?
What type of enclosure or box is required for this driver?
What is the input voltage requirement for the SWDD60W24VAL?
What is the input voltage requirement for the SWDD60W24VAL?
