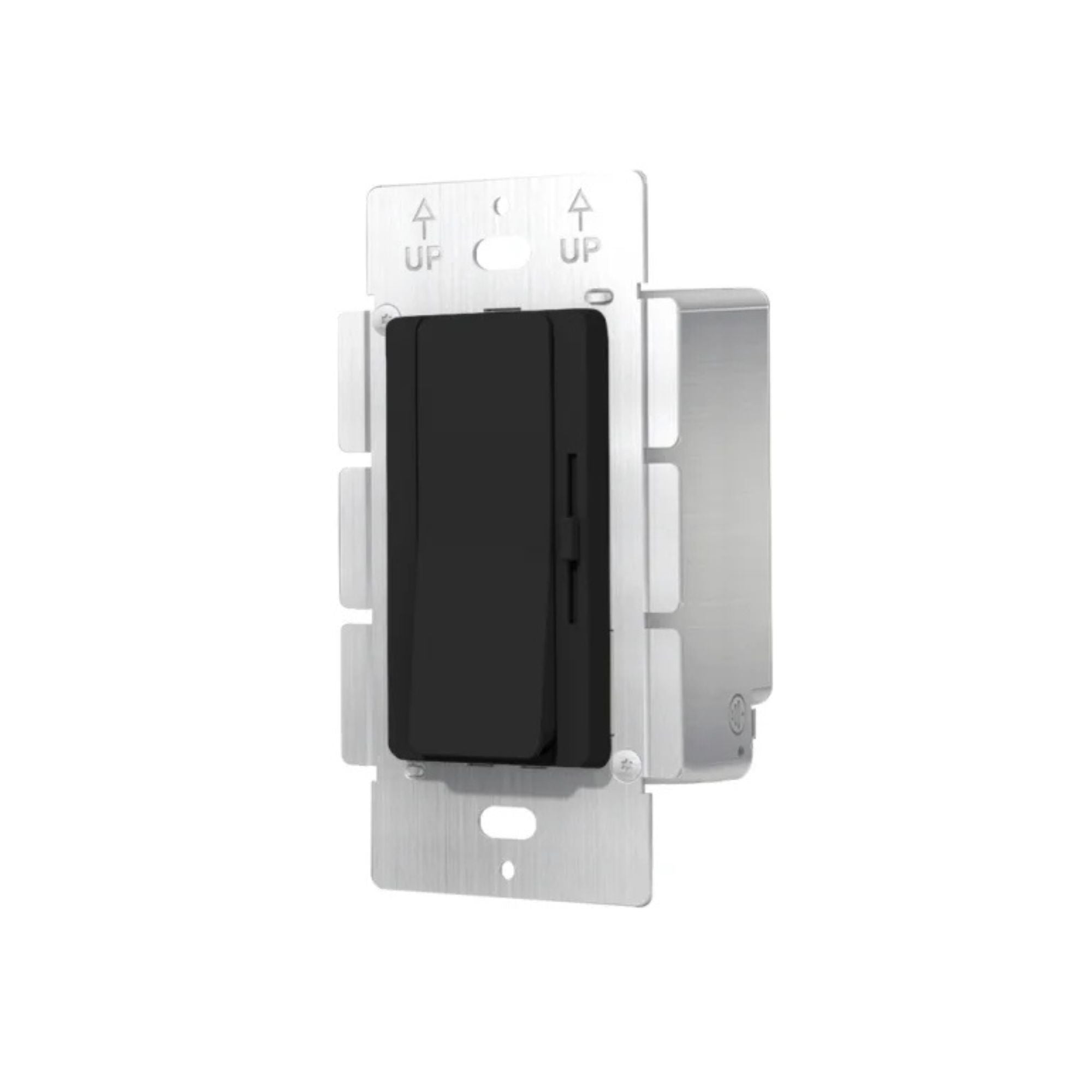

GM Lighting SWITCHLD GEN2 60W 12VDC LED Driver PWM Dimming Black
In stock
About this item
About this item
- Output Power: 60W capacity providing a stable 12VDC constant voltage output for LED tape and fixtures.
- Integrated Dimming: Features a built-in dimmer providing smooth, flicker-free PWM dimming from 100% down to 0.3%.
- Input Voltage: Optimized for standard 120VAC 60Hz residential and commercial electrical systems.
- Compact Enclosure: Designed to fit within a standard single-gang electrical box for a clean, professional finish.
- Safety Protections: Includes built-in short circuit, over-voltage, and thermal protection with automatic recovery.
We process payments securely and do not store credit card information.
Description
Description
GM Lighting SWITCHLD GEN2 60W LED Driver — 12VDC
The GM Lighting SWDD60W12VBK is a high-performance 60W LED Driver and dimmer in one unit. It converts 120VAC input to 12VDC Constant Voltage output with a Class 2 rating. Designed to fit a single-gang wall box, it functions as an Integrated Junction Box for streamlined installation. This black finish unit eliminates compatibility issues between external drivers and dimmers by combining them into a single, reliable device.
Key Features
- Power: 60W
- Input Voltage: 120VAC, 60Hz
- Output Voltage: 12VDC
- Dimming: 100% - 0.3% PWM
- Minimum Load: No minimum load
- Dimensions: 4.13 in. L x 2.13 in. W x 2.04 in. H
- Enclosure Type: Single Gang Wall Box Mount
- IP Rating: IP20
- Class 2: Yes
- Certifications: UL Listed, Title 24 Compliant, RoHS
Physical Design & Installation
The SWDD60W12VBK is constructed from durable polycarbonate and aluminum, designed to fit into standard single-gang electrical boxes. This design allows it to serve as an integrated junction box, simplifying the wiring process by housing the power supply and control interface in one location. It is compatible with standard decorator-style wall plates for a seamless aesthetic integration.
Dimming & Controls
This unit utilizes high-frequency 16kHz PWM dimming to provide a smooth range from 100% down to 0.3%. It supports both single-pole and 3-way wiring configurations, offering flexibility for various room layouts. With no minimum load requirement, it ensures flicker-free performance even at the lowest light levels, making it ideal for precise atmosphere control.
Performance & Build
Engineered for reliability, this driver includes comprehensive protection circuitry including hiccup-mode overload surge protection, short circuit protection, and over-temperature surge protection. It is UL Class 2 rated for low voltage output safety and is rated for indoor dry and damp locations with an IP20 enclosure rating. The unit is designed for free air convection cooling and can operate in ambient temperatures up to 140 degrees F.
Typical Applications
- Under-cabinet LED lighting
- Cove and accent lighting
- Residential LED tape installations
- Commercial display lighting
