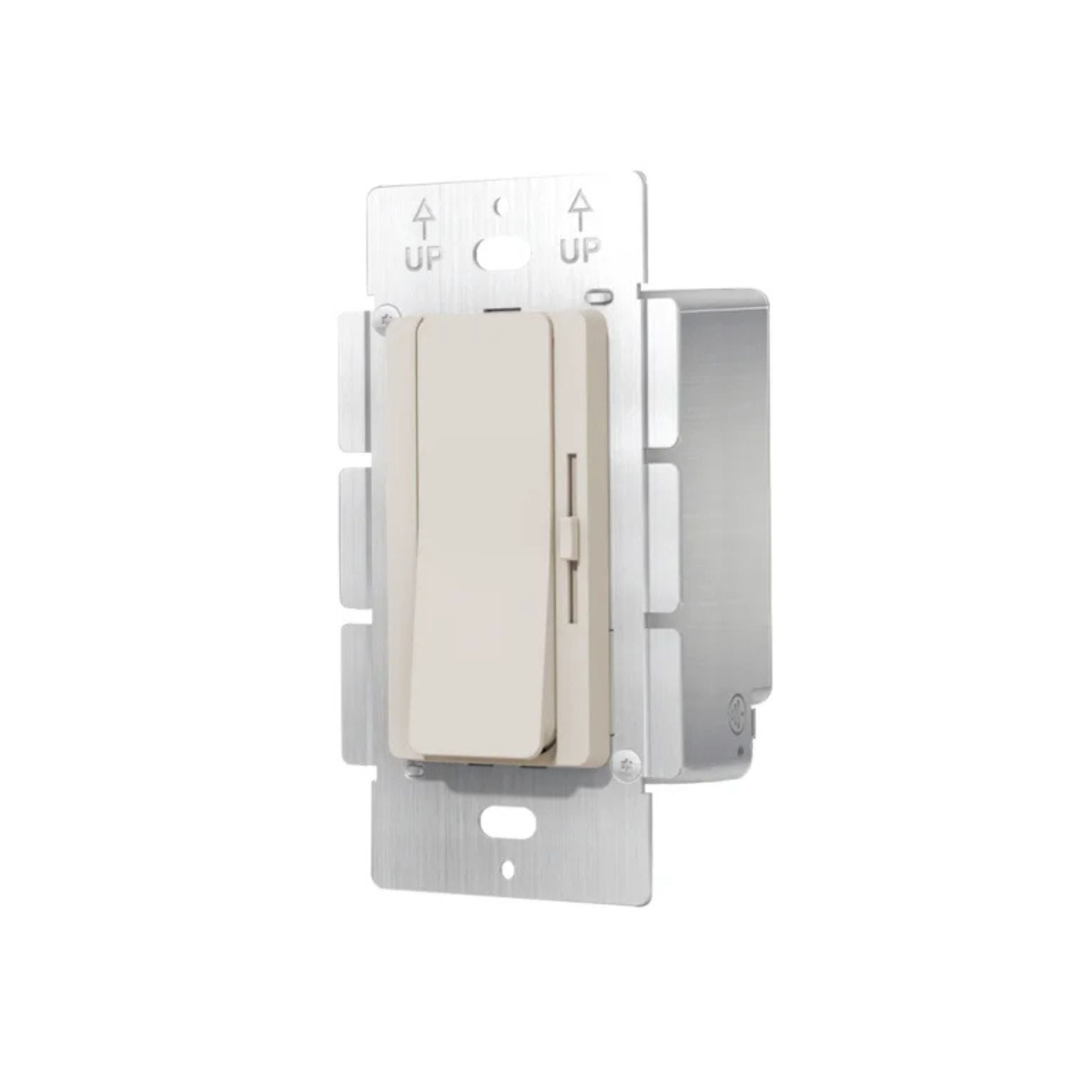

GM Lighting SwitchLD Gen 2 60W 12VDC LED Driver and Dimmer Switch Almond
In stock
About this item
About this item
- Output Power: Delivers 60W of 12VDC constant voltage power for LED lighting systems.
- Integrated Dimming: Features a built-in dimmer providing smooth 100% to 0.3% deep dimming control.
- Input Voltage: Optimized for standard 120VAC 60Hz residential and commercial circuits.
- Compact Enclosure: Designed to fit into standard single-gang electrical boxes for a clean installation.
- Circuit Protection: Built-in short circuit, over-voltage, and thermal protection for long-term reliability.
We process payments securely and do not store credit card information.
Description
Description
GM Lighting SwitchLD 60W LED Driver — 12VDC
The GM Lighting SWDD60W12VAL is a 60W LED Driver and dimmer switch providing 12VDC Constant Voltage from 120V input with 0.3% dimming and Class 2 rating. This innovative 2-in-1 solution fits directly into a standard single-gang electrical box, eliminating the need for a separate remote driver and wall dimmer. By combining these components, it removes compatibility issues and simplifies the installation process for contractors and homeowners alike.
Key Features
- Power Output: 60W
- Output Voltage: 12VDC
- Input Voltage: 120VAC, 60Hz
- Dimming Range: 100% to 0.3%
- Minimum Load: No minimum load
- Dimensions: 4.13 in. L x 2.13 in. W x 2.04 in. H
- Enclosure: Fits single-gang electrical boxes
- Rating: Class 2 and IP20 rated
- Certifications: UL Listed and Title 24 compliant
Physical Design & Installation
The unit features a durable polycarbonate and aluminum case finished in light almond to match modern interiors. It is designed to fit standard decorator-style wall plates and installs easily into single-gang electrical boxes. The integrated design includes 6 inch 18AWG wire leads for straightforward connection to line voltage and low voltage LED loads.
Dimming & Controls
This Gen 2 SwitchLD provides exceptional control with a dimming range from 100% down to 0.3%. It supports both single pole and 3-way wiring configurations, offering flexibility for various room layouts. Because it is a combined unit, there is no minimum load requirement, ensuring flicker-free performance even at the lowest light levels.
Performance & Build
Engineered for safety and longevity, the driver includes hiccup-mode overload protection, short circuit protection, and over-temperature surge protection. It is UL Class 2 rated for low voltage output and is IP20 rated for indoor dry and damp locations. The flicker-free operation complies with IEEE PAR1789 standards for eye comfort.
Typical Applications
- Under-cabinet LED lighting
- Cove and accent lighting
- Residential LED tape light installations
- Commercial display lighting
Specifications
Specifications
Dimensions
Documents
Style & Materials
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Does the SWDD60W12VAL require a minimum load for dimming?
Does the SWDD60W12VAL require a minimum load for dimming?
What is the input voltage requirement for this unit?
What is the input voltage requirement for this unit?
Can I use this switch in a 3-way circuit?
Can I use this switch in a 3-way circuit?
What type of electrical box is required for installation?
What type of electrical box is required for installation?
Is this driver rated for use in bathrooms or kitchens?
Is this driver rated for use in bathrooms or kitchens?
