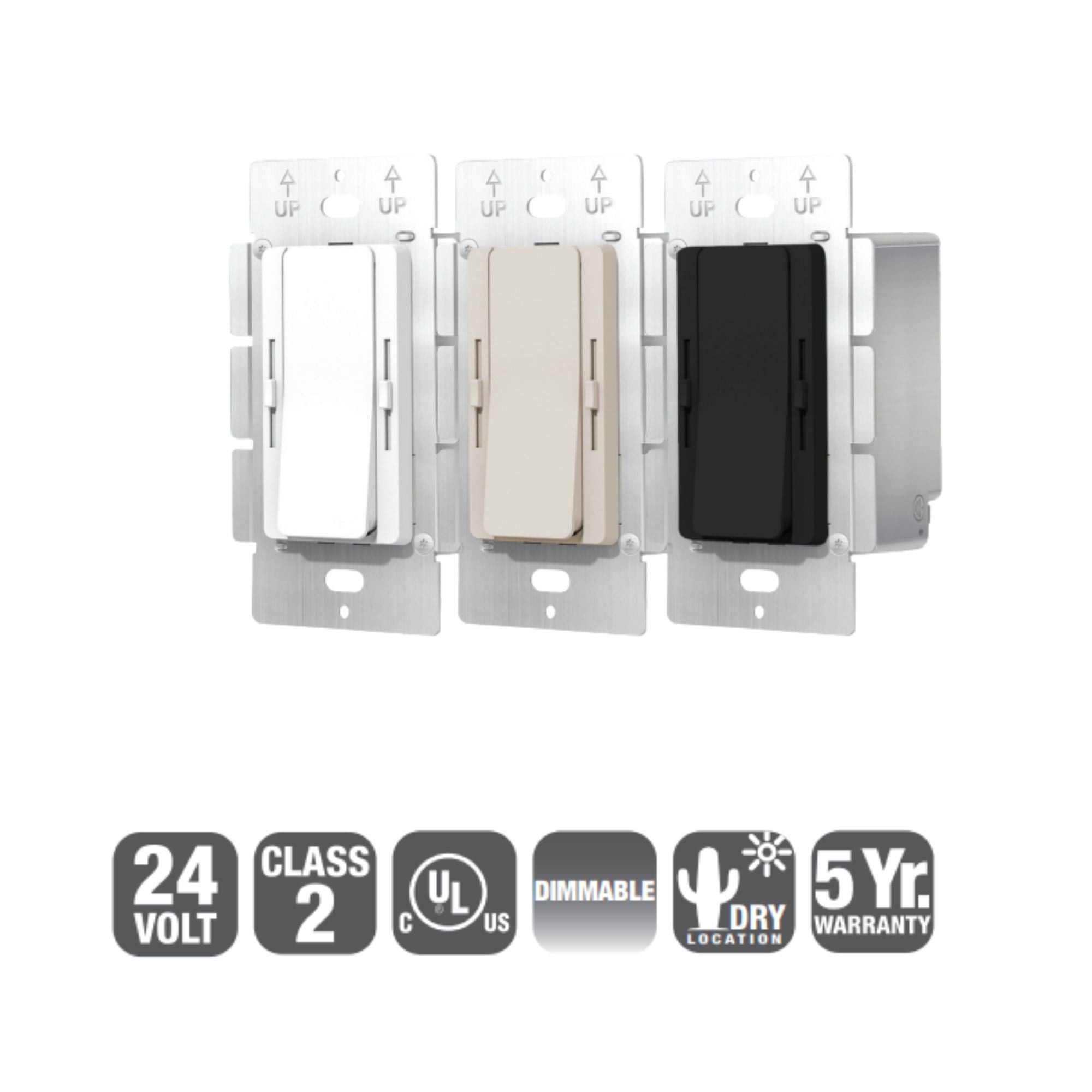

GM Lighting SwitchLD Gen 2 96W 24VDC LED Driver Integrated CCT Dimming Almond
In stock
About this item
About this item
- Output Power: Delivers 96W of 24VDC constant voltage power for tunable CCT LED sources.
- Integrated Dimming: Features smooth 100% to 0.3% deep dimming and color tuning in a single unit.
- Input Voltage: Optimized for standard 120VAC 60Hz residential and commercial circuits.
- Compact Enclosure: Designed to fit standard single-gang electrical boxes with an Almond finish.
- Safety Protections: Includes built-in short circuit, over-voltage, and thermal protection for reliability.
We process payments securely and do not store credit card information.
Description
Description
GM Lighting SwitchLD Gen 2 96W LED Driver — 24VDC
The GM Lighting SWDC96W24VAL is a 96W LED Driver and dimmer switch in one, providing a 24VDC Constant Voltage output. This Class 2 rated unit fits into a standard single-gang electrical box and features an Almond finish. It eliminates compatibility issues between drivers and dimmers by combining them into a single, high-performance device for tunable white applications.
Key Features
- Max Output Power: 96W
- Input Voltage: 120VAC, 60Hz
- Output Voltage: 24VDC
- Dimming Range: 100% to 0.3%
- Minimum Load: No minimum load requirement

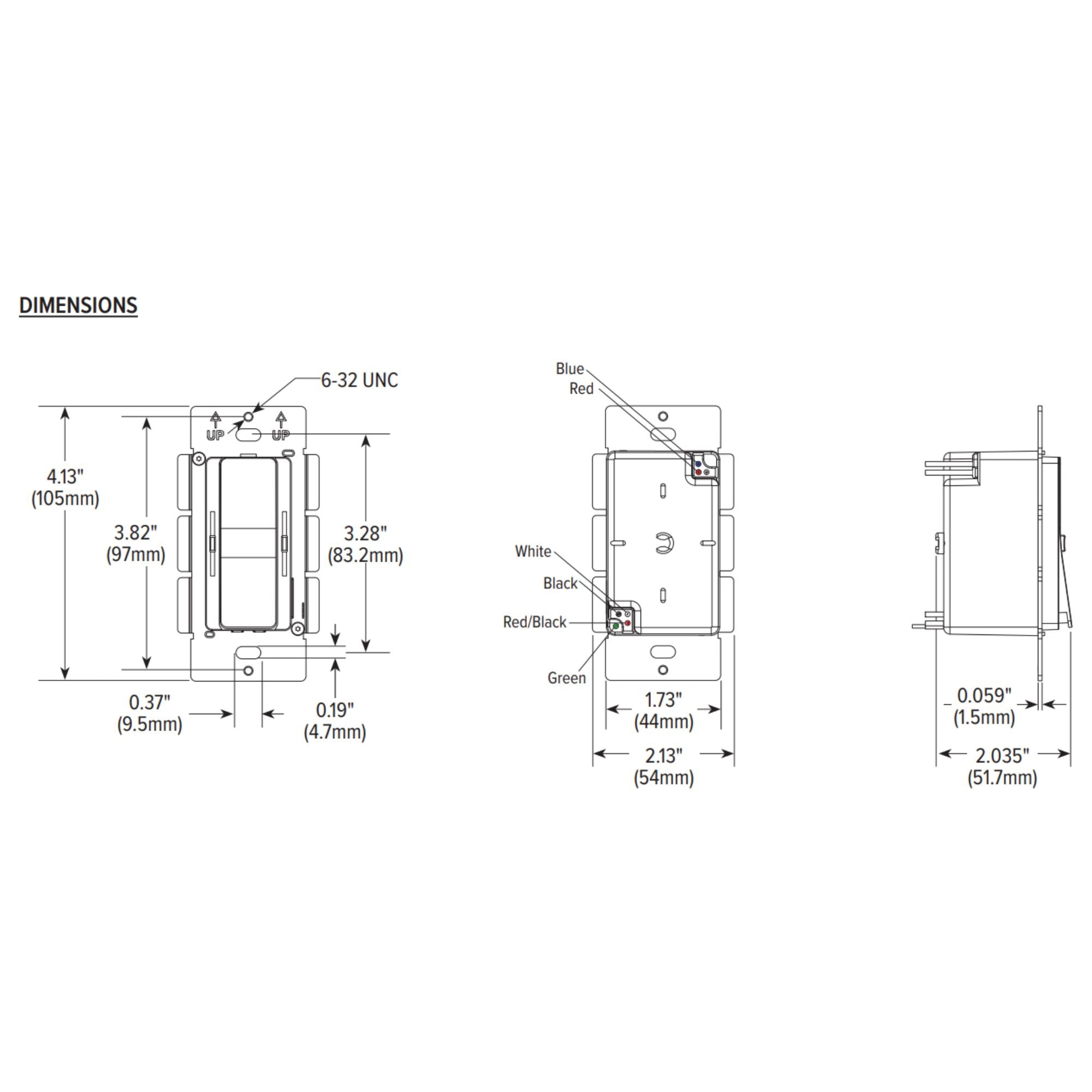

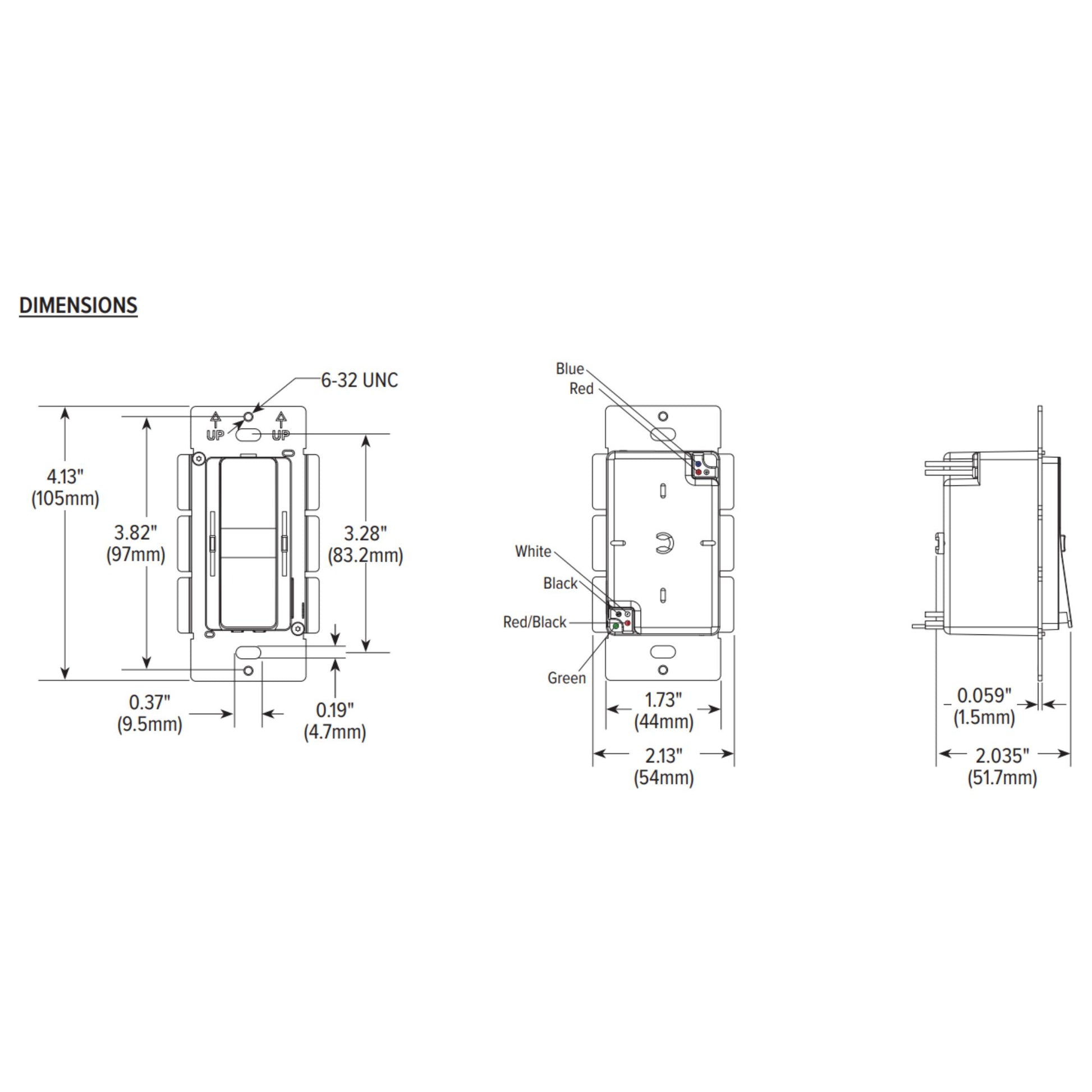

- Dimensions: 4.13 in. L x 2.13 in. W x 2.04 in. H
- Enclosure Type: Single-gang wall switch
- IP Rating: IP20 Rated
- Class Rating: Class 2
- Certifications: UL Listed, RoHS, Title 24 Compliant
Physical Design & Installation
Constructed with a polycarbonate and aluminum case, this unit is designed to fit into standard single-gang electrical boxes. The Almond switch plate fits standard decorator wall plates, making it an ideal choice for clean, professional installations without the need for remote driver housing.
Dimming & Controls

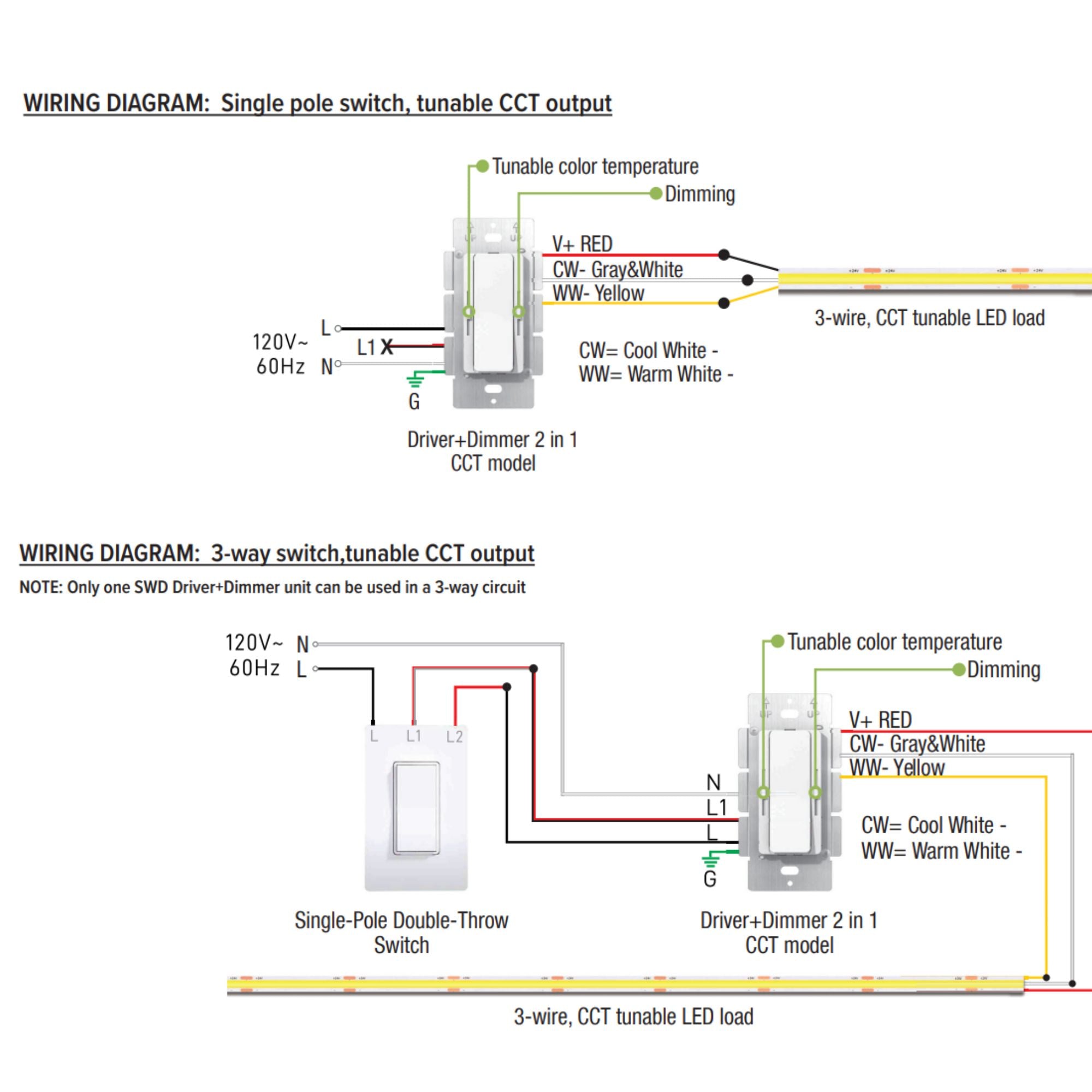

The SwitchLD Gen 2 provides 2-channel/3-wire CCT tuning with a smooth dimming range from 100% down to 0.3%. It supports single-pole or 3-way wiring options and requires no minimum load for flicker-free operation across the entire dimming spectrum.
Performance & Build
This driver is engineered for longevity with a 30,000-hour life rating at 90 degrees Celsius case temperature. It features hiccup-mode overload protection, short circuit surge protection, and over-temperature surge protection to ensure safe operation in dry and damp locations.
Typical Applications
- Residential CCT tunable lighting
- Commercial retail displays
- Hospitality accent lighting
