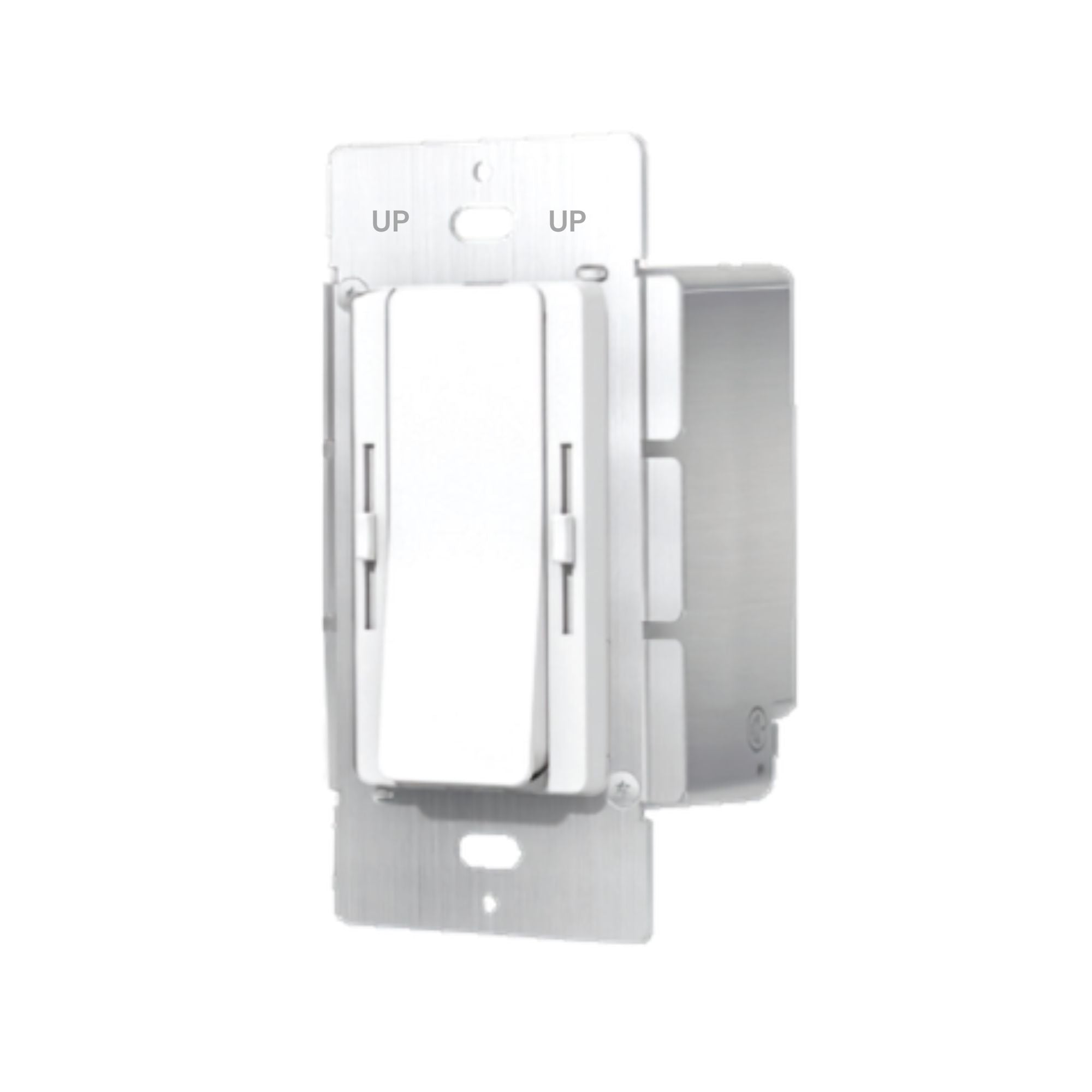

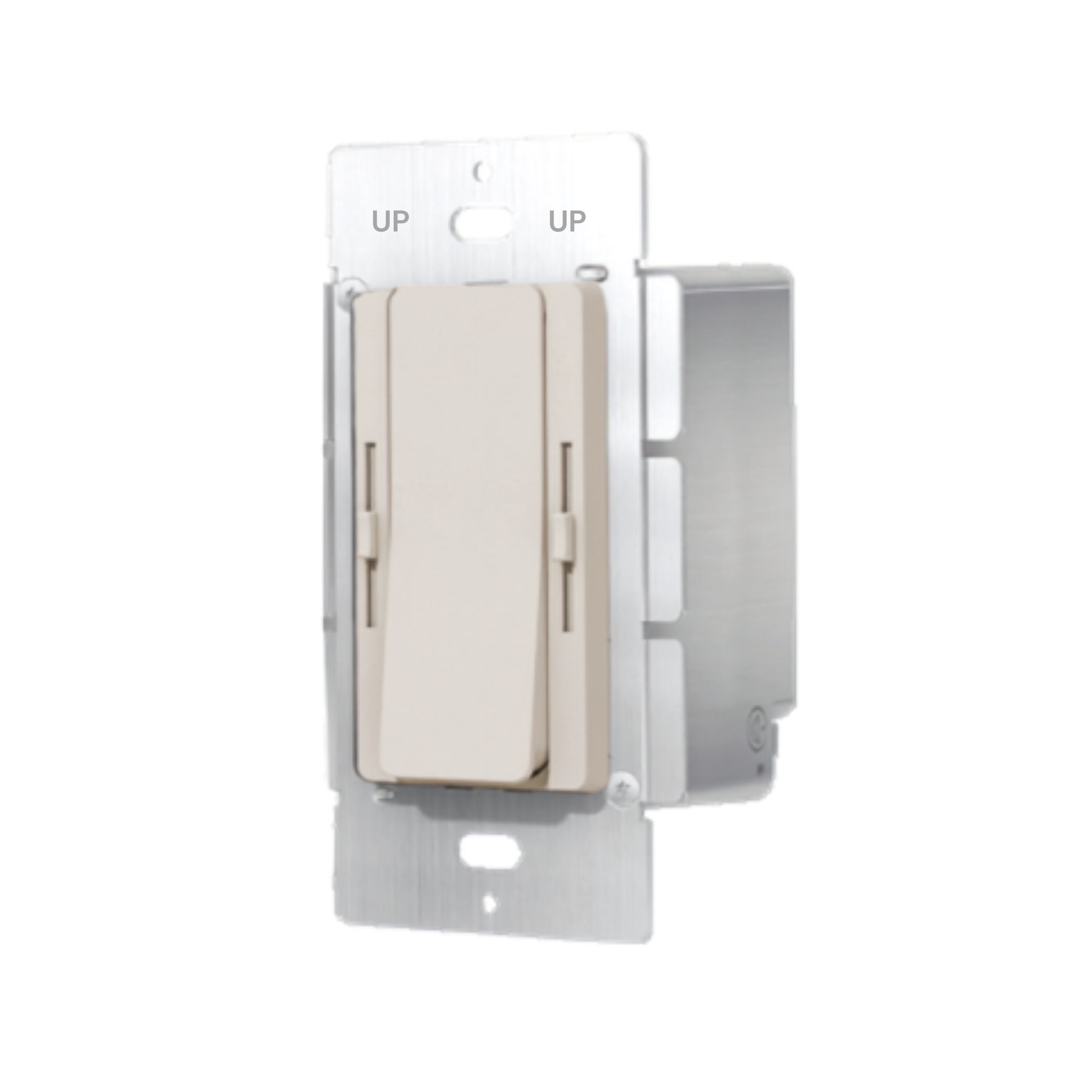

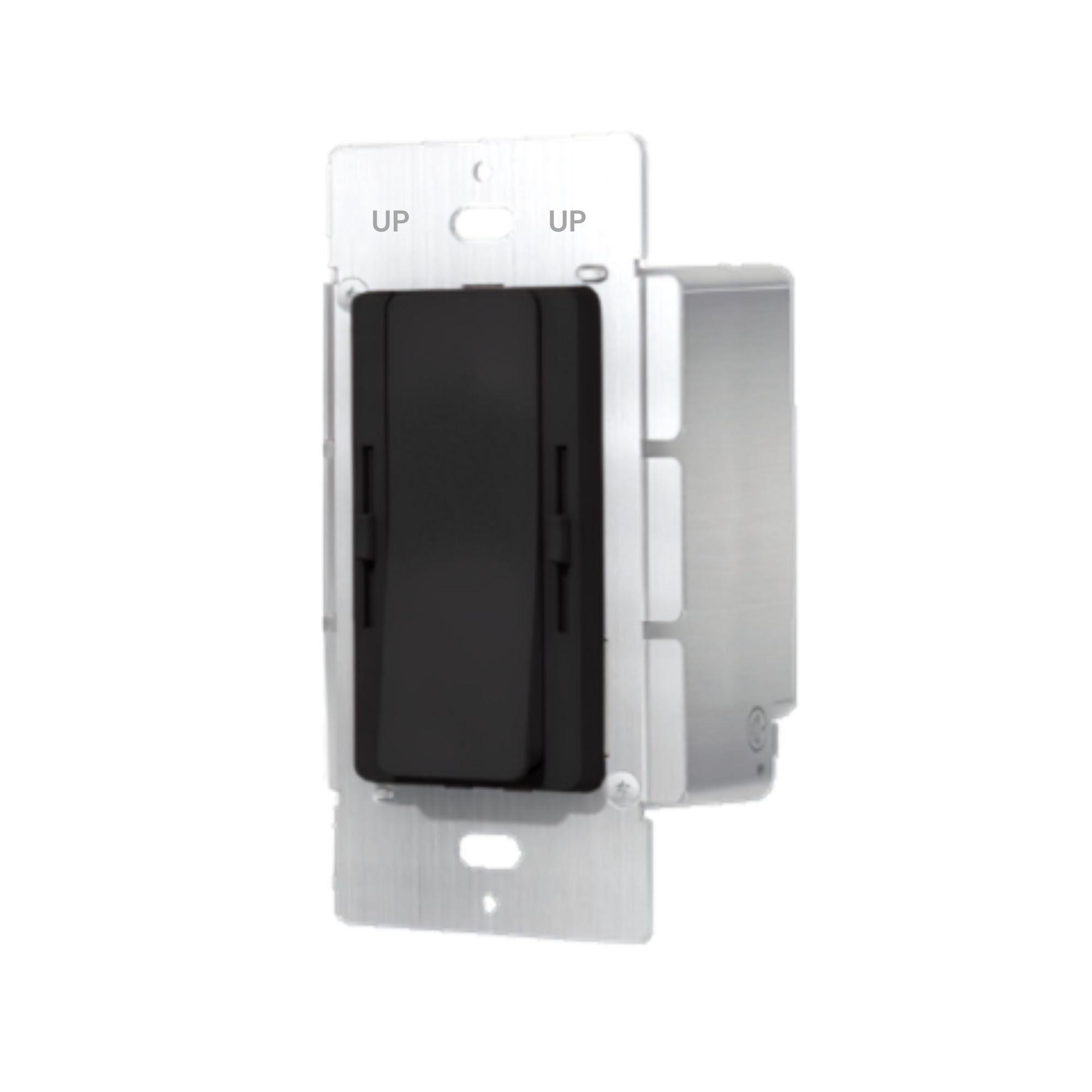

GM Lighting SwitchLD (Gen2) — 96W LED Driver + Dimmer 2-in-1 Switch w/ Tunable CCT
The GM Lighting SwitchLD (Gen2) SWDC96W24V is a 96W, 24VDC constant voltage LED driver and CCT color tuning dimmer combined into a single wall switch unit. It converts 120VAC input directly at the wall, eliminating compatibility issues between separate drivers and dimmers. Designed for 2-channel / 3-wire CCT tunable LED sources, it delivers both smooth dimming and precise color temperature control from one compact, single-gang device. Available in White, Almond, and Black to match standard Decorator wall plates.
Key Features
- Output Voltage/Power: 24VDC constant voltage output with 96W maximum power capacity (Max 4A).
- CCT Color Tuning: Controls 2-channel / 3-wire CCT tunable LED sources for precise warm-to-cool color temperature adjustment.
- Dimming Range: 100% to 0.3% smooth, deep dimming via dual 16kHz PWM output channels — flicker-free per IEEE PAR1789.
- Input Voltage: 120VAC, 60Hz — standard residential and commercial supply.
- Wiring Options: Single-pole or 3-way wiring supported.
- Enclosure: Compact 2-in-1 design fits standard single-gang electrical boxes; compatible with standard Decorator wall plates in White, Almond, or Black.
- No Minimum Load: Operates without a minimum load requirement for smooth dimming at any level.
- Protection: Hiccup-mode overload, short circuit, and over-temperature protection — all with automatic recovery.
- Efficiency: 91% at 120V; Power Factor 0.99; THD ≤10% at full load.
- Safety: UL listed (US & Canada); UL Class 2, Class P; FCC 47 CFR Part 15 Class B; Title 24 (JA8) compliant with compatible GM Lighting sources; SELV; RoHS.
- Environment: IP20 rated — indoor dry and damp locations.
- Warranty: 5 Years.
Physical Design & Installation
The SwitchLD (Gen2) CCT measures 2.035"D × 2.126"W × 4.134"H and mounts directly into a standard single-gang electrical box. Includes 6" 18AWG wire leads (105°C rated). Polycarbonate and aluminum case with free-air convection cooling. Switch plates fit standard Decorator wall plates (sold separately) in White, Almond, or Black.
Dimming & CCT Controls
Two independent 16kHz PWM output channels provide simultaneous dimming and color temperature tuning for 2-channel / 3-wire LED sources. Smooth, flicker-free performance from 100% down to 0.3% with no minimum load required. Turn-on delay <500ms. Surge rating: 1KV Differential Mode, 2KV Common Mode.
Performance & Reliability
Rated for 30,000 hours at 90°C maximum case temperature. Operating temperature: -40°F to +140°F (-40°C to +60°C). Humidity: 20%–95% RH. Load regulation ≤1%; Line regulation ≤0.5%. Free-air convection cooling.
Typical Applications
- Residential CCT tunable LED tape lighting
- Hospitality accent and task lighting with color temperature control
- Retail display and shelf lighting
- Commercial office ambient and circadian lighting
- Cove and under-cabinet CCT tunable installations
