GM Lighting SwitchLD 60W LED Driver & Dimmer Switch, 12VDC, Integrated Dimmer, Single-Pole, 120VAC
In stock
About this item
About this item
- Output Voltage & Power: Provides a constant 12VDC output with a maximum load capacity of 60W to power low-voltage LED tape and lightbars .
- Integrated Dimming: Features an all-in-one patented design that merges a power supply and wall dimmer for smooth 100% to 10% dimming .
- Input Voltage: Designed for standard 120VAC (108-132VAC) 60Hz residential and commercial electrical systems .
- Enclosure & Fit: Engineered to fit seamlessly into standard single-gang electrical boxes for a clean, professional installation .
- Protection: Includes an adjustable voltage output dial and a voltage barrier partition to safely separate high and low voltage circuits.
We process payments securely and do not store credit card information.
Description
Description

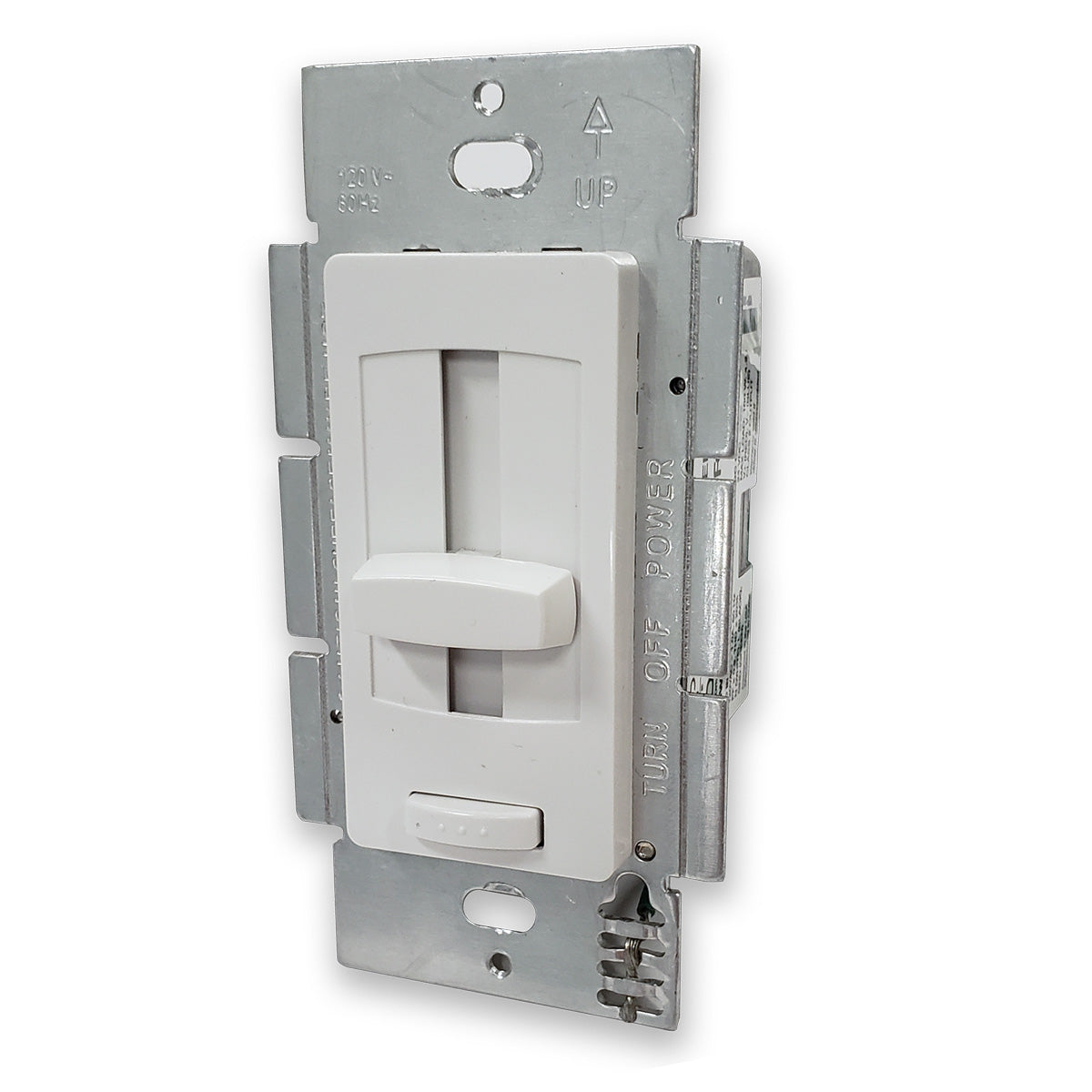

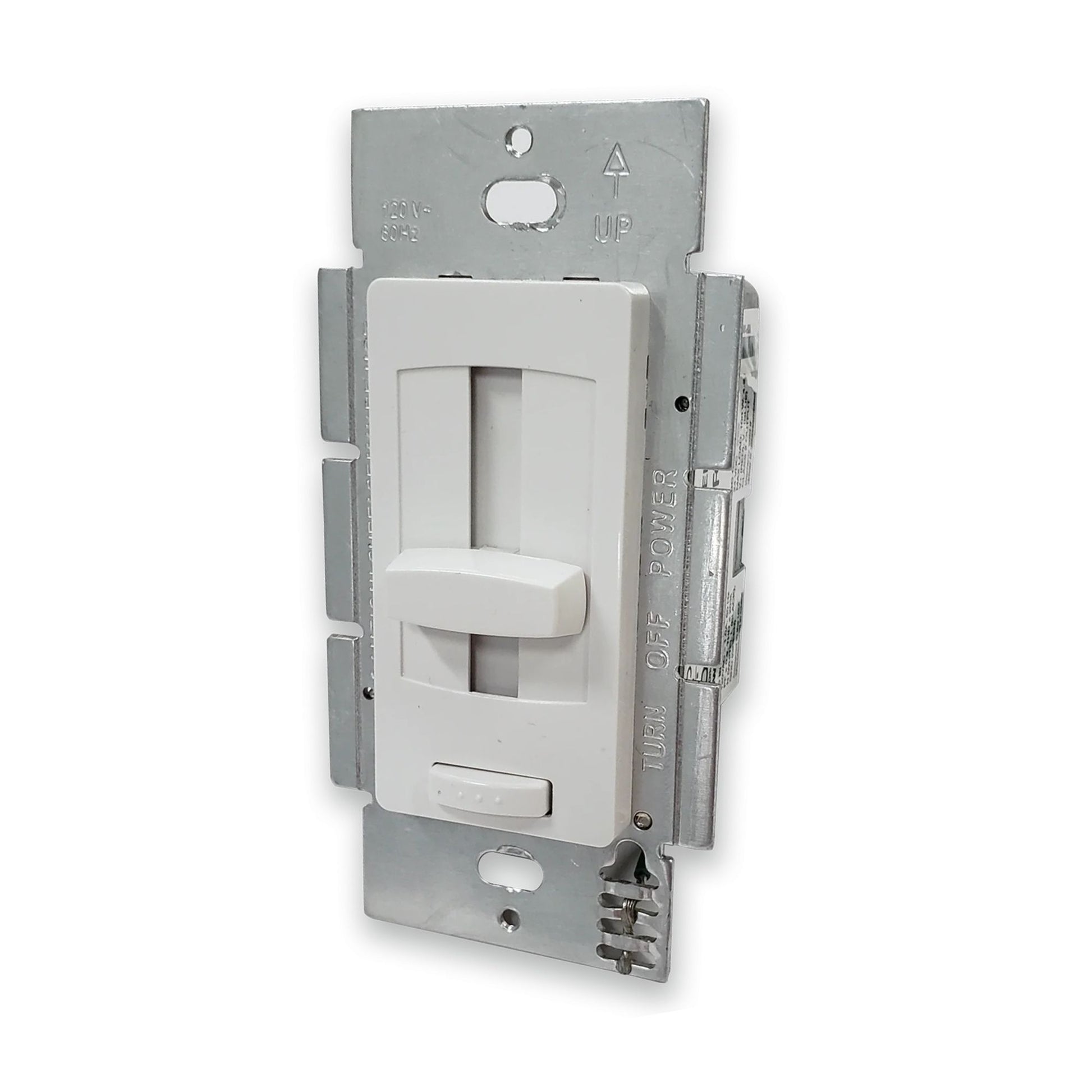

GM Lighting SwitchLD SWD-60W-12VDC-DIM 60W LED Driver — 12VDC

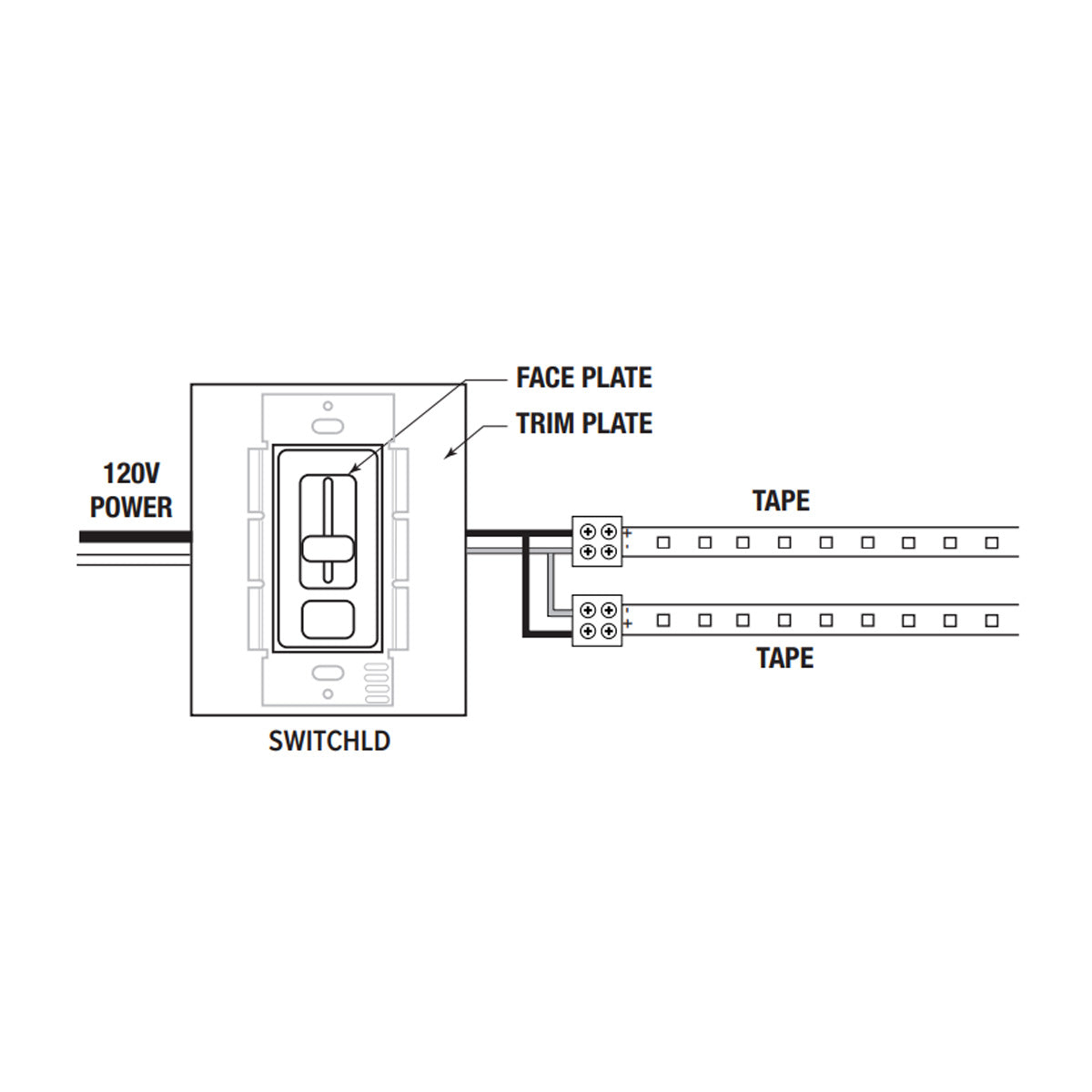

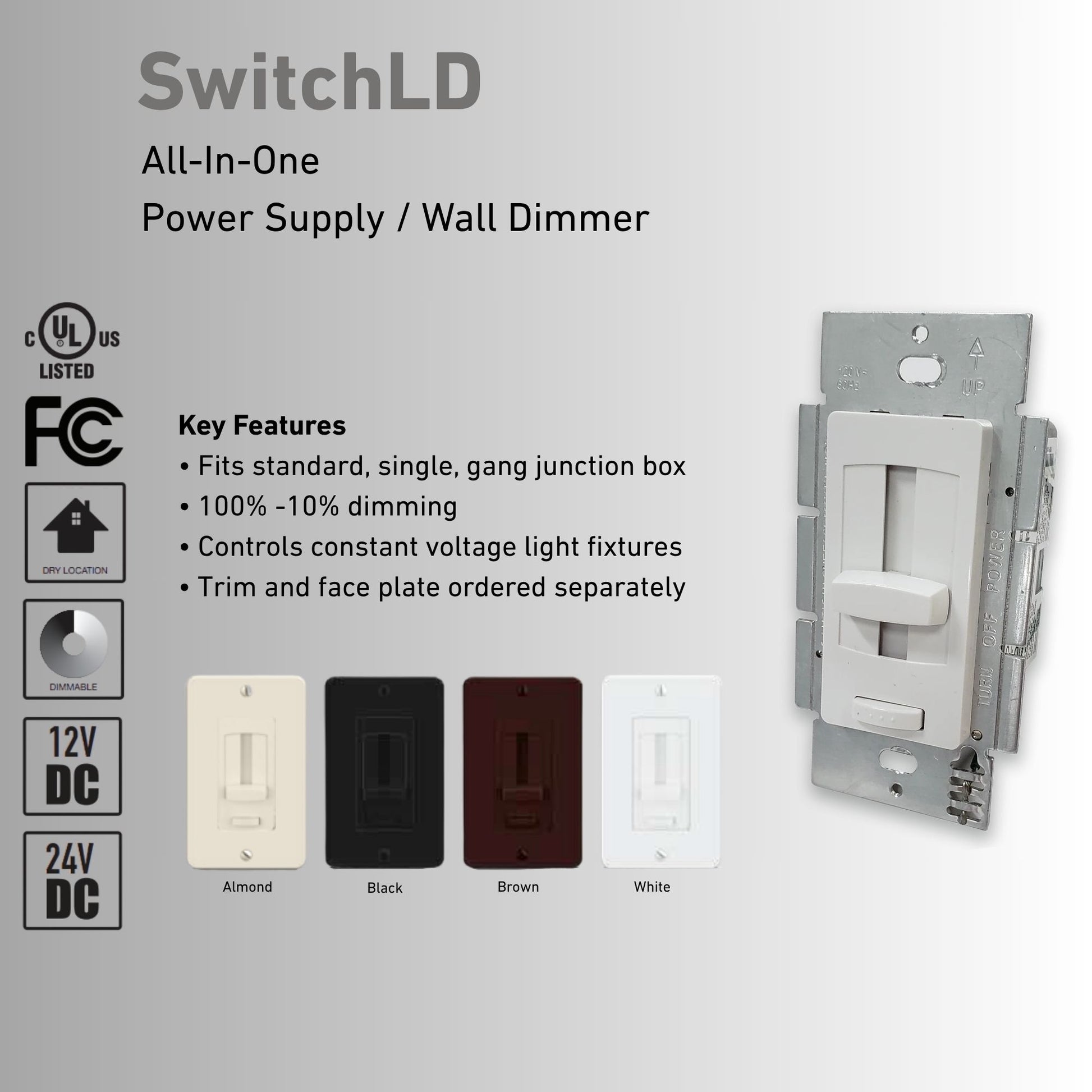

The GM Lighting SwitchLD SWD-60W-12VDC-DIM LED Driver and dimmer switch is a revolutionary all-in-one solution that merges a 60W power supply with a reliable wall dimmer. This 12VDC Constant Voltage driver eliminates compatibility issues between separate components by fitting directly into a standard single-gang electrical box. It is an ideal choice for powering and dimming LED tape or lightbars, offering a Class 2 safety rating and a clean, integrated finish .
Key Features
- Power Output: Delivers a maximum load of 60W for 12VDC lighting systems .
- Input Voltage: Operates on standard 120VAC (108-132VAC) at 60Hz .
- Output Voltage: Provides a precise 12VDC output to compatible LED products .
- Dimming Range: Features a smooth 100% to 10% dimming range for customized lighting levels .
- Minimum Load: Engineered with no minimum load requirement for versatile application .

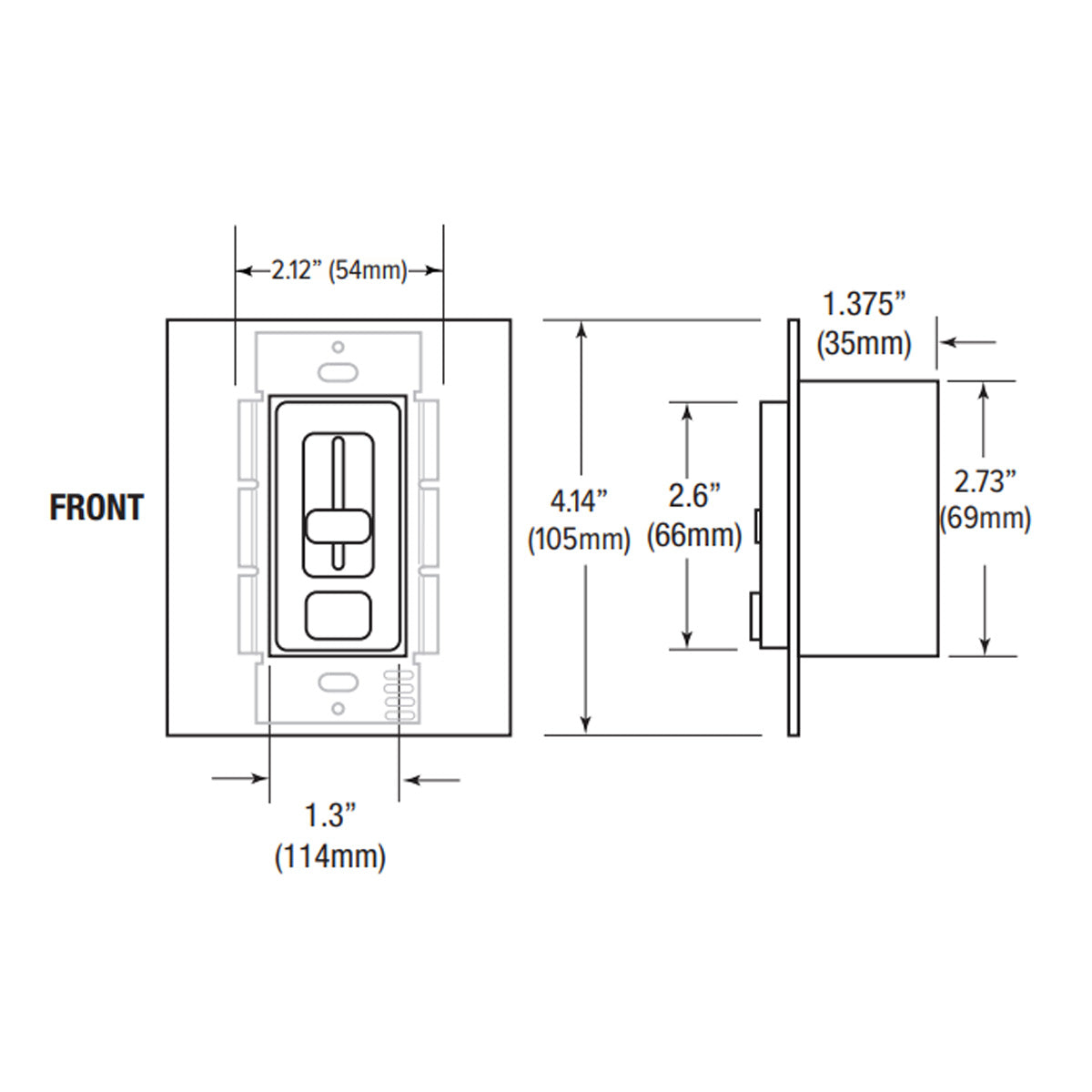

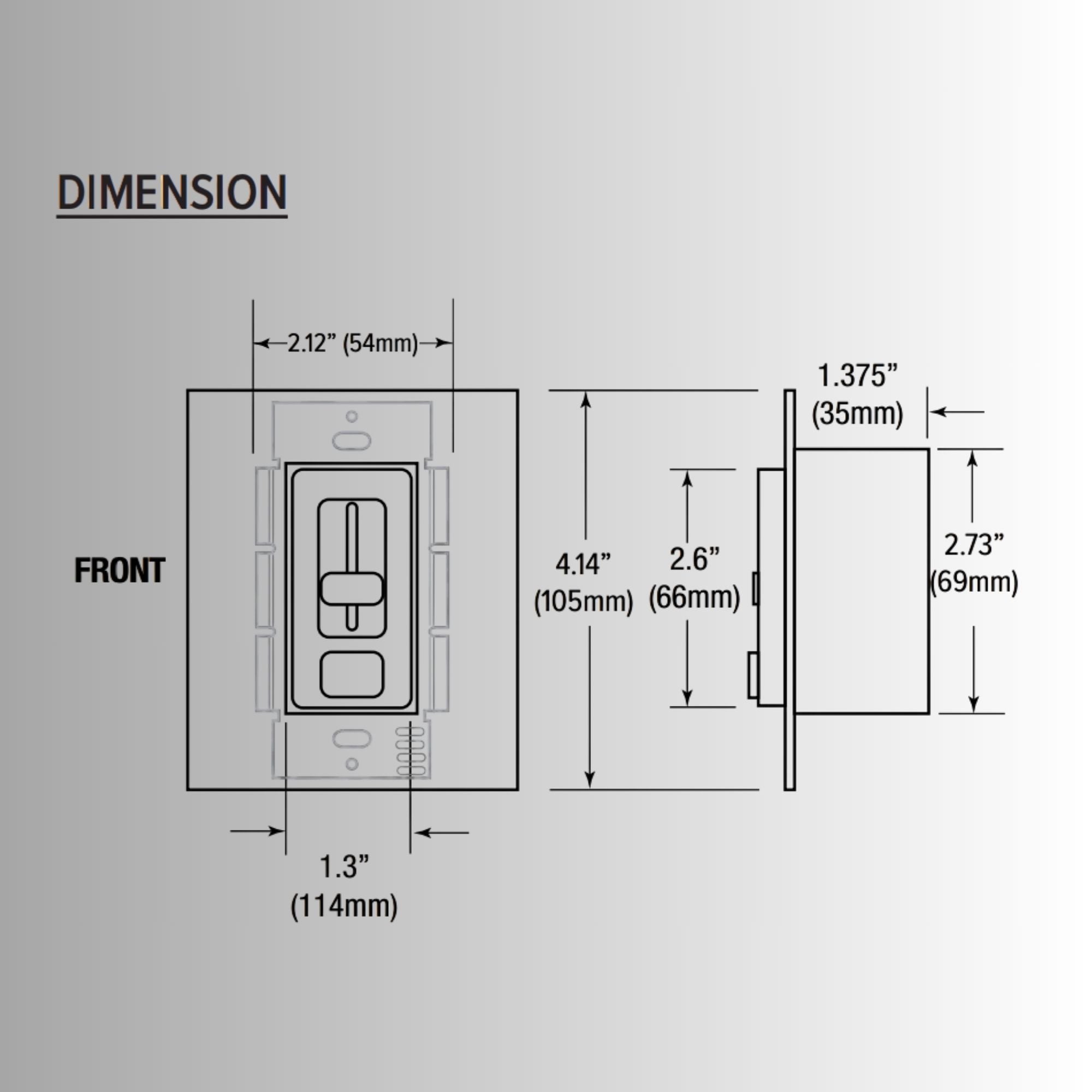

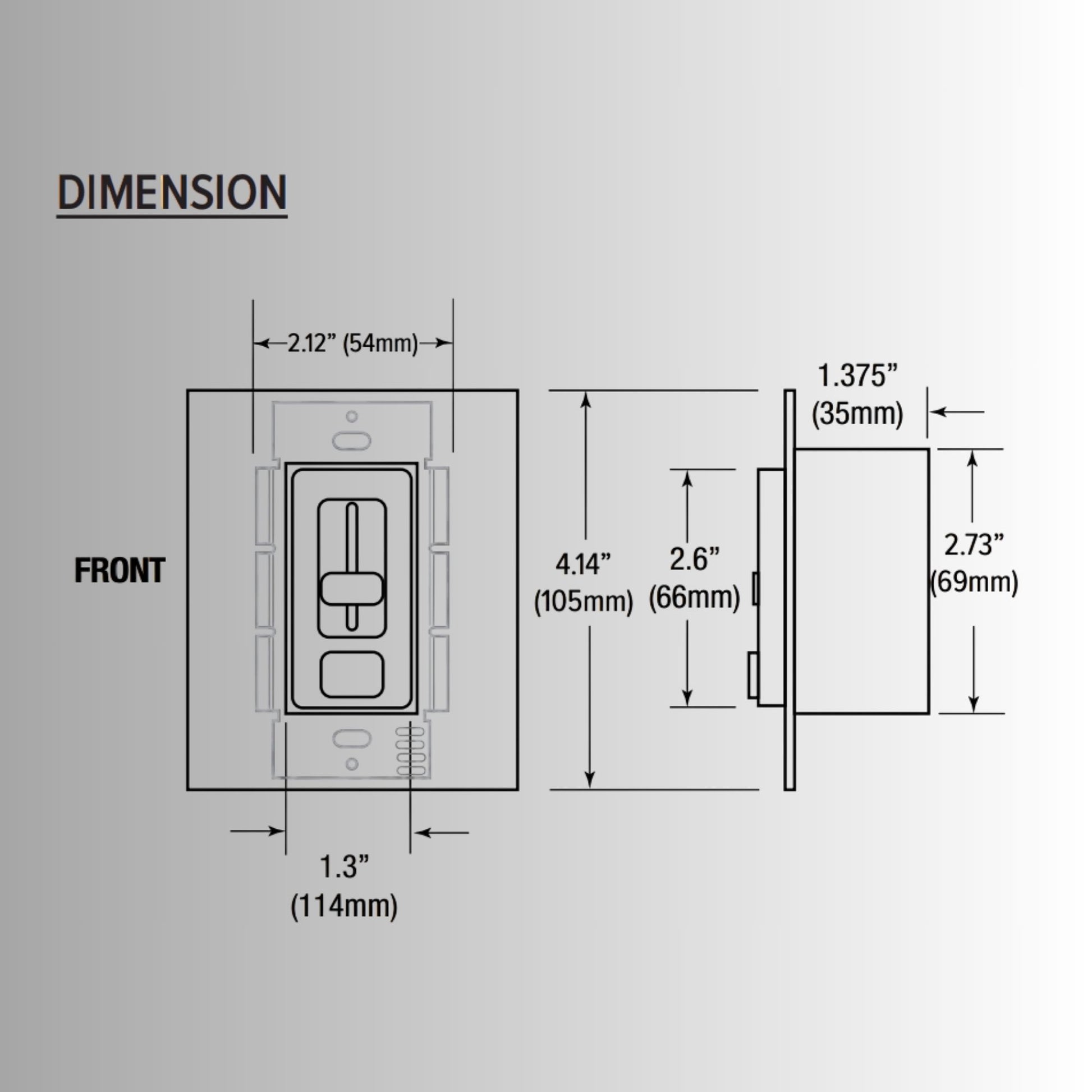

- Dimensions: Compact design fits standard boxes with a front face measuring 4.14 in. H .
- Enclosure Type: Integrated wall switch design that fits into single-gang electrical boxes .
- Class 2 Status: UL Listed Class 2 DC output ensures safe low-voltage operation .
- Efficiency: High performance with a power factor of >0.9 at maximum load .
- Certifications: cULus listed and FCC approved for Class B digital devices .
Physical Design & Installation

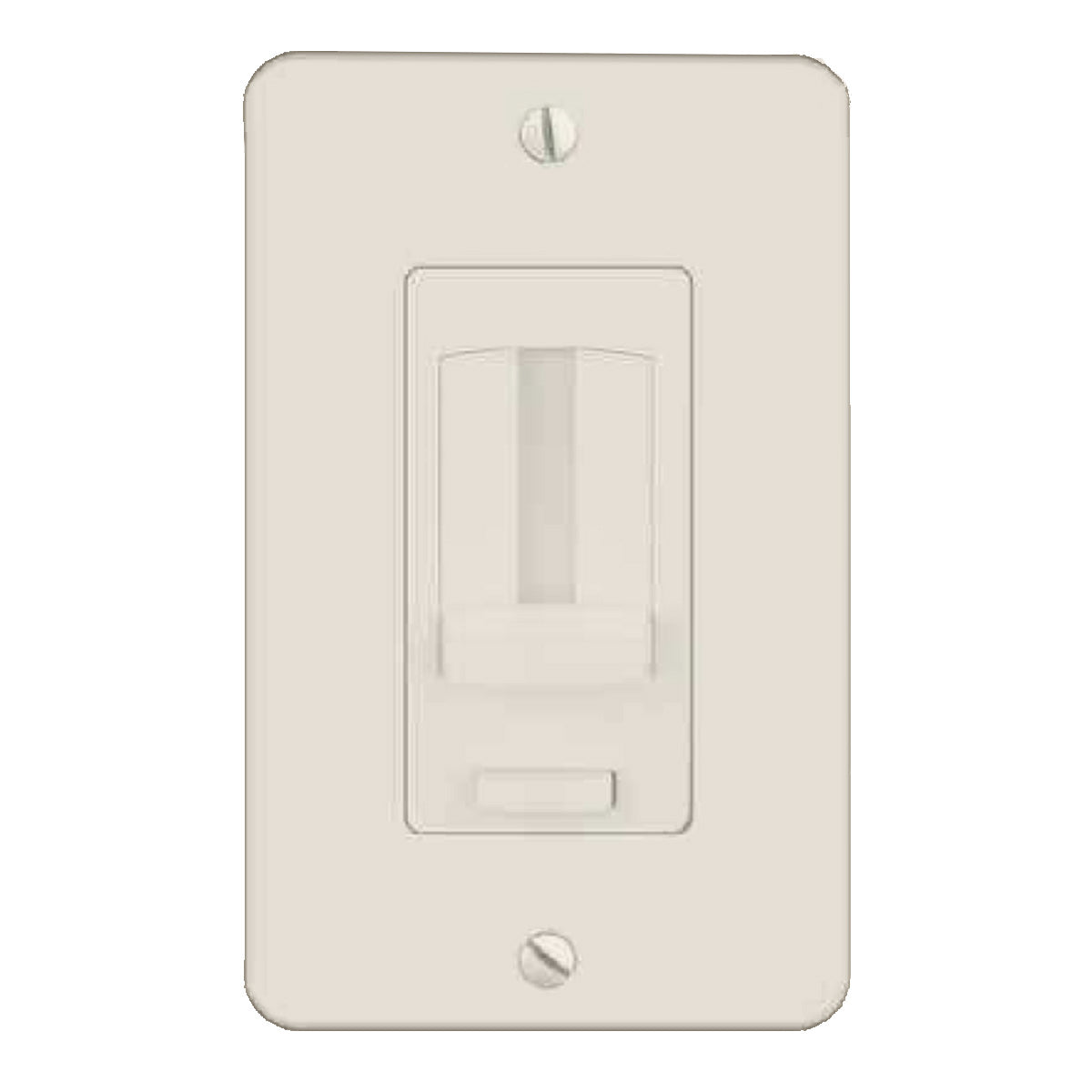

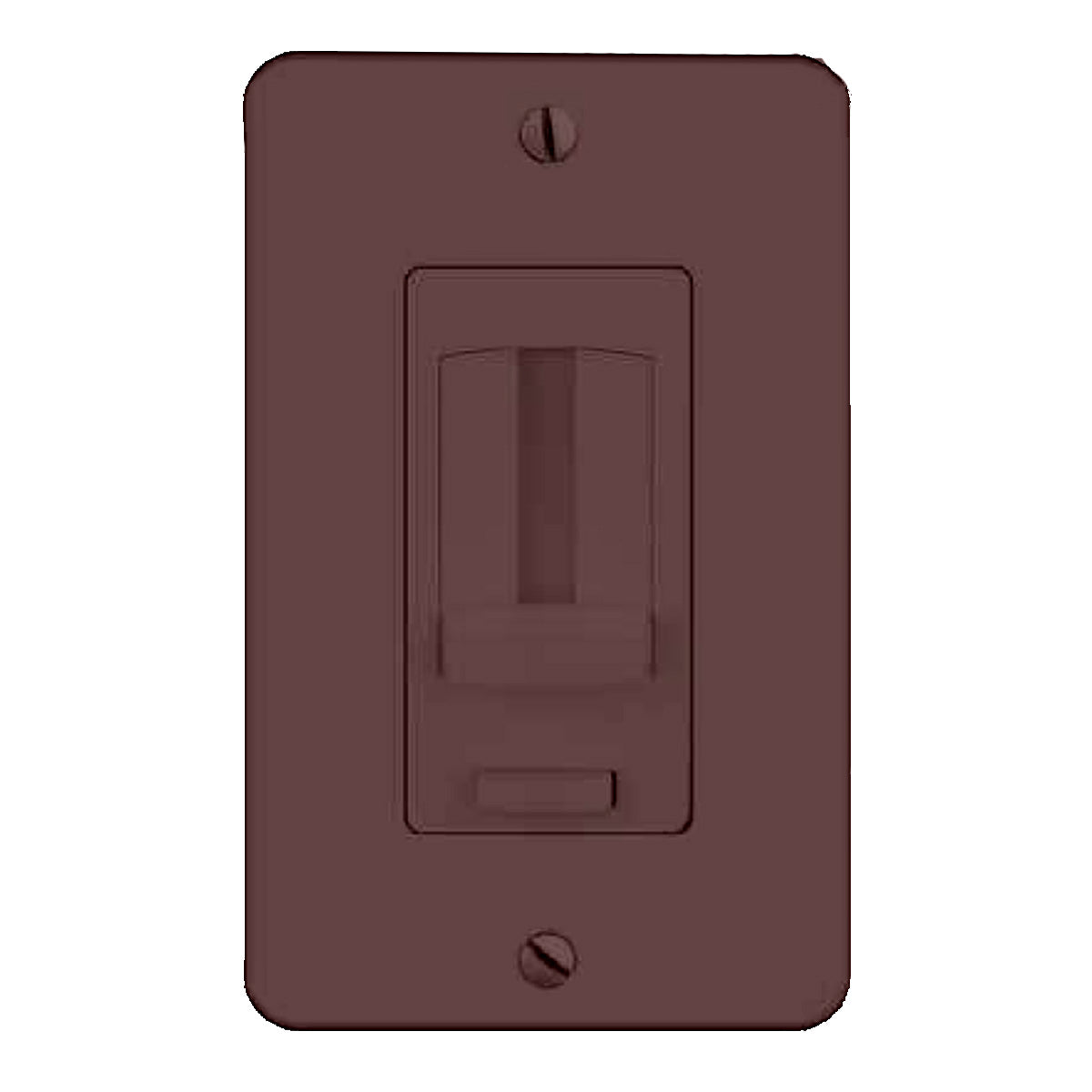

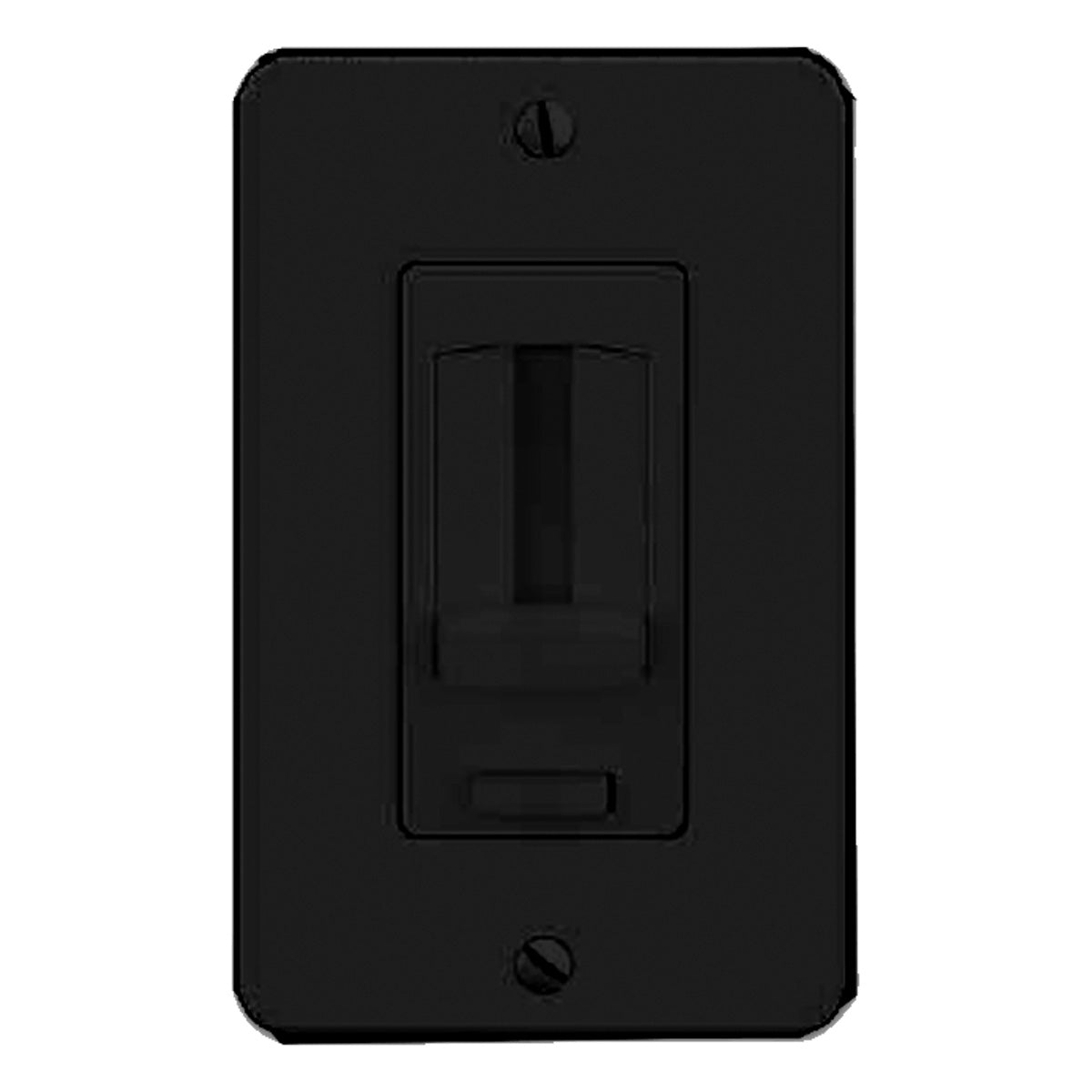

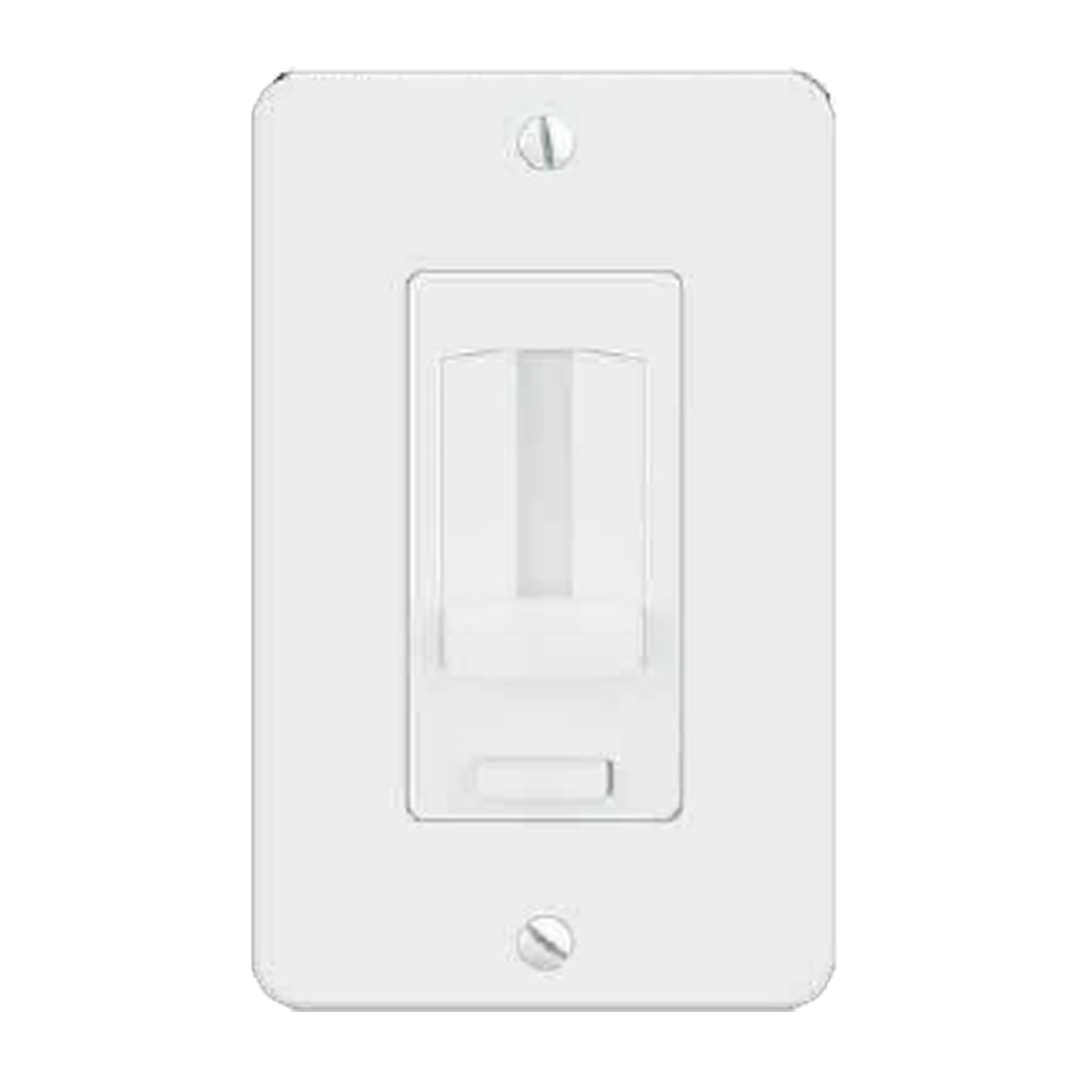

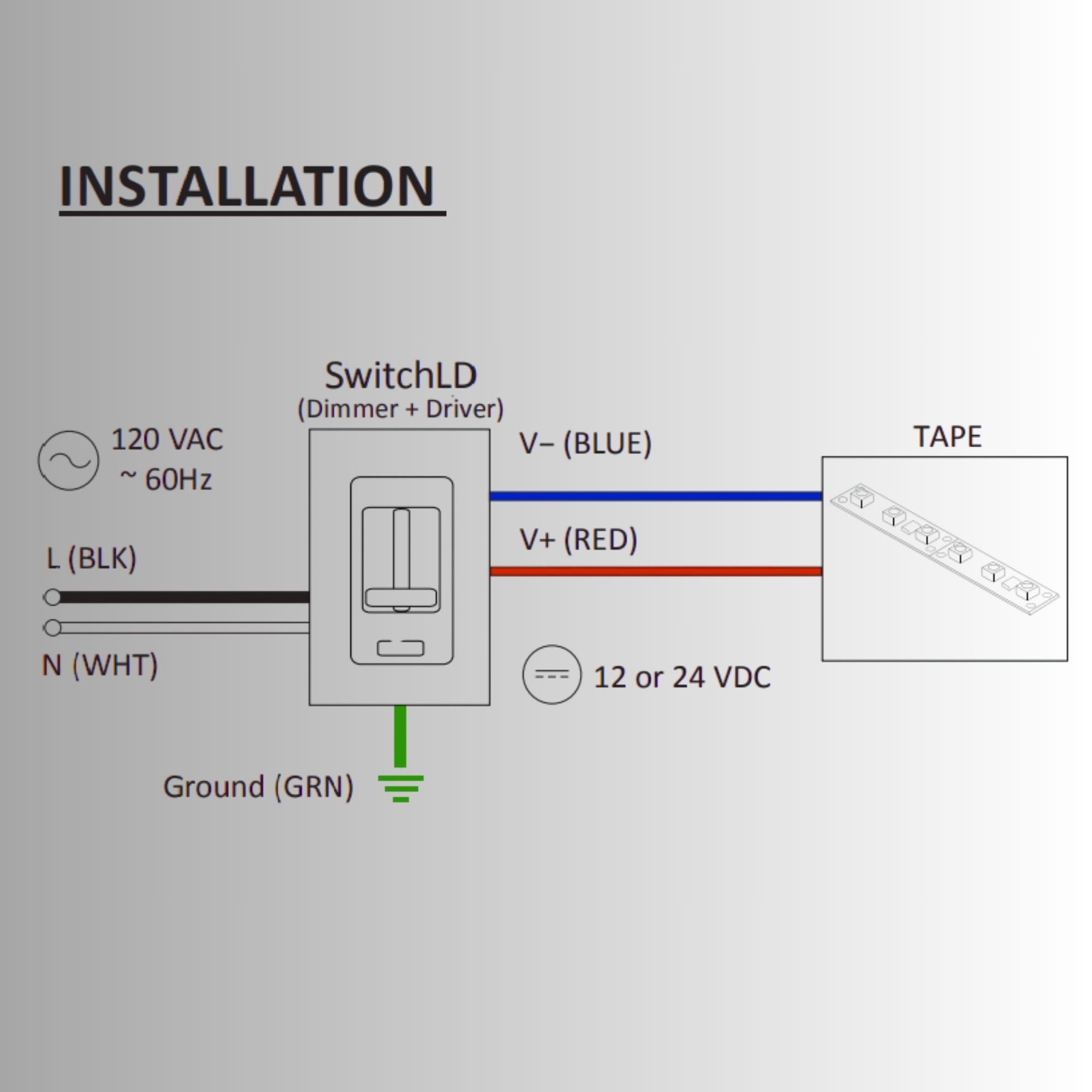

The SwitchLD is specifically designed for installation in standard single-gang electrical boxes. It includes a gloss white faceplate and a unique voltage barrier partition that allows for the safe installation of both high and low voltage circuits within the same enclosure. This design streamlines the installation process for contractors by removing the need for remote driver placement .
Dimming & Controls

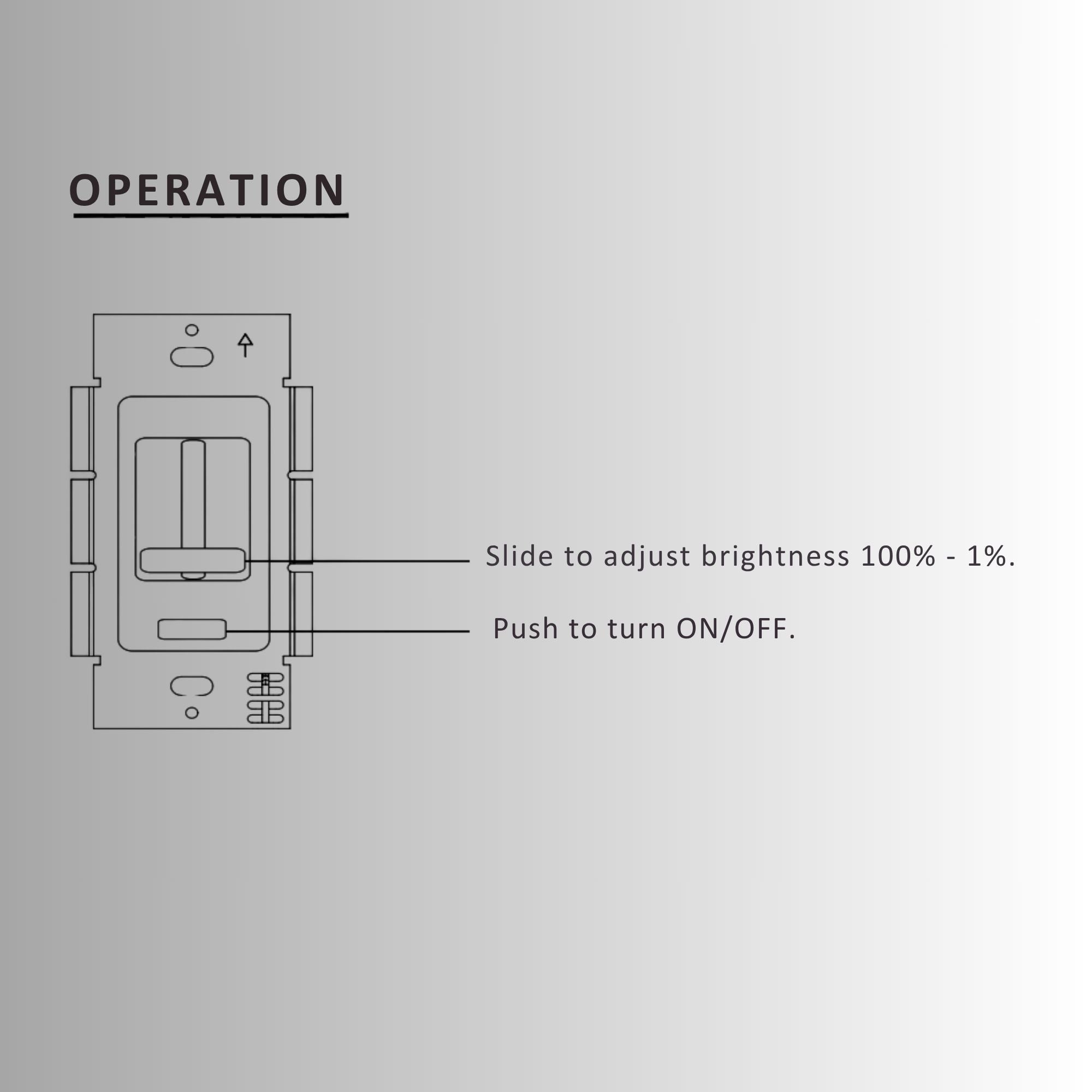

This all-in-one unit provides smooth, flicker-free 100%-10% dimming for constant voltage light fixtures. A convenient feature is its internal memory, which remembers the previous dimmer level even if power is lost. Additionally, an adjustable voltage output dial is located on the unit to fine-tune the power delivery to your LED system .
Performance & Build
Built for reliability, the SwitchLD features a high power factor of >0.9 and a low standby power consumption of only 0.5W. It conforms to NEC Code 725.136 for circuit separation and is backed by a 5-year warranty. The unit is rated for dry locations and is compatible with most GM Lighting 12VDC LED products .
Typical Applications
- Under-cabinet 12VDC LED tape lighting runs in residential kitchens .
- Accent lighting using lightbars in dry-location shelving or commercial spaces .
- High-efficiency projects requiring integrated, easy-to-install dimmer and driver units.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is an LED driver?
What is an LED driver?
An LED driver is the essential power supply for modern, energy-efficient LED lighting. It converts your building's high-voltage AC power into the low-voltage DC power that LEDs need to operate. It regulates the power, protecting the sensitive LED chips from fluctuations that could cause them to flicker or fail prematurely.
What is a light ballast?
What is a light ballast?
A light ballast is the traditional power supply for fluorescent and HID (High-Intensity Discharge) lamps. If you have older tube lighting, you have a ballast. It provides a burst of high voltage to get the lamp started and then controls the electrical current to keep it running steadily.
How do I choose the right wattage for my LED driver?
How do I choose the right wattage for my LED driver?
To ensure safety and longevity, it's best to follow the "80% Rule." Add up the total wattage of all the lights you will connect to the driver, then choose a driver with a maximum wattage rating that is at least 20% higher. For example, if your lights total 80 watts, you should select an LED driver rated for 100 watts or more.
What is the difference between a constant current and a constant voltage driver?
What is the difference between a constant current and a constant voltage driver?
The key difference is what they keep stable. A constant current driver maintains a fixed output current (e.g., 700mA) while letting the voltage change. A constant voltage driver maintains a fixed output voltage (e.g., 12V or 24V) while the current varies. Use constant current for high-power LEDs and constant voltage for fixtures like LED strip lights.
How do I know if I need to replace my fluorescent light ballast?
How do I know if I need to replace my fluorescent light ballast?
Common signs of a failing light ballast include your lights flickering, making an audible humming or buzzing sound, taking a long time to turn on, or not turning on at all. If you've already tried replacing the bulbs and the problem persists, the ballast is the most likely cause.
