Overview

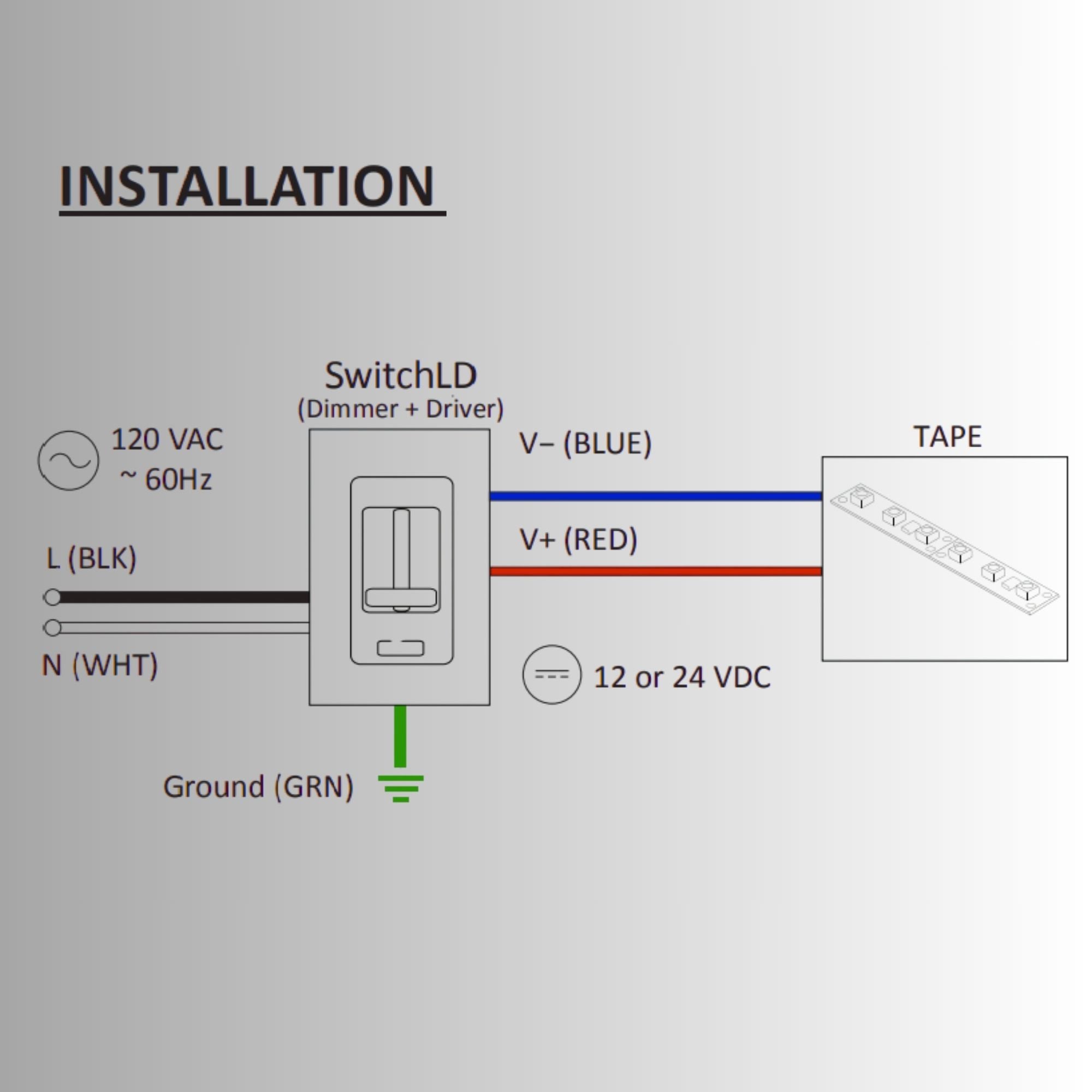

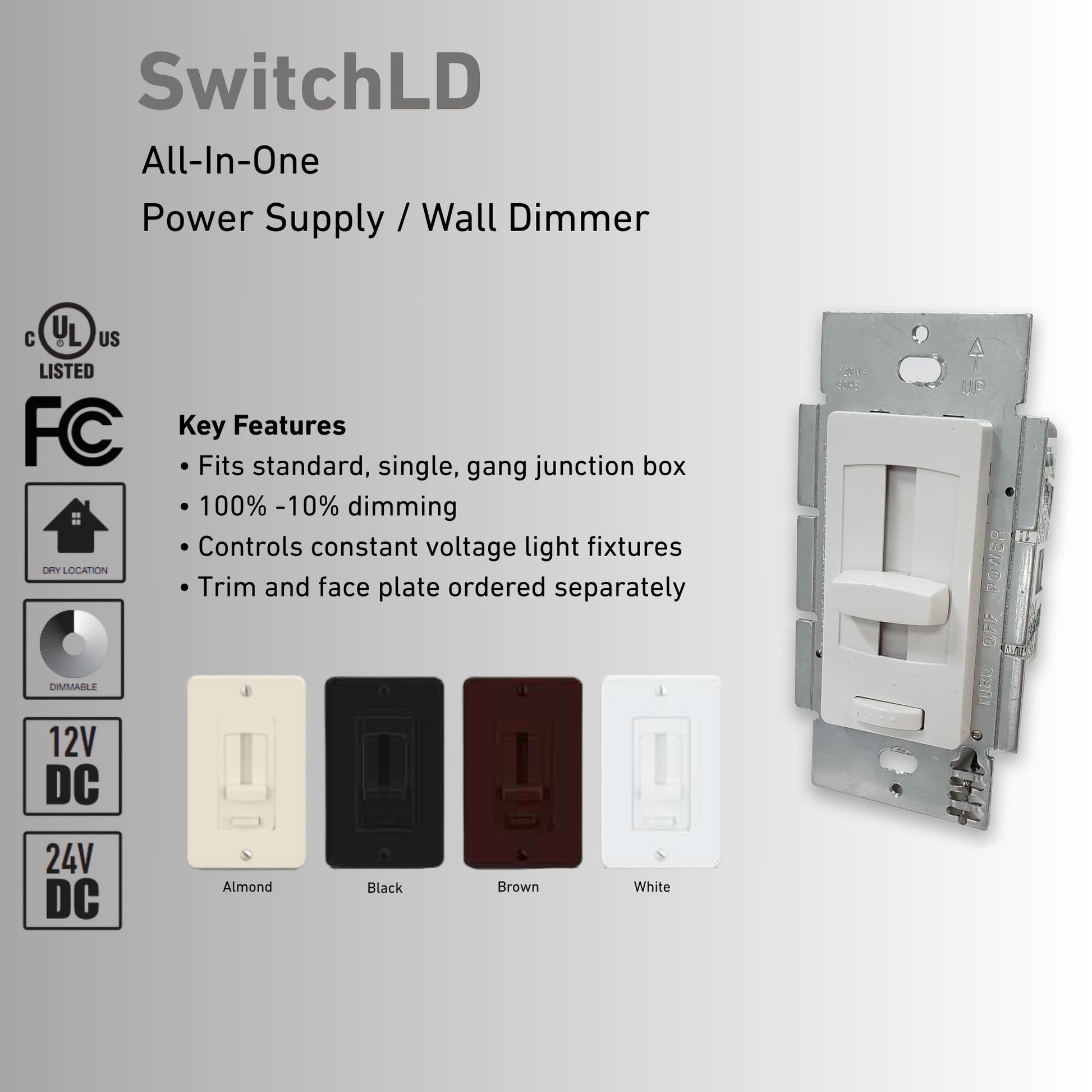

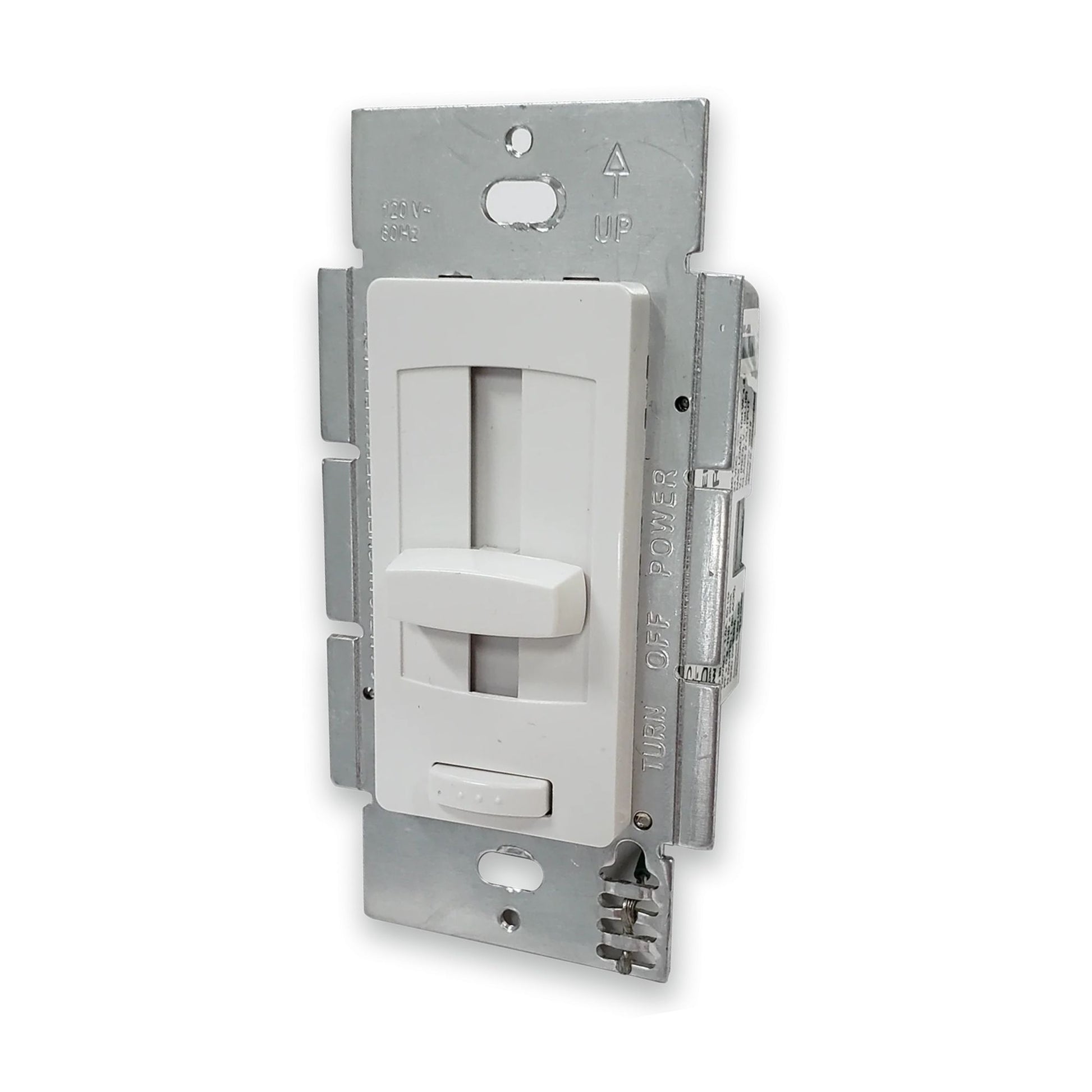

The GM Lighting SWD-40W-12VDC-DIM SwitchLD combines a 12V, 40W LED driver and wall dimmer into a single, compact unit, simplifying installations of LED tape and lightbars. By integrating the power supply and dimmer, it eliminates compatibility issues between drivers and switches, reducing setup time and clutter. It delivers smooth, flicker-free dimming from 100% to 10%, offering precise lighting control. Operating on 120VAC input, the SwitchLD provides a Class 2 constant voltage DC output, UL listed and FCC approved for safety. Comes with a gloss white faceplate, with optional trims available separately. Backed by a 5-year warranty, ideal for residential and commercial low-voltage LED projects.
  • Integrated 12VDC, 40W LED driver + wall dimmer

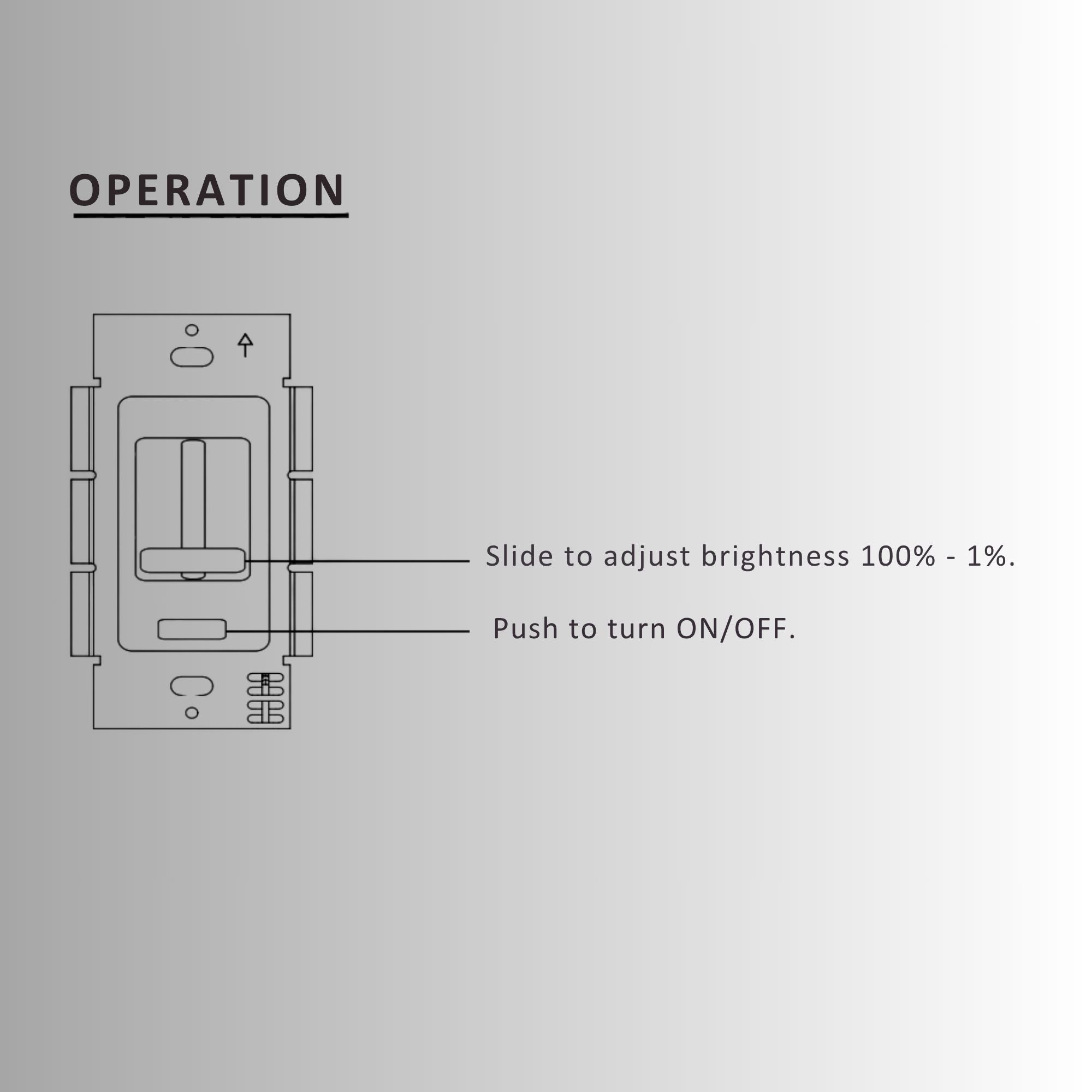

  • Smooth 100%-10% flicker-free dimming
  • Preset dimmer with on/off switch; Single-pole operation
  • UL listed, FCC approved, Class 2 DC output

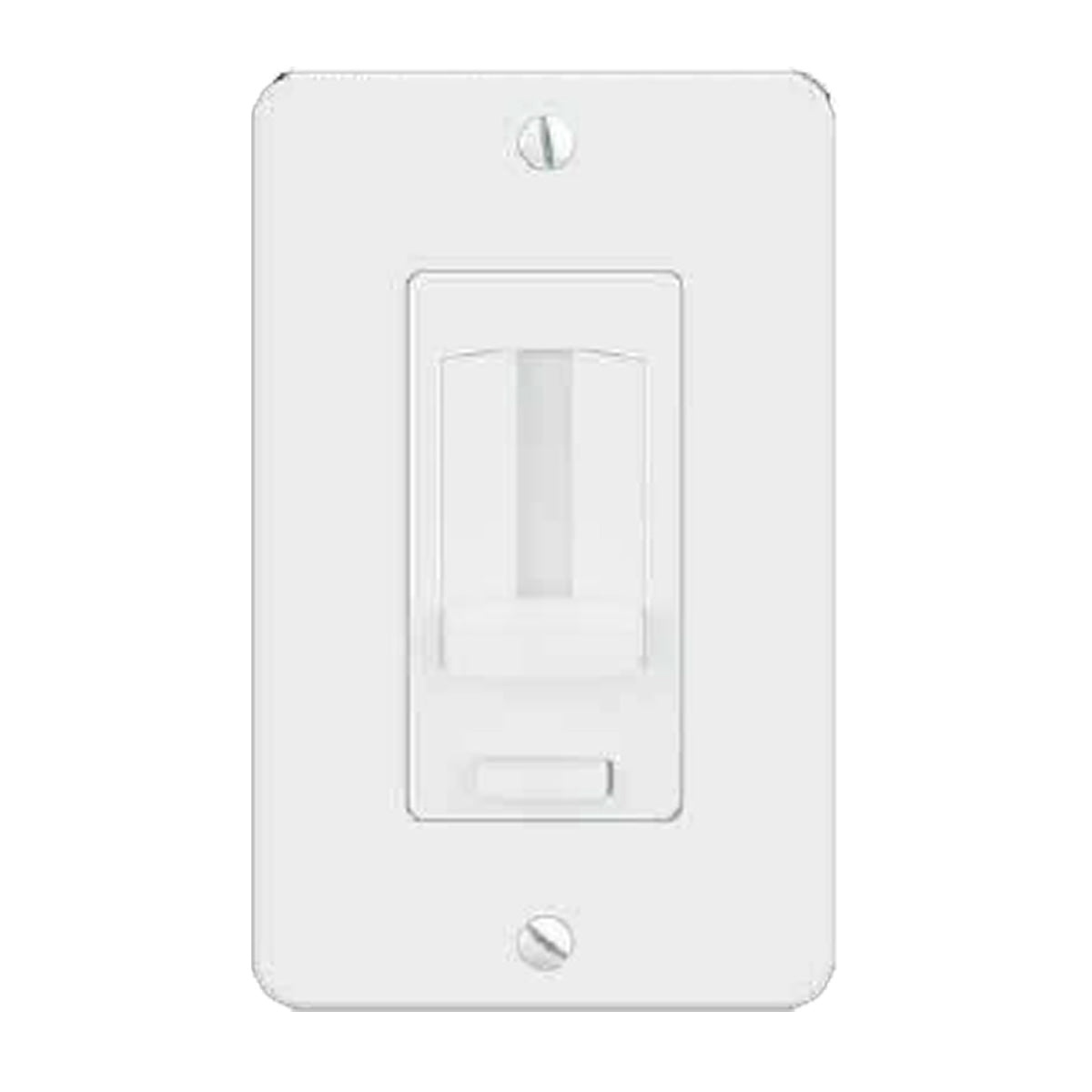

  • Includes Gloss White faceplate; optional trims available

Technical Resources

Specifications

Finish:
White,Black,Bronze,Light Almond
Size:

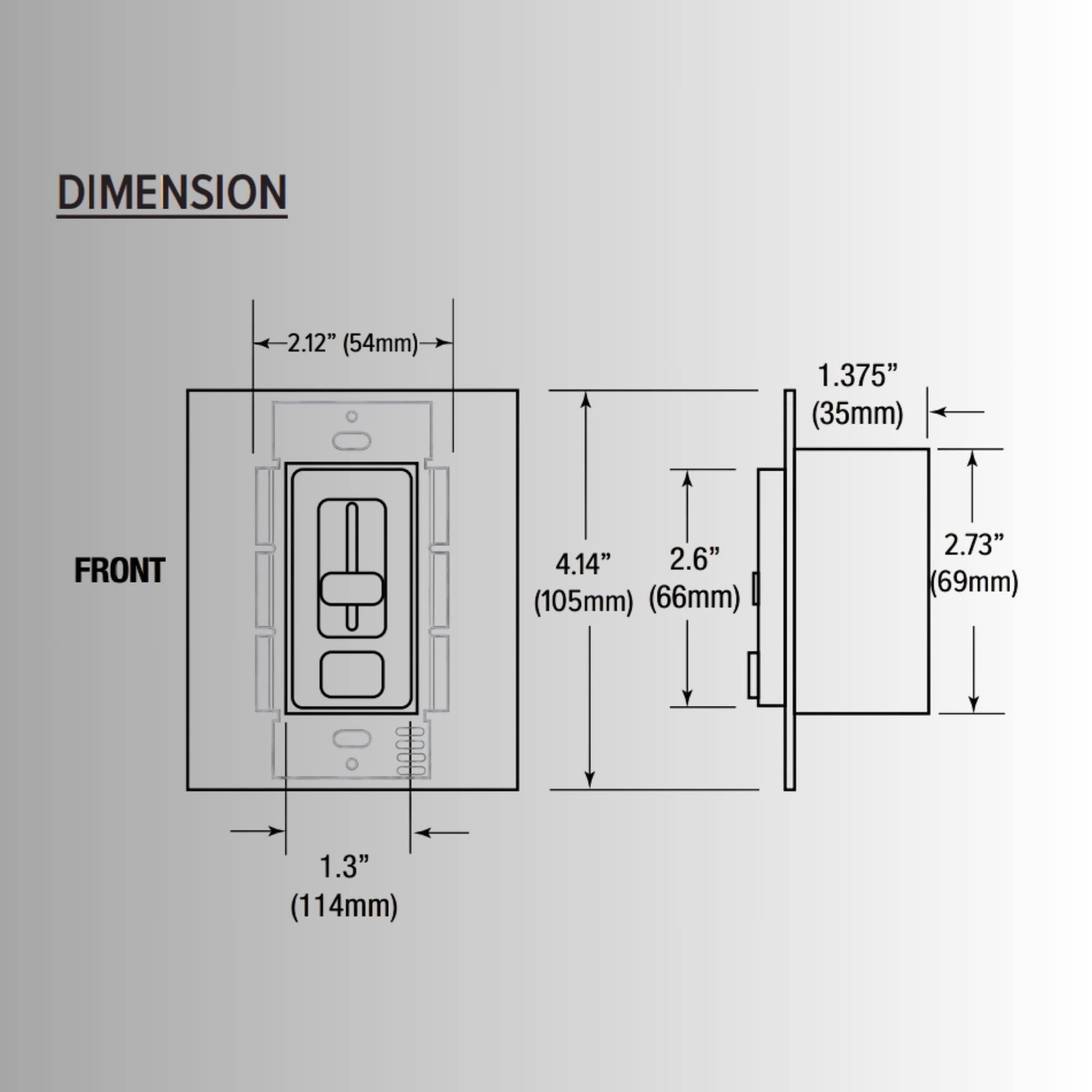

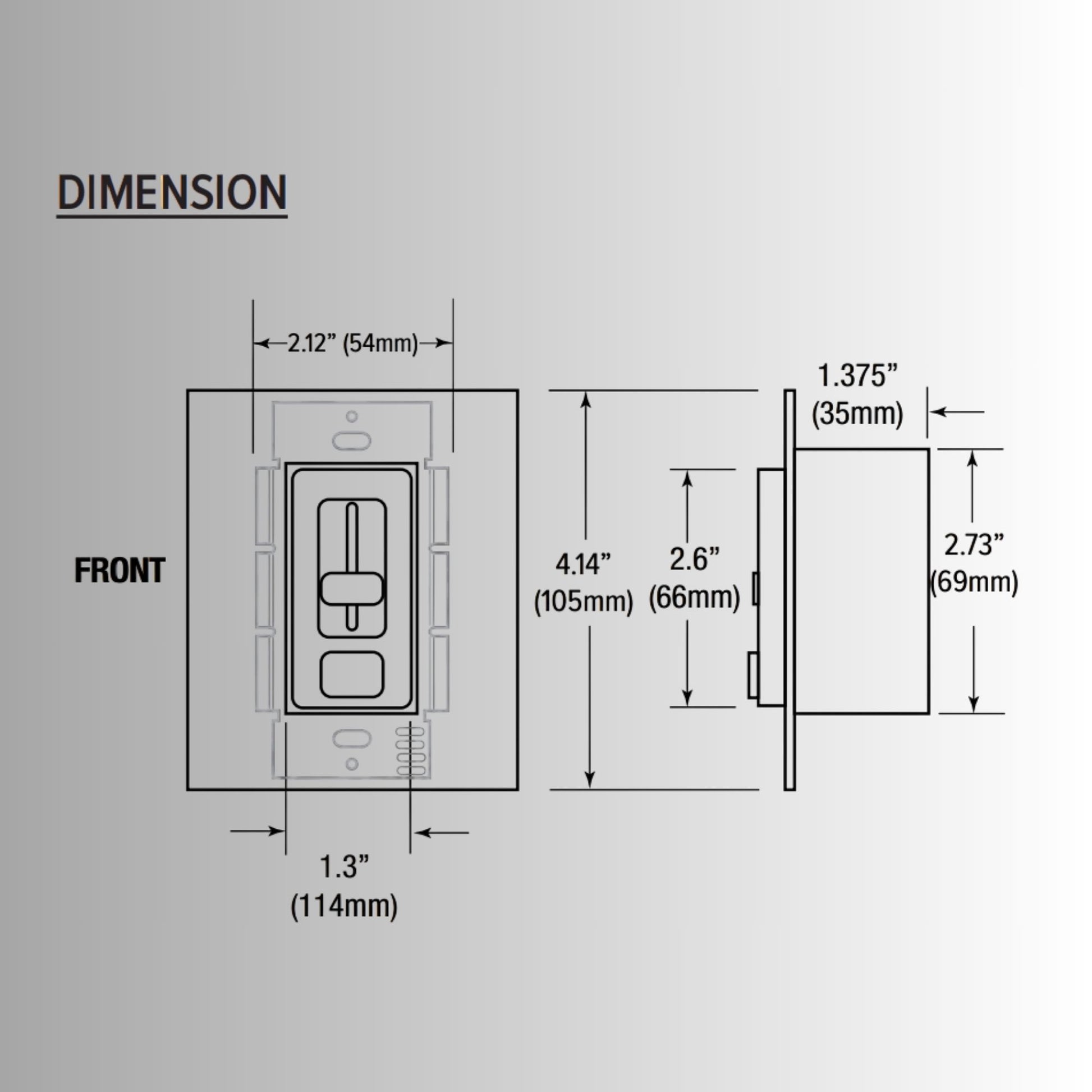

1.375'' L X 2.12'' W X 4.14'' H
