GM Lighting SPM-1-30-BNK 12VDC Recess Mount LED Slim Puck Mini | 3000K 90 Lumens
GM Lighting SPM-1-30-BNK 12VDC Recess Mount LED Slim Puck Mini | 3000K 90 Lumens
Available in stock (50)
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item

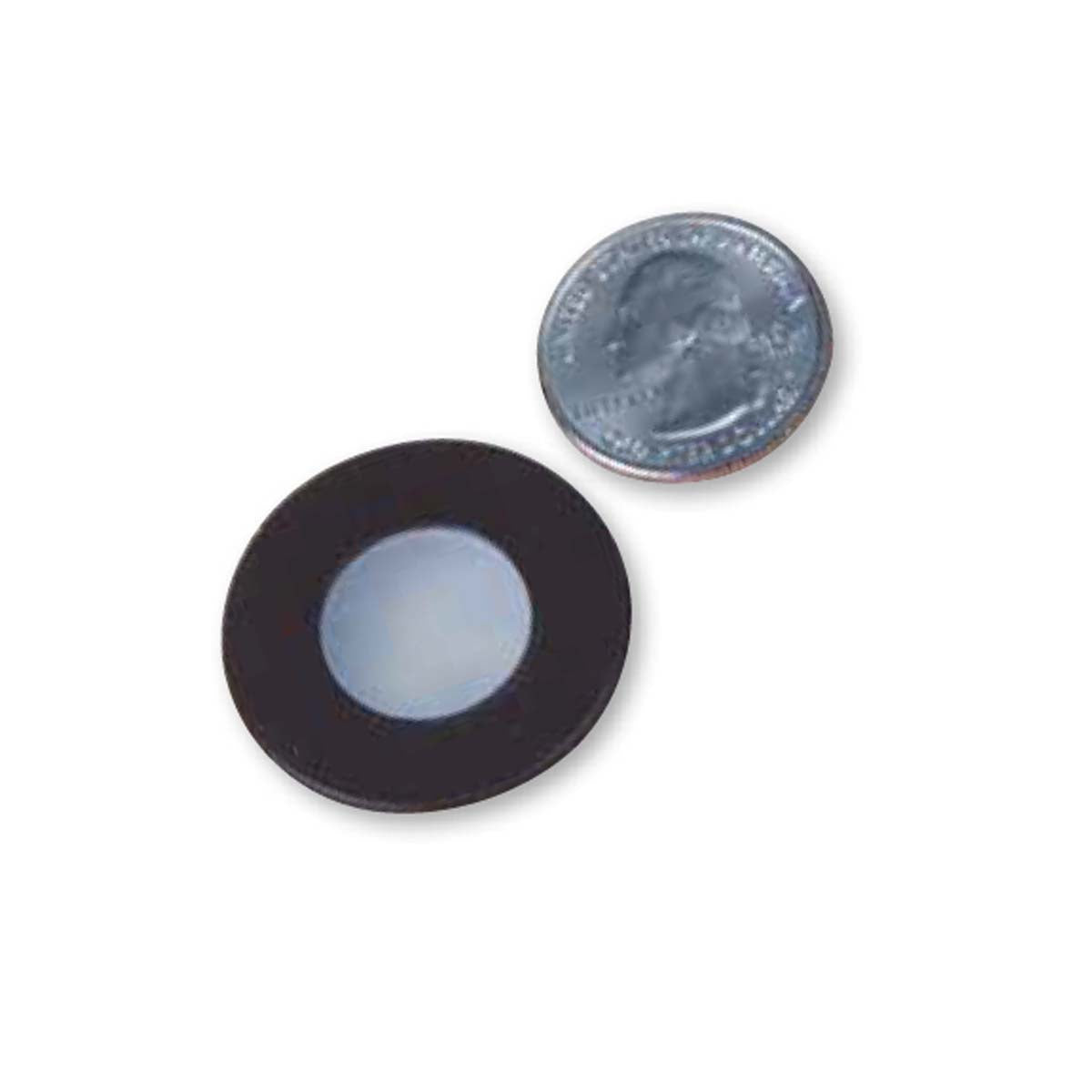

- 1.33” dia. x 9/16” depth slim, ultra-slim profile perfect for tight spaces
- 1.2W, 90 lumens, 12VDC operation, soft 3000K light
- Recess mount only design with 1" installation hole required
- Link up to 20 pucks together for extensive lighting coverage
- Compatible with ELV dimmers, allowing you to easily adjust the mood and brightness levels
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
Overview

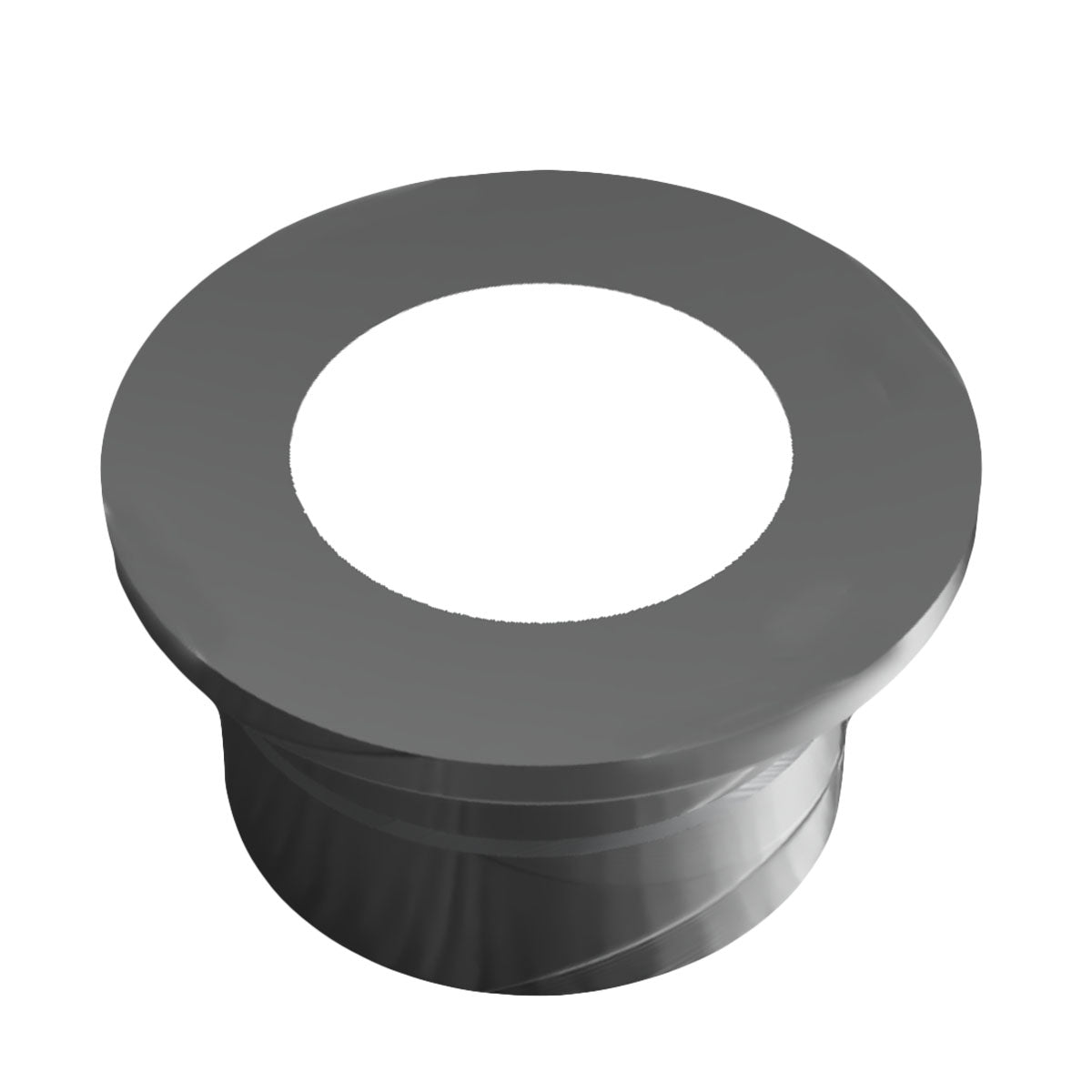

The GM Lighting SPM-1-30-BNK is a 1.3" (33mm) diameter mini recessed puck light engineered for compact installations where mounting depth is limited. Delivering 90 lumens at 3000K with 80+ CRI, this spring-loaded fixture features a high-quality aluminum body with white PMMA polycarbonate diffuser lens for low-glare illumination. Available in Brushed Nickel finish.
Features
- 12VDC operation with electronic dimming (ELV compatible)
- 1.2W power consumption
- 3000K warm white color temperature
- 90 lumens output with 80+ CRI for accurate color rendering
- Spring-loaded installation for tool-less access to fixture components
- Recess mount only design with 1" installation hole required
- 48" pre-attached leads for flexible wiring
- Supports up to 20 pucks per lead
- ETL listed for safety compliance
- 5-year warranty when used with Line Drive power supplies
Specifications
Electrical: 12VDC, 1.2W | Remote power supply required
Optics: 80+ CRI | 3000K warm white

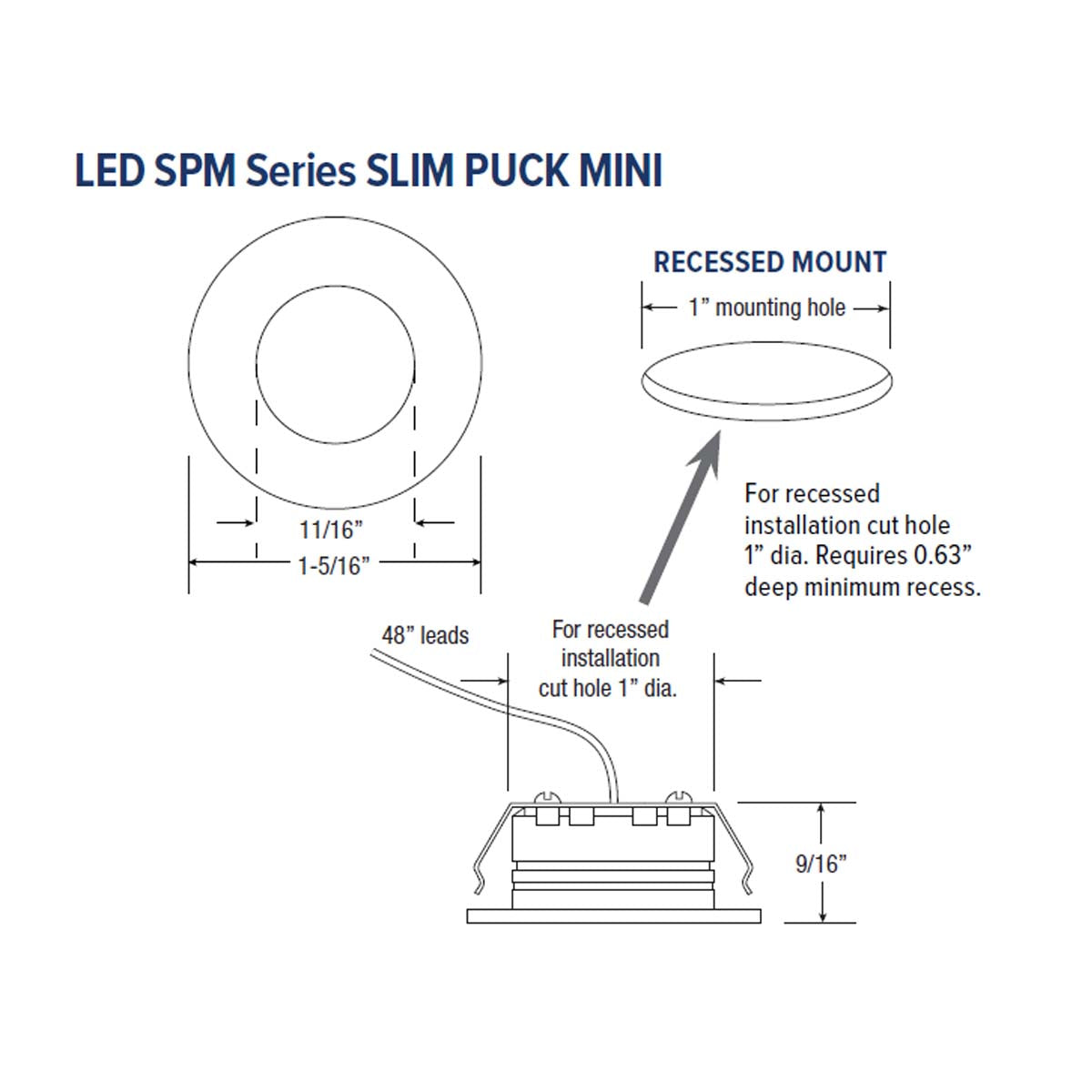

Dimensions: 1-5/16" outer diameter | 1" installation hole required | 9/16" mounting depth
Finish: Brushed Nickel (BNK)
Certification: ETL listed | Suitable for dry locations
Warranty: 5 years when used with Line Drive power supplies
*Use electronic power supplies only (PSD15-12 or PSD24-12). Magnetic power supplies are not operable with this fixture.
Applications

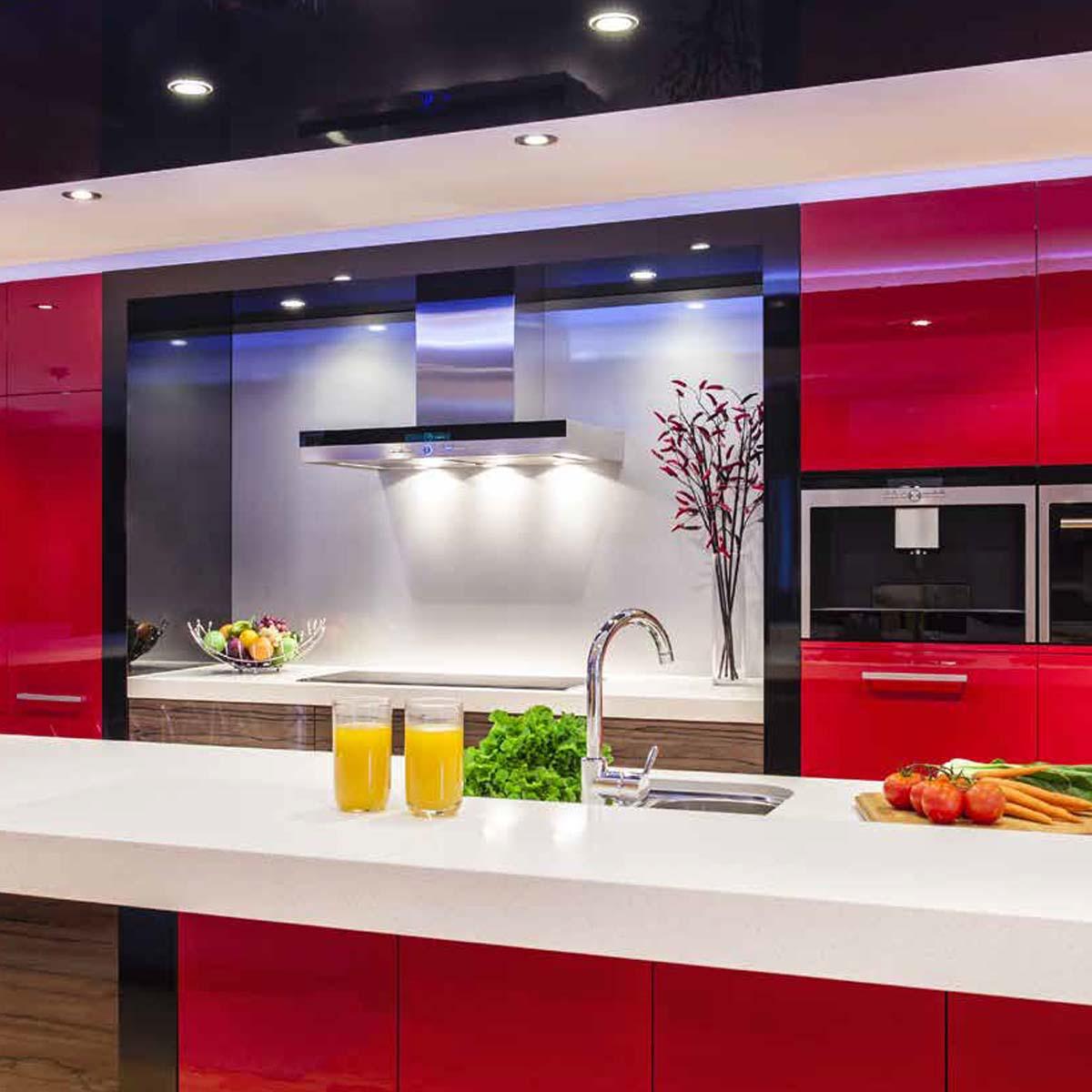

- Under-cabinet task lighting in kitchens and workspaces
- Display case and retail merchandising accent lighting
- Architectural detail lighting where shallow mounting depth is required
- Residential and commercial interior applications
- Low-profile installations in cabinetry, shelving, and millwork
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What is a puck light and what is it used for?
What is a puck light and what is it used for?
A puck light is a small, circular lighting fixture that provides a focused beam of light. While often used for under cabinet puck lighting, these versatile LED puck lights are also perfect for illuminating display cases, bookshelves, closets, and bar areas where targeted, discreet lighting is needed.
What is the difference between surface mount and recessed puck lighting?
What is the difference between surface mount and recessed puck lighting?
Surface mount puck lights are installed directly on the surface and are easy to set up. Recessed puck lighting is installed flush into a drilled hole for a seamless, built-in look. Both are popular options, with recessed being ideal for permanent, custom installations.
How do LED puck lights compare to LED strip lights?
How do LED puck lights compare to LED strip lights?
LED puck lights deliver a more concentrated, spotlight-like illumination, creating distinct pools of light. In contrast, LED strip lights provide a continuous line of light for a uniform glow. The choice depends on whether you want to highlight specific items or achieve a seamless wash of light.
Can I use puck lights for under counter lighting?
Can I use puck lights for under counter lighting?
Yes, puck lights are an excellent choice for under counter puck lights. Their focused beam is perfect for task lighting on countertops or for highlighting a backsplash, and their compact size makes them easy to conceal for a clean, professional look.
How far apart should I place my puck lights for even lighting?
How far apart should I place my puck lights for even lighting?
For even distribution in under cabinet puck lights, a good rule of thumb is to space the center of each fixture approximately 12 to 18 inches apart. The distance will vary based on the desired effect (spotlight vs. even wash).
