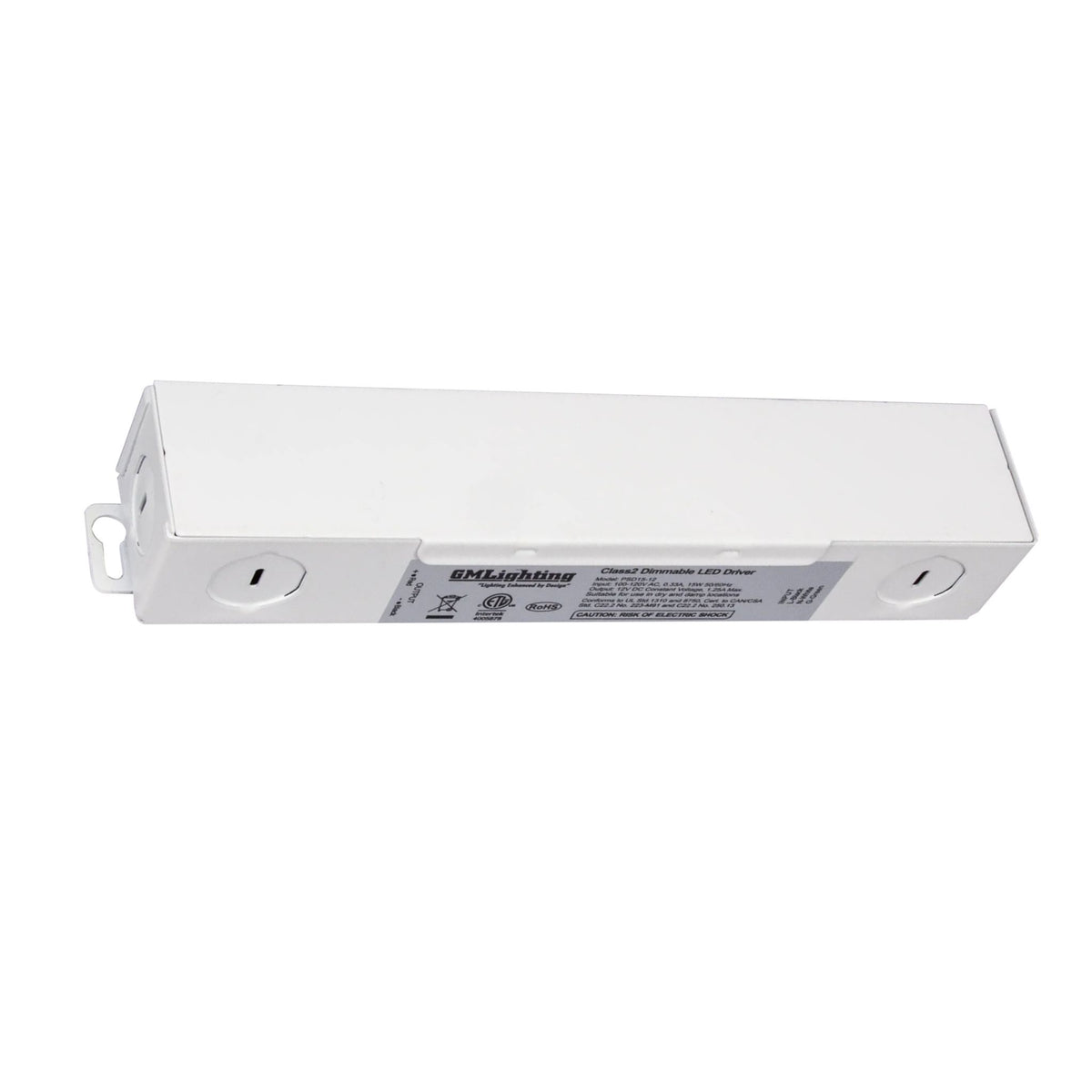

GM Lighting PSD Series 90W 24VDC LED Driver TRIAC Dimmable
In stock
About this item
About this item
- Output Voltage and Power: Provides a stable 24VDC Constant Voltage output with a maximum capacity of 90W.
- Dimming Protocol: Features Phase/TRIAC dimming for flicker-free control ranging from 20 percent to 100 percent.
- Input Voltage: Designed for standard 120VAC input, making it compatible with most residential and commercial circuits.
- Enclosure Design: Includes an Integrated Junction Box for simplified hardwire installation without additional enclosures.
- Safety Protection: Equipped with short circuit and over-voltage protection and is Class 2 rated for enhanced safety.
We process payments securely and do not store credit card information.
Description
Description
GM Lighting PSD Series 90W LED Driver — 24VDC
The GM Lighting PSD90-24 90W LED Driver provides a 24VDC Constant Voltage output and includes an Integrated Junction Box for secure hardwire installation. This Class 2 rated power supply is designed for high-efficiency performance in a variety of lighting applications and ensures flicker-free operation when paired with compatible dimming systems.
Key Features
- Power: 90W
- Input Voltage: 120VAC
- Output Voltage: 24VDC
- Dimming: Phase/TRIAC (20%-100%)
- Minimum Load: 40% of rated wattage
- Dimensions: 7.125 in. L x 3.375 in. W x 1.375 in. H
- Enclosure Type: Integrated Junction Box
- Efficiency: Up to 80%
- Certifications: ETL Listed, Class 2, IP20
Physical Design & Installation
The unit is housed in a durable enclosure featuring an Integrated Junction Box with knockouts designed for streamlined hardwire installation. Its low-profile design allows for easy concealment in tight spaces such as kitchen cabinets or architectural coves, while cooling is handled by natural air convection.
Dimming & Controls
This driver utilizes Phase/TRIAC dimming protocols, offering smooth, flicker-free performance from 20% to 100%. For optimal dimming stability and performance, it is recommended to maintain a load between 40% and 85% of the total capacity with compatible 120V dimmers.
Performance & Build
Engineered for long-term reliability, the driver includes comprehensive protection against short circuits and over-voltage. It is Class 2 compliant and carries an IP20 rating, making it suitable for damp location environments when properly installed according to local electrical codes.
Typical Applications
- LED Tape Lighting
- Under-cabinet Puck Lights
- Linear Lightbars
- Architectural Accent Lighting
