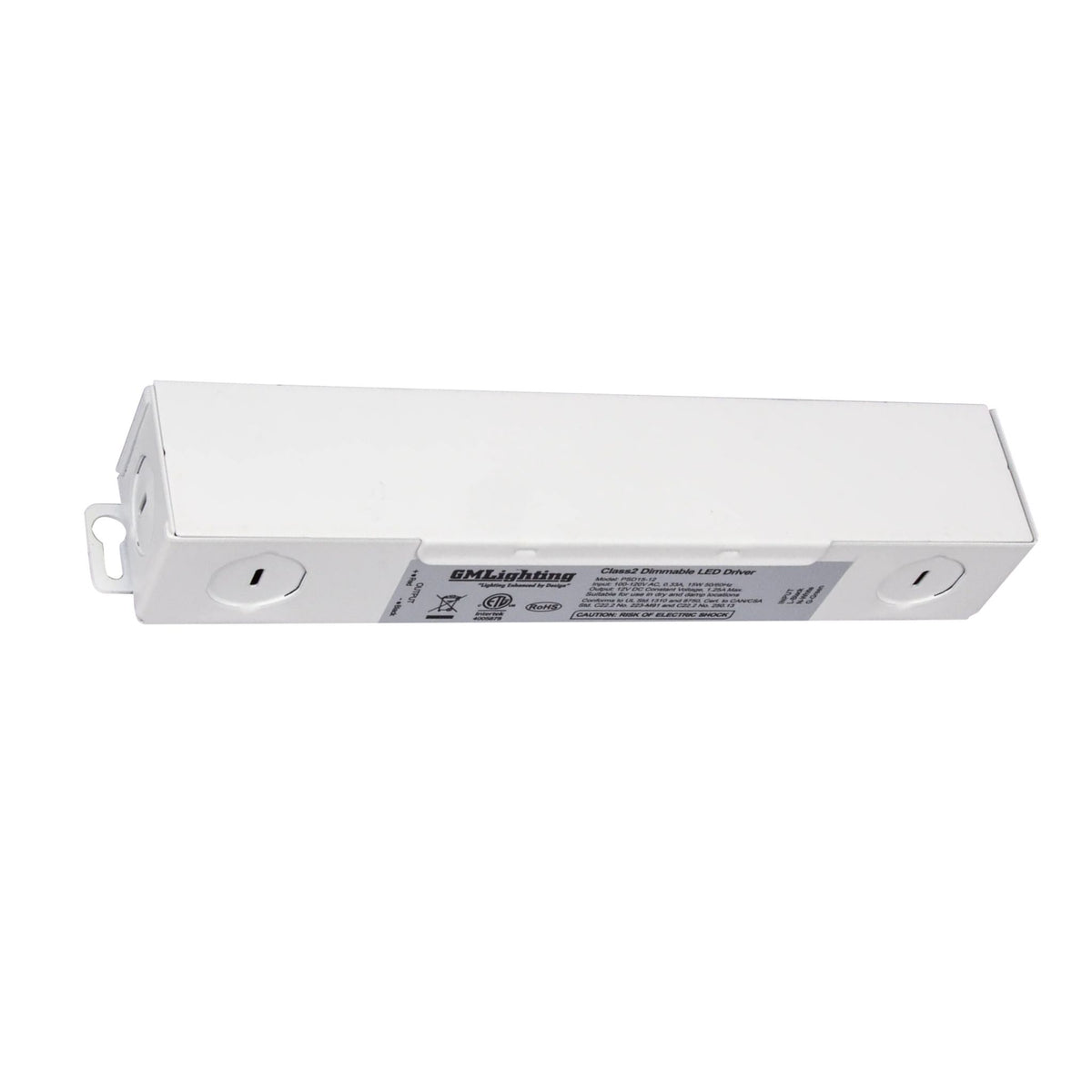

GM Lighting PSD Series 24W 24VDC LED Driver Phase/Triac Dimming
In stock
About this item
About this item
- Output Power: Provides 24W of 24VDC constant voltage for consistent LED illumination.
- Dimming Protocol: Features Phase/Triac dimming compatibility with a range of 20% to 100%.
- Input Voltage: Operates on a standard 120VAC input for residential and commercial applications.
- Enclosure Type: Includes an integrated junction box for simplified hardwire installation and wiring.
- Safety Features: Equipped with short circuit and over-voltage protection and is Class 2 rated.
We process payments securely and do not store credit card information.
Description
Description
GM Lighting PSD 24W LED Driver — 24VDC
The GM Lighting PSD24-24 is a Class 2 24W LED Driver with 120V input, 24VDC Constant Voltage output, Phase/Triac dimming, and an Integrated Junction Box. This power supply is engineered for high efficiency and flicker-free performance in low-voltage lighting systems.
Key Features
- Power Output: 24W
- Input Voltage: 120VAC
- Output Voltage: 24VDC
- Dimming Type: Phase/Triac
- Minimum Load: 40% (9.6W) for optimal performance
- Dimensions: 10.0 in. L x 1.625 in. W x 1.5 in. H
- Enclosure: Integrated Junction Box
- Efficiency: Up to 80%
- IP Rating: IP20
- Certification: ETL Compliant and Class 2 Rated
Physical Design & Installation
The PSD series features a durable metal construction with an integrated junction box, allowing for direct hardwire installation without the need for external enclosures. The design facilitates cooling by natural air convection and includes knockouts for easy wiring access.
Dimming & Controls
This driver supports smooth, flicker-free dimming from 20% to 100% using standard Phase or Triac dimmers. To ensure stable operation and prevent flickering, a minimum load of 40% (approximately 9.6W) is required, with a maximum recommended load of 85%.
Performance & Build
Built for longevity, the driver includes comprehensive protection against short circuits and over-voltage conditions. It is Class 2 compliant, ensuring safe operation for low-voltage LED tape, lightbars, and puck lights in dry or damp environments.
Typical Applications
- Under-cabinet LED tape lighting
- LED Slim Pucks and Mini Pucks
- Linear LED lightbars
- Accent and cove lighting
