GM Lighting PL24V-30-BZ 24VDC LED Slim Puck - 3000K, 170 Lumens, Bronze
GM Lighting PL24V-30-BZ 24VDC LED Slim Puck - 3000K, 170 Lumens, Bronze
In stock
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- 3” dia. x 1/4” depth slim, ultra-slim profile perfect for tight spaces
- 2.2W, 170 lumens, 24VDC operation, soft 3000K light
- Surface or recess mount options with magnetic cover plates
- Connect up to 8 pucks per lead, making it simple to illuminate long stretches of cabinetry
- Dimmable: Compatible with ELV drivers for adjustable brightness
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
Overview
The GM Lighting PL24V-30-BZ is a 3-inch diameter, ultra-slim LED puck light engineered for architectural under-cabinet and accent lighting applications. At just 1/4-inch depth, this 24VDC fixture delivers 170 lumens of warm 3000K illumination through a high-quality aluminum body with bronze polycarbonate diffuser lens. The innovative magnetic trim system enables tool-free installation for both surface and recessed mounting configurations.
Features
- 24VDC Operation: Compatible with 24V low-voltage systems

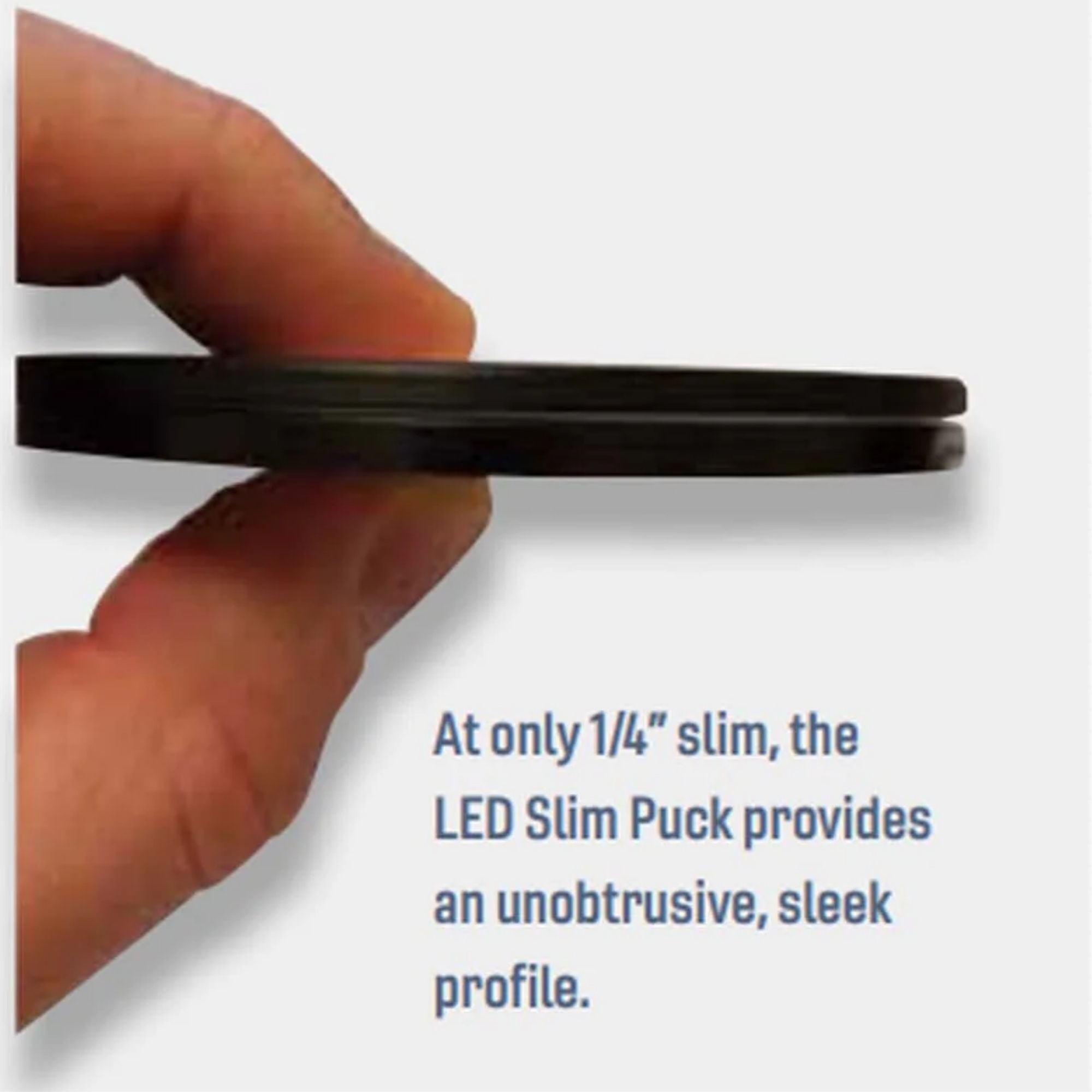

- Ultra-Slim Profile: 1/4-inch depth with 3-inch diameter fits tight spaces
- Magnetic Trim System: Tool-free cover plate attachment for easy installation and maintenance

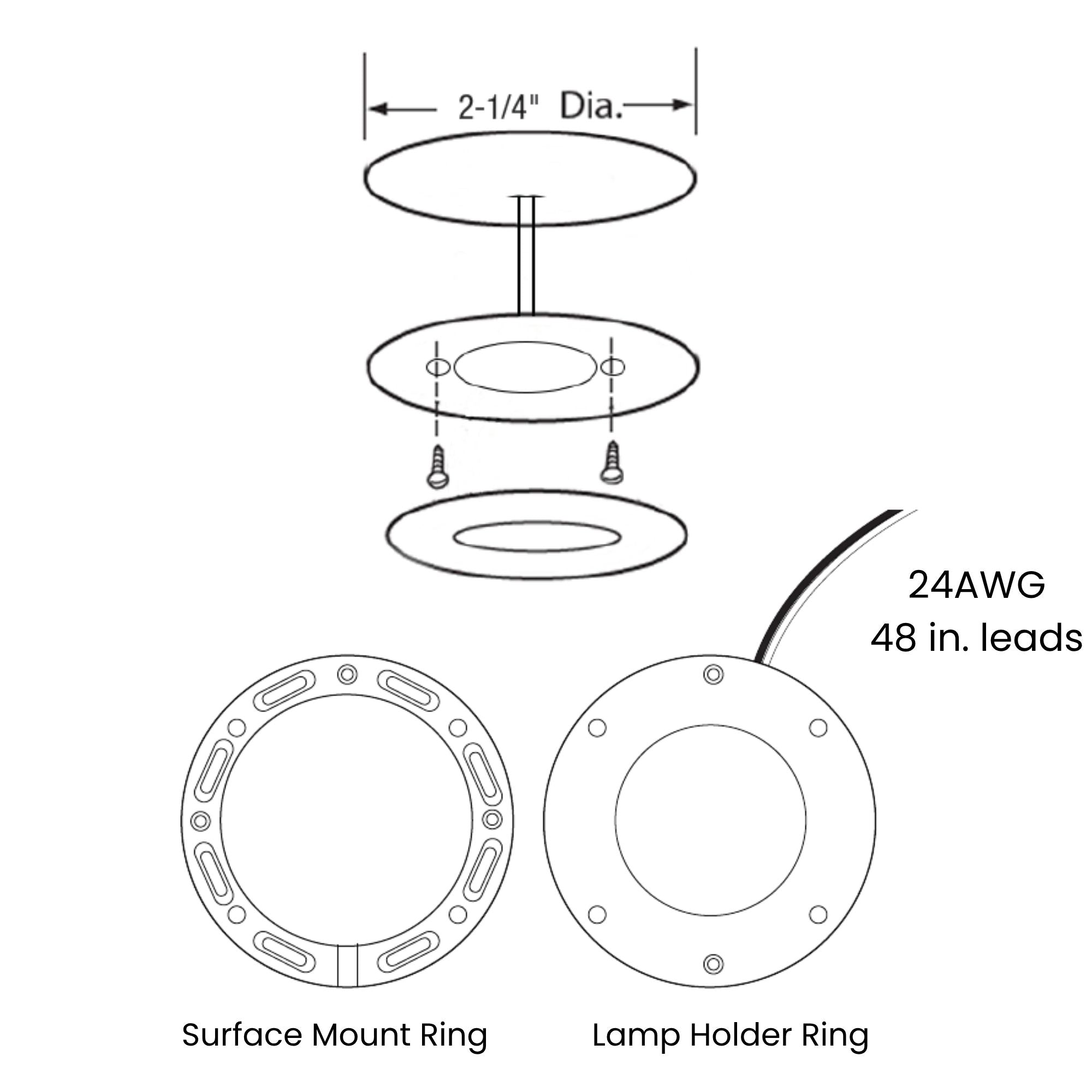

- Dual Mount Options: Surface mount (with ring) or recessed mount (without ring)
- Premium Construction: Aluminum body with bronze polycarbonate diffuser for low glare
- Dimmable: Compatible with ELV drivers
- ETL Listed: Certified for dry locations
- 5-Year Warranty: When used with GM power supplies
Specifications
- Model Number: PL24V-30-BZ
- Voltage: 24VDC
- Wattage: 2.2W
- Lumens: 170 lm
- Color Temperature: 3000K (Warm White)
- CRI: 80+

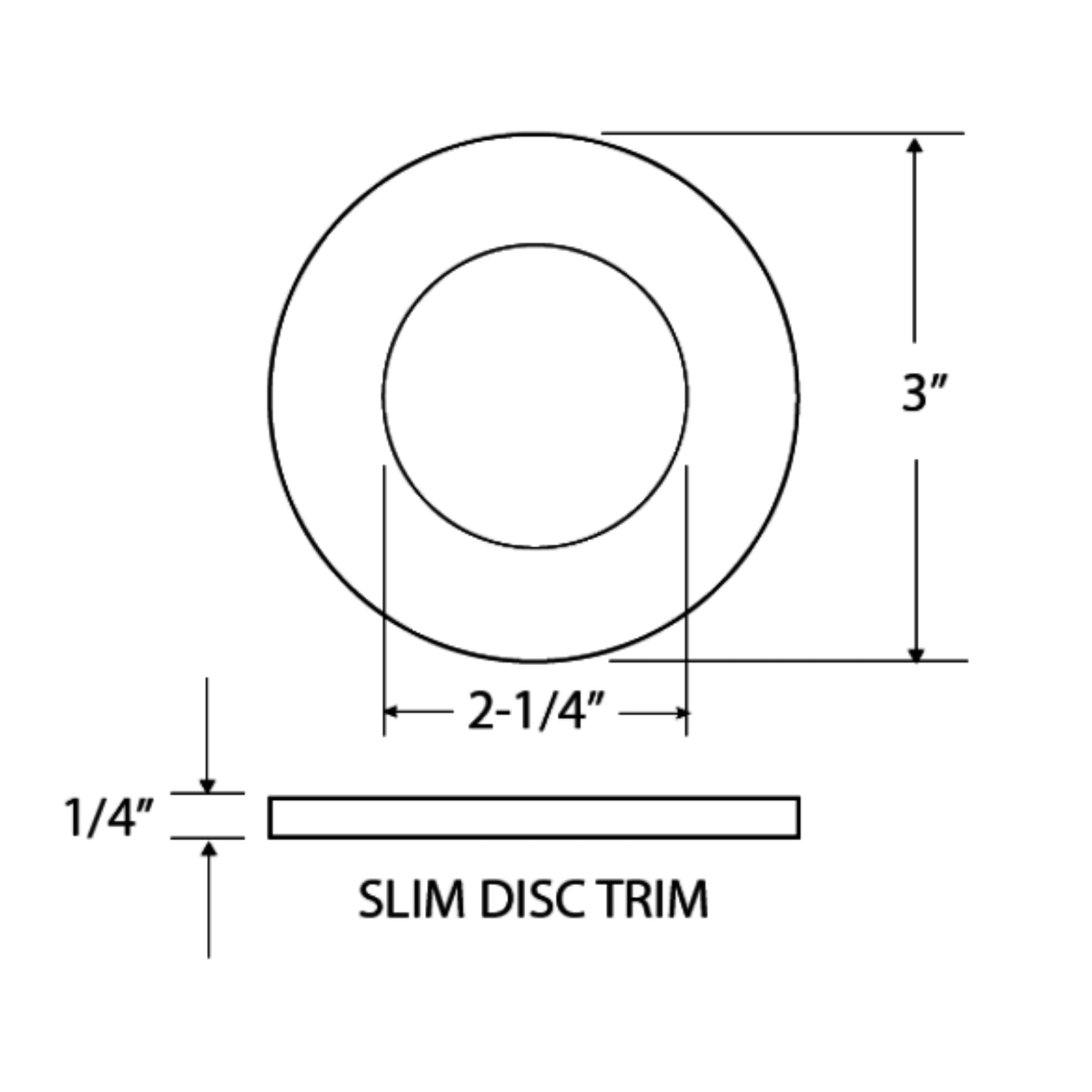

- Dimensions: 3" diameter × 1/4" depth
- Finish: Bronze
- Lead Length: 48 inches (24AWG wire)
- Max Pucks per Lead: 8 on PSD24-24, 4 on PSD15-24
- Operating Temperature: -4°F to 113°F
- Dimming: ELV drivers
- Certification: ETL Listed
- Location Rating: Dry locations only
- Warranty: 5 years with GM power supplies
Compatible Dimmers: LUTRON DIVA-CL, LUTRON MAESTRO-MCL-153, LUTRON DIVA 303P, LUTRON CASETA-PD, LUTRON SKYLARK-CONTOUR-CL
Recommended Drivers: PSD15-24, PSD24-24, PSD-24, LTP-24, LD-10-UNV-24
Important: Use electronic power supplies only (PSD15-24, PSD24-24, PSD60-24, or LineDrive). Magnetic power supplies are not compatible with this fixture.
Applications

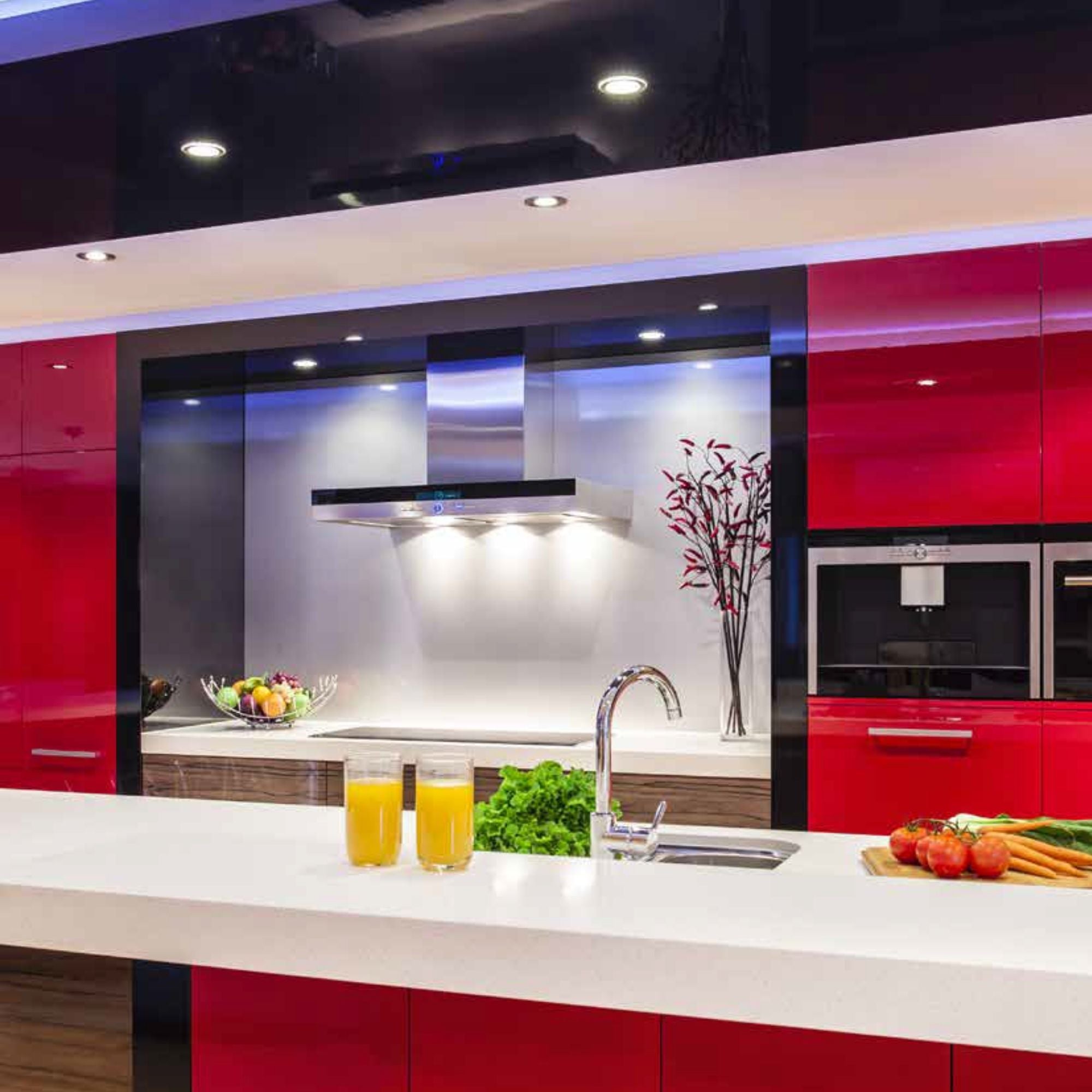

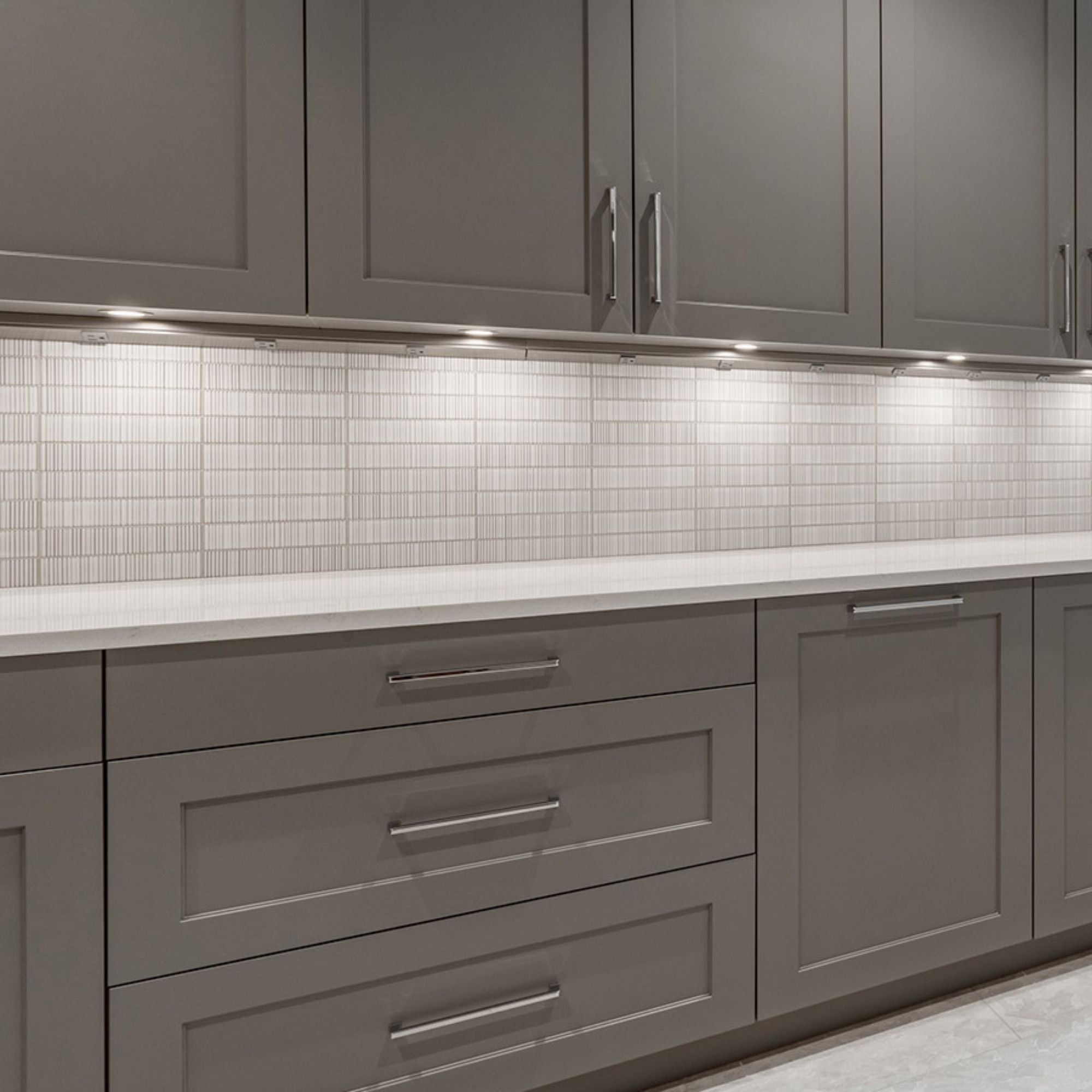

- Under-cabinet lighting in kitchens and workspaces

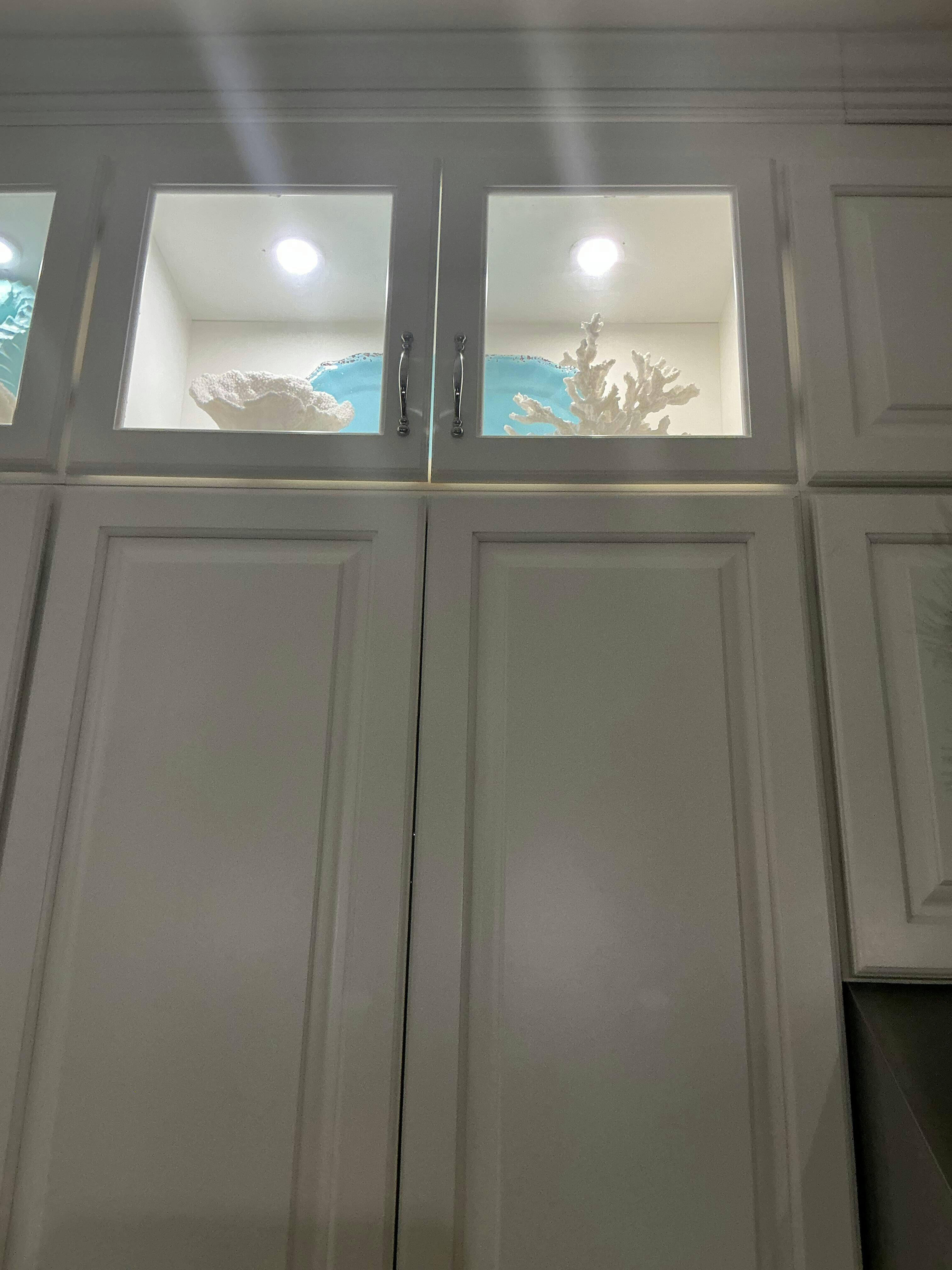

- Display case and shelf accent lighting
- Architectural cove and alcove illumination
- Closet and wardrobe lighting
- Retail merchandising and product displays
- Residential and commercial low-voltage lighting systems
