GM Lighting Slim Puck 3 in. Puck Light, Brushed Nickel, 3000K, 170 Lumens, 24V
In stock
About this item
About this item
- Dimensions: 3 in. diameter with a slim 0.25 in. height for versatile installation.
- Voltage: Operates on 24VDC for efficient energy use.
- Lumens: Delivers 170 lumens at 3000K for effective task lighting.
- Mounting Options: Surface or recess mount for flexible installation.
- Dimmable: Compatible with ELV dimmers for adjustable lighting levels.
We process payments securely and do not store credit card information.
Description
Description

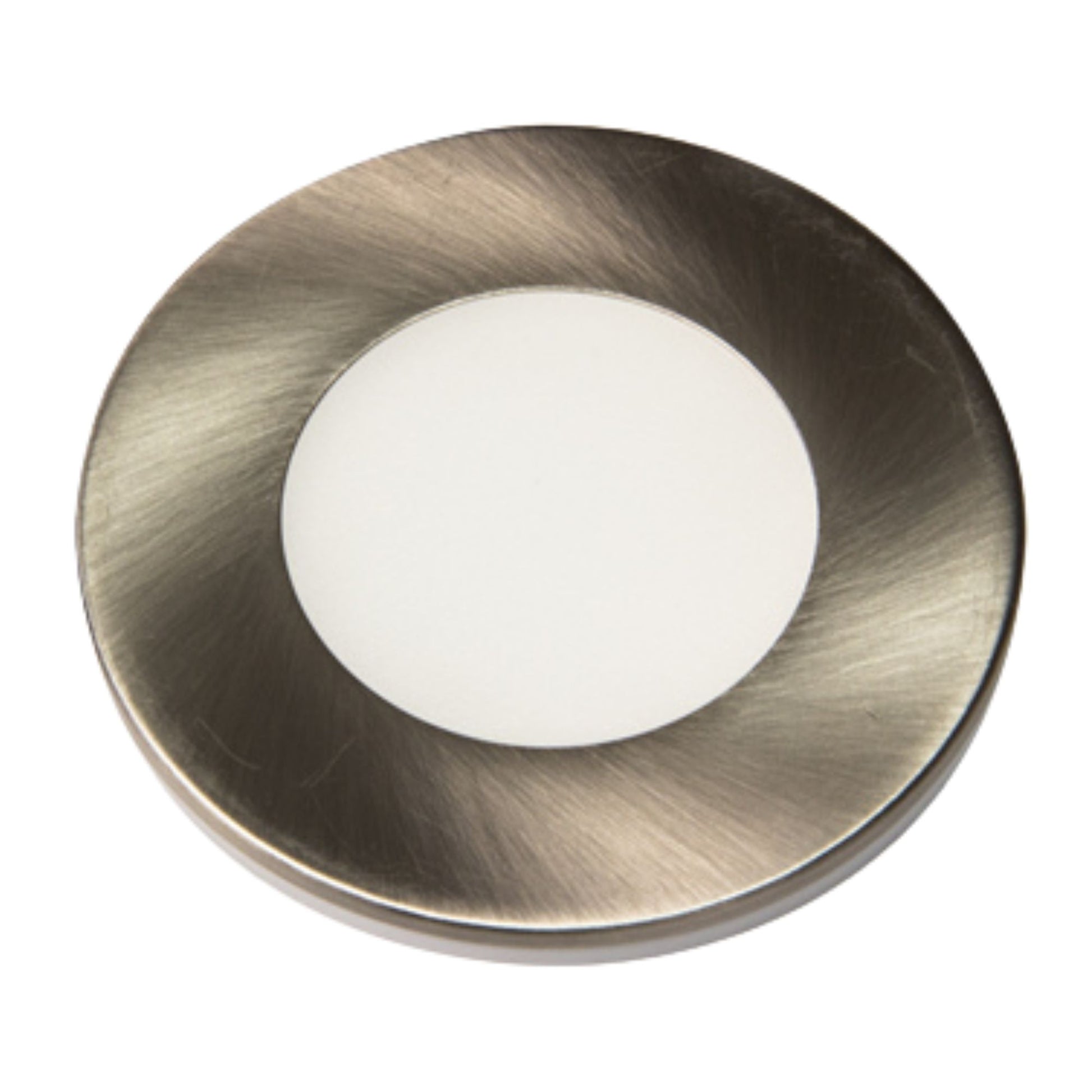

GM Lighting Slim Puck Puck Light — Brushed Nickel & Selectable CCT
The GM Lighting PL24V-30-BNK in brushed nickel is a versatile puck light designed for both surface and recess mounting. With a diameter of 3 inches and a height of 0.25 inches, this fixture provides 170 lumens of illumination at 3000K using a 24VDC power source.
Key Features

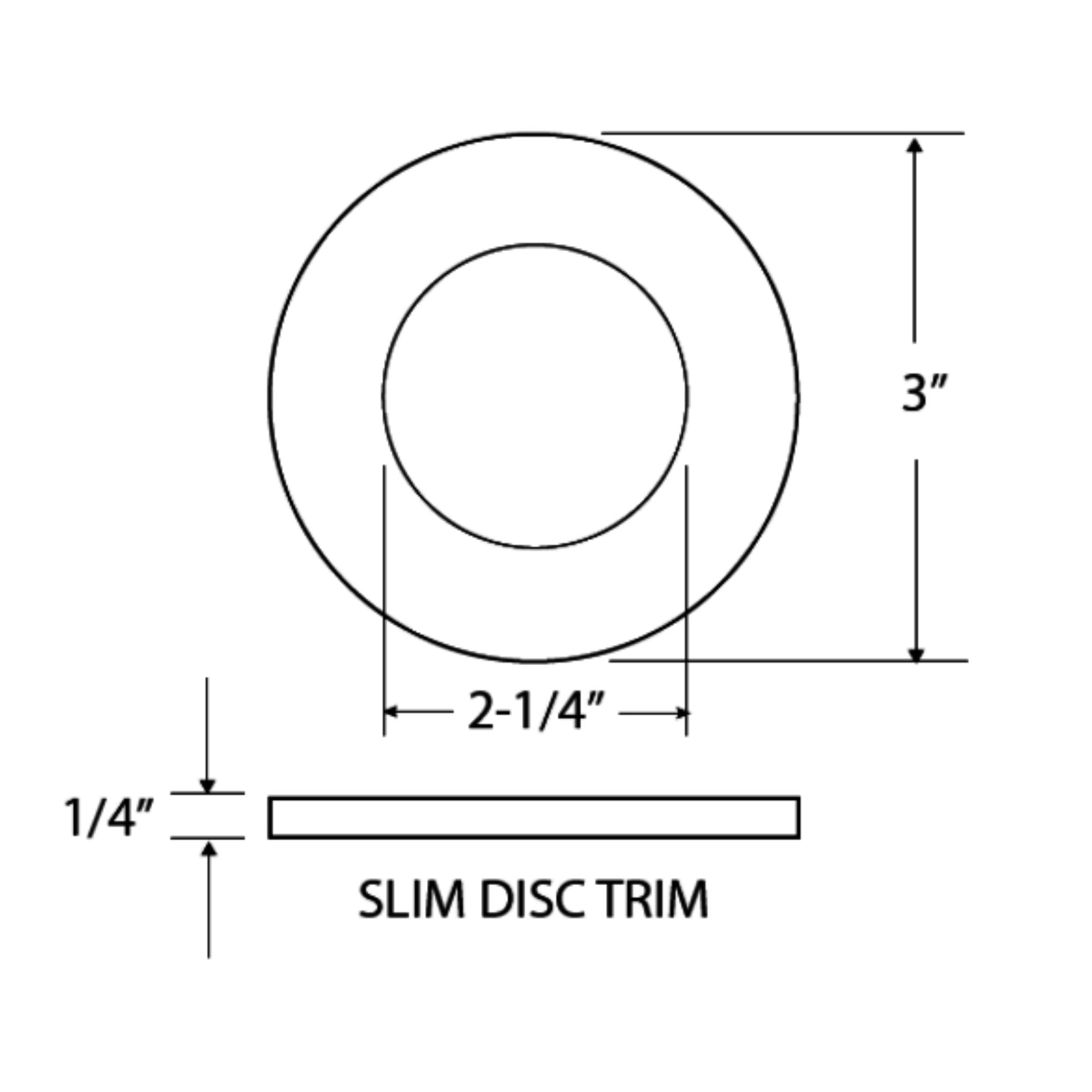

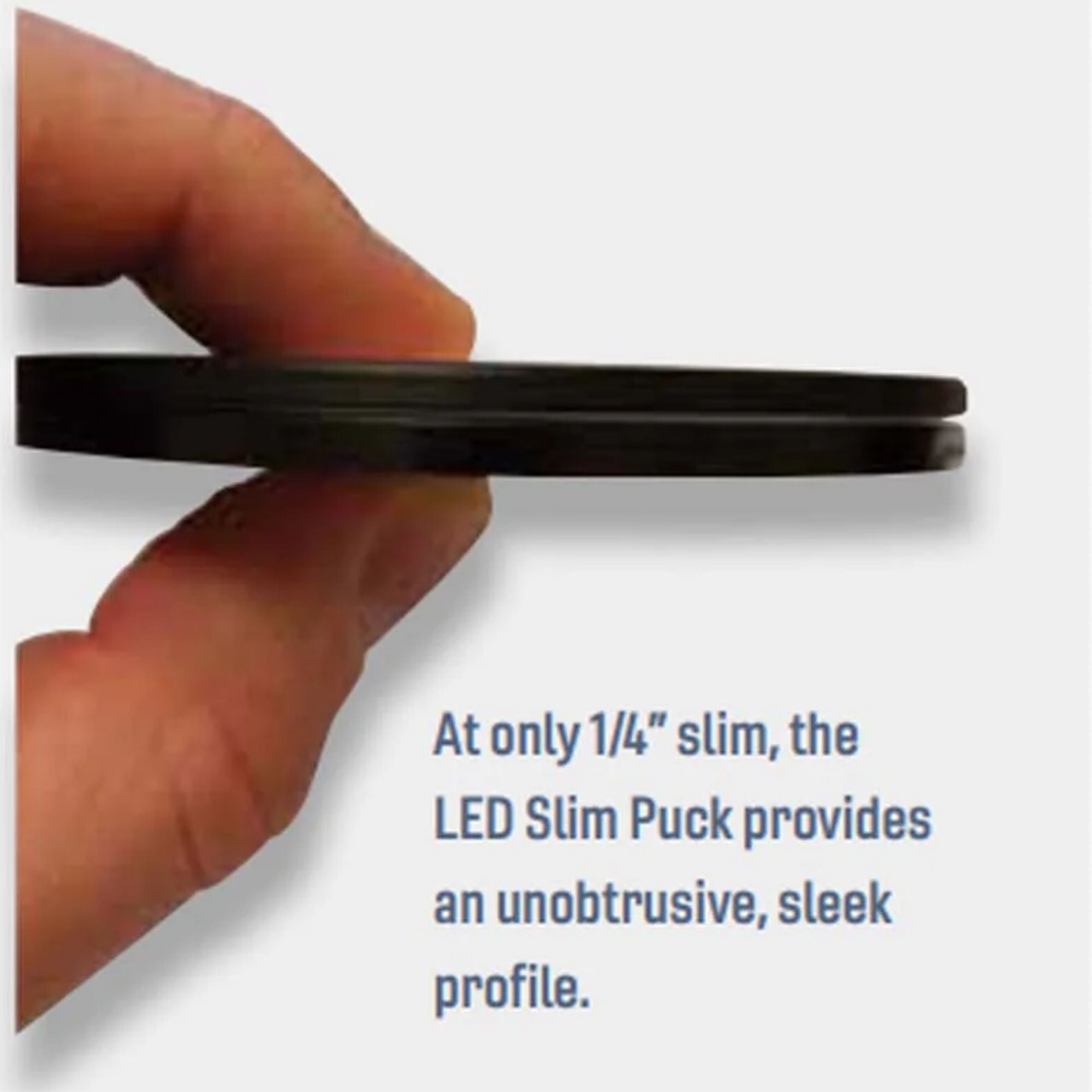

- Dimensions: 3 in. diameter x 0.25 in. height.
- Voltage: 24VDC operation for efficient energy use.
- Wattage: Consumes only 2.2 watts.
- Lumens: Provides 170 lumens at 3000K.
- CRI: 80+ for accurate color rendering.
- Lifespan: 5-year warranty with GM power supplies.
- Mounting: Surface or recess mount options.

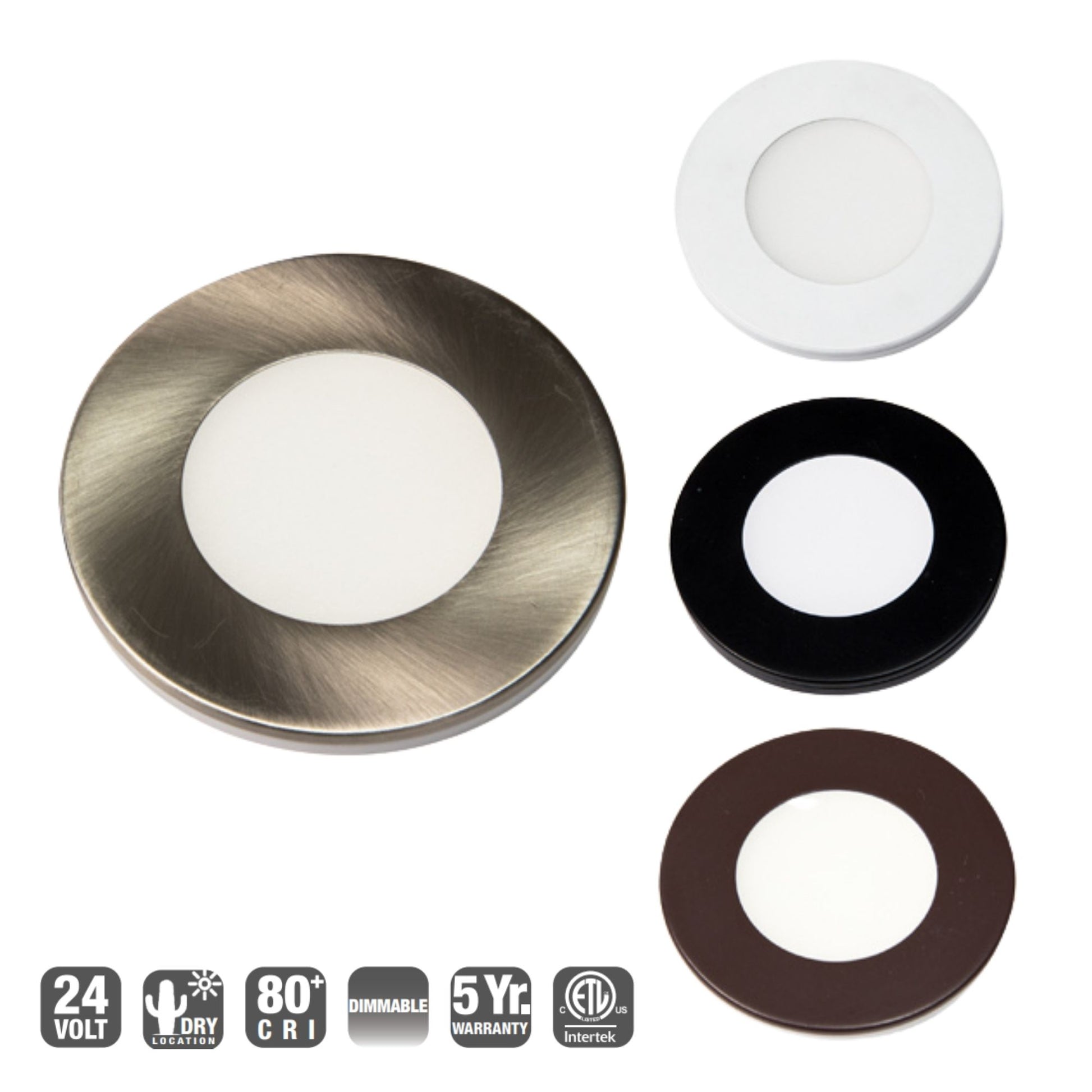

- Finish: Available in brushed nickel, white, black, and bronze.
- Dimming: Compatible with ELV dimmers.
- Ambient Temperature: Operates from -4 F to 113 F.
Core Design & Profile
This puck light features a sleek aluminum body with a polycarbonate diffuser lens, available in multiple finishes including brushed nickel. It is dry rated for indoor use.
LED Illumination & Performance
Emitting 170 lumens at 3000K, this puck light uses only 2.2 watts, ensuring energy efficiency. It has a CRI of 80+ for true color representation.
Power, Wiring & Linkability
Designed for 24VDC operation, this fixture is compatible with specific electronic power supplies. It supports up to 8 pucks on a PSD24-24 driver.
Where This Fixture Works Best

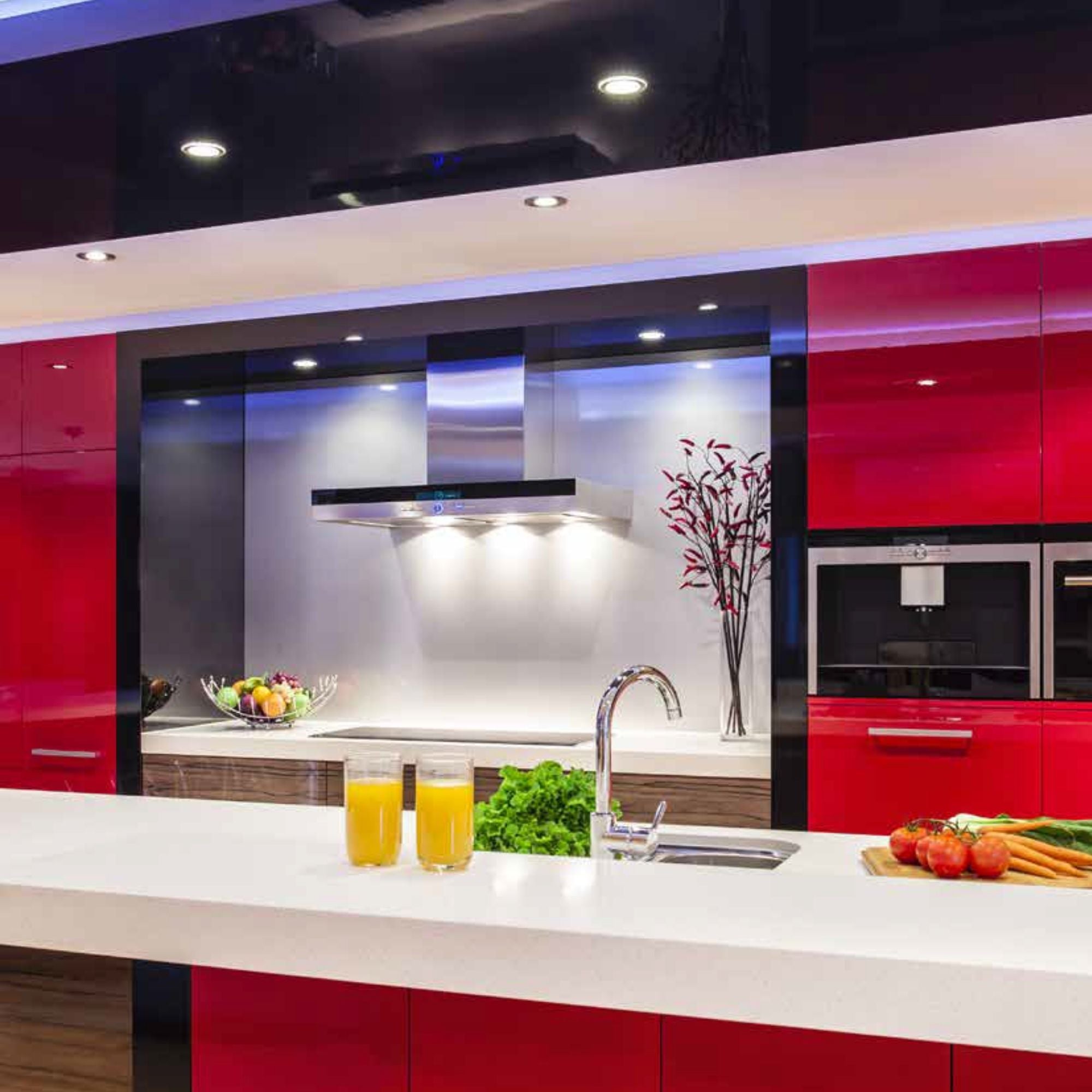

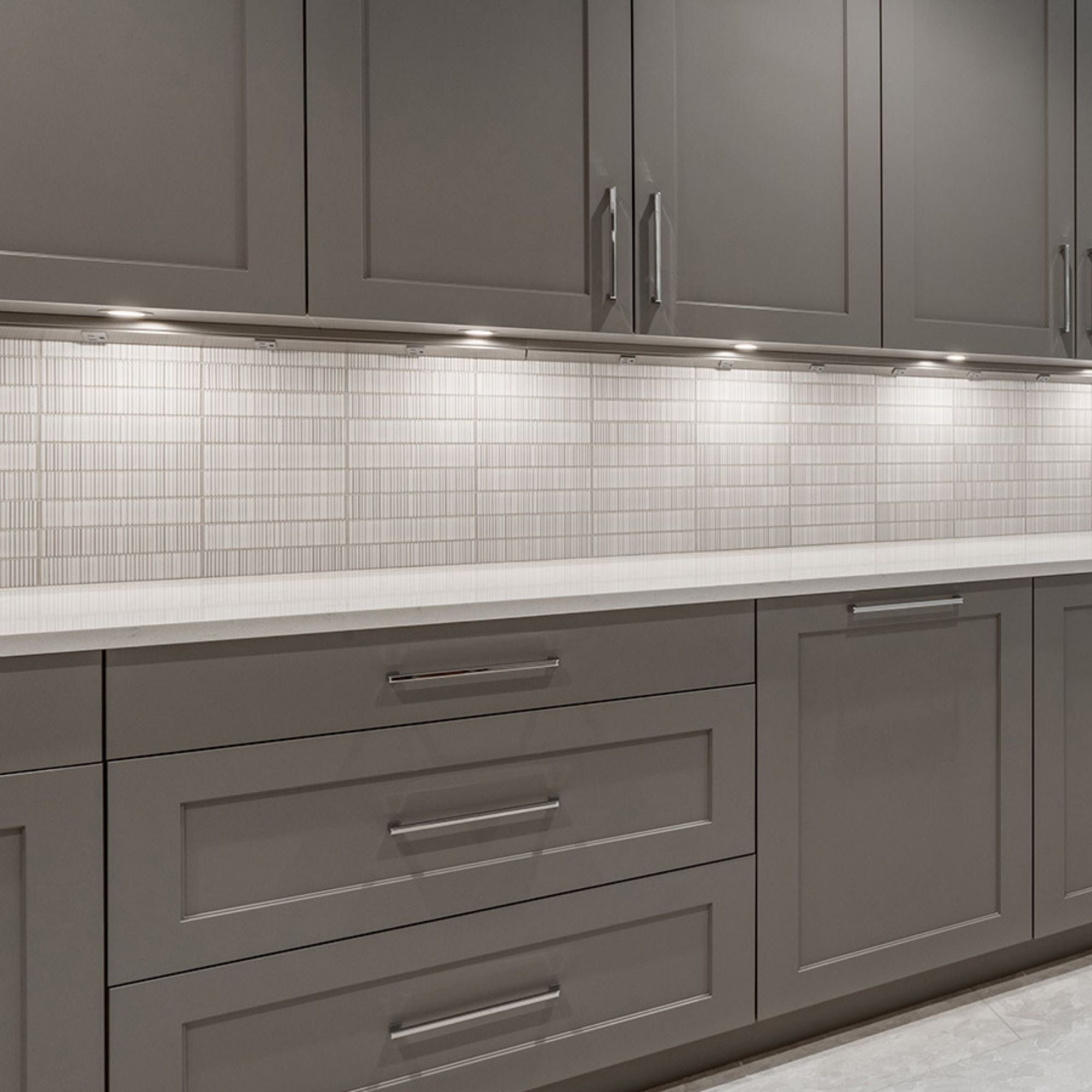

- Under cabinets in kitchens
- Display cases
- Retail shelving
- Workstations
- Accent lighting
What's Included

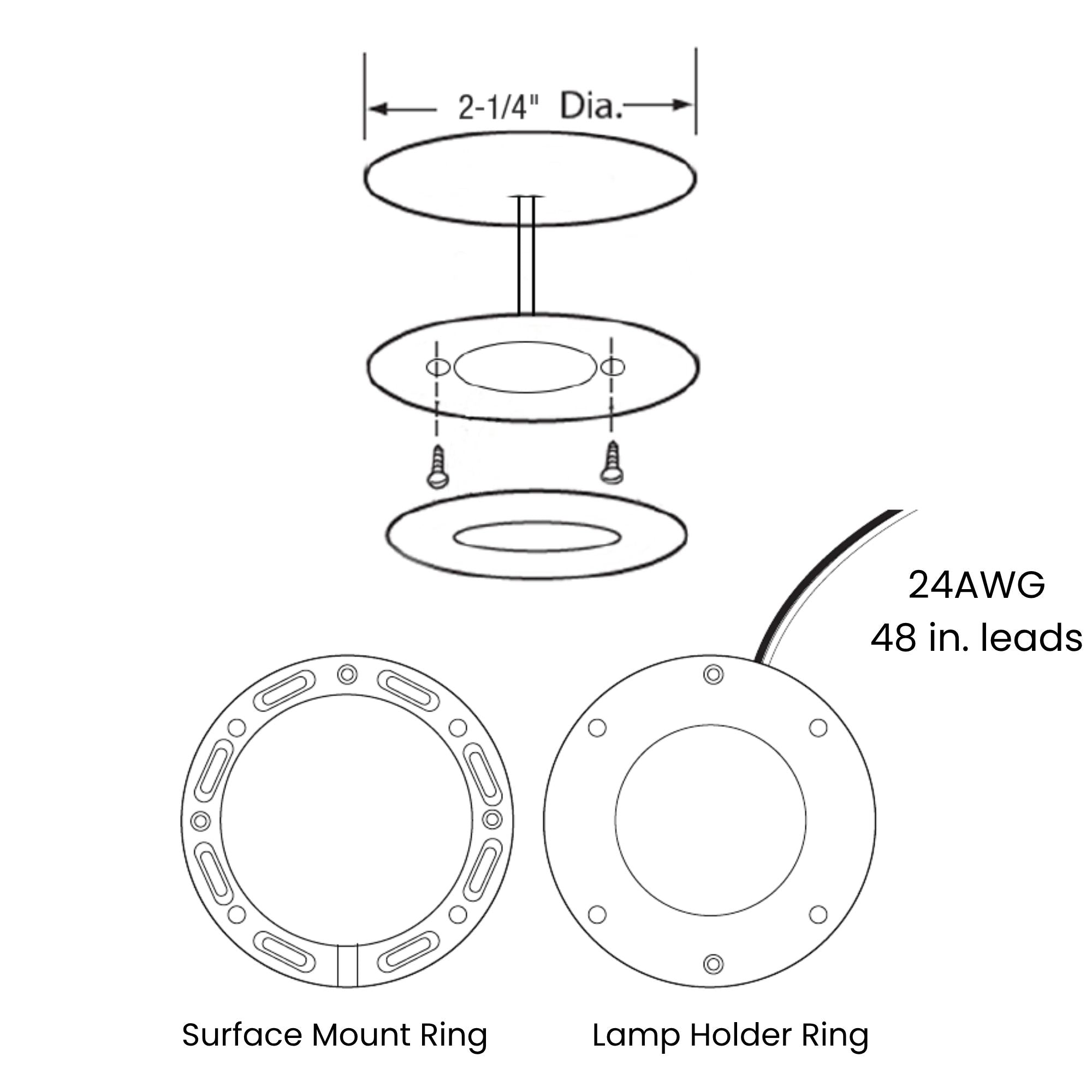

- Puck light with surface mount ring

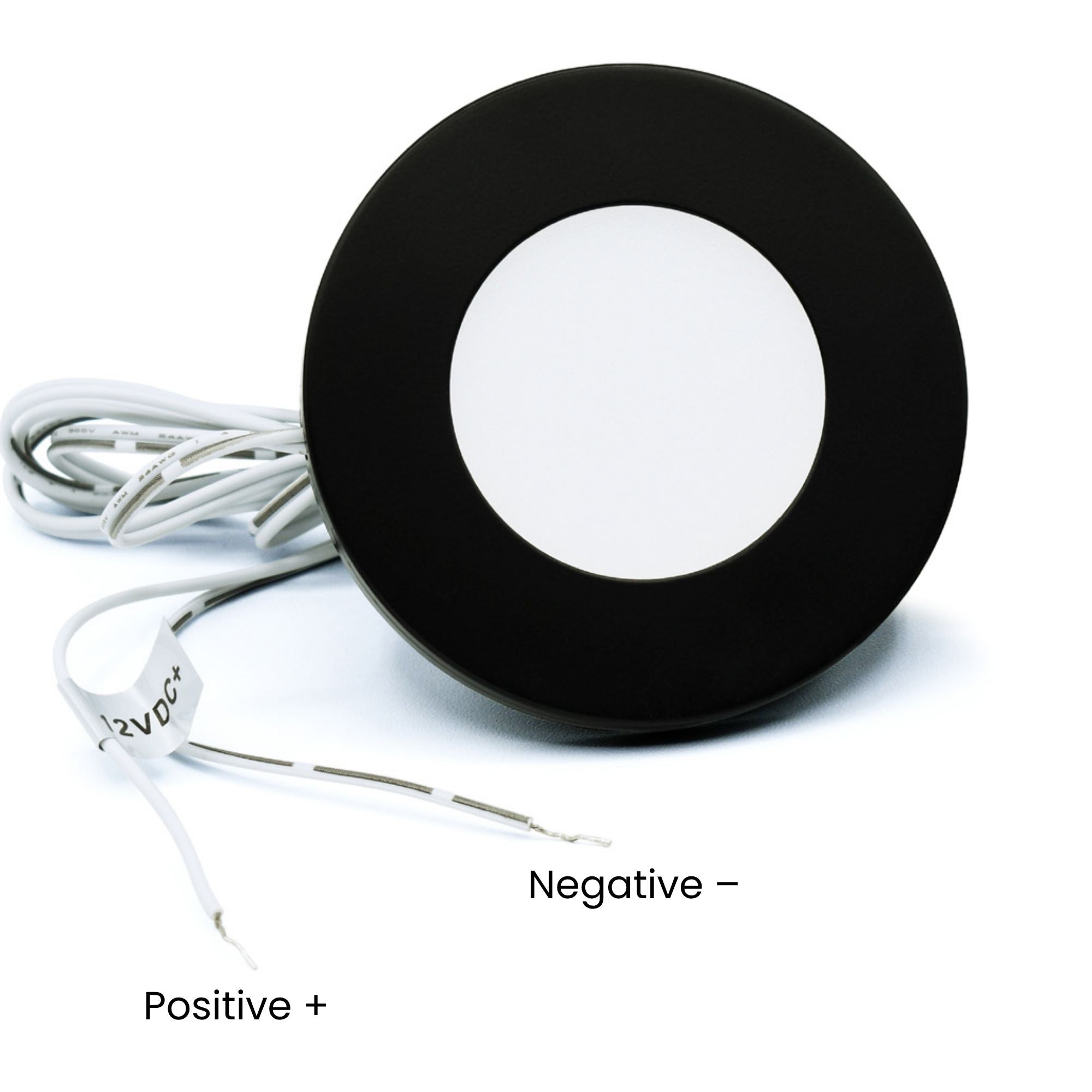

- 48 in. leads
Specifications
