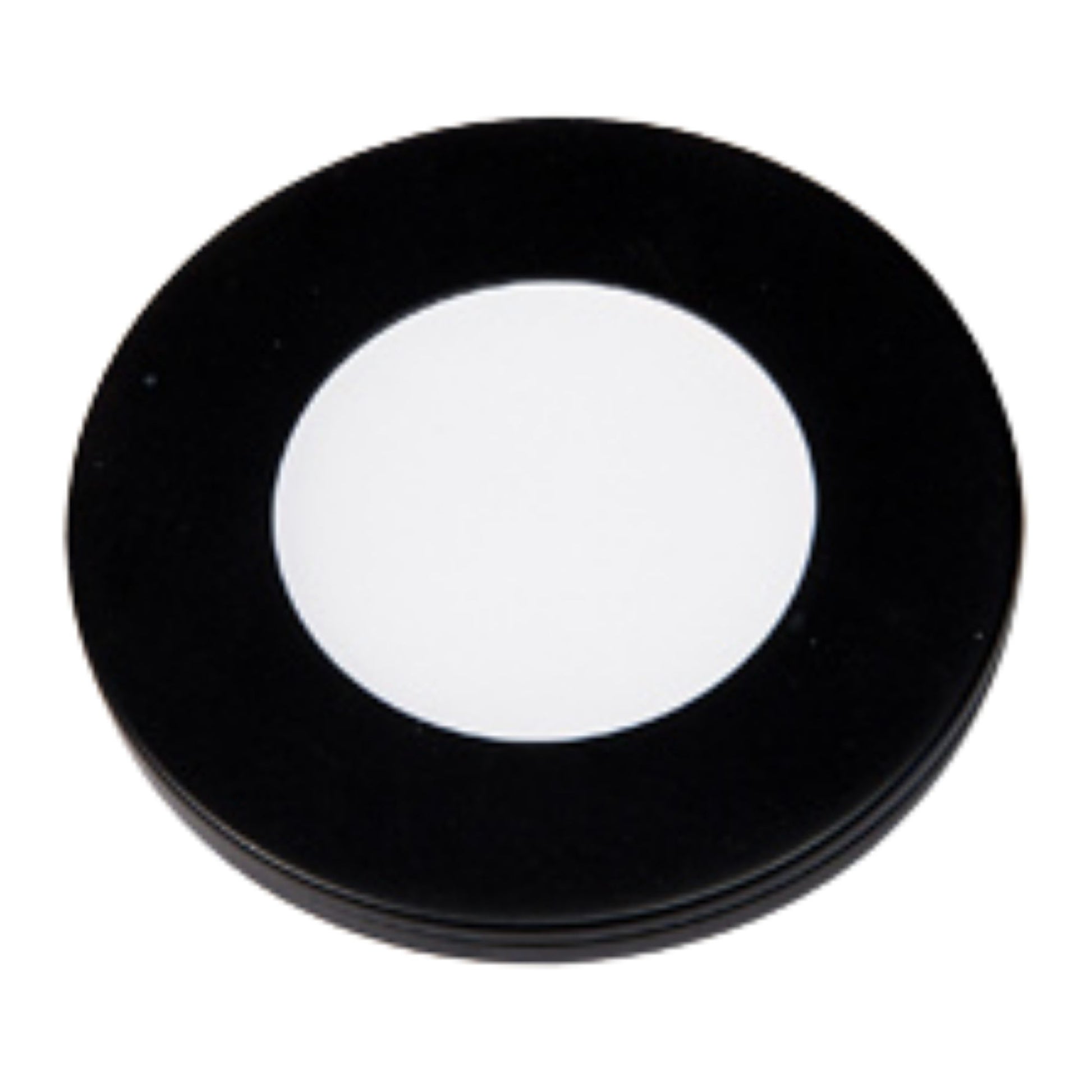

GM Lighting Slim Puck LED Puck Light — Black & Dimmable

The GM Lighting PL24V-30-B is a sleek Black LED puck light designed for versatile task lighting applications. Constructed from high-quality aluminum, this 3 in. diameter fixture offers a low-profile design with a height of just 0.25 in.. It operates on 24V and delivers 170 lumens at a color temperature of 3000K.

Key Features

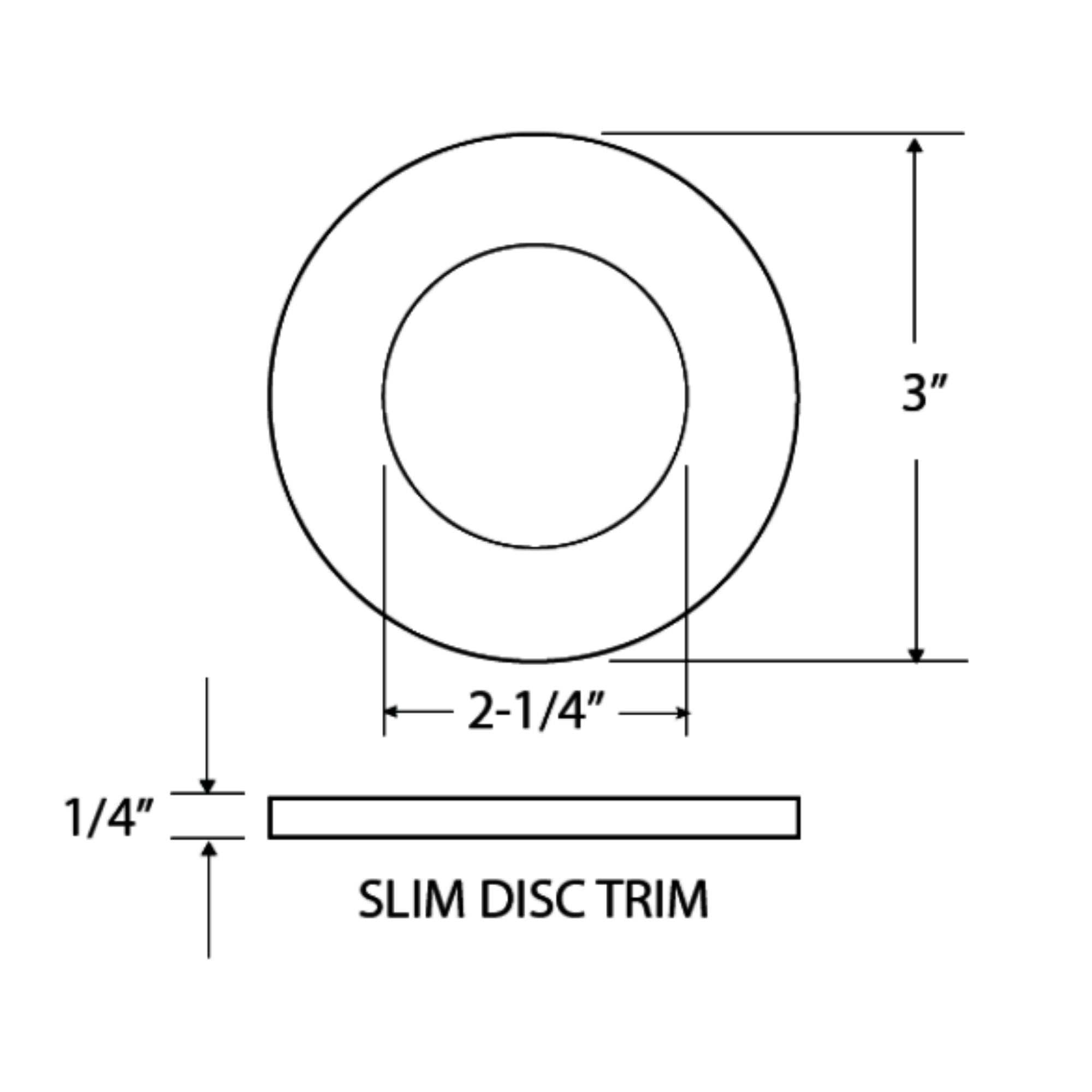

• Diameter: 3 in. with a slim 0.25 in. height for discreet installation.
• Wattage: Consumes only 2.2 watts for energy efficiency.
• Lumens: Emits 170 lumens, ideal for task lighting.
• Color Temperature: 3000K provides a warm, inviting ambiance.
• CRI: 80+ for accurate color rendering.

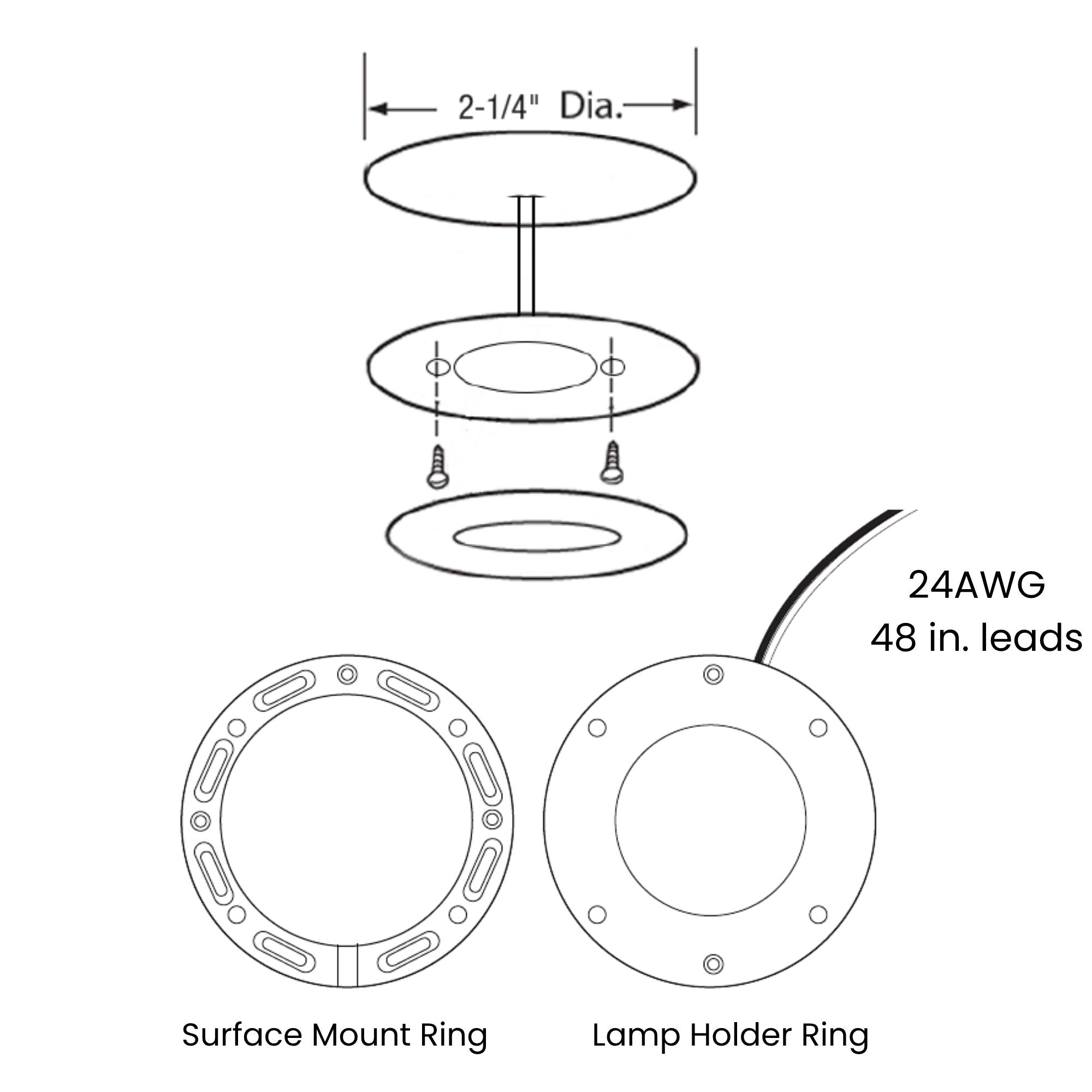

• Mounting: Surface or recess mount options available.
• Dimmable: Compatible with ELV dimmers for adjustable lighting.

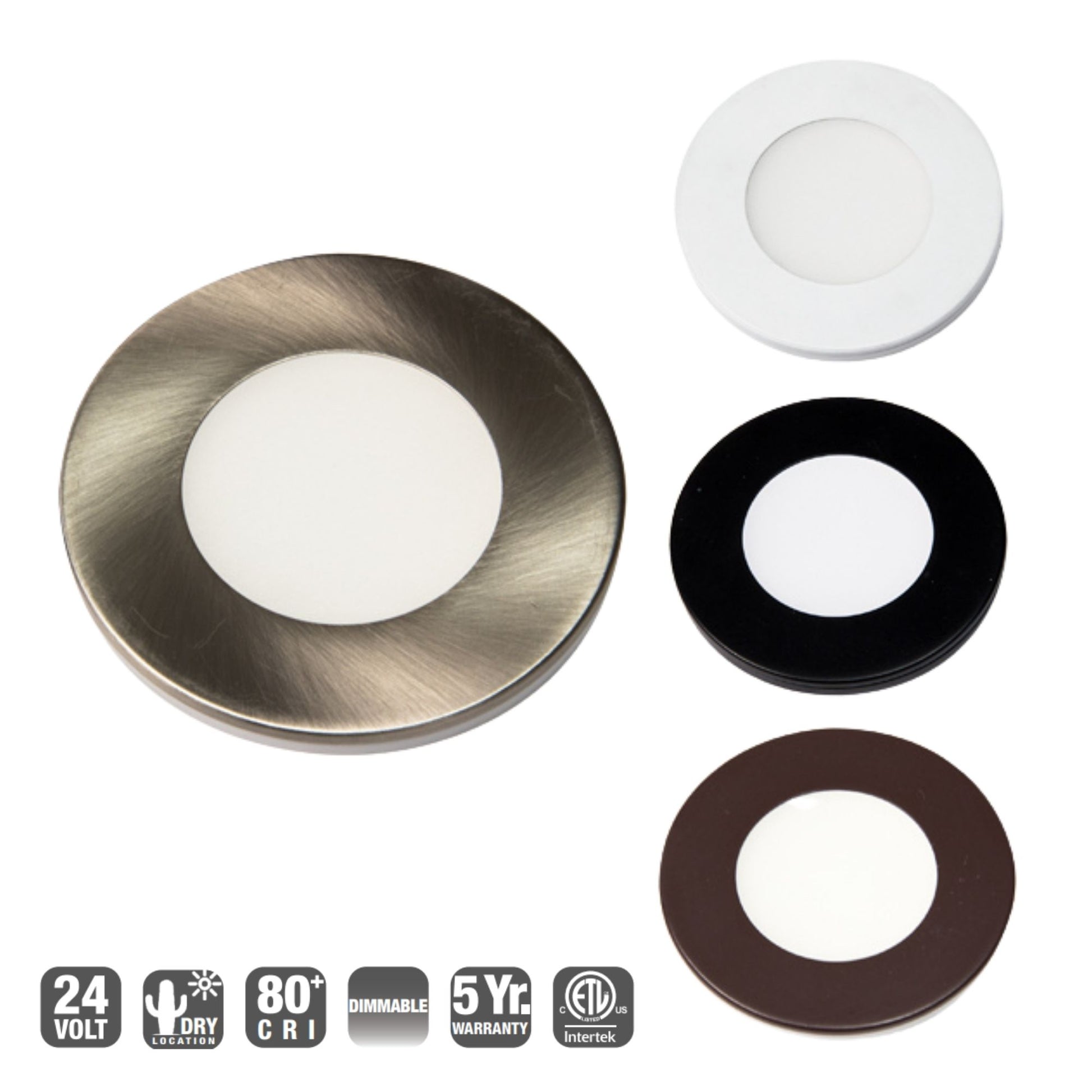

• Finish Options: Available in Black, White, Bronze, and Brushed Nickel.
• Warranty: 5-year warranty when used with GM power supplies.
• Operating Temperature: Suitable for -4 F to 113 F environments.

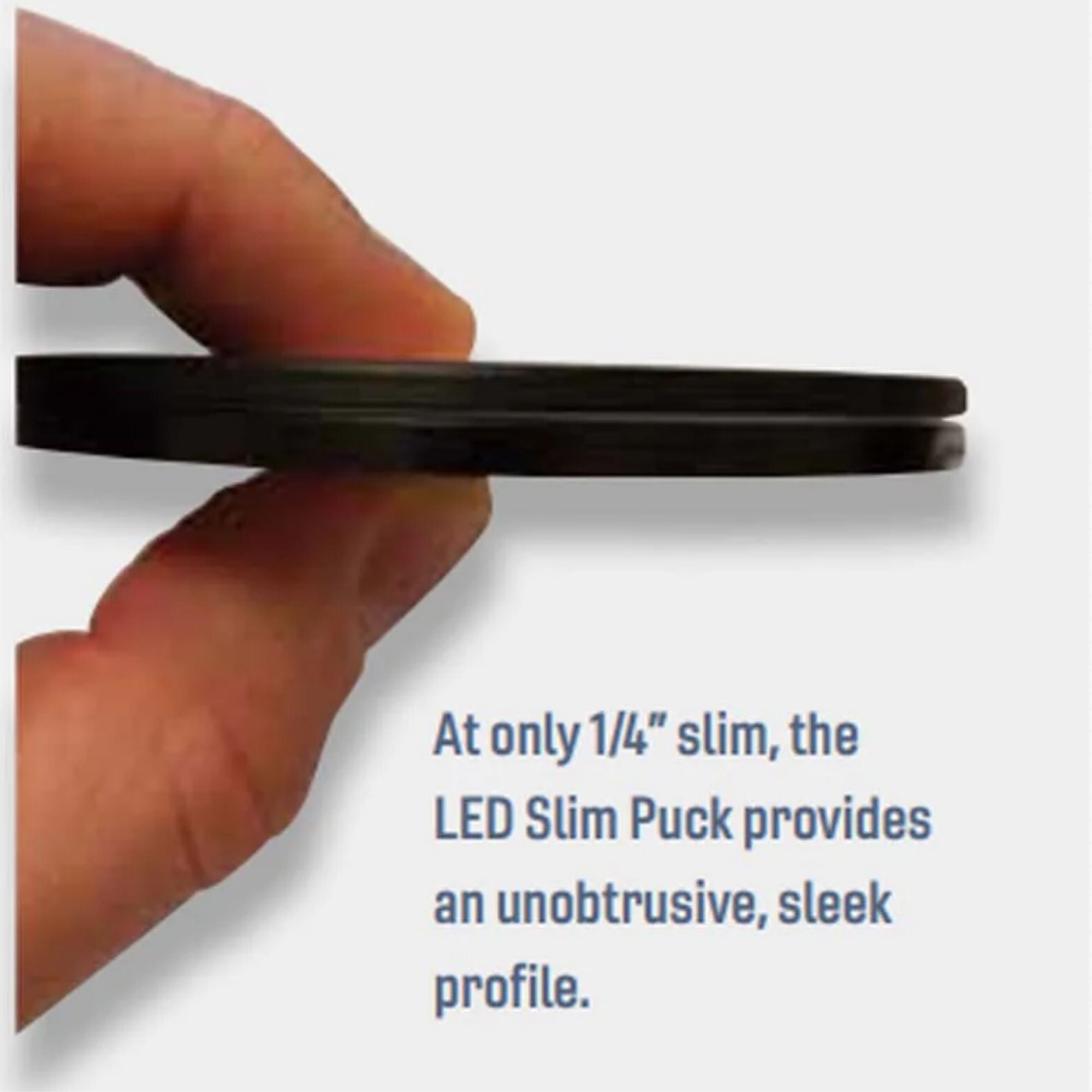

Core Design & Profile

This puck light features a slim profile with a high-quality aluminum body and a polycarbonate diffuser lens to minimize glare. Available in multiple finishes, it is dry-rated for indoor use.

LED Illumination & Performance

Delivering 170 lumens with a power consumption of 2.2 watts, this LED puck light offers a 3000K color temperature and a CRI of 80+, ensuring vibrant and accurate lighting.

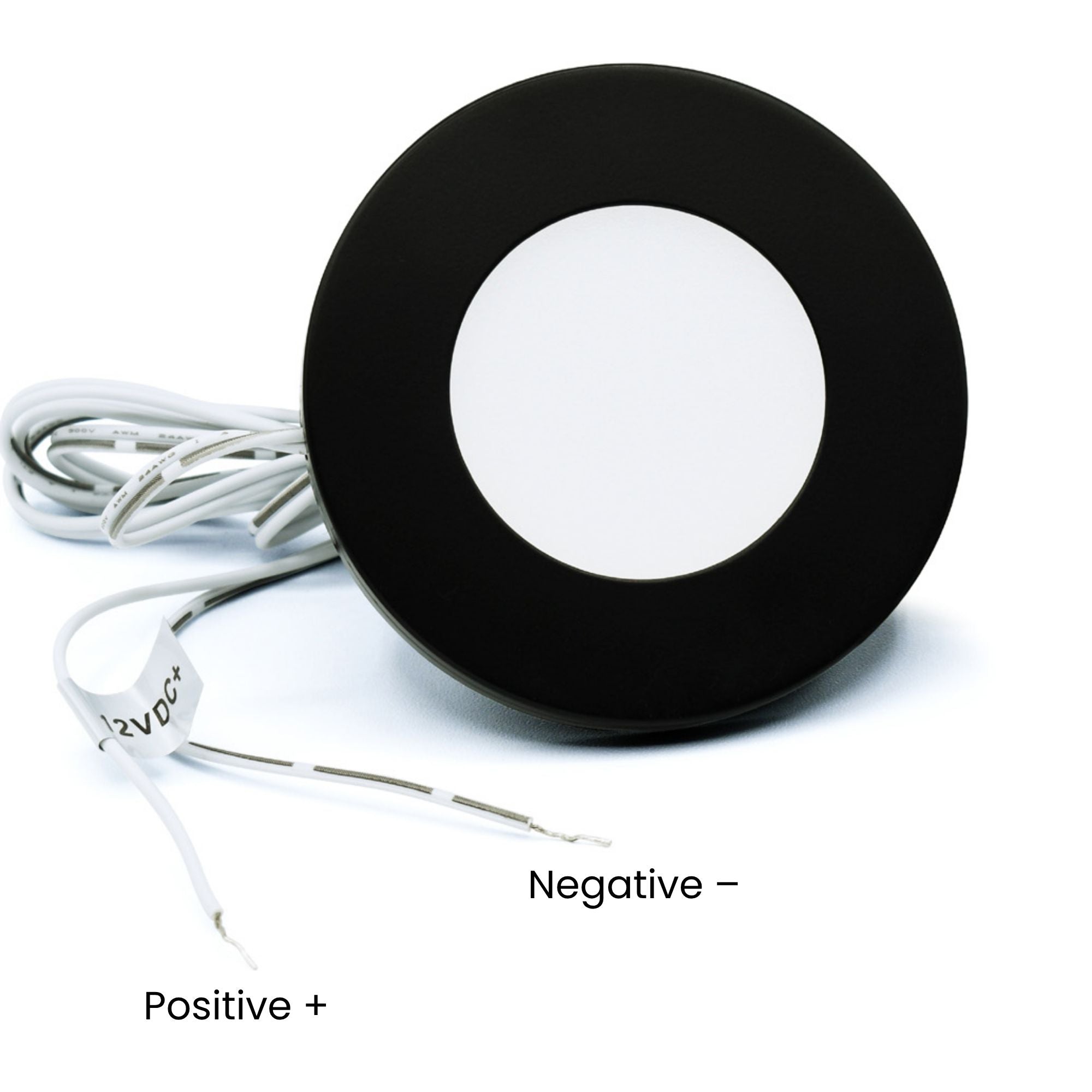

Power, Wiring & Linkability

Designed for 24V operation, this fixture is compatible with electronic power supplies and can be dimmed using ELV dimmers. It supports up to 8 pucks on a single PSD24-24 driver.

Where This Fixture Works Best

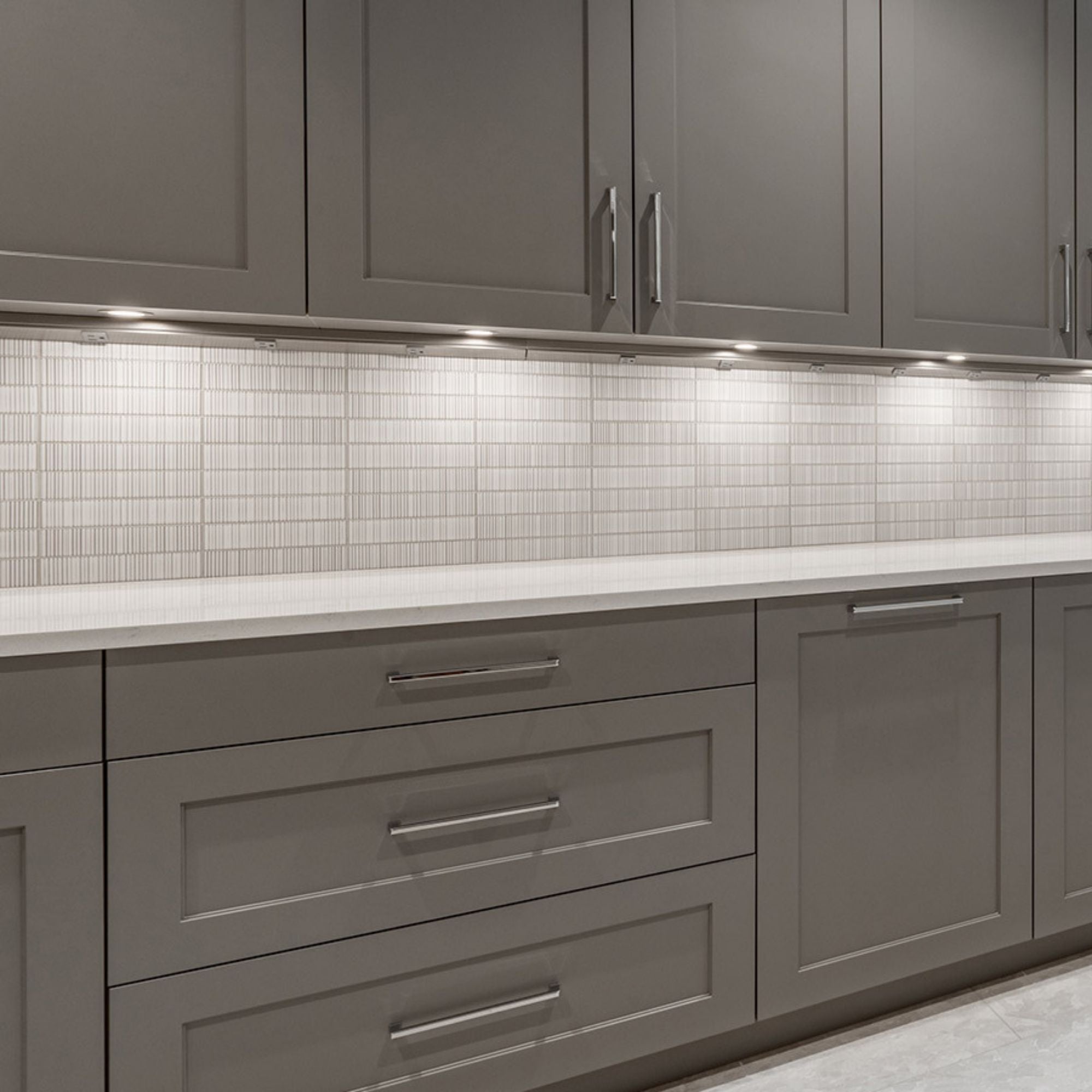

• Under cabinet lighting
• Display cases
• Shelving units
• Accent lighting

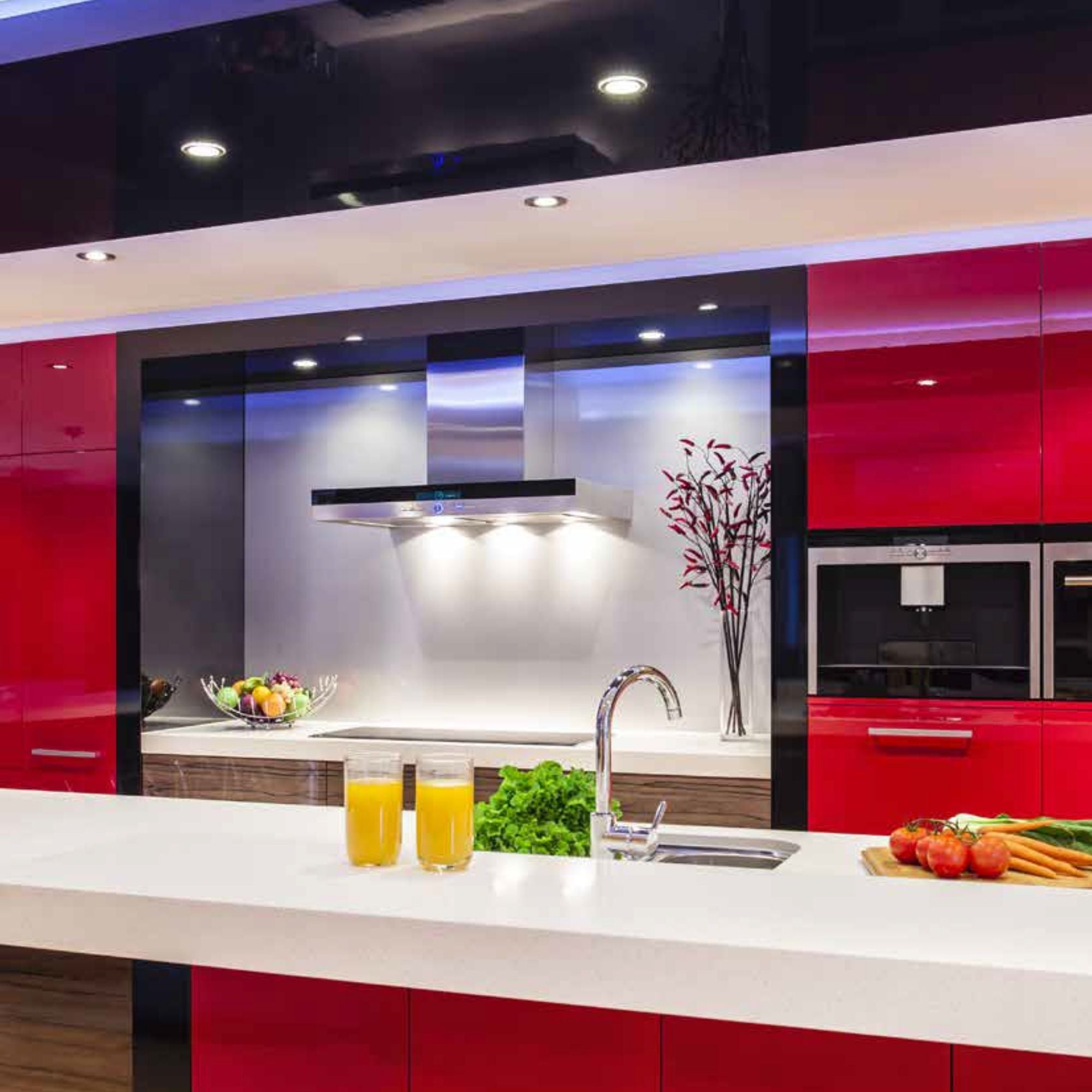

• Task lighting in kitchens

What's Included

• LED puck light
• Surface mount ring
• Installation instructions
