GM Lighting Slim Puck 3 in. LED Puck Light, White, 2700K, 165 Lumens, 24V
Hurry up, only 3 items left in stock.
About this item
About this item
- Dimensions: The puck light measures 3 in. in diameter and 0.25 in. in height, ensuring a compact design for versatile installation.
- Voltage: Operates at 24VDC, compatible with specific GM power supplies for optimal performance.
- Lumens & CCT: Provides 165 lumens with a warm 2700K color temperature, perfect for ambient task lighting.

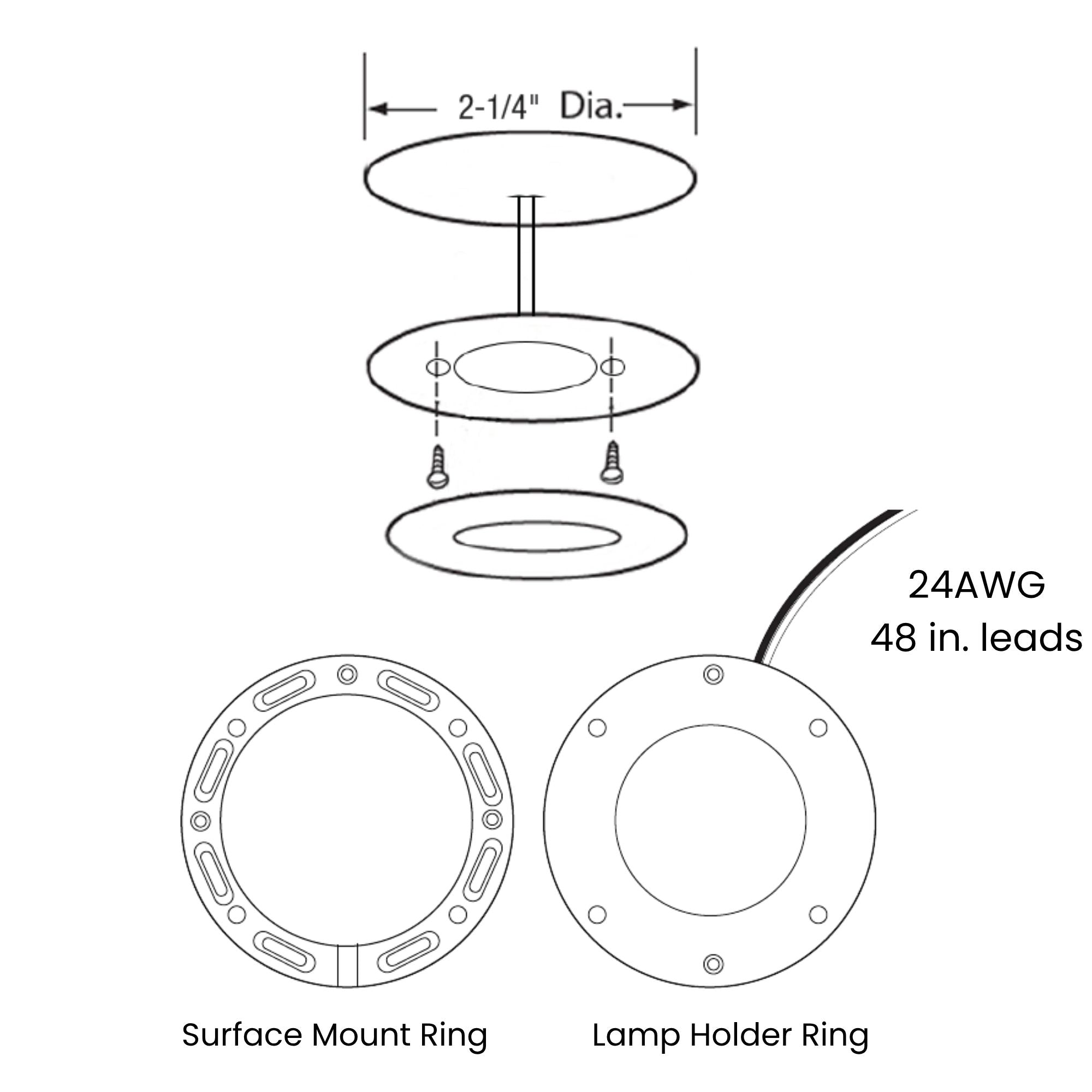

- Mounting Options: Offers both surface and recess mounting capabilities, adaptable to various installation needs.
- Dimming: Fully dimmable with ELV drivers, allowing for customized lighting levels.
We process payments securely and do not store credit card information.
Description
Description

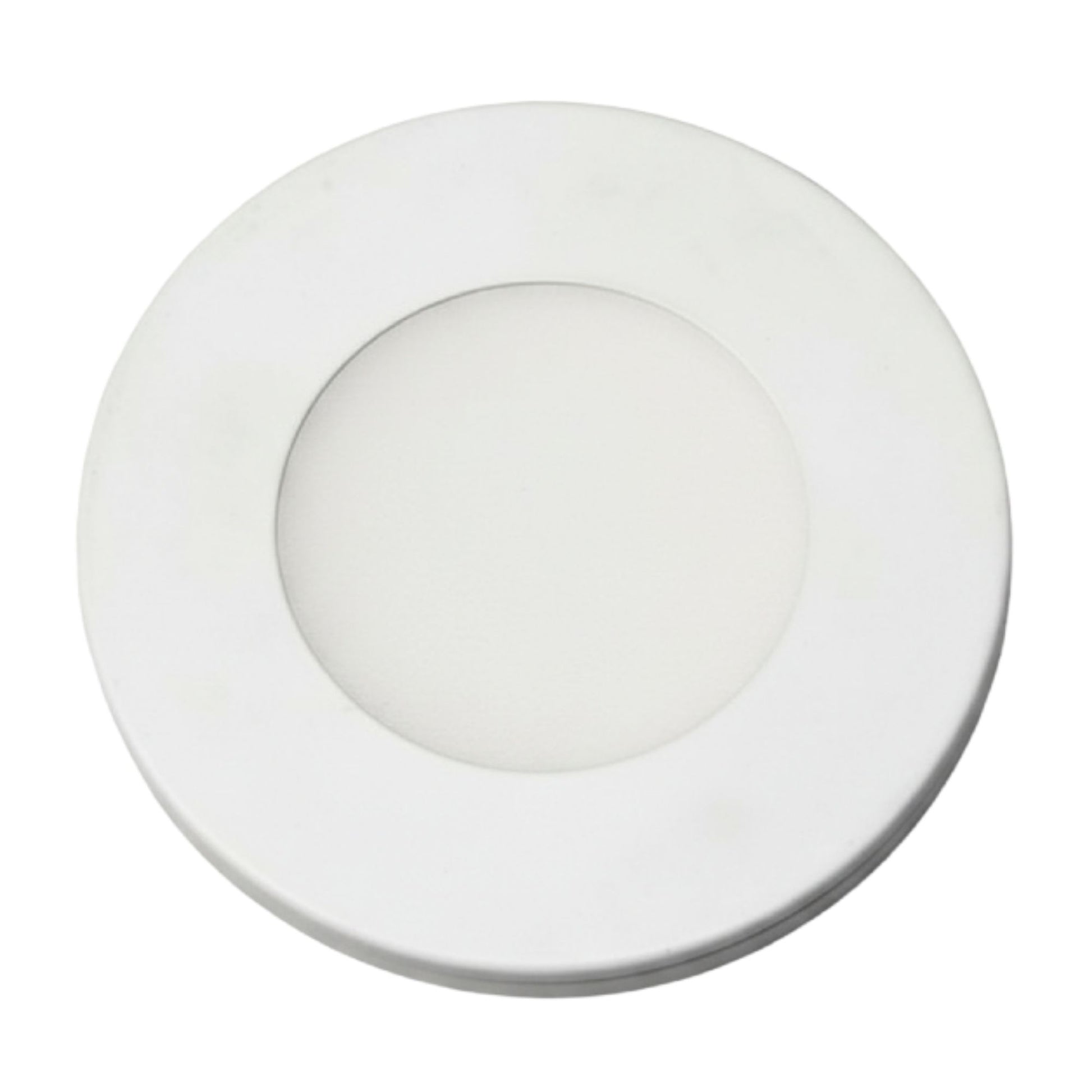

GM Lighting Slim Puck LED Puck Light — White & Selectable Mounting
The GM Lighting PL24V-27-W is a versatile White LED puck light designed for both surface and recess mounting. Constructed from high-quality aluminum with a polycarbonate diffuser, this 3 in. diameter fixture delivers 165 lumens at a warm 2700K color temperature, operating on 24VDC.
Key Features

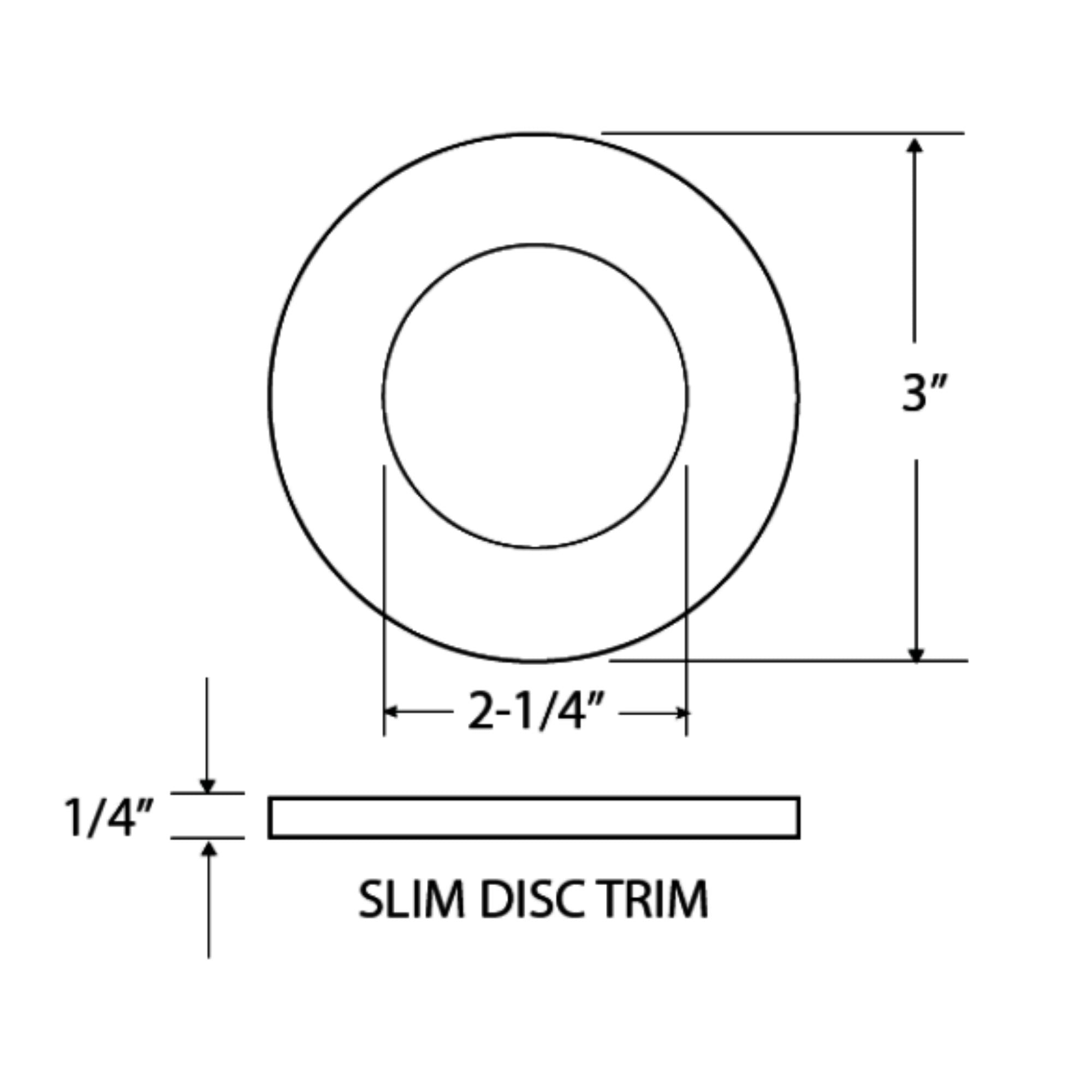

- Dimensions: 3 in. diameter x 0.25 in. height for a sleek profile.
- Wattage: Consumes only 2.2W, ensuring energy efficiency.
- Lumens: Emits 165 lumens for effective task lighting.
- Color Temperature: 2700K for a warm, inviting glow.
- CRI: 80+ for accurate color rendering.
- Lifespan: Backed by a 5-year warranty when used with GM power supplies.
- Mounting: Surface or recess mount options for flexible installation.
- Dimming: Compatible with ELV dimmers for adjustable lighting.

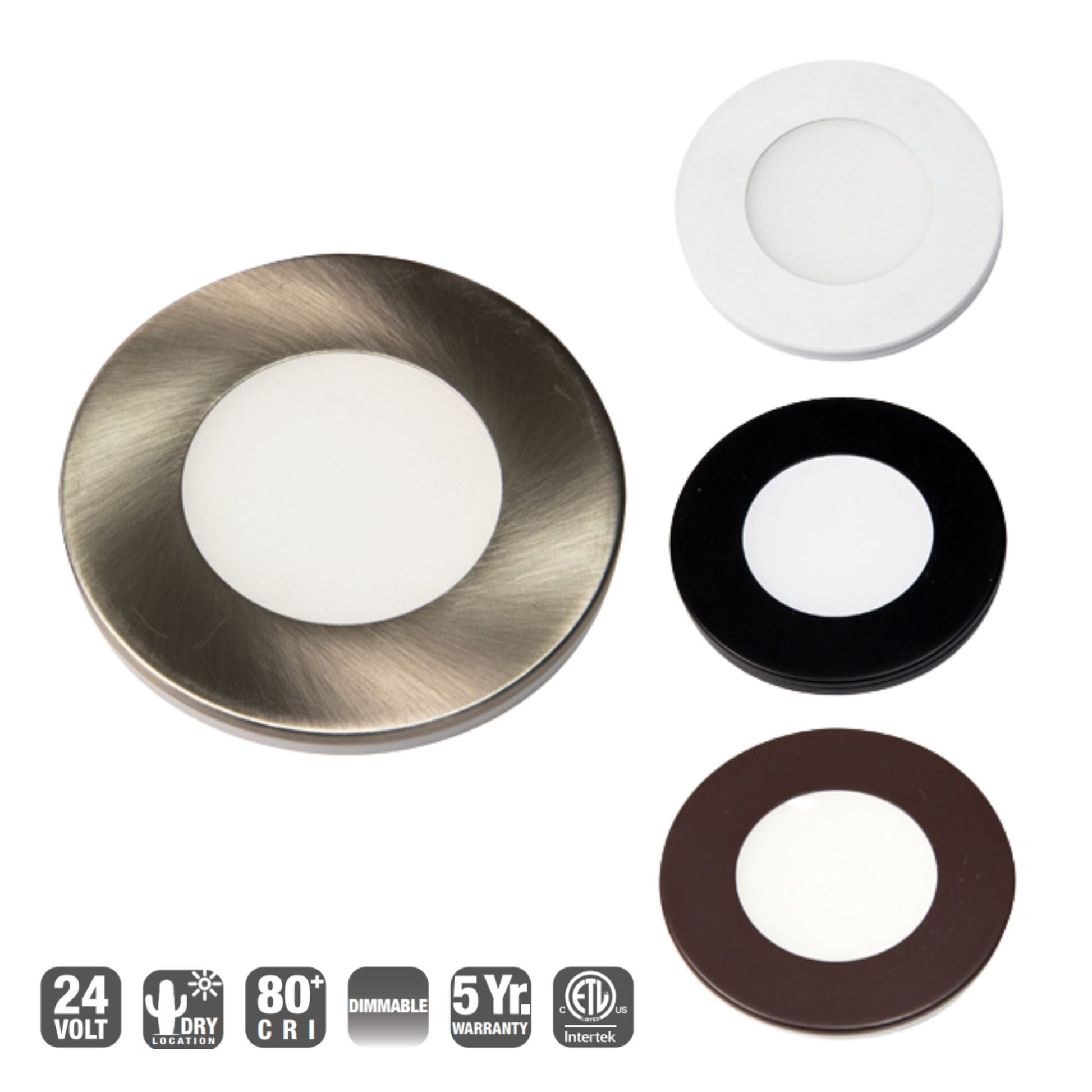

- Finish Options: Available in White, Black, Bronze, and Brushed Nickel.
- Power Supply: Requires electronic power supplies like PSD-24 or LD-XD-24.
Core Design & Profile

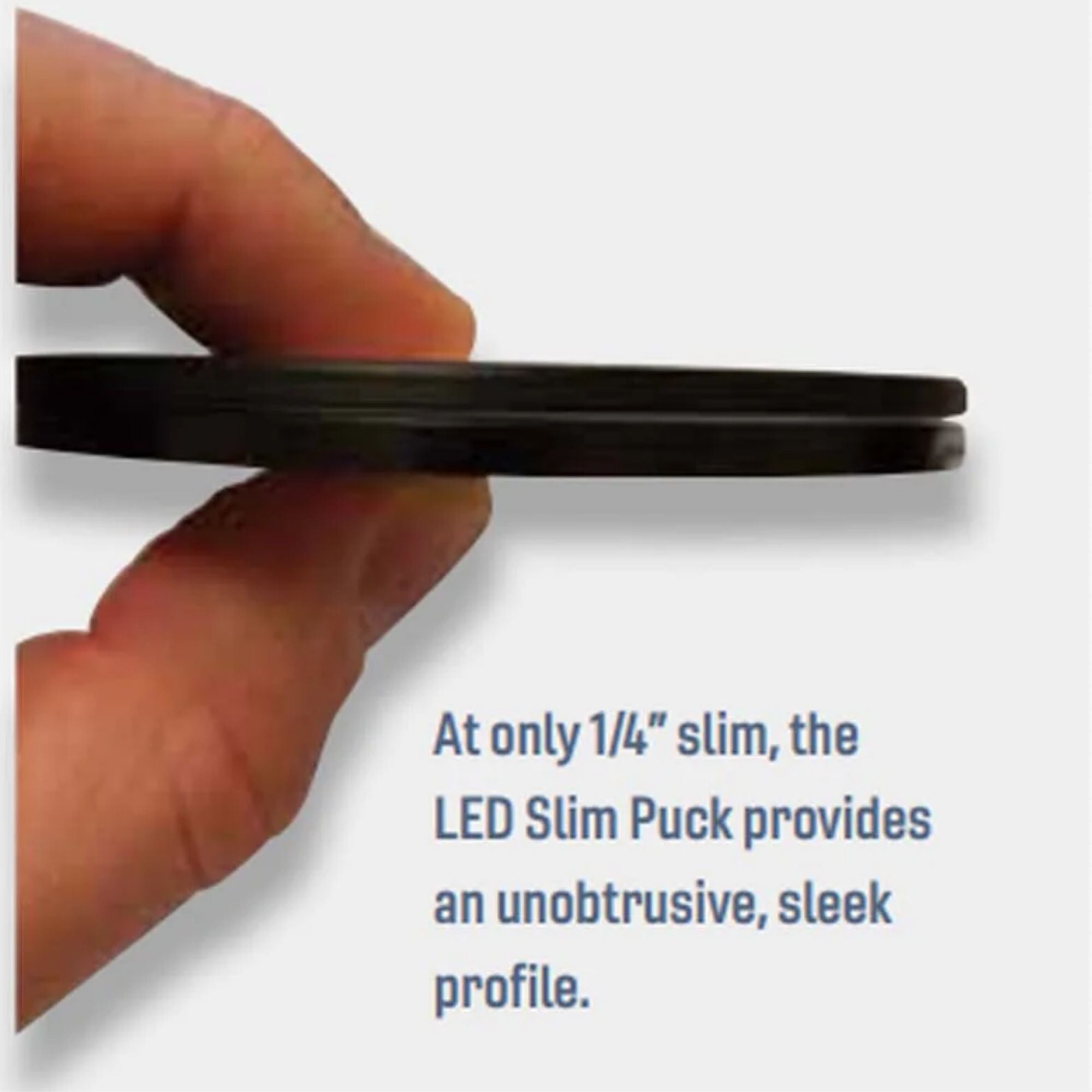

This puck light features a slim profile with a white finish, constructed from durable aluminum and a polycarbonate diffuser lens. It is Dry Rated for indoor use.
LED Illumination & Performance
Delivering 165 lumens at 2.2W, this fixture offers a 2700K color temperature with an 80+ CRI, ensuring warm and efficient lighting.

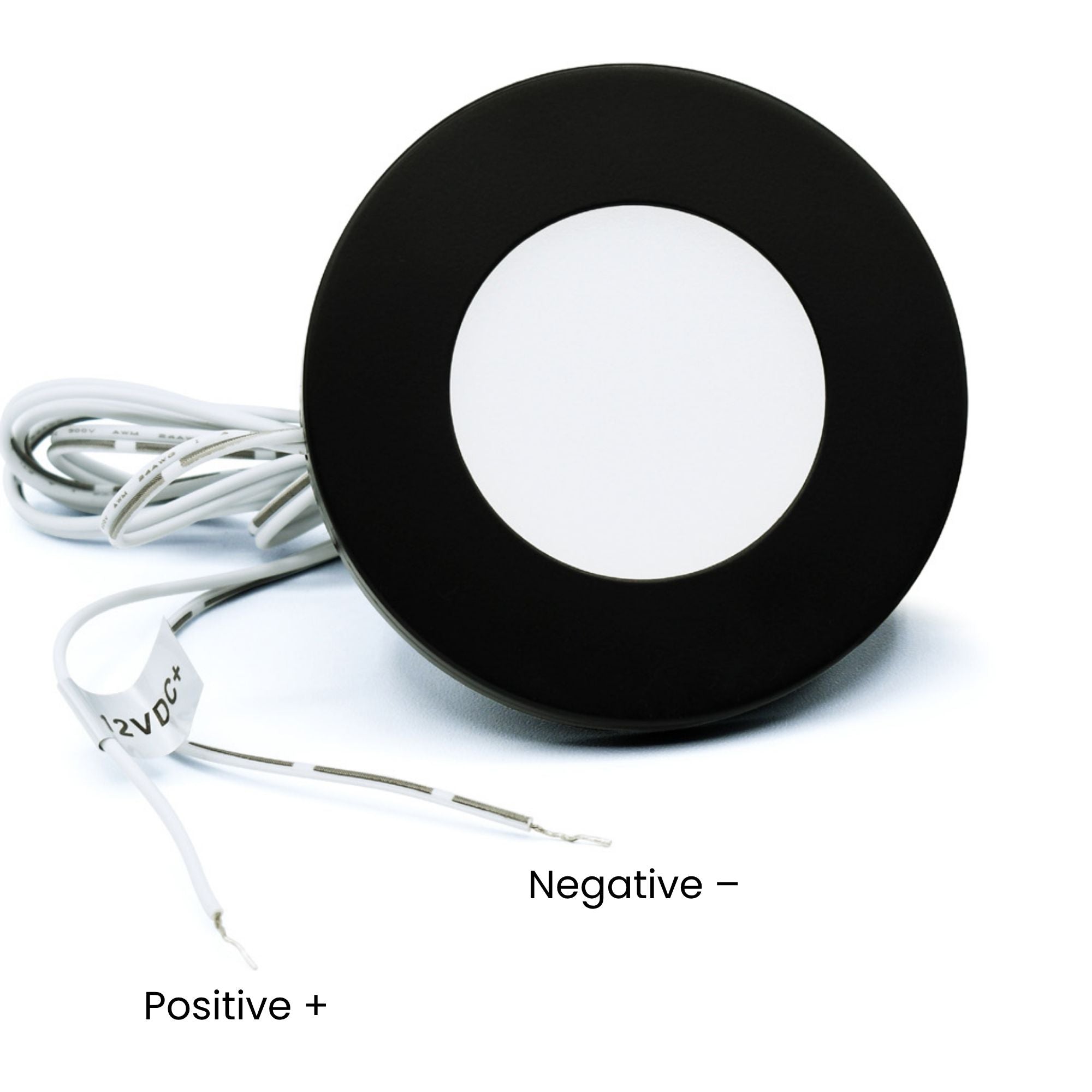

Power, Wiring & Linkability
The PL24V-27-W operates on 24VDC and is compatible with specific GM power supplies. It supports up to 4 pucks on a PSD15-24 driver and up to 8 pucks on a PSD24-24 driver.
Where This Fixture Works Best

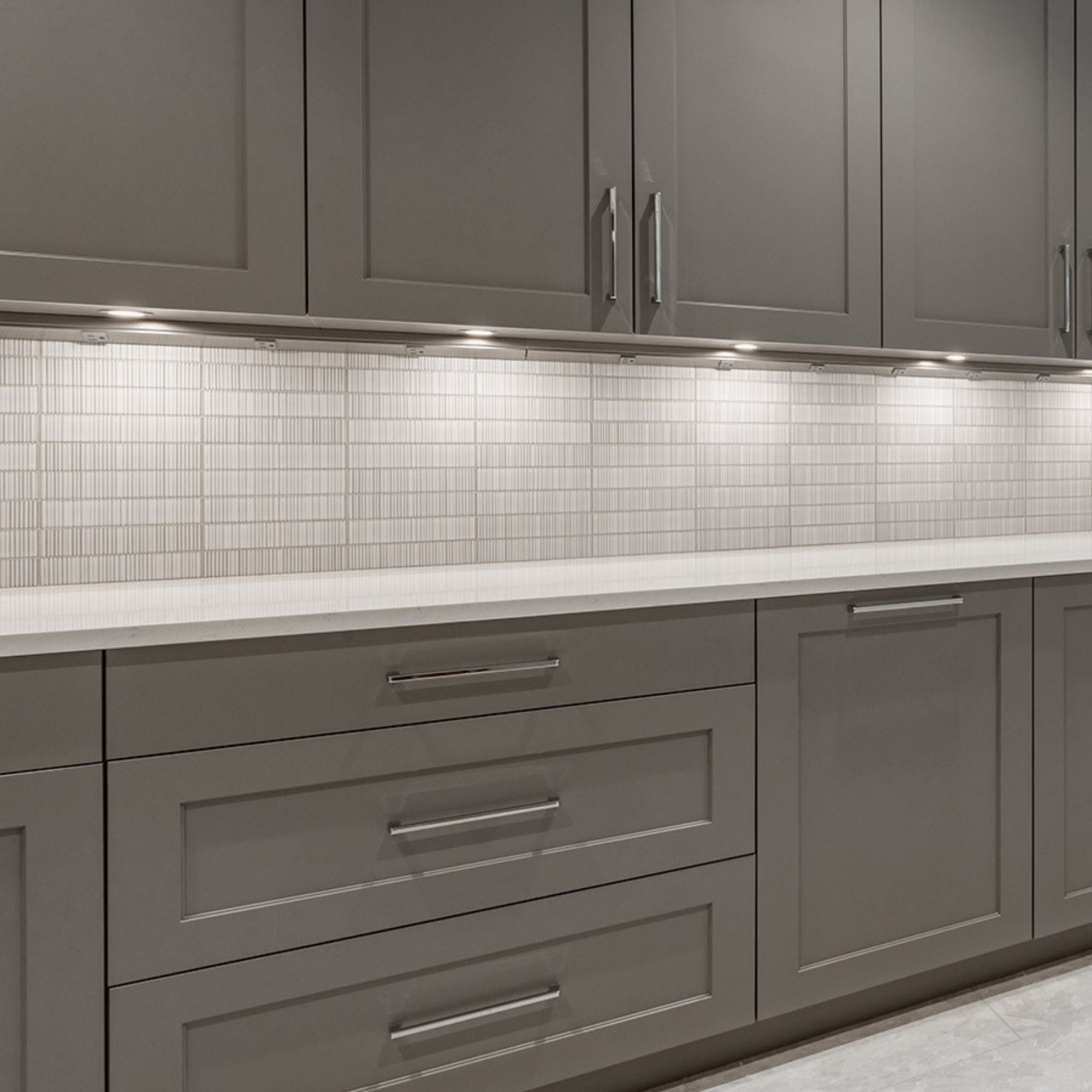

- Under cabinet lighting in kitchens
- Accent lighting in display cases
- Task lighting in workstations
- Ambient lighting in residential spaces
- Decorative lighting in retail environments
What's Included
- 1 x 3 in. White LED Puck Light
- Surface Mount Ring
- Installation Instructions
