GM Lighting Slim Puck 3 in. Puck Light, Brushed Nickel, 2700K, 165 Lumens, 24V
In stock
About this item
About this item
- Dimensions: The puck light measures 3 in. in diameter and 0.25 in. in height, ideal for compact spaces.
- Voltage: Operates at 24VDC, ensuring efficient energy use in low voltage applications.
- Color Temperature: Emits a warm 2700K light, perfect for creating cozy environments.
- Dimmable: Compatible with ELV dimmers for adjustable lighting levels.
- Mounting Options: Offers both surface and recess mounting for versatile installation.
We process payments securely and do not store credit card information.
Description
Description

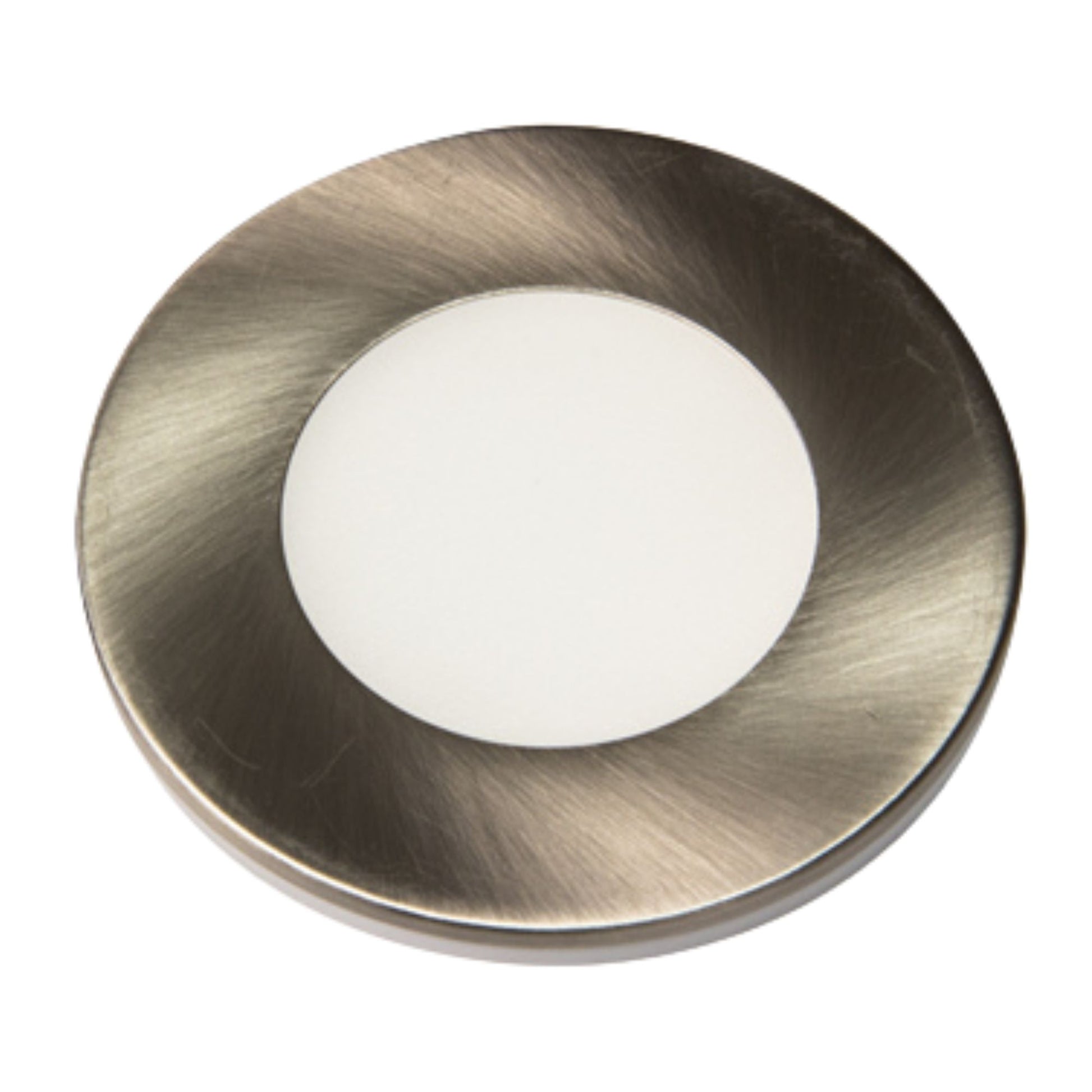

GM Lighting Slim Puck Puck Light — Brushed Nickel & Selectable Mounting
The GM Lighting PL24V-27-BNK, finished in Brushed Nickel, is a versatile puck light with a diameter of 3 inches and a height of 0.25 inches. It delivers 165 lumens of light at a 2700K color temperature, operating at 24VDC.
Key Features

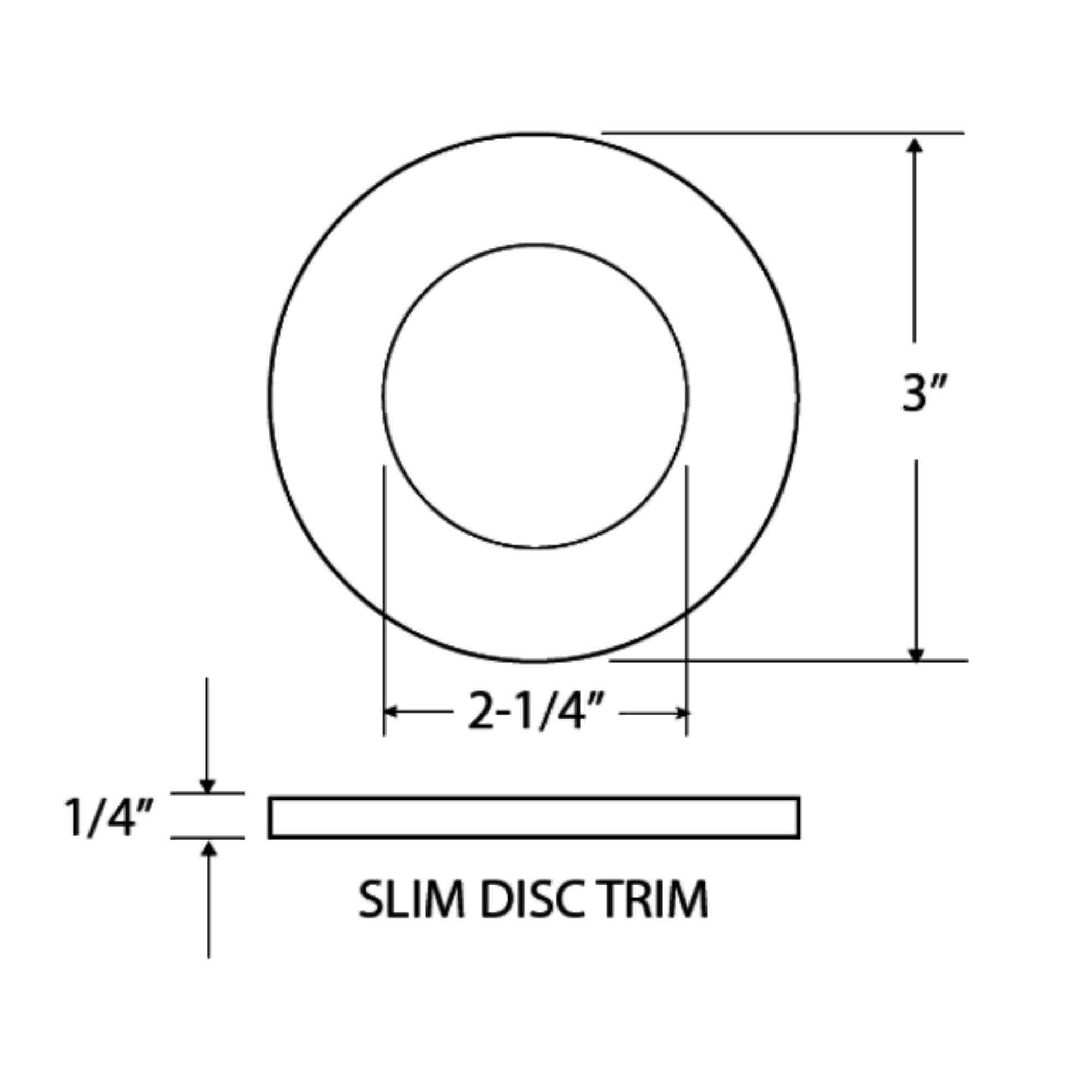

- Diameter: 3 in. for compact and discreet lighting solutions.

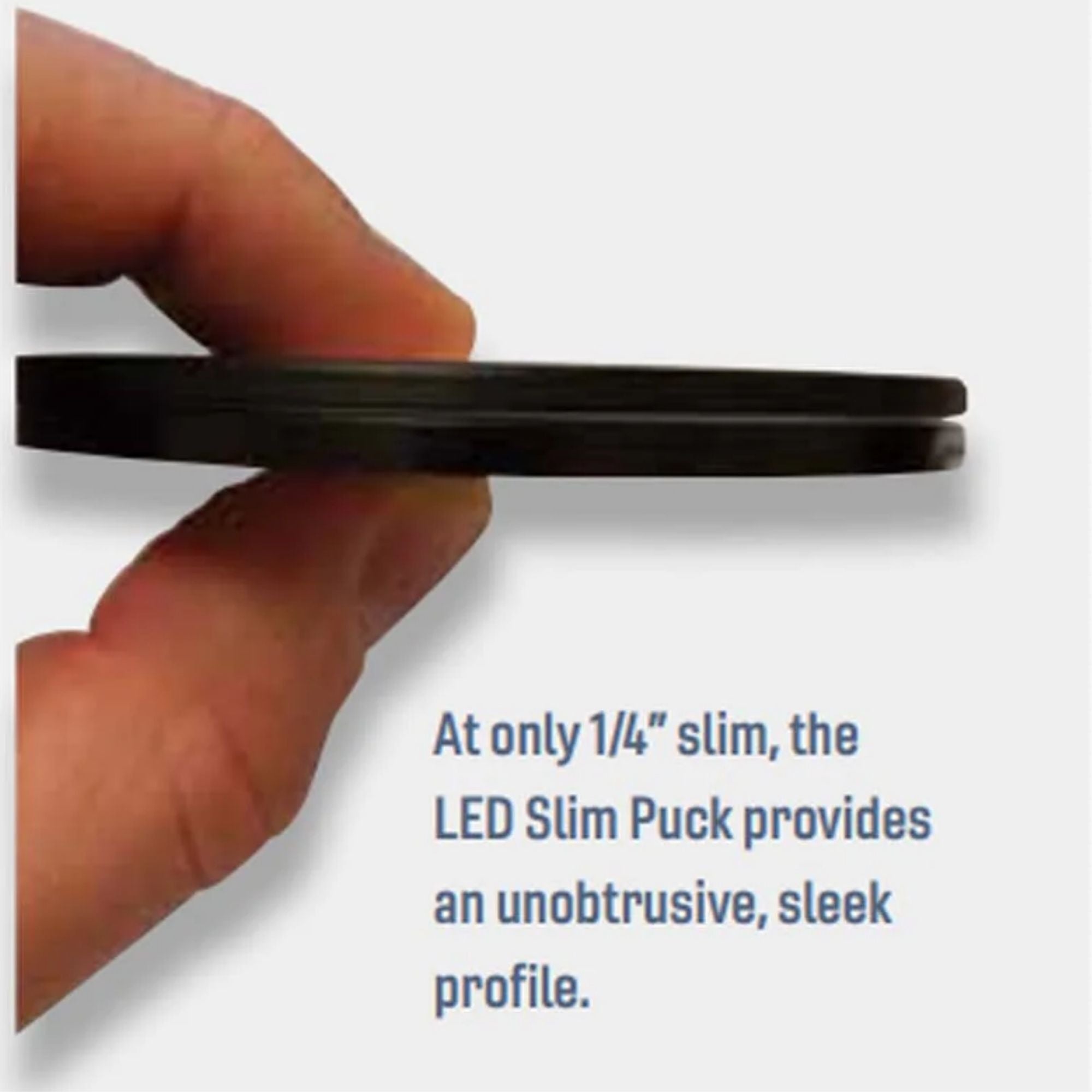

- Height: 0.25 in. for a slim profile.
- Voltage: 24VDC for low voltage applications.
- Wattage: Consumes only 2.2 watts of power.
- Lumens: Provides 165 lumens of illumination.
- Color Temperature: Warm 2700K for ambient lighting.
- CRI: 80+ for accurate color rendering.

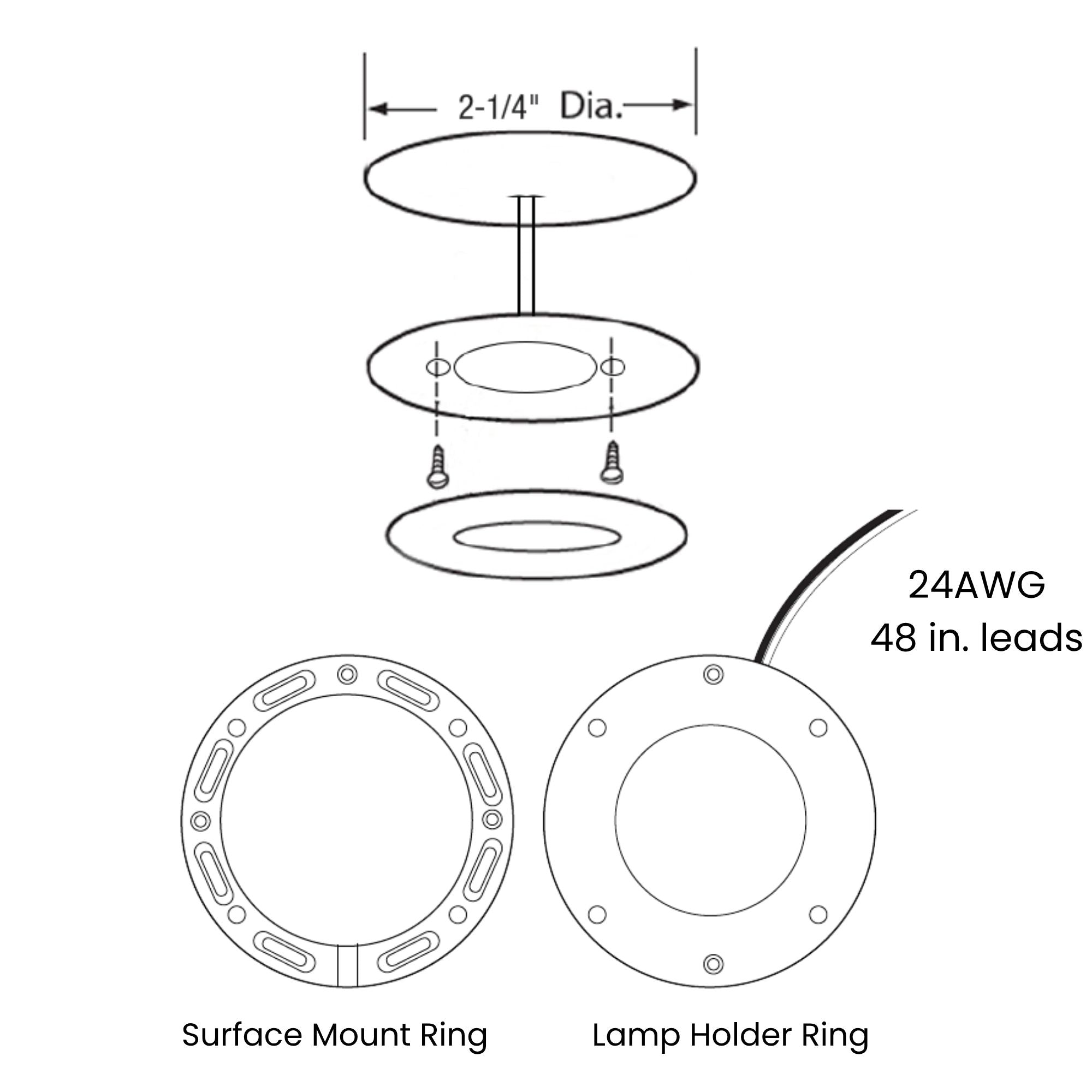

- Mounting: Surface or recess options available.
- Dimmable: Compatible with ELV dimmers for customizable lighting.

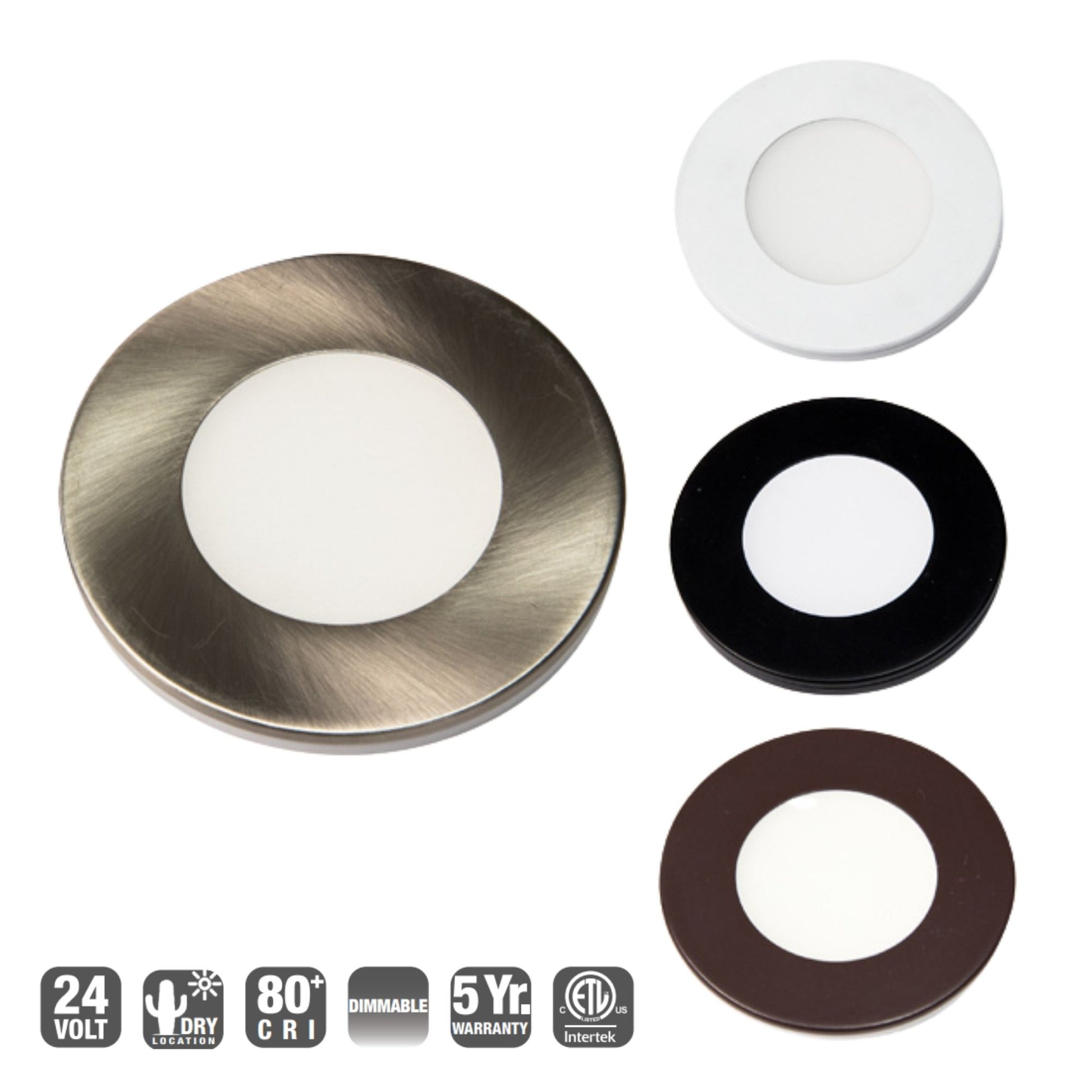

- Finish Options: Available in White, Black, Bronze, and Brushed Nickel.
- Warranty: 5-year warranty with GM power supplies.
Core Design & Profile
This puck light features a slim profile with a high-quality aluminum body and a white polycarbonate diffuser lens, available in multiple finishes including Brushed Nickel. It is Dry Rated for indoor use.
LED Illumination & Performance
With a light output of 165 lumens and a power consumption of 2.2 watts, this puck light offers efficient LED illumination at a warm 2700K color temperature and an 80+ CRI.

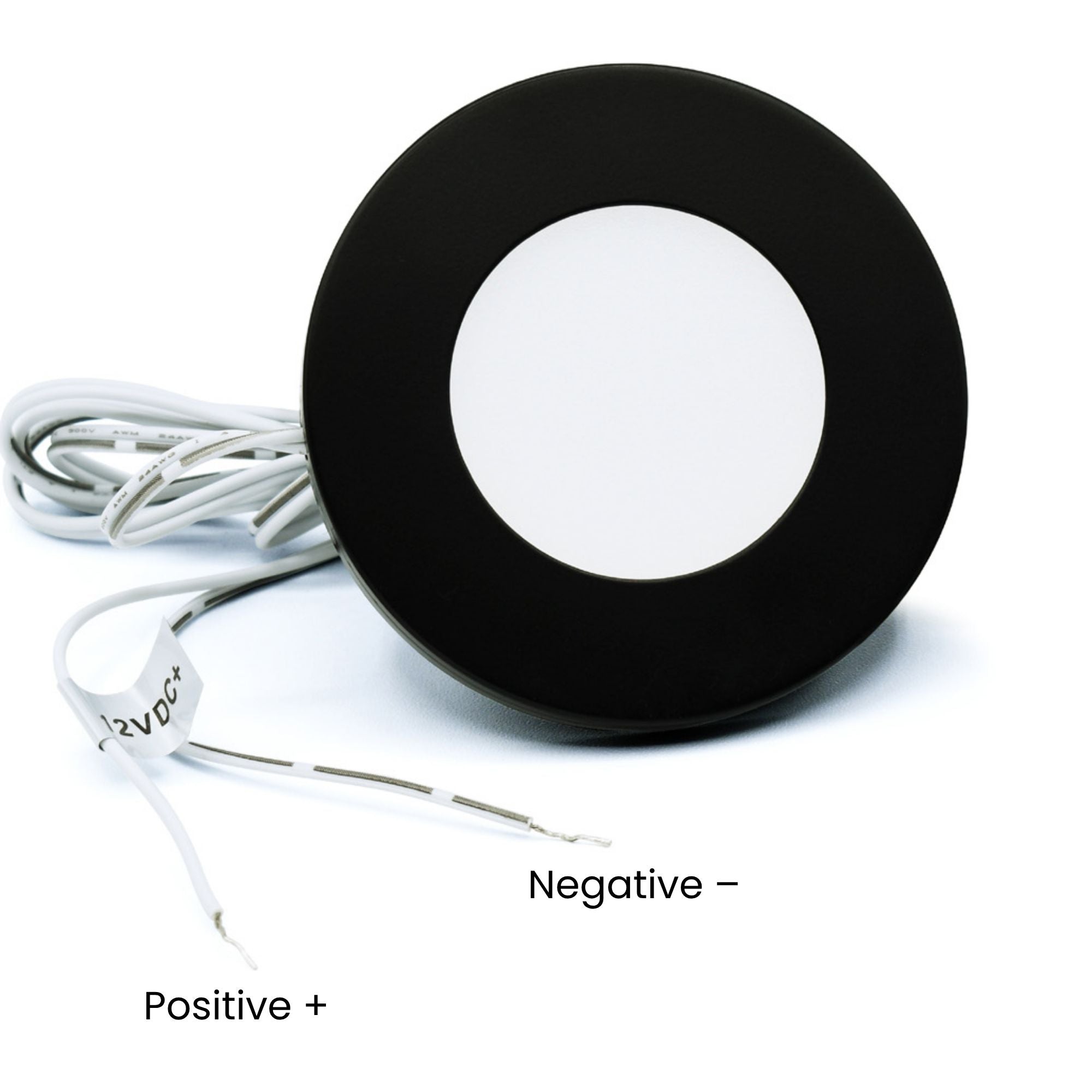

Power, Wiring & Linkability
Designed for 24VDC operation, this fixture is compatible with electronic power supplies only. It supports up to 4 pucks on a PSD15-24 driver and up to 8 pucks on a PSD24-24 driver.
Where This Fixture Works Best

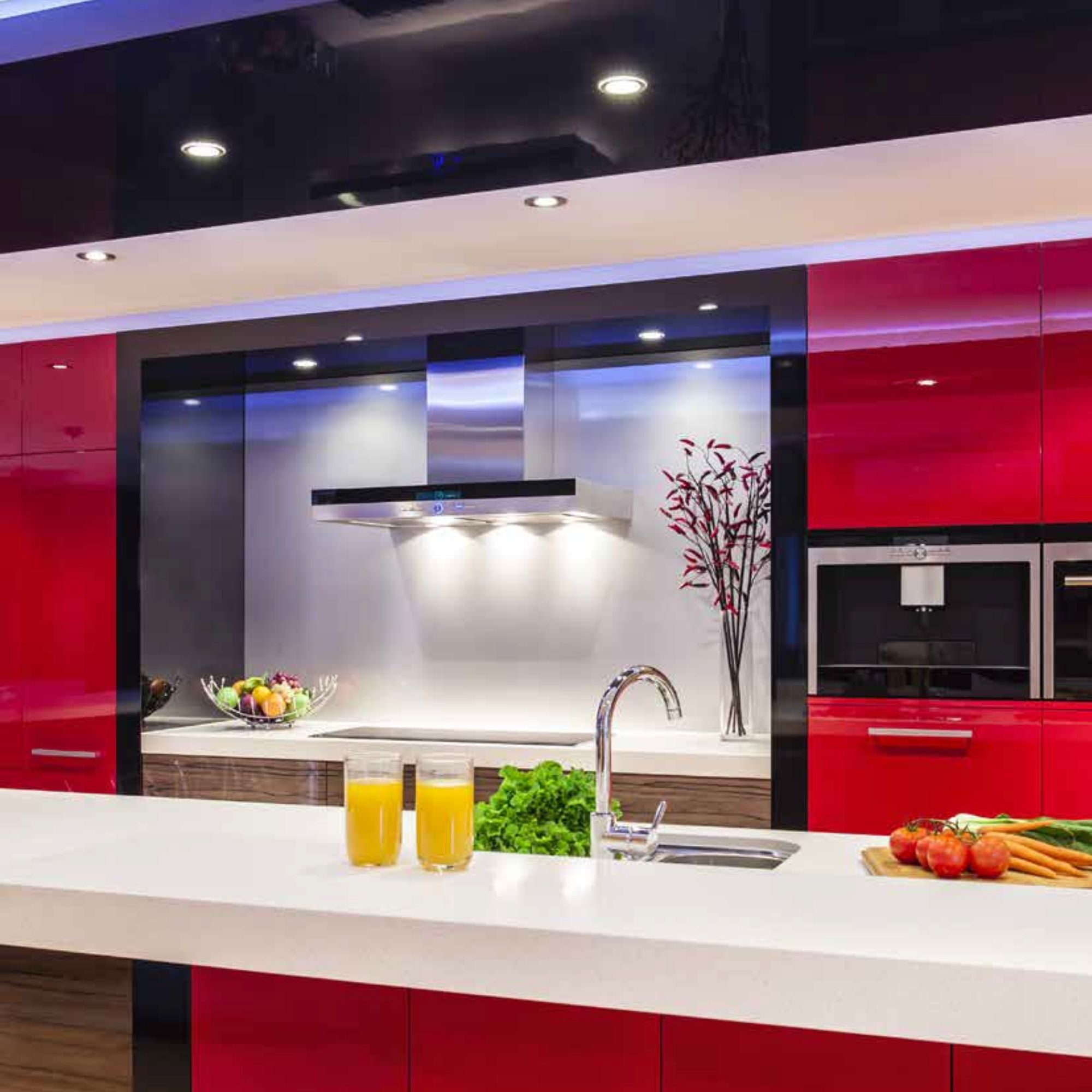

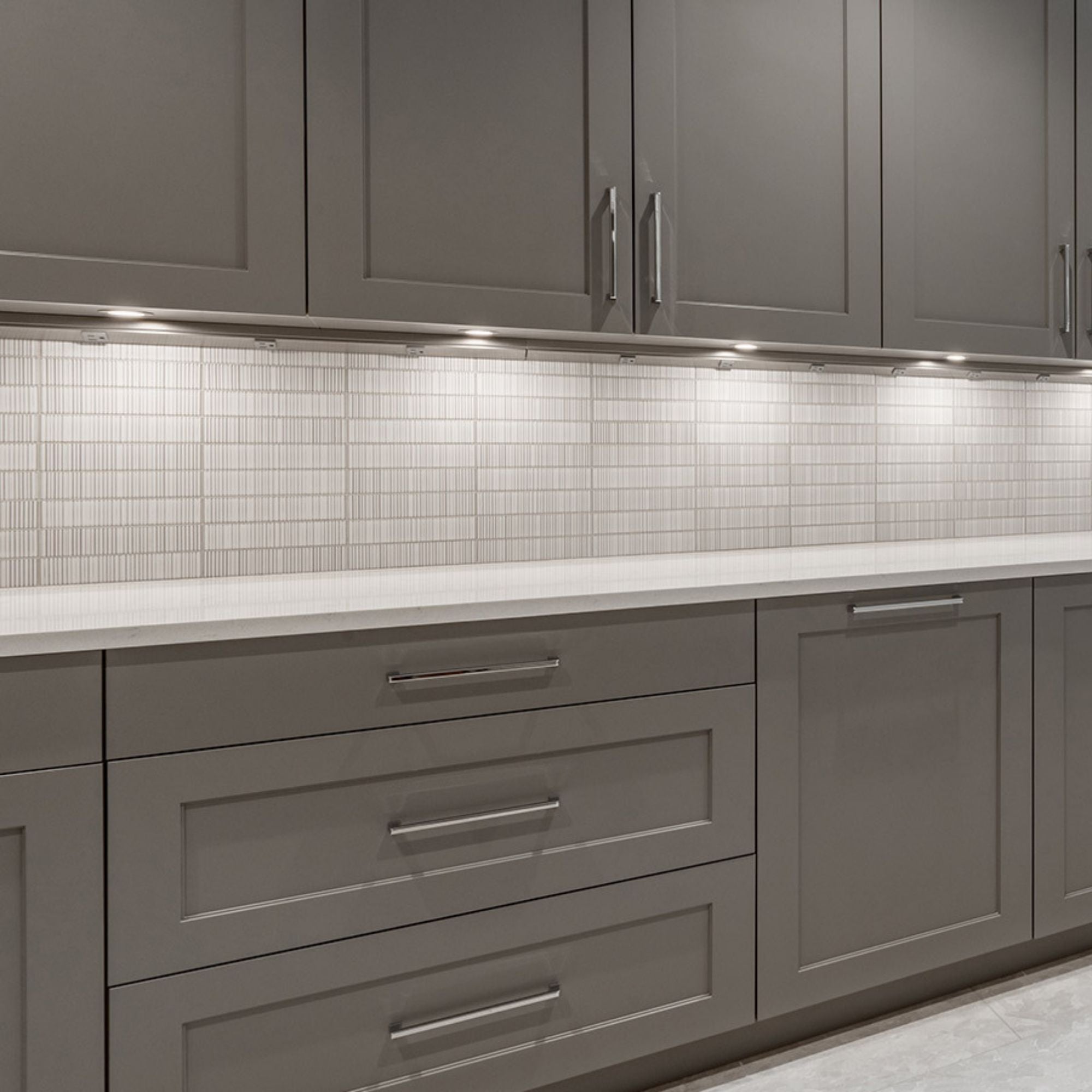

- Under cabinet lighting in kitchens
- Accent lighting in display cases
- Task lighting in workspaces
- Ambient lighting in living areas
- Decorative lighting in retail environments
What's Included
- Surface mount ring
- Installation instructions
