GM Lighting Slim Puck LED Puck Light — Black & Dimmable

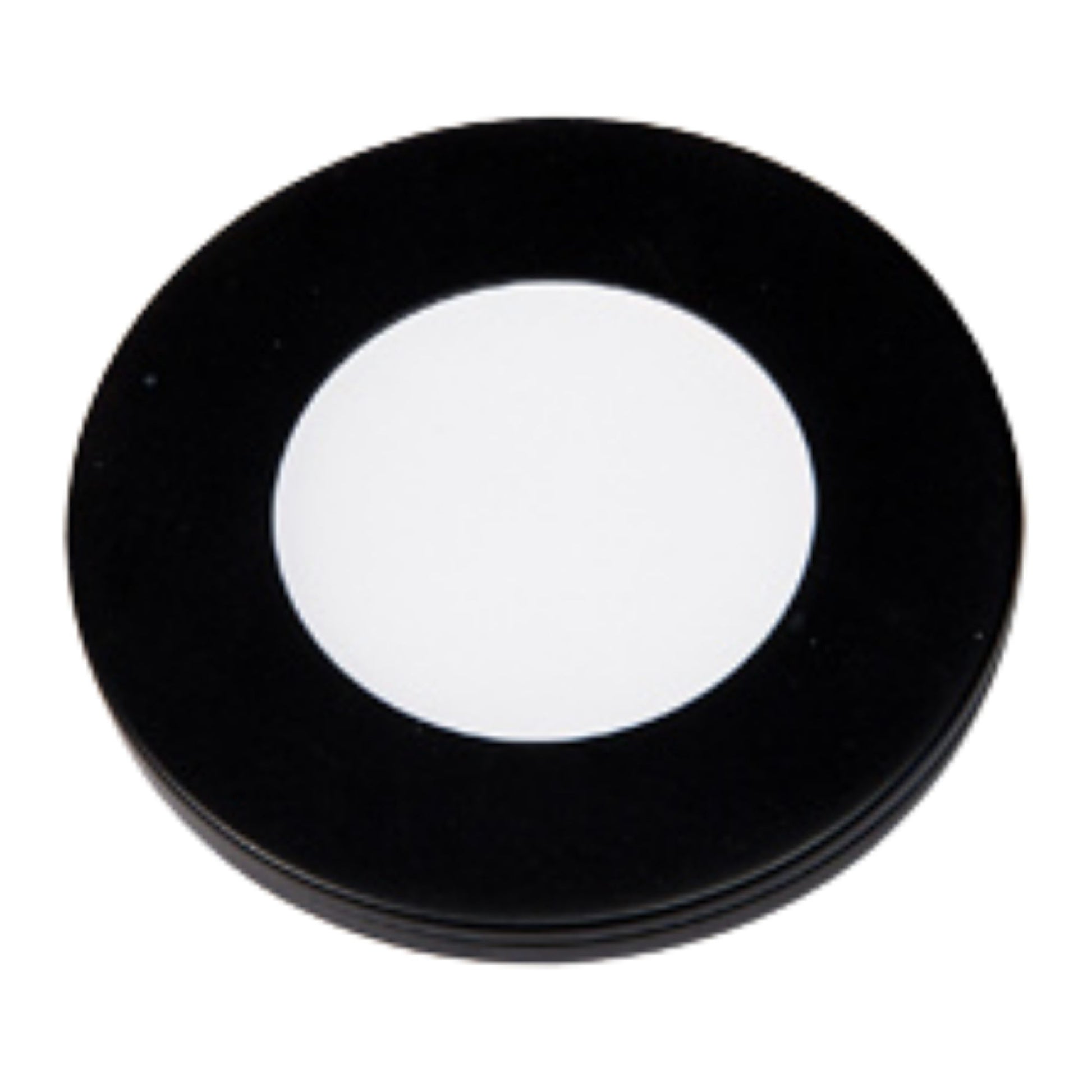

The GM Lighting PL24V-27-B is a black LED puck light designed for versatile lighting applications. Constructed with a high-quality aluminum body and a polycarbonate diffuser lens, this fixture measures 3 in. in diameter and 0.25 in. in height. It operates at 24V and delivers 165 lumens with a warm 2700K color temperature.

Key Features

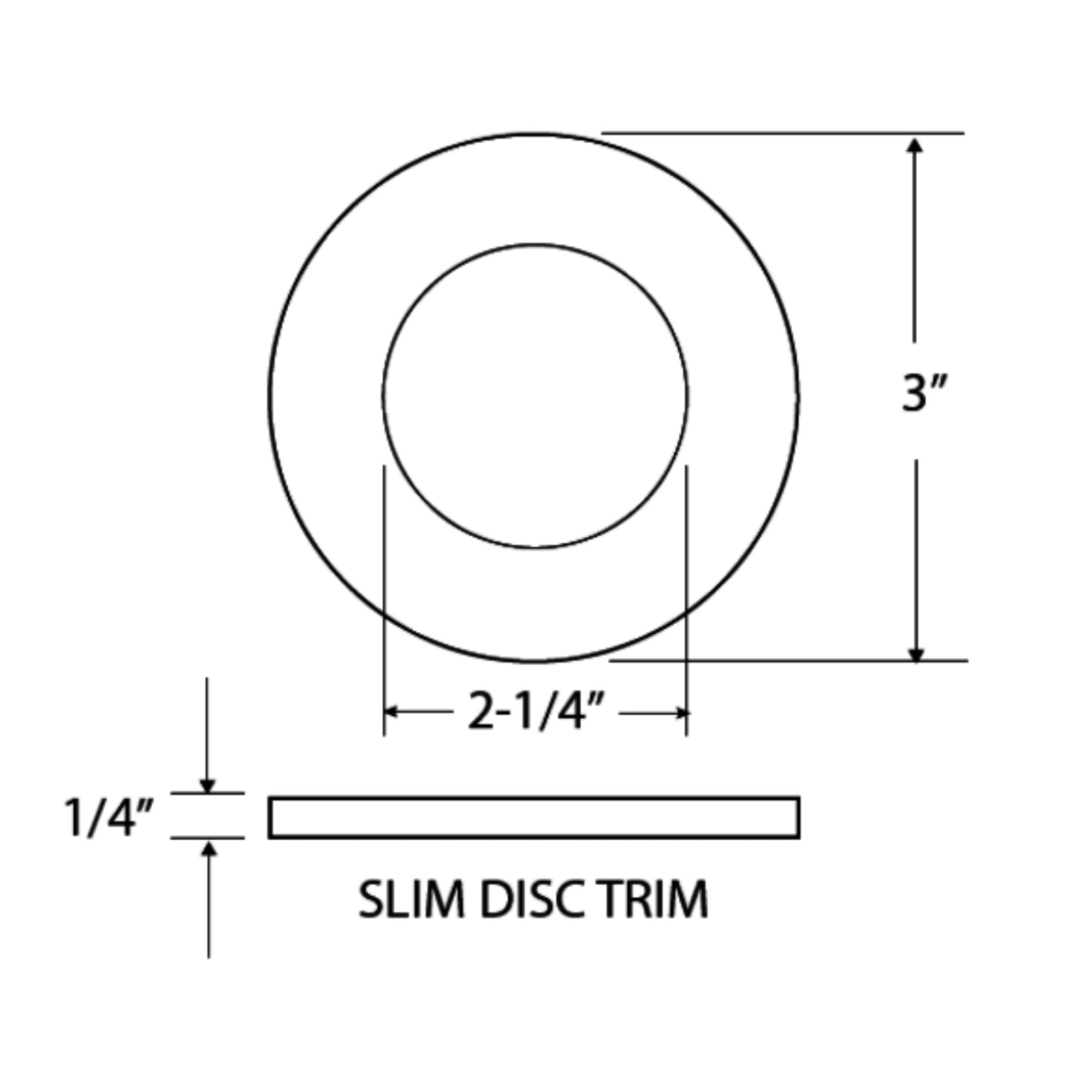

• Dimensions: 3 in. diameter x 0.25 in. height for compact installation.
• Wattage: Consumes 2.2W for energy-efficient operation.
• Lumens: Provides 165 lumens for effective task lighting.
• Color Temperature: 2700K for warm, inviting illumination.
• CRI: 80+ for accurate color rendering.
• Lifespan: 5-year warranty ensures long-lasting performance.

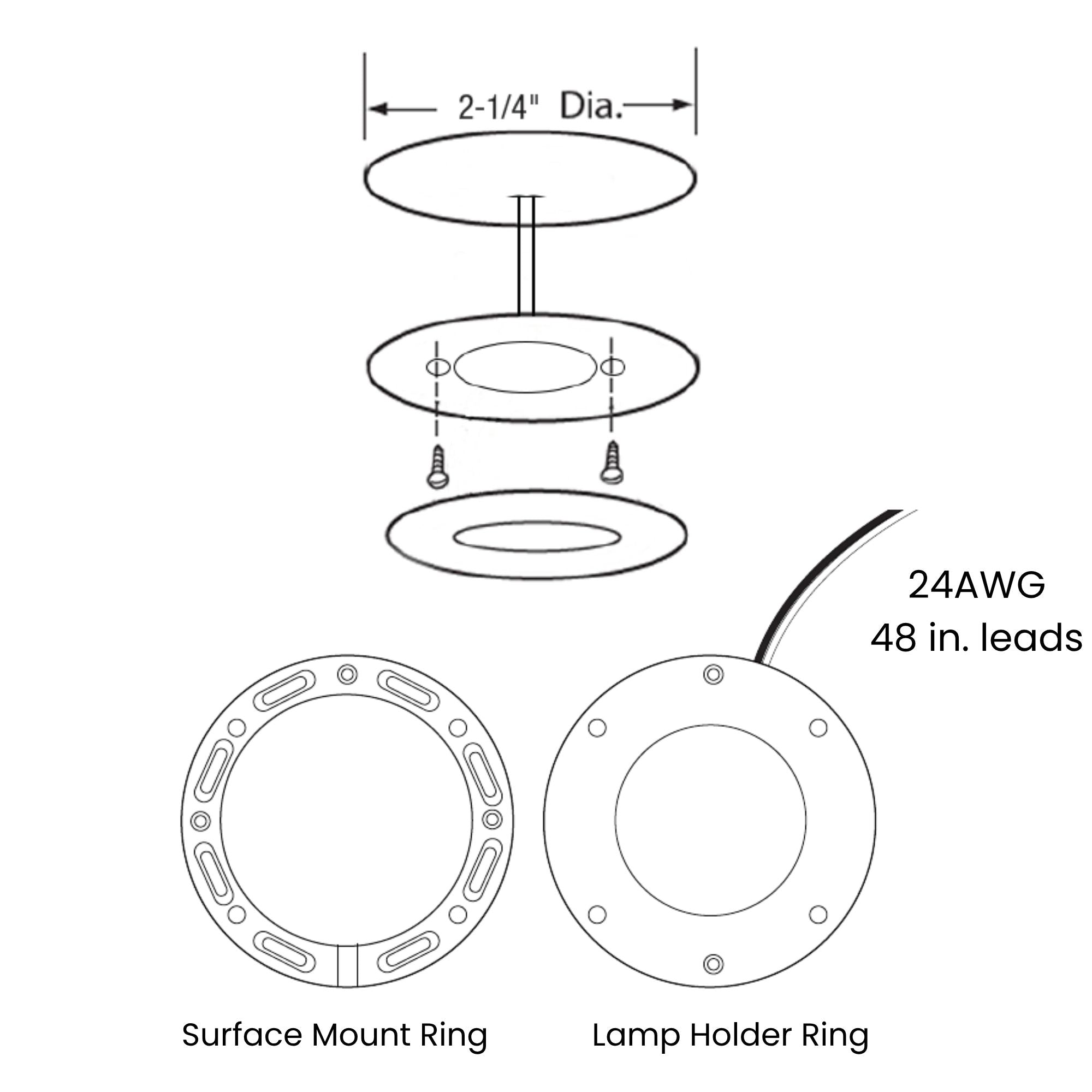

• Mounting: Surface or recess mount options for flexible installation.
• Dimming: Compatible with ELV dimmers for adjustable lighting levels.
• Voltage: Operates at 24V DC for safe and efficient use.

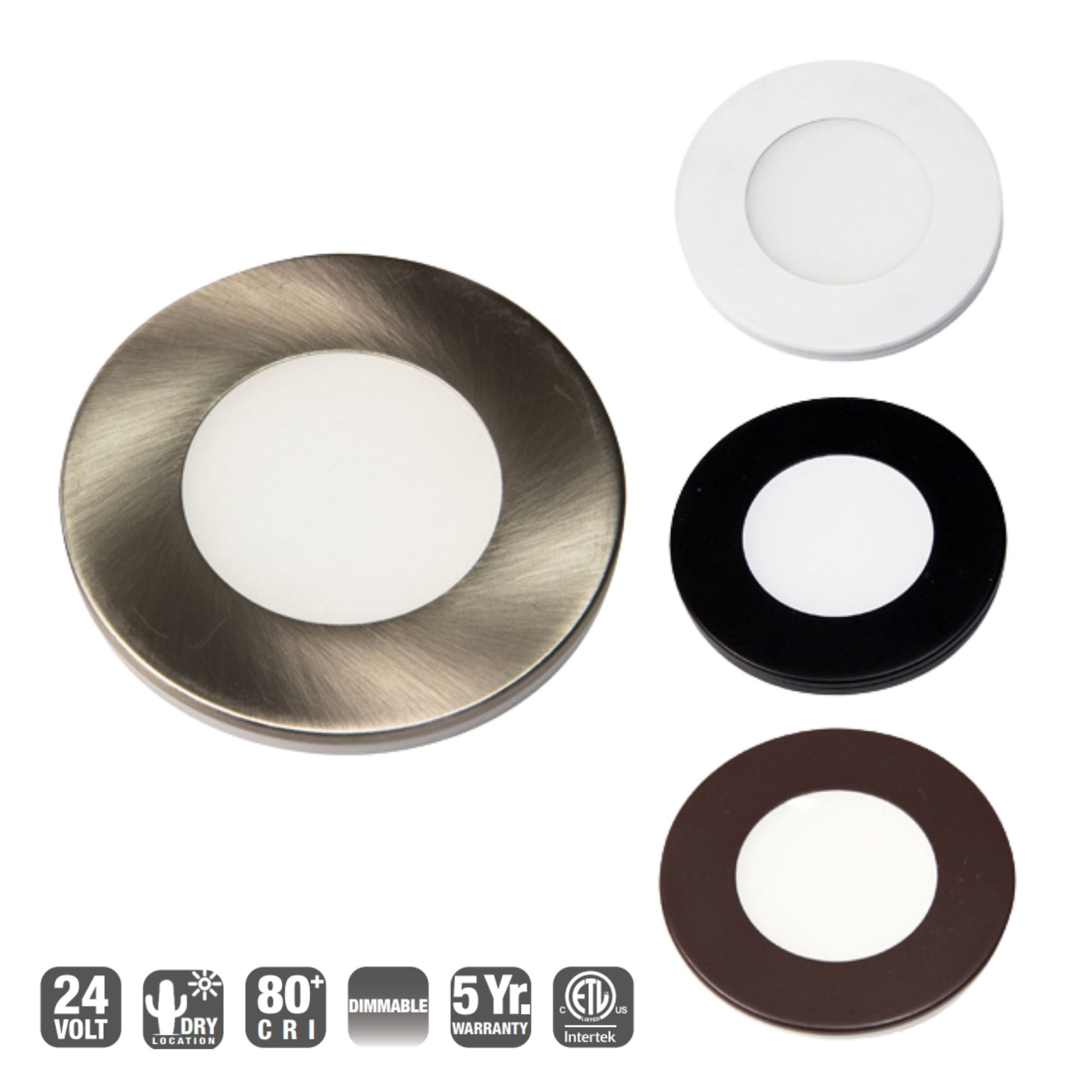

• Finish Options: Available in Black, White, Bronze, and Brushed Nickel.

Core Design & Profile

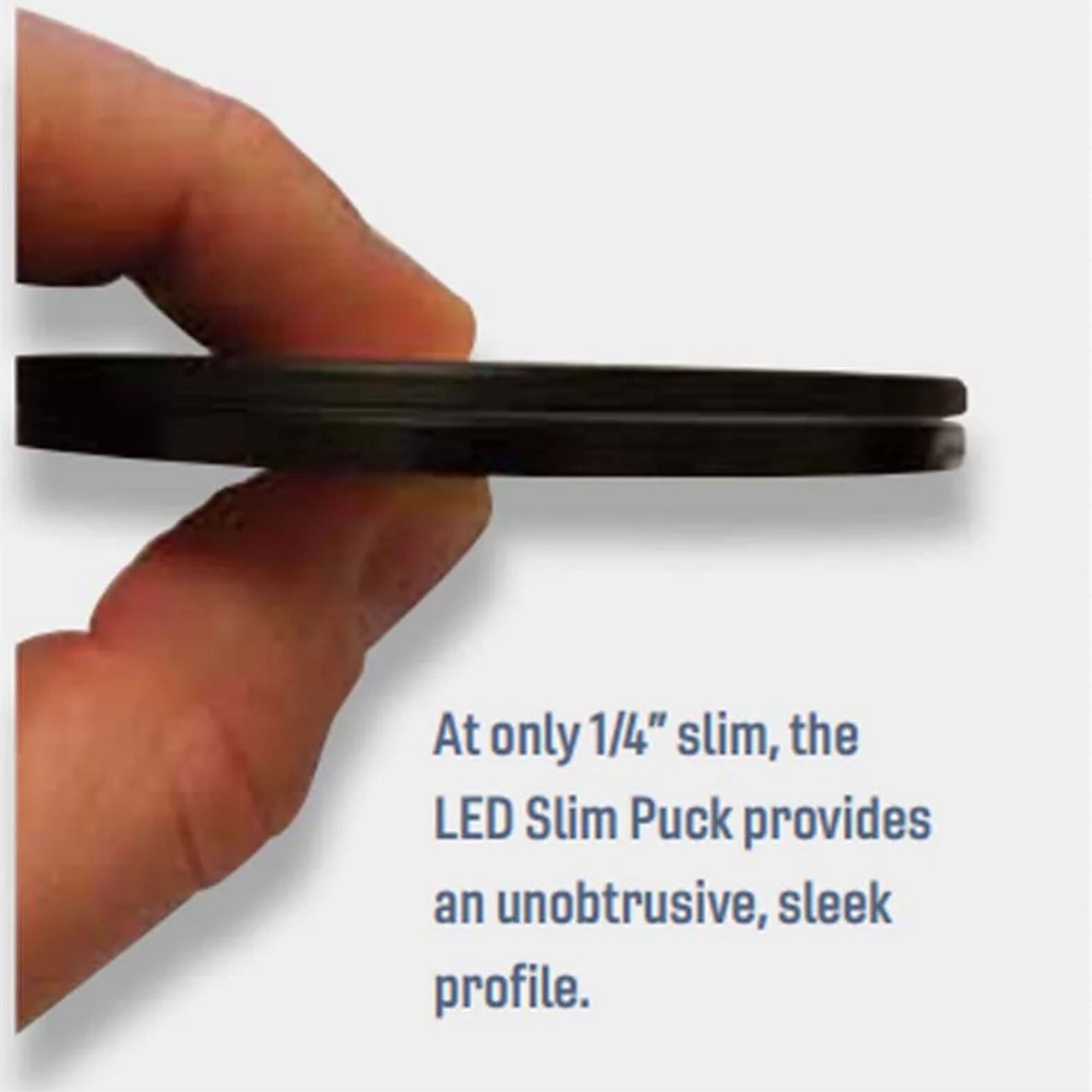

This puck light features a slim profile with a high-quality aluminum housing and a polycarbonate diffuser lens. Available in multiple finishes, it is designed for dry locations.

LED Illumination & Performance

With a light output of 165 lumens at 2.2 watts, this LED puck light offers a warm 2700K color temperature and a CRI of 80+, ensuring excellent illumination for various tasks.

Power, Wiring & Linkability

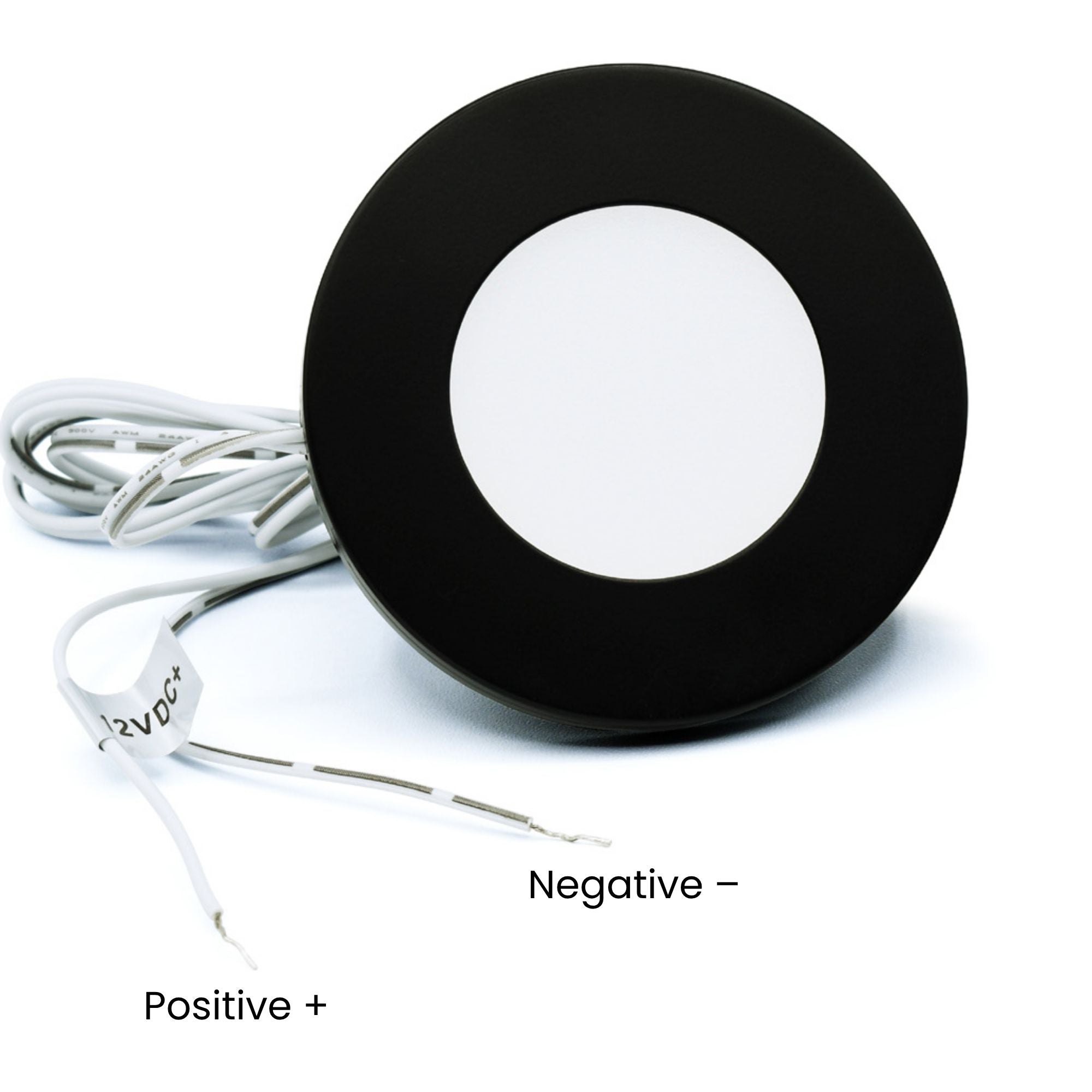

The fixture operates on 24V DC and is compatible with specific electronic power supplies. It supports dimming with ELV drivers and can be linked with up to 8 pucks on a PSD24-24 driver.

Where This Fixture Works Best

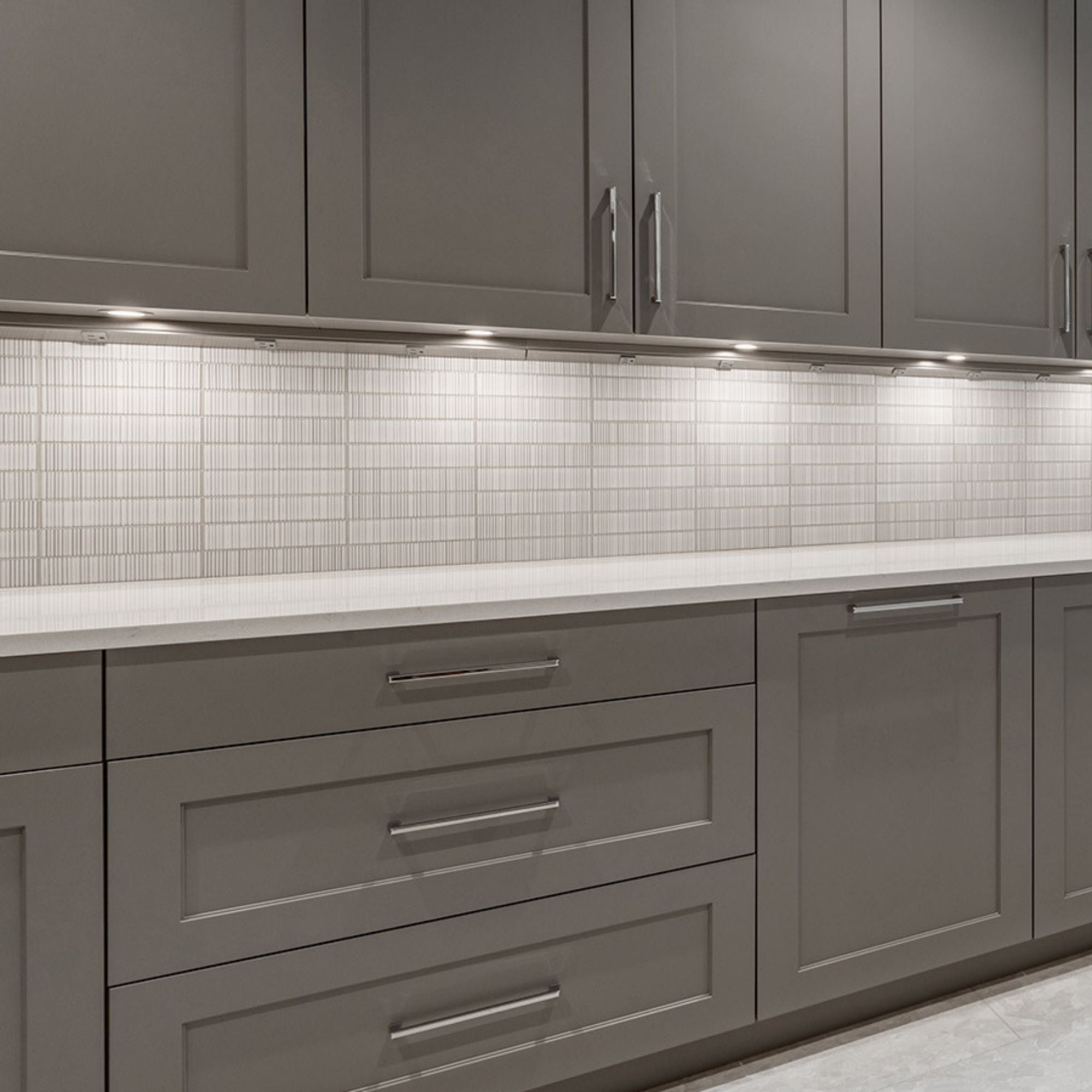

• Under cabinet lighting

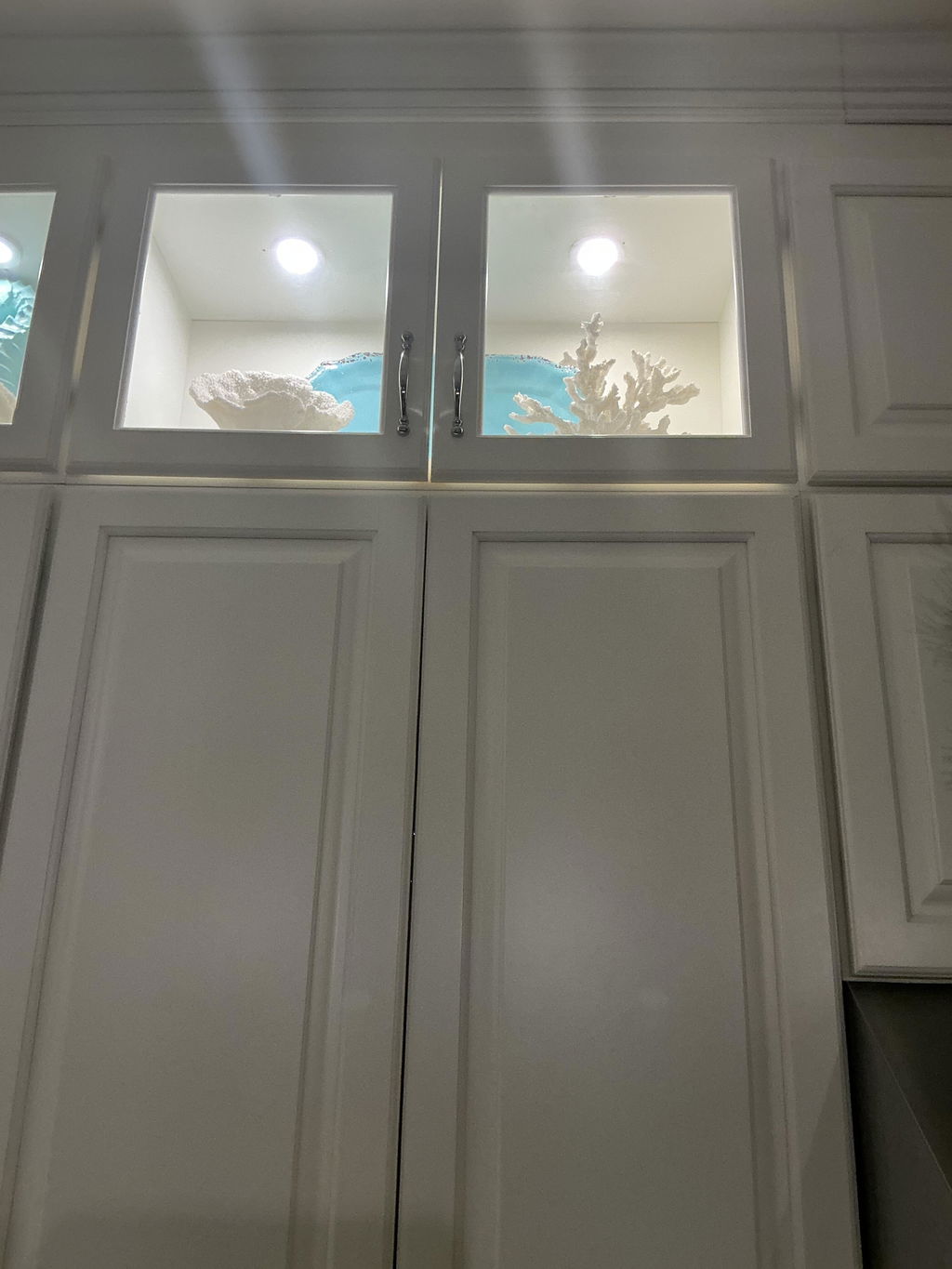

• Display case lighting
• Accent lighting

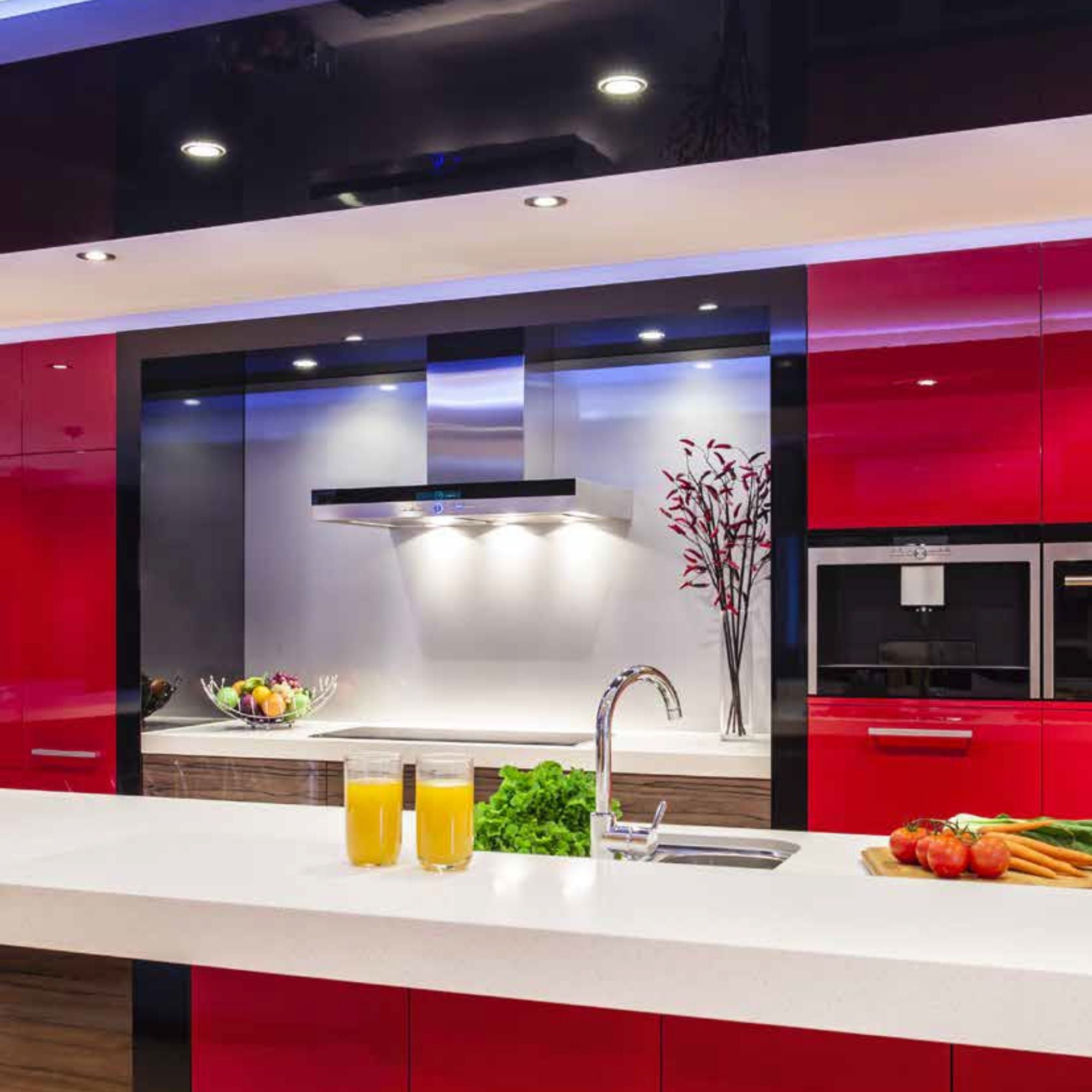

• Task lighting in kitchens
• Office workstations

What's Included

• LED puck light
• Surface mount ring
• 48 in. leads
