GM Lighting LTR-S Ultra SCOB LED Tape Light, 98.5 ft, 1.5W/ft, 4000K, 24VDC
In stock
About this item
About this item
- Light Engine: SCOB construction provides fixed 4000K white light with COB-inspired uniformity.
- Voltage & Power: The tape operates at 24VDC and 1.5 watts per foot with a maximum continuous run of 40 ft.
- Output & Color Rendering: Rated output is 157 lumens per foot with 94+ CRI and R9 greater than 60.
- Supplied Length & Cutting: The 98 ft 6 in reel is cuttable every 0.9 in at designated cut marks.
- Profile & Mounting: The tape measures 0.39 in wide and 0.138 in high, with VHB adhesive backing for dry and damp locations.
Description
Description

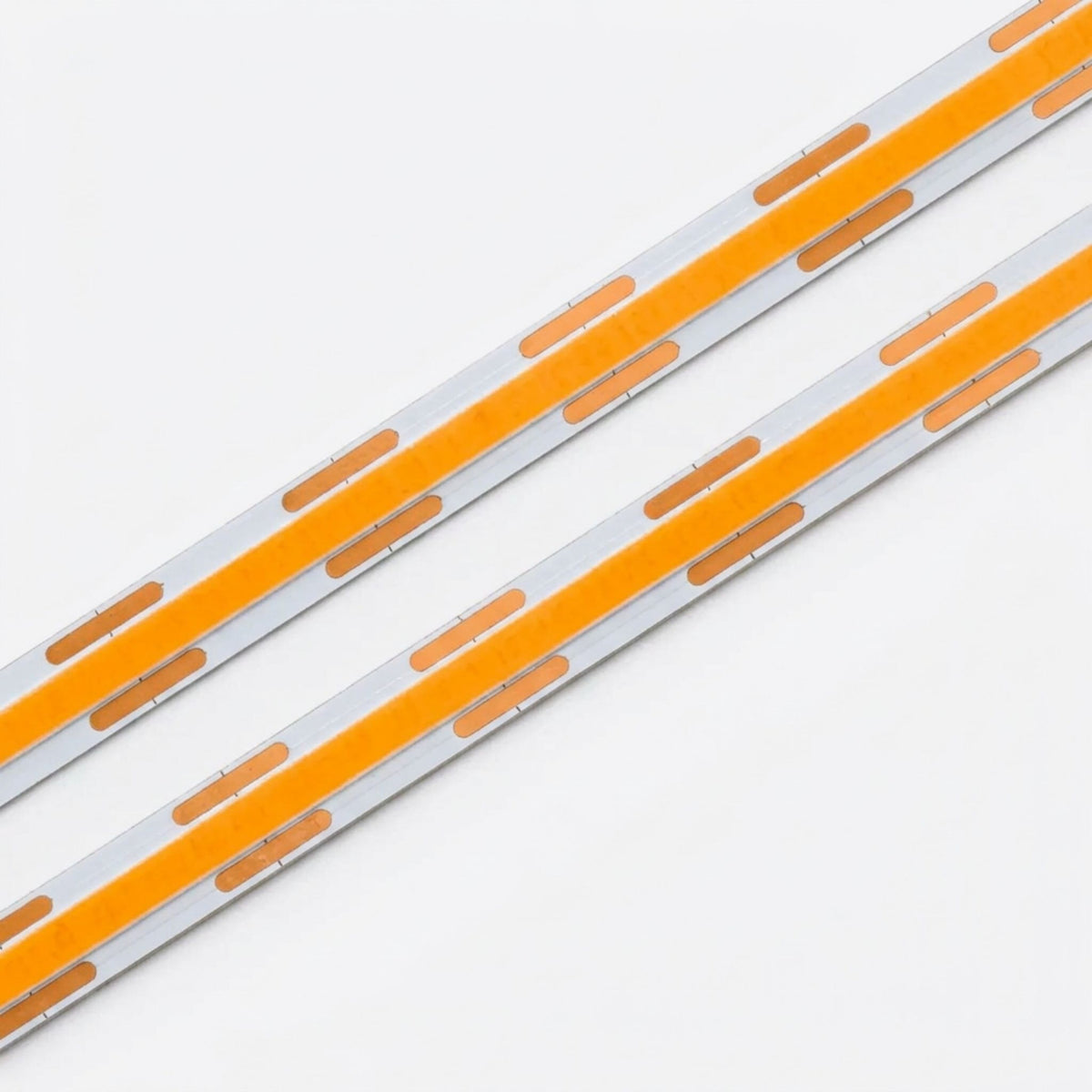

GM Lighting LTR-S Ultra SCOB LED Tape Light — 4000K & Uniform Illumination

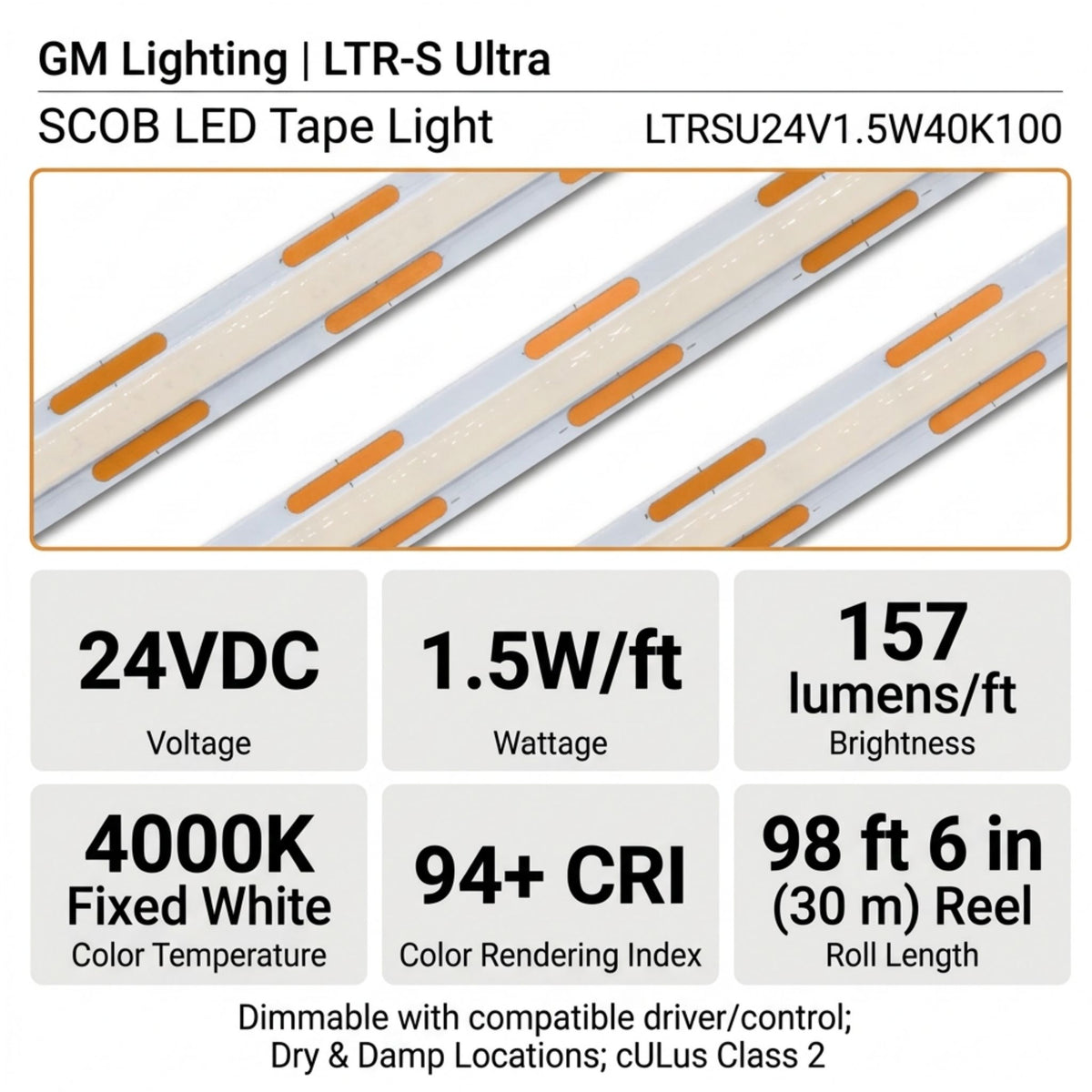

GM Lighting LTRSU24V1.5W40K100 is single-CCT SCOB LED tape for dry and damp locations. Supplied length: 98 ft 6 in (30 m). Power: 1.5W/ft at 24VDC. Output: 157 lumens/ft. Color temperature: 4000K. Maximum continuous run: 40 ft.
Key Features
- Color Rendering: 94+ CRI and R9 greater than 60 support accurate color rendering.
- Field Cutting: Cut only at marked 0.9 in increments.
- LED Density: The 1.5W/ft version uses 93 LEDs per foot.

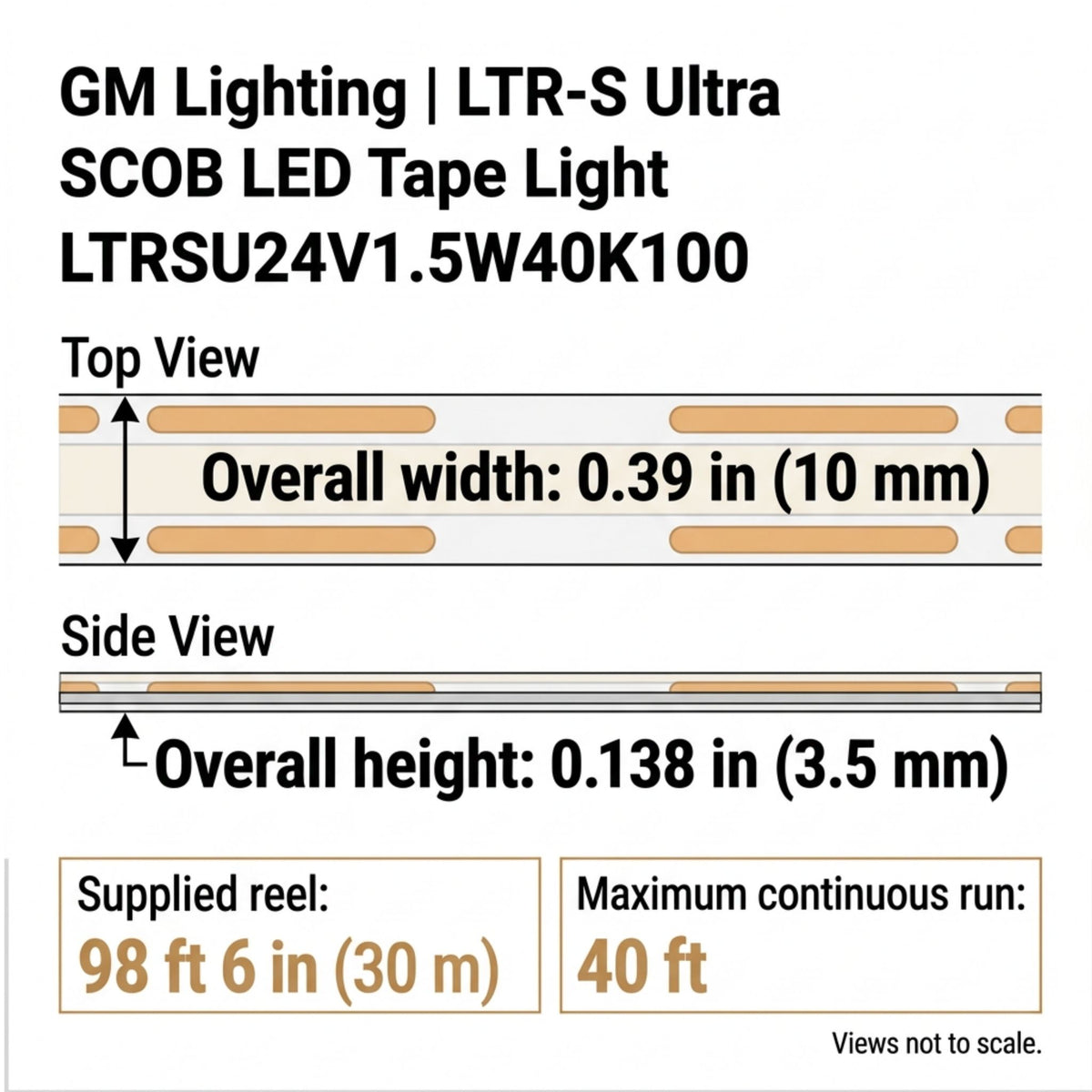

- Profile: Overall tape dimensions are 0.39 in wide by 0.138 in high.
- Mounting: VHB adhesive backing attaches the tape to a prepared mounting surface.
- Environment: Suitable for dry and damp locations, not exposure to water or steam.
- Certification: GM specifies cULus Class 2 certification.
- Connections: Approved LOC2 connectors provide tape-to-power and tape-to-tape connection options.
Core Design & Construction
White silicone gel supports uniform illumination from the SCOB construction. Manufacturer-listed compatible channels include LED-CHL-XD, LED-CHL-45 and LED-CHL-W families; use the documented channel and connector combinations rather than assuming fit from width alone.
LED Illumination & Performance
The fixed 4000K light engine combines SMD efficiency with COB-inspired uniformity. Rated output is 157 lumens per foot with 94+ CRI. This single-CCT version is not tunable-white or color-changing tape.
Power, Wiring & Installation

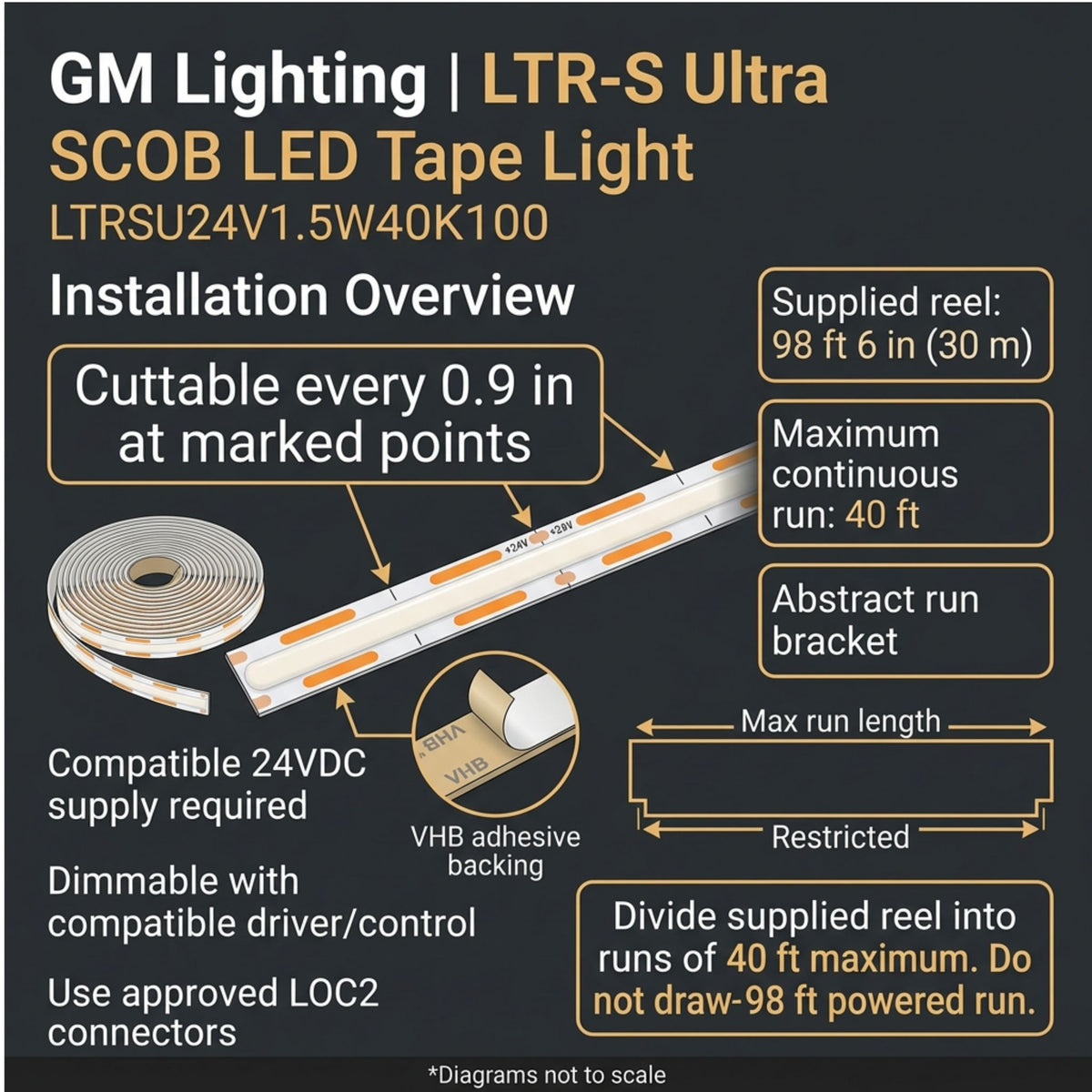

Requires a compatible 24VDC power supply; never connect directly to 120V. Recommended driver families include LD-XD-UNV, LD-XDWP, LD-MD-UNV, LD-EDM, LTP and PSD. Select the driver and dimming controls for the connected load. Observe the 40 ft maximum run and marked 0.9 in cut intervals. The supplied reel exceeds the maximum continuous run and must be divided into runs within that limit. Size wiring for voltage drop and follow GM installation instructions.
Where This Tape Works Best

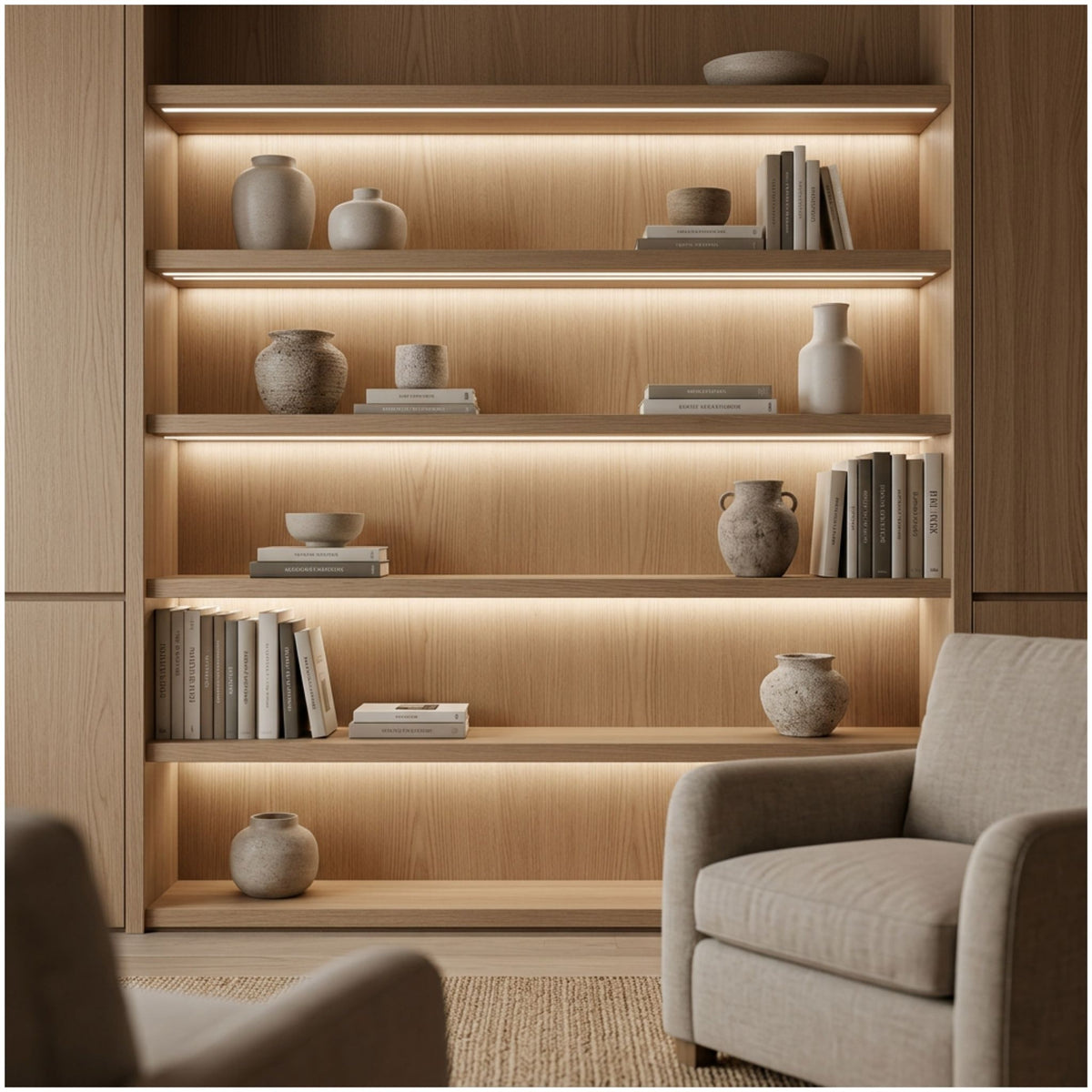

Manufacturer-supported applications include cabinets, shelving, coves and retail displays. Install only where tape is not exposed to water, steam or leaks.
What's Included
- One 98 ft 6 in reel of SCOB LED tape.
- One 60 in lead affixed to the tape.
- Seven LOC2-TP-60 tape-to-power connectors.
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
