GM Lighting LTR-S SPEC 16'-4' LED Tape Light, 4000K, 201 Lumens/ft, 12V
GM Lighting LTR-S SPEC 16'-4' LED Tape Light, 4000K, 201 Lumens/ft, 12V
In stock
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Voltage: Operates at 12V DC, ideal for low-voltage applications.
- Color Temperature: Emits a neutral white light at 4000K, perfect for task lighting.
- Max Run: Maximum continuous run of 16'-4' to prevent voltage drop.
- Cuttable: Field cuttable every 4' for custom installations.
- CRI: High color rendering index of 90+ for accurate color representation.
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
GM Lighting LTR-S SPEC LED Tape Light — 4000K & Twist-Task

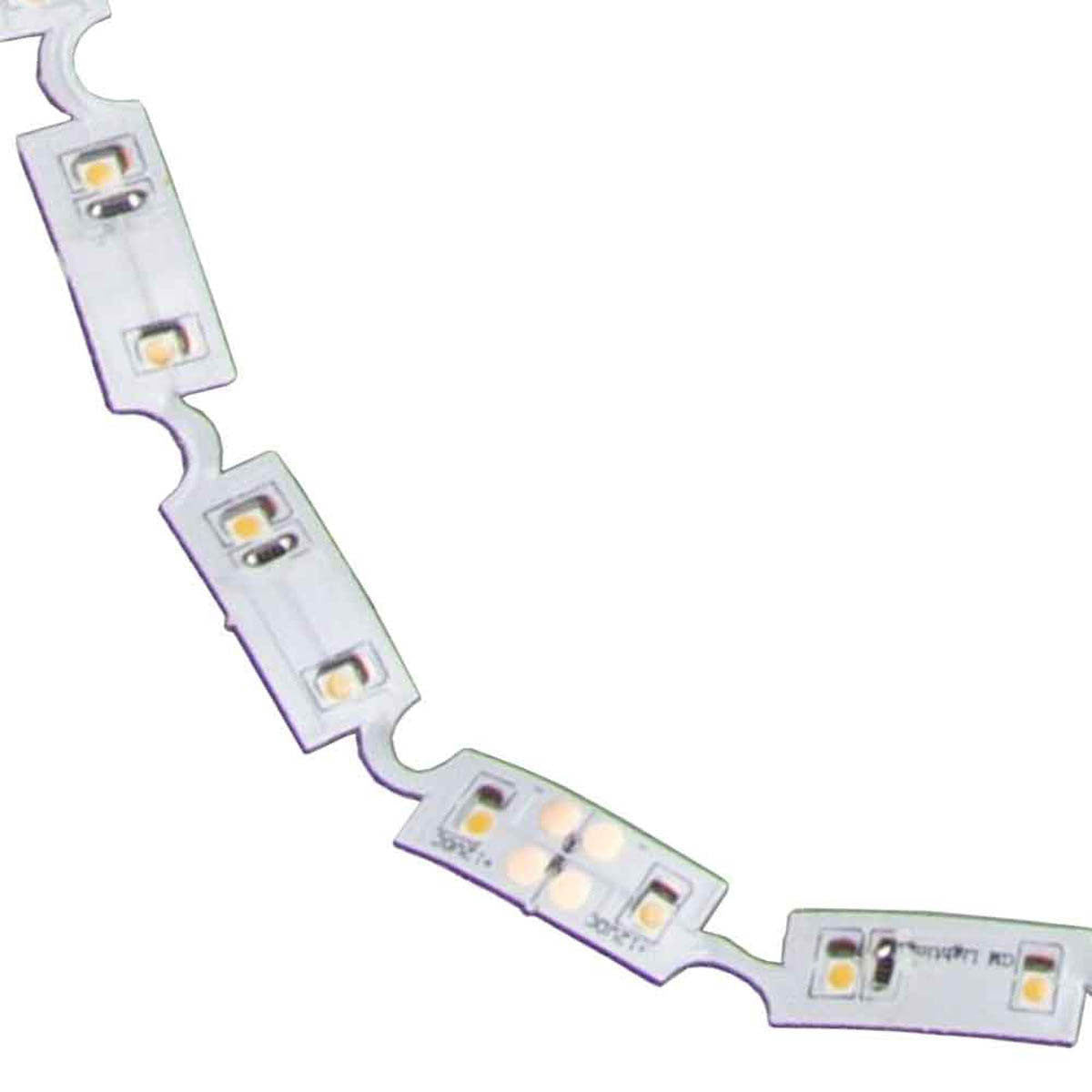

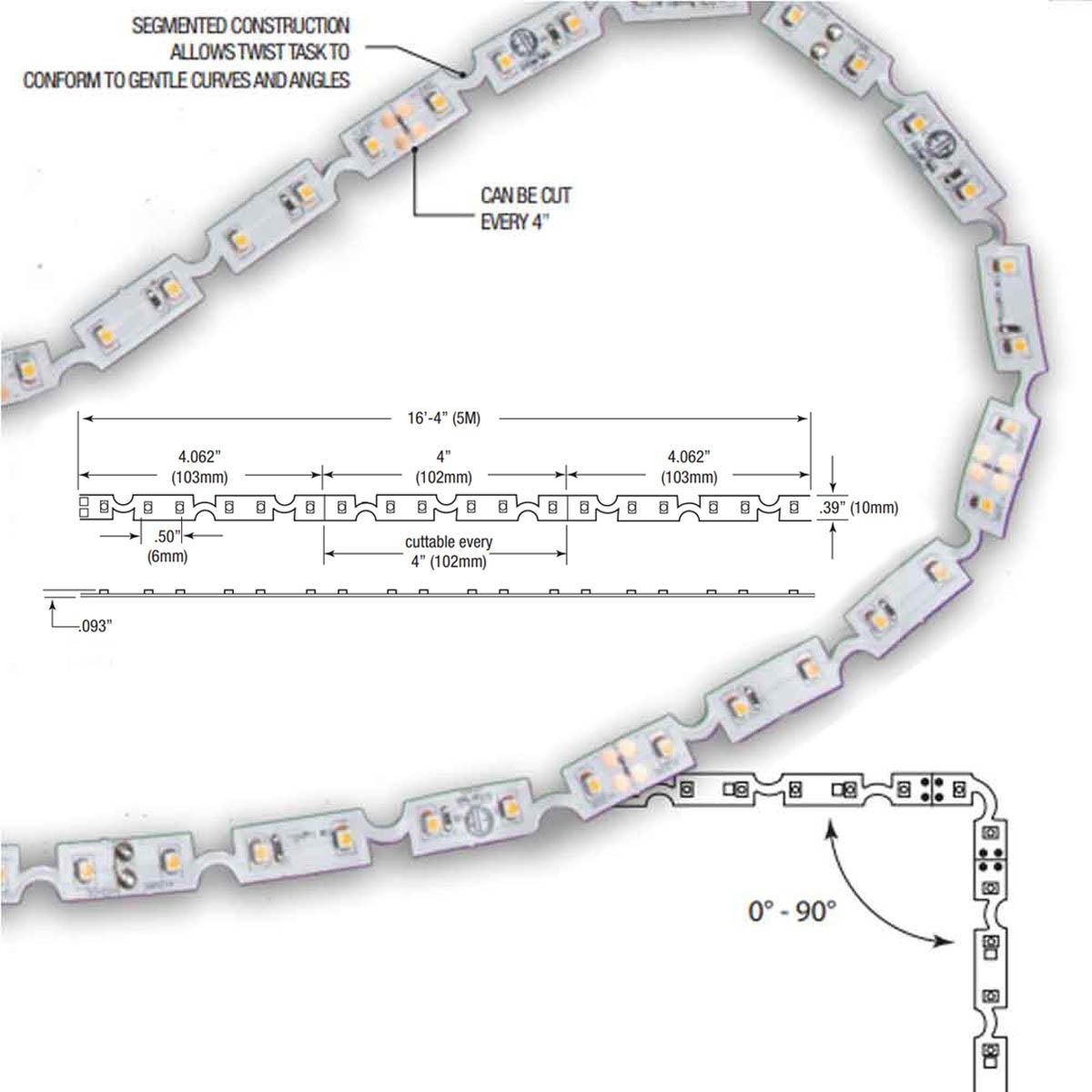

The GM Lighting LTR-S-TW-12V-2.2W-40K-16 is a 16'-4' LED tape light designed for dry locations. This tape light operates at 12V DC and features a segmented construction that allows it to conform to curves and angles, making it ideal for versatile installations. With a color temperature of 4000K, it provides a neutral white light suitable for various applications.
Key Features
- Voltage: 12V DC for low-voltage applications.
- Wattage: 2.2 watts per foot for efficient energy use.
- Lumens: 201 lumens per foot for bright illumination.
- LEDs: Premium 2835 diodes for consistent light output.
- Max Run: 16'-4' maximum run length to prevent voltage drop.
- Cuttable: Every 4' for custom lengths.
- PCB Width: 10mm for compatibility with standard channels.
- Beam Angle: 120° for wide light distribution.
- IP Rating: Dry location rated.
- Certifications: UL, Title 24 compliant.
Core Design & Construction
The tape light features a 10mm wide PCB, ensuring compatibility with standard aluminum channels. It includes a 3M adhesive backing for easy installation and is designed for dry locations.
LED Illumination & Performance
With 201 lumens per foot and a CRI of 90+, this tape light provides high-quality illumination with accurate color rendering. The light engine uses premium 2835 diodes for consistent performance.
Power, Wiring & Installation
This tape light requires a 12V DC power supply and is field cuttable every 4'. It supports dimming for adjustable light levels and has a maximum continuous run of 16'-4'.

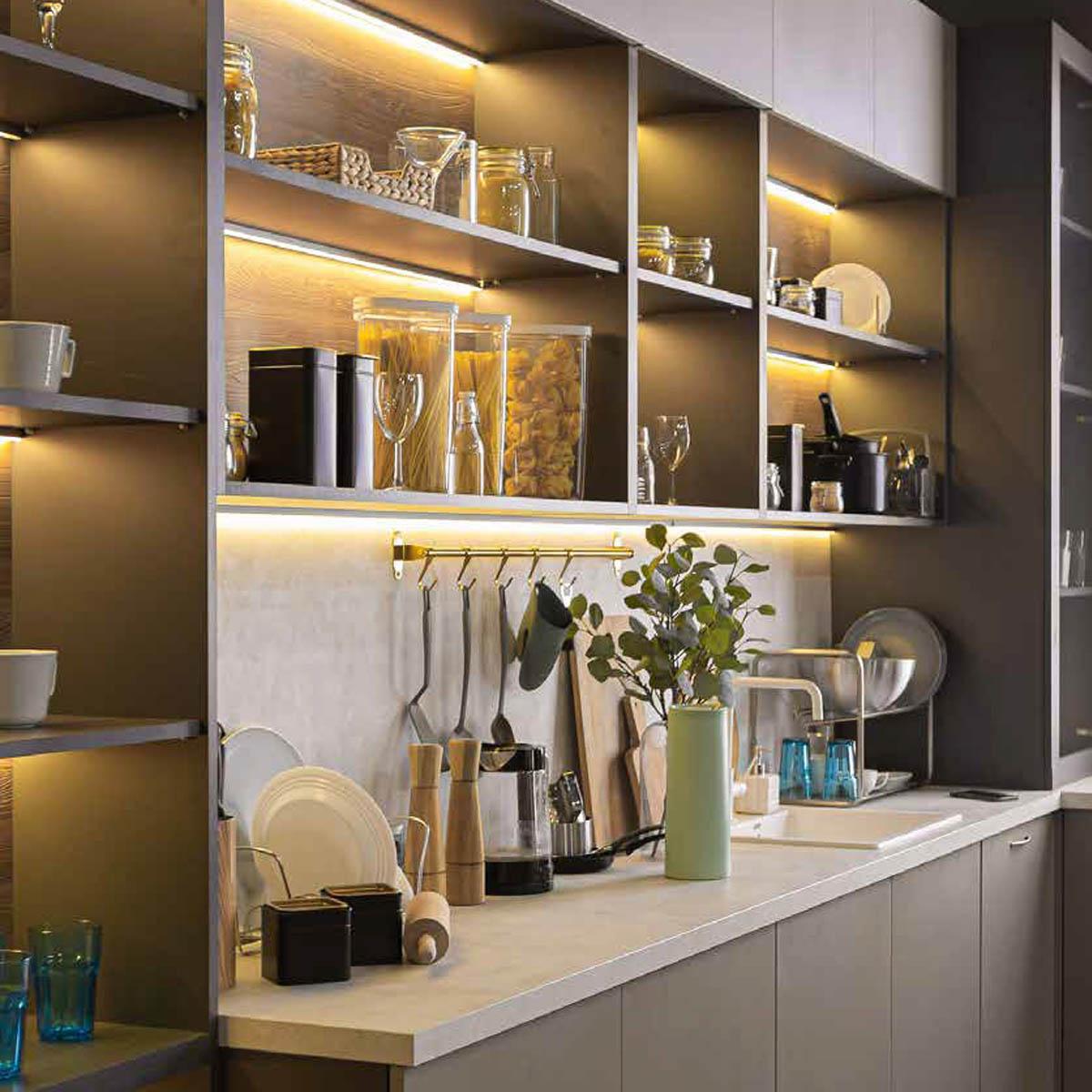

Where This Tape Works Best
- Under cabinet lighting
- Accent lighting
- Display case lighting
- Task lighting in closets
What's Included
- 16'-4' LED tape light spool
- 48' lead affixed to tape
- (3) ESTW-60 Sure-Tite connectors
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What is the maximum run length for the LTR-S-TW-12V-2.2W-40K-16?
What is the maximum run length for the LTR-S-TW-12V-2.2W-40K-16?
How often can the tape light be cut?
How often can the tape light be cut?
What voltage is required for the LTR-S-TW-12V-2.2W-40K-16?
What voltage is required for the LTR-S-TW-12V-2.2W-40K-16?
Is the LTR-S-TW-12V-2.2W-40K-16 dimmable?
Is the LTR-S-TW-12V-2.2W-40K-16 dimmable?
What is the width of the PCB for channel compatibility?
What is the width of the PCB for channel compatibility?
