GM Lighting LTR-S SPEC 16'-4' LED Tape Light, 3000K, 192 Lumens/ft, 12V
In stock
About this item
About this item
- Color Temperature: Delivers a warm 3000K light ideal for ambient settings.
- Voltage: Operates on 12V DC, requiring a compatible power supply.
- Max Run: Supports a continuous run of up to 16'-4' to cover extensive areas.
- Cuttable Increments: Can be cut every 4' for customized installations.
- CRI: High color rendering index of 90+ for accurate color representation.
We process payments securely and do not store credit card information.
Description
Description
GM Lighting LTR-S SPEC LED Tape Light — 3000K & Twist-Task
The GM Lighting LTR-S-TW-12V-2.2W-30K-16 LED Tape Light is a versatile lighting solution designed for intricate installations. This 16'-4' tape light operates at 12V DC and is dry rated, making it suitable for indoor applications.
Key Features
- Voltage: 12V DC for low-voltage applications.
- Wattage: Consumes 2.2 watts per foot.
- Lumens: Provides 192 lumens per foot for bright illumination.
- LEDs per Foot: Features premium 2835 diodes.
- Max Run: Maximum continuous length of 16'-4'.
- Cuttable: Field cuttable every 4' for custom lengths.
- PCB Width: 10mm for compatibility with standard channels.
- Beam Angle: 120° for wide light distribution.
- IP Rating: IP20, suitable for dry locations.
- Certifications: UL listed and Title 24 compliant.
Core Design & Construction

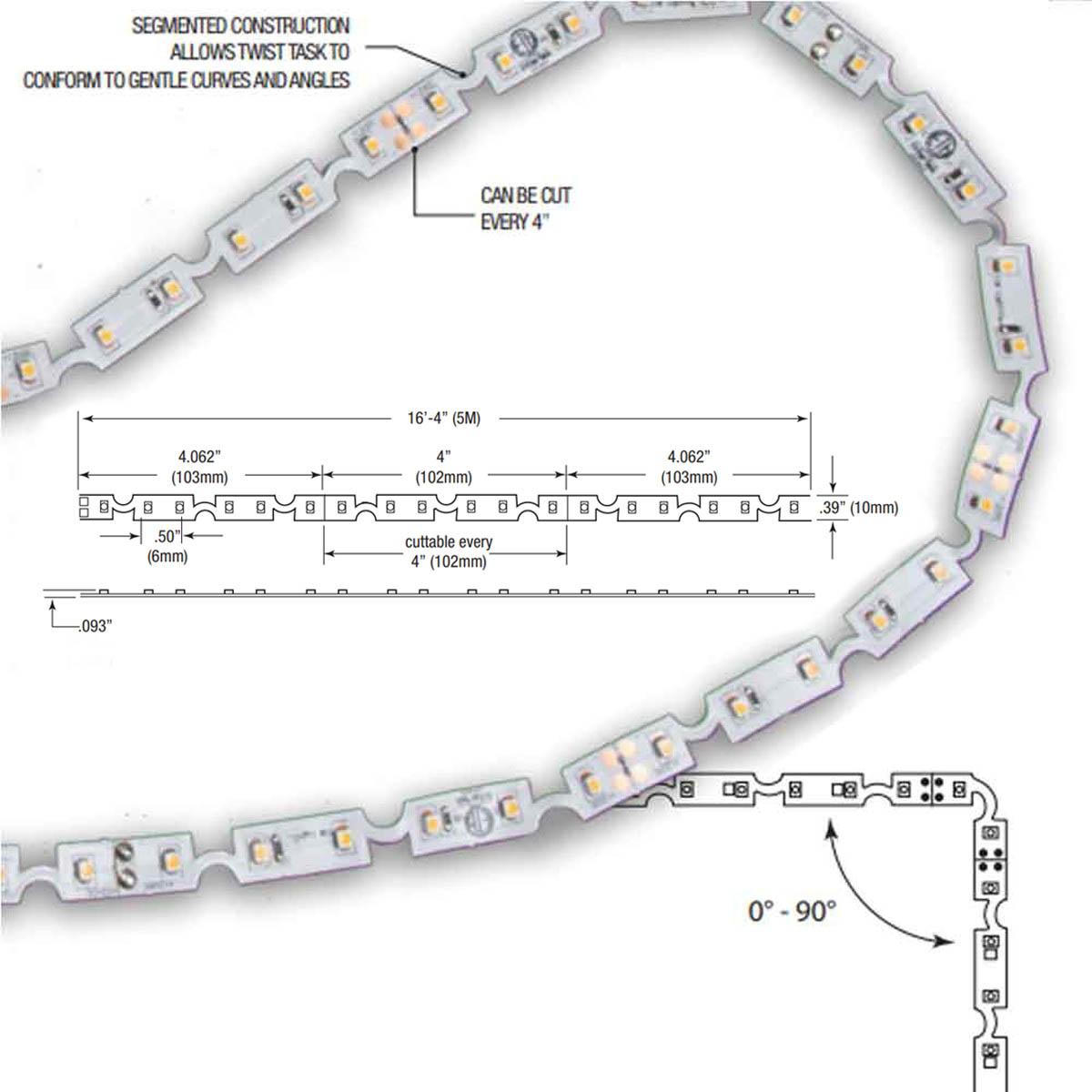

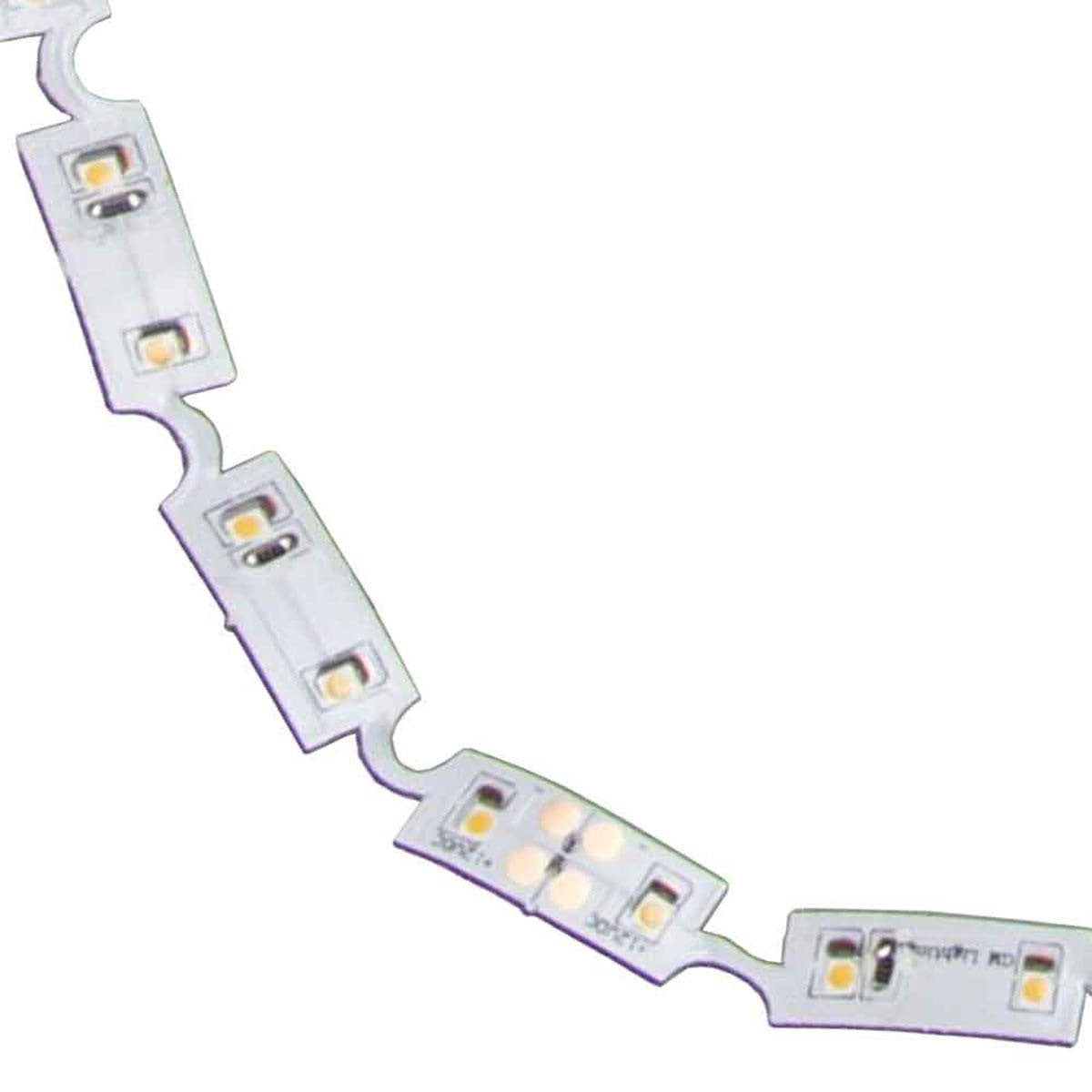

Constructed with a 10mm PCB, this tape light includes a 3M adhesive backing for easy mounting. Its segmented design allows it to conform to curves and angles, enhancing its versatility in various installations.
LED Illumination & Performance
With a high CRI of 90+, this tape light ensures excellent color accuracy. The 3000K color temperature provides a warm, inviting glow, ideal for residential and commercial spaces.
Power, Wiring & Installation
This tape light requires a 12V DC power supply, sold separately. It is dimmable and can be cut every 4' to fit specific installation needs. Ensure the maximum run does not exceed 16'-4' to prevent voltage drop.
Where This Tape Works Best
- Cove lighting

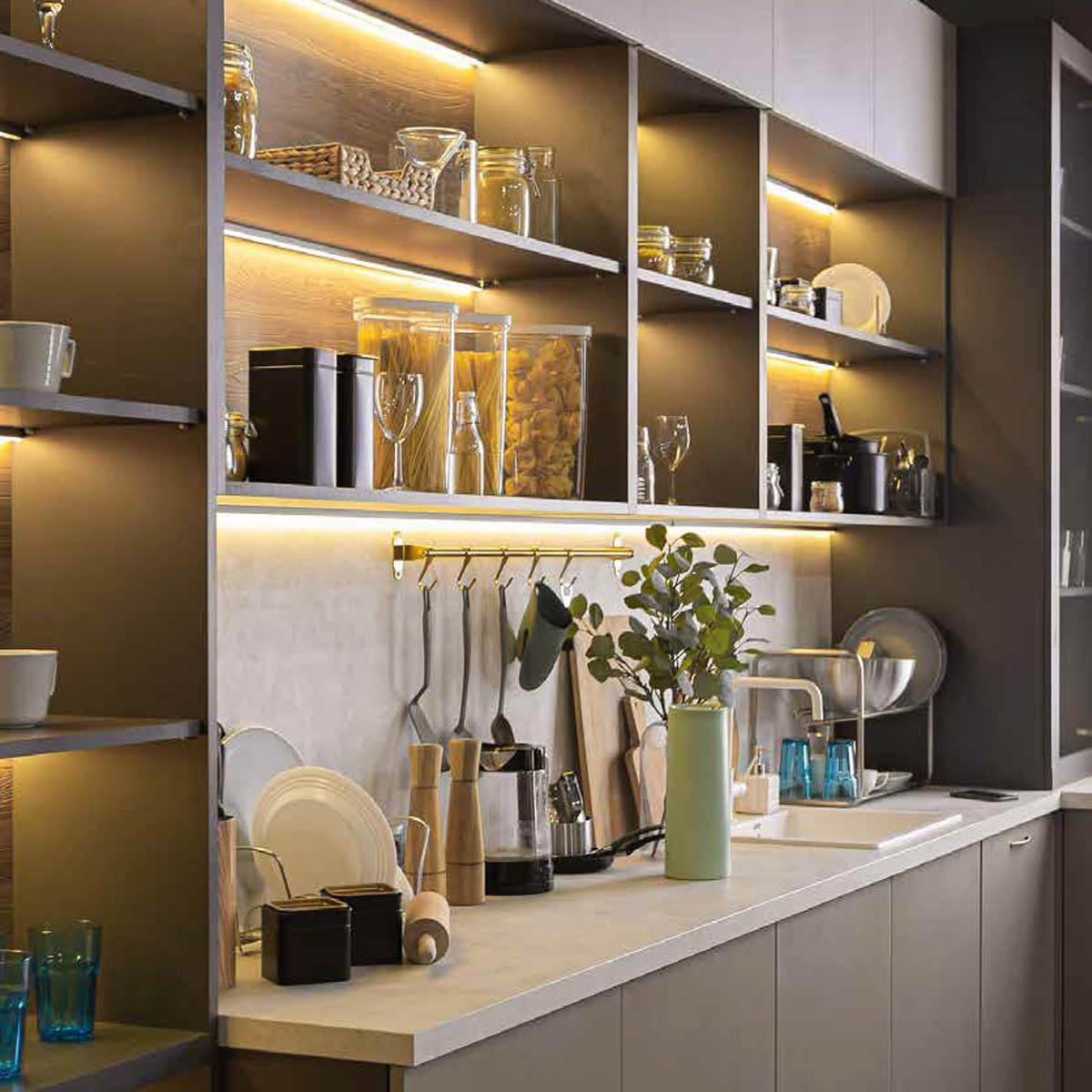

- Under cabinet lighting

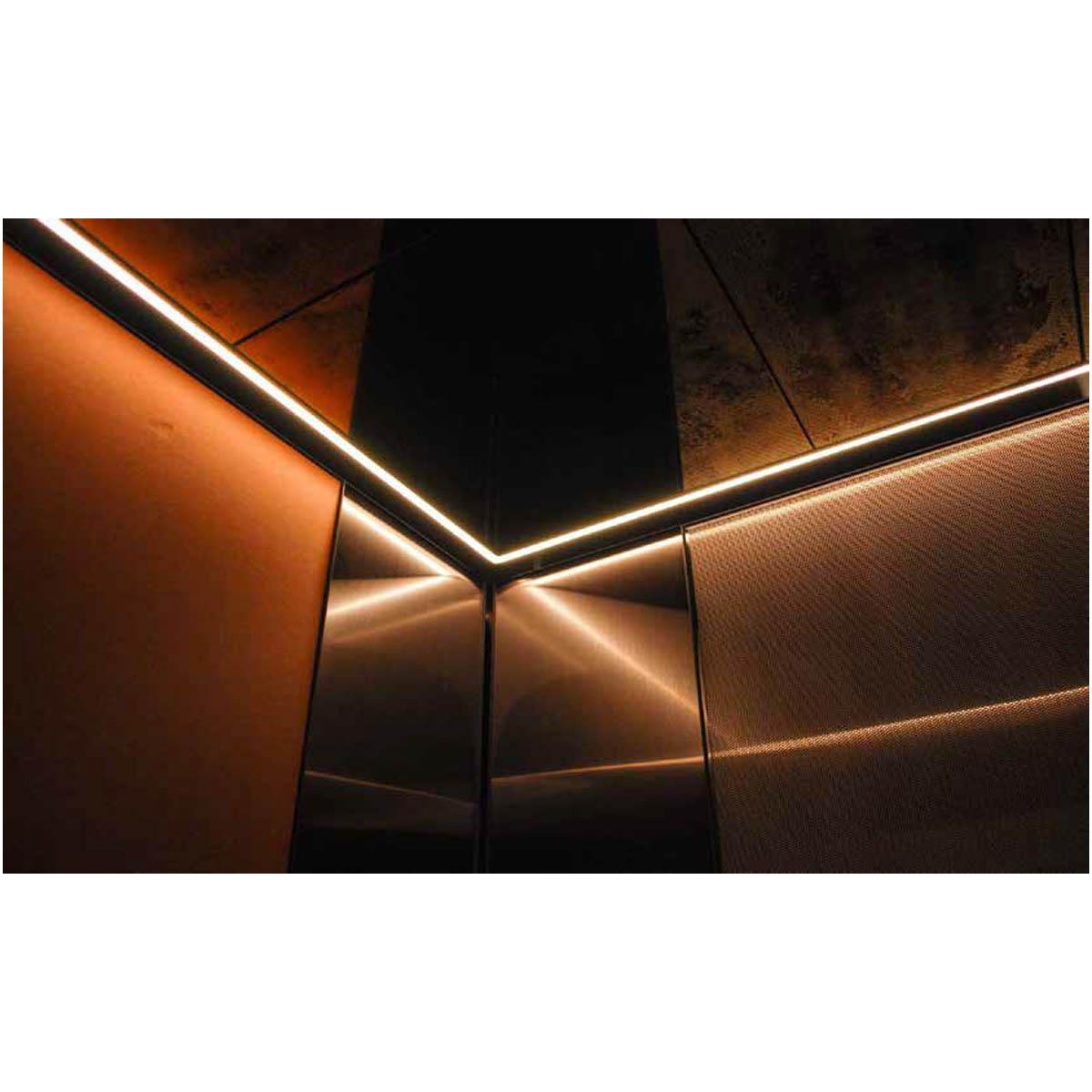

- Accent lighting
- Display case lighting
What's Included
- 16'-4' LED tape light spool
- 48' lead affixed to tape
- (3) ESTW-60 Sure-Tite connectors
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the LTR-S-TW-12V-2.2W-30K-16?
What is the maximum run length for the LTR-S-TW-12V-2.2W-30K-16?
How often can the tape light be cut?
How often can the tape light be cut?
What voltage is required for this LED tape light?
What voltage is required for this LED tape light?
Is this tape light dimmable?
Is this tape light dimmable?
What is the width of the PCB for this tape light?
What is the width of the PCB for this tape light?
