GM Lighting LTR-S SPEC 16'-4" LED Tape Light, Tunable White, 415 Lumens/ft, 24V
In stock
About this item
About this item
- Voltage: Operates at 24V for efficient power consumption.
- CCT Range: Tunable white from 2400K to 5000K for customizable ambiance.
- Max Run: Maximum continuous run of 16'-4" to prevent voltage drop.

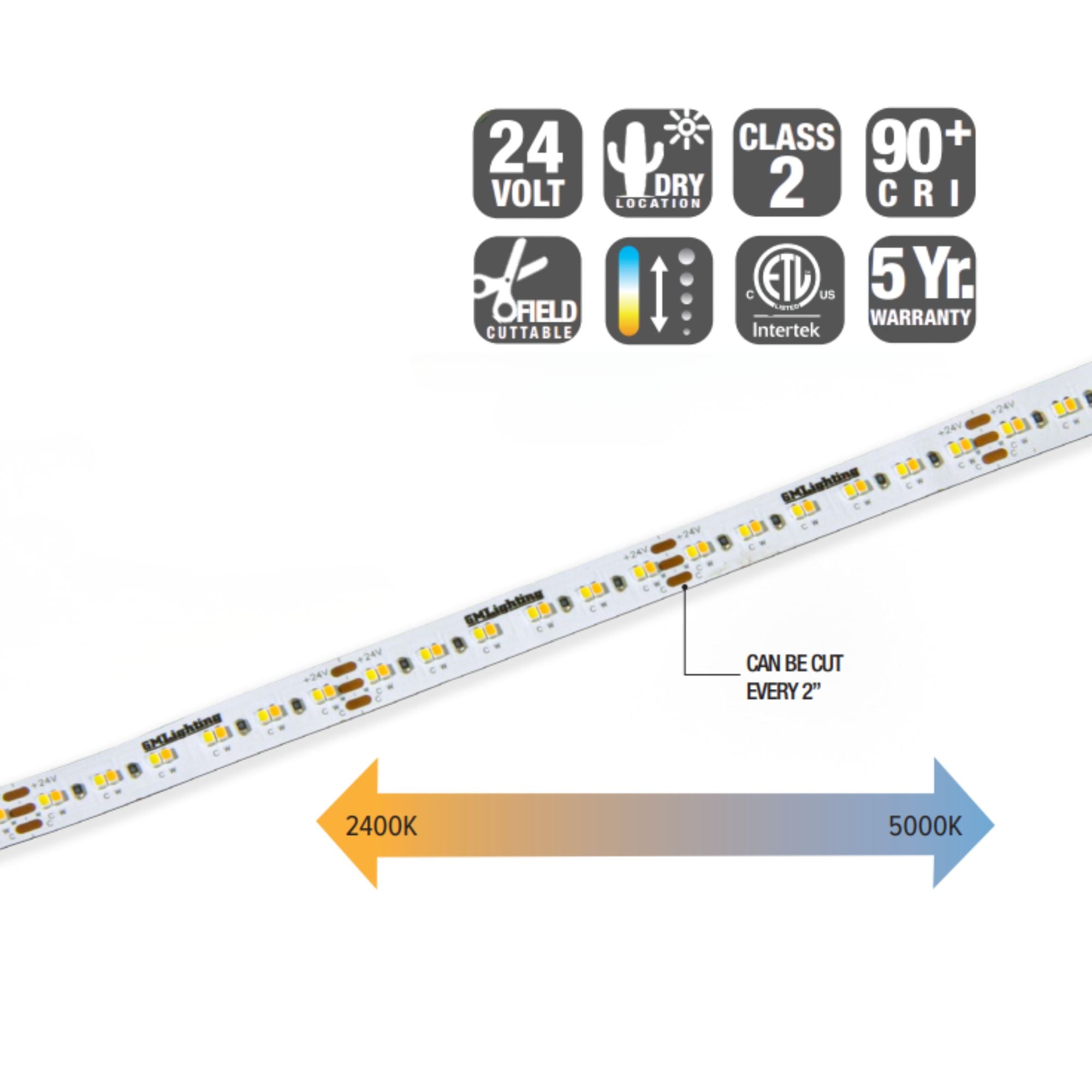

- Cuttable: Field cuttable every 2" for precise installations.
- CRI: 90+ CRI ensures high-quality color rendering.
We process payments securely and do not store credit card information.
Description
Description
GM Lighting LTR-S SPEC LED Tape Light — Tunable White & Versatile Design

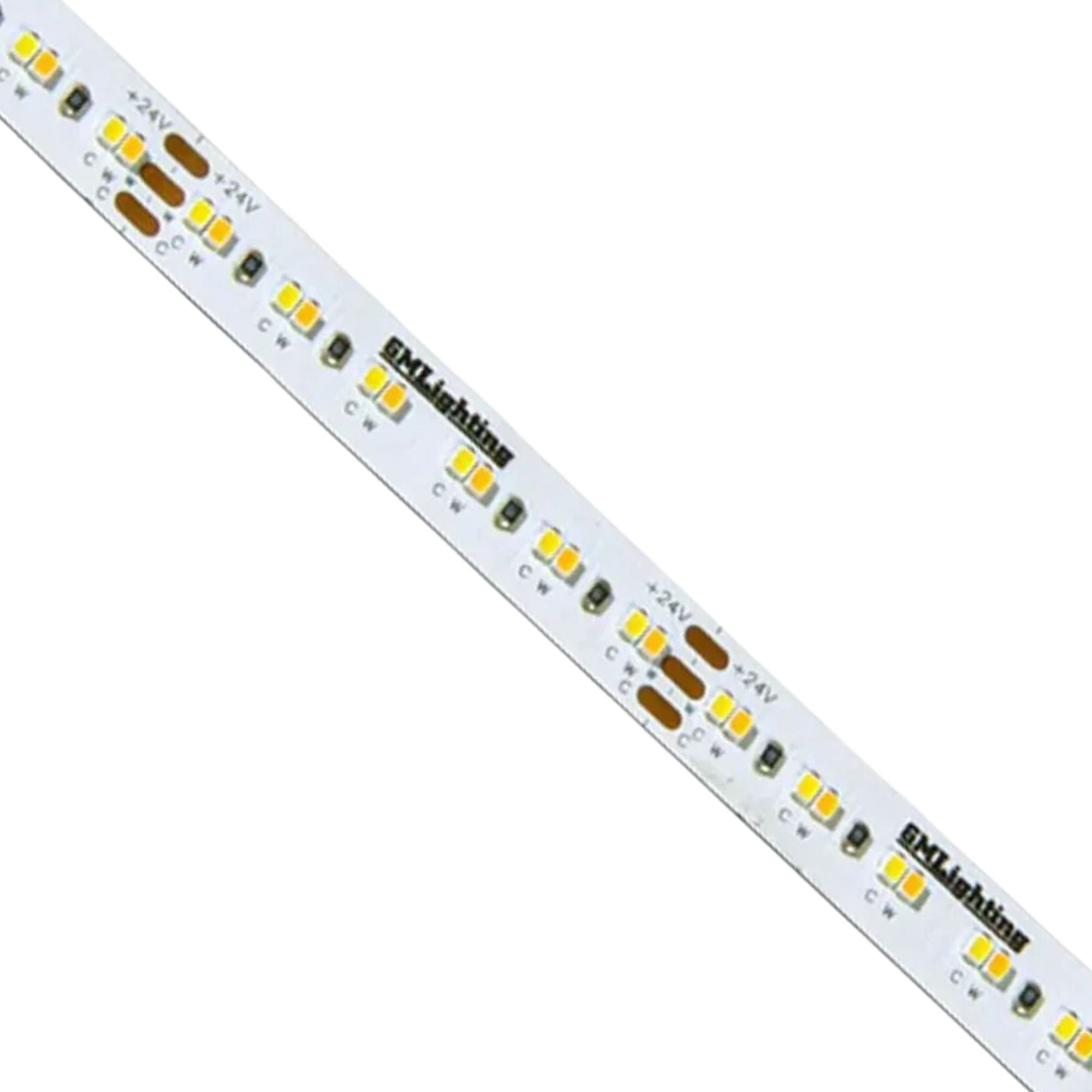

The GM Lighting LTR-S-TUN-24V-5.0W-16 is a 16'-4" LED tape light featuring tunable white technology, allowing adjustments from 2400K to 5000K. This tape light operates at 24V, making it suitable for dry indoor environments.
Key Features
- Voltage: 24V DC operation for consistent performance.
- Wattage: 5W per foot for bright illumination.
- Lumens: 415 lumens per foot at 3500K.
- LED Density: High-density LEDs for uniform light distribution.
- Max Run: 16'-4" maximum run length to prevent voltage drop.
- Cut Increments: Cuttable every 2" for custom lengths.

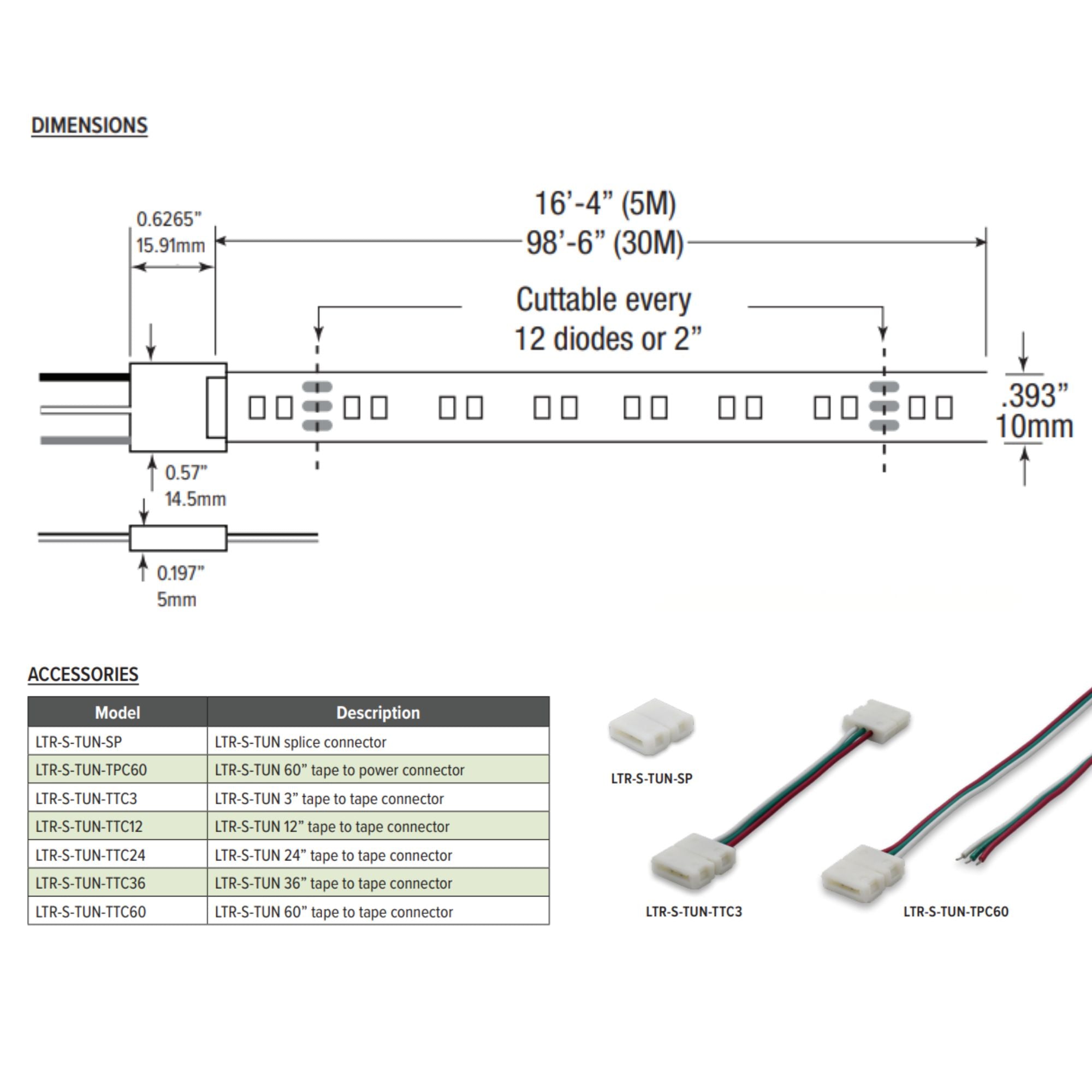

- PCB Width: 10mm for compatibility with standard channels.
- Beam Angle: 120° for wide light dispersion.
- IP Rating: IP20, suitable for dry locations.
- Certifications: ETL and Title 24 compliant.
Core Design & Construction
The tape light features a 10mm wide PCB, compatible with various aluminum channels. It includes a 3M VHB adhesive backing for secure mounting in dry environments.
LED Illumination & Performance
With 415 lumens per foot and a 90+ CRI, this LED tape light provides vibrant and accurate color rendering. The tunable white feature allows for a dynamic range of color temperatures.
Power, Wiring & Installation
This 24V tape light requires a compatible driver (sold separately). It is field-cuttable every 2" and supports dimming down to 0.1% with compatible systems.
Where This Tape Works Best

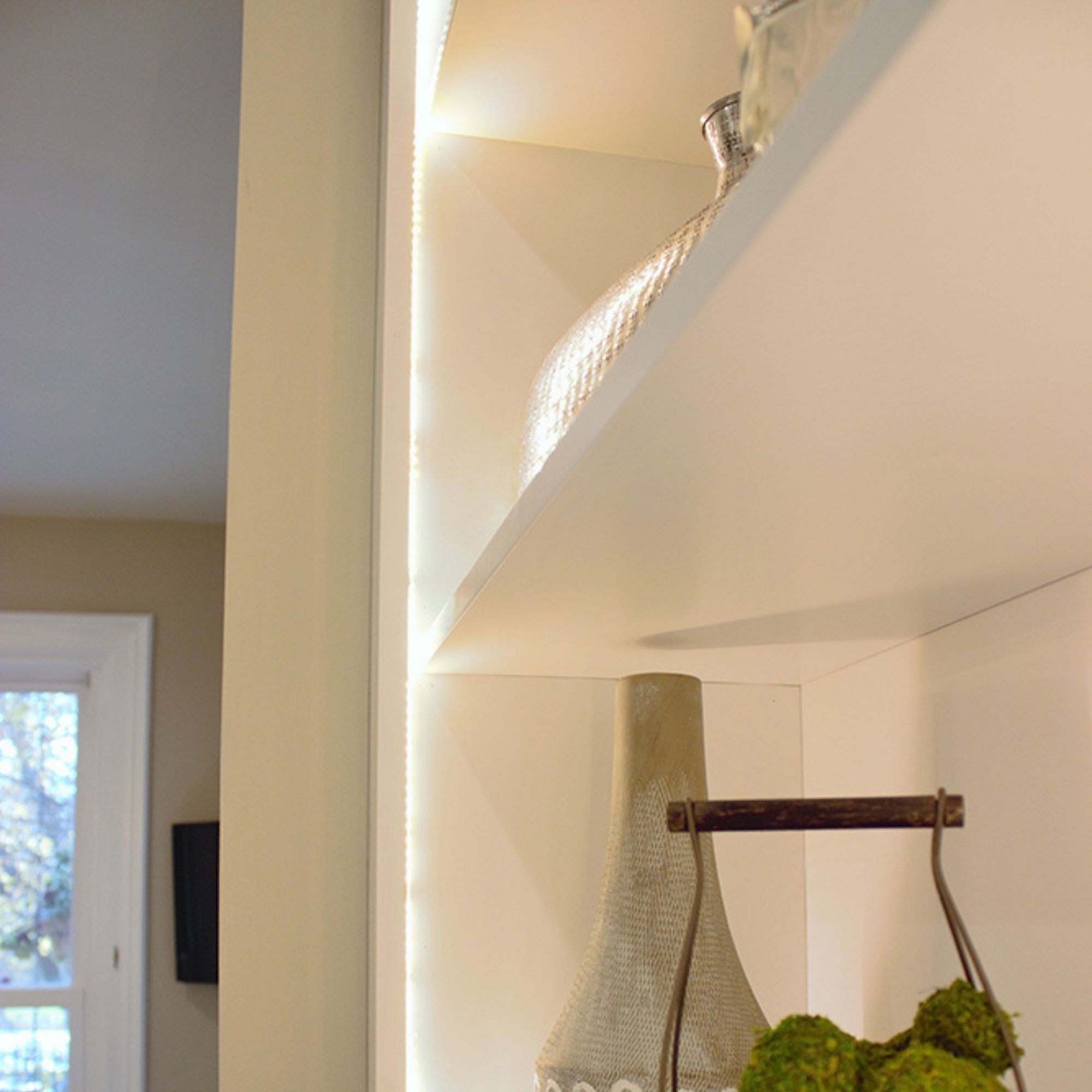

- Under cabinet lighting
- Cove lighting
- Accent lighting
- Display case lighting
- Architectural lighting
What's Included
- 16'-4" LED tape light spool
- 48" lead affixed at the start of the reel
Specifications
